◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11294 - EXZ RHD EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#69482) — 139 parça

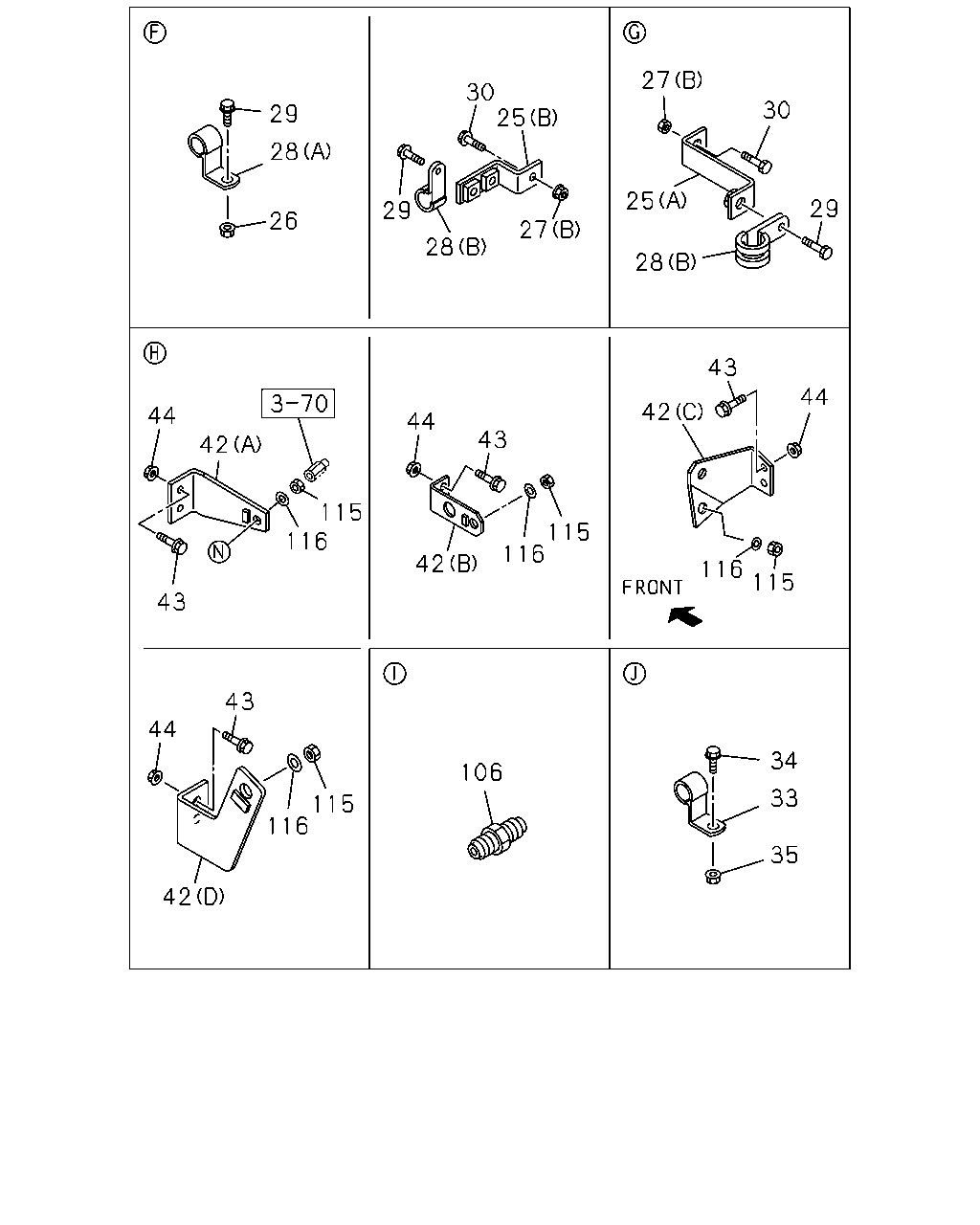

çizim 102397
30 29 27 25 28 43 44 42 116 115 34 33 35 106 115 116 42 44 43 43 116 42 115 44 44 42 116 43 115 28 29 27 25 30 29 26 28
BalonParca AdiParca NoAdetTipApplied Date
25 BRACKET; OIL PIPE
(B) 		1-47479-482-0 01 1 1303-
25 BRACKET; OIL PIPE
(A) 		1-46147-101-0 01 1 1009-
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 02 1 1009-1302
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 01 1 1303-
27 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 1009-1302
27 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 1303-
27 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 02 1 1009-
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 1009-
28 CLIP; OIL PIPE
(B) ID=9 L=20 		0-95234-835-0 02 1 1009-
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 01 1 1009-
29 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 02 1 1009-
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28650-830-0 01 1 1009-1302
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1303-
30 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1009-1302
30 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1303-
33 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 04 1 1009-
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 04 1 1009-
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 04 1 1009-
42 BRACKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		8-97645-645-0 01 1 1303-1305
42 BRACKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) 		1-47479-812-0 01 1 1306-1309
42 BRACKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL CABLE TYPE(C1A) (D) 		8-98251-782-0 01 1 1310-
42 BRACKET; FLEX HOSE,CLU CONT
SMOOTHER-G(C1W) (B) 		1-47471-236-0 01 1 1303-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE 		0-28650-835-0 02 1 1303-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 1303-
106 UNION; OIL PIPE
M14 STRAIGHT 		0-92113-008-0 01 1 1009-
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1009-
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 1009-

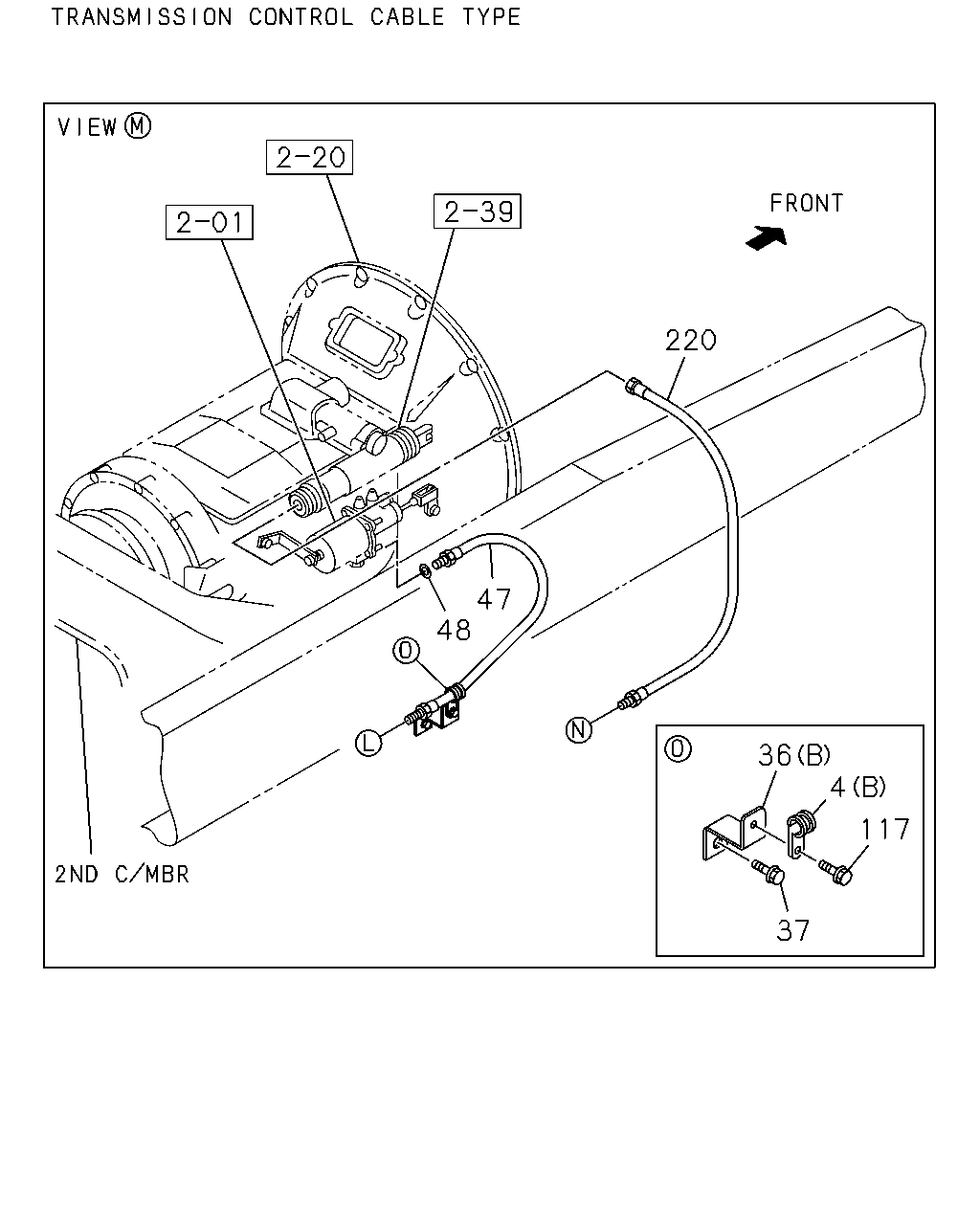

çizim 102399
36 4 117 37 47 48 220
BalonParca AdiParca NoAdetTipApplied Date
4 CLIP; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=16 L=28 		1-09700-872-0 01 1 1303-
4 CLIP; FLEX HOSE,CLU CONT
(A) ID=16 H=25 L=25 		1-09701-162-0 01 1 1009-1302
4 CLIP; FLEX HOSE,CLU CONT
SMOOTHER-G(C1W) (A) ID=16 H=25 L=25 		1-09701-162-0 01 1 1303-
36 BRACKET; CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=60 		8-98162-941-0 01 1 1303-
36 BRACKET; CLIP
(B) 		1-47475-689-0 01 1 1009-1302
36 BRACKET; CLIP
SMOOTHER-G(C1W) (B) 		1-47475-689-0 01 1 1303-
36 BRACKET; CLIP
(A) 		1-71117-191-1 01 1 1009-
37 BOLT; CLIP BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X16 FLANGE 		0-28050-816-0 01 1 1303-
37 BOLT; CLIP BRKT
M10X20 FLANGE 		0-28151-020-0 01 1 1009-1302
37 BOLT; CLIP BRKT
SMOOTHER-G(C1W) M10X20 FLANGE 		0-28151-020-0 01 1 1303-
47 HOSE; FLEX,CLU CONT
TRANSMISSION CONTROL CABLE TYPE(C1A) L=620 		8-98240-597-0 01 1 1303-1305
47 HOSE; FLEX,CLU CONT
TRANSMISSION CONTROL CABLE TYPE(C1A) L=550 		1-09364-434-0 01 1 1306-1309
47 HOSE; FLEX,CLU CONT
TRANSMISSION CONTROL CABLE TYPE(C1A) L=600 		1-09364-705-0 01 1 1310-
47 HOSE; FLEX,CLU CONT
L=650 		1-09364-694-0 01 1 1009-1302
47 HOSE; FLEX,CLU CONT
SMOOTHER-G(C1W) L=650 		1-09364-694-0 01 1 1303-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1009-
117 BOLT; CLIP,FLEX HOSE
M8X16 FLANGE 		0-28050-816-0 01 1 1009-
220 HOSE; FLEX,POWER ASSIST
TRANSMISSION CONTROL CABLE TYPE(C1A) L=320 		1-09363-625-0 01 1 1303-

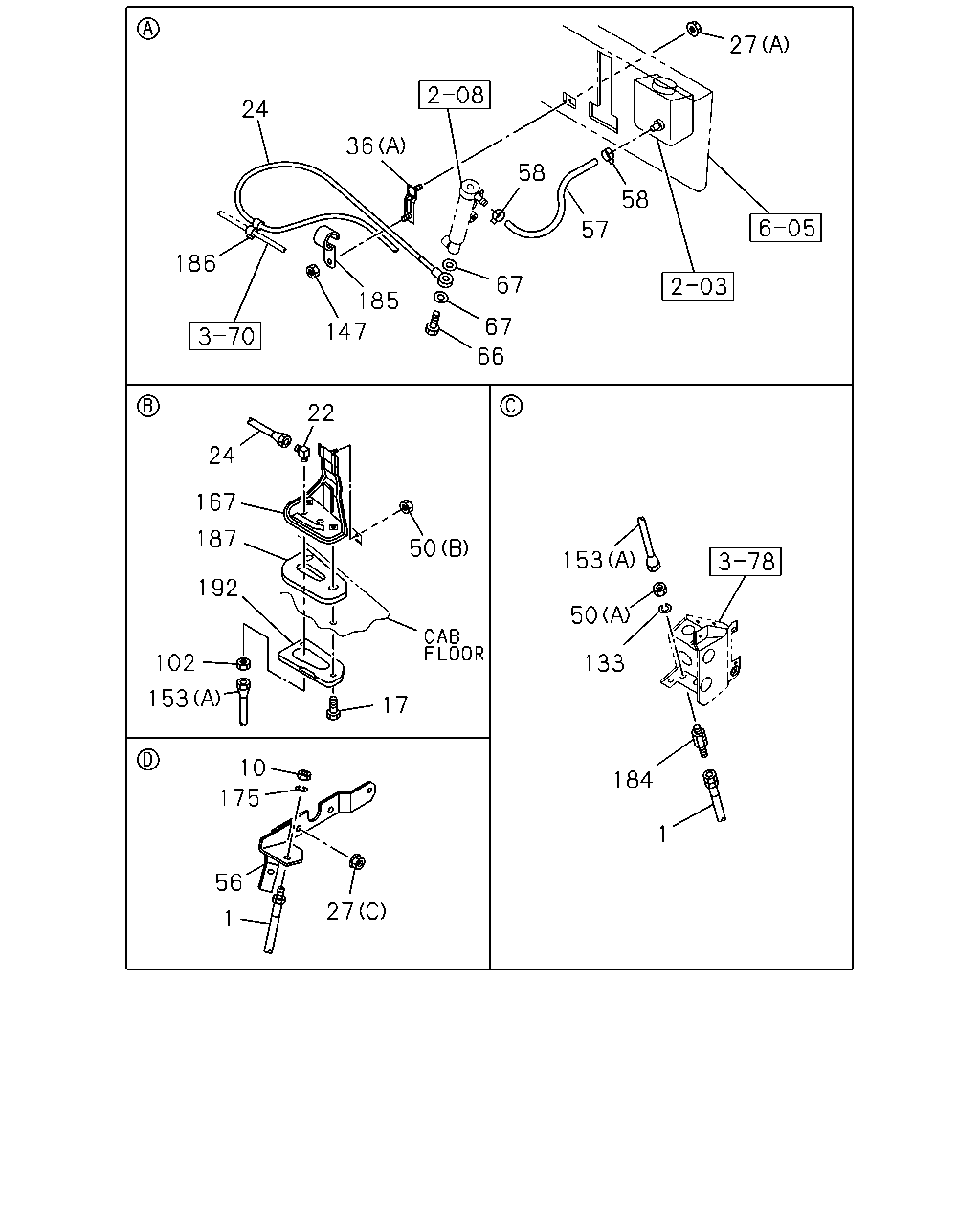

çizim 102570
27 58 57 58 67 67 36 24 186 185 147 66 22 24 187 192 167 50 17 153 102 10 175 56 1 27 184 1 133 50 153
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,CLU CONT
L=520 		8-98072-340-0 01 1 1009-1302
1 HOSE; FLEX,CLU CONT
L=620 		8-98072-333-0 01 1 1303-
10 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1009-
17 BOLT; BRKT
M8X20 W/LK&PL WASHER 		8-94279-216-0 02 1 1009-
22 UNION; CLU PIPE
M14 ELBOW 		0-92125-208-0 01 1 1009-
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 1009-
27 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 1009-1302
27 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 1303-
27 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 02 1 1009-
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 1009-
36 BRACKET; CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=60 		8-98162-941-0 01 1 1303-
36 BRACKET; CLIP
(B) 		1-47475-689-0 01 1 1009-1302
36 BRACKET; CLIP
SMOOTHER-G(C1W) (B) 		1-47475-689-0 01 1 1303-
36 BRACKET; CLIP
(A) 		1-71117-191-1 01 1 1009-
50 NUT; UNION
(A) M14 		0-91111-514-0 01 1 1009-
50 NUT; UNION
(B) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1009-
56 BRACKET; FLEX HOSE
HONG KONG EQUIPMENT(PQ1) 		8-98151-406-1 01 1 1009-1302
56 BRACKET; FLEX HOSE 8-98151-406-1 01 1 1303-
56 BRACKET; FLEX HOSE
EXC. HONG KONG EQUIPMENT(PQ1) 		1-47471-200-0 01 1 1009-1302
57 HOSE; CLU M/CYL TO OIL TANK 1-47424-533-0 01 1 1009-
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 		8-94238-572-0 02 1 1009-
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		8-98037-827-0 01 1 1009-
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 1009-1312
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
102 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1009-
133 WASHER; LK,UNION
ID=14.2 		0-91510-514-0 01 1 1009-
147 NUT; CLIP FIX
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 1009-
153 PIPE ASM; CLU,UNION TO FLEX
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=2041 SERVICED BY L=2150 		1-47428-770-0 01 1 1303-1305
153 PIPE ASM; CLU,UNION TO FLEX
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=1954 SERVICED BY L=2150 		1-47428-770-0 01 1 1306-1309
153 PIPE ASM; CLU,UNION TO FLEX
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=1994 SERVICED BY L=2150 		1-47428-770-0 01 1 1310-
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=2069 SERVICED BY L=2150 		1-47428-770-0 01 1 1009-1110
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=2069 SERVICED BY L=2150 		1-47428-770-0 01 1 1111-1302
153 PIPE ASM; CLU,UNION TO FLEX
SMOOTHER-G(C1W) (B) L=2069 SERVICED BY L=2150 		1-47428-770-0 01 1 1303-
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=537 		8-98085-164-0 01 1 1009-
167 BRACKET; UNION 1-71117-183-3 01 1 1009-
175 WASER; LK,FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 1009-
184 UNION; FLEX HOSE
STRAIGHT 		1-09654-435-0 01 1 1009-
185 CLIP; BRKT
ID=9 L=20 		0-95405-308-0 01 1 1009-
186 HOLDER; CLIP 8-94107-710-0 02 1 1009-
187 SEAL; BRKT 1-71117-222-0 01 1 1009-
192 PLATE 1-71117-221-0 01 1 1009-
çizim 188863
47 48 4 117 37 36
BalonParca AdiParca NoAdetTipApplied Date
4 CLIP; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=16 L=28 		1-09700-872-0 01 1 1303-
4 CLIP; FLEX HOSE,CLU CONT
(A) ID=16 H=25 L=25 		1-09701-162-0 01 1 1009-1302
4 CLIP; FLEX HOSE,CLU CONT
SMOOTHER-G(C1W) (A) ID=16 H=25 L=25 		1-09701-162-0 01 1 1303-
36 BRACKET; CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=60 		8-98162-941-0 01 1 1303-
36 BRACKET; CLIP
(B) 		1-47475-689-0 01 1 1009-1302
36 BRACKET; CLIP
SMOOTHER-G(C1W) (B) 		1-47475-689-0 01 1 1303-
36 BRACKET; CLIP
(A) 		1-71117-191-1 01 1 1009-
37 BOLT; CLIP BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X16 FLANGE 		0-28050-816-0 01 1 1303-
37 BOLT; CLIP BRKT
M10X20 FLANGE 		0-28151-020-0 01 1 1009-1302
37 BOLT; CLIP BRKT
SMOOTHER-G(C1W) M10X20 FLANGE 		0-28151-020-0 01 1 1303-
47 HOSE; FLEX,CLU CONT
TRANSMISSION CONTROL CABLE TYPE(C1A) L=620 		8-98240-597-0 01 1 1303-1305
47 HOSE; FLEX,CLU CONT
TRANSMISSION CONTROL CABLE TYPE(C1A) L=550 		1-09364-434-0 01 1 1306-1309
47 HOSE; FLEX,CLU CONT
TRANSMISSION CONTROL CABLE TYPE(C1A) L=600 		1-09364-705-0 01 1 1310-
47 HOSE; FLEX,CLU CONT
L=650 		1-09364-694-0 01 1 1009-1302
47 HOSE; FLEX,CLU CONT
SMOOTHER-G(C1W) L=650 		1-09364-694-0 01 1 1303-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1009-
117 BOLT; CLIP,FLEX HOSE
M8X16 FLANGE 		0-28050-816-0 01 1 1009-
çizim 188864
24 153 167 56 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,CLU CONT
L=520 		8-98072-340-0 01 1 1009-1302
1 HOSE; FLEX,CLU CONT
L=620 		8-98072-333-0 01 1 1303-
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 1009-
56 BRACKET; FLEX HOSE
HONG KONG EQUIPMENT(PQ1) 		8-98151-406-1 01 1 1009-1302
56 BRACKET; FLEX HOSE 8-98151-406-1 01 1 1303-
56 BRACKET; FLEX HOSE
EXC. HONG KONG EQUIPMENT(PQ1) 		1-47471-200-0 01 1 1009-1302
153 PIPE ASM; CLU,UNION TO FLEX
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=2041 SERVICED BY L=2150 		1-47428-770-0 01 1 1303-1305
153 PIPE ASM; CLU,UNION TO FLEX
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=1954 SERVICED BY L=2150 		1-47428-770-0 01 1 1306-1309
153 PIPE ASM; CLU,UNION TO FLEX
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=1994 SERVICED BY L=2150 		1-47428-770-0 01 1 1310-
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=2069 SERVICED BY L=2150 		1-47428-770-0 01 1 1009-1110
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=2069 SERVICED BY L=2150 		1-47428-770-0 01 1 1111-1302
153 PIPE ASM; CLU,UNION TO FLEX
SMOOTHER-G(C1W) (B) L=2069 SERVICED BY L=2150 		1-47428-770-0 01 1 1303-
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=537 		8-98085-164-0 01 1 1009-
167 BRACKET; UNION 1-71117-183-3 01 1 1009-
çizim 188865
104 153
BalonParca AdiParca NoAdetTipApplied Date
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1424 SERVICED BY L=1550 		1-47428-766-0 01 1 1009-1302
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1363 SERVICED BY L=1400 		1-47428-765-0 01 1 1303-
153 PIPE ASM; CLU,UNION TO FLEX
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=2041 SERVICED BY L=2150 		1-47428-770-0 01 1 1303-1305
153 PIPE ASM; CLU,UNION TO FLEX
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=1954 SERVICED BY L=2150 		1-47428-770-0 01 1 1306-1309
153 PIPE ASM; CLU,UNION TO FLEX
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=1994 SERVICED BY L=2150 		1-47428-770-0 01 1 1310-
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=2069 SERVICED BY L=2150 		1-47428-770-0 01 1 1009-1110
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=2069 SERVICED BY L=2150 		1-47428-770-0 01 1 1111-1302
153 PIPE ASM; CLU,UNION TO FLEX
SMOOTHER-G(C1W) (B) L=2069 SERVICED BY L=2150 		1-47428-770-0 01 1 1303-
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=537 		8-98085-164-0 01 1 1009-

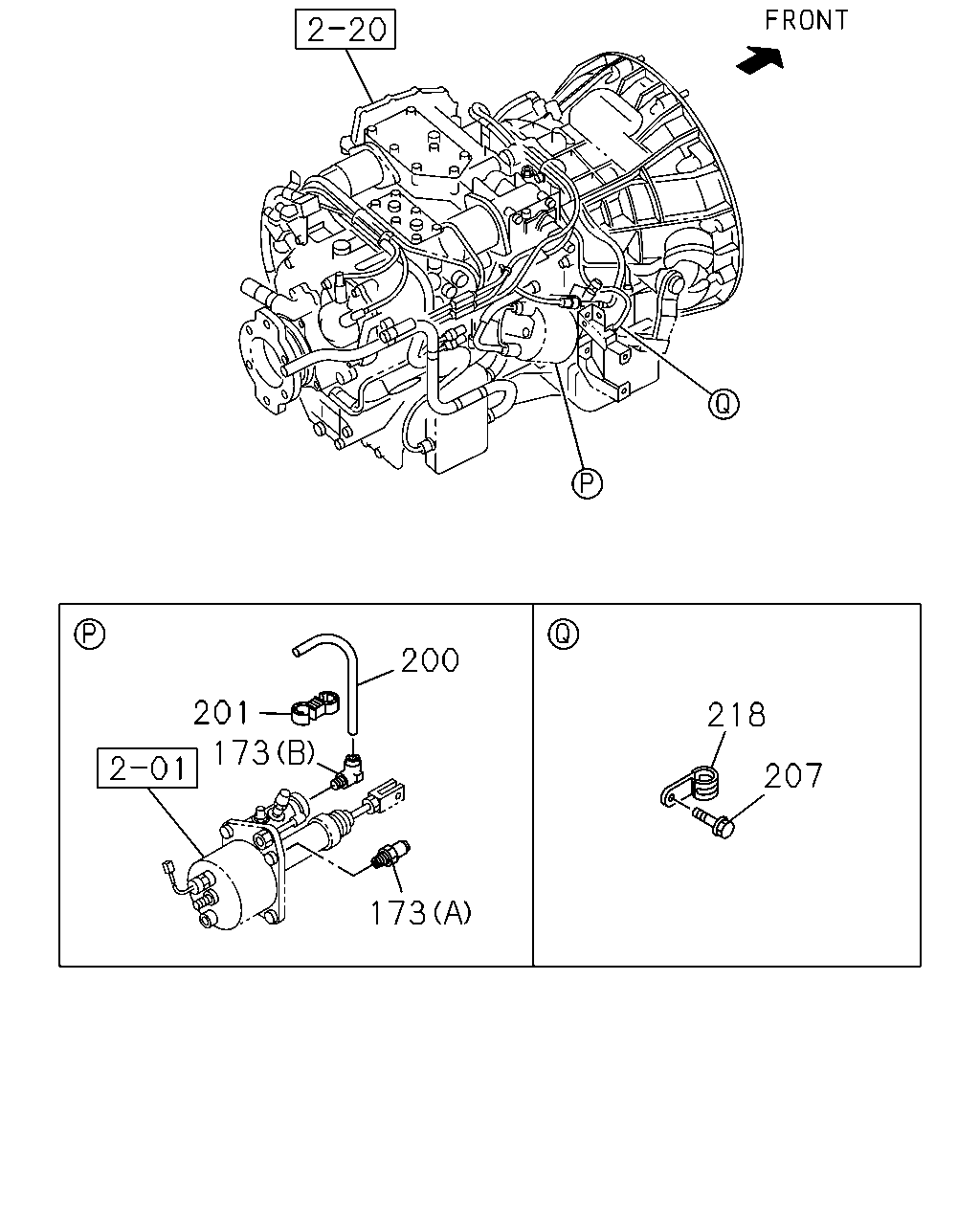

çizim 336201
201 173 173 218 207 200
BalonParca AdiParca NoAdetTipApplied Date
173 CONNECTOR
(A) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 1009-1302
173 CONNECTOR
SMOOTHER-G(C1W) (A) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 1303-
173 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 1009-1302
173 CONNECTOR
SMOOTHER-G(C1W) (B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 1303-
200 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 1009-1302
200 TUBE; NYLON
SMOOTHER-G(C1W) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 1303-
201 CLIP; NYLON TUBE
ID=6.35 & 12 		1-09709-275-1 01 1 1009-1302
201 CLIP; NYLON TUBE
SMOOTHER-G(C1W) ID=6.35 & 12 		1-09709-275-1 01 1 1303-
207 BOLT; CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) M10X16 FLANGE 		0-28151-016-0 02 1 1303-
207 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 1009-1302
207 BOLT; CLIP
SMOOTHER-G(C1W) M8X16 FLANGE 		0-28050-816-0 01 1 1303-
218 CLIP
ID=11 L=20 		0-95235-035-0 01 1 1009-1302
218 CLIP
SMOOTHER-G(C1W) ID=11 L=20 		0-95235-035-0 01 1 1303-
