◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11294 - EXZ RHD EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#69481) — 104 parça

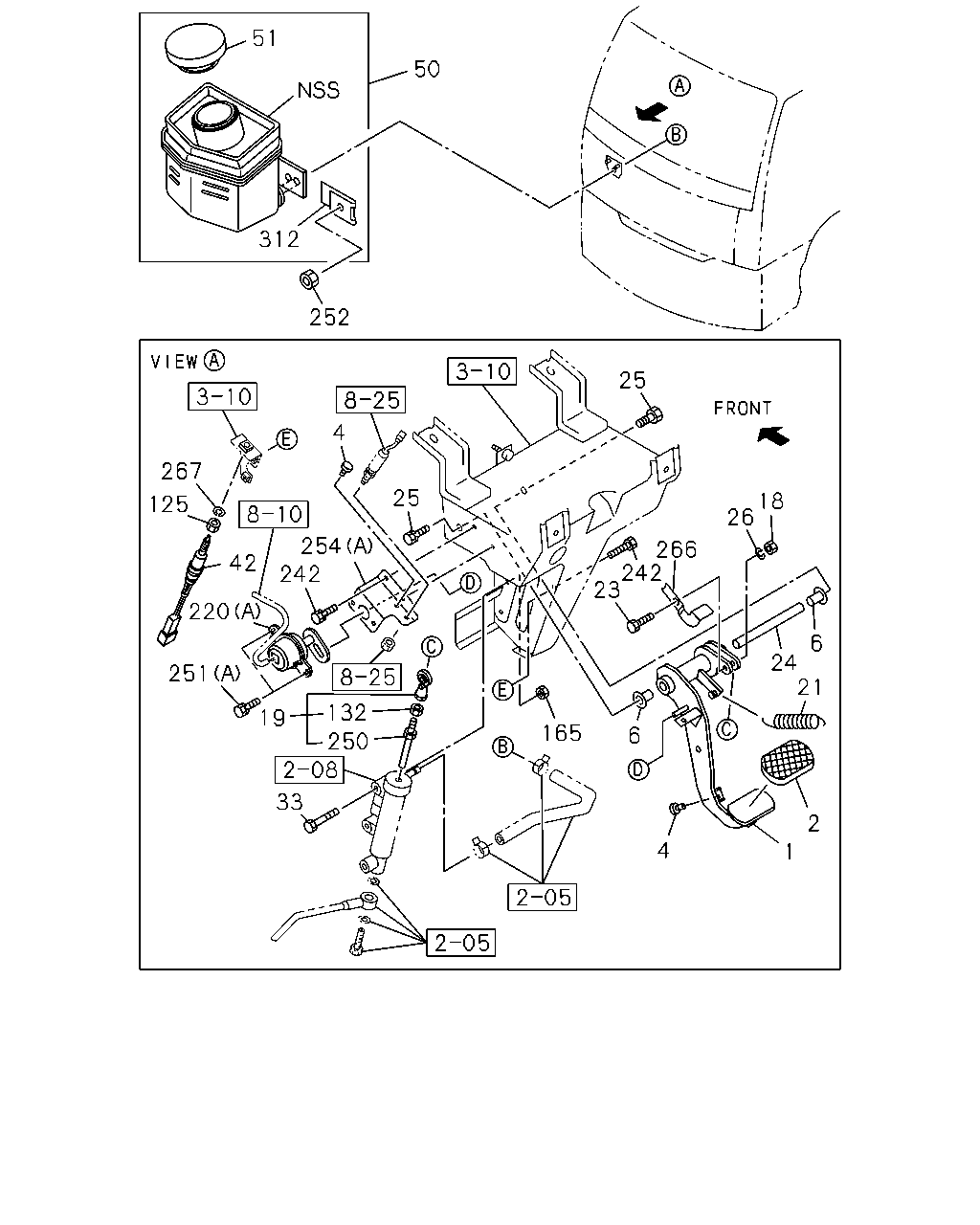

çizim 98948
51 50 312 252 25 25 4 267 125 254 242 42 220 266 26 18 242 23 251 19 132 250 33 165 4 1 2 6 24 6 21
BalonParca AdiParca NoAdetTipApplied Date
1 PEDAL; CLU
AIR BAG(TFQ) 		1-73907-474-1 01 1 1009-1302
1 PEDAL; CLU
SMOOTHER-G(C1W) 		1-73907-474-1 01 1 1303-
1 PEDAL; CLU
EXC. AIR BAG(TFQ) 		1-73907-321-4 01 1 1009-1302
1 PEDAL; CLU
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-73907-510-1 01 1 1303-
2 COVER; CLU PEDAL 8-97893-618-1 01 1 1009-
4 STOPPER; CLU PEDAL 1-47319-014-1 04 1 1009-
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 1009-
18 NUT; PUSH ROD
M8 		0-91110-508-0 01 1 1009-
19 ROD ASM; PUSH,CLU 1-73907-320-1 01 1 1009-
21 SPRING; RETURN,CLU PEDAL
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-73907-445-0 01 1 1303-
21 SPRING; RETURN,CLU PEDAL 1-73908-265-0 01 1 1009-1302
21 SPRING; RETURN,CLU PEDAL
SMOOTHER-G(C1W) 		1-73908-265-0 01 1 1303-
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 1009-
24 SHAFT; CLU PEDAL
AIR BAG(TFQ) 		1-73908-195-1 01 1 1009-1302
24 SHAFT; CLU PEDAL 1-73908-195-1 01 1 1303-
24 SHAFT; CLU PEDAL
EXC. AIR BAG(TFQ) 		1-73998-936-1 01 1 1009-1302
25 BOLT; PEDAL
AIR BAG(TFQ) M10X35 W/LK WASHER 		0-50051-035-0 02 1 1009-1302
25 BOLT; PEDAL
M10X35 W/LK WASHER 		0-50051-035-0 02 1 1303-
25 BOLT; PEDAL
EXC. AIR BAG(TFQ) M10X25 W/LK WASHER 		0-50051-025-0 02 1 1009-1302
26 WASHER; LK,PUSH ROD
ID=8.2 		0-91510-608-0 01 1 1009-
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 1009-
42 SWITCH; CLU
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-82380-114-3 01 1 1303-
50 TANK; OIL,CLU 1-47530-182-0 01 1 1009-
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 1009-
125 NUT; CLU SWITCH
TRANSMISSION CONTROL CABLE TYPE(C1A) M10 		0-91110-510-0 01 1 1303-
132 NUT; LK,PUSH ROD
M8 		0-91110-508-0 01 1 1009-
165 NUT; CLU M/CYL
M10 FLANGE 		0-91180-210-0 02 1 1303-1305
220 SENSOR; CLUTCH
(A) 		1-80250-014-0 01 1 1009-1302
220 SENSOR; CLUTCH
SMOOTHER-G(C1W) (A) 		1-80250-014-0 01 1 1303-
220 SENSOR; CLUTCH
(B) 		1-81541-121-0 01 1 1009-1302
220 SENSOR; CLUTCH
SMOOTHER-G(C1W) (B) 		8-98131-123-0 01 1 1303-
242 BOLT; BRKT,CLUTCH
AIR BAG(TFQ) M6X16 W/LK WASHER 		0-50040-616-0 04 1 1009-1302
242 BOLT; BRKT,CLUTCH
SMOOTHER-G(C1W) M6X16 W/LK WASHER 		0-50040-616-0 04 1 1303-
242 BOLT; BRKT,CLUTCH
EXC. AIR BAG(TFQ) M6X16 W/LK WASHER 		0-50040-616-0 02 1 1009-1302
242 BOLT; BRKT,CLUTCH
TRANSMISSION CONTROL CABLE TYPE(C1A) M6X16 W/LK WASHER 		0-50540-616-0 06 1 1303-
250 ROD; PUSH,CLU 1-73996-219-0 01 1 1009-
251 BOLT; SENSOR
(A) M6X16 FLANGE 		0-28650-616-0 02 1 1009-1302
251 BOLT; SENSOR
SMOOTHER-G(C1W) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1303-
251 BOLT; SENSOR
(B) M10X25 FLANGE 		0-28751-025-0 01 1 1009-1302
251 BOLT; SENSOR
SMOOTHER-G(C1W) (B) M10X25 FLANGE 		0-28751-025-0 01 1 1303-
251 BOLT; SENSOR
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1009-1302
251 BOLT; SENSOR
SMOOTHER-G(C1W) (C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1303-
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 1009-
254 BRACKET; CLU SENSOR
(B) 		1-31349-072-1 01 1 1009-1302
254 BRACKET; CLU SENSOR
SMOOTHER-G(C1W) (B) 		1-31349-072-1 01 1 1303-
254 BRACKET; CLU SENSOR
(A) 		1-73998-979-5 01 1 1009-
266 BRACKET; CLU SWITCH
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-73907-395-1 01 1 1303-
267 WASHER; LK,CLU SWITCH
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=10.2 		0-91510-510-0 01 1 1303-
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 1009-

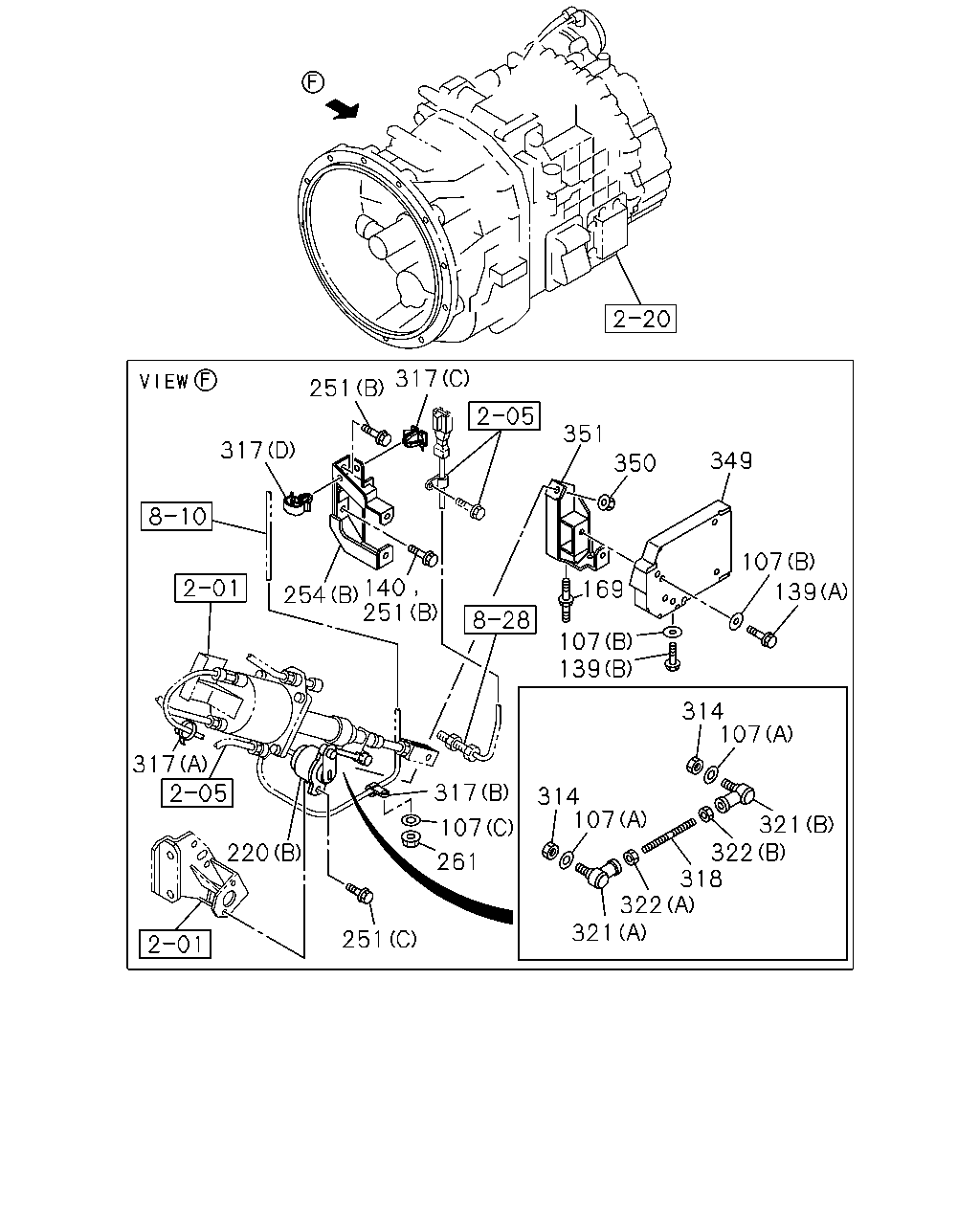

çizim 100193
251 317 317 351 349 350 254 251 169 107 139 107 139 314 107 317 317 314 220 107 261 251 107 321 322 318 322 321 140
BalonParca AdiParca NoAdetTipApplied Date
107 WASHER; PL
(C) ID=8.4 OD=16 		0-91610-508-0 01 1 1009-1302
107 WASHER; PL
SMOOTHER-G(C1W) (C) ID=8.4 OD=16 		0-91610-508-0 01 1 1303-
107 WASHER; PL
(B) ID=8.4 OD=22 		0-91610-708-0 06 1 1009-1302
107 WASHER; PL
SMOOTHER-G(C1W) (B) ID=8.4 OD=22 		0-91610-708-0 06 1 1303-
107 WASHER; PL
(A) ID=5.3 OD=16 		0-91614-705-0 02 1 1009-1302
107 WASHER; PL
SMOOTHER-G(C1W) (A) ID=5.3 OD=16 		0-91614-705-0 02 1 1303-
139 BOLT; COVER
(A) M8X16 FLANGE 		0-28050-816-0 05 1 1009-1302
139 BOLT; COVER
SMOOTHER-G(C1W) (A) M8X16 FLANGE 		0-28050-816-0 05 1 1303-
139 BOLT; COVER
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1009-1302
139 BOLT; COVER
SMOOTHER-G(C1W) (B) M8X35 FLANGE 		0-28650-835-0 01 1 1303-
140 BOLT; BRKT
M10X30 FLANGE 		0-28751-030-0 01 1 1009-1302
140 BOLT; BRKT
SMOOTHER-G(C1W) M10X30 FLANGE 		0-28751-030-0 01 1 1303-
169 BOLT; CLIP
M8X15,M8X17 L=40 		8-98009-913-0 01 1 1009-1302
169 BOLT; CLIP
SMOOTHER-G(C1W) M8X15,M8X17 L=40 		8-98009-913-0 01 1 1303-
220 SENSOR; CLUTCH
(A) 		1-80250-014-0 01 1 1009-1302
220 SENSOR; CLUTCH
SMOOTHER-G(C1W) (A) 		1-80250-014-0 01 1 1303-
220 SENSOR; CLUTCH
(B) 		1-81541-121-0 01 1 1009-1302
220 SENSOR; CLUTCH
SMOOTHER-G(C1W) (B) 		8-98131-123-0 01 1 1303-
251 BOLT; SENSOR
(A) M6X16 FLANGE 		0-28650-616-0 02 1 1009-1302
251 BOLT; SENSOR
SMOOTHER-G(C1W) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1303-
251 BOLT; SENSOR
(B) M10X25 FLANGE 		0-28751-025-0 01 1 1009-1302
251 BOLT; SENSOR
SMOOTHER-G(C1W) (B) M10X25 FLANGE 		0-28751-025-0 01 1 1303-
251 BOLT; SENSOR
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1009-1302
251 BOLT; SENSOR
SMOOTHER-G(C1W) (C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1303-
254 BRACKET; CLU SENSOR
(B) 		1-31349-072-1 01 1 1009-1302
254 BRACKET; CLU SENSOR
SMOOTHER-G(C1W) (B) 		1-31349-072-1 01 1 1303-
254 BRACKET; CLU SENSOR
(A) 		1-73998-979-5 01 1 1009-
261 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1009-1302
261 NUT; CLIP
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 1303-
314 NUT; ROD
M5 		0-91110-505-0 02 1 1009-1302
314 NUT; ROD
SMOOTHER-G(C1W) M5 		0-91110-505-0 02 1 1303-
317 CLIP; CABLE
(B) ID=11 L=32 		0-95235-065-0 01 1 1009-1302
317 CLIP; CABLE
SMOOTHER-G(C1W) (B) ID=11 L=32 		0-95235-065-0 01 1 1303-
317 CLIP; CABLE
(A) L=180 		1-09707-162-1 01 1 1009-1302
317 CLIP; CABLE
SMOOTHER-G(C1W) (A) L=180 		1-09707-162-1 01 1 1303-
317 CLIP; CABLE
(C) OD=9 H=6 		1-09709-178-0 01 1 1009-1302
317 CLIP; CABLE
SMOOTHER-G(C1W) (C) OD=9 H=6 		1-09709-178-0 01 1 1303-
317 CLIP; CABLE
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 1009-1302
317 CLIP; CABLE
SMOOTHER-G(C1W) (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 1303-
318 ROD; CLU 0-84100-506-0 01 1 1009-1302
318 ROD; CLU
SMOOTHER-G(C1W) 		0-84100-506-0 01 1 1303-
321 END; ROD
(A) 		1-09760-103-2 01 1 1009-1302
321 END; ROD
SMOOTHER-G(C1W) (A) 		1-09760-103-2 01 1 1303-
321 END; ROD
(B) 		1-09760-104-2 01 1 1009-1302
321 END; ROD
SMOOTHER-G(C1W) (B) 		1-09760-104-2 01 1 1303-
322 NUT; ROD END
(A) M5 		0-91110-505-0 01 1 1009-1302
322 NUT; ROD END
SMOOTHER-G(C1W) (A) M5 		0-91110-505-0 01 1 1303-
322 NUT; ROD END
(B) M5 LH THREAD 		9-09840-277-0 01 1 1009-1302
322 NUT; ROD END
SMOOTHER-G(C1W) (B) M5 LH THREAD 		9-09840-277-0 01 1 1303-
349 COVER; SENSOR 1-31349-075-0 01 1 1009-1302
349 COVER; SENSOR
SMOOTHER-G(C1W) 		1-31349-075-0 01 1 1303-
350 NUT; COVER
M10 FLANGE 		0-91180-210-0 01 1 1009-1302
350 NUT; COVER
SMOOTHER-G(C1W) M10 FLANGE 		0-91180-210-0 01 1 1303-
351 BRACKET; COVER 1-31349-079-0 01 1 1009-1302
351 BRACKET; COVER
SMOOTHER-G(C1W) 		1-31349-079-0 01 1 1303-
