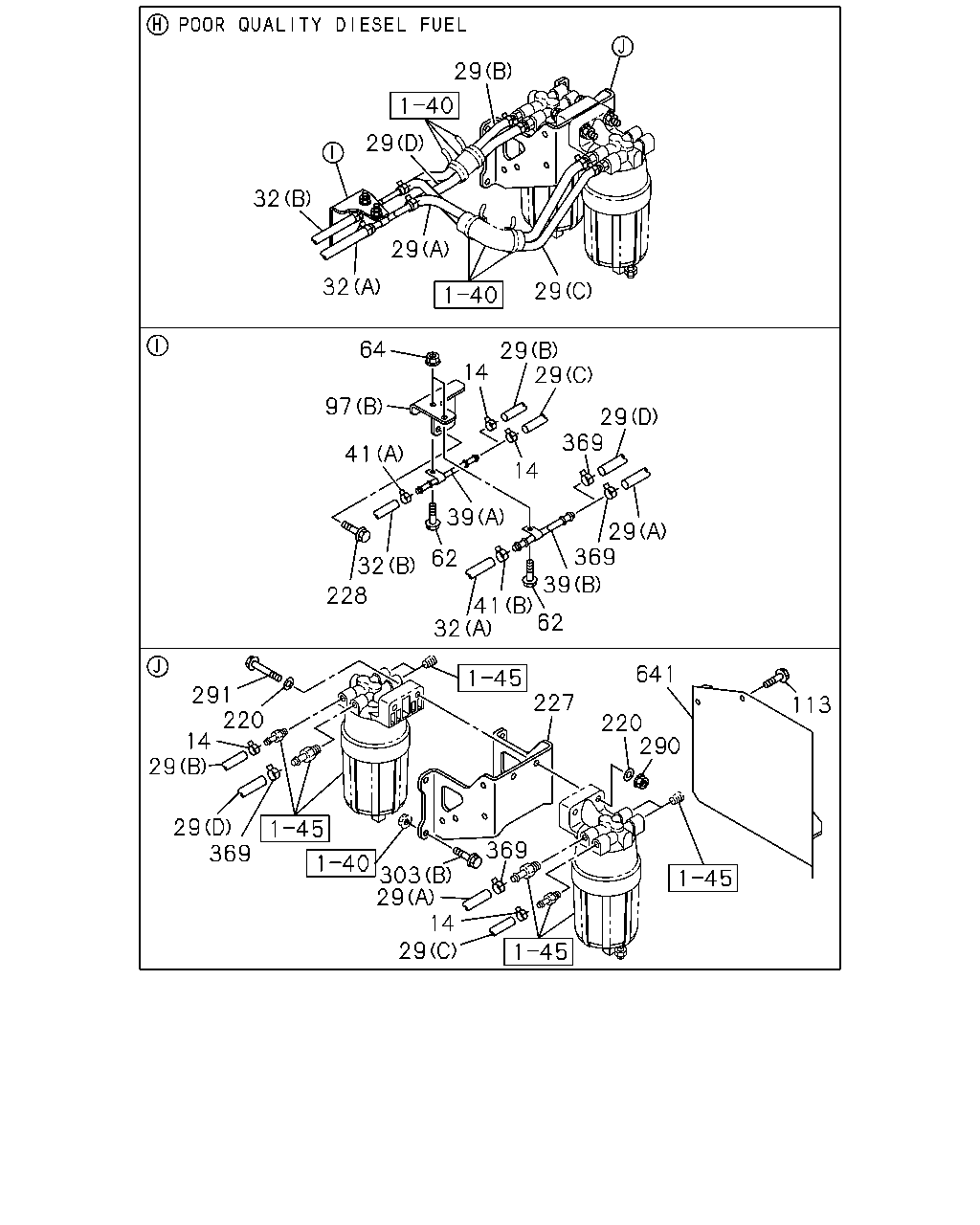

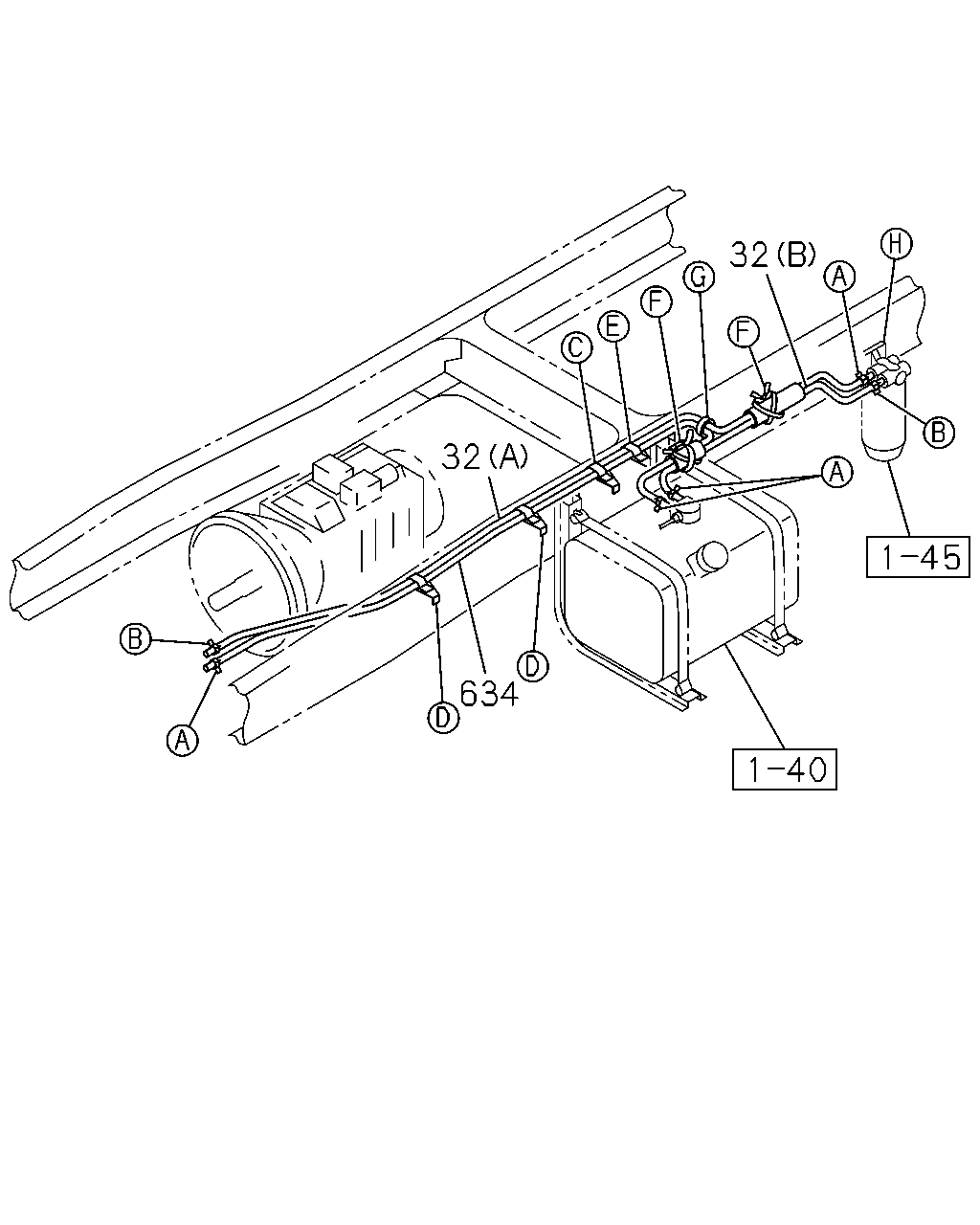

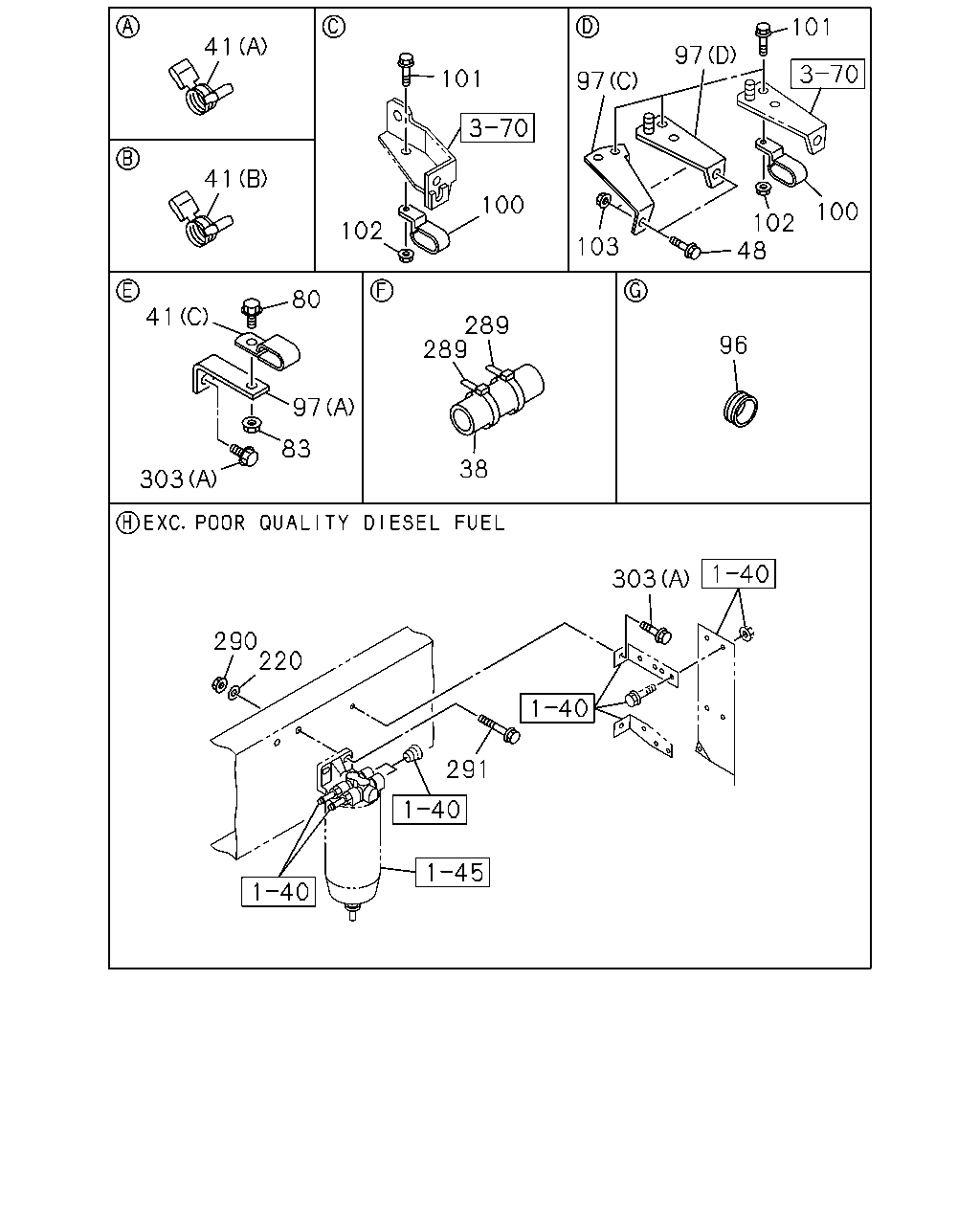

1-41 — FUEL PIPING; CHASSIS (#69475) — 114 parça

41 41 101 97 97 101 100 102 48 103 100 102 96 289 289 38 80 41 97 83 303 290 220 291 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	SLEEVE; RUBBER,RUBBER HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1103-1302
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1009-1102
38	SLEEVE; RUBBER,RUBBER HOSE POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1103-1302
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1303-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1009-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	1009-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	1009-
48	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1303-
80	BOLT; CLIP,FUEL TANK M8X25 FLANGE	0-28650-825-0	01	1	1009-1302
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	1303-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	1009-1302
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	1303-
96	GROMMET; PIPE,FUEL TANK ID=32 OD=40 T=18	1-09891-003-0	01	1	1009-1302
96	GROMMET; PIPE,FUEL TANK ID=39 OD=45 T=19	1-09332-077-0	01	1	1303-
97	BRACKET; CLIP (C)	1-47471-283-0	01	1	1303-
97	BRACKET; CLIP (D)	8-98172-058-0	02	1	1303-
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> (B)	8-98186-869-0	01	1	1103-1302
97	BRACKET; CLIP (B)	8-98186-869-0	01	1	1303-
97	BRACKET; CLIP (A)	1-47475-927-0	01	1	1009-1010
97	BRACKET; CLIP (A) L=68	1-47475-525-0	01	1	1011-
100	CLIP; FUEL PIPE ID=19X32 H=17.5 L=22.5	1-09701-315-0	03	1	1009-
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28650-825-0	03	1	1009-1302
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	01	1	1303-
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	03	1	1009-
103	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1303-
220	WASHER; PL POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	04	1	1103-1302
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	04	1	1303-
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	02	1	1009-1102
220	WASHER; PL EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1103-1302
289	CLIP; BAND,HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	04	1	1103-1302
289	CLIP; BAND,HOSE L=250	5-09707-030-1	04	1	1009-1102
289	CLIP; BAND,HOSE POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	02	1	1103-1302
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	1303-
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1009-
291	BOLT; FILER TO BRKT POOR QUALITY DIESEL FUEL<KF0> M10X90 FLANGE	0-28051-090-0	02	1	1103-1302
291	BOLT; FILER TO BRKT M10X90 FLANGE	0-28051-090-0	02	1	1303-
291	BOLT; FILER TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	1009-1102
291	BOLT; FILER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE	0-28051-060-0	02	1	1103-1302
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10X40 FLANGE	0-28051-040-0	04	1	1103-1302
303	BOLT; BRKT (B) M10X40 FLANGE	0-28051-040-0	04	1	1303-
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1009-1302
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1303-
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1009-1102
303	BOLT; BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> (A) M8X30 FLANGE	0-28650-830-0	02	1	1103-1302

32 634 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=500 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302
32	PIPE; DELIVERY,FUEL TANK (B) L=500 SERVICED BY L=3000	0-01260-300-0	01	1	1303-
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) L=1500 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1302
32	PIPE; DELIVERY,FUEL TANK (A) L=1500 SERVICED BY L=3000	0-01262-300-0	01	1	1303-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1102
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (A) L=1850 SERVICED BY L=3000	0-01262-300-0	01	1	1009-1102
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1850 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1302
634	HOSE; RUBBER RETURN FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1302
634	HOSE; RUBBER RETURN L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1303-

29 29 32 32 29 29 29 29 14 29 369 14 39 32 228 41 97 64 62 32 62 39 369 29 113 641 227 220 290 369 303 29 369 29 29 291 220 14 14 29 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; HOSE POOR QUALITY DIESEL FUEL<KF0> ID=14	1-09704-102-0	04	1	1103-1302
14	CLIP; HOSE ID=14	1-09704-102-0	04	1	1303-
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> (B) L=330 OD=14.5	8-98188-444-0	01	1	1103-1302
29	HOSE; FUEL (B) L=330 OD=14.5	8-98188-444-0	01	1	1303-
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> (D)	8-98188-462-0	01	1	1103-1302
29	HOSE; FUEL (D)	8-98188-462-0	01	1	1303-
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A) L=390 OD=19	8-98188-465-0	01	1	1103-1302
29	HOSE; FUEL (A) L=390 OD=19	8-98188-465-0	01	1	1303-
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> (C) L=430 OD=14.5	8-98188-469-0	01	1	1103-1302
29	HOSE; FUEL (C) L=430 OD=14.5	8-98188-469-0	01	1	1303-
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=500 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302
32	PIPE; DELIVERY,FUEL TANK (B) L=500 SERVICED BY L=3000	0-01260-300-0	01	1	1303-
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) L=1500 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1302
32	PIPE; DELIVERY,FUEL TANK (A) L=1500 SERVICED BY L=3000	0-01262-300-0	01	1	1303-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1102
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (A) L=1850 SERVICED BY L=3000	0-01262-300-0	01	1	1009-1102
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1850 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1302
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A)	8-98186-862-1	01	1	1103-1302
39	PIPE; FUEL (A)	8-98186-862-1	01	1	1303-
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (B)	8-98186-864-1	01	1	1103-1302
39	PIPE; FUEL (B)	8-98186-864-1	01	1	1303-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1009-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	1009-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	1009-
62	BOLT; CLIP FIX POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE	0-28650-820-0	02	1	1103-1302
62	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	1303-
64	NUT; CLIP POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE	0-91180-108-0	02	1	1103-1302
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1303-
97	BRACKET; CLIP (C)	1-47471-283-0	01	1	1303-
97	BRACKET; CLIP (D)	8-98172-058-0	02	1	1303-
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> (B)	8-98186-869-0	01	1	1103-1302
97	BRACKET; CLIP (B)	8-98186-869-0	01	1	1303-
97	BRACKET; CLIP (A)	1-47475-927-0	01	1	1009-1010
97	BRACKET; CLIP (A) L=68	1-47475-525-0	01	1	1011-
113	BOLT; PROTECTOR POOR QUALITY DIESEL FUEL<KF0> M8X25 FLANGE	0-28050-825-0	02	1	1103-1302
113	BOLT; PROTECTOR M8X25 FLANGE	0-28050-825-0	02	1	1303-
220	WASHER; PL POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	04	1	1103-1302
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	04	1	1303-
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	02	1	1009-1102
220	WASHER; PL EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1103-1302
227	BRACKET; FUEL SEDIMENTER POOR QUALITY DIESEL FUEL<KF0>	8-98184-813-0	01	1	1103-1302
227	BRACKET; FUEL SEDIMENTER	8-98184-813-0	01	1	1303-
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> M8X35 FLANGE	0-28650-835-0	02	1	1103-1302
228	BOLT; BRKT,SEDIMENTER M8X35 FLANGE	0-28650-835-0	02	1	1303-
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1009-
291	BOLT; FILER TO BRKT POOR QUALITY DIESEL FUEL<KF0> M10X90 FLANGE	0-28051-090-0	02	1	1103-1302
291	BOLT; FILER TO BRKT M10X90 FLANGE	0-28051-090-0	02	1	1303-
291	BOLT; FILER TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	1009-1102
291	BOLT; FILER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE	0-28051-060-0	02	1	1103-1302
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10X40 FLANGE	0-28051-040-0	04	1	1103-1302
303	BOLT; BRKT (B) M10X40 FLANGE	0-28051-040-0	04	1	1303-
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1009-1302
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1303-
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1009-1102
303	BOLT; BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> (A) M8X30 FLANGE	0-28650-830-0	02	1	1103-1302
369	CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> ID=19	8-94238-569-0	04	1	1103-1302
369	CLAMP; HOSE,FUEL ID=19	8-94238-569-0	04	1	1303-
641	PROTECTOR; SEDIMENTER POOR QUALITY DIESEL FUEL<KF0>	8-98184-817-0	01	1	1103-1302
641	PROTECTOR; SEDIMENTER	8-98184-817-0	01	1	1303-
