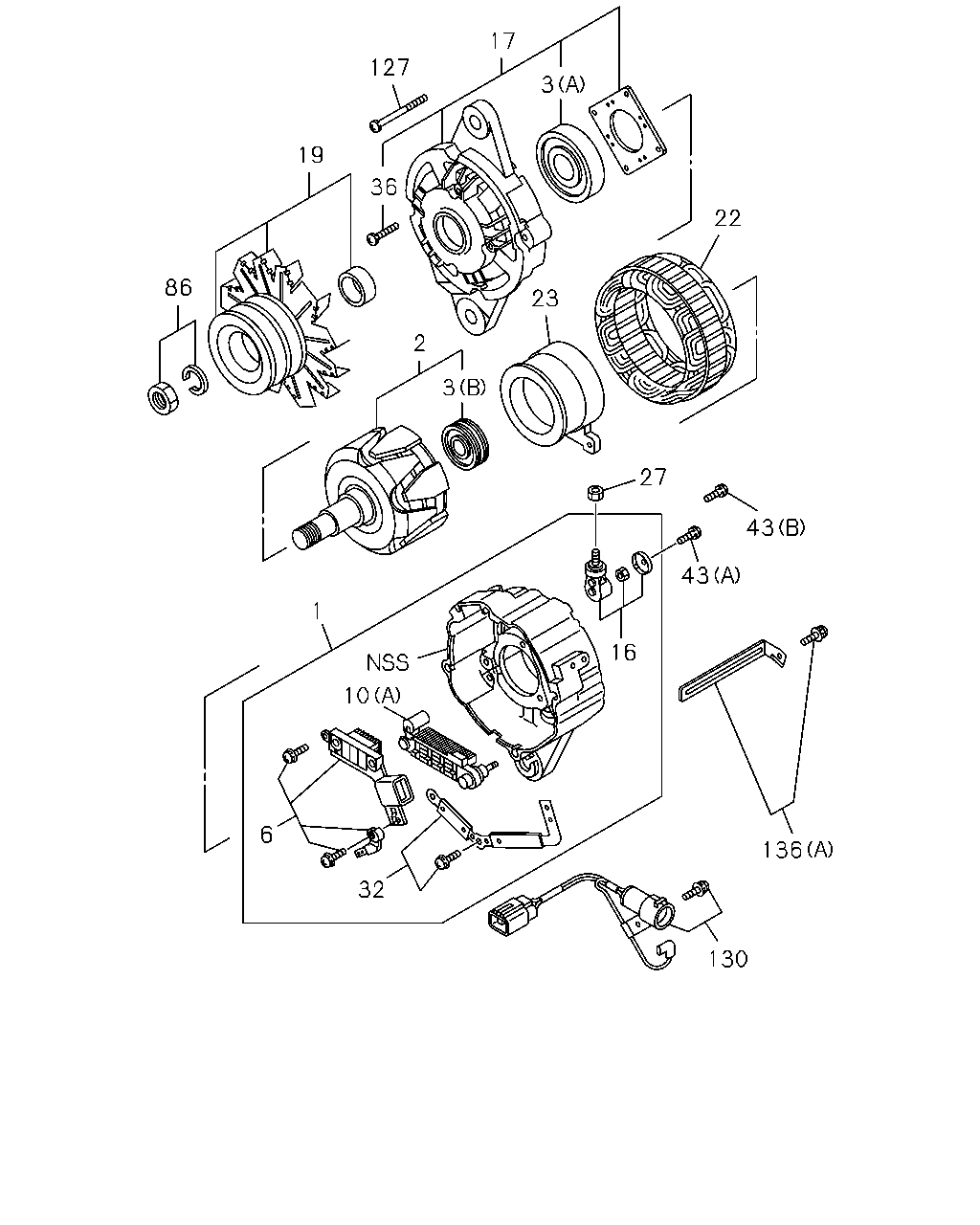

0-66 — GENERATOR (#69467) — 154 parça

86 19 127 17 36 3 23 22 27 43 43 16 136 130 32 6 10 3 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	8-98140-793-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 8-98127-495-0	8-98140-795-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: D = 8-98201-083-2	8-98181-100-1	01	1	-
2	ROTOR; GEN ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	1-81221-102-0	01	1	-
2	ROTOR; GEN ASM PART: B = 8-98127-495-0	1-81221-105-0	01	1	-
2	ROTOR; GEN ASM PART: D = 8-98201-083-2	8-98040-638-0	01	1	-
3	BEARING; ROTOR,GEN (C) ASM PART: D = 8-98201-083-2	1-81229-723-0	01	1	-
3	BEARING; ROTOR,GEN (D) ASM PART: D = 8-98201-083-2	1-81229-758-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	1-81229-769-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	1-81229-770-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 8-98127-495-0	1-81229-815-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 8-98127-495-0	1-81229-816-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-98201-083-2	8-98040-688-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-98127-495-0	8-98047-078-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	8-98047-079-1	01	1	-
10	RECTIFIER; GEN (B) ASM PART: B = 8-98127-495-0	8-98047-081-0	01	1	-
10	RECTIFIER; GEN (A) ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	8-98047-082-0	01	1	-
10	RECTIFIER; GEN (C) ASM PART: D = 8-98201-083-2	8-98181-102-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	8-98140-794-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: B = 8-98127-495-0	8-98140-796-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	1-81213-101-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 8-98127-495-0	1-81213-116-1	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 8-98201-083-2	8-97382-872-0	01	1	-
19	PULLEY; GEN ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	1-81222-130-2	01	1	-
19	PULLEY; GEN ASM PART: B = 8-98127-495-0	1-81222-139-1	01	1	-
19	PULLEY; GEN ASM PART: D = 8-98201-083-2	8-98181-099-0	01	1	-
22	STATOR; GEN ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	1-81211-129-0	01	1	-
22	STATOR; GEN ASM PART: B = 8-98127-495-0	1-81211-135-0	01	1	-
22	STATOR; GEN ASM PART: D = 8-98201-083-2	8-98040-640-0	01	1	-
23	COIL; ROTOR GEN ASM PART: A = 8-98127-494-0	1-81212-016-0	01	1	-
23	COIL; ROTOR GEN ASM PART: B = 8-98127-495-0	1-81212-031-0	01	1	-
23	COIL; ROTOR GEN ASM PART: D = 8-98201-083-2	8-98040-645-0	01	1	-
23	COIL; ROTOR GEN ASM PART: C = 8-98200-163-0	8-98200-173-0	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: A = 8-98127-494-0, B = 8-98127-495-0, C = 8-98200-163-0	1-81229-821-0	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: D = 8-98201-083-2	8-98040-687-0	01	1	-
32	TERMINAL; RECTIFIER,GEN ASM PART: B = 8-98127-495-0	8-98047-087-0	01	1	-
32	TERMINAL; RECTIFIER,GEN ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	8-98047-088-0	01	1	-
36	SCREW; FRT COVER ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	1-81229-768-0	01	1	-
36	SCREW; FRT COVER ASM PART: B = 8-98127-495-0	1-81229-814-0	01	1	-
43	SCREW; RR END COVER (C) ASM PART: D = 8-98201-083-2	1-81229-476-0	03	1	-
43	SCREW; RR END COVER (B) ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	1-81229-773-0	01	1	-
43	SCREW; RR END COVER (A) ASM PART: A = 8-98127-494-0, B = 8-98127-495-0, C = 8-98200-163-0	1-81229-774-0	01	1	-
43	SCREW; RR END COVER (B) ASM PART: B = 8-98127-495-0	1-81229-817-0	01	1	-
86	NUT SET; PULLEY,GEN ASM PART: A = 8-98127-494-0, B = 8-98127-495-0, C = 8-98200-163-0	8-97178-134-0	01	1	-
127	BOLT SET; GEN ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	1-81229-767-0	01	1	-
127	BOLT SET; GEN ASM PART: B = 8-98127-495-0	1-81229-812-0	01	1	-
130	CONNECTOR; GEN ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	1-81229-776-0	01	1	-
130	CONNECTOR; GEN ASM PART: B = 8-98127-495-0	1-81229-894-0	01	1	-
136	CLAMP; GENERATOR (A) ASM PART: A = 8-98127-494-0, B = 8-98127-495-0, C = 8-98200-163-0	1-81229-775-0	01	1	-
136	CLAMP; GENERATOR (B) ASM PART: B = 8-98127-495-0	1-81229-897-0	01	1	-

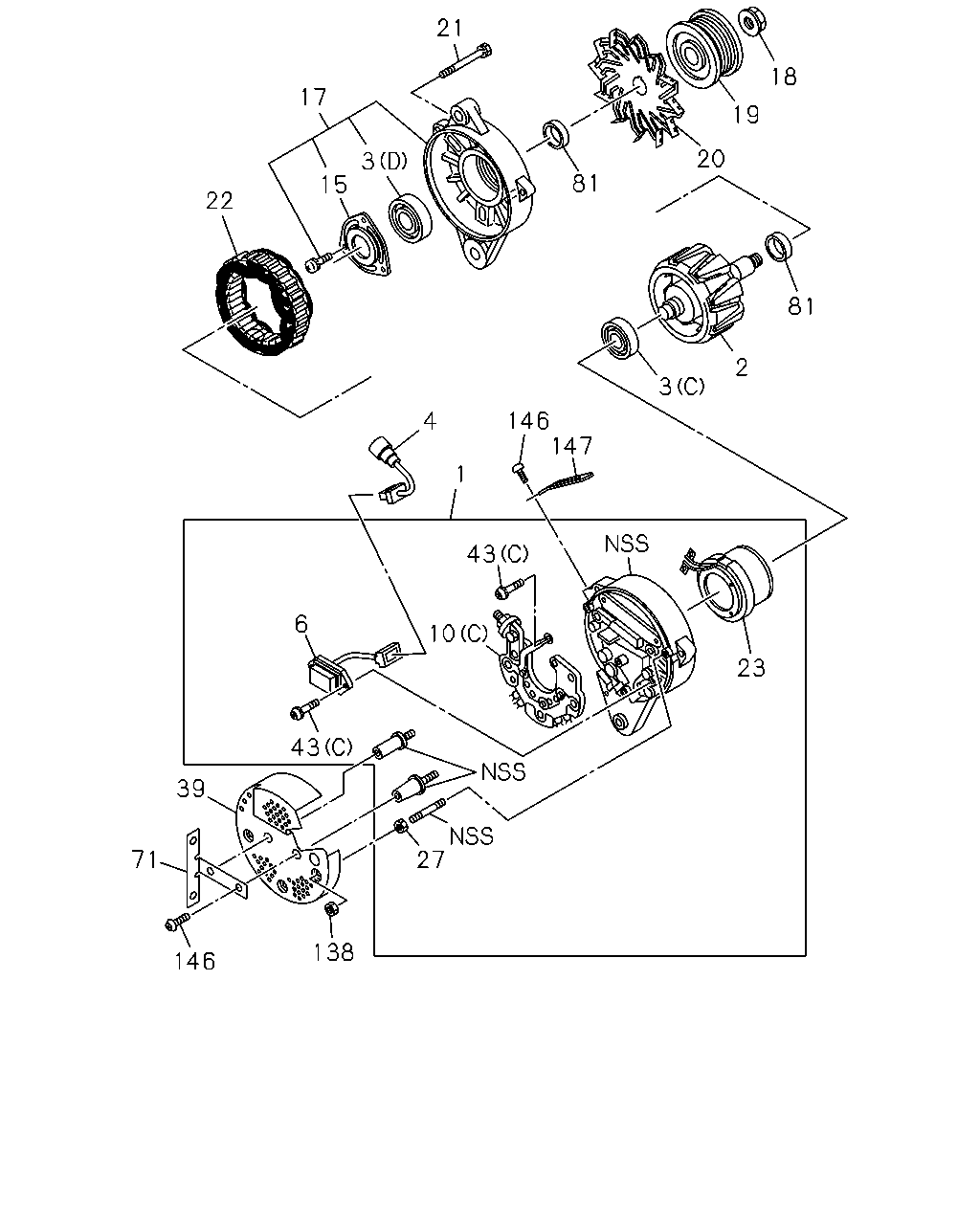

22 12 3 136 27 43 43 130 2 16 65 10 40 6 1 32 23 136 17 3 36 81 19 127 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	8-98140-793-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 8-98127-495-0	8-98140-795-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: D = 8-98201-083-2	8-98181-100-1	01	1	-
2	ROTOR; GEN ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	1-81221-102-0	01	1	-
2	ROTOR; GEN ASM PART: B = 8-98127-495-0	1-81221-105-0	01	1	-
2	ROTOR; GEN ASM PART: D = 8-98201-083-2	8-98040-638-0	01	1	-
3	BEARING; ROTOR,GEN (C) ASM PART: D = 8-98201-083-2	1-81229-723-0	01	1	-
3	BEARING; ROTOR,GEN (D) ASM PART: D = 8-98201-083-2	1-81229-758-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	1-81229-769-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	1-81229-770-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 8-98127-495-0	1-81229-815-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 8-98127-495-0	1-81229-816-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-98201-083-2	8-98040-688-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-98127-495-0	8-98047-078-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	8-98047-079-1	01	1	-
10	RECTIFIER; GEN (B) ASM PART: B = 8-98127-495-0	8-98047-081-0	01	1	-
10	RECTIFIER; GEN (A) ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	8-98047-082-0	01	1	-
10	RECTIFIER; GEN (C) ASM PART: D = 8-98201-083-2	8-98181-102-0	01	1	-
12	KEY; ROTOR,GEN ASM PART: B = 8-98127-495-0	1-81229-822-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	8-98140-794-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: B = 8-98127-495-0	8-98140-796-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	1-81213-101-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 8-98127-495-0	1-81213-116-1	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 8-98201-083-2	8-97382-872-0	01	1	-
19	PULLEY; GEN ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	1-81222-130-2	01	1	-
19	PULLEY; GEN ASM PART: B = 8-98127-495-0	1-81222-139-1	01	1	-
19	PULLEY; GEN ASM PART: D = 8-98201-083-2	8-98181-099-0	01	1	-
22	STATOR; GEN ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	1-81211-129-0	01	1	-
22	STATOR; GEN ASM PART: B = 8-98127-495-0	1-81211-135-0	01	1	-
22	STATOR; GEN ASM PART: D = 8-98201-083-2	8-98040-640-0	01	1	-
23	COIL; ROTOR GEN ASM PART: A = 8-98127-494-0	1-81212-016-0	01	1	-
23	COIL; ROTOR GEN ASM PART: B = 8-98127-495-0	1-81212-031-0	01	1	-
23	COIL; ROTOR GEN ASM PART: D = 8-98201-083-2	8-98040-645-0	01	1	-
23	COIL; ROTOR GEN ASM PART: C = 8-98200-163-0	8-98200-173-0	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: A = 8-98127-494-0, B = 8-98127-495-0, C = 8-98200-163-0	1-81229-821-0	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: D = 8-98201-083-2	8-98040-687-0	01	1	-
32	TERMINAL; RECTIFIER,GEN ASM PART: B = 8-98127-495-0	8-98047-087-0	01	1	-
32	TERMINAL; RECTIFIER,GEN ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	8-98047-088-0	01	1	-
36	SCREW; FRT COVER ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	1-81229-768-0	01	1	-
36	SCREW; FRT COVER ASM PART: B = 8-98127-495-0	1-81229-814-0	01	1	-
40	PLATE; RR COVER ASM PART: B = 8-98127-495-0	1-81222-164-1	01	1	-
43	SCREW; RR END COVER (C) ASM PART: D = 8-98201-083-2	1-81229-476-0	03	1	-
43	SCREW; RR END COVER (B) ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	1-81229-773-0	01	1	-
43	SCREW; RR END COVER (A) ASM PART: A = 8-98127-494-0, B = 8-98127-495-0, C = 8-98200-163-0	1-81229-774-0	01	1	-
43	SCREW; RR END COVER (B) ASM PART: B = 8-98127-495-0	1-81229-817-0	01	1	-
65	CONDENSER; GEN ASM PART: B = 8-98127-495-0	1-84132-016-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: B = 8-98127-495-0	1-81229-813-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: D = 8-98201-083-2	8-97382-870-0	02	1	-
86	NUT SET; PULLEY,GEN ASM PART: A = 8-98127-494-0, B = 8-98127-495-0, C = 8-98200-163-0	8-97178-134-0	01	1	-
127	BOLT SET; GEN ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	1-81229-767-0	01	1	-
127	BOLT SET; GEN ASM PART: B = 8-98127-495-0	1-81229-812-0	01	1	-
130	CONNECTOR; GEN ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	1-81229-776-0	01	1	-
130	CONNECTOR; GEN ASM PART: B = 8-98127-495-0	1-81229-894-0	01	1	-
136	CLAMP; GENERATOR (A) ASM PART: A = 8-98127-494-0, B = 8-98127-495-0, C = 8-98200-163-0	1-81229-775-0	01	1	-
136	CLAMP; GENERATOR (B) ASM PART: B = 8-98127-495-0	1-81229-897-0	01	1	-

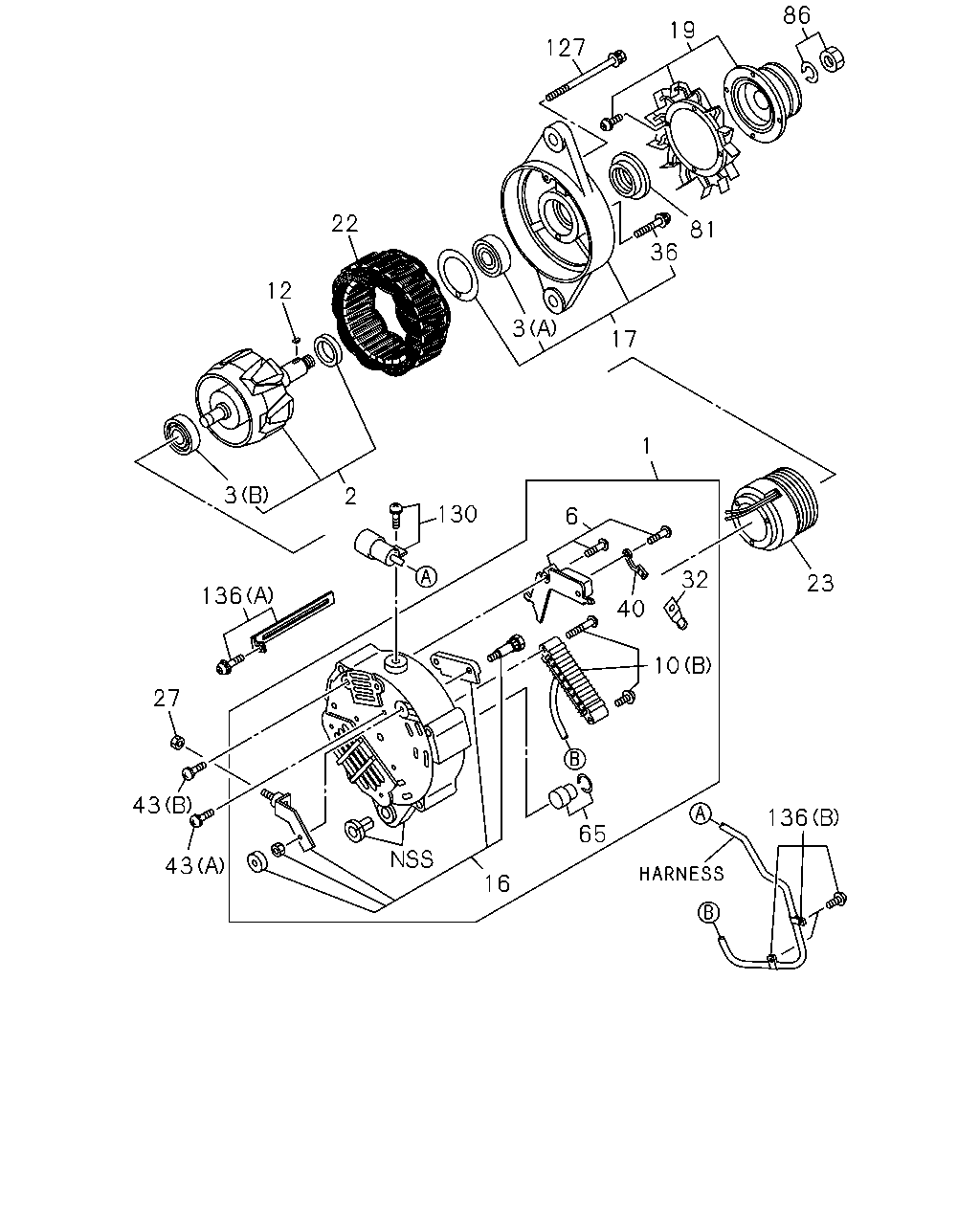

21 17 22 15 3 81 20 19 18 81 2 3 146 4 43 1 6 43 39 71 146 138 27 10 147 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	8-98140-793-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 8-98127-495-0	8-98140-795-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: D = 8-98201-083-2	8-98181-100-1	01	1	-
2	ROTOR; GEN ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	1-81221-102-0	01	1	-
2	ROTOR; GEN ASM PART: B = 8-98127-495-0	1-81221-105-0	01	1	-
2	ROTOR; GEN ASM PART: D = 8-98201-083-2	8-98040-638-0	01	1	-
3	BEARING; ROTOR,GEN (C) ASM PART: D = 8-98201-083-2	1-81229-723-0	01	1	-
3	BEARING; ROTOR,GEN (D) ASM PART: D = 8-98201-083-2	1-81229-758-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	1-81229-769-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	1-81229-770-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 8-98127-495-0	1-81229-815-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 8-98127-495-0	1-81229-816-0	01	1	-
4	TERMINAL; BRUSH,GEN ASM PART: D = 8-98201-083-2	8-98181-104-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-98201-083-2	8-98040-688-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-98127-495-0	8-98047-078-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	8-98047-079-1	01	1	-
10	RECTIFIER; GEN (B) ASM PART: B = 8-98127-495-0	8-98047-081-0	01	1	-
10	RECTIFIER; GEN (A) ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	8-98047-082-0	01	1	-
10	RECTIFIER; GEN (C) ASM PART: D = 8-98201-083-2	8-98181-102-0	01	1	-
15	RETAINER; ROTOR,GEN ASM PART: D = 8-98201-083-2	1-81229-760-1	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	1-81213-101-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 8-98127-495-0	1-81213-116-1	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 8-98201-083-2	8-97382-872-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: D = 8-98201-083-2	8-98040-643-0	01	1	-
19	PULLEY; GEN ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	1-81222-130-2	01	1	-
19	PULLEY; GEN ASM PART: B = 8-98127-495-0	1-81222-139-1	01	1	-
19	PULLEY; GEN ASM PART: D = 8-98201-083-2	8-98181-099-0	01	1	-
20	FAN; GEN ASM PART: D = 8-98201-083-2	8-97382-874-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: D = 8-98201-083-2	1-81229-382-0	03	1	-
22	STATOR; GEN ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	1-81211-129-0	01	1	-
22	STATOR; GEN ASM PART: B = 8-98127-495-0	1-81211-135-0	01	1	-
22	STATOR; GEN ASM PART: D = 8-98201-083-2	8-98040-640-0	01	1	-
23	COIL; ROTOR GEN ASM PART: A = 8-98127-494-0	1-81212-016-0	01	1	-
23	COIL; ROTOR GEN ASM PART: B = 8-98127-495-0	1-81212-031-0	01	1	-
23	COIL; ROTOR GEN ASM PART: D = 8-98201-083-2	8-98040-645-0	01	1	-
23	COIL; ROTOR GEN ASM PART: C = 8-98200-163-0	8-98200-173-0	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: A = 8-98127-494-0, B = 8-98127-495-0, C = 8-98200-163-0	1-81229-821-0	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: D = 8-98201-083-2	8-98040-687-0	01	1	-
39	COVER; END,RR COVER,GEN ASM PART: D = 8-98201-083-2	8-98181-103-0	01	1	-
43	SCREW; RR END COVER (C) ASM PART: D = 8-98201-083-2	1-81229-476-0	03	1	-
43	SCREW; RR END COVER (B) ASM PART: A = 8-98127-494-0, C = 8-98200-163-0	1-81229-773-0	01	1	-
43	SCREW; RR END COVER (A) ASM PART: A = 8-98127-494-0, B = 8-98127-495-0, C = 8-98200-163-0	1-81229-774-0	01	1	-
43	SCREW; RR END COVER (B) ASM PART: B = 8-98127-495-0	1-81229-817-0	01	1	-
71	HOLDER; TERMINAL,GEN ASM PART: D = 8-98201-083-2	8-98203-925-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: B = 8-98127-495-0	1-81229-813-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: D = 8-98201-083-2	8-97382-870-0	02	1	-
138	NUT; COVER,GENERATOR ASM PART: D = 8-98201-083-2	8-98040-690-0	03	1	-
146	SCREW; HOLDER ASM PART: D = 8-98201-083-2	1-81229-469-0	03	1	-
147	CLIP; GEN ASM PART: D = 8-98201-083-2	8-98212-483-0	01	1	-
