◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11294 - EXZ RHD EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#69458) — 28 parça

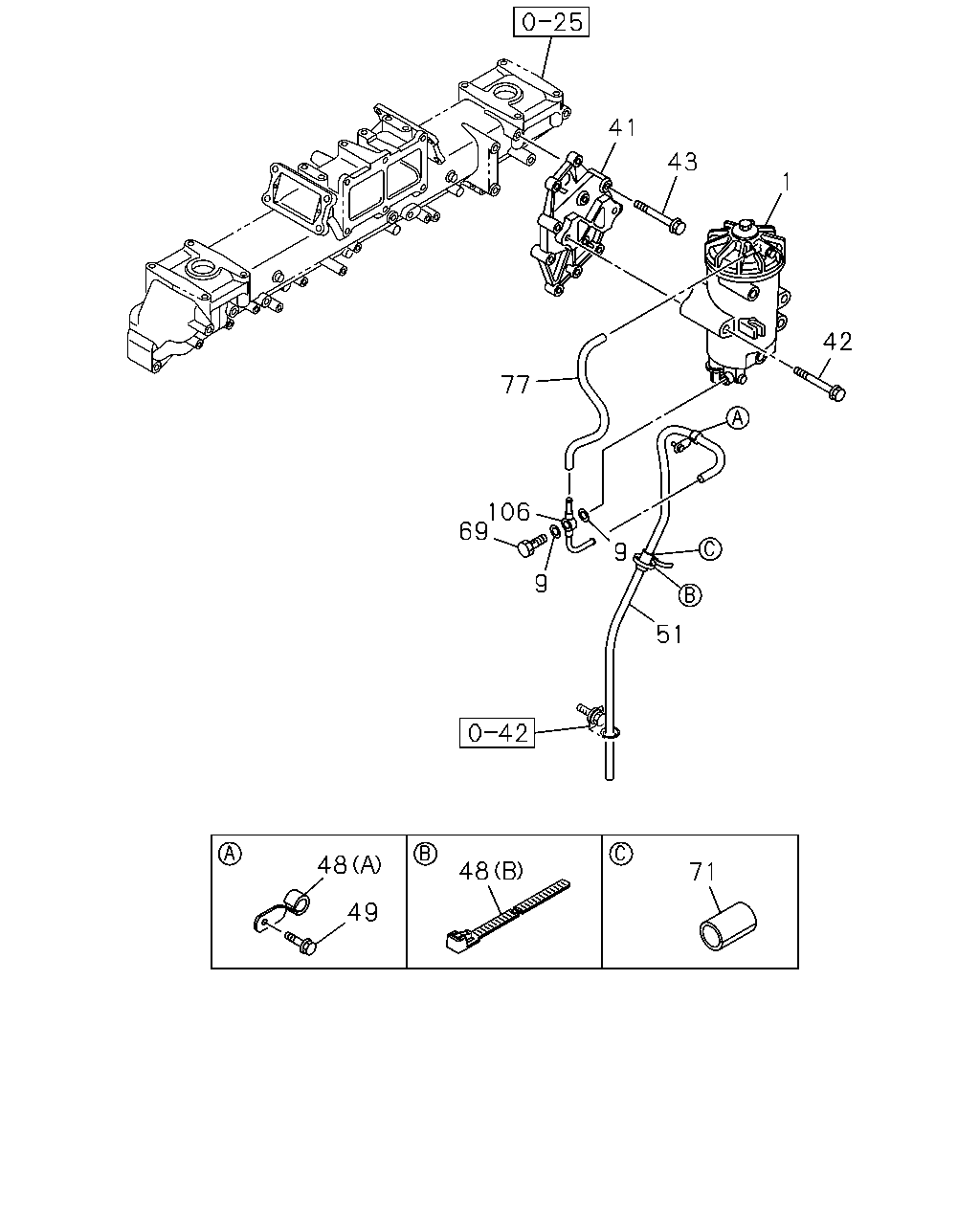

çizim 63686
41 77 43 1 42 106 69 9 9 51 71 48 48 49
BalonParca AdiParca NoAdetTipApplied Date
1 FILTER ASM; FUEL 8-98167-975-1 01 1 1009-1402
1 FILTER ASM; FUEL 8-98258-016-0 01 1 1403-
9 GASKET; EYE JOINT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 02 1 1009-
41 BRACKET; FUEL FILTER 8-97628-208-0 01 1 1009-
42 BOLT; FUEL FILTER
M12X100 FLANGE 		0-28151-200-0 02 1 1009-
43 BOLT; BRKT
M10X60 FLANGE 		0-28151-060-0 04 1 1009-
48 CLIP; VINYL PIPE
(B) L=250 		5-09707-030-1 01 1 1009-1205
48 CLIP; VINYL PIPE
(B) L=250 		8-98216-430-0 01 1 1206-
48 CLIP; VINYL PIPE
(A) ID=11 L=40 		8-94123-171-1 01 1 1009-
49 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 1009-
51 PIPE; VINYL
L=1000 SERVICED BY L=10000 		9-09914-909-0 01 1 1009-
69 BOLT; EYE,FUEL FILTER
M10X21 FLANGE 		8-97372-239-0 01 1 1009-
71 SLEEVE; RUBBER,PIPE
ID=10 OD=14 L=30 		9-09956-682-0 01 1 1009-
77 HOSE; FUEL FILTER 8-98118-453-0 01 1 1009-
106 PIPE; FUEL 8-97631-785-0 01 1 1009-
çizim 188850
1 22 24 21 23 26 14 61 144 32 146 2 24 26
BalonParca AdiParca NoAdetTipApplied Date
1 FILTER ASM; FUEL 8-98167-975-1 01 1 1009-1402
1 FILTER ASM; FUEL 8-98258-016-0 01 1 1403-
2 ELEMENT KIT; FUEL FILTER 8-98116-662-0 01 1 1009-
14 SPRING; ELEMENT SUPPORT,FUEL FILTER 8-98116-657-0 01 1 1009-
21 COVER; UPR,FUEL FILTER 8-98116-653-0 01 1 1009-
22 BOLT; CENTER TUBE,COVER 8-98117-014-0 01 1 1009-
23 PLUG; COVER 8-98116-652-0 01 1 1009-
24 GASKET; CENTER TUBE BOLT 8-98116-655-0 01 1 1009-
26 GASKET; COVER TO BODY 8-98116-661-0 01 1 1009-
32 BOLT; DRAIN,FUEL FILTER 8-98116-652-0 01 1 1009-
61 SEAT; SPR ELEMENT 8-98116-658-0 01 1 1009-
144 PLUG; BODY 8-98153-286-0 01 1 1009-
146 PLUG KIT; BODY 8-98195-093-0 01 1 1009-
