◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11152 - FVM(LHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#69450) — 95 parça

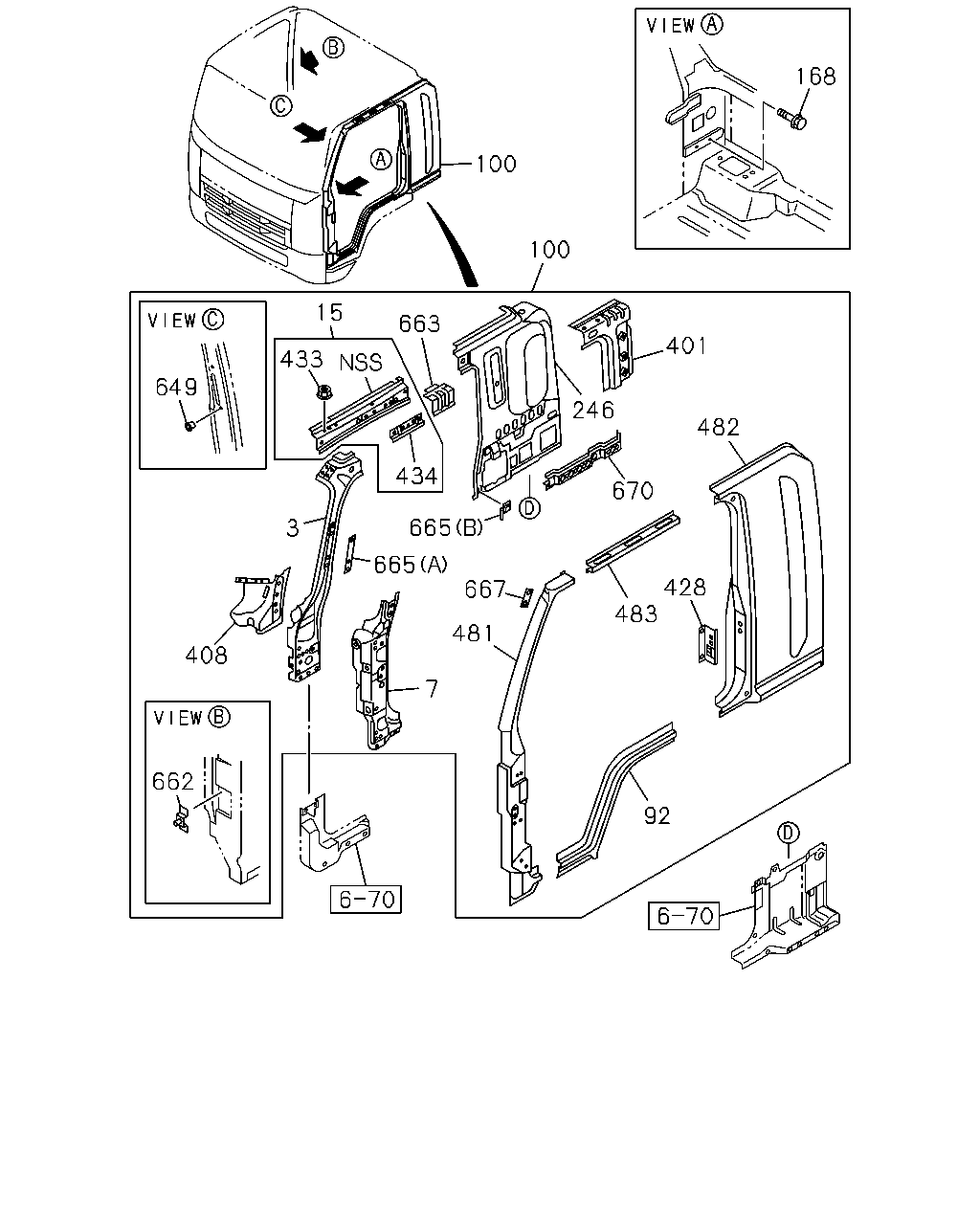

çizim 126689
168 100 100 15 663 401 433 649 246 482 434 670 665 3 665 428 483 667 481 408 7 662 92
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0809-
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0809-
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 0809-
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 0809-
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 0809-
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 0809-
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 0809-
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 0809-
100 PANEL ASM; BODY SIDE
COUNTRY ALGERIA(D2G) EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98214-442-0 01 1 1205-
100 PANEL ASM; BODY SIDE 8-97586-074-6 01 1 0809-
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> 		8-98059-479-7 01 1 0809-1204
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> EXC. COUNTRY ALGERIA(D2G) 		8-98059-479-7 01 1 1205-
100 PANEL ASM; BODY SIDE
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-97586-067-5 01 1 0809-1204
100 PANEL ASM; BODY SIDE
EXC. COUNTRY ALGERIA(D2G),MIRROR O/S UNDER VIEW<RR9> 		8-97586-067-5 01 1 1205-
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 0809-
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 0809-
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 0809-
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 0809-
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 0809-
408 GUSSET; PILLAR 8-97586-194-2 01 1 0809-
408 GUSSET; PILLAR 8-97586-193-3 01 1 0809-
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 0809-
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 0809-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 0809-1204
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1205-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1205-
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 0809-
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 0809-
481 PANEL; SIDE FRT PILLAR 8-98072-802-0 01 1 0809-
481 PANEL; SIDE FRT PILLAR
MIRROR O/S UNDER VIEW<RR9> 		8-98092-912-0 01 1 0809-
481 PANEL; SIDE FRT PILLAR
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98072-787-0 01 1 0809-
482 PANEL; SIDE RR PILLAR
COUNTRY ALGERIA(D2G) 		8-98092-923-0 01 1 1205-
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 0809-1204
482 PANEL; SIDE RR PILLAR
EXC. COUNTRY ALGERIA(D2G) 		8-98055-468-0 01 1 1205-
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 0809-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 0809-
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 0809-
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 0809-
662 BRACKET; DUCT 8-97584-611-1 01 1 0809-
663 BRACKET; AIR 8-97585-208-2 01 1 0809-
663 BRACKET; AIR 8-97585-207-2 01 1 0809-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 0809-1204
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1205-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1205-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 0809-1204
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1205-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1205-
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98109-948-0 01 1 0809-1204
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> EXC. COUNTRY ALGERIA(D2G) 		8-98109-948-0 01 1 1205-
670 STIFFENER; PANEL,SIDE 8-98015-044-1 02 1 0809-1204
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 1205-
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 1205-

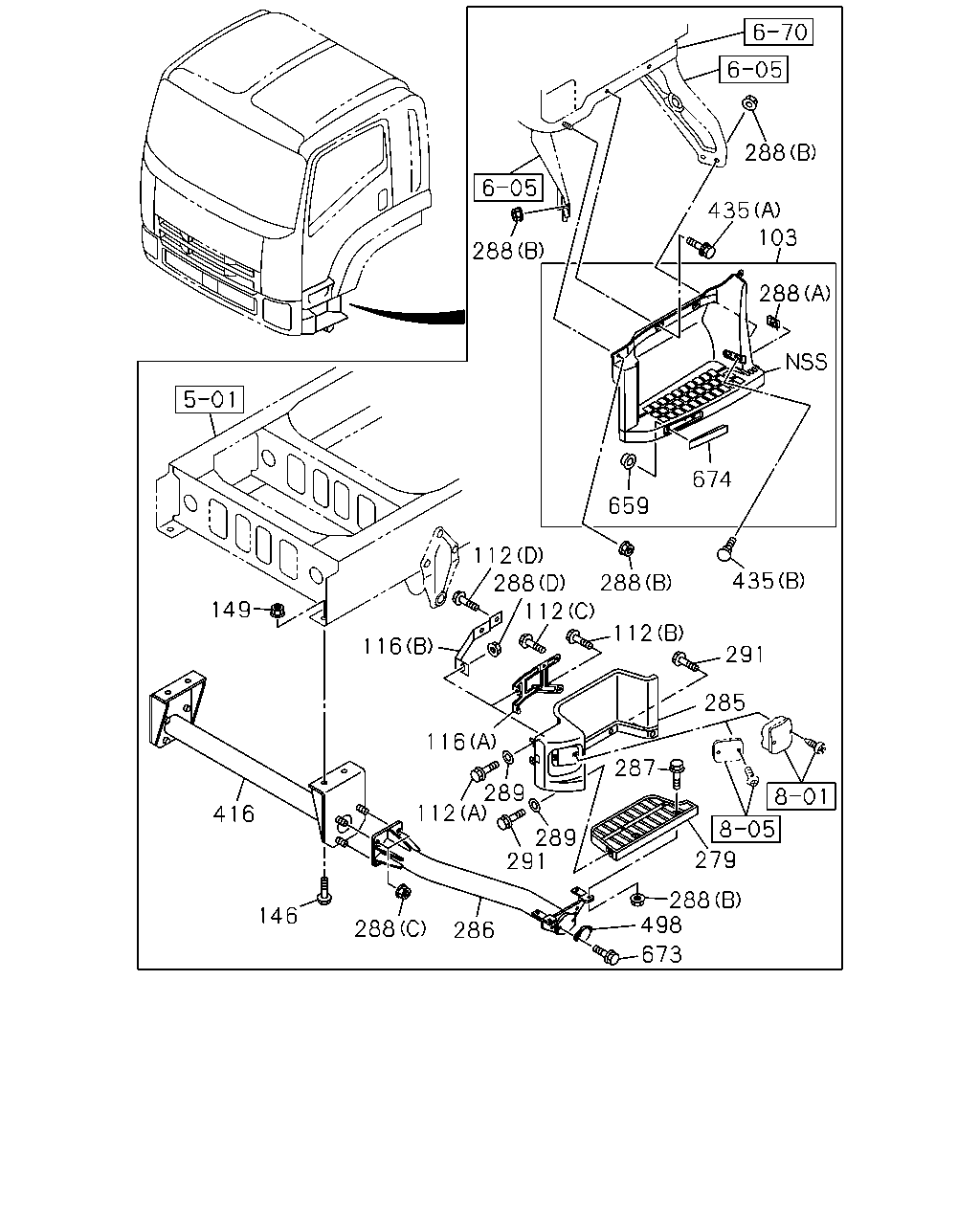

çizim 130581
288 435 103 288 288 674 659 112 288 112 435 288 149 112 116 291 285 116 287 289 112 416 289 291 279 288 498 146 288 286 673
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP 8-98069-977-2 01 1 0809-
103 PLATE; STEP 8-98069-976-2 01 1 0809-
112 BOLT; 1ST STEP
EXC. CORNERING LAMP<T87> (A) M6X16 FLANGE 		0-28050-616-0 02 1 1201-
112 BOLT; 1ST STEP
EXC. CORNERING LAMP<T87> (B) M6X20 FLANGE 		0-28050-620-0 02 1 1201-
112 BOLT; 1ST STEP
EXC. CORNERING LAMP<T87> (D) M8X12 FLANGE 		0-28050-812-0 04 1 1201-
112 BOLT; 1ST STEP
(A) M6X16 FLANGE 		0-28050-616-0 04 1 0809-1112
112 BOLT; 1ST STEP
CORNERING LAMP<T87> (A) M6X16 FLANGE 		0-28050-616-0 04 1 1201-
112 BOLT; 1ST STEP
(B) M6X25 FLANGE 		0-28050-625-0 02 1 0809-1112
112 BOLT; 1ST STEP
CORNERING LAMP<T87> (B) M6X25 FLANGE 		0-28050-625-0 02 1 1201-
112 BOLT; 1ST STEP
(C) M8X16 FLANGE 		0-28050-816-0 04 1 0809-1112
112 BOLT; 1ST STEP
CORNERING LAMP<T87> (C) M8X16 FLANGE 		0-28050-816-0 04 1 1201-
116 STAY; 1ST STEP,FRT
EXC. CORNERING LAMP<T87> (B) 		8-98196-756-0 02 1 1201-
116 STAY; 1ST STEP,FRT
(A) 		8-98062-133-1 01 1 0809-1112
116 STAY; 1ST STEP,FRT
CORNERING LAMP<T87> (A) 		8-98062-133-1 01 1 1201-
116 STAY; 1ST STEP,FRT
(A) 		8-98062-134-1 01 1 0809-1112
116 STAY; 1ST STEP,FRT
CORNERING LAMP<T87> (A) 		8-98062-134-1 01 1 1201-
146 BOLT; STEP BRKT
M14X45 FLANGE 		0-28851-445-0 04 1 0809-
149 NUT; STEP BRKT
M14 FLANGE 		0-91180-214-0 04 1 0809-
279 BOARD; STEP 1ST 1-53414-181-0 01 1 0809-
279 BOARD; STEP 1ST 1-53414-180-0 01 1 0809-
285 PLATE; STEP,1ST STEP 8-98017-535-3 01 1 0809-
285 PLATE; STEP,1ST STEP 8-98017-536-3 01 1 0809-
286 STEP ASM; 1ST 8-98082-430-2 01 1 0809-
286 STEP ASM; 1ST 8-98082-431-2 01 1 0809-
287 BOLT; BOARD STEP
M8X40 FLANGE 		0-28650-840-0 08 1 0809-1107
287 BOLT; BOARD STEP
M8X35 FLANGE 		0-28650-835-0 08 1 1108-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1201-
288 NUT; STEP
EXC. CORNERING LAMP<T87> (D) M6 FLANGE 		0-91180-106-0 02 1 1201-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 18 1 0809-1112
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 08 1 1201-
288 NUT; STEP
(C) M12 FLANGE 		0-91180-212-0 06 1 0809-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 0809-
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 10 1 0809-
291 BOLT; STEP PLATE
M6X12 FLANGE 		0-28050-612-0 06 1 0809-
416 BRACKET; ASSIST STEP 8-98053-542-4 01 1 0809-
435 BOLT; RR STEP
(B) M8X16 		8-98049-538-1 08 1 0809-0907
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 0908-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0809-
498 REFLECTOR 1-82290-011-1 02 1 0809-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 0809-
673 BOLT; REFLECTOR
M5X16 W/LK&PL WASHER 		8-94198-538-0 04 1 0809-
674 COVER; REFLECTOR 8-98092-734-0 01 1 0809-
674 COVER; REFLECTOR 8-98092-733-0 01 1 0809-
