Isuzu WW
▶
TRUCKS
▶
FVM
▶
11152 - FVM(LHD)
▶
5 - Frame, Cab Mounting
▶

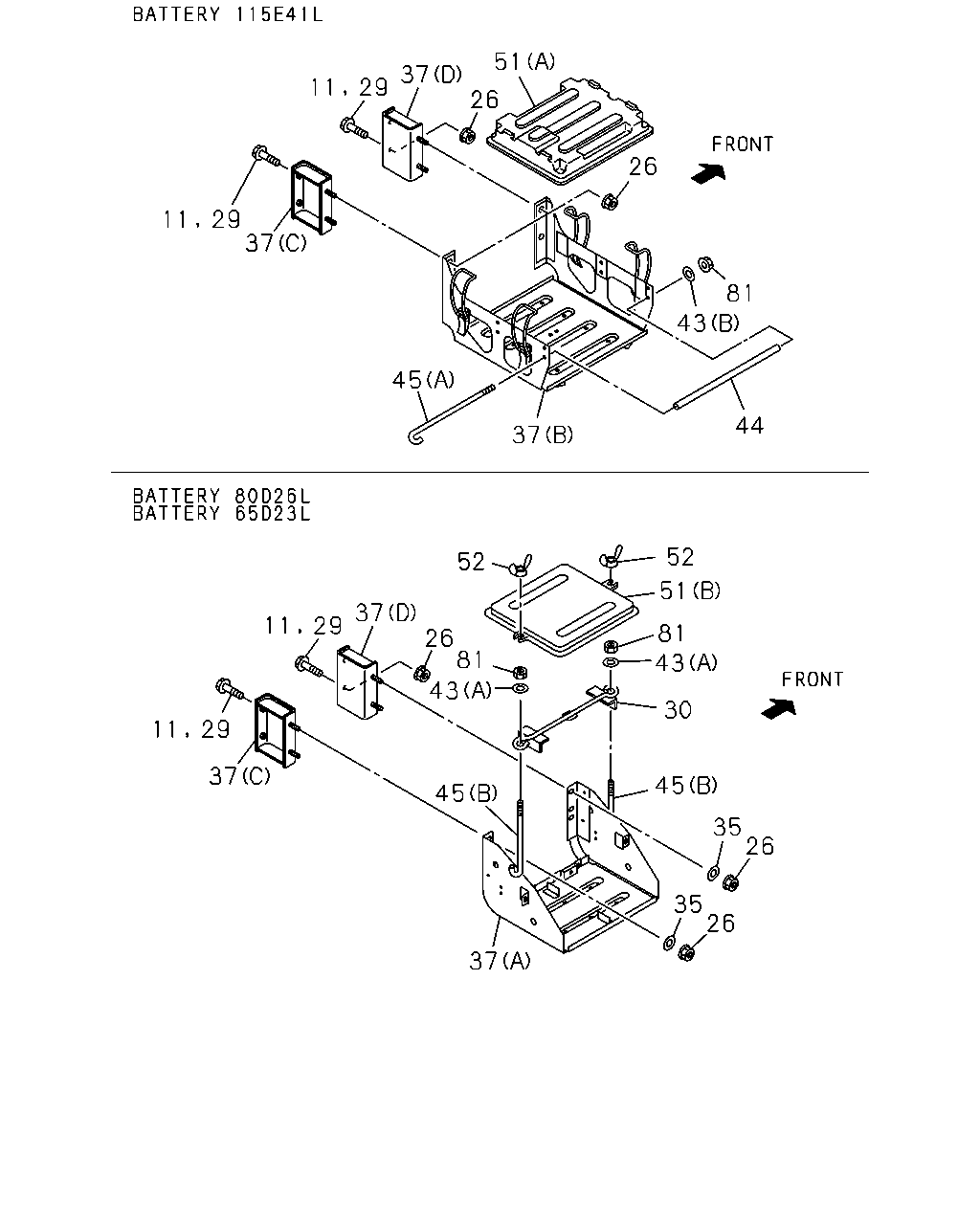

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#69444) — 24 parça
26
51
26
37
29
11
11
29
37
45
37
44
43
81
52
51
81
43
30
45
35
26
35
26
37
45
43
81
26
52
37
29
11
29
11
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BOLT; BRKT FIX
M10X35 FLANGE
0-28651-035-0
04
1
1008-
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0809-
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
0809-
29
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28651-035-0
04
1
0809-1007
30
PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
5-53615-004-1
01
1
0809-
35
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22
0-91614-610-0
04
1
0809-
37
BRACKET; BATTERY
(C)
8-98070-047-0
01
1
0809-0905
37
BRACKET; BATTERY
(C)
8-98144-194-0
01
1
0906-
37
BRACKET; BATTERY
(D)
8-98088-828-0
01
1
0809-
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98091-497-0
01
1
0809-1405
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98261-636-0
01
1
1406-
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> (A)
8-97384-068-2
01
1
0809-
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (A)
8-97384-067-2
01
1
0809-
43
WASHER; PL,CLAMP
BATTERY 115E41L<8MA> (B) ID=8.4 OD=16
0-91610-508-0
02
1
0809-
43
WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22
0-91614-708-0
02
1
0809-
44
SPACER; BATTERY
BATTERY 115E41L<8MA>
8-98261-682-0
02
1
1406-
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (A) L=430
8-97134-740-0
02
1
0809-
45
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120
9-53616-615-0
02
1
0809-
51
COVER; BATTERY
BATTERY 115E41L<8MA> (A)
1-53612-037-2
01
1
0809-
51
COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)
8-97120-747-0
01
1
0809-
52
NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT
0-91118-408-0
02
1
0809-
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
0809-0810
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
0809-0810
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
0811-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
