◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11152 - FVM(LHD) ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#69441) — 90 parça

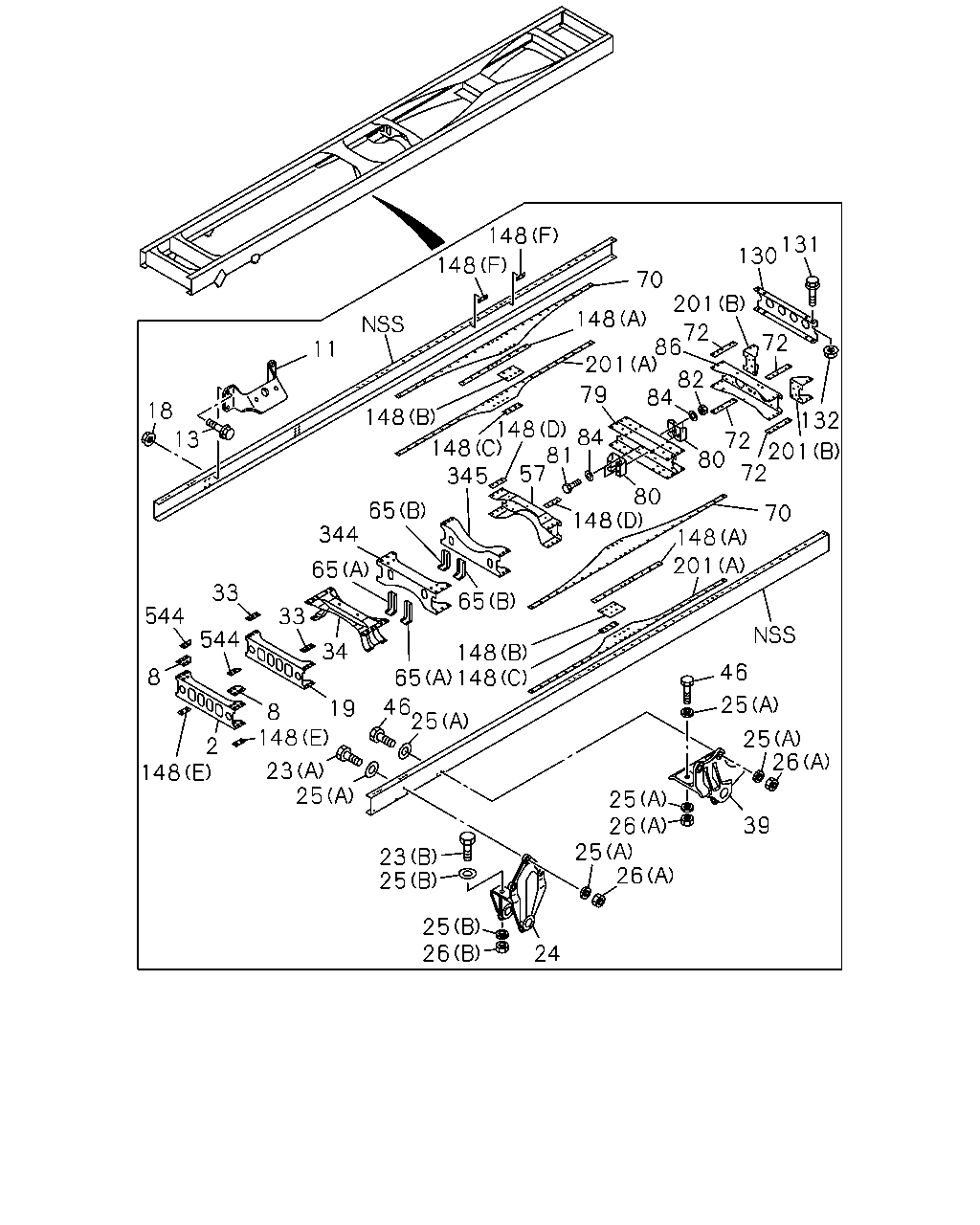

çizim 187987
148 131 130 148 70 201 148 148 84 148 81 80 148 148 201 148 72 86 82 84 72 11 79 132 18 201 72 13 72 80 65 70 344 201 148 65 33 33 65 544 544 34 46 8 65 25 46 25 19 8 148 25 26 2 148 23 25 25 26 25 26 39 23 25 25 26 24 345 57 148
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST 8-97610-852-5 01 1 0809-1003 ●
2 MEMBER; CROSS,1ST 8-97610-852-7 01 1 1004- ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 0809-1003 ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 1004- ● ●
11 BRACKET; ENG MTG 8-97619-550-0 02 1 0809-1003 ●
11 BRACKET; ENG MTG 8-97619-550-0 02 1 1004- ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0809-1003 ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1004- ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0809-1003 ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1004- ● ●
19 MEMBER; CROSS,2ND 8-97623-239-1 01 1 0809-1003 ●
19 MEMBER; CROSS,2ND 8-97623-239-3 01 1 1004- ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 0809-1003 ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 1004- ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 0809-1003 ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 1004- ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 0809-1003 ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 1004- ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 0809-1003 ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 1004- ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 0809-1003 ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1004- ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-0 28 1 0809-1003 ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1004- ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 0809-1003 ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 1004- ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0809-1003 ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 1004- ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 0809-1003 ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 1004- ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 0809-1003 ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 1004- ● ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 0809-1003 ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 1004- ● ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 0809-1003 ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 1004- ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 0809-1003 ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 1004- ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97612-103-1 01 1 0809-1003 ●
57 MEMBER; CROSS,RR SUSP FRT 8-97612-103-1 01 1 1004- ● ●
65 BRACKET; CENTER BRG
(A) 		8-97614-133-0 02 1 1004- ●
65 BRACKET; CENTER BRG
(B) 		8-97614-140-0 02 1 1004- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) (A) 		8-97612-486-0 02 1 0809- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		8-97614-126-0 02 1 0809- ●
65 BRACKET; CENTER BRG
ZF6S1000 M/T(Y5D) (B) 		8-97614-125-0 02 1 0809- ●
65 BRACKET; CENTER BRG
ZF6S1000 M/T(Y5D) (A) 		8-97621-881-0 02 1 0809- ●
70 GUSSET; TRUNNION,UPR 8-97612-106-0 02 1 0809-1003 ●
70 GUSSET; TRUNNION,UPR 8-97612-106-0 02 1 1004- ● ●
72 SPACER; TRUNNION 8-97612-110-0 04 1 0809-1003 ●
72 SPACER; TRUNNION 8-97612-110-0 04 1 1004- ● ●
79 MEMBER; CROSS,TRUNNION ASM 8-97612-484-1 01 1 0809-1003 ●
79 MEMBER; CROSS,TRUNNION ASM 8-97612-484-1 01 1 1004- ● ●
80 BRACKET; C/MBR 1-53363-068-0 02 1 0809-1003 ●
80 BRACKET; C/MBR 1-53363-068-0 02 1 1004- ● ●
81 BOLT; BRKT
M14X50 		0-10956-450-0 02 1 0809-1003 ●
81 BOLT; BRKT
M14X50 		0-10956-450-0 02 1 1004- ● ●
82 NUT; BRKT
M14 		0-91110-514-0 02 1 0809-1003 ●
82 NUT; BRKT
M14 		0-91110-514-0 02 1 1004- ● ●
84 WASHER; PL,BRKT
ID=15 		8-98010-627-0 04 1 0809-1003 ●
84 WASHER; PL,BRKT
ID=15 		8-98010-627-1 04 1 1004- ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97612-105-4 01 1 0809-1003 ●
86 MEMBER; CROSS,RR SUSP RR 8-97612-105-4 01 1 1004- ● ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 0809-1003 ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 1004- ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 0809-1003 ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 1004- ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 0809-1003 ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 1004- ● ●
148 SPACER; C/MBR
(E) 		8-97611-039-0 02 1 0809-1003 ●
148 SPACER; C/MBR
(E) 		8-97611-039-0 02 1 1004- ● ●
148 SPACER; C/MBR
(D) 		8-97612-109-0 02 1 0809-1003 ●
148 SPACER; C/MBR
(D) 		8-97612-109-0 02 1 1004- ● ●
148 SPACER; C/MBR
(F) 		8-97612-111-0 04 1 0809-1003 ●
148 SPACER; C/MBR
(F) 		8-97612-111-0 04 1 1004- ● ●
148 SPACER; C/MBR
(A) 		8-97612-112-0 02 1 0809-1003 ●
148 SPACER; C/MBR
(A) 		8-97612-112-0 02 1 1004- ● ●
148 SPACER; C/MBR
(B) 		8-97612-113-0 02 1 0809-1003 ●
148 SPACER; C/MBR
(B) 		8-97612-113-0 02 1 1004- ● ●
148 SPACER; C/MBR
(C) 		8-97612-115-0 02 1 0809-1003 ●
148 SPACER; C/MBR
(C) 		8-97612-115-0 02 1 1004- ● ●
201 GUSSET; C/MBR
(A) 		8-97635-951-1 02 1 1004- ●
201 GUSSET; C/MBR
(A) 		8-97612-107-3 02 1 0809- ●
201 GUSSET; C/MBR
(B) 		8-97612-108-2 02 1 0809-1003 ●
201 GUSSET; C/MBR
(B) 		8-97612-108-2 02 1 1004- ● ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 0809-1003 ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 1004- ● ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 0809-1003 ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 1004- ● ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 0809-1003 ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 1004- ● ●
