◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10796 - EXZ LHD FUEL TANK 400L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#6943) — 55 parça

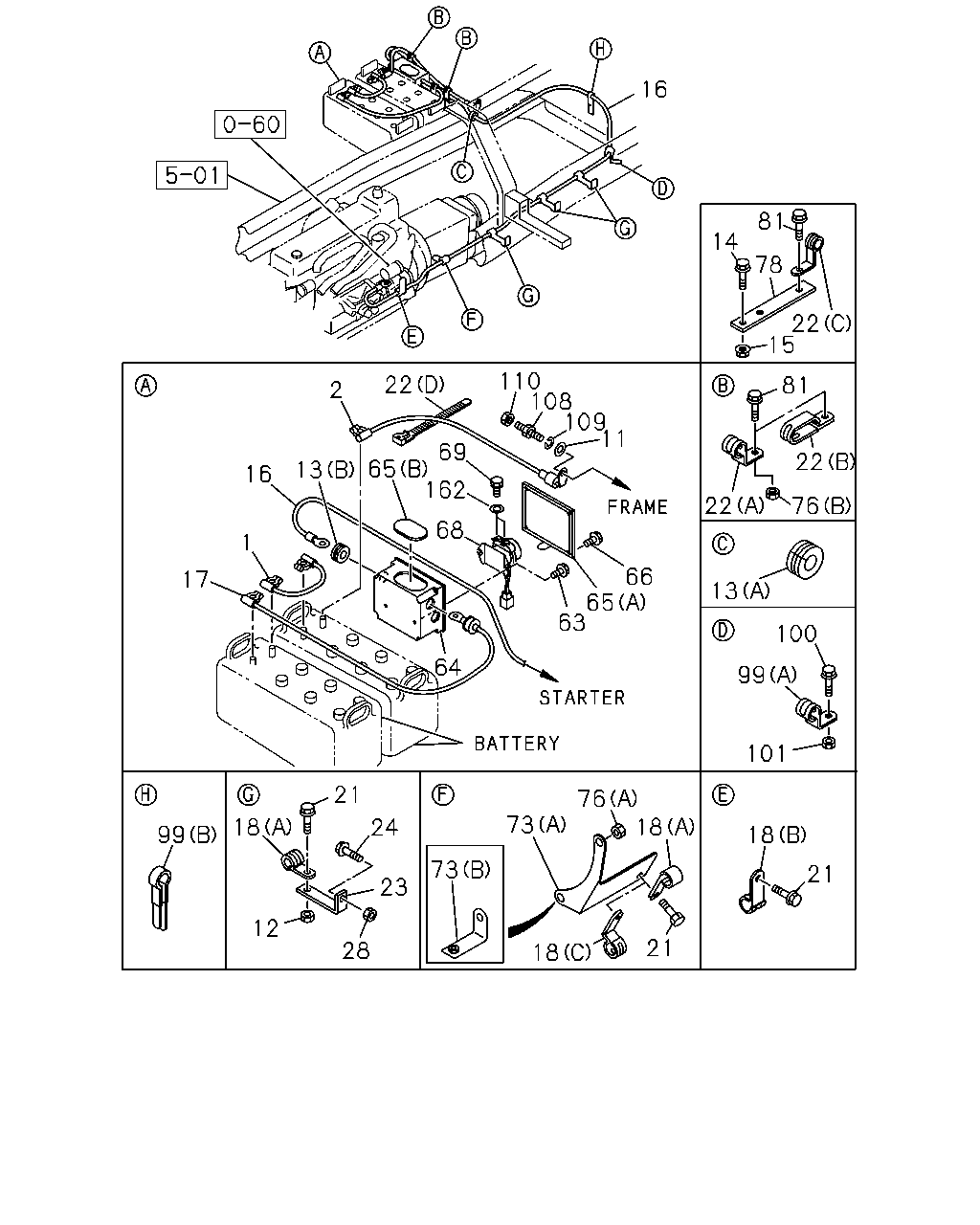

çizim 7222
16 81 14 78 22 15 110 108 109 11 22 81 2 69 22 65 162 13 16 22 76 68 1 66 65 63 17 13 100 64 99 101 21 76 18 73 18 24 99 18 73 21 23 12 21 28 18
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CABLE; BATTERY
BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450 		1-82650-281-2 01 1 9812- ● ● ● ●
1 CABLE; BATTERY
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180 		1-82650-280-2 01 1 9812- ● ● ● ●
2 CABLE; BATTERY
WHEEL BASE 4500MM(45W) L=1150 		1-82650-286-0 01 1 9812- ● ● ● ●
2 CABLE; BATTERY
WHEEL BASE 4700MM(47W) L=950 		1-82650-155-0 01 1 9902- ● ● ● ●
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		9-09164-708-0 01 1 9812- ● ● ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 02 1 9812-9902 ● ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 03 1 9903- ● ● ● ●
13 GROMMET; BATTERY CABLE
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9812- ● ● ● ●
13 GROMMET; BATTERY CABLE
(B) ID=26 		1-09333-140-0 01 1 9812- ● ● ● ●
14 BOLT; BRKT CLIP
WHEEL BASE 4500MM(45W) M10X20 FLANGE 		0-28681-020-0 01 1 9904- ● ● ● ●
15 NUT; BRKT CLIP
WHEEL BASE 4500MM(45W) M10 FLANGE 		0-91150-210-0 01 1 9904- ● ● ● ●
16 CABLE; STARTER TO RELAY
L=4150 		1-82652-637-1 01 1 9812- ● ● ● ●
17 CABLE; BATTERY (+) TO RELAY
WHEEL BASE 4500MM(45W) OD=12.7 L=1200 		1-82650-285-5 01 1 9812- ● ● ● ●
17 CABLE; BATTERY (+) TO RELAY
WHEEL BASE 4700MM(47W) L=930 		1-82652-533-1 01 1 9902- ● ● ● ●
18 CLIP; BATTERY CABLE
(A) ID=18 L=28 		1-09701-067-0 02 1 9812-9902 ● ● ●
18 CLIP; BATTERY CABLE
(A) ID=18 L=28 		1-09701-067-0 03 1 9903- ● ● ● ●
18 CLIP; BATTERY CABLE
ZF M/T<X9E> (C) ID=20 H=23 L=27 		1-09700-861-0 01 1 9812- ● ● ●
18 CLIP; BATTERY CABLE
(B) ID=19 L=28 		9-09525-856-0 01 1 9812- ● ● ● ●
18 CLIP; BATTERY CABLE
ISUZU M/T<X9A>,FULLER M/T<X9B> (A) ID=18 L=28 		1-09701-067-0 01 1 9905- ● ● ● ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28680-820-0 02 1 9812-9902 ● ● ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28680-820-0 05 1 9903- ● ● ● ●
22 CLIP; BATTERY CABLE
(D) L=250 		5-09707-030-1 03 1 9904- ● ● ● ●
22 CLIP; BATTERY CABLE
WHEEL BASE 4500MM(45W) (A) ID=20X2 H=25 L=45 		1-09701-252-0 02 1 9812- ● ● ● ●
22 CLIP; BATTERY CABLE
WHEEL BASE 4500MM(45W) (C) ID=20 H=23 L=27 		1-09700-861-0 02 1 9904- ● ● ● ●
22 CLIP; BATTERY CABLE
WHEEL BASE 4700MM(47W) (B) ID=24X2 L=25 		1-09700-710-0 02 1 9902- ● ● ● ●
23 BRACKET; CABLE CLIP TO FRAME
L=95 		1-82699-085-0 02 1 9812-9902 ● ● ●
23 BRACKET; CABLE CLIP TO FRAME
L=95 		1-82699-085-0 03 1 9903- ● ● ● ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28680-830-0 02 1 9812-9902 ● ● ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28680-830-0 03 1 9903- ● ● ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 9812-9902 ● ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 03 1 9903- ● ● ● ●
63 BOLT; RELAY BATTERY
M8X35 W/LK&PL WASHER 		1-09030-025-0 02 1 9812- ● ● ● ●
64 BOX; BATTERY RELAY 1-82699-947-0 01 1 9812- ● ● ● ●
65 COVER; BATTERY RELAY
(A) 		1-82699-353-1 01 1 9812- ● ● ● ●
65 COVER; BATTERY RELAY
(B) 		1-82699-980-0 01 1 9812- ● ● ● ●
66 BOLT; COVER,BATTERY RELAY
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9812- ● ● ● ●
68 RELAY; BATTERY 1-82550-282-0 01 1 9812- ● ● ● ●
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9812- ● ● ● ●
73 BRACKET; BATTERY CABLE
FULLER M/T<X9B> (B) 		1-82699-104-0 01 1 9905- ● ● ● ●
73 BRACKET; BATTERY CABLE
ISUZU M/T<X9A> (A) 		1-82699-493-0 01 1 9905- ● ● ● ●
76 NUT; BATTERY CABLE
FULLER M/T<X9B> (A) M10 FLANGE 		0-91150-210-0 01 1 9905- ● ● ● ●
76 NUT; BATTERY CABLE
ISUZU M/T<X9A> (A) M10 FLANGE 		0-91150-210-0 02 1 9905- ● ● ● ●
76 NUT; BATTERY CABLE
WHEEL BASE 4500MM(45W) (B) M8 FLANGE 		0-91150-108-0 01 1 9904- ● ● ● ●
78 BRACKET; CLIP BATTERY
WHEEL BASE 4500MM(45W) 		1-82698-152-0 01 1 9904- ● ● ● ●
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28680-820-0 02 1 9812-9903 ● ● ●
81 BOLT; BATTERY CABLE
WHEEL BASE 4500MM(45W) M8X20 FLANGE 		0-28680-820-0 02 1 9904- ● ● ● ●
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28680-820-0 02 1 9904- ● ● ● ●
99 CLIP; BATTERY CABLE
(A) ID=18 H=23 L=28 		1-09701-070-0 02 1 9812- ● ● ● ●
99 CLIP; BATTERY CABLE
(B) ID=20 L=50 		9-09917-430-0 01 1 9812- ● ● ● ●
100 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 9812- ● ● ● ●
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 02 1 9812- ● ● ● ●
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 9812- ● ● ● ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-808-0 01 1 9812- ● ● ● ●
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 9812- ● ● ● ●
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		9-09164-608-0 02 1 9812- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
