4-20 — REAR AXLE CASE AND SHAFT (#69427) — 108 parça

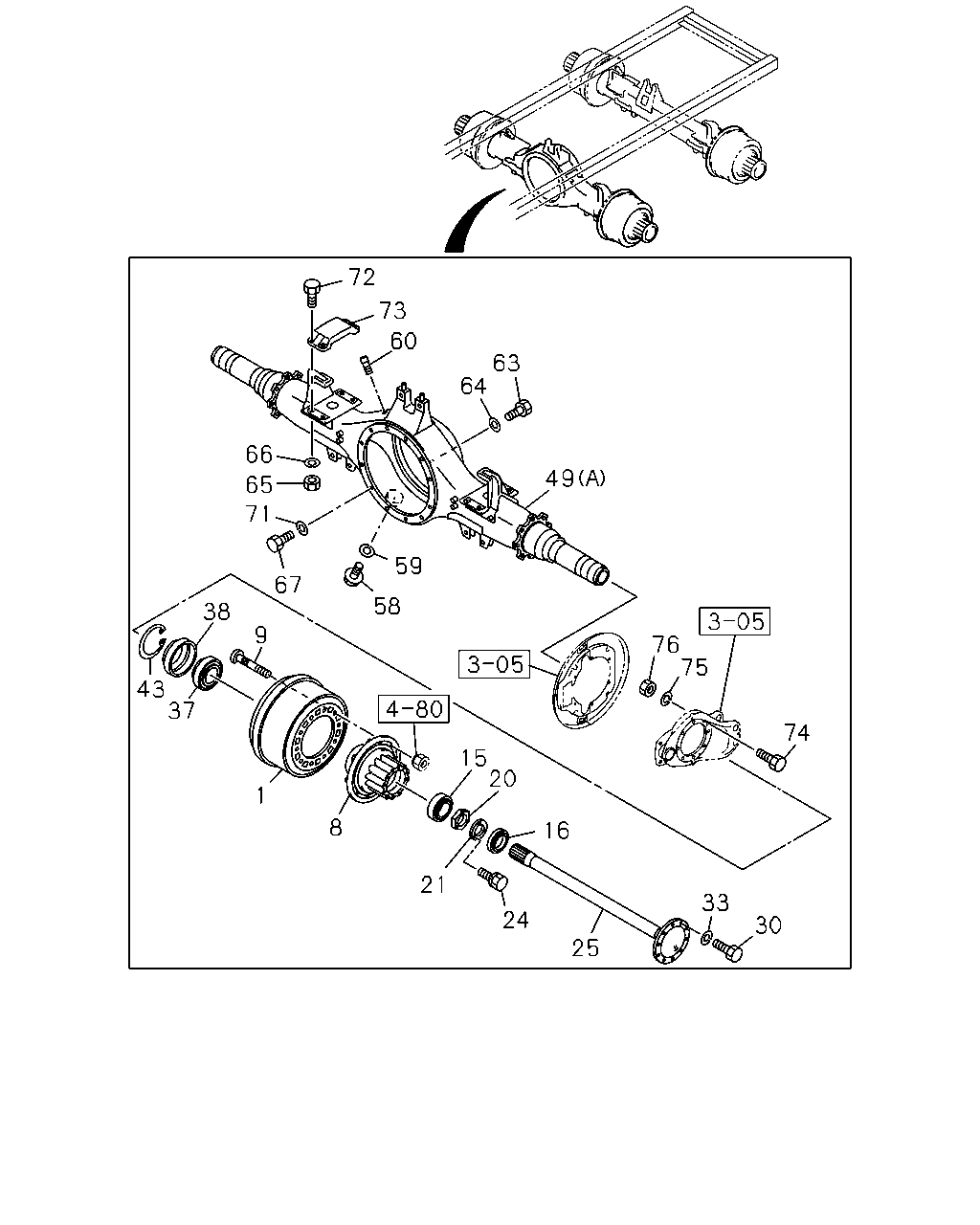

72 73 60 63 64 66 49 65 71 59 67 58 38 9 76 75 43 37 74 15 20 1 8 16 21 33 24 30 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRUM; BRK,RR	1-42315-377-2	02	1	0809-
1	DRUM; BRK,RR	1-42315-377-2	02	1	0809-
8	HUB; RR AXLE	1-42311-085-0	02	1	0809-
8	HUB; RR AXLE	1-42311-085-0	02	1	0809-
9	PIN; WHEEL,RR AXLE M22X93 RH THREAD	1-42337-066-2	20	1	0809-
9	PIN; WHEEL,RR AXLE M22X93 RH THREAD	1-42337-066-2	20	1	0809-
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1209-
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1209-
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1209-
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1209-
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	0809-
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	0809-
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	0809-
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	0809-
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	0809-
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0809-
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0809-
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0809-
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0809-
25	SHAFT; AXLE,RR L=1054	1-42171-375-0	02	1	0809-0910
25	SHAFT; AXLE,RR L=1050	8-98146-164-0	02	1	0911-
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	0809-
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	0809-
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1209-
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1209-
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1209-
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1209-
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	0809-
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	0809-
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	0809-
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	0809-
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	0809-
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	0809-
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0809-
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0809-
49	CASE; RR AXLE (A)	8-98024-652-1	01	1	0809-
49	CASE; RR AXLE (B)	8-98076-233-2	01	1	0809-
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0809-
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0809-
60	BREATHER; RR AXLE CASE	1-09893-003-0	01	1	0809-
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0809-
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0809-
65	NUT M14	0-91110-514-0	08	1	0809-
65	NUT M14	0-91110-514-0	08	1	0809-
66	WASHER; LK ID=14.2	0-91510-814-0	08	1	0809-
66	WASHER; LK ID=14.2	0-91510-814-0	08	1	0809-
67	BOLT; FINAL DRIVE SETTING M16X70	0-10956-670-0	04	1	0809-
67	BOLT; FINAL DRIVE SETTING M16X40	0-20951-640-0	08	1	0809-
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	0809-
72	BOLT; PAD FIX M14X40	0-20951-440-0	08	1	0809-
72	BOLT; PAD FIX M14X40	0-20951-440-0	08	1	0809-
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	0809-
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	0809-
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	16	1	0809-
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	16	1	0809-
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0809-
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0809-
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0809-
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0809-

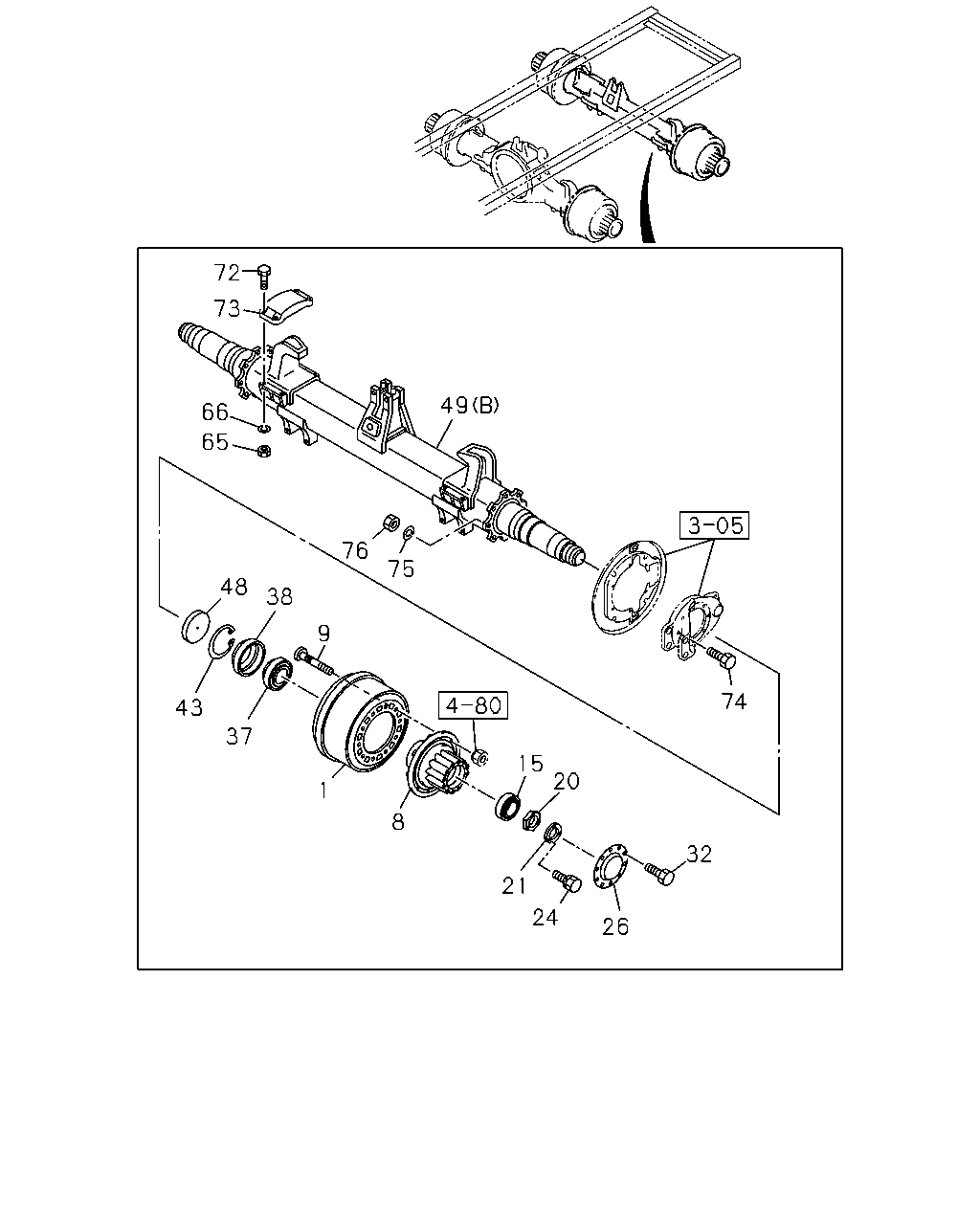

72 73 49 66 65 76 75 48 38 9 74 43 37 15 20 1 8 32 21 24 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRUM; BRK,RR	1-42315-377-2	02	1	0809-
1	DRUM; BRK,RR	1-42315-377-2	02	1	0809-
8	HUB; RR AXLE	1-42311-085-0	02	1	0809-
8	HUB; RR AXLE	1-42311-085-0	02	1	0809-
9	PIN; WHEEL,RR AXLE M22X93 RH THREAD	1-42337-066-2	20	1	0809-
9	PIN; WHEEL,RR AXLE M22X93 RH THREAD	1-42337-066-2	20	1	0809-
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1209-
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1209-
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1209-
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1209-
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	0809-
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	0809-
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	0809-
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	0809-
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0809-
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0809-
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0809-
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0809-
26	CAP; HUB,RR AXLE	1-42313-011-1	02	1	0809-
32	BOLT; HUB CAP M14X35 FLANGE	0-28651-435-0	20	1	0809-
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1209-
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1209-
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1209-
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1209-
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	0809-
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	0809-
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	0809-
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	0809-
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	0809-
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	0809-
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0809-
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0809-
48	COVER; END	1-42119-035-1	02	1	0809-
49	CASE; RR AXLE (A)	8-98024-652-1	01	1	0809-
49	CASE; RR AXLE (B)	8-98076-233-2	01	1	0809-
65	NUT M14	0-91110-514-0	08	1	0809-
65	NUT M14	0-91110-514-0	08	1	0809-
66	WASHER; LK ID=14.2	0-91510-814-0	08	1	0809-
66	WASHER; LK ID=14.2	0-91510-814-0	08	1	0809-
72	BOLT; PAD FIX M14X40	0-20951-440-0	08	1	0809-
72	BOLT; PAD FIX M14X40	0-20951-440-0	08	1	0809-
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	0809-
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	0809-
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	16	1	0809-
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	16	1	0809-
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0809-
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0809-
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0809-
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0809-
