Sayfa 4-01 - Isuzu EPC

4-01 — PROPELLER SHAFT (#69424) — 456 parça

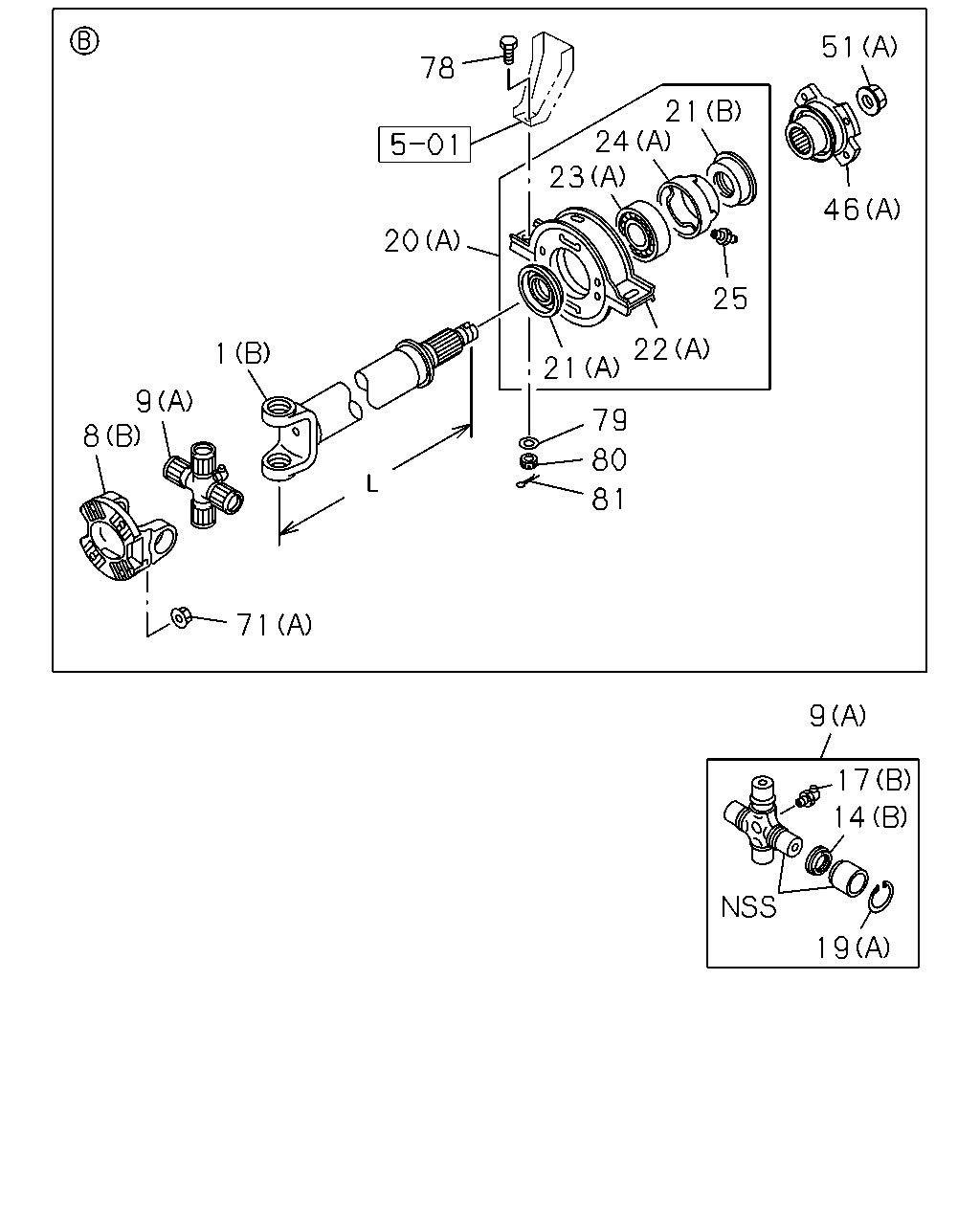

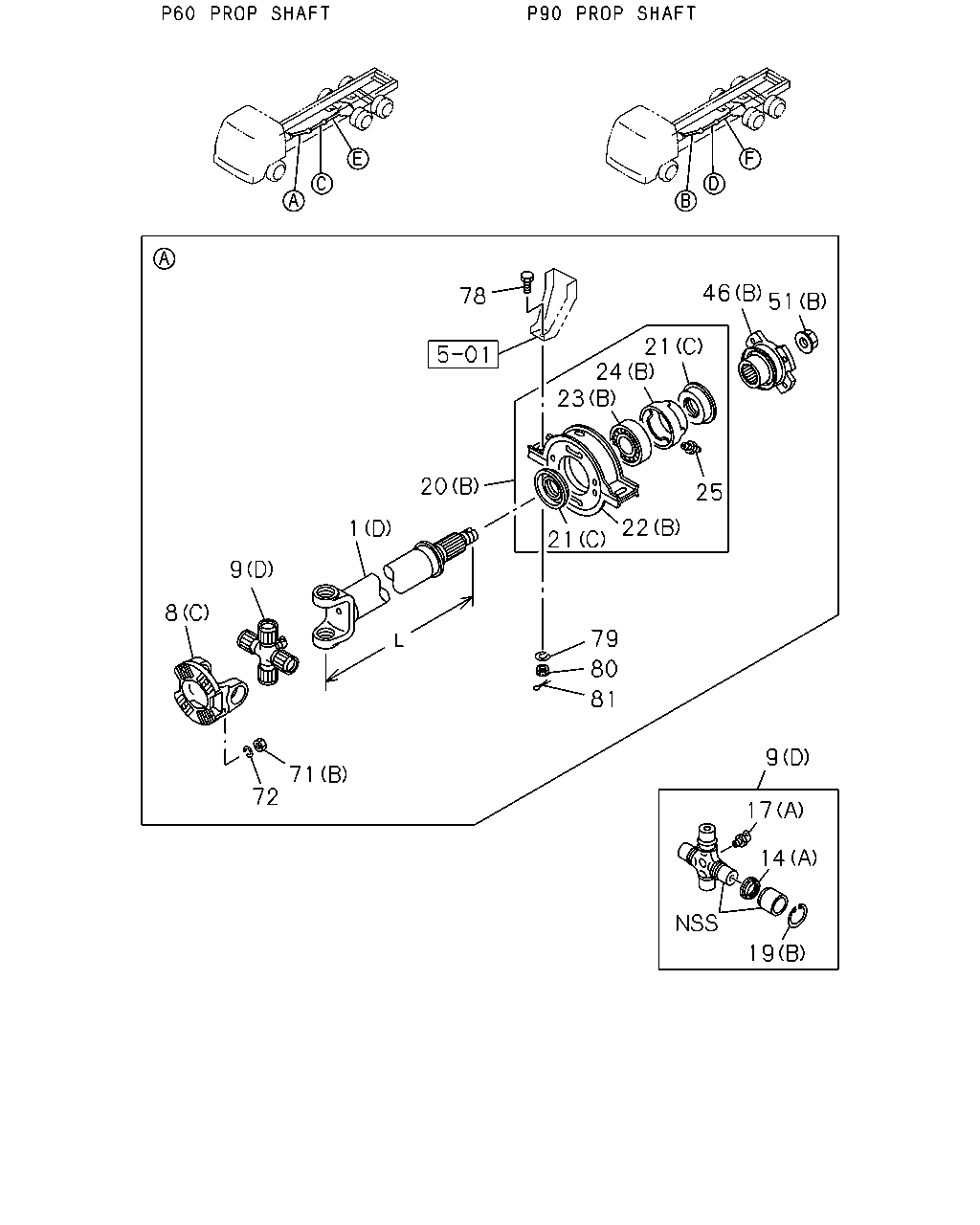

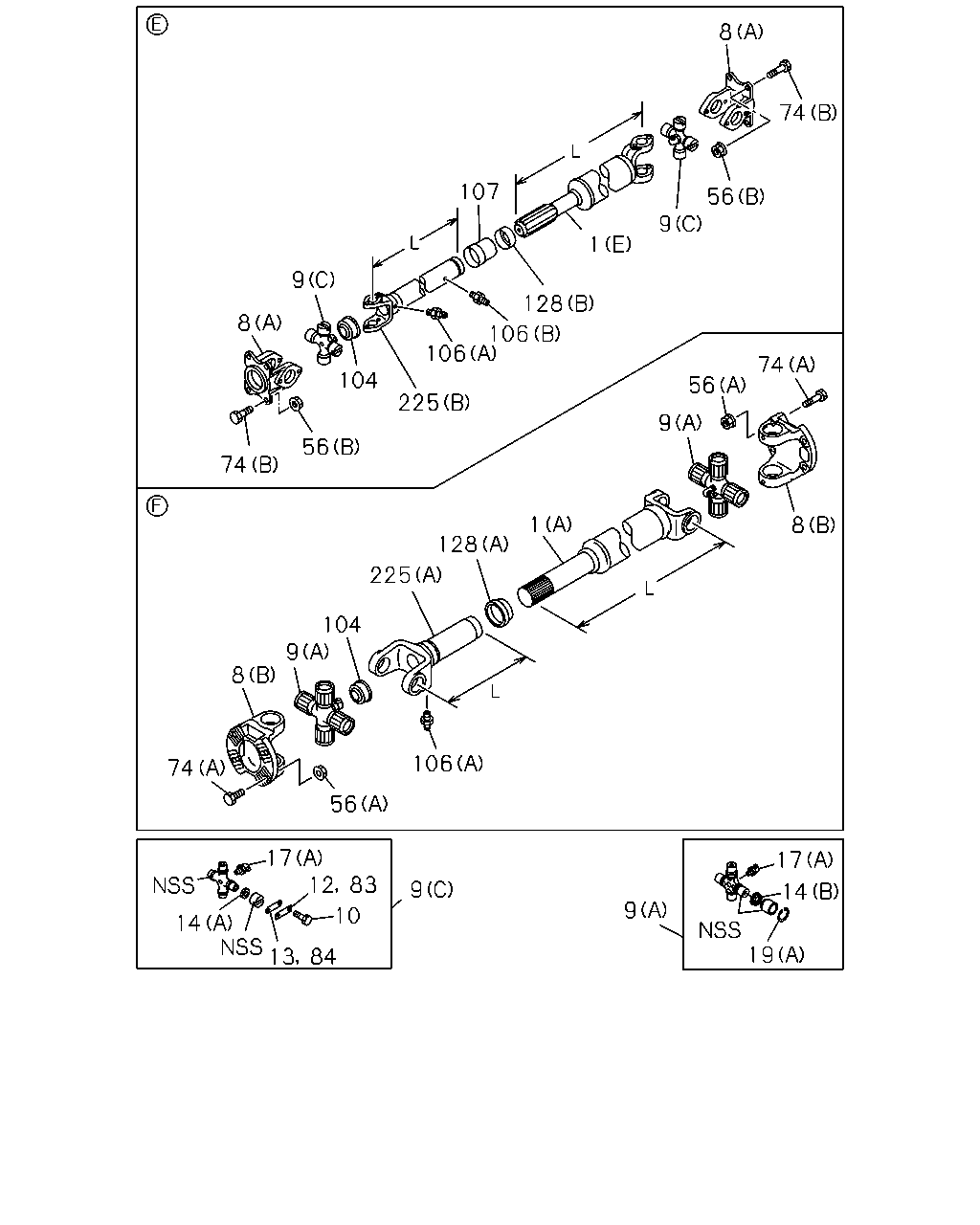

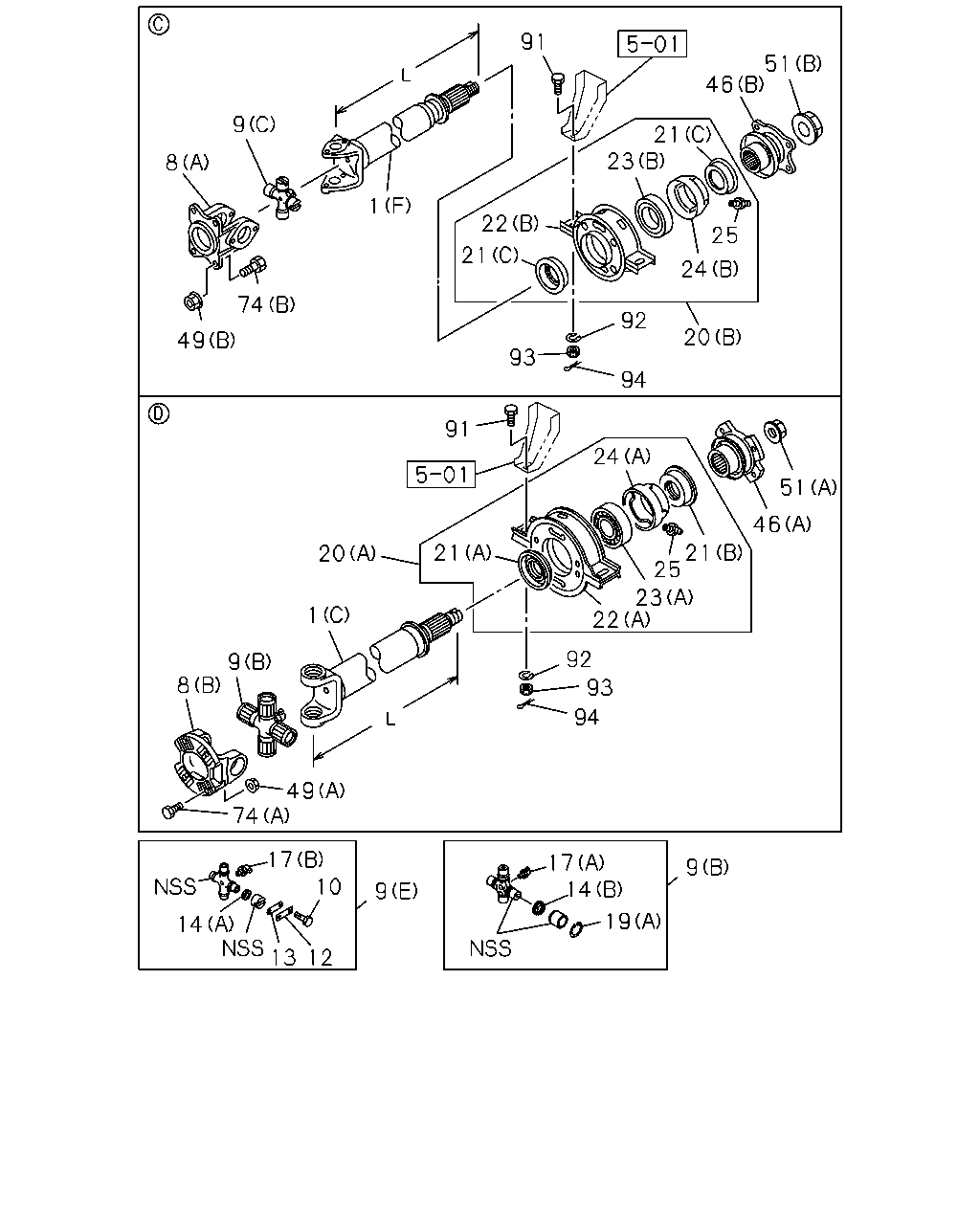

46 51 78 21 24 23 20 25 22 1 21 9 8 79 80 81 9 71 72 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP (A) L=799	1-37125-348-1	01	1	1004-	●
1	SHAFT; PROP (C) L=1350	8-98159-901-1	01	1	1004-	●
1	SHAFT; PROP (B) L=1103	1-37152-927-1	01	1	1004-	●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (D) L=911	1-37152-590-0	01	1	0809-		●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (E) L=994	8-98091-269-0	01	1	0809-		●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (F) L=824	8-98091-295-0	01	1	0809-		●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (A) L=1039	1-37124-615-1	01	1	0809-		●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (C) L=820	8-98091-468-1	01	1	0809-		●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (B) L=725	8-98091-479-1	01	1	0809-		●
8	YOKE; FLANGE,PROP SHAFT (B)	1-37211-079-1	03	1	1004-	●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	03	1	0809-		●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (C)	8-98092-073-0	01	1	0809-		●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	02	1	0809-		●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	01	1	0809-1003		●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	01	1	0809-1003		●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	01	1	1004-		●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	01	1	1004-		●
8	YOKE; FLANGE,PROP SHAFT (B)	1-37211-079-1	01	1	1004-	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (E)	1-37300-095-1	AR	1	0809-		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (C)	1-37300-094-1	AR	1	0809-		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (D)	1-37300-108-0	01	1	0809-		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (A)	1-37300-110-0	02	1	0809-1003		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (A)	1-37300-110-0	02	1	1004-1505	●	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T)	1-37300-110-0	01	1	1506-		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T)	1-37300-110-0	01	1	1506-		●
9	JOURNAL ASM; PROP SHAFT	1-37300-110-0	01	1	1506-	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (A)	1-37300-110-0	01	1	0809-1505		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T)	1-37300-110-0	02	1	1506-		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37300-111-0	01	1	0809-1003		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37300-111-0	01	1	1004-1505	●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-111-0	01	1	1004-1505	●
9	JOURNAL ASM; PROP SHAFT	1-37300-110-0	03	1	1506-	●
14	COVER; DUST,SPIDER (B)	1-37249-131-0	12	1	1004-	●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	08	1	0809-		●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	12	1	0809-		●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	04	1	0809-		●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	04	1	0809-1003		●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	04	1	0809-1003		●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	04	1	1004-		●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	04	1	1004-		●
14	COVER; DUST,SPIDER (B)	1-37249-131-0	04	1	1004-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	1004-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0809-		●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0809-1003		●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1004-1505	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1506-		●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1506-		●
17	NIPPLE; GREASE,PROP SHAFT 6HK1-TCS ENG(80L) P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1506-	●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	0-90301-610-0	01	1	0809-1505		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) PT1/8 ELBOW	0-90301-610-0	01	1	1506-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) T=2.2	1-09587-102-1	12	1	1004-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P60 PROP SHAFT(C2M) (B)	1-09587-101-1	04	1	0809-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A) T=2.2	1-09587-102-1	08	1	0809-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A) T=2.2	1-09587-102-1	04	1	0809-1003		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A) T=2.2	1-09587-102-1	04	1	0809-1003		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A) T=2.2	1-09587-102-1	04	1	1004-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A) T=2.2	1-09587-102-1	04	1	1004-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) T=2.2	1-09587-102-1	04	1	1004-	●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT(C2M) (B)	1-37510-093-3	01	1	0809-		●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT(C2M) (B)	1-37510-093-3	01	1	0809-		●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT(C5T) (A) ID=60	1-37510-115-0	01	1	0809-1003		●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT(C5T) (A) ID=60	1-37510-115-0	01	1	0809-1003		●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT(C5T) (A) ID=60	1-37510-115-0	01	1	1004-	●	●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT(C5T) (A) ID=60	1-37510-115-0	01	1	1004-	●	●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT(C2M) (C) D=120	1-09625-126-0	02	1	0809-		●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT(C2M) (C) D=120	1-09625-126-0	02	1	0809-		●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (A) D=120	1-09625-127-0	01	1	0809-1003		●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (A) D=120	1-09625-127-0	01	1	0809-1003		●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (A) D=120	1-09625-127-0	01	1	1004-	●	●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (A) D=120	1-09625-127-0	01	1	1004-	●	●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (B)	1-09625-621-0	01	1	0809-1003		●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (B)	1-09625-621-0	01	1	0809-1003		●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (B)	1-09625-621-0	01	1	1004-	●	●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (B)	1-09625-621-0	01	1	1004-	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT(C2M) (B)	1-37516-047-2	01	1	0809-		●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT(C2M) (B)	1-37516-047-2	01	1	0809-		●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT(C5T) (A)	1-37516-048-2	01	1	0809-1003		●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT(C5T) (A)	1-37516-048-2	01	1	0809-1003		●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT(C5T) (A)	1-37516-048-2	01	1	1004-	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT(C5T) (A)	1-37516-048-2	01	1	1004-	●	●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT(C2M) (B)	9-00090-292-0	01	1	0809-		●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT(C2M) (B)	9-00090-292-0	01	1	0809-		●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT(C5T) (A)	9-00090-256-0	01	1	0809-1003		●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT(C5T) (A)	9-00090-256-0	01	1	0809-1003		●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT(C5T) (A)	9-00090-256-0	01	1	1004-	●	●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT(C5T) (A)	9-00090-256-0	01	1	1004-	●	●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT(C2M) (B)	1-37529-039-0	01	1	0809-		●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT(C2M) (B)	1-37529-039-0	01	1	0809-		●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT(C5T) (A)	1-37529-109-0	01	1	0809-1003		●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT(C5T) (A)	1-37529-109-0	01	1	0809-1003		●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT(C5T) (A)	1-37529-109-0	01	1	1004-	●	●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT(C5T) (A)	1-37529-109-0	01	1	1004-	●	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0809-1003		●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0809-1003		●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1004-	●	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1004-	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT(C2M) (B)	1-37245-283-1	01	1	0809-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT(C2M) (B)	1-37245-283-1	01	1	0809-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A)	1-37245-348-0	01	1	0809-1003		●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A)	1-37245-348-0	01	1	0809-1003		●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A)	1-37245-348-0	01	1	1004-	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A)	1-37245-348-0	01	1	1004-	●	●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT(C2M) (B) M33 FLANGE	1-09449-051-0	01	1	0809-		●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT(C2M) (B) M33 FLANGE	1-09449-051-0	01	1	0809-		●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT(C5T) (A) M39 FLANGE	1-09440-046-0	01	1	0809-1003		●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT(C5T) (A) M39 FLANGE	1-09440-046-0	01	1	0809-1003		●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT(C5T) (A) M39 FLANGE	1-09440-046-0	01	1	1004-	●	●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT(C5T) (A) M39 FLANGE	1-09440-046-0	01	1	1004-	●	●
71	NUT; YOKE ZF6S1000 M/T(Y5D) (B) M12	0-91110-512-0	04	1	0809-	●	●
71	NUT; YOKE ZF9S1110 M/T(Y5E) (A) M14 FLANGE	8-97365-444-0	04	1	0809-	●	●
72	WASHER; LK,YOKE ZF6S1000 M/T(Y5D) ID=12.2	0-91510-612-0	04	1	0809-	●	●
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP M16X45	1-09042-030-0	02	1	0809-1003		●
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP M16X45	1-09042-030-0	02	1	1004-	●	●
79	WASHER; PL,HOLDER SET,CENTER BRG ID=17	1-09503-241-1	02	1	0809-1003		●
79	WASHER; PL,HOLDER SET,CENTER BRG ID=17	1-09503-241-1	02	1	1004-	●	●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	0-91116-516-0	02	1	0809-1003		●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	0-91116-516-0	02	1	1004-1204	●	●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	8-98049-689-0	02	1	1205-	●	●
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25	0-81124-025-0	02	1	0809-1003		●
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25	0-81124-025-0	02	1	1004-	●	●

51 78 21 24 23 46 20 25 22 1 21 9 8 79 80 81 71 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP (A) L=799	1-37125-348-1	01	1	1004-	●
1	SHAFT; PROP (C) L=1350	8-98159-901-1	01	1	1004-	●
1	SHAFT; PROP (B) L=1103	1-37152-927-1	01	1	1004-	●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (D) L=911	1-37152-590-0	01	1	0809-		●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (E) L=994	8-98091-269-0	01	1	0809-		●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (F) L=824	8-98091-295-0	01	1	0809-		●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (A) L=1039	1-37124-615-1	01	1	0809-		●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (C) L=820	8-98091-468-1	01	1	0809-		●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (B) L=725	8-98091-479-1	01	1	0809-		●
8	YOKE; FLANGE,PROP SHAFT (B)	1-37211-079-1	03	1	1004-	●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	03	1	0809-		●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (C)	8-98092-073-0	01	1	0809-		●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	02	1	0809-		●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	01	1	0809-1003		●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	01	1	0809-1003		●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	01	1	1004-		●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	01	1	1004-		●
8	YOKE; FLANGE,PROP SHAFT (B)	1-37211-079-1	01	1	1004-	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (E)	1-37300-095-1	AR	1	0809-		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (C)	1-37300-094-1	AR	1	0809-		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (D)	1-37300-108-0	01	1	0809-		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (A)	1-37300-110-0	02	1	0809-1003		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (A)	1-37300-110-0	02	1	1004-1505	●	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T)	1-37300-110-0	01	1	1506-		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T)	1-37300-110-0	01	1	1506-		●
9	JOURNAL ASM; PROP SHAFT	1-37300-110-0	01	1	1506-	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (A)	1-37300-110-0	01	1	0809-1505		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T)	1-37300-110-0	02	1	1506-		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37300-111-0	01	1	0809-1003		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37300-111-0	01	1	1004-1505	●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-111-0	01	1	1004-1505	●
9	JOURNAL ASM; PROP SHAFT	1-37300-110-0	03	1	1506-	●
14	COVER; DUST,SPIDER (B)	1-37249-131-0	12	1	1004-	●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	08	1	0809-		●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	12	1	0809-		●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	04	1	0809-		●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	04	1	0809-1003		●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	04	1	0809-1003		●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	04	1	1004-		●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	04	1	1004-		●
14	COVER; DUST,SPIDER (B)	1-37249-131-0	04	1	1004-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	1004-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0809-		●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0809-1003		●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1004-1505	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1506-		●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1506-		●
17	NIPPLE; GREASE,PROP SHAFT 6HK1-TCS ENG(80L) P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1506-	●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	0-90301-610-0	01	1	0809-1505		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) PT1/8 ELBOW	0-90301-610-0	01	1	1506-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) T=2.2	1-09587-102-1	12	1	1004-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P60 PROP SHAFT(C2M) (B)	1-09587-101-1	04	1	0809-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A) T=2.2	1-09587-102-1	08	1	0809-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A) T=2.2	1-09587-102-1	04	1	0809-1003		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A) T=2.2	1-09587-102-1	04	1	0809-1003		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A) T=2.2	1-09587-102-1	04	1	1004-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A) T=2.2	1-09587-102-1	04	1	1004-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) T=2.2	1-09587-102-1	04	1	1004-	●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT(C2M) (B)	1-37510-093-3	01	1	0809-		●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT(C2M) (B)	1-37510-093-3	01	1	0809-		●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT(C5T) (A) ID=60	1-37510-115-0	01	1	0809-1003		●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT(C5T) (A) ID=60	1-37510-115-0	01	1	0809-1003		●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT(C5T) (A) ID=60	1-37510-115-0	01	1	1004-	●	●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT(C5T) (A) ID=60	1-37510-115-0	01	1	1004-	●	●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT(C2M) (C) D=120	1-09625-126-0	02	1	0809-		●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT(C2M) (C) D=120	1-09625-126-0	02	1	0809-		●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (A) D=120	1-09625-127-0	01	1	0809-1003		●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (A) D=120	1-09625-127-0	01	1	0809-1003		●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (A) D=120	1-09625-127-0	01	1	1004-	●	●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (A) D=120	1-09625-127-0	01	1	1004-	●	●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (B)	1-09625-621-0	01	1	0809-1003		●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (B)	1-09625-621-0	01	1	0809-1003		●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (B)	1-09625-621-0	01	1	1004-	●	●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (B)	1-09625-621-0	01	1	1004-	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT(C2M) (B)	1-37516-047-2	01	1	0809-		●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT(C2M) (B)	1-37516-047-2	01	1	0809-		●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT(C5T) (A)	1-37516-048-2	01	1	0809-1003		●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT(C5T) (A)	1-37516-048-2	01	1	0809-1003		●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT(C5T) (A)	1-37516-048-2	01	1	1004-	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT(C5T) (A)	1-37516-048-2	01	1	1004-	●	●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT(C2M) (B)	9-00090-292-0	01	1	0809-		●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT(C2M) (B)	9-00090-292-0	01	1	0809-		●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT(C5T) (A)	9-00090-256-0	01	1	0809-1003		●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT(C5T) (A)	9-00090-256-0	01	1	0809-1003		●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT(C5T) (A)	9-00090-256-0	01	1	1004-	●	●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT(C5T) (A)	9-00090-256-0	01	1	1004-	●	●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT(C2M) (B)	1-37529-039-0	01	1	0809-		●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT(C2M) (B)	1-37529-039-0	01	1	0809-		●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT(C5T) (A)	1-37529-109-0	01	1	0809-1003		●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT(C5T) (A)	1-37529-109-0	01	1	0809-1003		●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT(C5T) (A)	1-37529-109-0	01	1	1004-	●	●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT(C5T) (A)	1-37529-109-0	01	1	1004-	●	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0809-1003		●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0809-1003		●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1004-	●	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1004-	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT(C2M) (B)	1-37245-283-1	01	1	0809-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT(C2M) (B)	1-37245-283-1	01	1	0809-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A)	1-37245-348-0	01	1	0809-1003		●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A)	1-37245-348-0	01	1	0809-1003		●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A)	1-37245-348-0	01	1	1004-	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A)	1-37245-348-0	01	1	1004-	●	●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT(C2M) (B) M33 FLANGE	1-09449-051-0	01	1	0809-		●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT(C2M) (B) M33 FLANGE	1-09449-051-0	01	1	0809-		●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT(C5T) (A) M39 FLANGE	1-09440-046-0	01	1	0809-1003		●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT(C5T) (A) M39 FLANGE	1-09440-046-0	01	1	0809-1003		●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT(C5T) (A) M39 FLANGE	1-09440-046-0	01	1	1004-	●	●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT(C5T) (A) M39 FLANGE	1-09440-046-0	01	1	1004-	●	●
71	NUT; YOKE ZF6S1000 M/T(Y5D) (B) M12	0-91110-512-0	04	1	0809-	●	●
71	NUT; YOKE ZF9S1110 M/T(Y5E) (A) M14 FLANGE	8-97365-444-0	04	1	0809-	●	●
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP M16X45	1-09042-030-0	02	1	0809-1003		●
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP M16X45	1-09042-030-0	02	1	1004-	●	●
79	WASHER; PL,HOLDER SET,CENTER BRG ID=17	1-09503-241-1	02	1	0809-1003		●
79	WASHER; PL,HOLDER SET,CENTER BRG ID=17	1-09503-241-1	02	1	1004-	●	●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	0-91116-516-0	02	1	0809-1003		●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	0-91116-516-0	02	1	1004-1204	●	●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	8-98049-689-0	02	1	1205-	●	●
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25	0-81124-025-0	02	1	0809-1003		●
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25	0-81124-025-0	02	1	1004-	●	●

8 74 107 56 9 1 9 128 8 106 106 74 104 56 225 9 56 74 1 8 128 225 104 9 8 106 74 56 17 12 17 83 9 14 9 10 14 13 19 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP (A) L=799	1-37125-348-1	01	1	1004-	●
1	SHAFT; PROP (C) L=1350	8-98159-901-1	01	1	1004-	●
1	SHAFT; PROP (B) L=1103	1-37152-927-1	01	1	1004-	●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (D) L=911	1-37152-590-0	01	1	0809-		●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (E) L=994	8-98091-269-0	01	1	0809-		●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (F) L=824	8-98091-295-0	01	1	0809-		●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (A) L=1039	1-37124-615-1	01	1	0809-		●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (C) L=820	8-98091-468-1	01	1	0809-		●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (B) L=725	8-98091-479-1	01	1	0809-		●
8	YOKE; FLANGE,PROP SHAFT (B)	1-37211-079-1	03	1	1004-	●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	03	1	0809-		●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (C)	8-98092-073-0	01	1	0809-		●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	02	1	0809-		●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	01	1	0809-1003		●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	01	1	0809-1003		●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	01	1	1004-		●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	01	1	1004-		●
8	YOKE; FLANGE,PROP SHAFT (B)	1-37211-079-1	01	1	1004-	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (E)	1-37300-095-1	AR	1	0809-		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (C)	1-37300-094-1	AR	1	0809-		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (D)	1-37300-108-0	01	1	0809-		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (A)	1-37300-110-0	02	1	0809-1003		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (A)	1-37300-110-0	02	1	1004-1505	●	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T)	1-37300-110-0	01	1	1506-		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T)	1-37300-110-0	01	1	1506-		●
9	JOURNAL ASM; PROP SHAFT	1-37300-110-0	01	1	1506-	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (A)	1-37300-110-0	01	1	0809-1505		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T)	1-37300-110-0	02	1	1506-		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37300-111-0	01	1	0809-1003		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37300-111-0	01	1	1004-1505	●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-111-0	01	1	1004-1505	●
9	JOURNAL ASM; PROP SHAFT	1-37300-110-0	03	1	1506-	●
10	BOLT; UJT P60 PROP SHAFT(C2M) M10X20	0-20951-020-0	24	1	0809-		●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	08	1	0809-		●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	08	1	0809-		●
14	COVER; DUST,SPIDER (B)	1-37249-131-0	12	1	1004-	●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	08	1	0809-		●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	12	1	0809-		●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	04	1	0809-		●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	04	1	0809-1003		●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	04	1	0809-1003		●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	04	1	1004-		●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	04	1	1004-		●
14	COVER; DUST,SPIDER (B)	1-37249-131-0	04	1	1004-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	1004-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0809-		●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0809-1003		●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1004-1505	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1506-		●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1506-		●
17	NIPPLE; GREASE,PROP SHAFT 6HK1-TCS ENG(80L) P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1506-	●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	0-90301-610-0	01	1	0809-1505		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) PT1/8 ELBOW	0-90301-610-0	01	1	1506-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) T=2.2	1-09587-102-1	12	1	1004-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P60 PROP SHAFT(C2M) (B)	1-09587-101-1	04	1	0809-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A) T=2.2	1-09587-102-1	08	1	0809-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A) T=2.2	1-09587-102-1	04	1	0809-1003		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A) T=2.2	1-09587-102-1	04	1	0809-1003		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A) T=2.2	1-09587-102-1	04	1	1004-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A) T=2.2	1-09587-102-1	04	1	1004-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) T=2.2	1-09587-102-1	04	1	1004-	●
56	NUT; YOKE ZF6S1000 M/T(Y5D) (B) M16 FLANGE	1-09449-065-0	08	1	0809-	●	●
56	NUT; YOKE ZF9S1110 M/T(Y5E) (A) M14 FLANGE	8-97365-444-0	08	1	0809-	●	●
74	BOLT; YOKE,TRANS ZF6S1000 M/T(Y5D) (B) M16X48	1-09000-383-0	04	1	0809-1003		●
74	BOLT; YOKE,TRANS ZF6S1000 M/T(Y5D) (B) M16X48	1-09000-383-0	04	1	1004-	●	●
74	BOLT; YOKE,TRANS ZF6S1000 M/T(Y5D) (B) M16X48	1-09000-383-0	08	1	0809-	●	●
74	BOLT; YOKE,TRANS ZF9S1110 M/T(Y5E) (A) M14X50	1-09000-645-0	04	1	0809-1003		●
74	BOLT; YOKE,TRANS ZF9S1110 M/T(Y5E) (A) M14X50	1-09000-645-0	04	1	1004-1103	●	●
74	BOLT; YOKE,TRANS ZF9S1110 M/T(Y5E) (A) M14X50	1-09000-645-0	08	1	1104-	●	●
74	BOLT; YOKE,TRANS ZF9S1110 M/T(Y5E) (A) M14X50	1-09000-645-0	08	1	0809-1103	●	●
74	BOLT; YOKE,TRANS ZF9S1110 M/T(Y5E) (A) M14X50	1-09000-645-0	04	1	1104-	●	●
83	PLATE; LK,UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	04	1	0809-		●
84	COVER; UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	04	1	0809-		●
104	PLUG; SLEEVE YOKE	1-09600-067-0	01	1	0809-1003		●
104	PLUG; SLEEVE YOKE	1-09600-067-0	01	1	1004-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0809-1003		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	1004-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT	1-09380-006-0	01	1	0809-		●
107	COVER; RET,SLEEVE P60 PROP SHAFT(C2M)	1-37249-137-1	01	1	0809-		●
128	SEAL; SLEEVE P60 PROP SHAFT(C2M) (B)	1-37247-021-0	01	1	0809-		●
128	SEAL; SLEEVE P90 PROP SHAFT(C5T) (A)	1-37247-019-0	01	1	0809-1003		●
128	SEAL; SLEEVE P90 PROP SHAFT(C5T) (A)	1-37247-019-0	01	1	1004-	●	●
225	YOKE; SLEEVE,PROP SHAFT P60 PROP SHAFT(C2M) (B) L=332	1-37241-109-1	01	1	0809-		●
225	YOKE; SLEEVE,PROP SHAFT P90 PROP SHAFT(C5T) (A) L=330	1-37241-124-0	01	1	0809-1003		●
225	YOKE; SLEEVE,PROP SHAFT P90 PROP SHAFT(C5T) (A) L=330	1-37241-124-0	01	1	1004-	●	●

9 8 49 74 1 91 21 22 23 21 46 51 25 24 20 92 94 93 91 20 1 9 8 74 49 94 93 92 22 21 23 25 21 24 46 51 9 17 14 19 9 17 10 12 13 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP (A) L=799	1-37125-348-1	01	1	1004-	●
1	SHAFT; PROP (C) L=1350	8-98159-901-1	01	1	1004-	●
1	SHAFT; PROP (B) L=1103	1-37152-927-1	01	1	1004-	●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (D) L=911	1-37152-590-0	01	1	0809-		●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (E) L=994	8-98091-269-0	01	1	0809-		●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (F) L=824	8-98091-295-0	01	1	0809-		●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (A) L=1039	1-37124-615-1	01	1	0809-		●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (C) L=820	8-98091-468-1	01	1	0809-		●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (B) L=725	8-98091-479-1	01	1	0809-		●
8	YOKE; FLANGE,PROP SHAFT (B)	1-37211-079-1	03	1	1004-	●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	03	1	0809-		●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (C)	8-98092-073-0	01	1	0809-		●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	02	1	0809-		●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	01	1	0809-1003		●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	01	1	0809-1003		●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	01	1	1004-		●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	01	1	1004-		●
8	YOKE; FLANGE,PROP SHAFT (B)	1-37211-079-1	01	1	1004-	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (E)	1-37300-095-1	AR	1	0809-		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (C)	1-37300-094-1	AR	1	0809-		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (D)	1-37300-108-0	01	1	0809-		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (A)	1-37300-110-0	02	1	0809-1003		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (A)	1-37300-110-0	02	1	1004-1505	●	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T)	1-37300-110-0	01	1	1506-		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T)	1-37300-110-0	01	1	1506-		●
9	JOURNAL ASM; PROP SHAFT	1-37300-110-0	01	1	1506-	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (A)	1-37300-110-0	01	1	0809-1505		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T)	1-37300-110-0	02	1	1506-		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37300-111-0	01	1	0809-1003		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37300-111-0	01	1	1004-1505	●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-111-0	01	1	1004-1505	●
9	JOURNAL ASM; PROP SHAFT	1-37300-110-0	03	1	1506-	●
10	BOLT; UJT P60 PROP SHAFT(C2M) M10X20	0-20951-020-0	24	1	0809-		●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	08	1	0809-		●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	08	1	0809-		●
14	COVER; DUST,SPIDER (B)	1-37249-131-0	12	1	1004-	●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	08	1	0809-		●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	12	1	0809-		●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	04	1	0809-		●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	04	1	0809-1003		●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	04	1	0809-1003		●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	04	1	1004-		●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	04	1	1004-		●
14	COVER; DUST,SPIDER (B)	1-37249-131-0	04	1	1004-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	1004-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0809-		●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0809-1003		●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1004-1505	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1506-		●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1506-		●
17	NIPPLE; GREASE,PROP SHAFT 6HK1-TCS ENG(80L) P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1506-	●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	0-90301-610-0	01	1	0809-1505		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) PT1/8 ELBOW	0-90301-610-0	01	1	1506-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) T=2.2	1-09587-102-1	12	1	1004-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P60 PROP SHAFT(C2M) (B)	1-09587-101-1	04	1	0809-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A) T=2.2	1-09587-102-1	08	1	0809-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A) T=2.2	1-09587-102-1	04	1	0809-1003		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A) T=2.2	1-09587-102-1	04	1	0809-1003		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A) T=2.2	1-09587-102-1	04	1	1004-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A) T=2.2	1-09587-102-1	04	1	1004-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) T=2.2	1-09587-102-1	04	1	1004-	●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT(C2M) (B)	1-37510-093-3	01	1	0809-		●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT(C2M) (B)	1-37510-093-3	01	1	0809-		●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT(C5T) (A) ID=60	1-37510-115-0	01	1	0809-1003		●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT(C5T) (A) ID=60	1-37510-115-0	01	1	0809-1003		●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT(C5T) (A) ID=60	1-37510-115-0	01	1	1004-	●	●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT(C5T) (A) ID=60	1-37510-115-0	01	1	1004-	●	●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT(C2M) (C) D=120	1-09625-126-0	02	1	0809-		●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT(C2M) (C) D=120	1-09625-126-0	02	1	0809-		●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (A) D=120	1-09625-127-0	01	1	0809-1003		●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (A) D=120	1-09625-127-0	01	1	0809-1003		●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (A) D=120	1-09625-127-0	01	1	1004-	●	●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (A) D=120	1-09625-127-0	01	1	1004-	●	●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (B)	1-09625-621-0	01	1	0809-1003		●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (B)	1-09625-621-0	01	1	0809-1003		●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (B)	1-09625-621-0	01	1	1004-	●	●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (B)	1-09625-621-0	01	1	1004-	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT(C2M) (B)	1-37516-047-2	01	1	0809-		●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT(C2M) (B)	1-37516-047-2	01	1	0809-		●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT(C5T) (A)	1-37516-048-2	01	1	0809-1003		●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT(C5T) (A)	1-37516-048-2	01	1	0809-1003		●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT(C5T) (A)	1-37516-048-2	01	1	1004-	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT(C5T) (A)	1-37516-048-2	01	1	1004-	●	●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT(C2M) (B)	9-00090-292-0	01	1	0809-		●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT(C2M) (B)	9-00090-292-0	01	1	0809-		●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT(C5T) (A)	9-00090-256-0	01	1	0809-1003		●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT(C5T) (A)	9-00090-256-0	01	1	0809-1003		●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT(C5T) (A)	9-00090-256-0	01	1	1004-	●	●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT(C5T) (A)	9-00090-256-0	01	1	1004-	●	●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT(C2M) (B)	1-37529-039-0	01	1	0809-		●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT(C2M) (B)	1-37529-039-0	01	1	0809-		●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT(C5T) (A)	1-37529-109-0	01	1	0809-1003		●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT(C5T) (A)	1-37529-109-0	01	1	0809-1003		●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT(C5T) (A)	1-37529-109-0	01	1	1004-	●	●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT(C5T) (A)	1-37529-109-0	01	1	1004-	●	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0809-1003		●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0809-1003		●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1004-	●	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1004-	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT(C2M) (B)	1-37245-283-1	01	1	0809-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT(C2M) (B)	1-37245-283-1	01	1	0809-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A)	1-37245-348-0	01	1	0809-1003		●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A)	1-37245-348-0	01	1	0809-1003		●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A)	1-37245-348-0	01	1	1004-	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (A)	1-37245-348-0	01	1	1004-	●	●
49	NUT; YOKE ZF6S1000 M/T(Y5D) (B) M16 FLANGE	1-09449-065-0	04	1	0809-1003		●
49	NUT; YOKE ZF6S1000 M/T(Y5D) (B) M16 FLANGE	1-09449-065-0	04	1	1004-	●	●
49	NUT; YOKE ZF9S1110 M/T(Y5E) (A) M14 FLANGE	8-97365-444-0	04	1	0809-1003		●
49	NUT; YOKE ZF9S1110 M/T(Y5E) (A) M14 FLANGE	8-97365-444-0	04	1	1004-	●	●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT(C2M) (B) M33 FLANGE	1-09449-051-0	01	1	0809-		●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT(C2M) (B) M33 FLANGE	1-09449-051-0	01	1	0809-		●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT(C5T) (A) M39 FLANGE	1-09440-046-0	01	1	0809-1003		●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT(C5T) (A) M39 FLANGE	1-09440-046-0	01	1	0809-1003		●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT(C5T) (A) M39 FLANGE	1-09440-046-0	01	1	1004-	●	●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT(C5T) (A) M39 FLANGE	1-09440-046-0	01	1	1004-	●	●
74	BOLT; YOKE,TRANS ZF6S1000 M/T(Y5D) (B) M16X48	1-09000-383-0	04	1	0809-1003		●
74	BOLT; YOKE,TRANS ZF6S1000 M/T(Y5D) (B) M16X48	1-09000-383-0	04	1	1004-	●	●
74	BOLT; YOKE,TRANS ZF6S1000 M/T(Y5D) (B) M16X48	1-09000-383-0	08	1	0809-	●	●
74	BOLT; YOKE,TRANS ZF9S1110 M/T(Y5E) (A) M14X50	1-09000-645-0	04	1	0809-1003		●
74	BOLT; YOKE,TRANS ZF9S1110 M/T(Y5E) (A) M14X50	1-09000-645-0	04	1	1004-1103	●	●
74	BOLT; YOKE,TRANS ZF9S1110 M/T(Y5E) (A) M14X50	1-09000-645-0	08	1	1104-	●	●
74	BOLT; YOKE,TRANS ZF9S1110 M/T(Y5E) (A) M14X50	1-09000-645-0	08	1	0809-1103	●	●
74	BOLT; YOKE,TRANS ZF9S1110 M/T(Y5E) (A) M14X50	1-09000-645-0	04	1	1104-	●	●
91	BOLT; HOLDER SET,CTR BRG M16X45	1-09042-030-0	02	1	0809-1003		●
91	BOLT; HOLDER SET,CTR BRG M16X45	1-09042-030-0	02	1	1004-	●	●
92	WASHER; LK,HOLDER SET,CTR BRG ID=17	1-09503-241-1	02	1	0809-1003		●
92	WASHER; LK,HOLDER SET,CTR BRG ID=17	1-09503-241-1	02	1	1004-	●	●
93	NUT; HOLDER SET,CTR BRG M16 SLOTTED	0-91116-516-0	02	1	0809-1003		●
93	NUT; HOLDER SET,CTR BRG M16 SLOTTED	0-91116-516-0	02	1	1004-1204	●	●
93	NUT; HOLDER SET,CTR BRG M16 SLOTTED	8-98049-689-0	02	1	1205-	●	●
94	PIN; SPLIT,HOLDER SET CTR BRG OD=3.7 L=25	0-81124-025-0	02	1	0809-1003		●
94	PIN; SPLIT,HOLDER SET CTR BRG OD=3.7 L=25	0-81124-025-0	02	1	1004-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
