◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11152 - FVM(LHD) ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#69423) — 174 parça

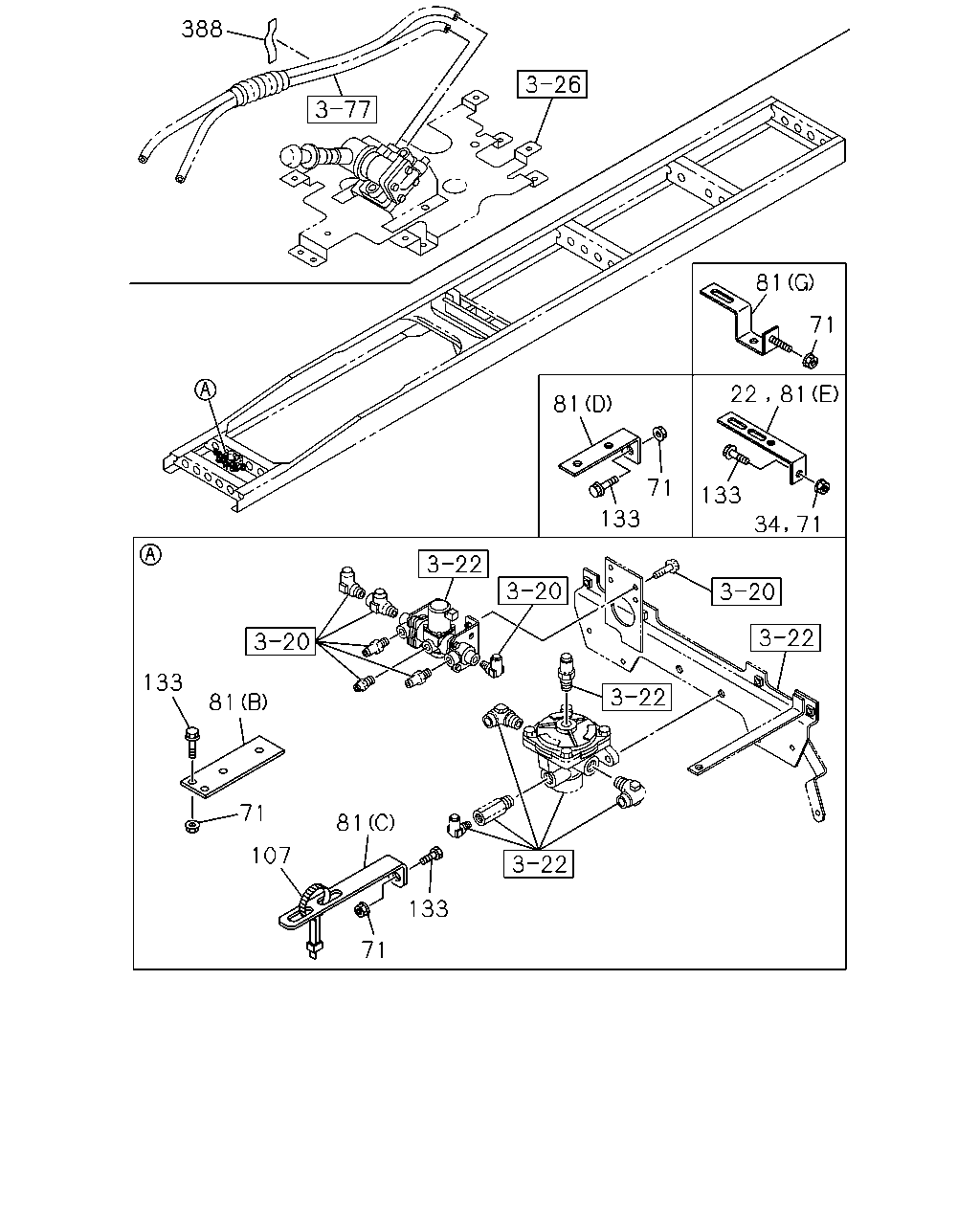

çizim 122227
388 81 71 81 71 133 133 133 81 71 81 107 133 71 22 81 34 71
BalonParca AdiParca NoAdetTipApplied Date
22 BRACKET; CLIP
WHEEL BASE 6300MM(63W) L=225 		1-47477-646-3 01 1 0809-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809-0907
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0908-0908
34 NUT; BRKT
WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91180-108-0 01 1 0908-0908
34 NUT; BRKT
WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91180-108-0 01 1 0909-
71 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1106-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 0812-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 13 1 0809-0907
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809-0811
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809-0811
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0812-
81 BRACKET; CLIP
(I) 		8-98186-380-0 01 1 1106-
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 0809-
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 0809-
81 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 04 1 0809-0812
81 BRACKET; CLIP
(G) 		8-98129-212-0 04 1 0901-1012
81 BRACKET; CLIP
(H) 		8-98177-873-0 04 1 1101-
81 BRACKET; CLIP
(F) L=65 		1-47477-713-0 01 1 0809-0902
81 BRACKET; CLIP
(F) L=65 B=25 		8-98135-584-0 01 1 0903-
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 0809-
81 BRACKET; CLIP
(A) 		1-47479-693-0 01 1 0809-0907
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 0809-1509
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) L=350 		1-09707-183-0 46 1 1004-
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) EXC. VIETNAM EQUIPMENT(SGX) L=350 		1-09707-183-0 49 1 1004-
107 CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W) L=350 		1-09707-183-0 45 1 0908-
107 CLIP; NYLON TUBE
L=350 		1-09707-183-0 03 1 0809-0811
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0812-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0809-0811
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0812-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0809-0907
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0908-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0809-0811
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0812-
388 SEAL
100X40 		1-72498-022-1 03 1 0809-

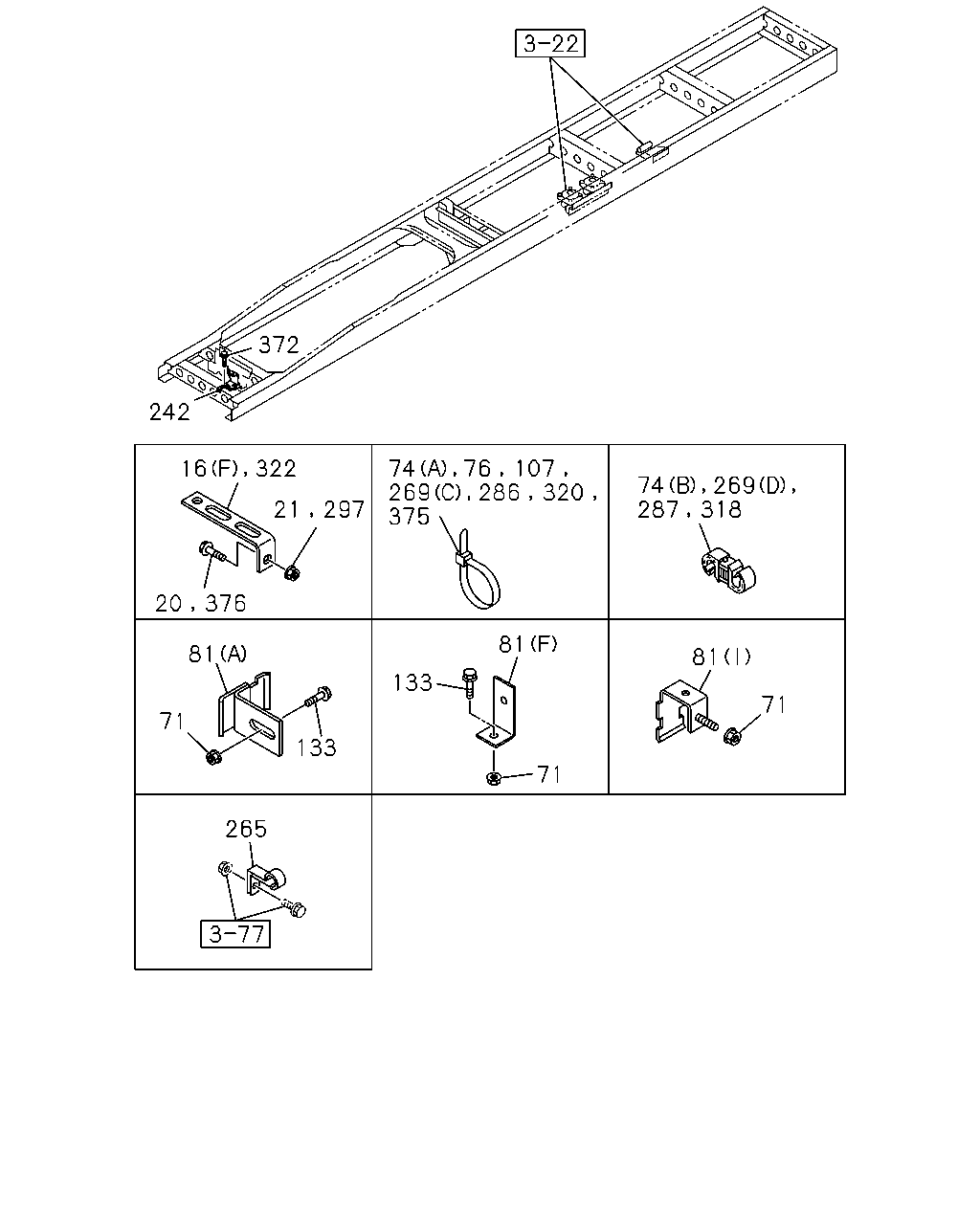

çizim 122341
372 242 107 375 21 297 81 81 81 133 71 71 133 71 265 16 322 74 76 269 286 320 74 269 287 318 20 376
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; PIPE CLIP
(F) L=150 H=30 		1-47477-629-2 01 1 0809-0903
16 BRACKET; PIPE CLIP
(A) 		1-47475-868-0 01 1 0809-
16 BRACKET; PIPE CLIP
(B) 		1-47479-546-0 02 1 0809-
16 BRACKET; PIPE CLIP
(C) 		1-47479-720-0 02 1 0809-
16 BRACKET; PIPE CLIP
(D) 		1-47479-815-0 01 1 0809-
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 01 1 0809-0912
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 01 1 0809-0912
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 01 1 1001-
20 BOLT; CLIP
M8X10 FLANGE 		0-28050-810-0 01 1 1001-
20 BOLT; CLIP
M8X10 FLANGE 		0-28050-810-0 03 1 0809-0907
20 BOLT; CLIP
M8X10 FLANGE 		0-28050-810-0 02 1 0908-
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0809-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0809-0907
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0908-0912
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1001-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0809-
71 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1106-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 0812-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 13 1 0809-0907
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809-0811
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809-0811
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0812-
74 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) (A) L=350 		1-09707-183-0 08 1 1004-
74 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) EXC. VIETNAM EQUIPMENT(SGX) (A) L=350 		1-09707-183-0 11 1 1004-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 0812-
74 CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W) (A) L=350 		1-09707-183-0 10 1 0809-0907
74 CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W) (A) L=350 		1-09707-183-0 04 1 0908-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 07 1 0809-0907
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0908-
74 CLIP; NYLON TUBE
(B) ID=12 & 15 		1-09709-281-1 01 1 0809-0903
76 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> EXC. RIGID SEAT WO/ARM REST<TAZ> L=350 		1-09707-183-0 01 1 0812-
81 BRACKET; CLIP
(I) 		8-98186-380-0 01 1 1106-
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 0809-
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 0809-
81 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 04 1 0809-0812
81 BRACKET; CLIP
(G) 		8-98129-212-0 04 1 0901-1012
81 BRACKET; CLIP
(H) 		8-98177-873-0 04 1 1101-
81 BRACKET; CLIP
(F) L=65 		1-47477-713-0 01 1 0809-0902
81 BRACKET; CLIP
(F) L=65 B=25 		8-98135-584-0 01 1 0903-
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 0809-
81 BRACKET; CLIP
(A) 		1-47479-693-0 01 1 0809-0907
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 0809-1509
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) L=350 		1-09707-183-0 46 1 1004-
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) EXC. VIETNAM EQUIPMENT(SGX) L=350 		1-09707-183-0 49 1 1004-
107 CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W) L=350 		1-09707-183-0 45 1 0908-
107 CLIP; NYLON TUBE
L=350 		1-09707-183-0 03 1 0809-0811
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0812-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0809-0811
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0812-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0809-0907
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0908-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0809-0811
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0812-
242 BRACKET; PIPE CLIP 8-98106-046-0 01 1 0809-0912
242 BRACKET; PIPE CLIP 8-98158-602-0 01 1 1001-
265 CLIP; NYLON TUBE
ID=21 H=25.5 L=26 		8-94176-806-0 01 1 0809-
269 CLIP; BAND,NYLON TUBE
AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> (D) ID=12 & 15 		1-09709-281-1 01 1 1012-1102
269 CLIP; BAND,NYLON TUBE
AIR DRYER<PS7> (D) ID=12 & 15 		1-09709-281-1 01 1 1103-
269 CLIP; BAND,NYLON TUBE
VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (D) ID=15 & 15 		1-09709-282-1 01 1 1012-1102
269 CLIP; BAND,NYLON TUBE
EXC. AIR DRYER<PS7> (D) ID=15 & 15 		1-09709-282-1 01 1 1103-
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=20 		0-95325-035-0 02 1 0809-
269 CLIP; BAND,NYLON TUBE
(C) L=350 		1-09707-183-0 02 1 0809-
269 CLIP; BAND,NYLON TUBE
(B) ID=39 L=33 		8-98009-359-0 06 1 0809-
286 CLIP; NYLON TUBE
VIN MODEL YEAR 2011<VZB> L=350 		1-09707-183-0 01 1 1012-1102
286 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 1103-
287 CLIP; AIR PIPE
AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> ID=6.35 & 12 		1-09709-275-1 01 1 1012-1012
287 CLIP; AIR PIPE
VIN MODEL YEAR 2011<VZB> ID=6.35 & 6.35 		1-09709-273-1 01 1 1012-1012
287 CLIP; AIR PIPE
VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> ID=6.35 & 15 		1-09709-276-1 01 1 1012-1012
297 NUT; BRKT
ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		0-91180-108-0 02 1 0809-
318 CLIP; AIR PIPE
EXC. AIR DRYER<PS7> ID=6.35 & 15 		1-09709-276-1 02 1 0906-
318 CLIP; AIR PIPE
ID=6.35 & 15 		1-09709-276-1 03 1 0809-0905
318 CLIP; AIR PIPE
AIR DRYER<PS7> ID=6.35 & 15 		1-09709-276-1 03 1 0906-
320 CLIP; BAND,FLEX FIX
L=250 		5-09707-030-1 01 1 0809-
322 BRACKET; CLIP
ASSISTOR SHIFT CONTROL<WX8> 		1-47479-598-0 02 1 0809-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0809-
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) L=350 		1-09707-183-0 02 1 0809-0811
375 CLIP; AIR PIPE
ASSISTOR SHIFT CONTROL<WX8> L=350 		1-09707-183-0 01 1 0812-0906
375 CLIP; AIR PIPE
ASSISTOR SHIFT CONTROL<WX8> L=350 		1-09707-183-0 01 1 0907-1011
375 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 0907-1011
375 CLIP; AIR PIPE
ASSISTOR SHIFT CONTROL<WX8> L=350 		1-09707-183-0 01 1 1012-1102
375 CLIP; AIR PIPE
ZF6S1000 M/T(Y5D) VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> L=350 		1-09707-183-0 01 1 1012-1102
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> L=350 		1-09707-183-0 01 1 1012-1102
375 CLIP; AIR PIPE
EXC. VIN MODEL YEAR 2011<VZB> L=350 		1-09707-183-0 01 1 1012-1102
375 CLIP; AIR PIPE
ASSISTOR SHIFT CONTROL<WX8> L=350 		1-09707-183-0 01 1 1103-
375 CLIP; AIR PIPE
ZF6S1000 M/T(Y5D) ASSISTOR SHIFT CONTROL<WX8> L=350 		1-09707-183-0 01 1 1103-
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) L=350 		1-09707-183-0 01 1 1103-
376 BOLT; BRKT
ASSISTOR SHIFT CONTROL<WX8> M8X30 FLANGE 		0-28650-830-0 02 1 0809-

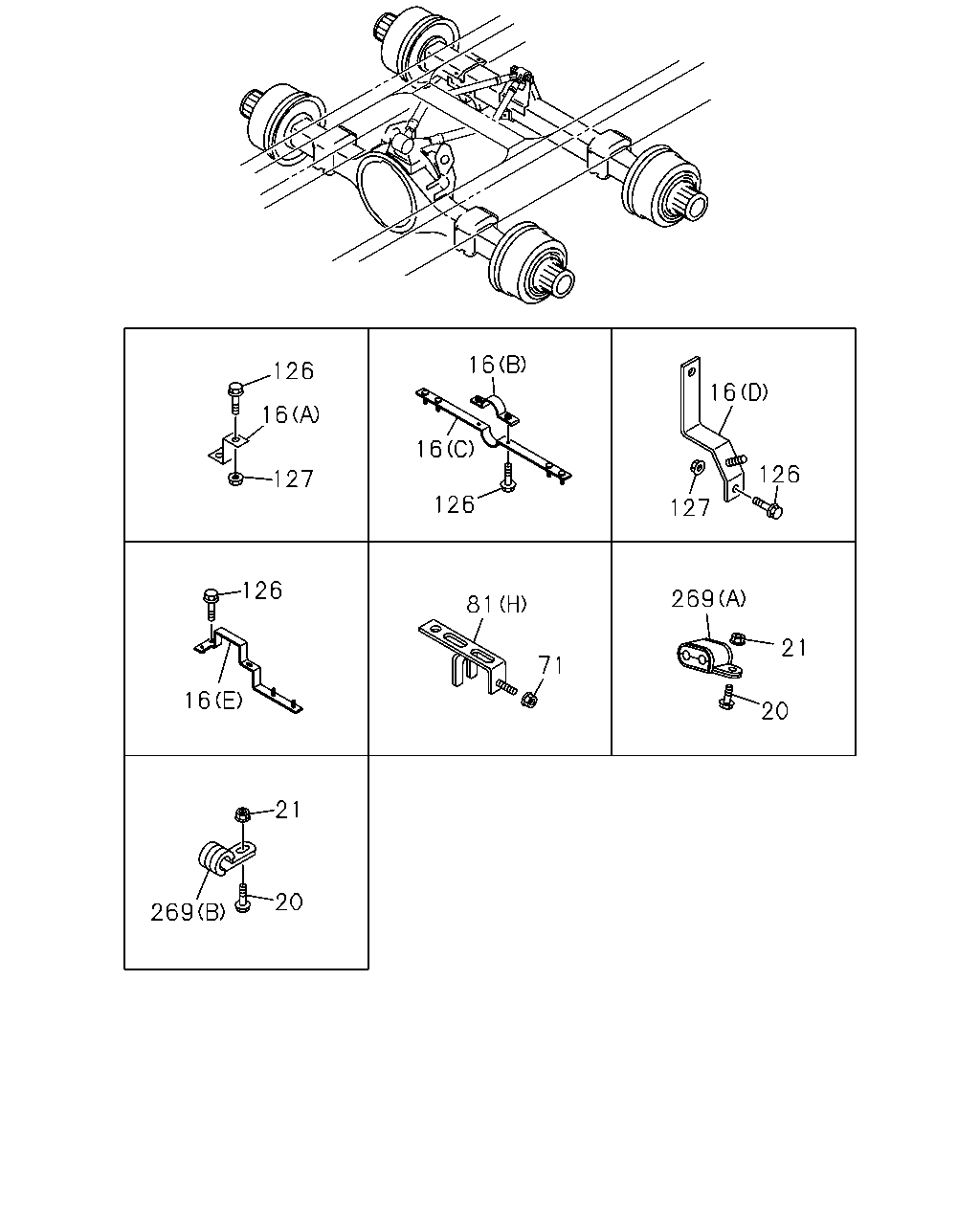

çizim 122822
16 126 16 16 16 126 127 126 127 126 269 81 21 71 16 20 21 20 269
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; PIPE CLIP
(F) L=150 H=30 		1-47477-629-2 01 1 0809-0903
16 BRACKET; PIPE CLIP
(A) 		1-47475-868-0 01 1 0809-
16 BRACKET; PIPE CLIP
(B) 		1-47479-546-0 02 1 0809-
16 BRACKET; PIPE CLIP
(C) 		1-47479-720-0 02 1 0809-
16 BRACKET; PIPE CLIP
(D) 		1-47479-815-0 01 1 0809-
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 01 1 0809-0912
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 01 1 0809-0912
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 01 1 1001-
20 BOLT; CLIP
M8X10 FLANGE 		0-28050-810-0 01 1 1001-
20 BOLT; CLIP
M8X10 FLANGE 		0-28050-810-0 03 1 0809-0907
20 BOLT; CLIP
M8X10 FLANGE 		0-28050-810-0 02 1 0908-
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0809-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0809-0907
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0908-0912
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1001-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0809-
71 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1106-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 0812-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 13 1 0809-0907
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809-0811
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809-0811
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0812-
81 BRACKET; CLIP
(I) 		8-98186-380-0 01 1 1106-
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 0809-
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 0809-
81 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 04 1 0809-0812
81 BRACKET; CLIP
(G) 		8-98129-212-0 04 1 0901-1012
81 BRACKET; CLIP
(H) 		8-98177-873-0 04 1 1101-
81 BRACKET; CLIP
(F) L=65 		1-47477-713-0 01 1 0809-0902
81 BRACKET; CLIP
(F) L=65 B=25 		8-98135-584-0 01 1 0903-
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 0809-
81 BRACKET; CLIP
(A) 		1-47479-693-0 01 1 0809-0907
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 0809-1509
126 BOLT; CLIP BRKT
M8X10 FLANGE 		0-28050-810-0 02 1 0809-0907
126 BOLT; CLIP BRKT
M8X10 FLANGE 		0-28050-810-0 02 1 0908-0912
126 BOLT; CLIP BRKT
M8X10 FLANGE 		0-28050-810-0 02 1 0908-0912
126 BOLT; CLIP BRKT
M8X10 FLANGE 		0-28050-810-0 02 1 1001-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0809-
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0809-0809
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0809-0903
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0904-
126 BOLT; CLIP BRKT
M10X35 FLANGE 		0-28651-035-0 01 1 0809-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809-0809
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0809-0903
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0904-
127 NUT; CLIP BRKT
M10 FLANGE 		0-91180-210-0 01 1 0809-
269 CLIP; BAND,NYLON TUBE
AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> (D) ID=12 & 15 		1-09709-281-1 01 1 1012-1102
269 CLIP; BAND,NYLON TUBE
AIR DRYER<PS7> (D) ID=12 & 15 		1-09709-281-1 01 1 1103-
269 CLIP; BAND,NYLON TUBE
VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (D) ID=15 & 15 		1-09709-282-1 01 1 1012-1102
269 CLIP; BAND,NYLON TUBE
EXC. AIR DRYER<PS7> (D) ID=15 & 15 		1-09709-282-1 01 1 1103-
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=20 		0-95325-035-0 02 1 0809-
269 CLIP; BAND,NYLON TUBE
(C) L=350 		1-09707-183-0 02 1 0809-
269 CLIP; BAND,NYLON TUBE
(B) ID=39 L=33 		8-98009-359-0 06 1 0809-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
