3-70 — BRAKE PIPING; AIR,AIR MASTER (#69420) — 101 parça

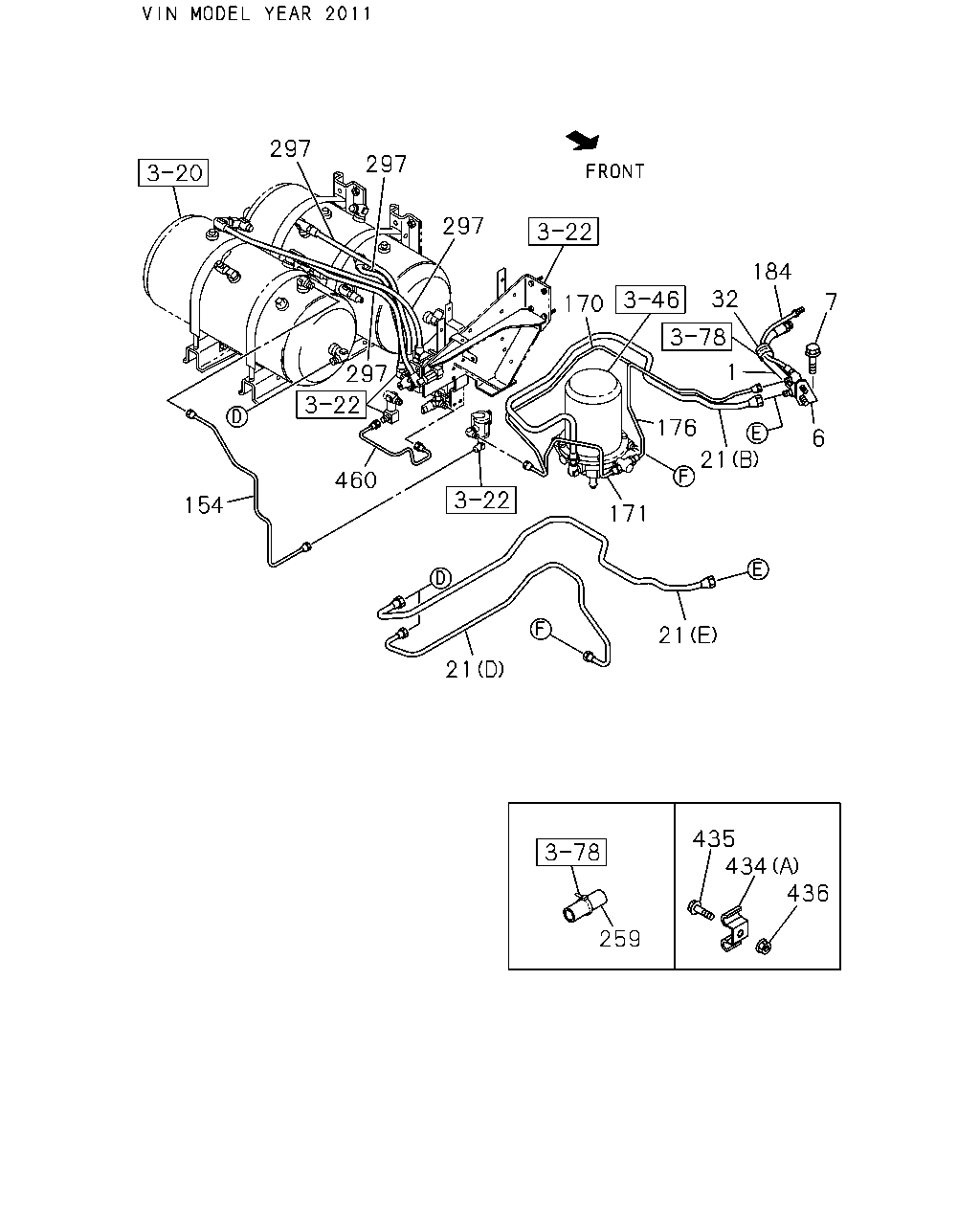

297 297 297 184 32 7 170 1 297 176 21 6 460 154 171 21 21 435 434 436 259

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=310	8-97607-730-0	01	1	0809-
6	BRACKET; FLEX HOSE,AIR TANK	8-98117-117-0	01	1	0809-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> (D)	8-98173-546-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> (D)	8-98184-503-0	01	1	1012-1102
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (D)	8-98184-503-0	01	1	1103-
21	PIPE; AIR,UNION TO AIR DRYER VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (E) L=1523	8-98173-570-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (E) L=1526	8-98184-504-0	01	1	1012-1102
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7> (E) L=1526	8-98184-504-0	01	1	1103-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (B) L=1540	8-98117-033-0	01	1	0809-1009
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (B) L=1548	8-98174-993-0	01	1	1010-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (A)	8-98117-819-0	01	1	0809-0904
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (A)	8-98147-087-0	01	1	0905-1011
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98147-087-0	01	1	1012-1102
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7> (C) L=1630	8-98120-164-0	01	1	0809-1011
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (C) L=1630	8-98120-164-0	01	1	1012-1102
32	SLEEVE; RUBBER,AIR PIPE ID=32 OD=36 L=50	1-09337-023-0	01	1	0809-
154	PIPE; AIR,AIR TANK TO AIR GOV VIN MODEL YEAR 2011<VZB>	8-98173-547-0	01	1	1012-1012
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	8-98120-165-0	01	1	0809-0907
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	0908-
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> L=507 SERVICED BY L=550	1-47428-808-0	01	1	0809-
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	0809-
184	HOSE; FLEX,AIR GOV L=350	1-09363-624-0	01	1	0809-
259	SLEEVE; RUBBER,NYLON TUBE VIN MODEL YEAR 2011<VZB> ID=29 OD=39 L=40	1-09337-013-0	01	1	1012-1102
259	SLEEVE; RUBBER,NYLON TUBE ID=29 OD=39 L=40	1-09337-013-0	01	1	1103-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0809-
434	CLIP AIR DRYER<PS7> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0809-
434	CLIP EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	0809-
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0809-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0809-
436	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0809-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0809-
460	PIPE; AIR,PROTECTION VALVE VIN MODEL YEAR 2011<VZB>	8-98173-460-0	01	1	1012-1012
460	PIPE; AIR,PROTECTION VALVE VIN MODEL YEAR 2011<VZB>	8-98184-394-0	01	1	1012-1102
460	PIPE; AIR,PROTECTION VALVE	8-98184-394-0	01	1	1103-

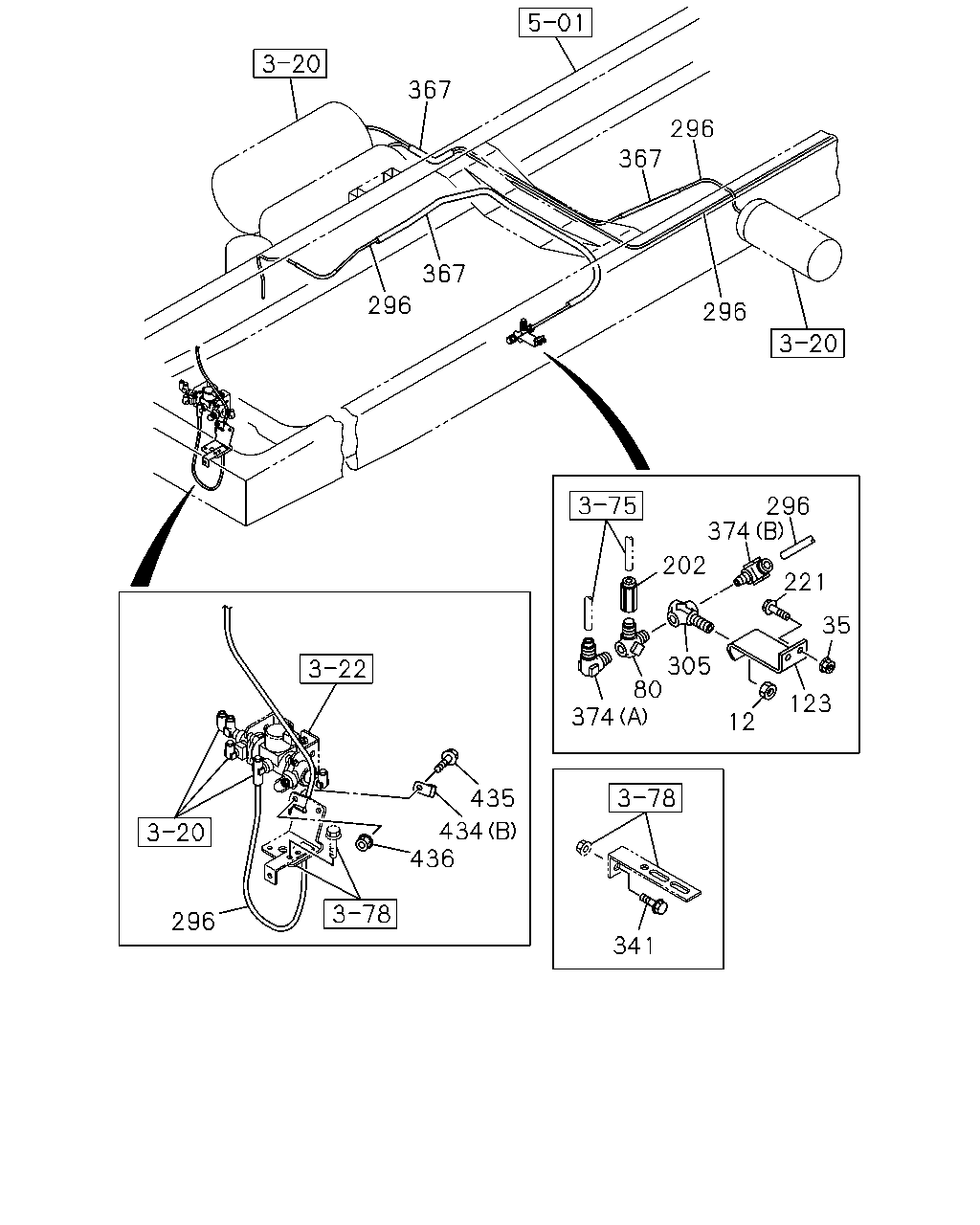

367 296 367 367 296 296 296 374 202 221 35 305 80 374 123 12 435 434 436 296 341

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NUT; UNION EXC. PTO CONTROL<SV6> M12	0-91111-512-0	01	1	0809-
35	NUT; BRKT EXC. PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	0809-
80	UNION; 3 WAY H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> M12 & PT1/4 3WAY	1-09656-586-1	01	1	0809-
80	UNION; 3 WAY EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> M12 & PT1/4 3WAY	1-09656-586-1	01	1	0809-
123	BRACKET; UNION EXC. PTO CONTROL<SV6>	8-98118-545-0	01	1	0809-
202	ADAPTER H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0809-
202	ADAPTER EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0809-
221	BOLT; BRKT EXC. PTO CONTROL<SV6> M8X30 FLANGE	0-28650-830-0	02	1	0809-0809
221	BOLT; BRKT EXC. PTO CONTROL<SV6> M8X35 FLANGE	0-28650-835-0	02	1	0810-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=12000 OD=12	1-87411-015-0	AR	1	0809-
305	UNION ASM; NYLON TUBE EXC. PTO CONTROL<SV6> M12 & RC1/4X2 2WAY	8-98120-049-0	01	1	0809-
341	BOLT; BRKT WHEEL BASE 6300MM(63W) M8X25 FLANGE	0-28650-825-0	01	1	0908-
341	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0809-0908
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0809-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0809-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0809-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0809-
374	CONNECTOR EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-
374	CONNECTOR EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-
434	CLIP AIR DRYER<PS7> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0809-
434	CLIP EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	0809-
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0809-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0809-
436	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0809-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0809-

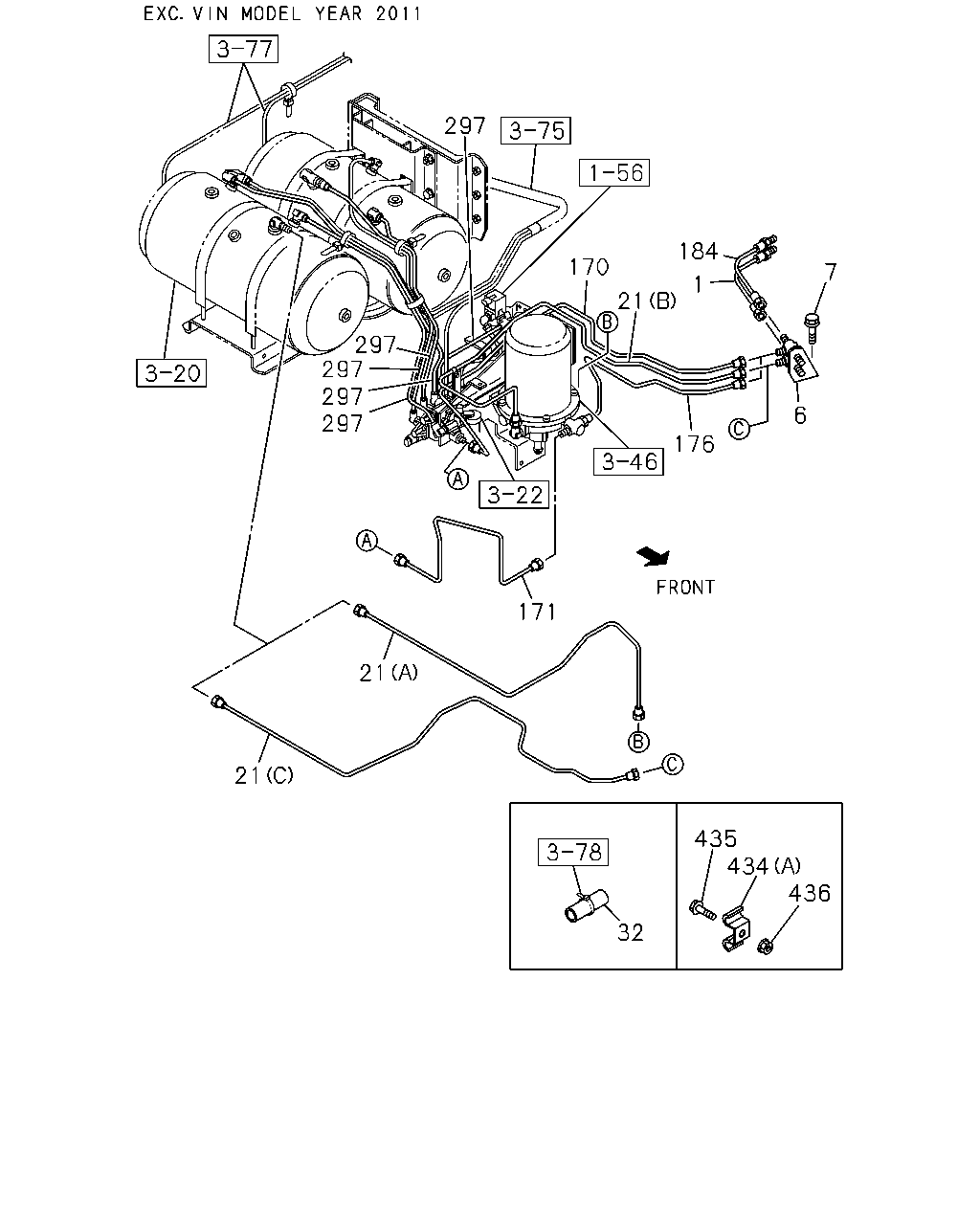

297 184 170 7 1 21 297 297 297 297 6 176 171 21 21 435 434 436 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=310	8-97607-730-0	01	1	0809-
6	BRACKET; FLEX HOSE,AIR TANK	8-98117-117-0	01	1	0809-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> (D)	8-98173-546-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> (D)	8-98184-503-0	01	1	1012-1102
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (D)	8-98184-503-0	01	1	1103-
21	PIPE; AIR,UNION TO AIR DRYER VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (E) L=1523	8-98173-570-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (E) L=1526	8-98184-504-0	01	1	1012-1102
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7> (E) L=1526	8-98184-504-0	01	1	1103-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (B) L=1540	8-98117-033-0	01	1	0809-1009
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (B) L=1548	8-98174-993-0	01	1	1010-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (A)	8-98117-819-0	01	1	0809-0904
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (A)	8-98147-087-0	01	1	0905-1011
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98147-087-0	01	1	1012-1102
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7> (C) L=1630	8-98120-164-0	01	1	0809-1011
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (C) L=1630	8-98120-164-0	01	1	1012-1102
32	SLEEVE; RUBBER,AIR PIPE ID=32 OD=36 L=50	1-09337-023-0	01	1	0809-
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	8-98120-165-0	01	1	0809-0907
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	0908-
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> L=507 SERVICED BY L=550	1-47428-808-0	01	1	0809-
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	0809-
184	HOSE; FLEX,AIR GOV L=350	1-09363-624-0	01	1	0809-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0809-
434	CLIP AIR DRYER<PS7> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0809-
434	CLIP EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	0809-
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0809-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0809-
436	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0809-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0809-
