◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11152 - FVM(LHD) ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶
3-22 — AIR CONTROL PARTS (#69413) — 242 parça

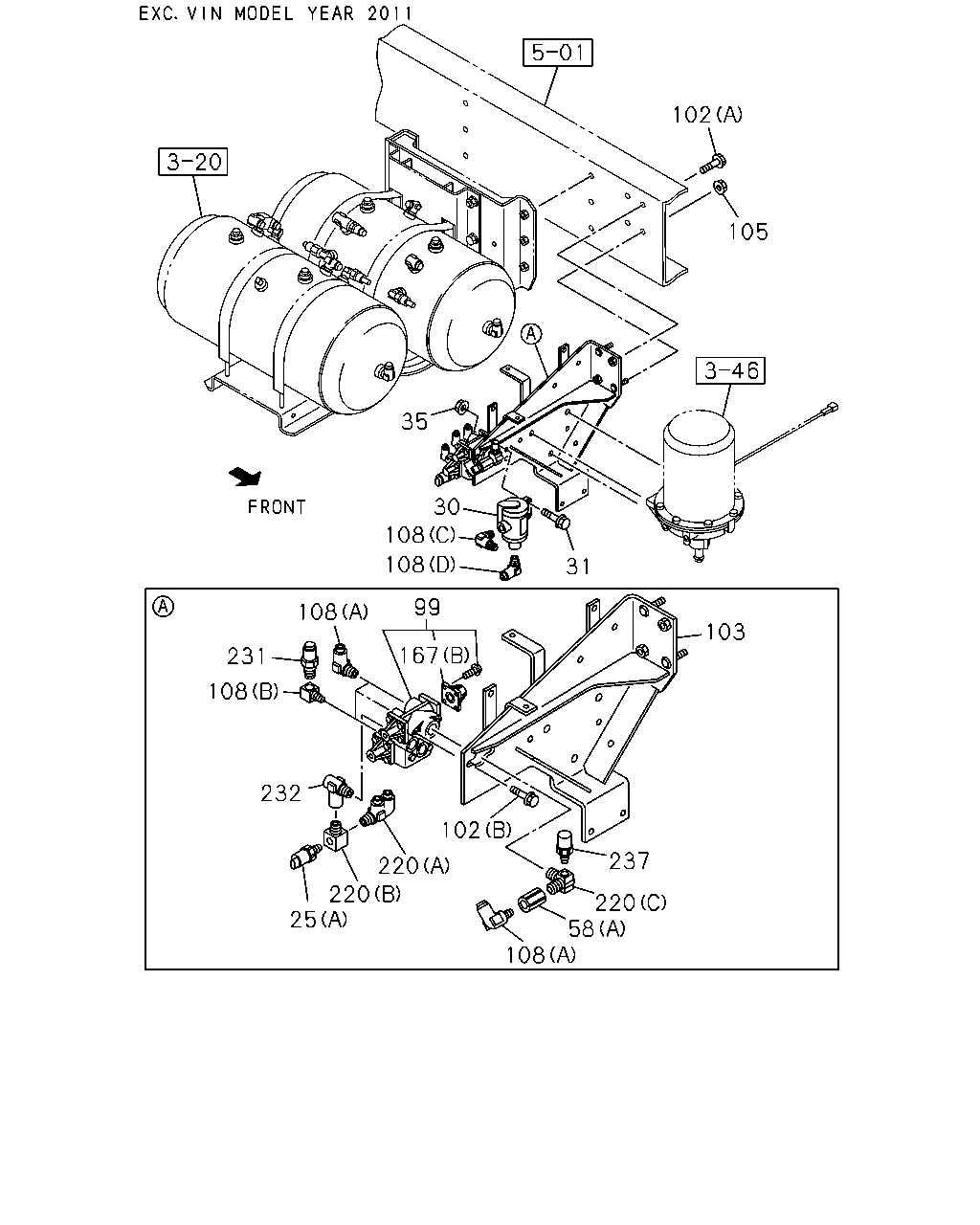

çizim 116746
102 105 31 108 30 108 35 108 99 167 232 108 231 102 220 220 25 108 237 220 58 103
BalonParca AdiParca NoAdetTipApplied Date
25 SWITCH; PRESSURE
(A) STAMP 5.5 		8-97609-249-0 01 1 0809-
25 SWITCH; PRESSURE
(B) STAMP 2.0 		8-98010-856-2 01 1 0809-
30 GOVERNOR; AIR CONT 1-48350-093-2 01 1 0809-
31 BOLT; GOV TO FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 0809-
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0809-
58 ADAPTER
VIN MODEL YEAR 2011<VZB> (C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1012-1102
58 ADAPTER
(C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1103-
58 ADAPTER
VIN MODEL YEAR 2011<VZB> (D) DIN17 & RC3/8 & R1/2 3WAY 		8-98031-238-0 01 1 1012-1102
58 ADAPTER
(D) DIN17 & RC3/8 & R1/2 3WAY 		8-98031-238-0 01 1 1103-
58 ADAPTER
VIN MODEL YEAR 2011<VZB> (E) 		8-98148-475-0 01 1 1012-1102
58 ADAPTER
(E) 		8-98148-475-0 01 1 1103-
58 ADAPTER
ZF6S1000 M/T(Y5D) VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> (F) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1012-1102
58 ADAPTER
ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1012-1102
58 ADAPTER
ZF6S1000 M/T(Y5D) ASSISTOR SHIFT CONTROL<WX8> (F) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1103-
58 ADAPTER
ZF9S1110 M/T(Y5E) (F) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1103-
58 ADAPTER
ZF6S1000 M/T(Y5D) VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> (G) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1012-1102
58 ADAPTER
ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> (G) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1012-1102
58 ADAPTER
ZF6S1000 M/T(Y5D) ASSISTOR SHIFT CONTROL<WX8> (G) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1103-
58 ADAPTER
ZF9S1110 M/T(Y5E) (G) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1103-
58 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0809-
58 ADAPTER
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0809-
99 VALVE; PROTECTION 1-48110-288-3 01 1 0809-
102 BOLT; PROTECTION VALVE
VIN MODEL YEAR 2011<VZB> (C) M8X20 FLANGE 		0-28650-820-0 02 1 1012-1102
102 BOLT; PROTECTION VALVE
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1103-
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0809-
102 BOLT; PROTECTION VALVE
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0809-
103 BRACKET; PROTECTION VALVE
VIN MODEL YEAR 2011<VZB> 		8-98173-454-0 01 1 1012-1102
103 BRACKET; PROTECTION VALVE 8-98173-454-0 01 1 1103-
103 BRACKET; PROTECTION VALVE 8-98116-826-0 01 1 0809-1011
103 BRACKET; PROTECTION VALVE
EXC. VIN MODEL YEAR 2011<VZB> 		8-98116-826-0 01 1 1012-1102
105 NUT; BRKT,VALVE
M10 FLANGE 		0-91180-210-0 02 1 0809-
108 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 ELBOW 		1-48629-258-0 01 1 1012-1102
108 CONNECTOR; ELBOW
(E) M12 & PT1/4 ELBOW 		1-48629-258-0 01 1 1103-1503
108 CONNECTOR; ELBOW
(E) M12 & PT1/4 ELBOW 		8-98299-777-0 01 1 1504-
108 CONNECTOR; ELBOW
EXC. VIN MODEL YEAR 2011<VZB> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-1012
108 CONNECTOR; ELBOW
(D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0809-1011
108 CONNECTOR; ELBOW
(D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-1102
108 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-1102
108 CONNECTOR; ELBOW
(D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1103-
108 CONNECTOR; ELBOW
(D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1103-
108 CONNECTOR; ELBOW
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-1011
108 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1012-1012
108 CONNECTOR; ELBOW
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-
108 CONNECTOR; ELBOW
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 0809-
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0809-
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 0809-
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 0809-
167 COVER; VALVE
(A) 		1-48219-070-0 02 1 0809-
220 CONNECTOR; 3WAY
(B) 		1-09656-708-0 01 1 0809-1011
220 CONNECTOR; 3WAY
EXC. VIN MODEL YEAR 2011<VZB> (B) 		1-09656-708-0 01 1 1012-1101
220 CONNECTOR; 3WAY
EXC. VIN MODEL YEAR 2011<VZB> (B) R3/8 & RC3/8 & RC1/4 3WAY 		8-98166-127-0 01 1 1102-1102
220 CONNECTOR; 3WAY
(A) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0809-1011
220 CONNECTOR; 3WAY
EXC. VIN MODEL YEAR 2011<VZB> (A) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1012-1102
220 CONNECTOR; 3WAY
(C) DIN17 & RC3/8 & R1/2 3WAY 		8-98031-238-0 01 1 0809-1011
220 CONNECTOR; 3WAY
EXC. VIN MODEL YEAR 2011<VZB> (C) DIN17 & RC3/8 & R1/2 3WAY 		8-98031-238-0 01 1 1012-1102
231 CONNECTOR; NYLON TUBE
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0809-1011
231 CONNECTOR; NYLON TUBE
EXC. VIN MODEL YEAR 2011<VZB> DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1012-1102
232 VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0809-
237 VALVE; SAFETY 1-48320-012-2 01 1 0809-

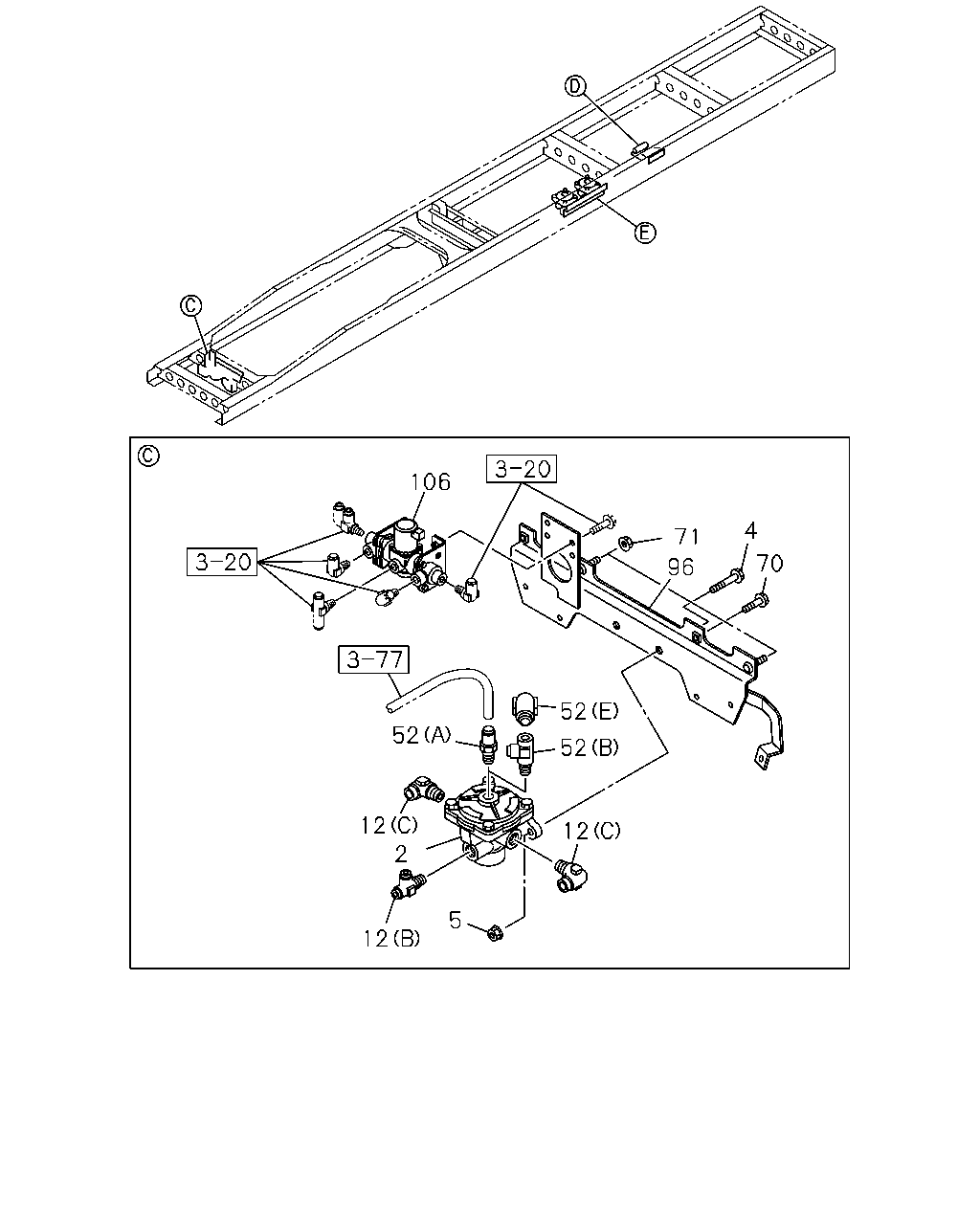

çizim 116788
106 4 71 70 96 52 52 52 12 2 12 5 12
BalonParca AdiParca NoAdetTipApplied Date
2 VALVE; RELAY 1-48210-875-0 01 1 0809-
2 VALVE; RELAY 1-48210-875-0 02 1 0809-
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0809-
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0809-
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0809-
5 NUT
M10 FLANGE 		0-91180-210-0 04 1 0809-
12 CONNECTOR; RELAY VLV
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0809-
12 CONNECTOR; RELAY VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0809-
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0809-
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0809-
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0809-
12 CONNECTOR; RELAY VLV
(F) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0809-
12 CONNECTOR; RELAY VLV
(B) M12 & M8 & RC3/8 3WAY 		1-09661-207-0 01 1 0809-
52 CONNECTOR; RELAY VLV
(D) PT3/8 3WAY 		1-09661-300-0 01 1 0809-1111
52 CONNECTOR; RELAY VLV
(D) DIN9 & RC3/8 ELBOW 		8-98203-578-0 01 1 1112-
52 CONNECTOR; RELAY VLV
(C) 		1-09661-537-0 01 1 0809-0811
52 CONNECTOR; RELAY VLV
(C) DIN8 & RC1/4 & R3/8 3WAY 		8-97620-116-0 01 1 0812-
52 CONNECTOR; RELAY VLV
H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0809-
52 CONNECTOR; RELAY VLV
EXC. H.S.A SYSTEM<6EP> (E) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0809-
52 CONNECTOR; RELAY VLV
EXC. H.S.A SYSTEM<6EP> (B) DIN8 & R3/8 & RC3/8 3WAY 		1-09661-271-0 01 1 0809-
70 BOLT; AIR VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0809-
71 NUT; AIR VLV
M8 FLANGE 		0-91180-108-0 02 1 0809-
96 BRACKET 8-98094-851-2 01 1 0809-
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 0809-
çizim 116975
195 201 106 189 192 204 202 190 198 203 205 196 199 200 198 205 197 201 199 201 196 203 197 200
BalonParca AdiParca NoAdetTipApplied Date
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 0809-
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-247-0 01 1 0809-
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-234-0 01 1 0809-
192 SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-181-0 01 1 0809-
195 SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-191-0 04 1 0809-
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-232-0 02 1 0809-
197 SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-161-0 02 1 0809-
198 PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-122-0 02 1 0809-
199 RETAINER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-121-0 02 1 0809-
200 SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-120-0 02 1 0809-
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-118-1 02 1 0809-
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-241-0 01 1 0809-
202 FILTER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-117-1 02 1 0809-
203 SCREW; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-116-1 06 1 0809-
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0809-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 0809-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 0809-

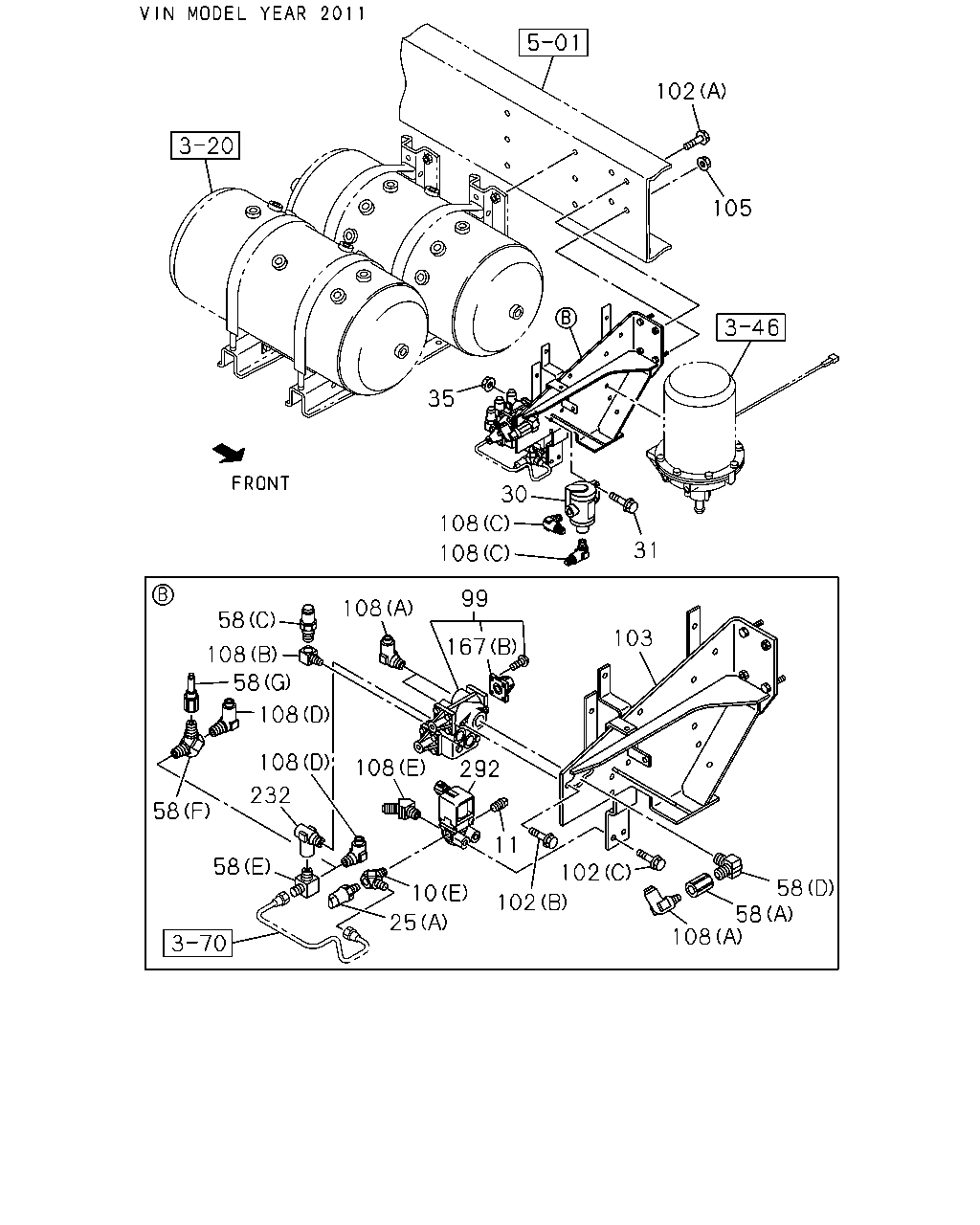

çizim 117149
102 105 35 30 108 108 31 103 99 108 167 58 108 58 108 108 232 58 58 25 10 108 292 11 102 102 108 58 58
BalonParca AdiParca NoAdetTipApplied Date
10 CONNECTOR
VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1012-1102
10 CONNECTOR
(E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1103-
10 CONNECTOR
(D) PT1/4 2WAY 		1-09660-693-0 01 1 0809-
10 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0809-
10 CONNECTOR
(B) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 0809-
10 CONNECTOR
(C) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 0809-
11 PLUG
VIN MODEL YEAR 2011<VZB> PT1/4 		9-99204-513-0 01 1 1012-1102
11 PLUG
PT1/4 		9-99204-513-0 01 1 1103-
25 SWITCH; PRESSURE
(A) STAMP 5.5 		8-97609-249-0 01 1 0809-
25 SWITCH; PRESSURE
(B) STAMP 2.0 		8-98010-856-2 01 1 0809-
30 GOVERNOR; AIR CONT 1-48350-093-2 01 1 0809-
31 BOLT; GOV TO FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 0809-
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0809-
58 ADAPTER
VIN MODEL YEAR 2011<VZB> (C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1012-1102
58 ADAPTER
(C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1103-
58 ADAPTER
VIN MODEL YEAR 2011<VZB> (D) DIN17 & RC3/8 & R1/2 3WAY 		8-98031-238-0 01 1 1012-1102
58 ADAPTER
(D) DIN17 & RC3/8 & R1/2 3WAY 		8-98031-238-0 01 1 1103-
58 ADAPTER
VIN MODEL YEAR 2011<VZB> (E) 		8-98148-475-0 01 1 1012-1102
58 ADAPTER
(E) 		8-98148-475-0 01 1 1103-
58 ADAPTER
ZF6S1000 M/T(Y5D) VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> (F) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1012-1102
58 ADAPTER
ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1012-1102
58 ADAPTER
ZF6S1000 M/T(Y5D) ASSISTOR SHIFT CONTROL<WX8> (F) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1103-
58 ADAPTER
ZF9S1110 M/T(Y5E) (F) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1103-
58 ADAPTER
ZF6S1000 M/T(Y5D) VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> (G) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1012-1102
58 ADAPTER
ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> (G) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1012-1102
58 ADAPTER
ZF6S1000 M/T(Y5D) ASSISTOR SHIFT CONTROL<WX8> (G) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1103-
58 ADAPTER
ZF9S1110 M/T(Y5E) (G) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1103-
58 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0809-
58 ADAPTER
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0809-
99 VALVE; PROTECTION 1-48110-288-3 01 1 0809-
102 BOLT; PROTECTION VALVE
VIN MODEL YEAR 2011<VZB> (C) M8X20 FLANGE 		0-28650-820-0 02 1 1012-1102
102 BOLT; PROTECTION VALVE
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1103-
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0809-
102 BOLT; PROTECTION VALVE
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0809-
103 BRACKET; PROTECTION VALVE
VIN MODEL YEAR 2011<VZB> 		8-98173-454-0 01 1 1012-1102
103 BRACKET; PROTECTION VALVE 8-98173-454-0 01 1 1103-
103 BRACKET; PROTECTION VALVE 8-98116-826-0 01 1 0809-1011
103 BRACKET; PROTECTION VALVE
EXC. VIN MODEL YEAR 2011<VZB> 		8-98116-826-0 01 1 1012-1102
105 NUT; BRKT,VALVE
M10 FLANGE 		0-91180-210-0 02 1 0809-
108 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 ELBOW 		1-48629-258-0 01 1 1012-1102
108 CONNECTOR; ELBOW
(E) M12 & PT1/4 ELBOW 		1-48629-258-0 01 1 1103-1503
108 CONNECTOR; ELBOW
(E) M12 & PT1/4 ELBOW 		8-98299-777-0 01 1 1504-
108 CONNECTOR; ELBOW
EXC. VIN MODEL YEAR 2011<VZB> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-1012
108 CONNECTOR; ELBOW
(D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0809-1011
108 CONNECTOR; ELBOW
(D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-1102
108 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-1102
108 CONNECTOR; ELBOW
(D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1103-
108 CONNECTOR; ELBOW
(D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1103-
108 CONNECTOR; ELBOW
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-1011
108 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1012-1012
108 CONNECTOR; ELBOW
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-
108 CONNECTOR; ELBOW
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 0809-
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0809-
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 0809-
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 0809-
167 COVER; VALVE
(A) 		1-48219-070-0 02 1 0809-
232 VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0809-
292 VALVE ASM; MAGNETIC
VIN MODEL YEAR 2011<VZB> 		1-82563-871-2 01 1 1012-1102
292 VALVE ASM; MAGNETIC 1-82563-871-2 01 1 1103-
çizim 117158
188 204
BalonParca AdiParca NoAdetTipApplied Date
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> 		1-85576-304-1 01 1 0809-
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0809-
çizim 117237
240
BalonParca AdiParca NoAdetTipApplied Date
240 REPAIR KIT; AIR CONT GOV 1-85576-467-0 01 1 0809-

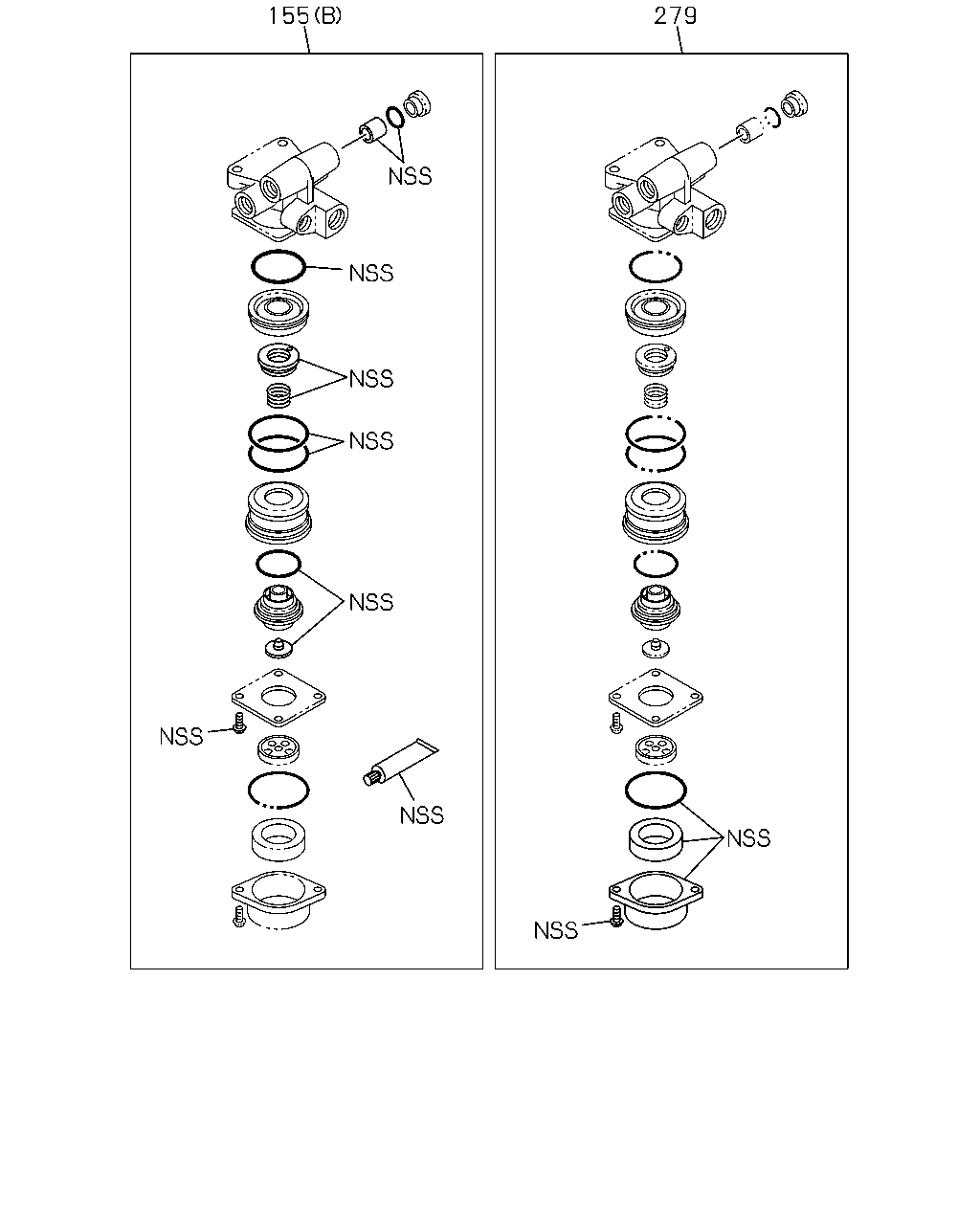

çizim 117268
155 279
BalonParca AdiParca NoAdetTipApplied Date
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-033-0 01 1 0809-
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-033-0 02 1 0809-
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 0809-
279 REPAIR KIT; SILENCER 1-85576-409-0 01 1 0809-

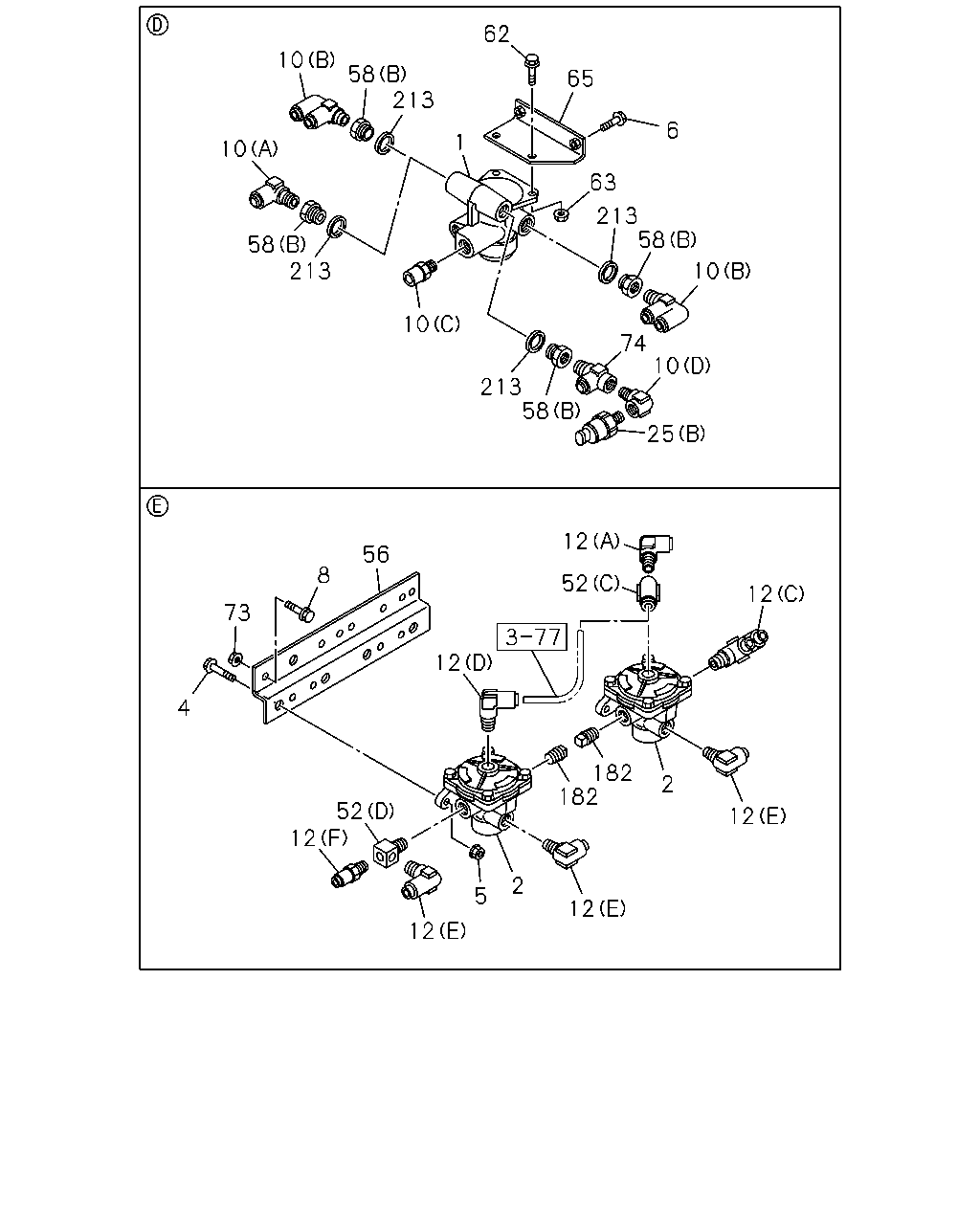

çizim 187959
62 10 58 213 65 6 1 10 63 213 58 58 213 10 74 10 10 213 58 25 12 56 8 52 12 73 12 4 182 182 2 52 12 12 2 5 12 12
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 0809-
2 VALVE; RELAY 1-48210-875-0 01 1 0809-
2 VALVE; RELAY 1-48210-875-0 02 1 0809-
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0809-
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0809-
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0809-
5 NUT
M10 FLANGE 		0-91180-210-0 04 1 0809-
6 BOLT; VLV
M8X35 FLANGE 		0-28650-835-0 02 1 0809-
8 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 03 1 0809-
10 CONNECTOR
VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1012-1102
10 CONNECTOR
(E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1103-
10 CONNECTOR
(D) PT1/4 2WAY 		1-09660-693-0 01 1 0809-
10 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0809-
10 CONNECTOR
(B) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 0809-
10 CONNECTOR
(C) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 0809-
12 CONNECTOR; RELAY VLV
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0809-
12 CONNECTOR; RELAY VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0809-
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0809-
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0809-
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0809-
12 CONNECTOR; RELAY VLV
(F) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0809-
12 CONNECTOR; RELAY VLV
(B) M12 & M8 & RC3/8 3WAY 		1-09661-207-0 01 1 0809-
25 SWITCH; PRESSURE
(A) STAMP 5.5 		8-97609-249-0 01 1 0809-
25 SWITCH; PRESSURE
(B) STAMP 2.0 		8-98010-856-2 01 1 0809-
52 CONNECTOR; RELAY VLV
(D) PT3/8 3WAY 		1-09661-300-0 01 1 0809-1111
52 CONNECTOR; RELAY VLV
(D) DIN9 & RC3/8 ELBOW 		8-98203-578-0 01 1 1112-
52 CONNECTOR; RELAY VLV
(C) 		1-09661-537-0 01 1 0809-0811
52 CONNECTOR; RELAY VLV
(C) DIN8 & RC1/4 & R3/8 3WAY 		8-97620-116-0 01 1 0812-
52 CONNECTOR; RELAY VLV
H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0809-
52 CONNECTOR; RELAY VLV
EXC. H.S.A SYSTEM<6EP> (E) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0809-
52 CONNECTOR; RELAY VLV
EXC. H.S.A SYSTEM<6EP> (B) DIN8 & R3/8 & RC3/8 3WAY 		1-09661-271-0 01 1 0809-
56 BRACKET; RELAY VLV 1-47479-937-0 01 1 0809-
58 ADAPTER
VIN MODEL YEAR 2011<VZB> (C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1012-1102
58 ADAPTER
(C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1103-
58 ADAPTER
VIN MODEL YEAR 2011<VZB> (D) DIN17 & RC3/8 & R1/2 3WAY 		8-98031-238-0 01 1 1012-1102
58 ADAPTER
(D) DIN17 & RC3/8 & R1/2 3WAY 		8-98031-238-0 01 1 1103-
58 ADAPTER
VIN MODEL YEAR 2011<VZB> (E) 		8-98148-475-0 01 1 1012-1102
58 ADAPTER
(E) 		8-98148-475-0 01 1 1103-
58 ADAPTER
ZF6S1000 M/T(Y5D) VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> (F) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1012-1102
58 ADAPTER
ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1012-1102
58 ADAPTER
ZF6S1000 M/T(Y5D) ASSISTOR SHIFT CONTROL<WX8> (F) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1103-
58 ADAPTER
ZF9S1110 M/T(Y5E) (F) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1103-
58 ADAPTER
ZF6S1000 M/T(Y5D) VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> (G) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1012-1102
58 ADAPTER
ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> (G) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1012-1102
58 ADAPTER
ZF6S1000 M/T(Y5D) ASSISTOR SHIFT CONTROL<WX8> (G) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1103-
58 ADAPTER
ZF9S1110 M/T(Y5E) (G) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1103-
58 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0809-
58 ADAPTER
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0809-
62 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 0809-
63 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 0809-
65 BRACKET; RELAY VLV RR 1-47471-032-0 01 1 0809-
73 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0809-
74 CONNECTOR; 3WAY
DIN8 & RC1/4 & R3/8 3WAY 		1-09661-536-0 01 1 0809-
182 PLUG; RELAY VLV
PT3/8 		9-09204-517-0 02 1 0809-
213 GASKET
ID=22.5 		9-09571-422-0 04 1 0809-

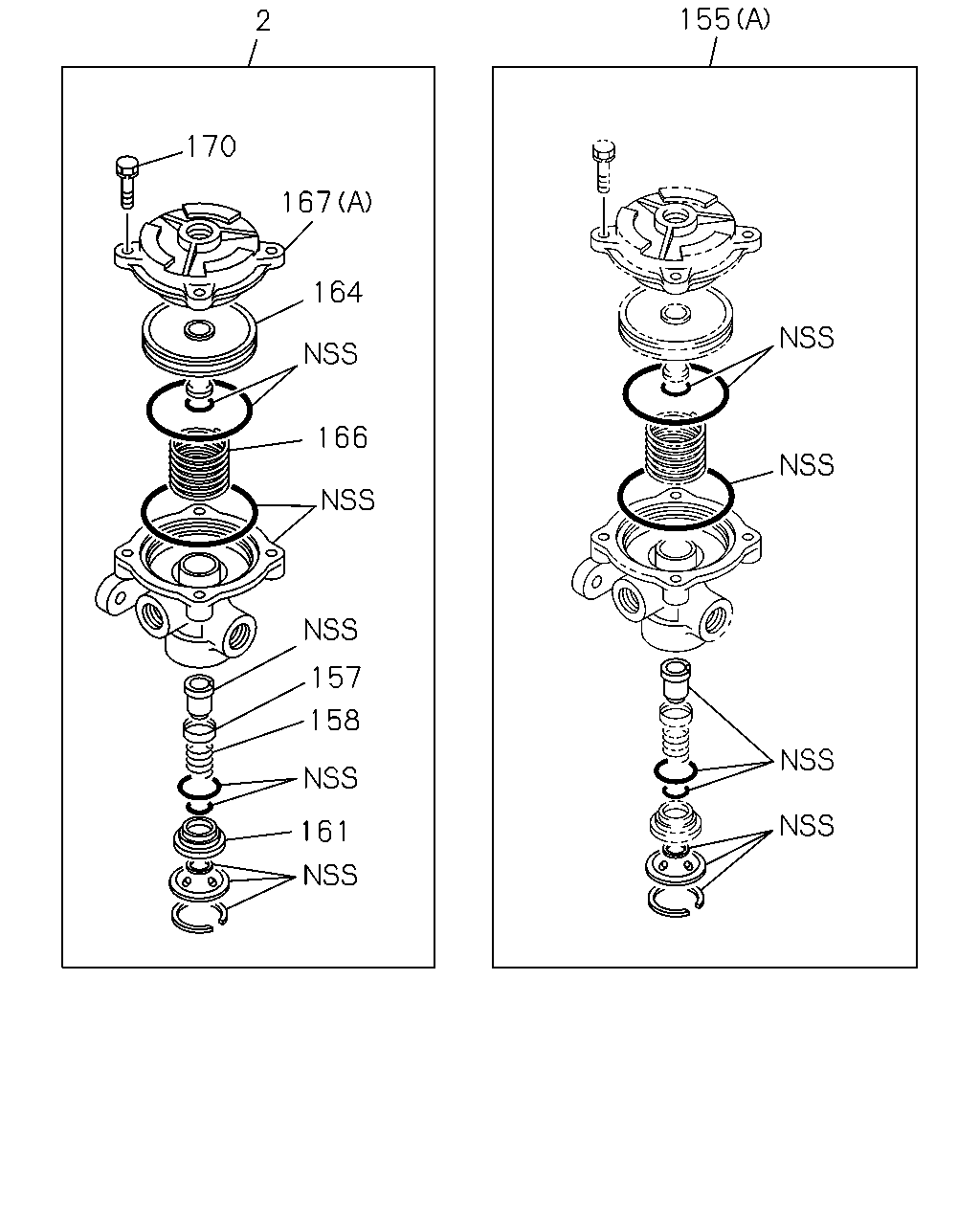

çizim 187960
2 170 167 164 166 157 158 161 155
BalonParca AdiParca NoAdetTipApplied Date
2 VALVE; RELAY 1-48210-875-0 01 1 0809-
2 VALVE; RELAY 1-48210-875-0 02 1 0809-
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-033-0 01 1 0809-
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-033-0 02 1 0809-
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 0809-
157 RETAINER; VALVE 1-48213-002-0 01 1 0809-
157 RETAINER; VALVE 1-48213-002-0 02 1 0809-
158 SPRING; VALVE 1-47819-089-0 01 1 0809-
158 SPRING; VALVE 1-47819-089-0 02 1 0809-
161 GUIDE; VALVE 1-48129-014-0 01 1 0809-
161 GUIDE; VALVE 1-48129-014-0 02 1 0809-
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 0809-
164 PISTON; RELAY VALVE 1-48219-071-0 02 1 0809-
166 SPRING; PISTON 1-47819-090-0 01 1 0809-
166 SPRING; PISTON 1-47819-090-0 02 1 0809-
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 0809-
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 0809-
167 COVER; VALVE
(A) 		1-48219-070-0 02 1 0809-
170 SCREW; COVER TO BODY 1-48219-039-0 04 1 0809-
170 SCREW; COVER TO BODY 1-48219-039-0 08 1 0809-
çizim 439340
241
BalonParca AdiParca NoAdetTipApplied Date
241 REPAIR KIT; PROTECTION VALVE 1-85576-451-2 01 1 0809-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
