Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#69412) — 246 parça

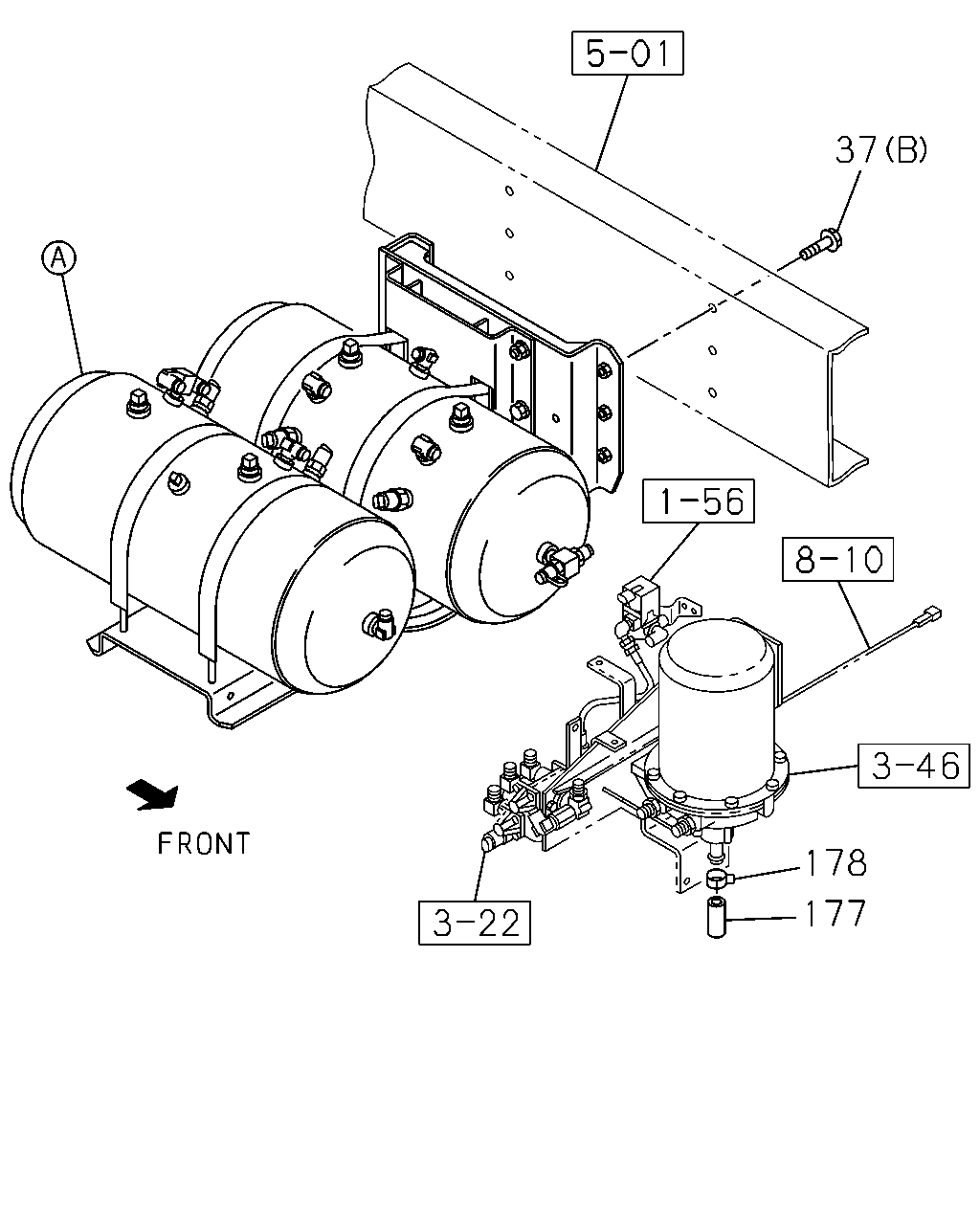

37 178 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (B) M12X40 FLANGE	0-28651-240-0	06	1	1012-1102
37	BOLT; AIR TANK EXC. VIETNAM EQUIPMENT(SGX) (A) M14X50	0-20851-450-0	03	1	1004-
37	BOLT; AIR TANK (A) M14X50	0-20851-450-0	03	1	0809-1003
37	BOLT; AIR TANK VIETNAM EQUIPMENT(SGX) (A) M14X50	0-20851-450-0	02	1	1004-
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28651-240-0	06	1	0809-1011
37	BOLT; AIR TANK VIN MODEL YEAR 2011<VZB> (B) M12X40 FLANGE	0-28651-240-0	08	1	1012-1102
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28651-240-0	08	1	1103-
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0809-
178	CLIP; HOSE AIR DRYER<PS7> ID=21	8-94242-034-0	01	1	0809-

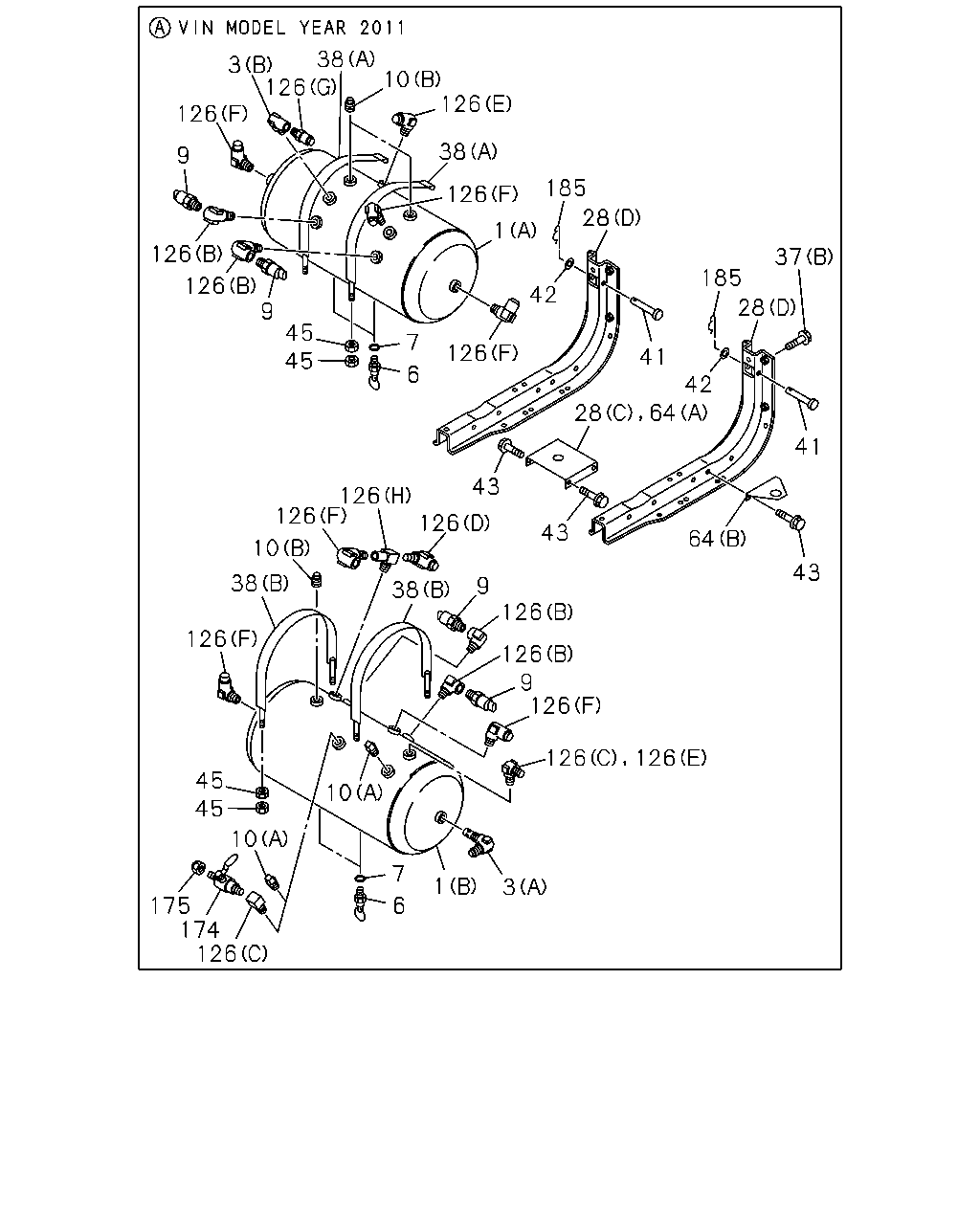

3 366 366 366 28 80 10 366 38 38 41 9 366 1 126 104 42 185 104 126 9 7 45 45 366 6 80 369 366 10 28 366 9 38 38 126 3 366 126 9 366 45 45 10 1 175 174 126 7 6 366

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR VIN MODEL YEAR 2011<VZB> (B)	8-98174-384-0	01	1	1012-1012
1	TANK ASM; AIR VIN MODEL YEAR 2011<VZB> (B)	8-98184-783-0	01	1	1012-1102
1	TANK ASM; AIR (B)	8-98184-783-0	01	1	1103-
1	TANK ASM; AIR EXC. VIN MODEL YEAR 2011<VZB> (A)	1-48370-181-1	02	1	1012-1102
1	TANK ASM; AIR (A)	1-48370-181-1	02	1	0809-1011
1	TANK ASM; AIR VIN MODEL YEAR 2011<VZB> (A)	1-48370-181-1	01	1	1012-1102
1	TANK ASM; AIR (A)	1-48370-181-1	01	1	1103-
3	VALVE; CHECK,AIR TANK (B)	1-48320-031-1	01	1	0901-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0809-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0809-
6	COCK; DRAIN,AIR TANK EXC. VIN MODEL YEAR 2011<VZB>	1-48312-015-0	04	1	1012-1102
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0809-1003
6	COCK; DRAIN,AIR TANK WHEEL BASE 6300MM(63W)	1-48312-015-0	01	1	1004-
6	COCK; DRAIN,AIR TANK VIETNAM EQUIPMENT(SGX)	1-48312-015-0	01	1	1004-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0809-1011
6	COCK; DRAIN,AIR TANK VIN MODEL YEAR 2011<VZB>	1-48312-015-0	05	1	1012-1102
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	1103-
7	GASKET; DRAIN COCK EXC. VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	04	1	1012-1102
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0809-1003
7	GASKET; DRAIN COCK WHEEL BASE 6300MM(63W) ID=14	1-09630-145-0	01	1	1004-
7	GASKET; DRAIN COCK VIETNAM EQUIPMENT(SGX) ID=14	1-09630-145-0	01	1	1004-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0809-1011
7	GASKET; DRAIN COCK VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	05	1	1012-1102
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1103-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK STAMP 5.5	8-97609-249-0	04	1	0809-
10	PLUG; AIR TANK VIN MODEL YEAR 2011<VZB> EXC. TIRE INFLATOR DEVICE<SG4> (A) PT3/8	9-09204-517-0	02	1	1012-1102
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> (A) PT3/8	9-09204-517-0	02	1	1103-
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	03	1	0809-
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> (A) PT3/8	9-09204-517-0	01	1	0809-1011
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4>,VIN MODEL YEAR 2011<VZB> (A) PT3/8	9-09204-517-0	01	1	1012-1102
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (A) PT3/8	9-09204-517-0	01	1	1012-1102
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> (A) PT3/8	9-09204-517-0	01	1	1103-
28	BRACKET; AIR TANK TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (C)	1-48317-607-0	01	1	1012-1012
28	BRACKET; AIR TANK VIN MODEL YEAR 2011<VZB> (D)	1-48317-601-5	02	1	1012-1102
28	BRACKET; AIR TANK (D)	1-48317-601-5	02	1	1103-
28	BRACKET; AIR TANK (A)	8-98048-199-0	01	1	0809-1011
28	BRACKET; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98048-199-0	01	1	1012-1102
28	BRACKET; AIR TANK (B)	8-98048-200-2	01	1	0809-1011
28	BRACKET; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (B)	8-98048-200-2	01	1	1012-1102
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	0809-
38	BAND; AIR TANK (B)	1-48317-109-2	02	1	0809-
41	PIN; BAND FIX VIN MODEL YEAR 2011<VZB> OD=10 L=60	0-82254-060-0	02	1	1012-1102
41	PIN; BAND FIX OD=10 L=60	0-82254-060-0	02	1	1103-
41	PIN; BAND FIX	1-09744-068-0	01	1	0809-1011
41	PIN; BAND FIX EXC. VIN MODEL YEAR 2011<VZB>	1-09744-068-0	01	1	1012-1102
42	WASHER; PL VIN MODEL YEAR 2011<VZB> ID=10.5	0-91614-510-0	02	1	1012-1102
42	WASHER; PL ID=10.5	0-91614-510-0	02	1	1103-
42	WASHER; PL ID=10.5	9-09164-510-0	01	1	0809-1011
42	WASHER; PL EXC. VIN MODEL YEAR 2011<VZB> ID=10.5	9-09164-510-0	01	1	1012-1101
42	WASHER; PL EXC. VIN MODEL YEAR 2011<VZB> ID=10.5	0-91614-510-0	01	1	1102-1102
45	NUT; AIR TANK,MAIN M8	0-91110-508-0	12	1	0809-
80	BOLT; BRKT VIETNAM EQUIPMENT(SGX) (B) M8X25 FLANGE	0-28650-825-0	01	1	1004-
80	BOLT; BRKT VIETNAM EQUIPMENT(SGX) (C) M12X30 FLANGE	0-28651-230-0	04	1	1004-
80	BOLT; BRKT (A) M12X35 FLANGE	0-28651-235-0	04	1	0809-1011
80	BOLT; BRKT EXC. VIN MODEL YEAR 2011<VZB> (A) M12X35 FLANGE	0-28651-235-0	04	1	1012-1102
104	NUT; BRKT VIETNAM EQUIPMENT(SGX) (B) M8 FLANGE	0-91180-108-0	01	1	1004-
104	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	02	1	0809-1011
104	NUT; BRKT EXC. VIN MODEL YEAR 2011<VZB> (A) M12 FLANGE	0-91180-212-0	02	1	1012-1102
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (C) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1012-1012
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1012-1102
126	CONNECTOR; ELBOW (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1012-1012
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (E) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1012-1102
126	CONNECTOR; ELBOW (E) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (F) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1012-1102
126	CONNECTOR; ELBOW (F) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (G) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1012-1102
126	CONNECTOR; ELBOW (G) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (H) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1012-1102
126	CONNECTOR; ELBOW (H) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1103-
126	CONNECTOR; ELBOW TIRE INFLATOR DEVICE<SG4> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-
126	CONNECTOR; ELBOW (B) PT1/4 2WAY	1-09660-693-0	04	1	0809-
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0809-
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	0809-
185	PIN; SNAP EXC. VIN MODEL YEAR 2011<VZB> L=32.6	8-98062-280-0	01	1	1012-1102
185	PIN; SNAP L=32.6	8-98062-280-0	01	1	0809-1011
185	PIN; SNAP VIN MODEL YEAR 2011<VZB> L=32.6	8-98062-280-0	02	1	1012-1102
185	PIN; SNAP L=32.6	8-98062-280-0	02	1	1103-
366	CONNECTOR; NYLON TUBE (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0901-1011
366	CONNECTOR; NYLON TUBE EXC. VIN MODEL YEAR 2011<VZB> (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1012-1102
366	CONNECTOR; NYLON TUBE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	07	1	0809-0812
366	CONNECTOR; NYLON TUBE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	0901-1011
366	CONNECTOR; NYLON TUBE EXC. VIN MODEL YEAR 2011<VZB> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1012-1102
366	CONNECTOR; NYLON TUBE (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-1011
366	CONNECTOR; NYLON TUBE EXC. VIN MODEL YEAR 2011<VZB> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1012-1102
366	CONNECTOR; NYLON TUBE (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0809-1011
366	CONNECTOR; NYLON TUBE EXC. VIN MODEL YEAR 2011<VZB> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1012-1102
369	CONNECTOR; 3WAY	1-09656-708-0	01	1	0809-1011
369	CONNECTOR; 3WAY EXC. VIN MODEL YEAR 2011<VZB>	1-09656-708-0	01	1	1012-1101
369	CONNECTOR; 3WAY EXC. VIN MODEL YEAR 2011<VZB> R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1102-1102

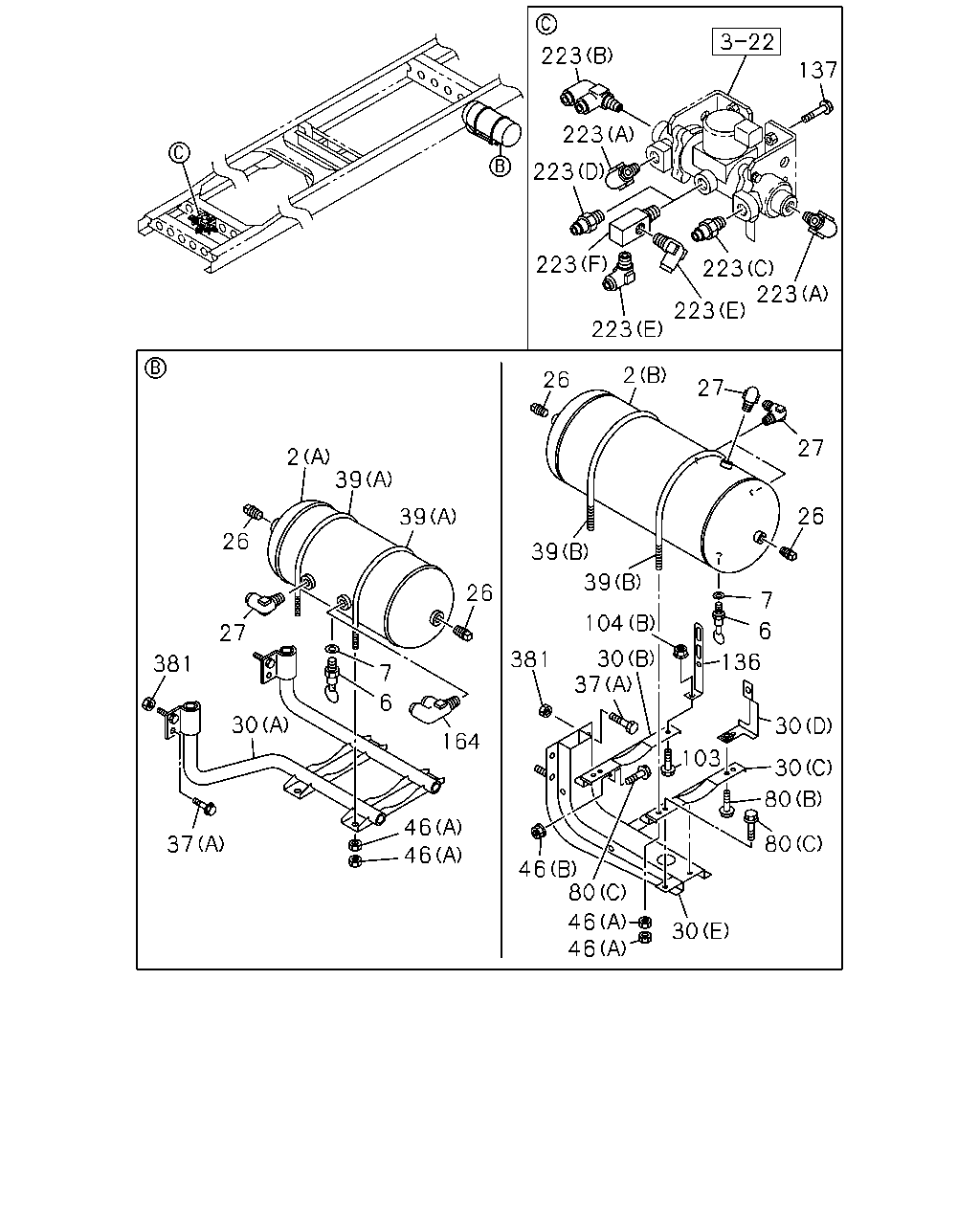

223 137 223 223 223 223 223 223 223 2 26 27 27 2 39 26 39 26 39 39 26 7 104 6 27 30 37 381 136 381 7 6 30 30 164 103 30 80 46 46 80 37 46 80 46 46 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	TANK; AIR VIETNAM EQUIPMENT(SGX) (B)	8-98160-210-0	01	1	1004-
2	TANK; AIR WHEEL BASE 6300MM(63W) (A)	8-98112-216-0	01	1	0809-
6	COCK; DRAIN,AIR TANK EXC. VIN MODEL YEAR 2011<VZB>	1-48312-015-0	04	1	1012-1102
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0809-1003
6	COCK; DRAIN,AIR TANK WHEEL BASE 6300MM(63W)	1-48312-015-0	01	1	1004-
6	COCK; DRAIN,AIR TANK VIETNAM EQUIPMENT(SGX)	1-48312-015-0	01	1	1004-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0809-1011
6	COCK; DRAIN,AIR TANK VIN MODEL YEAR 2011<VZB>	1-48312-015-0	05	1	1012-1102
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	1103-
7	GASKET; DRAIN COCK EXC. VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	04	1	1012-1102
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0809-1003
7	GASKET; DRAIN COCK WHEEL BASE 6300MM(63W) ID=14	1-09630-145-0	01	1	1004-
7	GASKET; DRAIN COCK VIETNAM EQUIPMENT(SGX) ID=14	1-09630-145-0	01	1	1004-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0809-1011
7	GASKET; DRAIN COCK VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	05	1	1012-1102
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1103-
26	PLUG; SUB AIR TANK PT3/8	9-09204-517-0	02	1	0809-1003
26	PLUG; SUB AIR TANK WHEEL BASE 6300MM(63W) PT3/8	9-09204-517-0	02	1	1004-
26	PLUG; SUB AIR TANK VIETNAM EQUIPMENT(SGX) PT3/8	9-09204-517-0	02	1	1004-
27	UNION; ELBOW,AIR TANK VIETNAM EQUIPMENT(SGX) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1004-
27	UNION; ELBOW,AIR TANK WHEEL BASE 6300MM(63W) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0809-
30	BRACKET; AIR TANK,SUB VIETNAM EQUIPMENT(SGX) (B)	1-48316-026-0	01	1	1004-
30	BRACKET; AIR TANK,SUB VIETNAM EQUIPMENT(SGX) (C)	1-48317-994-2	01	1	1004-
30	BRACKET; AIR TANK,SUB VIETNAM EQUIPMENT(SGX) (D)	8-98136-697-0	01	1	1004-
30	BRACKET; AIR TANK,SUB VIETNAM EQUIPMENT(SGX) (E)	8-98157-749-0	01	1	1004-
30	BRACKET; AIR TANK,SUB WHEEL BASE 6300MM(63W) (A)	8-98128-349-0	01	1	0809-1006
30	BRACKET; AIR TANK,SUB (A)	8-98163-992-0	01	1	1007-
37	BOLT; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (B) M12X40 FLANGE	0-28651-240-0	06	1	1012-1102
37	BOLT; AIR TANK EXC. VIETNAM EQUIPMENT(SGX) (A) M14X50	0-20851-450-0	03	1	1004-
37	BOLT; AIR TANK (A) M14X50	0-20851-450-0	03	1	0809-1003
37	BOLT; AIR TANK VIETNAM EQUIPMENT(SGX) (A) M14X50	0-20851-450-0	02	1	1004-
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28651-240-0	06	1	0809-1011
37	BOLT; AIR TANK VIN MODEL YEAR 2011<VZB> (B) M12X40 FLANGE	0-28651-240-0	08	1	1012-1102
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28651-240-0	08	1	1103-
39	U-BOLT; AIR TANK VIETNAM EQUIPMENT(SGX) (B) L=303	1-48317-087-2	02	1	1004-
39	U-BOLT; AIR TANK WHEEL BASE 6300MM(63W) (A)	1-48317-289-0	02	1	0809-
46	NUT; U-BOLT VIETNAM EQUIPMENT(SGX) (B) M12 FLANGE	0-91180-212-0	01	1	1004-
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	0809-1003
46	NUT; U-BOLT WHEEL BASE 6300MM(63W) (A) M8	0-91110-508-0	08	1	1004-
46	NUT; U-BOLT VIETNAM EQUIPMENT(SGX) (A) M8	0-91110-508-0	08	1	1004-
80	BOLT; BRKT VIETNAM EQUIPMENT(SGX) (B) M8X25 FLANGE	0-28650-825-0	01	1	1004-
80	BOLT; BRKT VIETNAM EQUIPMENT(SGX) (C) M12X30 FLANGE	0-28651-230-0	04	1	1004-
80	BOLT; BRKT (A) M12X35 FLANGE	0-28651-235-0	04	1	0809-1011
80	BOLT; BRKT EXC. VIN MODEL YEAR 2011<VZB> (A) M12X35 FLANGE	0-28651-235-0	04	1	1012-1102
103	BOLT; BRKT VIETNAM EQUIPMENT(SGX) M8X20 FLANGE	0-28650-820-0	01	1	1004-
104	NUT; BRKT VIETNAM EQUIPMENT(SGX) (B) M8 FLANGE	0-91180-108-0	01	1	1004-
104	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	02	1	0809-1011
104	NUT; BRKT EXC. VIN MODEL YEAR 2011<VZB> (A) M12 FLANGE	0-91180-212-0	02	1	1012-1102
136	BRACKET; CLIP VIETNAM EQUIPMENT(SGX) L=225	1-47477-646-3	01	1	1004-
137	BOLT; BRKT H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	04	1	0809-
164	CONNECTOR; SUB AIR TANK WHEEL BASE 6300MM(63W) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0809-
223	UNION H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0809-
223	UNION H.S.A SYSTEM<6EP> (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0809-
223	UNION H.S.A SYSTEM<6EP> (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0809-
223	UNION H.S.A SYSTEM<6EP> RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0809-
223	UNION H.S.A SYSTEM<6EP> EXC. RIGID SEAT WO/ARM REST<TAZ> (E) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0809-
223	UNION H.S.A SYSTEM<6EP> EXC. RIGID SEAT WO/ARM REST<TAZ> (F) DIN14 & R1/4 & RC1/4	1-09661-729-0	01	1	0809-
381	NUT; SUB TANK M14	0-91110-514-0	04	1	0809-

38 3 126 10 126 126 38 9 185 126 28 126 37 185 126 9 42 28 45 45 7 126 41 6 42 41 43 126 126 126 43 64 10 43 38 9 38 126 126 126 9 126 126 126 45 45 10 10 7 1 3 175 174 126 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR VIN MODEL YEAR 2011<VZB> (B)	8-98174-384-0	01	1	1012-1012
1	TANK ASM; AIR VIN MODEL YEAR 2011<VZB> (B)	8-98184-783-0	01	1	1012-1102
1	TANK ASM; AIR (B)	8-98184-783-0	01	1	1103-
1	TANK ASM; AIR EXC. VIN MODEL YEAR 2011<VZB> (A)	1-48370-181-1	02	1	1012-1102
1	TANK ASM; AIR (A)	1-48370-181-1	02	1	0809-1011
1	TANK ASM; AIR VIN MODEL YEAR 2011<VZB> (A)	1-48370-181-1	01	1	1012-1102
1	TANK ASM; AIR (A)	1-48370-181-1	01	1	1103-
3	VALVE; CHECK,AIR TANK (B)	1-48320-031-1	01	1	0901-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0809-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0809-
6	COCK; DRAIN,AIR TANK EXC. VIN MODEL YEAR 2011<VZB>	1-48312-015-0	04	1	1012-1102
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0809-1003
6	COCK; DRAIN,AIR TANK WHEEL BASE 6300MM(63W)	1-48312-015-0	01	1	1004-
6	COCK; DRAIN,AIR TANK VIETNAM EQUIPMENT(SGX)	1-48312-015-0	01	1	1004-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0809-1011
6	COCK; DRAIN,AIR TANK VIN MODEL YEAR 2011<VZB>	1-48312-015-0	05	1	1012-1102
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	1103-
7	GASKET; DRAIN COCK EXC. VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	04	1	1012-1102
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0809-1003
7	GASKET; DRAIN COCK WHEEL BASE 6300MM(63W) ID=14	1-09630-145-0	01	1	1004-
7	GASKET; DRAIN COCK VIETNAM EQUIPMENT(SGX) ID=14	1-09630-145-0	01	1	1004-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0809-1011
7	GASKET; DRAIN COCK VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	05	1	1012-1102
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1103-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK STAMP 5.5	8-97609-249-0	04	1	0809-
10	PLUG; AIR TANK VIN MODEL YEAR 2011<VZB> EXC. TIRE INFLATOR DEVICE<SG4> (A) PT3/8	9-09204-517-0	02	1	1012-1102
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> (A) PT3/8	9-09204-517-0	02	1	1103-
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	03	1	0809-
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> (A) PT3/8	9-09204-517-0	01	1	0809-1011
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4>,VIN MODEL YEAR 2011<VZB> (A) PT3/8	9-09204-517-0	01	1	1012-1102
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (A) PT3/8	9-09204-517-0	01	1	1012-1102
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> (A) PT3/8	9-09204-517-0	01	1	1103-
28	BRACKET; AIR TANK TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (C)	1-48317-607-0	01	1	1012-1012
28	BRACKET; AIR TANK VIN MODEL YEAR 2011<VZB> (D)	1-48317-601-5	02	1	1012-1102
28	BRACKET; AIR TANK (D)	1-48317-601-5	02	1	1103-
28	BRACKET; AIR TANK (A)	8-98048-199-0	01	1	0809-1011
28	BRACKET; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98048-199-0	01	1	1012-1102
28	BRACKET; AIR TANK (B)	8-98048-200-2	01	1	0809-1011
28	BRACKET; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (B)	8-98048-200-2	01	1	1012-1102
37	BOLT; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (B) M12X40 FLANGE	0-28651-240-0	06	1	1012-1102
37	BOLT; AIR TANK EXC. VIETNAM EQUIPMENT(SGX) (A) M14X50	0-20851-450-0	03	1	1004-
37	BOLT; AIR TANK (A) M14X50	0-20851-450-0	03	1	0809-1003
37	BOLT; AIR TANK VIETNAM EQUIPMENT(SGX) (A) M14X50	0-20851-450-0	02	1	1004-
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28651-240-0	06	1	0809-1011
37	BOLT; AIR TANK VIN MODEL YEAR 2011<VZB> (B) M12X40 FLANGE	0-28651-240-0	08	1	1012-1102
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28651-240-0	08	1	1103-
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	0809-
38	BAND; AIR TANK (B)	1-48317-109-2	02	1	0809-
41	PIN; BAND FIX VIN MODEL YEAR 2011<VZB> OD=10 L=60	0-82254-060-0	02	1	1012-1102
41	PIN; BAND FIX OD=10 L=60	0-82254-060-0	02	1	1103-
41	PIN; BAND FIX	1-09744-068-0	01	1	0809-1011
41	PIN; BAND FIX EXC. VIN MODEL YEAR 2011<VZB>	1-09744-068-0	01	1	1012-1102
42	WASHER; PL VIN MODEL YEAR 2011<VZB> ID=10.5	0-91614-510-0	02	1	1012-1102
42	WASHER; PL ID=10.5	0-91614-510-0	02	1	1103-
42	WASHER; PL ID=10.5	9-09164-510-0	01	1	0809-1011
42	WASHER; PL EXC. VIN MODEL YEAR 2011<VZB> ID=10.5	9-09164-510-0	01	1	1012-1101
42	WASHER; PL EXC. VIN MODEL YEAR 2011<VZB> ID=10.5	0-91614-510-0	01	1	1102-1102
43	BOLT; STAY,AIR TANK,MAIN VIN MODEL YEAR 2011<VZB> M8X25 FLANGE	0-28650-825-0	06	1	1012-1102
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28650-825-0	06	1	1103-
45	NUT; AIR TANK,MAIN M8	0-91110-508-0	12	1	0809-
64	STAY; AIR TANK,MAIN VIN MODEL YEAR 2011<VZB> (B)	1-48317-691-0	01	1	1012-1102
64	STAY; AIR TANK,MAIN (B)	1-48317-691-0	01	1	1103-
64	STAY; AIR TANK,MAIN VIN MODEL YEAR 2011<VZB> EXC. TIRE INFLATOR DEVICE<SG4> (A)	1-48317-607-0	01	1	1012-1012
64	STAY; AIR TANK,MAIN VIN MODEL YEAR 2011<VZB> (A)	1-48317-607-0	01	1	1012-1102
64	STAY; AIR TANK,MAIN (A)	1-48317-607-0	01	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (C) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1012-1012
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1012-1102
126	CONNECTOR; ELBOW (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1012-1012
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (E) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1012-1102
126	CONNECTOR; ELBOW (E) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (F) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1012-1102
126	CONNECTOR; ELBOW (F) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (G) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1012-1102
126	CONNECTOR; ELBOW (G) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (H) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1012-1102
126	CONNECTOR; ELBOW (H) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1103-
126	CONNECTOR; ELBOW TIRE INFLATOR DEVICE<SG4> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-
126	CONNECTOR; ELBOW (B) PT1/4 2WAY	1-09660-693-0	04	1	0809-
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0809-
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	0809-
185	PIN; SNAP EXC. VIN MODEL YEAR 2011<VZB> L=32.6	8-98062-280-0	01	1	1012-1102
185	PIN; SNAP L=32.6	8-98062-280-0	01	1	0809-1011
185	PIN; SNAP VIN MODEL YEAR 2011<VZB> L=32.6	8-98062-280-0	02	1	1012-1102
185	PIN; SNAP L=32.6	8-98062-280-0	02	1	1103-

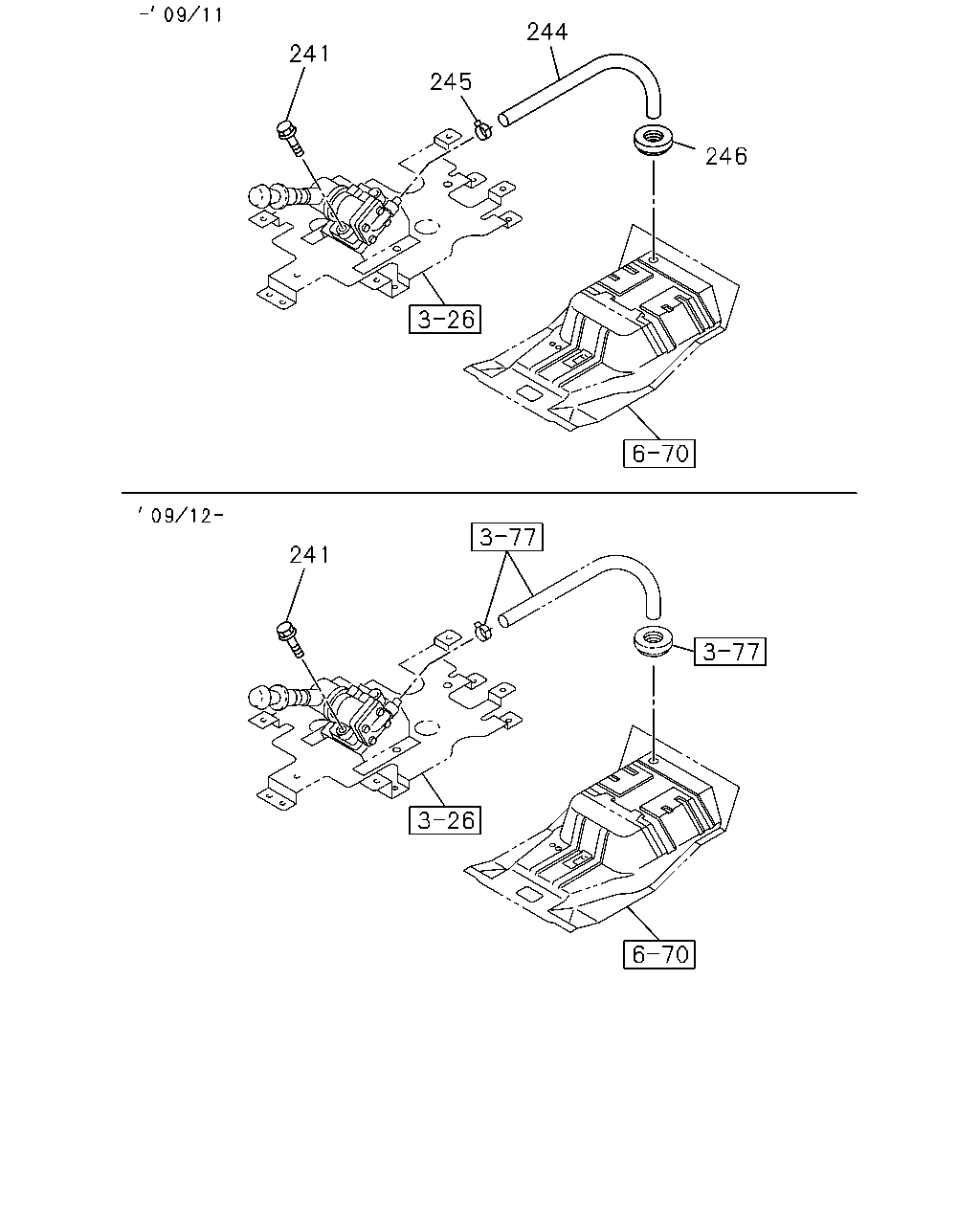

244 241 245 246 241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	0809-
244	PIPE; VINYL,EXH L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0809-0911
245	CLIP; VINYL PIPE ID=14	8-94238-572-0	01	1	0809-0911
246	GROMMET; VINYL PIPE OD=24	9-61166-007-0	01	1	0809-0911

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
