0-52 — OIL AND VACUUM PIPING; ENGINE (#6941) — 159 parça

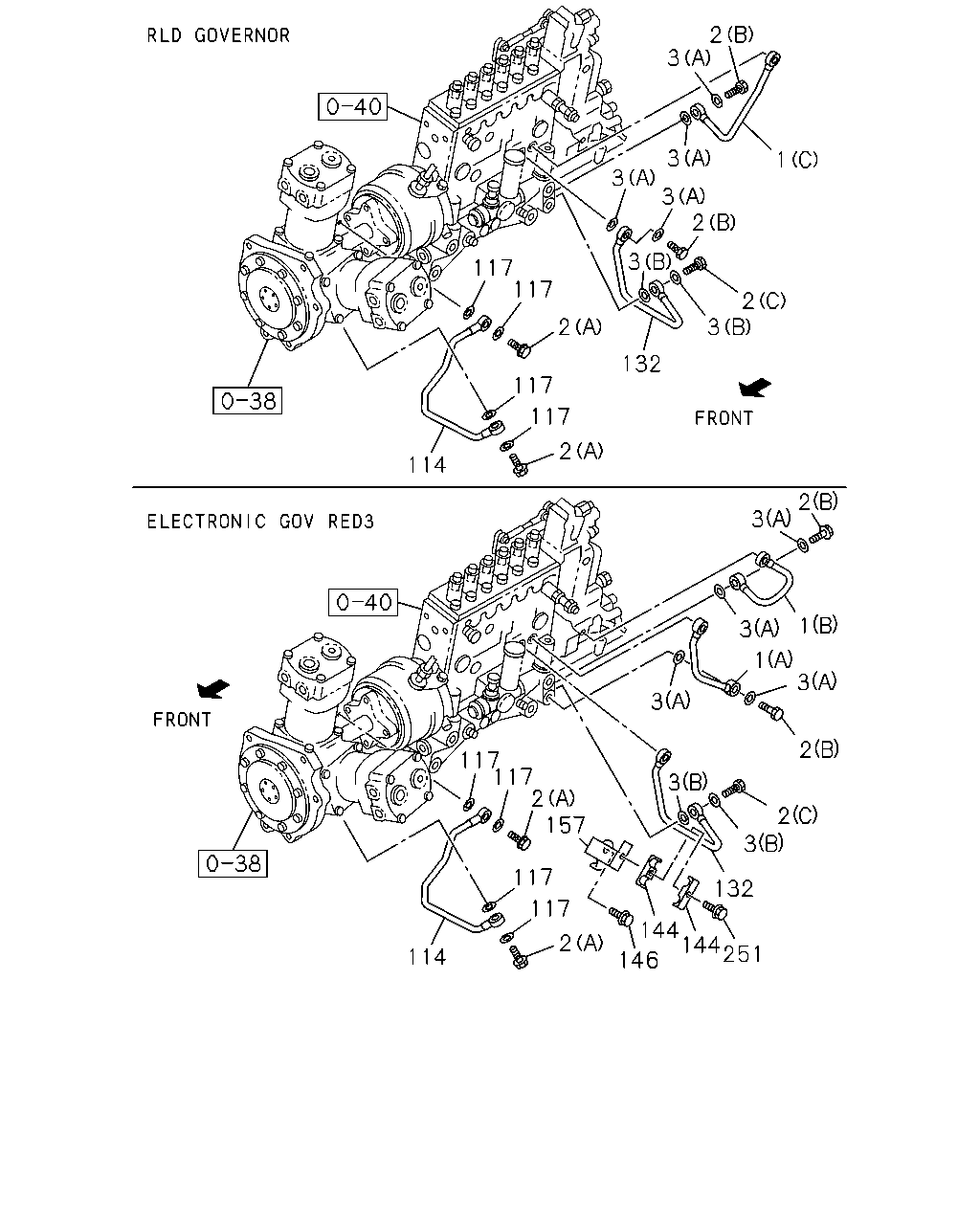

2 3 3 1 3 3 2 3 117 117 2 3 2 132 117 117 2 114 2 3 1 3 1 3 3 117 117 2 157 2 3 2 3 117 132 117 144 144 251 2 114 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; OIL,INJ PUMP TO C/BL (A)	1-13313-449-0	01	1	9812-9901	●
1	PIPE; OIL,INJ PUMP TO C/BL (A)	1-13313-449-0	01	1	9902-	●	●
1	PIPE; OIL,INJ PUMP TO C/BL ELECTRONIC GOV RED3(KG5) (A)	1-13313-449-0	01	1	9902-			●
1	PIPE; OIL,INJ PUMP TO C/BL (B)	1-13313-450-0	01	1	9812-9901	●
1	PIPE; OIL,INJ PUMP TO C/BL (B)	1-13313-450-0	01	1	9902-	●	●
1	PIPE; OIL,INJ PUMP TO C/BL ELECTRONIC GOV RED3(KG5) (B)	1-13313-450-0	01	1	9902-			●
1	PIPE; OIL,INJ PUMP TO C/BL RLD GOVERNOR(SD7) (C)	1-13313-645-0	01	1	9902-9904			●
1	PIPE; OIL,INJ PUMP TO C/BL RLD GOVERNOR(SD7) (C)	1-13313-645-0	01	1	9905-9906			●
1	PIPE; OIL,INJ PUMP TO C/BL (C)	1-13313-645-0	01	1	9905-9906				●
1	PIPE; OIL,INJ PUMP TO C/BL RLD GOVERNOR(SD7) (C)	1-13313-645-0	01	1	9907-			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9812-9901	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9902-9904	●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9905-9906	●	●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9907-	●	●	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	9812-9901	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	9902-9904	●	●	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	9905-9906	●	●	●	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	9907-	●	●	●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	9812-9901	●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	9902-9904	●	●	●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	9905-9906	●	●	●	●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	9907-	●	●	●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	9812-9901	●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	9902-9904	●	●	●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	9905-9906	●	●	●	●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	9907-	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9812-9901	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9902-9904	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9905-9906	●	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9907-	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	9812-9901	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	9902-9904	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	9905-9906	●	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	9907-	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4	1-09630-087-0	02	1	9812-9901	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4	1-09630-087-0	02	1	9902-9904	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4	1-09630-087-0	02	1	9905-9906	●	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4	1-09630-087-0	02	1	9907-	●	●	●
114	PIPE ASM; OIL,BODY	1-13313-643-0	01	1	9812-9901	●
114	PIPE ASM; OIL,BODY	1-13313-643-0	01	1	9902-9904	●	●	●
114	PIPE ASM; OIL,BODY	1-13313-643-0	01	1	9905-9906	●	●	●	●
114	PIPE ASM; OIL,BODY	1-13313-643-0	01	1	9907-	●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	9812-9901	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	9902-9904	●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	9905-9906	●	●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	9907-	●	●	●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-665-0	01	1	9812-9901	●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-665-0	01	1	9902-9904	●	●	●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-665-0	01	1	9905-9906	●	●	●	●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-665-0	01	1	9907-	●	●	●
144	CLIP; OIL PIPE,INJ PUMP	1-09701-132-0	02	1	9812-9901	●
144	CLIP; OIL PIPE,INJ PUMP	1-09701-132-1	02	1	9902-	●	●
146	BOLT; BRKT M10X16 FLANGE	0-28181-016-0	01	1	9812-9901	●
146	BOLT; BRKT M10X16 FLANGE	0-28181-016-0	01	1	9902-	●	●
157	BRACKET; OIL PIPE	1-13345-188-0	01	1	9812-9901	●
157	BRACKET; OIL PIPE	1-13345-188-0	01	1	9902-	●	●
251	BOLT; CLIP,OIL PIPE M6X35 FLANGE	0-28680-635-0	01	1	9812-9901	●
251	BOLT; CLIP,OIL PIPE M6X35 FLANGE	0-28680-635-0	01	1	9902-	●	●

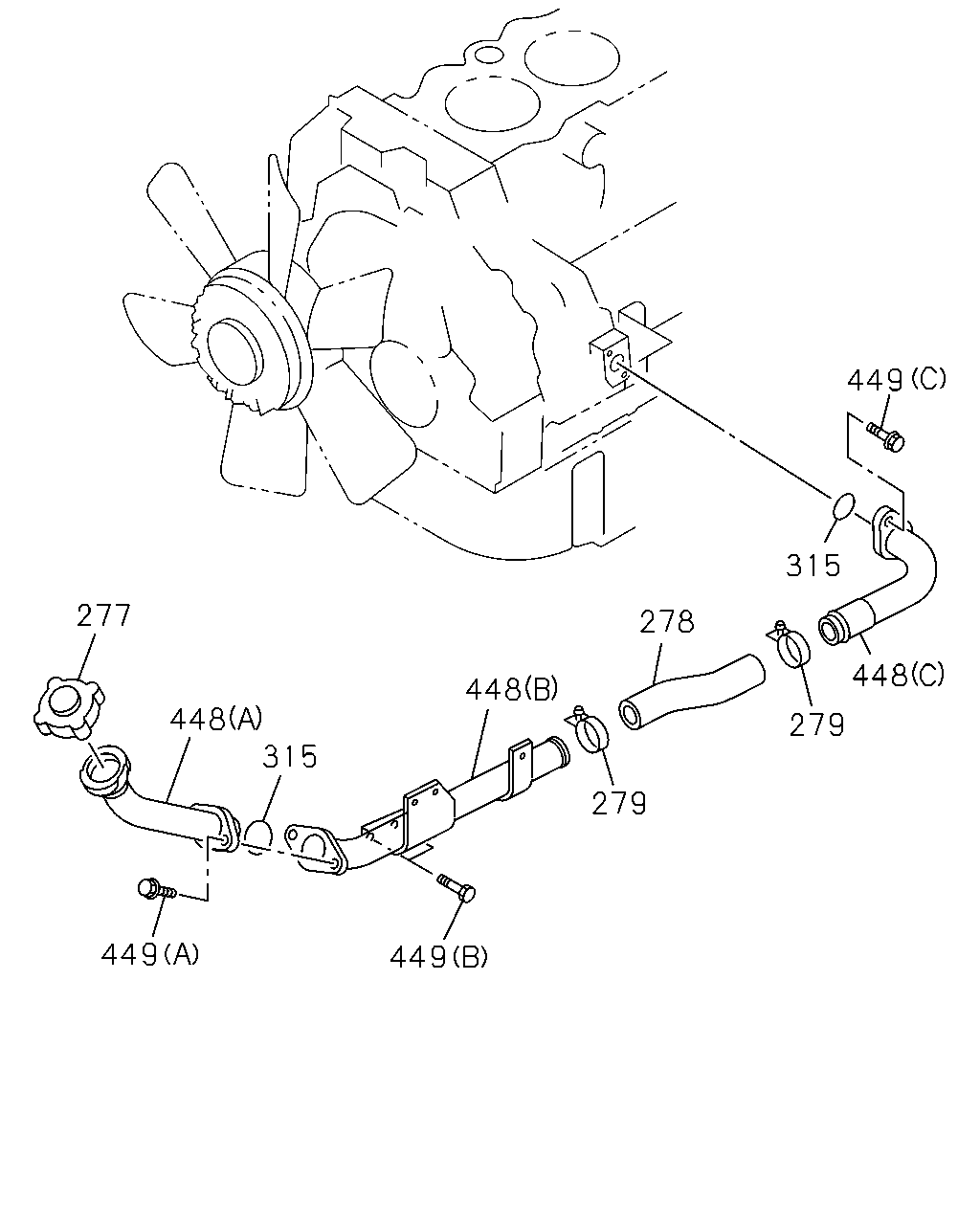

315 277 278 448 448 448 279 315 279 449 449 449

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
277	CAP; OIL FILLER	1-11750-020-0	01	1	9812-	●	●	●	●
278	HOSE; RUBBER,OIL FILLER	1-11749-154-0	01	1	9812-	●	●
278	HOSE; RUBBER,OIL FILLER CAB UP +110MM<TGG>	1-11749-154-0	01	1	9812-			●
278	HOSE; RUBBER,OIL FILLER EXC. CAB UP +110MM<TGG>	1-11749-148-1	01	1	9812-			●
278	HOSE; RUBBER,OIL FILLER	1-11749-148-1	01	1	9812-				●
279	CLIP; RUBBER HOSE ID=48	9-09915-512-1	02	1	9812-	●	●	●	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-299-0	01	1	9812-9901	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-299-0	01	1	9812-9901	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-299-0	01	1	9902-9904	●	●	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-299-0	01	1	9902-9904	●	●	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-299-0	01	1	9905-9906	●	●	●	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-299-0	01	1	9905-9906	●	●	●	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-299-0	01	1	9907-	●	●	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-299-0	01	1	9907-	●	●	●
448	FILLER; OIL (C)	1-11740-227-1	01	1	9812-9901	●
448	FILLER; OIL (C)	1-11740-227-1	01	1	9902-9904	●	●	●
448	FILLER; OIL (C)	1-11740-227-1	01	1	9905-9906	●	●	●	●
448	FILLER; OIL (C)	1-11740-227-1	01	1	9907-	●	●	●
448	FILLER; OIL (A)	1-11741-175-4	01	1	9812-	●	●	●	●
448	FILLER; OIL (B)	1-11741-218-0	01	1	9812-	●	●
448	FILLER; OIL CAB UP +110MM<TGG> (B)	1-11741-218-0	01	1	9812-			●
448	FILLER; OIL EXC. CAB UP +110MM<TGG> (B)	1-11741-178-2	01	1	9812-			●
448	FILLER; OIL (B)	1-11741-178-2	01	1	9812-				●
449	BOLT; OIL FILLER (C) M8X16 FLANGE	0-28080-816-0	02	1	9812-9901	●
449	BOLT; OIL FILLER (C) M8X16 FLANGE	0-28080-816-0	02	1	9902-9904	●	●	●
449	BOLT; OIL FILLER (C) M8X16 FLANGE	0-28080-816-0	02	1	9905-9906	●	●	●	●
449	BOLT; OIL FILLER (C) M8X16 FLANGE	0-28080-816-0	02	1	9907-	●	●	●
449	BOLT; OIL FILLER (B) M8X20 FLANGE	0-28680-820-0	02	1	9812-	●	●	●	●
449	BOLT; OIL FILLER (A) M8X25 FLANGE	0-28680-825-0	02	1	9812-	●	●	●	●

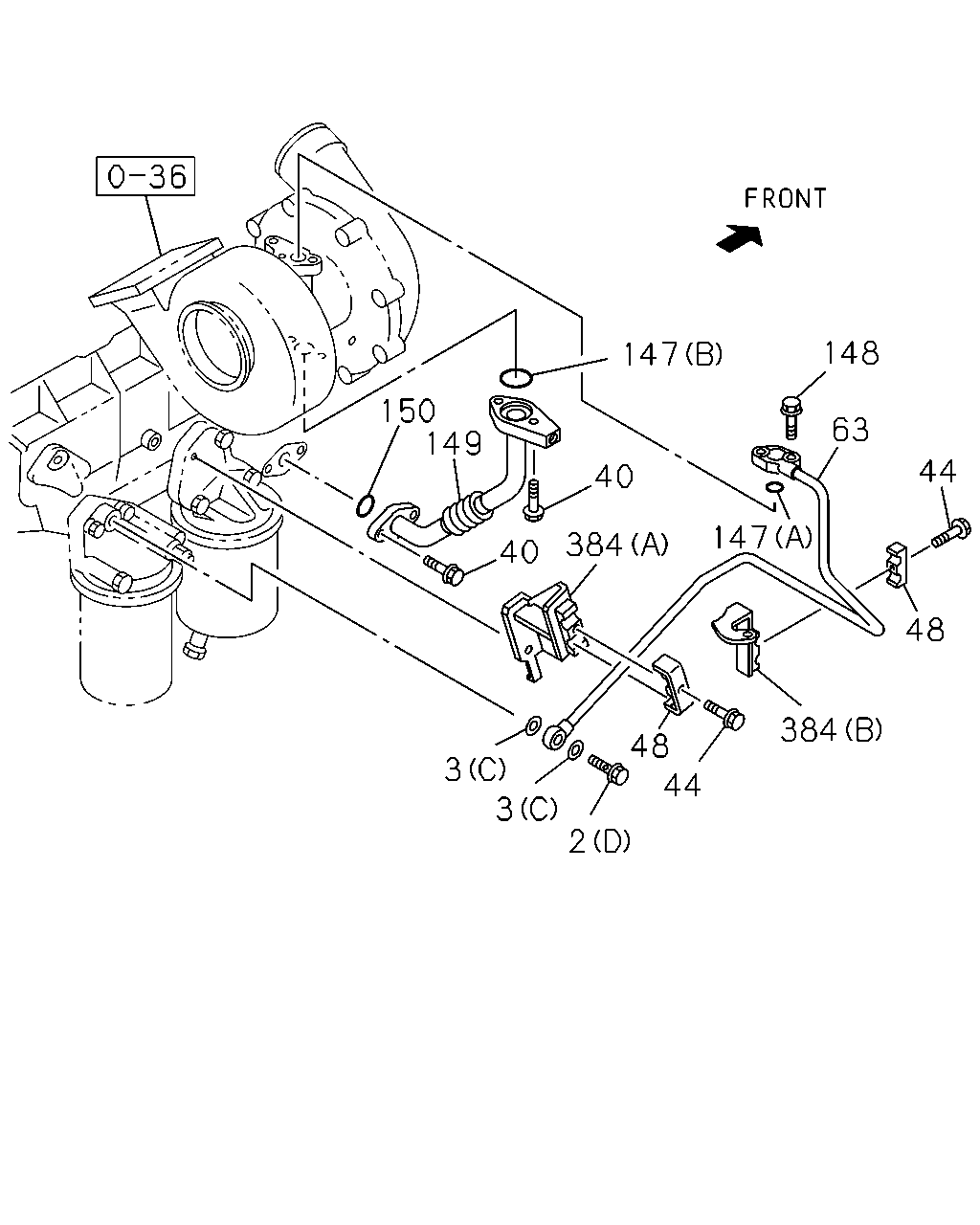

148 147 150 149 63 44 40 147 384 40 48 384 48 44 3 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9812-9901	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9902-9904	●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9905-9906	●	●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9907-	●	●	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	9812-9901	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	9902-9904	●	●	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	9905-9906	●	●	●	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	9907-	●	●	●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	9812-9901	●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	9902-9904	●	●	●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	9905-9906	●	●	●	●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	9907-	●	●	●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	9812-9901	●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	9902-9904	●	●	●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	9905-9906	●	●	●	●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	9907-	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9812-9901	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9902-9904	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9905-9906	●	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9907-	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	9812-9901	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	9902-9904	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	9905-9906	●	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	9907-	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4	1-09630-087-0	02	1	9812-9901	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4	1-09630-087-0	02	1	9902-9904	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4	1-09630-087-0	02	1	9905-9906	●	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4	1-09630-087-0	02	1	9907-	●	●	●
40	BOLT; OIL PIPE M10X30 FLANGE	0-28181-030-0	04	1	9812-9901	●
40	BOLT; OIL PIPE M10X30 FLANGE	0-28181-030-0	04	1	9902-9904	●	●	●
40	BOLT; OIL PIPE M10X30 FLANGE	0-28181-030-0	04	1	9905-9906	●	●	●	●
40	BOLT; OIL PIPE M10X30 FLANGE	0-28181-030-0	04	1	9907-	●	●	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28080-630-0	02	1	9812-9901	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28080-630-0	02	1	9902-9904	●	●	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28080-630-0	02	1	9905-9906	●	●	●	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28080-630-0	02	1	9907-	●	●	●
48	CLIP; OIL PIPE ID=9 & 9 L=25	1-09701-212-0	02	1	9812-9901	●
48	CLIP; OIL PIPE ID=9 & 9 L=25	1-09701-212-0	02	1	9902-9904	●	●	●
48	CLIP; OIL PIPE ID=9 & 9 L=25	1-09701-212-0	02	1	9905-9906	●	●	●	●
48	CLIP; OIL PIPE ID=9 & 9 L=25	1-09701-212-1	02	1	9907-	●	●	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-866-0	01	1	9812-9901	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-866-0	01	1	9902-9904	●	●	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-866-0	01	1	9905-9906	●	●	●	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-866-0	01	1	9907-	●	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.8	1-09623-274-0	01	1	9812-9901	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.8	1-09623-274-0	01	1	9902-9904	●	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.8	1-09623-274-0	01	1	9905-9906	●	●	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.8	1-09623-274-0	01	1	9907-	●	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=27.7	1-09623-450-0	01	1	9812-9901	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=27.7	1-09623-450-0	01	1	9902-9904	●	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=27.7	1-09623-450-0	01	1	9905-9906	●	●	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=27.7	1-09623-450-0	01	1	9907-	●	●	●
148	BOLT; FLANGE & BRKT M10X35 FLANGE	0-28181-035-0	02	1	9812-9901	●
148	BOLT; FLANGE & BRKT M10X35 FLANGE	0-28181-035-0	02	1	9902-9904	●	●	●
148	BOLT; FLANGE & BRKT M10X35 FLANGE	0-28181-035-0	02	1	9905-9906	●	●	●	●
148	BOLT; FLANGE & BRKT M10X35 FLANGE	0-28181-035-0	02	1	9907-	●	●	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-319-0	01	1	9812-9901	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-319-0	01	1	9902-9904	●	●	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-319-0	01	1	9905-9906	●	●	●	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-319-0	01	1	9907-	●	●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	9812-9901	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	9902-9904	●	●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	9905-9906	●	●	●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	9907-	●	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13345-191-0	01	1	9812-9901	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13345-191-0	01	1	9902-9904	●	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13345-191-0	01	1	9905-9906	●	●	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13345-191-0	01	1	9907-	●	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-192-0	01	1	9812-9901	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-192-0	01	1	9902-9904	●	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-192-0	01	1	9905-9906	●	●	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-192-0	01	1	9907-	●	●	●
