◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11152 - FVM(LHD) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#69407) — 41 parça

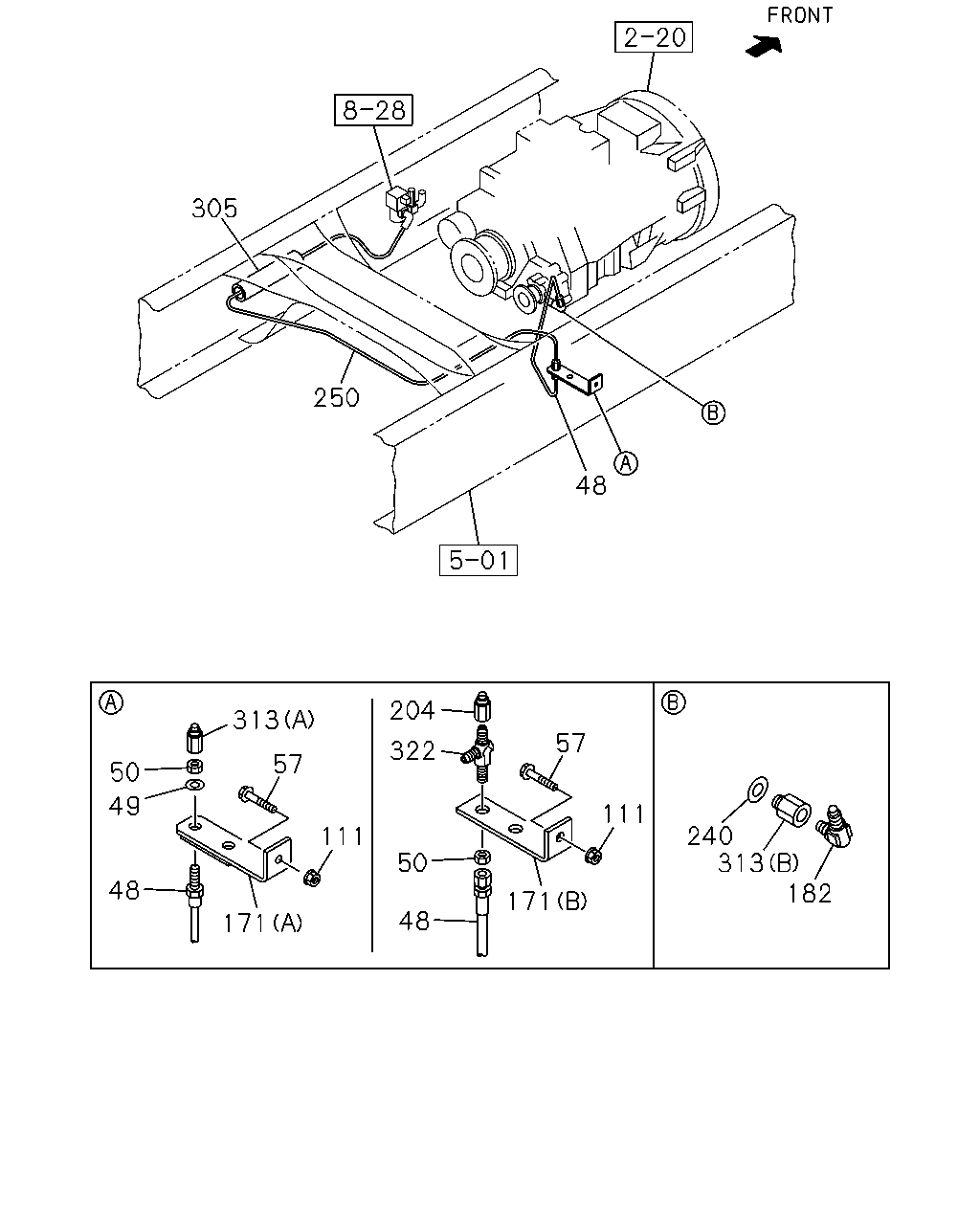

çizim 114337
305 250 48 204 313 57 322 57 50 49 111 240 313 182 111 50 48 171 48 171
BalonParca AdiParca NoAdetTipApplied Date A B
48 HOSE; FLEX,PTO
PTO ZF TRANS RR(BDM) VIN MODEL YEAR 2011<VZB> L=350 		1-09363-624-0 01 1 1012-1102 ●
48 HOSE; FLEX,PTO
PTO ZF TRANS RR(BDM) L=350 		1-09363-624-0 01 1 1103- ●
48 HOSE; FLEX,PTO
PTO ZF TRANS RR(BDM) VIN MODEL YEAR 2011<VZB> L=320 		1-09363-625-0 01 1 1012-1102 ●
48 HOSE; FLEX,PTO
PTO ZF TRANS RR(BDM) L=320 		1-09363-625-0 01 1 1103- ●
48 HOSE; FLEX,PTO
PTO ZF TRANS RR(BDM) L=420 		1-09363-633-0 01 1 0809-1011 ●
48 HOSE; FLEX,PTO
PTO ZF TRANS RR(BDM) EXC. VIN MODEL YEAR 2011<VZB> L=420 		1-09363-633-0 01 1 1012-1102 ●
48 HOSE; FLEX,PTO
PTO ZF TRANS RR(BDM) L=230 		1-09363-666-0 01 1 0809-0901 ● ●
48 HOSE; FLEX,PTO
PTO ZF TRANS RR(BDM) L=230 		1-09363-666-0 01 1 0902-1011 ●
48 HOSE; FLEX,PTO
PTO ZF TRANS RR(BDM) EXC. VIN MODEL YEAR 2011<VZB> L=230 		1-09363-666-0 01 1 1012-1102 ●
49 WASHER; LK,FLEX HOSE
PTO ZF TRANS RR(BDM) ID=12.2 		9-09150-512-0 01 1 0809-1011 ● ●
50 NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) VIN MODEL YEAR 2011<VZB> M12 		0-91111-512-0 01 1 1012-1102 ●
50 NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) M12 		0-91111-512-0 01 1 1103- ●
50 NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) M12 		9-09840-280-0 01 1 0809-1011 ● ●
50 NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) M12 		9-09840-280-0 01 1 1012-1102 ●
50 NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) EXC. VIN MODEL YEAR 2011<VZB> M12 		9-09840-280-0 01 1 1012-1102 ●
50 NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) M12 		9-09840-280-0 01 1 1103- ●
57 BOLT; BRKT
PTO ZF TRANS RR(BDM) M8X30 FLANGE 		0-28650-830-0 01 1 0809- ● ●
111 NUT; BRKT
PTO ZF TRANS RR(BDM) M8 FLANGE 		0-91180-108-0 01 1 0809- ● ●
171 BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM) VIN MODEL YEAR 2011<VZB> (B) 		8-98172-810-0 01 1 1012-1102 ●
171 BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM) (B) 		8-98172-810-0 01 1 1103- ●
171 BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM) (A) 		8-98100-228-0 01 1 0809-1011 ● ●
171 BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM) (A) 		8-98100-228-0 01 1 1012-1102 ●
171 BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM) EXC. VIN MODEL YEAR 2011<VZB> (A) 		8-98100-228-0 01 1 1012-1102 ●
171 BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM) (A) 		8-98100-228-0 01 1 1103- ●
182 CONNECTOR; FLARE
PTO ZF TRANS RR(BDM) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809- ● ●
204 CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) VIN MODEL YEAR 2011<VZB> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1012-1102 ●
204 CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1103- ●
240 GASKET; CONNECTOR,PTO
PTO ZF TRANS RR(BDM) ID=12.2 		1-09630-084-0 01 1 0809-1312 ● ●
240 GASKET; CONNECTOR,PTO
PTO ZF TRANS RR(BDM) ID=12.2 		8-98251-344-0 01 1 1401- ● ●
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0809- ● ●
305 TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 0809-0911 ● ●
305 TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0912- ● ●
313 ADAPTER
PTO ZF TRANS RR(BDM) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0809-1011 ● ●
313 ADAPTER
PTO ZF TRANS RR(BDM) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1012-1102 ●
313 ADAPTER
PTO ZF TRANS RR(BDM) EXC. VIN MODEL YEAR 2011<VZB> (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1012-1102 ●
313 ADAPTER
PTO ZF TRANS RR(BDM) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1103- ●
313 ADAPTER
PTO ZF TRANS RR(BDM) (B) PT1/4 		1-09654-396-0 01 1 0809- ● ●
322 UNION
PTO ZF TRANS RR(BDM) VIN MODEL YEAR 2011<VZB> M12 2WAY 		1-09654-059-2 01 1 1012-1102 ●
322 UNION
PTO ZF TRANS RR(BDM) M12 2WAY 		1-09654-059-2 01 1 1103- ●
çizim 187948
3 3 15
BalonParca AdiParca NoAdetTipApplied Date A B
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0809- ● ●
15 LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79996-092-0 01 1 0809- ● ●
