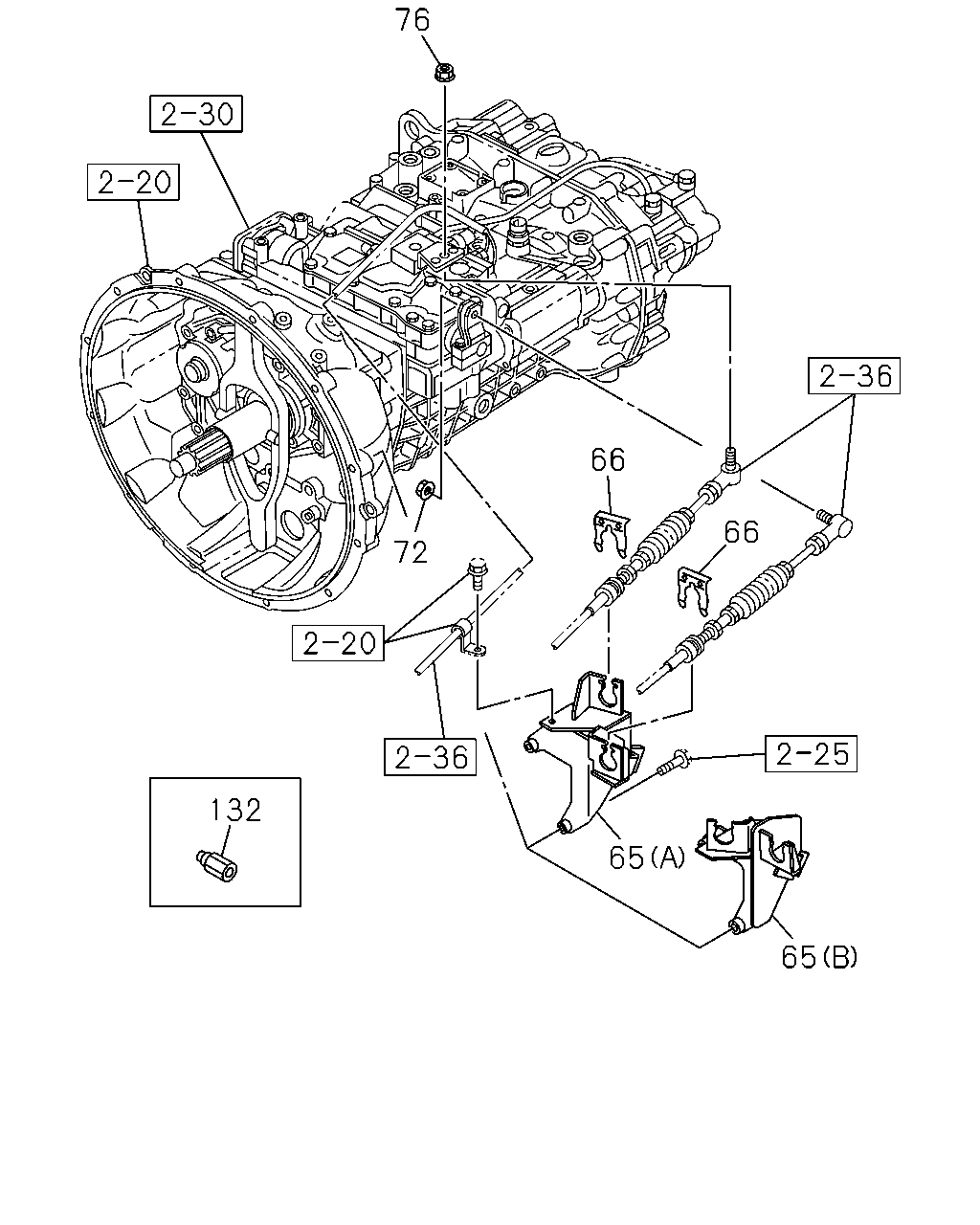

2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#69404) — 8 parça

76 66 66 72 132 65 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF6S1000 M/T(Y5D) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98017-430-1	01	1	0809-
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98049-613-1	01	1	0809-
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98060-386-0	01	1	0809-
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	0809-
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	0809-
76	NUT; BALL JOINT,SELECT WIRE ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	0809-
76	NUT; BALL JOINT,SELECT WIRE EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	1-09440-056-0	01	1	0809-
132	CONNECTOR; FLEX HOSE ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0809-
