2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#69403) — 69 parça

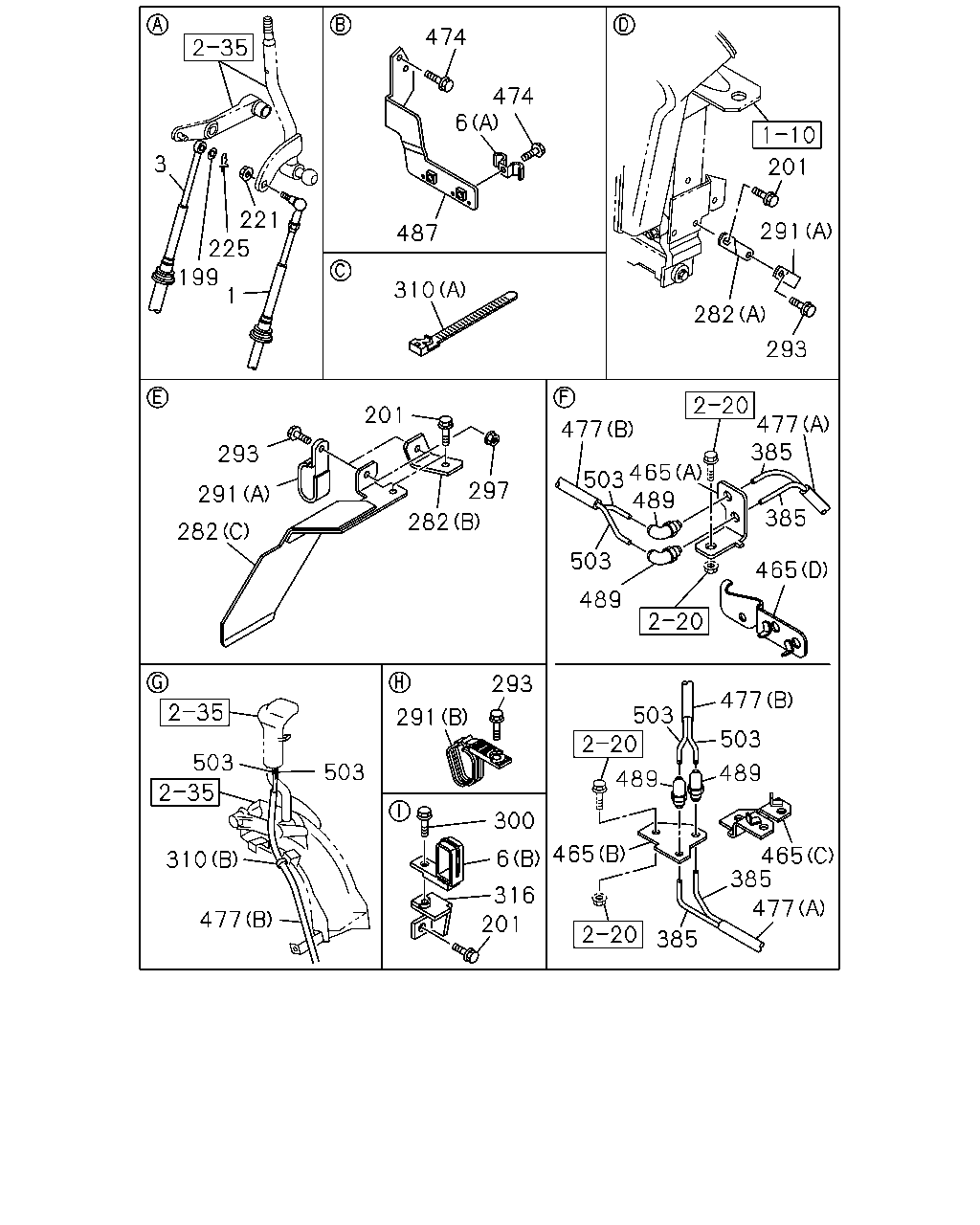

çizim 187952
474 474 6 3 201 221 291 487 225 199 310 1 282 293 477 385 201 477 293 465 503 489 297 291 385 282 282 503 465 489 293 477 503 291 503 503 503 489 489 300 465 465 385 6 310 316 477 477 201 385
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3415 		8-98177-867-2 01 1 1009-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) ZF6S1000 M/T(Y5D) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3390 		8-98017-478-6 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3415 		8-98047-809-5 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3430 		8-98017-473-6 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3430 		8-98017-476-6 01 1 0809-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3380 		8-98177-868-1 01 1 1009-
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-497-5 01 1 0809-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) ZF6S1000 M/T(Y5D) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3355 		8-98017-499-5 01 1 0809-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3485 		8-98047-823-4 01 1 0809-
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3495 		8-98017-494-5 01 1 0809-
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0809-
6 CLIP; CABLE
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0809-
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 0809-
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M12X35 FLANGE 		0-28151-235-0 01 1 0809-
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0809-
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0809-
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 0809-
201 BOLT; BRKT
ZF6S1000 M/T(Y5D) M16X25 FLANGE 		0-28851-625-0 01 1 0809-
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0809-1011
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012-
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 0809-
282 BRACKET; TRANS SIDE
6HK1-TCS ENG(80L) (A) 		8-98098-265-2 01 1 0809-
282 BRACKET; TRANS SIDE
6HK1-TCN ENG(82L) (A) 		8-98010-418-0 01 1 0809-
282 BRACKET; TRANS SIDE
(B) 		1-82699-199-0 01 1 0809-1103
282 BRACKET; TRANS SIDE
(C) 		8-98171-762-0 01 1 1104-
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 02 1 0809-
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0809-
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28050-816-0 01 1 0809-
293 BOLT; CLIP,SHIFT TO SELECT
M8X20 FLANGE 		0-28050-820-0 01 1 0809-
293 BOLT; CLIP,SHIFT TO SELECT
M8X20 FLANGE 		0-28650-820-0 01 1 0809-
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0809-
300 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0809-
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) L=100 		5-09707-036-1 01 1 0809-
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) ID=6 & 10-13 		8-97069-515-0 01 1 0809-
316 BRACKET; CLIP 8-98086-439-0 01 1 0809-
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 01 1 0809-0809
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 0809-
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98150-069-0 01 1 0908-0910
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98158-134-0 01 1 0911-1112
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (D) 		8-98208-198-0 01 1 1201-
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98085-414-0 01 1 0809-0907
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 01 1 0809-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 02 1 0809-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0809-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0809-0910
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 0911-
487 BRACKET; CONT CABLE 8-98021-921-2 01 1 0809-0901
487 BRACKET; CONT CABLE 8-98137-772-0 01 1 0902-
489 CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98085-747-0 02 1 0809-
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 0809-

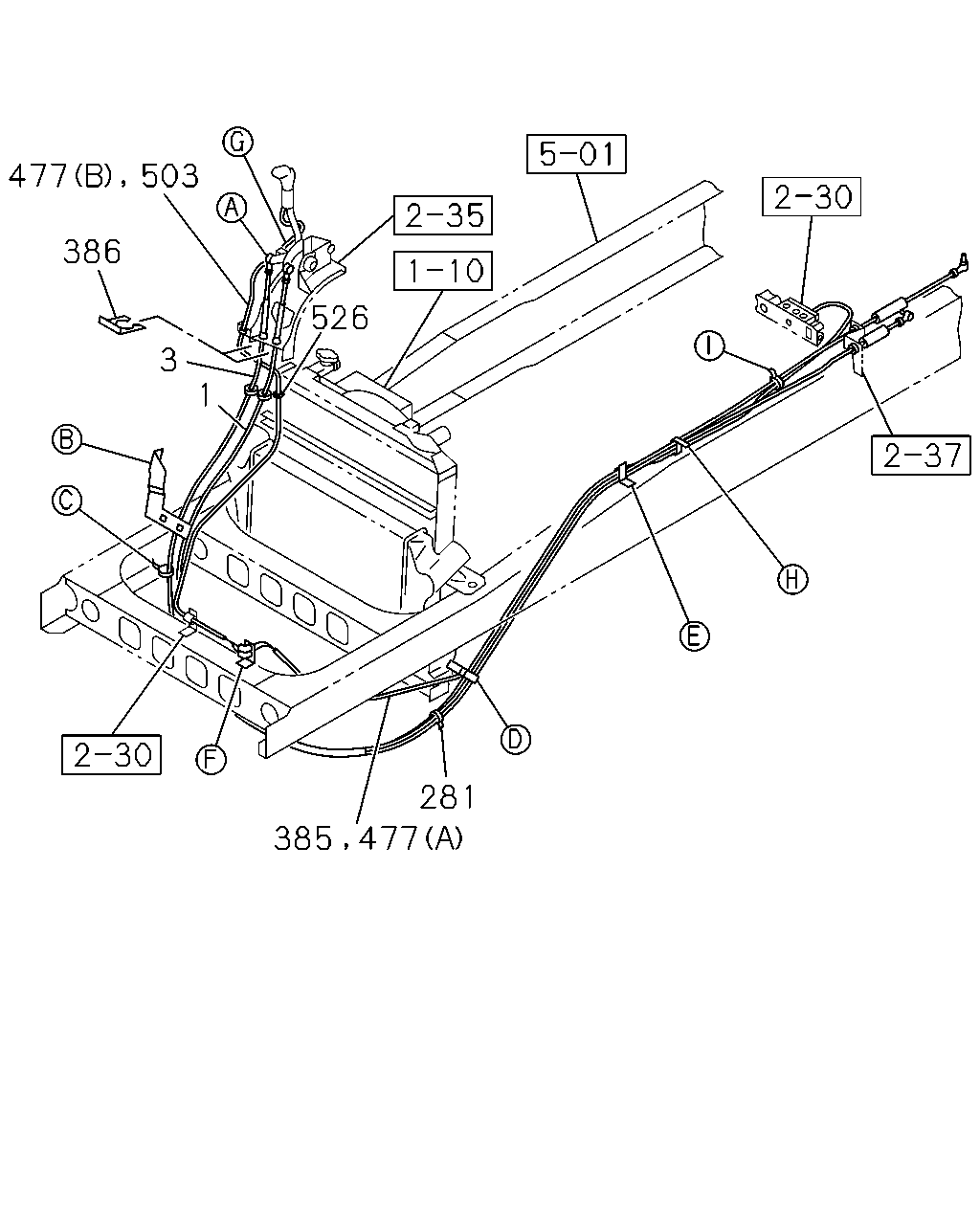

çizim 187953
477 503 386 526 3 1 281 385 477
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3415 		8-98177-867-2 01 1 1009-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) ZF6S1000 M/T(Y5D) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3390 		8-98017-478-6 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3415 		8-98047-809-5 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3430 		8-98017-473-6 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3430 		8-98017-476-6 01 1 0809-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3380 		8-98177-868-1 01 1 1009-
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-497-5 01 1 0809-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) ZF6S1000 M/T(Y5D) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3355 		8-98017-499-5 01 1 0809-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3485 		8-98047-823-4 01 1 0809-
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3495 		8-98017-494-5 01 1 0809-
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 0809-
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 01 1 0809-0809
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 0809-
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 0809-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0809-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0809-0910
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 0911-
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 0809-
526 GROMMET
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		5-09333-062-0 01 1 0809-
