0-51 — OIL PUMP AND OIL STRAINER (#6940) — 62 parça

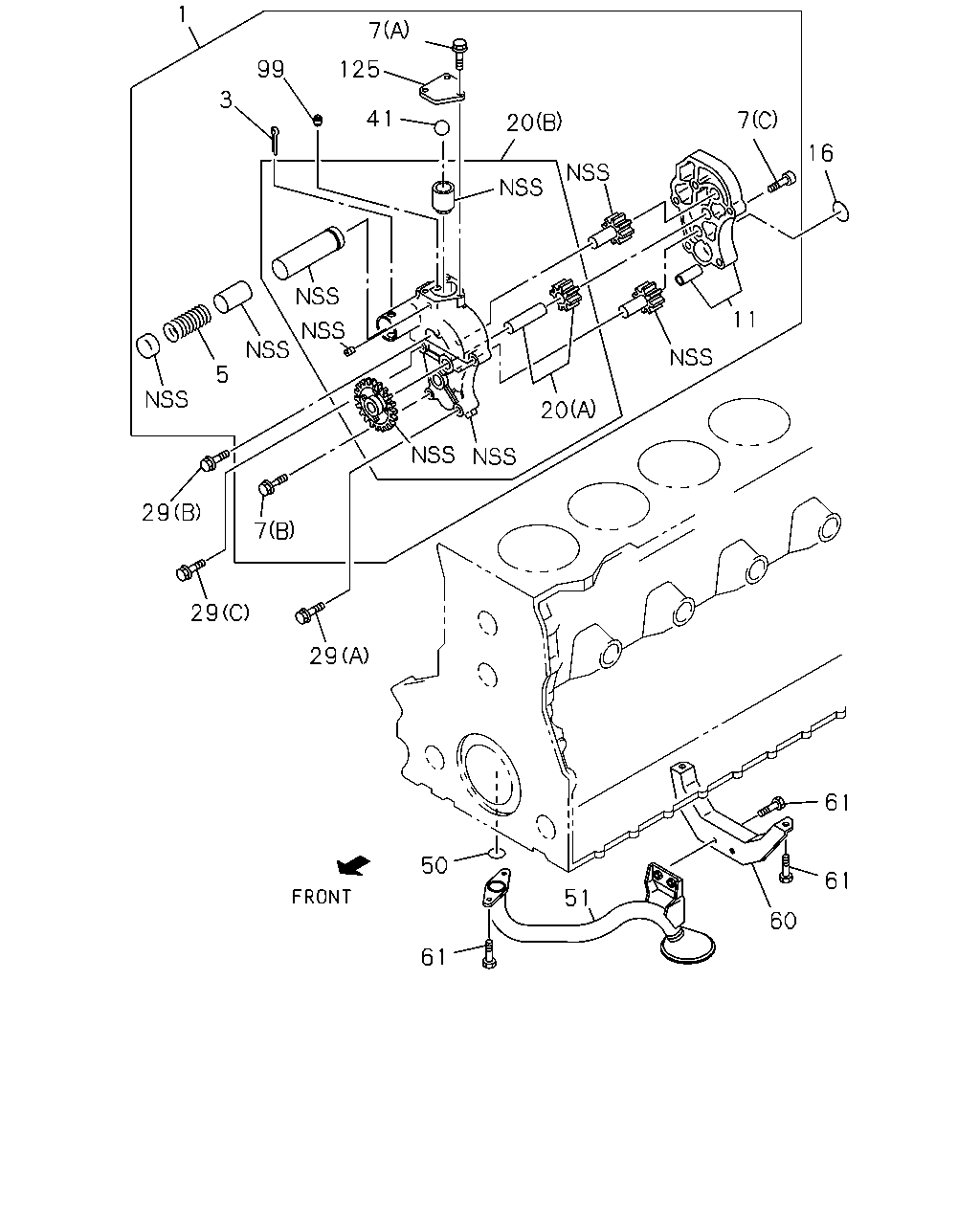

çizim 43803
1 7 99 125 3 41 7 20 16 11 5 20 29 7 29 29 61 50 61 51 60 61
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PUMP ASM; OIL 1-13100-275-0 01 1 9812-9901 ●
1 PUMP ASM; OIL 1-13100-275-1 01 1 9902- ● ●
1 PUMP ASM; OIL 1-13100-297-1 01 1 9902-9904 ●
1 PUMP ASM; OIL 1-13100-297-1 01 1 9905-9908 ● ●
1 PUMP ASM; OIL 1-13100-297-1 01 1 9909- ●
3 PIN; SPLIT
L=60 		9-08114-060-0 01 1 9901-9901 ●
3 PIN; SPLIT
L=60 		9-08114-060-0 01 1 9902- ● ● ●
5 SPRING; COIL 1-09580-534-0 01 1 9901-9901 ●
5 SPRING; COIL 1-09580-534-0 01 1 9902- ● ●
5 SPRING; COIL 1-09580-511-1 01 1 9902-9904 ●
5 SPRING; COIL 1-09580-511-1 01 1 9905-9908 ● ●
5 SPRING; COIL 1-09580-511-1 01 1 9909- ●
7 BOLT; COVER,OIL PUMP
(A) M8X18 FLANGE 		0-28080-818-0 03 1 9812-9901 ●
7 BOLT; COVER,OIL PUMP
(A) M8X18 FLANGE 		0-28080-818-0 03 1 9902- ● ● ●
7 BOLT; COVER,OIL PUMP
(B) M10X60 FLANGE 		0-28181-060-0 01 1 9812-9901 ●
7 BOLT; COVER,OIL PUMP
(B) M10X60 FLANGE 		0-28181-060-0 01 1 9902- ● ● ●
7 BOLT; COVER,OIL PUMP
(C) M8X35 HEX SOCKET 		9-05820-835-0 02 1 9812-9901 ●
7 BOLT; COVER,OIL PUMP
(C) M8X35 HEX SOCKET 		9-05820-835-0 02 1 9902- ● ● ●
11 COVER ASM; OIL PUMP 1-13113-068-0 01 1 9812-9901 ●
11 COVER ASM; OIL PUMP 1-13113-068-0 01 1 9902- ● ● ●
16 GASKET; OIL PUMP,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=41.7 		1-09623-529-0 01 1 9812-9901 ●
16 GASKET; OIL PUMP,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=41.7 		1-09623-529-0 01 1 9902-9904 ● ● ●
16 GASKET; OIL PUMP,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=41.7 		1-09623-529-0 01 1 9905-9906 ● ● ● ●
16 GASKET; OIL PUMP,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=41.7 		1-09623-529-0 01 1 9907- ● ● ●
20 GEAR; DRIVE,OIL PUMP
(A) 		1-13120-080-0 01 1 9812-9901 ●
20 GEAR; DRIVE,OIL PUMP
(A) 		1-13120-080-0 01 1 9902- ● ● ●
20 GEAR; DRIVE,OIL PUMP
(B) 		1-13120-082-1 01 1 9812-9901 ●
20 GEAR; DRIVE,OIL PUMP
(B) 		1-13120-082-1 01 1 9902- ● ● ●
29 BOLT; OIL PUMP
(A) M10X85 FLANGE 		8-94397-359-1 01 1 9812-9901 ●
29 BOLT; OIL PUMP
(A) M10X85 FLANGE 		8-94397-359-1 01 1 9902-9904 ● ● ●
29 BOLT; OIL PUMP
(A) M10X85 FLANGE 		8-94397-359-1 01 1 9905-9906 ● ● ● ●
29 BOLT; OIL PUMP
(A) M10X85 FLANGE 		8-94397-359-1 01 1 9907- ● ● ●
29 BOLT; OIL PUMP
(B) M10X107 FLANGE 		8-94399-488-1 02 1 9812-9901 ●
29 BOLT; OIL PUMP
(B) M10X107 FLANGE 		8-94399-488-1 02 1 9902-9904 ● ● ●
29 BOLT; OIL PUMP
(B) M10X107 FLANGE 		8-94399-488-1 02 1 9905-9906 ● ● ● ●
29 BOLT; OIL PUMP
(B) M10X107 FLANGE 		8-94399-488-1 02 1 9907- ● ● ●
29 BOLT; OIL PUMP
(C) M10X80 		9-05921-080-0 01 1 9812-9901 ●
29 BOLT; OIL PUMP
(C) M10X80 		9-05921-080-0 01 1 9902-9904 ● ● ●
29 BOLT; OIL PUMP
(C) M10X80 		9-05921-080-0 01 1 9905-9906 ● ● ● ●
29 BOLT; OIL PUMP
(C) M10X80 		9-05921-080-0 01 1 9907- ● ● ●
41 BALL; OIL RELIEF VLV 1-13161-021-0 01 1 9812-9901 ●
41 BALL; OIL RELIEF VLV 1-13161-021-0 01 1 9902- ● ● ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=41.7 		1-09623-529-0 01 1 9812-9901 ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=41.7 		1-09623-529-0 01 1 9902-9904 ● ● ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=41.7 		1-09623-529-0 01 1 9905-9906 ● ● ● ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=41.7 		1-09623-529-0 01 1 9907- ● ● ●
51 STRAINER & PIPE ASM; OIL 1-13313-207-0 01 1 9812-9901 ●
51 STRAINER & PIPE ASM; OIL 1-13313-207-0 01 1 9902-9904 ● ● ●
51 STRAINER & PIPE ASM; OIL 1-13313-207-0 01 1 9905-9906 ● ● ● ●
51 STRAINER & PIPE ASM; OIL 1-13313-207-0 01 1 9907- ● ● ●
60 BRACKET; OIL STRAINER 1-13345-180-1 01 1 9812-9901 ●
60 BRACKET; OIL STRAINER 1-13345-180-1 01 1 9902-9904 ● ● ●
60 BRACKET; OIL STRAINER 1-13345-180-1 01 1 9905-9906 ● ● ● ●
60 BRACKET; OIL STRAINER 1-13345-180-1 01 1 9907- ● ● ●
61 BOLT; OIL STRAINER
M10X20 FLANGE 		0-28181-020-0 06 1 9812-9901 ●
61 BOLT; OIL STRAINER
M10X20 FLANGE 		0-28181-020-0 06 1 9902-9904 ● ● ●
61 BOLT; OIL STRAINER
M10X20 FLANGE 		0-28181-020-0 06 1 9905-9906 ● ● ● ●
61 BOLT; OIL STRAINER
M10X20 FLANGE 		0-28181-020-0 06 1 9907- ● ● ●
99 PLUG; OIL PUMP 1-13163-002-0 01 1 9812-9901 ●
99 PLUG; OIL PUMP 1-13163-002-0 01 1 9902- ● ● ●
125 COVER; BALL 1-13163-003-0 01 1 9812-9901 ●
125 COVER; BALL 1-13163-003-0 01 1 9902- ● ● ●
