◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11152 - FVM(LHD) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#69399) — 21 parça

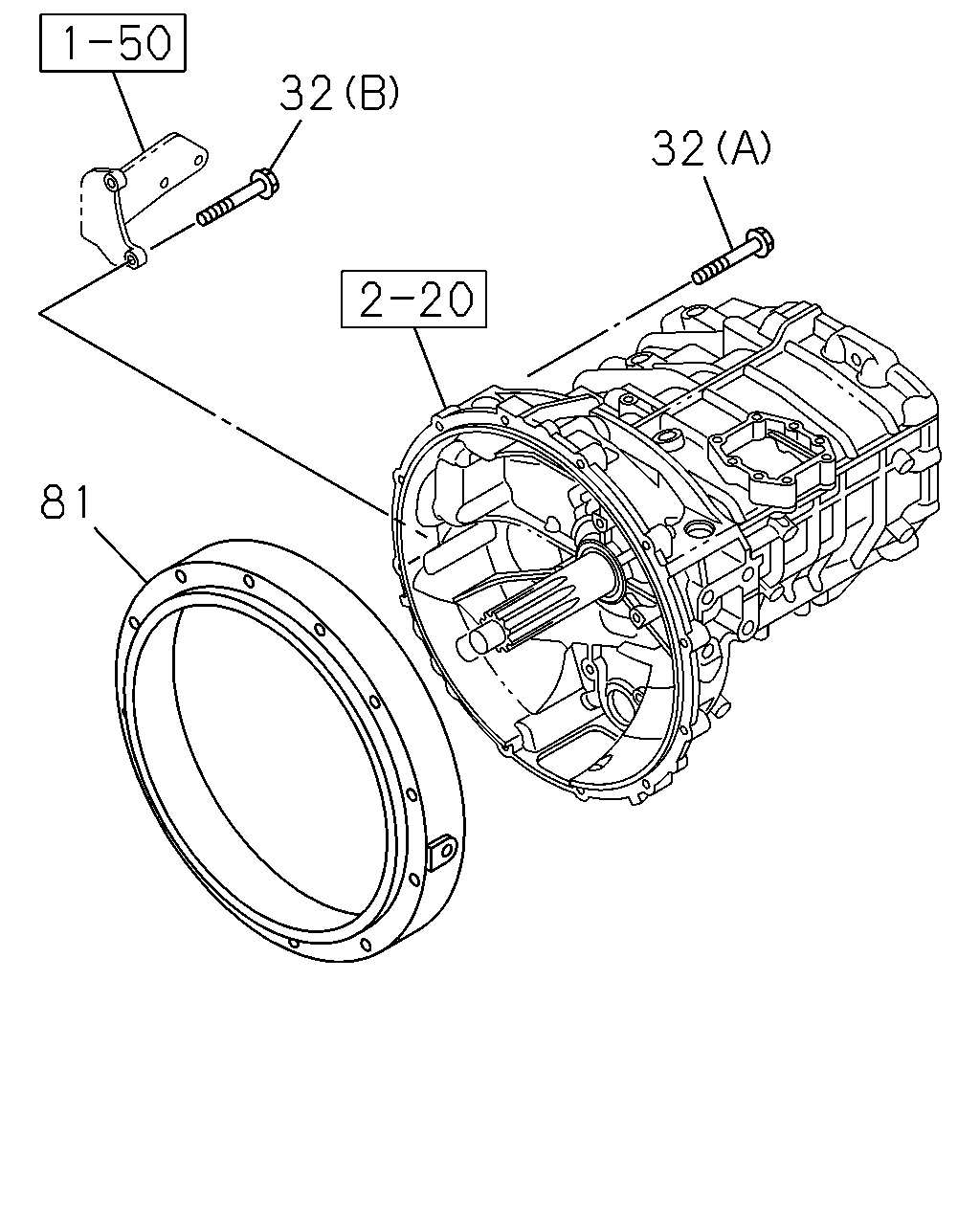

çizim 107876
32 32 81
BalonParca AdiParca NoAdetTipApplied Date A B
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X80 FLANGE 		0-28151-080-0 02 1 0809- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X80 FLANGE 		8-98116-726-0 02 1 0809-1211 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X80 FLANGE 		8-98234-151-0 02 1 1212- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X90 FLANGE 		0-28151-090-0 02 1 0809- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X92 FLANGE 		8-98131-010-0 02 1 0809-1211 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X92 FLANGE 		8-98234-153-0 02 1 1212- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X65 FLANGE 		8-94344-540-1 08 1 0809- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X75 FLANGE 		8-94399-669-1 07 1 0809- ●
81 SPACER 1-31119-043-1 01 1 0809- ●

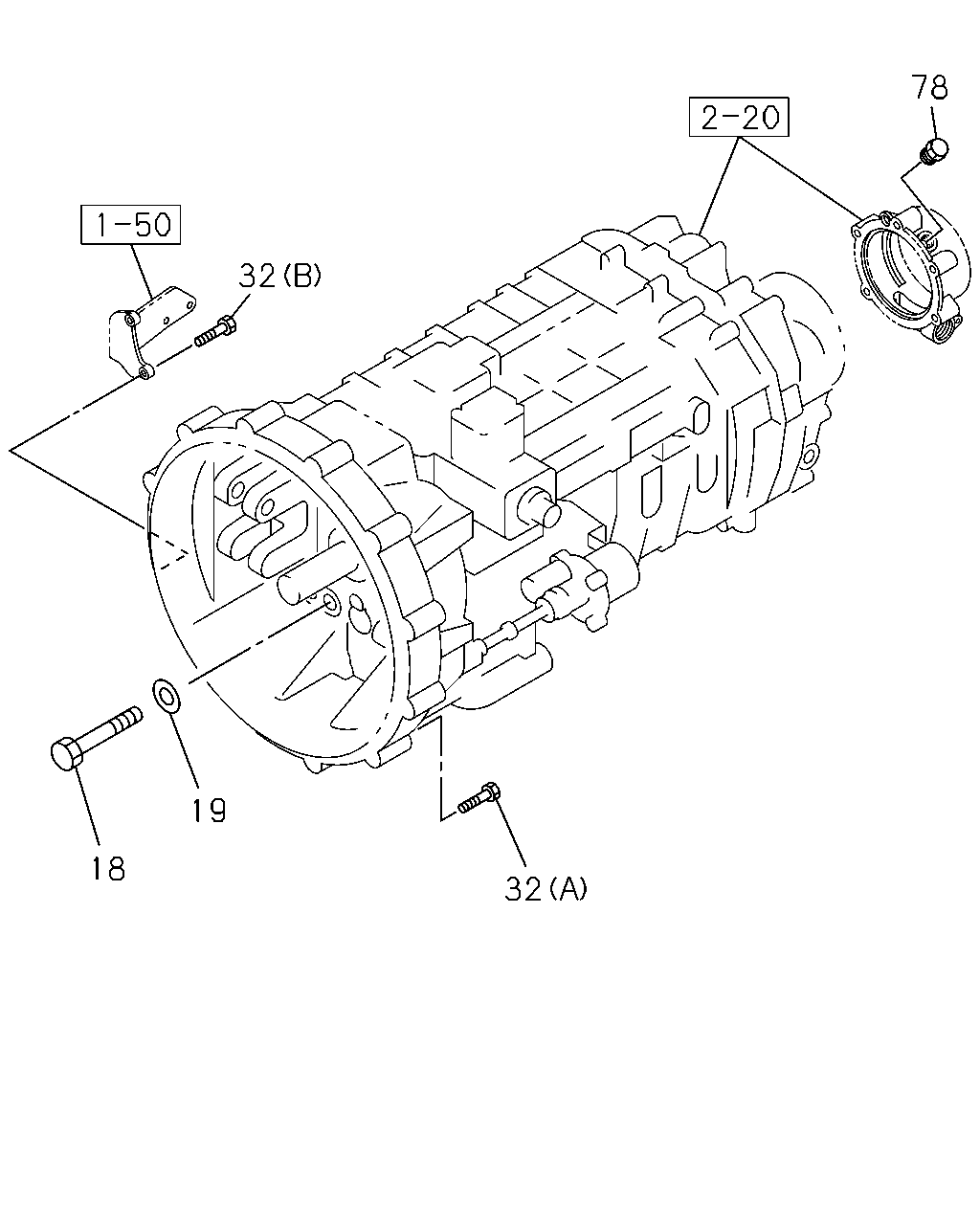

çizim 187937
78 32 19 18 32
BalonParca AdiParca NoAdetTipApplied Date A B
18 BOLT; CLU HSG TO TRANS
M18X85 		1-31119-048-0 10 1 0809-1305 ●
18 BOLT; CLU HSG TO TRANS
M18X85 		1-31119-057-0 10 1 1306- ●
19 WASHER; PL,CLU HSG TO TRANS 1-31119-012-0 10 1 0809- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X80 FLANGE 		0-28151-080-0 02 1 0809- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X80 FLANGE 		8-98116-726-0 02 1 0809-1211 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X80 FLANGE 		8-98234-151-0 02 1 1212- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X90 FLANGE 		0-28151-090-0 02 1 0809- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X92 FLANGE 		8-98131-010-0 02 1 0809-1211 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X92 FLANGE 		8-98234-153-0 02 1 1212- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X65 FLANGE 		8-94344-540-1 08 1 0809- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X75 FLANGE 		8-94399-669-1 07 1 0809- ●
78 SENSOR; SPD 1-83227-018-0 01 1 0809- ●
