2-08 — CLUTCH MASTER CYLINDER (#69397) — 21 parça

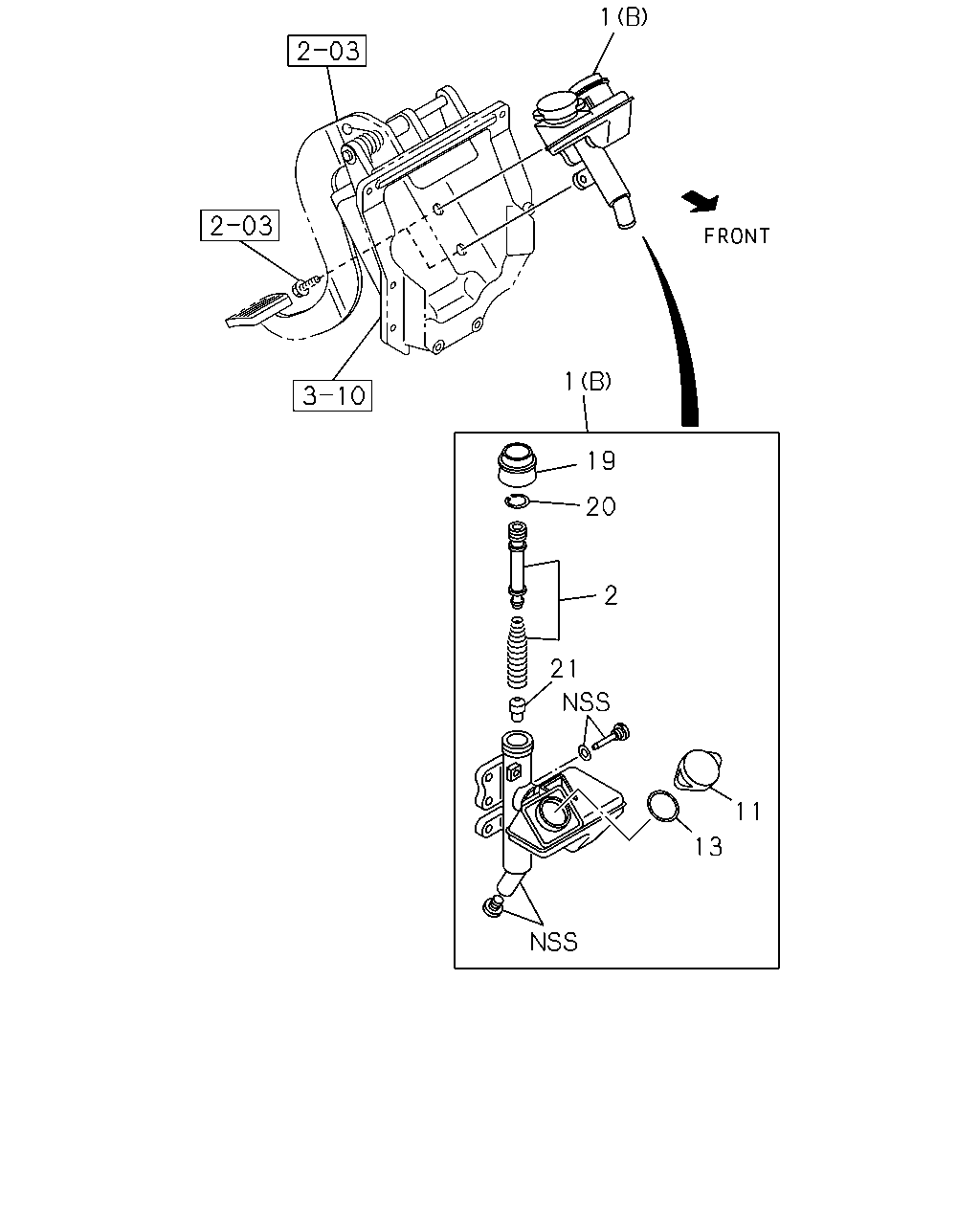

1 1 19 20 2 21 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CYLINDER ASM; CLUTCH MASTER ZF6S1000 M/T(Y5D) (B)	1-47500-357-3	01	1	0809-
1	CYLINDER ASM; CLUTCH MASTER ZF9S1110 M/T(Y5E) (A)	1-47500-250-2	01	1	0809-
2	REPAIR KIT; CLU M/CYL ZF6S1000 M/T(Y5D)	1-47550-052-1	01	1	0809-
2	REPAIR KIT; CLU M/CYL ZF9S1110 M/T(Y5E)	1-85576-461-0	01	1	0809-
11	CAP; OUTER,CLU M/CYL ZF6S1000 M/T(Y5D)	1-47519-017-0	01	1	0809-
13	GASKET; OIL TANK ZF6S1000 M/T(Y5D)	1-47519-016-0	01	1	0809-
19	BOOT; CLU M/CYL ZF6S1000 M/T(Y5D)	1-47519-018-0	01	1	0809-
20	RING; SNAP,BODY ZF6S1000 M/T(Y5D)	1-47515-009-0	01	1	0809-
20	RING; SNAP,BODY ZF9S1110 M/T(Y5E)	1-47519-013-0	01	1	0809-
21	VALVE; CHECK ZF6S1000 M/T(Y5D)	1-47565-004-0	01	1	0809-

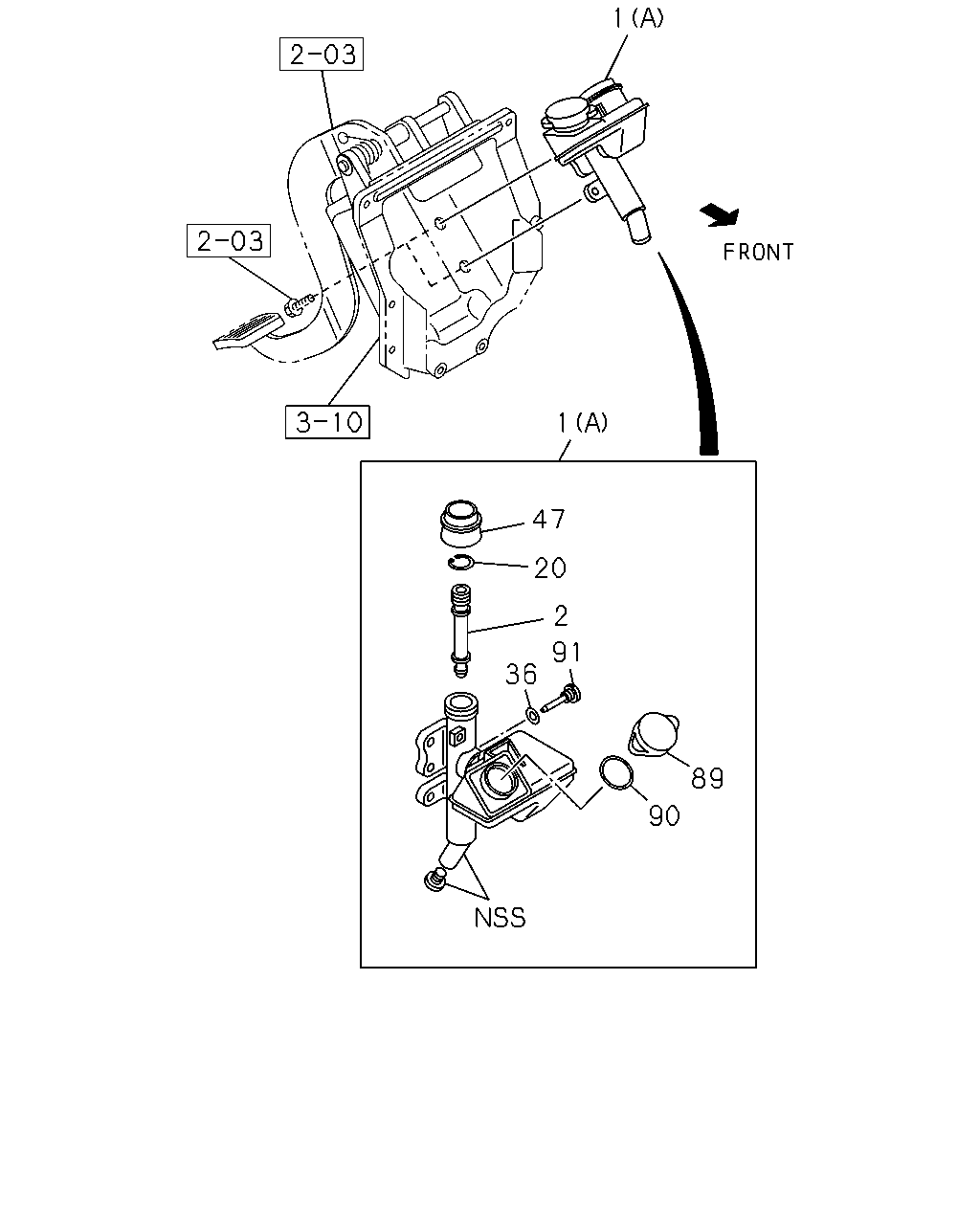

1 1 47 20 2 91 36 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CYLINDER ASM; CLUTCH MASTER ZF6S1000 M/T(Y5D) (B)	1-47500-357-3	01	1	0809-
1	CYLINDER ASM; CLUTCH MASTER ZF9S1110 M/T(Y5E) (A)	1-47500-250-2	01	1	0809-
2	REPAIR KIT; CLU M/CYL ZF6S1000 M/T(Y5D)	1-47550-052-1	01	1	0809-
2	REPAIR KIT; CLU M/CYL ZF9S1110 M/T(Y5E)	1-85576-461-0	01	1	0809-
20	RING; SNAP,BODY ZF6S1000 M/T(Y5D)	1-47515-009-0	01	1	0809-
20	RING; SNAP,BODY ZF9S1110 M/T(Y5E)	1-47519-013-0	01	1	0809-
36	GASKET; CLU M/CYL ZF9S1110 M/T(Y5E)	1-47519-014-0	01	1	0809-
47	COVER; DUST,PUSH ROD ZF9S1110 M/T(Y5E)	1-47519-018-0	01	1	0809-
89	CAP; OIL FILLER,CLU M/CYL ZF9S1110 M/T(Y5E)	1-47519-017-0	01	1	0809-
90	GASKET; OIL FILLER,CLU M/CYL ZF9S1110 M/T(Y5E)	1-47519-016-0	01	1	0809-
91	BOLT; STOPPER ZF9S1110 M/T(Y5E)	1-47519-015-0	01	1	0809-
