2-05 — CLUTCH PIPING (#69395) — 62 parça
çizim 187935
109 47 153 131 47
BalonParca AdiParca NoAdetTipApplied Date
47 HOSE; FLEX,CLU CONT
ZF6S1000 M/T(Y5D) (B) L=280 		1-09363-610-0 01 1 0809-
47 HOSE; FLEX,CLU CONT
ZF6S1000 M/T(Y5D) (A) L=520 		8-98072-340-0 01 1 0809-0809
47 HOSE; FLEX,CLU CONT
ZF6S1000 M/T(Y5D) (A) L=520 		8-98130-713-0 01 1 0809-
47 HOSE; FLEX,CLU CONT
ZF9S1110 M/T(Y5E) (B) L=500 		1-09363-720-0 01 1 0809-
47 HOSE; FLEX,CLU CONT
ZF9S1110 M/T(Y5E) (A) L=500 		1-09364-329-0 01 1 0809-
109 PIPE; AIR,UNION TO UNION
L=719 SERVICED BY L=730 		1-47428-758-0 01 1 0809-
131 PIPE; AIR,UNION TO FLEX HOSE
H.S.A SYSTEM<6EP> L=244 		8-98092-621-0 01 1 0809-
131 PIPE; AIR,UNION TO FLEX HOSE
EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244 		8-98092-621-0 01 1 0809-
131 PIPE; AIR,UNION TO FLEX HOSE
RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262 		8-98108-925-0 01 1 0809-
153 PIPE ASM; CLU,UNION TO FLEX
L=2150 SERVICED BY L=2150 		1-47428-770-0 01 1 0809-
çizim 187938

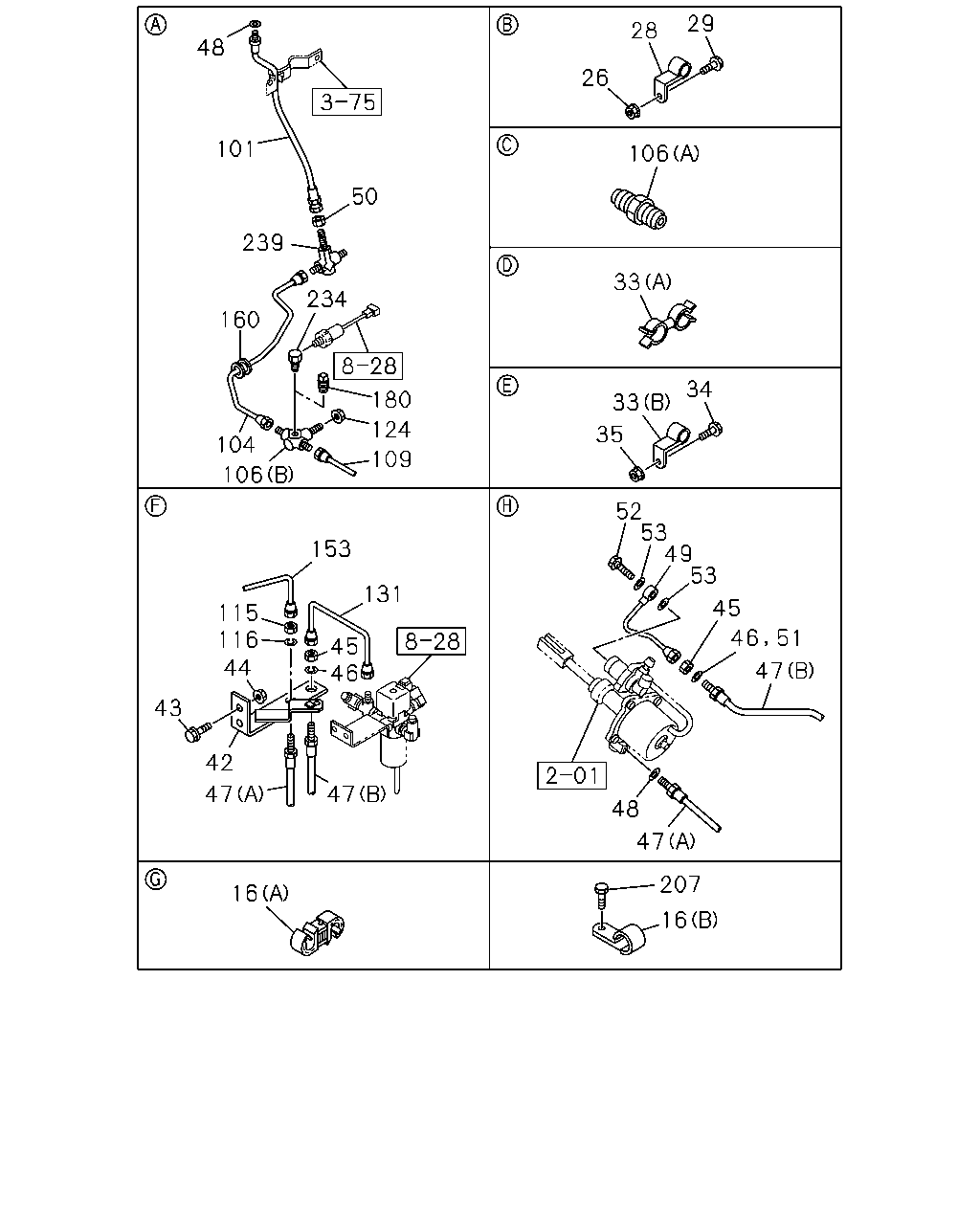

29 28 48 26 101 106 50 239 33 234 160 34 180 33 124 104 35 109 106 52 53 49 53 153 131 45 115 116 44 45 46 47 43 42 47 47 48 47 207 16 16 46 51
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
(B) ID=18 L=28 		1-09701-067-0 01 1 0809-
16 CLIP; FLEX HOSE
(A) ID=10 & 12 		1-09709-278-1 01 1 0809-
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 01 1 0809-
28 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 01 1 0809-
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 0809-0811
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28650-830-0 01 1 0812-
33 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 03 1 0809-
33 CLIP; OIL PIPE
(A) ID=8.3 & 10 		8-94176-792-0 01 1 0809-
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 03 1 0809-
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 03 1 0809-
42 BRACKET; FLEX HOSE,CLU CONT
ZF6S1000 M/T(Y5D) 		8-98185-051-0 01 1 1012-
42 BRACKET; FLEX HOSE,CLU CONT 8-98099-521-1 01 1 0809-1011
42 BRACKET; FLEX HOSE,CLU CONT
ZF9S1110 M/T(Y5E) 		8-98099-521-1 01 1 1012-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28650-830-0 02 1 0809-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 0809-
45 NUT; FLEX HOSE,CLU CONT
ZF6S1000 M/T(Y5D) M12 		9-09840-280-0 01 1 0809-
45 NUT; FLEX HOSE,CLU CONT
ZF9S1110 M/T(Y5E) M12 		9-09840-280-0 02 1 0809-
46 WASHER; LK,FLEX HOSE,CLU CONT
ZF6S1000 M/T(Y5D) ID=12.2 		0-91510-512-0 01 1 0809-1009
46 WASHER; LK,FLEX HOSE,CLU CONT
ZF6S1000 M/T(Y5D) ID=12.2 		0-91510-812-0 01 1 1010-1011
46 WASHER; LK,FLEX HOSE,CLU CONT
ZF9S1110 M/T(Y5E) ID=12.2 		0-91510-512-0 02 1 0809-1009
46 WASHER; LK,FLEX HOSE,CLU CONT
ZF9S1110 M/T(Y5E) ID=12.2 		0-91510-812-0 02 1 1010-1011
47 HOSE; FLEX,CLU CONT
ZF6S1000 M/T(Y5D) (B) L=280 		1-09363-610-0 01 1 0809-
47 HOSE; FLEX,CLU CONT
ZF6S1000 M/T(Y5D) (A) L=520 		8-98072-340-0 01 1 0809-0809
47 HOSE; FLEX,CLU CONT
ZF6S1000 M/T(Y5D) (A) L=520 		8-98130-713-0 01 1 0809-
47 HOSE; FLEX,CLU CONT
ZF9S1110 M/T(Y5E) (B) L=500 		1-09363-720-0 01 1 0809-
47 HOSE; FLEX,CLU CONT
ZF9S1110 M/T(Y5E) (A) L=500 		1-09364-329-0 01 1 0809-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 0809-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
ZF9S1110 M/T(Y5E) L=232 		1-49124-795-0 01 1 0809-
50 NUT; UNION
M12 		0-91111-512-0 01 1 0809-
51 WASHER; LK
ZF9S1110 M/T(Y5E) ID=12.2 		0-91510-812-0 01 1 1012-
52 BOLT; EYE,AIR PIPE
ZF9S1110 M/T(Y5E) M14X27 FLANGE 		1-09675-086-0 01 1 0809-
53 GASKET; JOINT BOLT
ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0809-1312
53 GASKET; JOINT BOLT
ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=480 		8-98072-349-0 01 1 0809-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=379 		8-98094-857-0 01 1 0809-0810
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=510 SERVICED BY L=550 		1-47428-753-0 01 1 0811-0907
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=512 SERVICED BY L=550 		1-47428-753-0 01 1 0908-
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 0809-
106 UNION; OIL PIPE
(B) M12 & M14 & PT1/4 3WAY 		1-09656-286-2 01 1 0809-
109 PIPE; AIR,UNION TO UNION
L=719 SERVICED BY L=730 		1-47428-758-0 01 1 0809-
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0809-
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		0-91510-814-0 01 1 0809-1011
124 NUT; PIPE UNION
M12 		0-91111-512-0 01 1 0809-
131 PIPE; AIR,UNION TO FLEX HOSE
H.S.A SYSTEM<6EP> L=244 		8-98092-621-0 01 1 0809-
131 PIPE; AIR,UNION TO FLEX HOSE
EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244 		8-98092-621-0 01 1 0809-
131 PIPE; AIR,UNION TO FLEX HOSE
RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262 		8-98108-925-0 01 1 0809-
153 PIPE ASM; CLU,UNION TO FLEX
L=2150 SERVICED BY L=2150 		1-47428-770-0 01 1 0809-
160 GROMMET; OIL PIPE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0809-
180 PLUG; PIPE
EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 0809-
207 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0809-
234 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> 		1-09660-012-0 01 1 0809-
239 UNION; CLU HOSE
M12 & M14 2WAY 		1-09654-141-2 01 1 0809-
