◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11152 - FVM(LHD) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#69392) — 29 parça

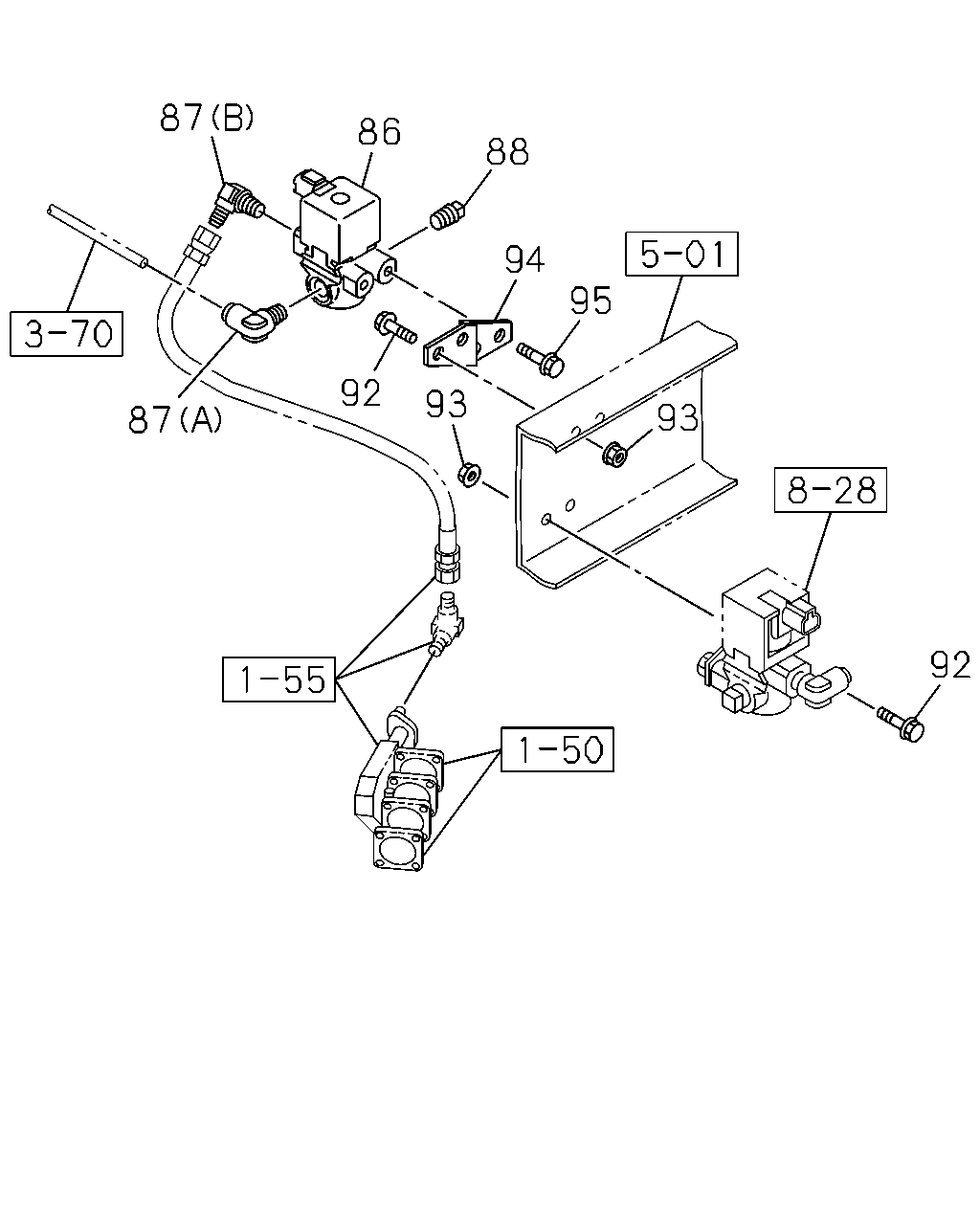

çizim 97122
87 86 88 94 95 92 93 93 87 92
BalonParca AdiParca NoAdetTipApplied Date A B
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 0809-1011 ● ●
86 VALVE; MAG,EXH BRK
EXC. VIN MODEL YEAR 2011<VZB> 		1-82563-871-2 01 1 1012-1102 ● ●
87 CONNECTOR
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0809-1011 ● ●
87 CONNECTOR
ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1012-1102 ● ●
87 CONNECTOR
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-1011 ● ●
87 CONNECTOR
EXC. VIN MODEL YEAR 2011<VZB> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-1102 ● ●
87 CONNECTOR
ZF6S1000 M/T(Y5D) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0809-1011 ● ●
87 CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0809-1011 ● ●
87 CONNECTOR
ZF6S1000 M/T(Y5D) EXC. VIN MODEL YEAR 2011<VZB> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-1102 ● ●
87 CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. VIN MODEL YEAR 2011<VZB> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-1102 ● ●
88 PLUG
ZF6S1000 M/T(Y5D) PT1/4 		9-99204-513-0 01 1 0809-1011 ● ●
88 PLUG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> PT1/4 		9-99204-513-0 01 1 0809-1011 ● ●
88 PLUG
ZF6S1000 M/T(Y5D) EXC. VIN MODEL YEAR 2011<VZB> PT1/4 		9-99204-513-0 01 1 1012-1102 ● ●
88 PLUG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. VIN MODEL YEAR 2011<VZB> PT1/4 		9-99204-513-0 01 1 1012-1102 ● ●
92 BOLT; MAG VLV
ASSISTOR SHIFT CONTROL<WX8> EXC. VIN MODEL YEAR 2011<VZB> M8X30 FLANGE 		0-28650-830-0 02 1 1012-1102 ● ●
92 BOLT; MAG VLV
ASSISTOR SHIFT CONTROL<WX8> M8X30 FLANGE 		0-28650-830-0 02 1 0809-1011 ● ●
92 BOLT; MAG VLV
VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> M8X30 FLANGE 		0-28650-830-0 01 1 1012-1102 ● ●
92 BOLT; MAG VLV
ASSISTOR SHIFT CONTROL<WX8> M8X30 FLANGE 		0-28650-830-0 01 1 1103- ● ●
92 BOLT; MAG VLV
M8X35 FLANGE 		0-28650-835-0 02 1 0809-1011 ● ●
92 BOLT; MAG VLV
EXC. VIN MODEL YEAR 2011<VZB> M8X35 FLANGE 		0-28650-835-0 02 1 1012-1102 ● ●
93 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0809-1011 ● ●
93 NUT; MAG VLV
ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		0-91180-108-0 02 1 0809-1011 ● ●
93 NUT; MAG VLV
EXC. VIN MODEL YEAR 2011<VZB> M8 FLANGE 		0-91180-108-0 02 1 1012-1102 ● ●
93 NUT; MAG VLV
ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		0-91180-108-0 02 1 1012-1102 ● ●
93 NUT; MAG VLV
ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		0-91180-108-0 02 1 1103- ● ●
94 BRACKET; MAG VLV,EXH BRAKE 8-98057-863-0 01 1 0809-1011 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
EXC. VIN MODEL YEAR 2011<VZB> 		8-98057-863-0 01 1 1012-1102 ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0809-1011 ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
EXC. VIN MODEL YEAR 2011<VZB> M8X20 FLANGE 		0-28650-820-0 02 1 1012-1102 ● ●
