◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11152 - FVM(LHD) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-55 - EXHAUST BRAKE VALVE AND CONTROL CYLINDER ▶
1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#69391) — 13 parça

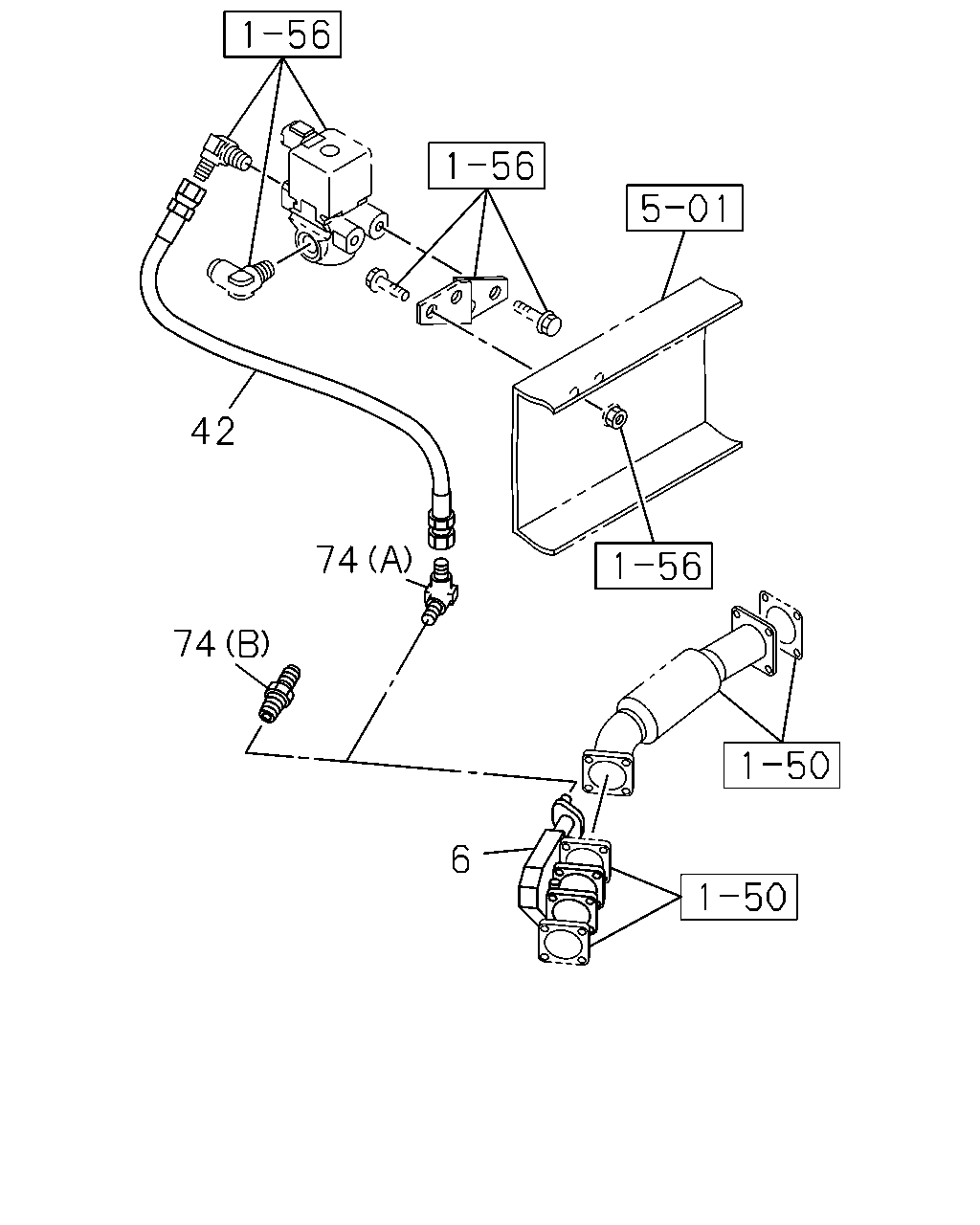

çizim 187933
42 74 74 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE 8-98054-173-6 01 1 0809-1302 ● ●
6 VALVE; EXH BRAKE 8-98233-801-0 01 1 1303- ● ●
42 HOSE; FLEX,EXH BRK
VIN MODEL YEAR 2011<VZB> L=310 		1-09363-713-0 01 1 1012-1102 ● ●
42 HOSE; FLEX,EXH BRK
L=310 		1-09363-713-0 01 1 1103- ● ●
42 HOSE; FLEX,EXH BRK
L=410 		1-09363-895-0 01 1 0809-0903 ● ●
42 HOSE; FLEX,EXH BRK
L=370 		1-09363-771-0 01 1 0904-1011 ● ●
42 HOSE; FLEX,EXH BRK
EXC. VIN MODEL YEAR 2011<VZB> L=370 		1-09363-771-0 01 1 1012-1102 ● ●
74 CONNECTOR; EXH BRK VLV
VIN MODEL YEAR 2011<VZB> (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1012-1102 ● ●
74 CONNECTOR; EXH BRK VLV
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1103- ● ●
74 CONNECTOR; EXH BRK VLV
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-0905 ● ●
74 CONNECTOR; EXH BRK VLV
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-0905 ● ●
74 CONNECTOR; EXH BRK VLV
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0906-1011 ● ●
74 CONNECTOR; EXH BRK VLV
EXC. VIN MODEL YEAR 2011<VZB> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-1102 ● ●
