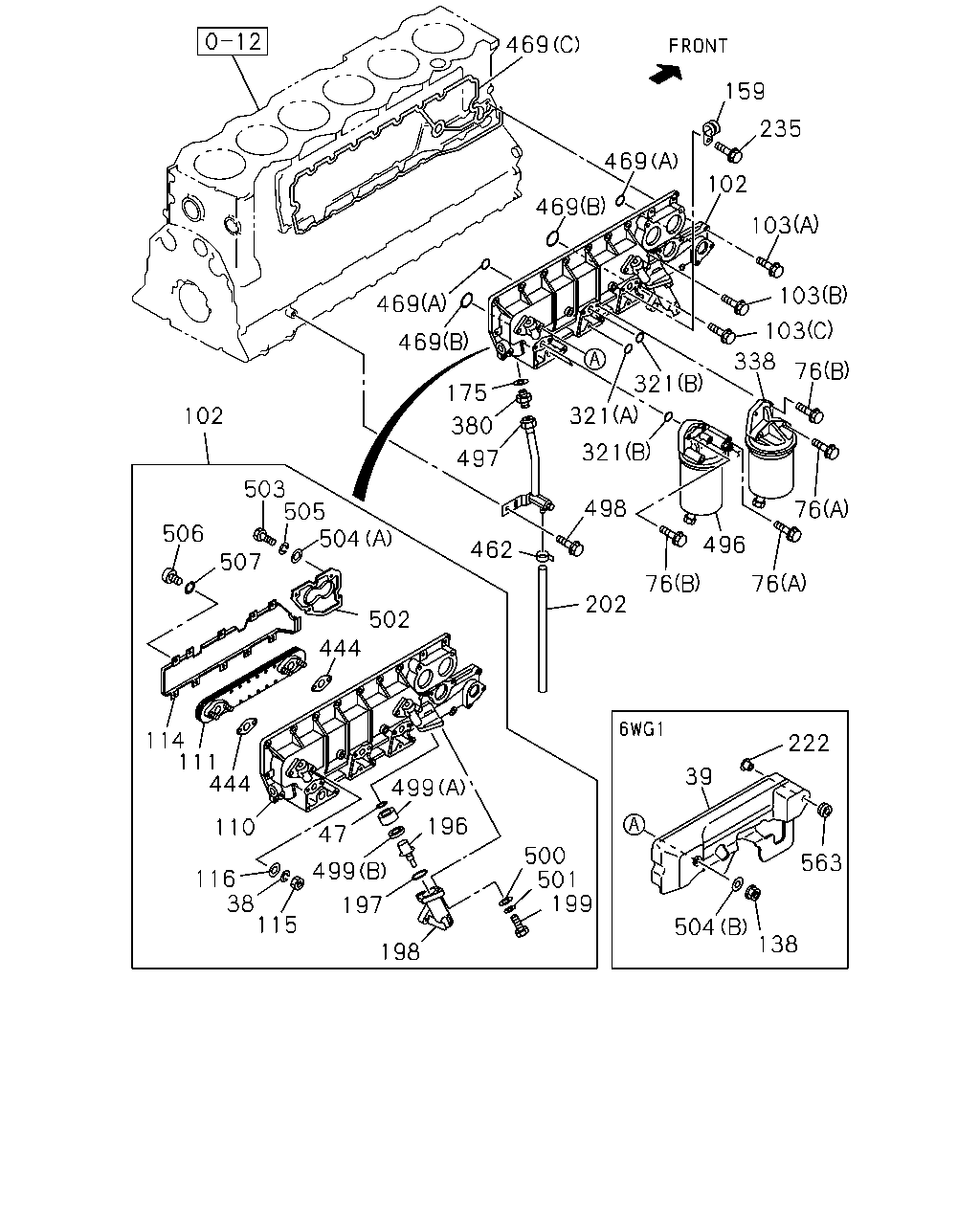

0-50 — OIL COOLER AND OIL FILTER (#6939) — 335 parça

469 159 235 469 102 469 103 103 469 103 469 338 76 321 175 102 321 380 321 497 503 505 504 498 76 506 496 462 507 76 76 202 502 444 114 111 444 222 39 499 196 110 47 500 501 199 563 499 116 38 115 197 504 138 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
38	WASHER; LK,OIL COOLER ID=10.2	9-09150-510-0	04	1	9812-9901	●
38	WASHER; LK,OIL COOLER ID=10.2	9-09150-510-0	04	1	9902-9904	●	●	●
38	WASHER; LK,OIL COOLER ID=10.2	9-09150-510-0	04	1	9905-9906	●	●	●	●
38	WASHER; LK,OIL COOLER ID=10.2	9-09150-510-0	04	1	9907-9907	●	●	●
39	COVER; OIL COOLER	1-19380-151-0	01	1	9812-9901	●
39	COVER; OIL COOLER	1-19380-151-1	01	1	9902-	●		●
47	RING; SEAL,THERMO VLV	1-21779-001-0	01	1	9812-9901	●
47	RING; SEAL,THERMO VLV	1-21779-001-0	01	1	9902-9904	●	●	●
47	RING; SEAL,THERMO VLV	1-21779-001-0	01	1	9905-9906	●	●	●	●
47	RING; SEAL,THERMO VLV	1-21779-001-0	01	1	9907-	●	●	●
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28181-050-0	04	1	9812-9901	●
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28181-050-0	04	1	9902-9904	●	●	●
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28181-050-0	04	1	9905-9906	●	●	●	●
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28181-050-0	04	1	9907-	●	●	●
76	BOLT; OIL FILTER (A) M10X90 FLANGE	0-28181-090-0	04	1	9812-9901	●
76	BOLT; OIL FILTER (A) M10X90 FLANGE	0-28181-090-0	04	1	9902-	●		●
76	BOLT; OIL FILTER (A) M10X95 FLANGE	8-94397-027-1	04	1	9902-9904		●
76	BOLT; OIL FILTER (A) M10X95 FLANGE	8-94397-027-1	04	1	9905-9908		●		●
76	BOLT; OIL FILTER (A) M10X95 FLANGE	8-94397-027-1	04	1	9909-		●
102	COOLER ASM; OIL	1-21700-337-0	01	1	9812-9901	●
102	COOLER ASM; OIL	1-21700-337-0	01	1	9902-9904	●	●	●
102	COOLER ASM; OIL	1-21700-337-0	01	1	9905-9906	●	●	●	●
102	COOLER ASM; OIL	1-21700-337-2	01	1	9907-	●	●	●
103	BOLT; OIL COOLER (A) M10X30 FLANGE	0-28181-030-0	17	1	9812-9901	●
103	BOLT; OIL COOLER (A) M10X30 FLANGE	0-28181-030-0	17	1	9902-9904	●	●	●
103	BOLT; OIL COOLER (A) M10X30 FLANGE	0-28181-030-0	17	1	9905-9906	●	●	●	●
103	BOLT; OIL COOLER (A) M10X30 FLANGE	0-28181-030-0	17	1	9907-	●	●	●
103	BOLT; OIL COOLER (C) M10X110 FLANGE	0-28186-011-0	01	1	9812-9901	●
103	BOLT; OIL COOLER (C) M10X110 FLANGE	0-28186-011-0	01	1	9902-9904	●	●	●
103	BOLT; OIL COOLER (C) M10X110 FLANGE	0-28186-011-0	01	1	9905-9906	●	●	●	●
103	BOLT; OIL COOLER (C) M10X110 FLANGE	0-28186-011-0	01	1	9907-	●	●	●
103	BOLT; OIL COOLER (B) M10X65 FLANGE	8-94344-540-1	08	1	9812-9901	●
103	BOLT; OIL COOLER (B) M10X65 FLANGE	8-94344-540-1	08	1	9902-9904	●	●	●
103	BOLT; OIL COOLER (B) M10X65 FLANGE	8-94344-540-1	08	1	9905-9906	●	●	●	●
103	BOLT; OIL COOLER (B) M10X65 FLANGE	8-94344-540-1	08	1	9907-	●	●	●
110	BODY; CASE,OIL COOLER	1-21721-092-0	01	1	9812-9901	●
110	BODY; CASE,OIL COOLER	1-21721-092-0	01	1	9902-9904	●	●	●
110	BODY; CASE,OIL COOLER	1-21721-092-0	01	1	9905-9906	●	●	●	●
110	BODY; CASE,OIL COOLER	1-21721-092-2	01	1	9907-	●	●	●
111	CORE; OIL COOLER	1-21723-053-0	01	1	9812-9901	●
111	CORE; OIL COOLER	1-21723-053-0	01	1	9902-9904	●	●	●
111	CORE; OIL COOLER	1-21723-053-0	01	1	9905-9906	●	●	●	●
111	CORE; OIL COOLER	1-21723-053-1	01	1	9907-	●	●	●
114	PLATE; BAFFLE,OIL COOLER	1-21729-086-1	01	1	9812-9901	●
114	PLATE; BAFFLE,OIL COOLER	1-21729-086-1	01	1	9902-9904	●	●	●
114	PLATE; BAFFLE,OIL COOLER	1-21729-086-1	01	1	9905-9906	●	●	●	●
114	PLATE; BAFFLE,OIL COOLER	1-21729-086-1	01	1	9907-	●	●	●
115	NUT; ELEMENT M10	9-09120-410-0	04	1	9812-9901	●
115	NUT; ELEMENT M10	9-09120-410-0	04	1	9902-9904	●	●	●
115	NUT; ELEMENT M10	9-09120-410-0	04	1	9905-9906	●	●	●	●
115	NUT; ELEMENT M10	9-09120-410-0	04	1	9907-9907	●	●	●
115	NUT; ELEMENT M10 FLANGE	0-91150-110-0	04	1	9908-	●	●	●
116	WASHER; PL,ELEMENT ID=10.5 OD=22	9-09160-610-0	04	1	9812-9901	●
116	WASHER; PL,ELEMENT ID=10.5 OD=22	9-09160-610-0	04	1	9902-9904	●	●	●
116	WASHER; PL,ELEMENT ID=10.5 OD=22	9-09160-610-0	04	1	9905-9906	●	●	●	●
116	WASHER; PL,ELEMENT ID=10.5 OD=22	9-09160-610-0	04	1	9907-9907	●	●	●
138	NUT M10 FLANGE	0-91150-110-0	02	1	9812-9901	●
138	NUT M10 FLANGE	0-91150-110-0	02	1	9902-	●		●
159	CLIP; CABLE HARNESS,OIL COOLER L=20 H=31	1-09700-770-0	01	1	9812-9901	●
159	CLIP; CABLE HARNESS,OIL COOLER L=20 H=31	1-09700-770-0	01	1	9902-9904	●	●	●
159	CLIP; CABLE HARNESS,OIL COOLER L=20 H=31	1-09700-770-0	01	1	9905-9906	●	●	●	●
159	CLIP; CABLE HARNESS,OIL COOLER L=20 H=31	1-09700-770-0	01	1	9907-	●	●	●
175	GASKET; DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	01	1	9812-9901	●
175	GASKET; DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	01	1	9902-9904	●	●	●
175	GASKET; DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	01	1	9905-9906	●	●	●	●
175	GASKET; DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	01	1	9907-	●	●	●
196	THERMOSTAT; OIL COOLER	1-21770-004-0	01	1	9812-9901	●
196	THERMOSTAT; OIL COOLER	1-21770-004-0	01	1	9902-9904	●	●	●
196	THERMOSTAT; OIL COOLER	1-21770-004-0	01	1	9905-9906	●	●	●	●
196	THERMOSTAT; OIL COOLER	1-21770-004-0	01	1	9907-	●	●	●
197	GASKET; THERMOSTAT	1-09623-419-0	01	1	9812-9901	●
197	GASKET; THERMOSTAT	1-09623-419-0	01	1	9902-9904	●	●	●
197	GASKET; THERMOSTAT	1-09623-419-0	01	1	9905-9906	●	●	●	●
197	GASKET; THERMOSTAT	1-09623-419-0	01	1	9907-	●	●	●
198	JOINT; THERMOSTAT	1-21726-054-0	01	1	9812-9901	●
198	JOINT; THERMOSTAT	1-21726-054-0	01	1	9902-9904	●	●	●
198	JOINT; THERMOSTAT	1-21726-054-0	01	1	9905-9906	●	●	●	●
198	JOINT; THERMOSTAT	1-21726-054-0	01	1	9907-9907	●	●	●
198	JOINT; THERMOSTAT	1-21726-053-2	01	1	9908-	●	●	●
199	BOLT; JOINT,THERMOSTAT M10X35	0-20801-035-0	02	1	9812-9901	●
199	BOLT; JOINT,THERMOSTAT M10X35	0-20801-035-0	02	1	9902-9904	●	●	●
199	BOLT; JOINT,THERMOSTAT M10X35	0-20801-035-0	02	1	9905-9906	●	●	●	●
199	BOLT; JOINT,THERMOSTAT M10X35	0-20801-035-0	02	1	9907-	●	●	●
202	HOSE; WATER,WATER DRAIN L=310 SERVICED BY L=3000	0-03259-300-0	01	1	9812-9901	●
202	HOSE; WATER,WATER DRAIN L=310 SERVICED BY L=3000	0-03259-300-0	01	1	9902-9904	●	●	●
202	HOSE; WATER,WATER DRAIN L=310 SERVICED BY L=3000	0-03259-300-0	01	1	9905-9906	●	●	●	●
202	HOSE; WATER,WATER DRAIN L=310 SERVICED BY L=3000	0-03259-300-0	01	1	9907-	●	●	●
222	RUBBER; MTG,OIL COOLER	1-09337-020-0	02	1	9812-9901	●
222	RUBBER; MTG,OIL COOLER	1-09337-020-0	02	1	9902-	●		●
235	BOLT; CLIP TO OIL COOLER M10X20 FLANGE	0-28181-020-0	01	1	9812-9901	●
235	BOLT; CLIP TO OIL COOLER M10X20 FLANGE	0-28181-020-0	01	1	9902-9904	●	●	●
235	BOLT; CLIP TO OIL COOLER M10X20 FLANGE	0-28181-020-0	01	1	9905-9906	●	●	●	●
235	BOLT; CLIP TO OIL COOLER M10X20 FLANGE	0-28181-020-0	01	1	9907-	●	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	01	1	9812-9901	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	01	1	9902-9904	●	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	01	1	9905-9906	●	●	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	01	1	9907-	●	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	03	1	9812-9901	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	03	1	9902-9904	●	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	03	1	9905-9906	●	●	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	03	1	9907-	●	●	●
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	9812-9901	●
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	9902-9904	●	●	●
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	9905-9906	●	●	●	●
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	9907-	●	●	●
380	CONNECTOR; WATER	1-09660-011-1	01	1	9812-9901	●
380	CONNECTOR; WATER	1-09660-011-1	01	1	9902-9904	●	●	●
380	CONNECTOR; WATER	1-09660-011-1	01	1	9905-9906	●	●	●	●
380	CONNECTOR; WATER	1-09660-011-1	01	1	9907-	●	●	●
444	GASKET; ELEMENT TO BODY	1-21729-093-1	02	1	9812-9901	●
444	GASKET; ELEMENT TO BODY	1-21729-093-1	02	1	9902-9904	●	●	●
444	GASKET; ELEMENT TO BODY	1-21729-093-1	02	1	9905-9906	●	●	●	●
444	GASKET; ELEMENT TO BODY	1-21729-093-1	02	1	9907-	●	●	●
462	CLIP; HOSE,DRAIN ID=14	5-09707-004-1	01	1	9812-9901	●
462	CLIP; HOSE,DRAIN ID=14	5-09707-004-1	01	1	9902-9904	●	●	●
462	CLIP; HOSE,DRAIN ID=14	5-09707-004-1	01	1	9905-9906	●	●	●	●
462	CLIP; HOSE,DRAIN ID=14	5-09707-004-1	01	1	9907-	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	02	1	9812-9901	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	02	1	9902-9904	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	02	1	9905-9906	●	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	02	1	9907-	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	02	1	9812-9901	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	02	1	9902-9904	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	02	1	9905-9906	●	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	02	1	9907-	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-186-0	01	1	9812-9901	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-186-0	01	1	9902-9904	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-186-0	01	1	9905-9906	●	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-186-0	01	1	9907-	●	●	●
496	FILTER ASM; OIL	1-13200-862-7	01	1	9812-9901	●
496	FILTER ASM; OIL	1-13200-862-7	01	1	9902-9904	●	●	●
496	FILTER ASM; OIL	1-13200-862-7	01	1	9905-9906	●	●	●	●
496	FILTER ASM; OIL	1-13200-862-7	01	1	9907-	●	●	●
497	PIPE; WATER DRAIN W/COCK	1-13721-496-3	01	1	9812-9901	●
497	PIPE; WATER DRAIN W/COCK	1-13721-496-3	01	1	9902-9904	●	●	●
497	PIPE; WATER DRAIN W/COCK	1-13721-496-3	01	1	9905-9906	●	●	●	●
497	PIPE; WATER DRAIN W/COCK	1-13721-496-3	01	1	9907-	●	●	●
498	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	01	1	9812-9901	●
498	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	01	1	9902-9904	●	●	●
498	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	01	1	9905-9906	●	●	●	●
498	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	01	1	9907-	●	●	●
499	SUPPORT; THERMOSTAT (A)	1-21729-101-0	01	1	9812-9901	●
499	SUPPORT; THERMOSTAT (A)	1-21729-101-0	01	1	9902-9904	●	●	●
499	SUPPORT; THERMOSTAT (A)	1-21729-101-0	01	1	9905-9906	●	●	●	●
499	SUPPORT; THERMOSTAT (A)	1-21729-101-0	01	1	9907-9907	●	●	●
499	SUPPORT; THERMOSTAT (A)	1-21729-085-4	01	1	9908-	●	●	●
499	SUPPORT; THERMOSTAT (B)	1-21729-102-0	01	1	9812-9901	●
499	SUPPORT; THERMOSTAT (B)	1-21729-102-0	01	1	9902-9904	●	●	●
499	SUPPORT; THERMOSTAT (B)	1-21729-102-0	01	1	9905-9906	●	●	●	●
499	SUPPORT; THERMOSTAT (B)	1-21729-102-0	01	1	9907-9907	●	●	●
499	SUPPORT; THERMOSTAT (B)	1-21729-094-1	01	1	9908-	●	●	●
500	WASHER; PL,JOINT ID=10.5 OD=22	9-09160-610-0	02	1	9812-9901	●
500	WASHER; PL,JOINT ID=10.5 OD=22	9-09160-610-0	02	1	9902-9904	●	●	●
500	WASHER; PL,JOINT ID=10.5 OD=22	9-09160-610-0	02	1	9905-9906	●	●	●	●
500	WASHER; PL,JOINT ID=10.5 OD=22	9-09160-610-0	02	1	9907-	●	●	●
501	WASHER; LK,JOINT ID=10.2	9-09150-510-0	02	1	9812-9901	●
501	WASHER; LK,JOINT ID=10.2	9-09150-510-0	02	1	9902-9904	●	●	●
501	WASHER; LK,JOINT ID=10.2	9-09150-510-0	02	1	9905-9906	●	●	●	●
501	WASHER; LK,JOINT ID=10.2	9-09150-510-0	02	1	9907-	●	●	●
502	COVER; THERMOSTAT	1-21722-041-0	01	1	9812-9901	●
502	COVER; THERMOSTAT	1-21722-041-0	01	1	9902-9904	●	●	●
502	COVER; THERMOSTAT	1-21722-041-0	01	1	9905-9906	●	●	●	●
502	COVER; THERMOSTAT	1-21722-041-0	01	1	9907-	●	●	●
503	BOLT; COVER	1-21729-089-0	04	1	9812-9901	●
503	BOLT; COVER	1-21729-089-0	04	1	9902-9904	●	●	●
503	BOLT; COVER	1-21729-089-0	04	1	9905-9906	●	●	●	●
503	BOLT; COVER	1-21729-089-0	04	1	9907-	●	●	●
504	WASHER; PL,COVER (A)	1-21729-090-0	04	1	9812-9901	●
504	WASHER; PL,COVER (A)	1-21729-090-0	04	1	9902-9904	●	●	●
504	WASHER; PL,COVER (A)	1-21729-090-0	04	1	9905-9906	●	●	●	●
504	WASHER; PL,COVER (A)	1-21729-090-0	04	1	9907-	●	●	●
504	WASHER; PL,COVER (B) ID=10.5 OD=26	9-09160-710-0	02	1	9812-9901	●
504	WASHER; PL,COVER (B) ID=10.5 OD=26	9-09160-710-0	02	1	9902-	●		●
505	WASHER; LK,COVER	1-21729-091-0	04	1	9812-9901	●
505	WASHER; LK,COVER	1-21729-091-0	04	1	9902-9904	●	●	●
505	WASHER; LK,COVER	1-21729-091-0	04	1	9905-9906	●	●	●	●
505	WASHER; LK,COVER	1-21729-091-0	04	1	9907-9907	●	●	●
506	SCREW; BAFFLE M6X10	9-03486-608-0	10	1	9812-9901	●
506	SCREW; BAFFLE M6X10	9-03486-608-0	10	1	9902-9904	●	●	●
506	SCREW; BAFFLE M6X10	9-03486-608-0	10	1	9905-9906	●	●	●	●
506	SCREW; BAFFLE M6X10	9-03486-608-0	10	1	9907-	●	●	●
507	WASHER; LK,BAFFLE	1-21729-092-0	10	1	9812-9901	●
507	WASHER; LK,BAFFLE	1-21729-092-0	10	1	9902-9904	●	●	●
507	WASHER; LK,BAFFLE	1-21729-092-0	10	1	9905-9906	●	●	●	●
507	WASHER; LK,BAFFLE	1-21729-092-0	10	1	9907-	●	●	●
563	TUBE; DISTANCE	1-19389-134-1	02	1	9812-9901	●
563	TUBE; DISTANCE	1-19389-134-1	02	1	9902-	●		●

496 265 2 71 292 282 509 508 282 292 280 281 290 287 288 290 287 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	ELEMENT; OIL FILTER (A) MAIN TSUCHIYA	1-13240-165-0	01	1	9812-9901	●
2	ELEMENT; OIL FILTER (A) MAIN TSUCHIYA	1-13240-165-0	01	1	9902-9904	●	●	●
2	ELEMENT; OIL FILTER (A) MAIN TSUCHIYA	1-13240-165-0	01	1	9905-9906	●	●	●	●
2	ELEMENT; OIL FILTER (A) MAIN TSUCHIYA	1-13240-165-0	01	1	9907-	●	●	●
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-200-0	01	1	9812-9901	●
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-200-0	01	1	9902-9904	●	●	●
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-200-0	01	1	9905-9906	●	●	●	●
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-200-0	01	1	9907-	●	●	●
71	VALVE ASM; RELIEF,OIL FILTER	1-13262-005-0	01	1	9812-9901	●
71	VALVE ASM; RELIEF,OIL FILTER	1-13262-005-0	01	1	9902-9904	●	●	●
71	VALVE ASM; RELIEF,OIL FILTER	1-13262-005-0	01	1	9905-9906	●	●	●	●
71	VALVE ASM; RELIEF,OIL FILTER	1-13262-005-0	01	1	9907-	●	●	●
265	BODY; OIL FILTER	1-13211-216-1	01	1	9812-9901	●
265	BODY; OIL FILTER	1-13211-216-1	01	1	9902-9904	●	●	●
265	BODY; OIL FILTER	1-13211-216-1	01	1	9905-9906	●	●	●	●
265	BODY; OIL FILTER	1-13211-216-1	01	1	9907-	●	●	●
280	CASE ASM; OIL FILTER	1-13210-038-2	01	1	9901-9901	●
280	CASE ASM; OIL FILTER	1-13210-038-2	01	1	9902-9904	●	●	●
280	CASE ASM; OIL FILTER	1-13210-038-2	01	1	9905-9906	●	●	●	●
280	CASE ASM; OIL FILTER	1-13210-038-2	01	1	9907-	●	●	●
281	COVER; OIL FILTER	1-13211-206-1	01	1	9812-9901	●
281	COVER; OIL FILTER	1-13211-206-1	01	1	9902-9904	●	●	●
281	COVER; OIL FILTER	1-13211-206-1	01	1	9905-9906	●	●	●	●
281	COVER; OIL FILTER	1-13211-206-1	01	1	9907-	●	●	●
282	GASKET; BODY TO CASE (A)	1-09623-548-0	01	1	9812-9901	●
282	GASKET; BODY TO CASE (A)	1-09623-548-0	01	1	9902-9904	●	●	●
282	GASKET; BODY TO CASE (A)	1-09623-548-0	01	1	9905-9906	●	●	●	●
282	GASKET; BODY TO CASE (A)	1-09623-548-0	01	1	9907-	●	●	●
282	GASKET; BODY TO CASE (B)	1-09623-552-0	01	1	9812-9901	●
282	GASKET; BODY TO CASE (B)	1-09623-552-0	01	1	9902-9904	●	●	●
282	GASKET; BODY TO CASE (B)	1-09623-552-0	01	1	9905-9906	●	●	●	●
282	GASKET; BODY TO CASE (B)	1-09623-552-0	01	1	9907-	●	●	●
284	BOLT; CENTER,OIL FILTER (A)	1-13219-281-1	01	1	9812-9901	●
284	BOLT; CENTER,OIL FILTER (A)	1-13219-281-1	01	1	9902-9904	●	●	●
284	BOLT; CENTER,OIL FILTER (A)	1-13219-281-1	01	1	9905-9906	●	●	●	●
284	BOLT; CENTER,OIL FILTER (A)	1-13219-281-1	01	1	9907-	●	●	●
284	BOLT; CENTER,OIL FILTER (B)	1-13231-075-0	01	1	9812-9901	●
284	BOLT; CENTER,OIL FILTER (B)	1-13231-075-0	01	1	9902-9904	●	●	●
284	BOLT; CENTER,OIL FILTER (B)	1-13231-075-0	01	1	9905-9906	●	●	●	●
284	BOLT; CENTER,OIL FILTER (B)	1-13231-075-0	01	1	9907-	●	●	●
287	GASKET; CENTER BOLT (A)	1-09623-549-0	01	1	9812-9901	●
287	GASKET; CENTER BOLT (A)	1-09623-549-0	01	1	9902-9904	●	●	●
287	GASKET; CENTER BOLT (A)	1-09623-549-0	01	1	9905-9906	●	●	●	●
287	GASKET; CENTER BOLT (A)	1-09623-549-0	01	1	9907-	●	●	●
287	GASKET; CENTER BOLT (B)	1-09623-551-0	01	1	9812-9901	●
287	GASKET; CENTER BOLT (B)	1-09623-551-0	01	1	9902-9904	●	●	●
287	GASKET; CENTER BOLT (B)	1-09623-551-0	01	1	9905-9906	●	●	●	●
287	GASKET; CENTER BOLT (B)	1-09623-551-0	01	1	9907-	●	●	●
288	PLUG; OIL DRAIN	1-13219-272-0	01	1	9812-9901	●
288	PLUG; OIL DRAIN	1-13219-272-0	01	1	9902-9904	●	●	●
288	PLUG; OIL DRAIN	1-13219-272-0	01	1	9905-9906	●	●	●	●
288	PLUG; OIL DRAIN	1-13219-272-0	01	1	9907-	●	●	●
290	GASKET; PLUG,OIL DRAIN	1-09623-550-0	02	1	9812-9901	●
290	GASKET; PLUG,OIL DRAIN	1-09623-550-0	02	1	9902-9904	●	●	●
290	GASKET; PLUG,OIL DRAIN	1-09623-550-0	02	1	9905-9906	●	●	●	●
290	GASKET; PLUG,OIL DRAIN	1-09623-550-0	02	1	9907-	●	●	●
292	SPRING; ELEMENT (A)	1-09580-387-0	01	1	9812-9901	●
292	SPRING; ELEMENT (A)	1-09580-387-0	01	1	9902-9904	●	●	●
292	SPRING; ELEMENT (A)	1-09580-387-0	01	1	9905-9906	●	●	●	●
292	SPRING; ELEMENT (A)	1-09580-387-0	01	1	9907-	●	●	●
292	SPRING; ELEMENT (B)	1-09580-484-0	01	1	9812-9901	●
292	SPRING; ELEMENT (B)	1-09580-484-0	01	1	9902-9904	●	●	●
292	SPRING; ELEMENT (B)	1-09580-484-0	01	1	9905-9906	●	●	●	●
292	SPRING; ELEMENT (B)	1-09580-484-0	01	1	9907-	●	●	●
292	SPRING; ELEMENT (C)	1-13263-007-0	01	1	9812-9901	●
292	SPRING; ELEMENT (C)	1-13263-007-0	01	1	9902-9904	●	●	●
292	SPRING; ELEMENT (C)	1-13263-007-0	01	1	9905-9906	●	●	●	●
292	SPRING; ELEMENT (C)	1-13263-007-0	01	1	9907-	●	●	●
496	FILTER ASM; OIL	1-13200-862-7	01	1	9812-9901	●
496	FILTER ASM; OIL	1-13200-862-7	01	1	9902-9904	●	●	●
496	FILTER ASM; OIL	1-13200-862-7	01	1	9905-9906	●	●	●	●
496	FILTER ASM; OIL	1-13200-862-7	01	1	9907-	●	●	●
508	CHAMBER ASM; SW,FILTER	1-13260-107-1	01	1	9812-9901	●
508	CHAMBER ASM; SW,FILTER	1-13260-107-1	01	1	9902-9904	●	●	●
508	CHAMBER ASM; SW,FILTER	1-13260-107-1	01	1	9905-9906	●	●	●	●
508	CHAMBER ASM; SW,FILTER	1-13260-107-1	01	1	9907-	●	●	●
509	GASKET; SW	1-09630-114-0	01	1	9812-9901	●
509	GASKET; SW	1-09630-114-0	01	1	9902-9904	●	●	●
509	GASKET; SW	1-09630-114-0	01	1	9905-9906	●	●	●	●
509	GASKET; SW	1-09630-114-0	01	1	9907-	●	●	●

338 390 2 282 282 269 292 390 290 287 290 132 287 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	ELEMENT; OIL FILTER (A) MAIN TSUCHIYA	1-13240-165-0	01	1	9812-9901	●
2	ELEMENT; OIL FILTER (A) MAIN TSUCHIYA	1-13240-165-0	01	1	9902-9904	●	●	●
2	ELEMENT; OIL FILTER (A) MAIN TSUCHIYA	1-13240-165-0	01	1	9905-9906	●	●	●	●
2	ELEMENT; OIL FILTER (A) MAIN TSUCHIYA	1-13240-165-0	01	1	9907-	●	●	●
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-200-0	01	1	9812-9901	●
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-200-0	01	1	9902-9904	●	●	●
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-200-0	01	1	9905-9906	●	●	●	●
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-200-0	01	1	9907-	●	●	●
132	PLUG; PARTIAL OIL FILTER	1-13219-272-0	01	1	9812-9901	●
132	PLUG; PARTIAL OIL FILTER	1-13219-272-0	01	1	9902-9904	●	●	●
132	PLUG; PARTIAL OIL FILTER	1-13219-272-0	01	1	9905-9906	●	●	●	●
132	PLUG; PARTIAL OIL FILTER	1-13219-272-0	01	1	9907-	●	●	●
269	WASHER; ELEMENT,OIL FILTER	1-13234-005-0	01	1	9812-9901	●
269	WASHER; ELEMENT,OIL FILTER	1-13234-005-0	01	1	9902-9904	●	●	●
269	WASHER; ELEMENT,OIL FILTER	1-13234-005-0	01	1	9905-9906	●	●	●	●
269	WASHER; ELEMENT,OIL FILTER	1-13234-005-0	01	1	9907-	●	●	●
282	GASKET; BODY TO CASE (A)	1-09623-548-0	01	1	9812-9901	●
282	GASKET; BODY TO CASE (A)	1-09623-548-0	01	1	9902-9904	●	●	●
282	GASKET; BODY TO CASE (A)	1-09623-548-0	01	1	9905-9906	●	●	●	●
282	GASKET; BODY TO CASE (A)	1-09623-548-0	01	1	9907-	●	●	●
282	GASKET; BODY TO CASE (B)	1-09623-552-0	01	1	9812-9901	●
282	GASKET; BODY TO CASE (B)	1-09623-552-0	01	1	9902-9904	●	●	●
282	GASKET; BODY TO CASE (B)	1-09623-552-0	01	1	9905-9906	●	●	●	●
282	GASKET; BODY TO CASE (B)	1-09623-552-0	01	1	9907-	●	●	●
284	BOLT; CENTER,OIL FILTER (A)	1-13219-281-1	01	1	9812-9901	●
284	BOLT; CENTER,OIL FILTER (A)	1-13219-281-1	01	1	9902-9904	●	●	●
284	BOLT; CENTER,OIL FILTER (A)	1-13219-281-1	01	1	9905-9906	●	●	●	●
284	BOLT; CENTER,OIL FILTER (A)	1-13219-281-1	01	1	9907-	●	●	●
284	BOLT; CENTER,OIL FILTER (B)	1-13231-075-0	01	1	9812-9901	●
284	BOLT; CENTER,OIL FILTER (B)	1-13231-075-0	01	1	9902-9904	●	●	●
284	BOLT; CENTER,OIL FILTER (B)	1-13231-075-0	01	1	9905-9906	●	●	●	●
284	BOLT; CENTER,OIL FILTER (B)	1-13231-075-0	01	1	9907-	●	●	●
287	GASKET; CENTER BOLT (A)	1-09623-549-0	01	1	9812-9901	●
287	GASKET; CENTER BOLT (A)	1-09623-549-0	01	1	9902-9904	●	●	●
287	GASKET; CENTER BOLT (A)	1-09623-549-0	01	1	9905-9906	●	●	●	●
287	GASKET; CENTER BOLT (A)	1-09623-549-0	01	1	9907-	●	●	●
287	GASKET; CENTER BOLT (B)	1-09623-551-0	01	1	9812-9901	●
287	GASKET; CENTER BOLT (B)	1-09623-551-0	01	1	9902-9904	●	●	●
287	GASKET; CENTER BOLT (B)	1-09623-551-0	01	1	9905-9906	●	●	●	●
287	GASKET; CENTER BOLT (B)	1-09623-551-0	01	1	9907-	●	●	●
290	GASKET; PLUG,OIL DRAIN	1-09623-550-0	02	1	9812-9901	●
290	GASKET; PLUG,OIL DRAIN	1-09623-550-0	02	1	9902-9904	●	●	●
290	GASKET; PLUG,OIL DRAIN	1-09623-550-0	02	1	9905-9906	●	●	●	●
290	GASKET; PLUG,OIL DRAIN	1-09623-550-0	02	1	9907-	●	●	●
292	SPRING; ELEMENT (A)	1-09580-387-0	01	1	9812-9901	●
292	SPRING; ELEMENT (A)	1-09580-387-0	01	1	9902-9904	●	●	●
292	SPRING; ELEMENT (A)	1-09580-387-0	01	1	9905-9906	●	●	●	●
292	SPRING; ELEMENT (A)	1-09580-387-0	01	1	9907-	●	●	●
292	SPRING; ELEMENT (B)	1-09580-484-0	01	1	9812-9901	●
292	SPRING; ELEMENT (B)	1-09580-484-0	01	1	9902-9904	●	●	●
292	SPRING; ELEMENT (B)	1-09580-484-0	01	1	9905-9906	●	●	●	●
292	SPRING; ELEMENT (B)	1-09580-484-0	01	1	9907-	●	●	●
292	SPRING; ELEMENT (C)	1-13263-007-0	01	1	9812-9901	●
292	SPRING; ELEMENT (C)	1-13263-007-0	01	1	9902-9904	●	●	●
292	SPRING; ELEMENT (C)	1-13263-007-0	01	1	9905-9906	●	●	●	●
292	SPRING; ELEMENT (C)	1-13263-007-0	01	1	9907-	●	●	●
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	9812-9901	●
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	9902-9904	●	●	●
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	9905-9906	●	●	●	●
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	9907-	●	●	●
390	BODY; OIL FILTER,PARTIAL (A)	1-13211-217-1	01	1	9812-9901	●
390	BODY; OIL FILTER,PARTIAL (A)	1-13211-217-1	01	1	9902-9904	●	●	●
390	BODY; OIL FILTER,PARTIAL (A)	1-13211-217-1	01	1	9905-9906	●	●	●	●
390	BODY; OIL FILTER,PARTIAL (A)	1-13211-217-1	01	1	9907-	●	●	●
390	BODY; OIL FILTER,PARTIAL (B)	1-13211-218-1	01	1	9812-9901	●
390	BODY; OIL FILTER,PARTIAL (B)	1-13211-218-1	01	1	9902-9904	●	●	●
390	BODY; OIL FILTER,PARTIAL (B)	1-13211-218-1	01	1	9905-9906	●	●	●	●
390	BODY; OIL FILTER,PARTIAL (B)	1-13211-218-1	01	1	9907-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
