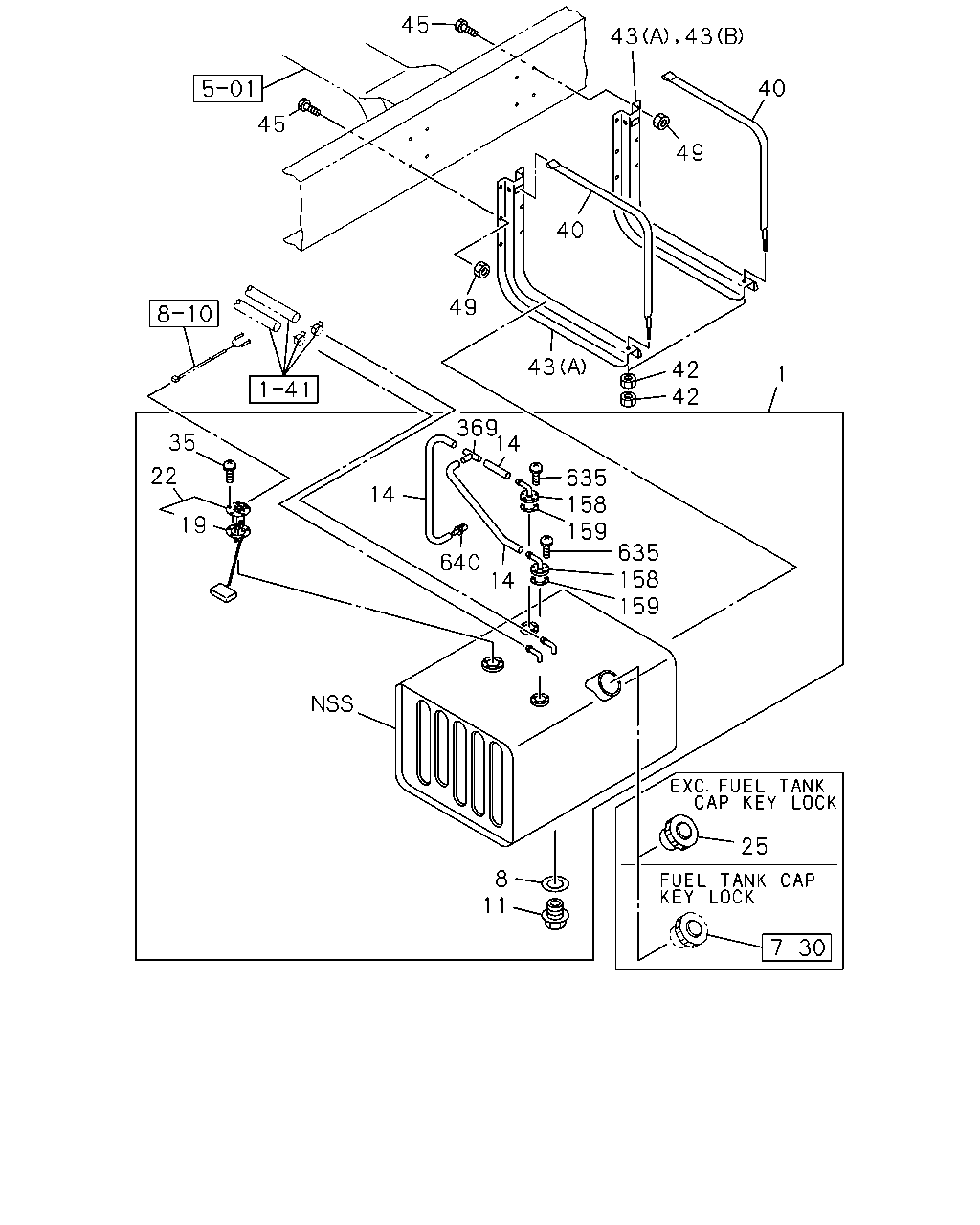

1-40 — FUEL TANK
(#69387) — 26 parça
45
43
43
40
45
49
40
49
43
42
42
1
369
14
35
22
635
158
159
14
19
635
158
159
640
14
25
8
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
855X603X453 200L
8-98099-833-0
01
1
0809-0809
1
TANK; FUEL
855X603X453 200L
8-98122-995-1
01
1
0810-1211
1
TANK; FUEL
885X603X453 200L
8-98187-002-1
01
1
1212-
8
GASKET; DRAIN PLUG,FUEL TANK
ID=30
8-98067-041-0
01
1
0809-
11
PLUG; DRAIN,FUEL TANK
M30
8-98067-038-0
01
1
0809-
14
HOSE; BREATHER,OUTLET
L=170 SERVICED BY L=3000
0-01256-300-0
01
1
0810-
14
HOSE; BREATHER,OUTLET
L=270 SERVICED BY L=3000
0-01256-300-0
02
1
0809-0809
14
HOSE; BREATHER,OUTLET
L=90 SERVICED BY L=3000
0-01256-300-0
01
1
0810-
14
HOSE; BREATHER,OUTLET
L=600 SERVICED BY L=3000
0-01256-300-0
01
1
0809-1003
14
HOSE; BREATHER,OUTLET
L=540 SERVICED BY L=3000
0-01256-300-0
01
1
1004-
19
GASKET; FUEL TANK UNIT
ID=42 OD=71
5-83148-001-0
01
1
0809-
22
UNIT; FUEL TANK
8-98099-321-0
01
1
0809-
25
CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP KEY LOCK<N05>
8-97387-179-0
01
1
0809-
35
SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER
0-36220-512-0
05
1
0809-
40
BELT; SUPPORT,FUEL TANK
L=1070
8-98067-501-1
02
1
0809-
42
NUT; SUPPORT BELT
M12
0-91110-512-0
04
1
0809-
43
BRACKET; FUEL TANK
(B)
8-98122-884-0
01
1
0810-
43
BRACKET; FUEL TANK
(A)
8-98010-733-0
02
1
0809-0809
43
BRACKET; FUEL TANK
(A)
8-98010-733-0
01
1
0810-
45
BOLT; BRKT,FUEL TANK
M12X35 FLANGE
0-28651-235-0
08
1
0809-
49
NUT; BRKT
M12 FLANGE
0-91180-212-0
08
1
0809-
158
VALVE; ROLL OVER & FLOAT
8-98067-039-0
02
1
0809-
159
SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67
1-83149-003-0
02
1
0809-
369
JOINT; HOSE
8-98067-080-0
01
1
0809-
635
SCREW; ROLL OVER & FLOAT VALVE
M5X12 W/LK WASHER
0-36220-512-0
10
1
0809-
640
VENTILATOR; HOSE,BREATHER
8-98092-398-0
01
1
0810-
