◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11152 - FVM(LHD) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-11 - RADIATOR HOSE AND SUB TANK ▶
1-11 — RADIATOR HOSE AND SUB TANK (#69383) — 16 parça

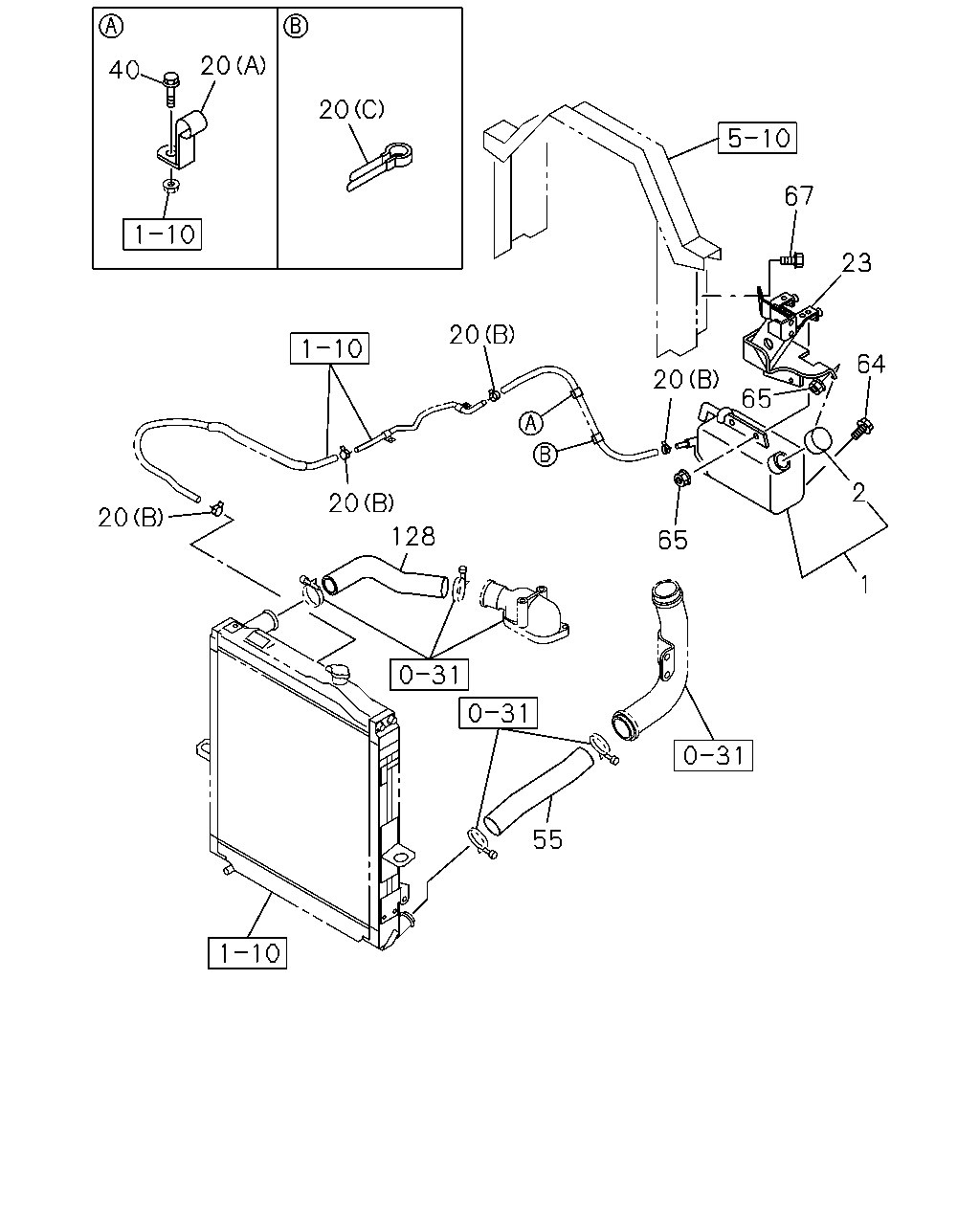

çizim 89236
20 40 20 67 23 20 64 20 65 2 20 20 128 65 1 55
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; SURGE,RAD 8-98010-309-2 01 1 0809-1009 ● ●
1 TANK; SURGE,RAD 8-98171-757-0 01 1 1010- ● ●
2 CAP; SURGE TANK 8-97217-796-0 01 1 0809-1009 ● ●
2 CAP; SURGE TANK 8-98178-074-0 01 1 1010- ● ●
20 CLIP; HOSE,RAD
(A) ID=13 H=40 L=25 		1-09700-620-0 01 1 0809- ● ●
20 CLIP; HOSE,RAD
(B) ID=11.5 		8-97375-638-0 04 1 0809- ● ●
20 CLIP; HOSE,RAD
(C) ID=20 L=50 		9-09917-430-0 01 1 0809- ● ●
23 BRACKET; RESERVE TANK 8-98049-965-4 01 1 0809- ● ●
40 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0809- ● ●
55 HOSE; WATER,RAD OUTLET 8-98079-430-1 01 1 0809- ●
55 HOSE; WATER,RAD OUTLET 8-98079-429-1 01 1 0809- ●
64 BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 0809- ● ●
65 NUT; BRKT,SUB TANK
M8 FLANGE 		0-91180-108-0 03 1 0809- ● ●
67 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 03 1 0809- ● ●
128 HOSE; WATER,RAD INL 8-98010-578-1 01 1 0809- ●
128 HOSE; WATER,RAD INL 8-98050-924-1 01 1 0809- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
