◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11152 - FVM(LHD) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#69382) — 77 parça

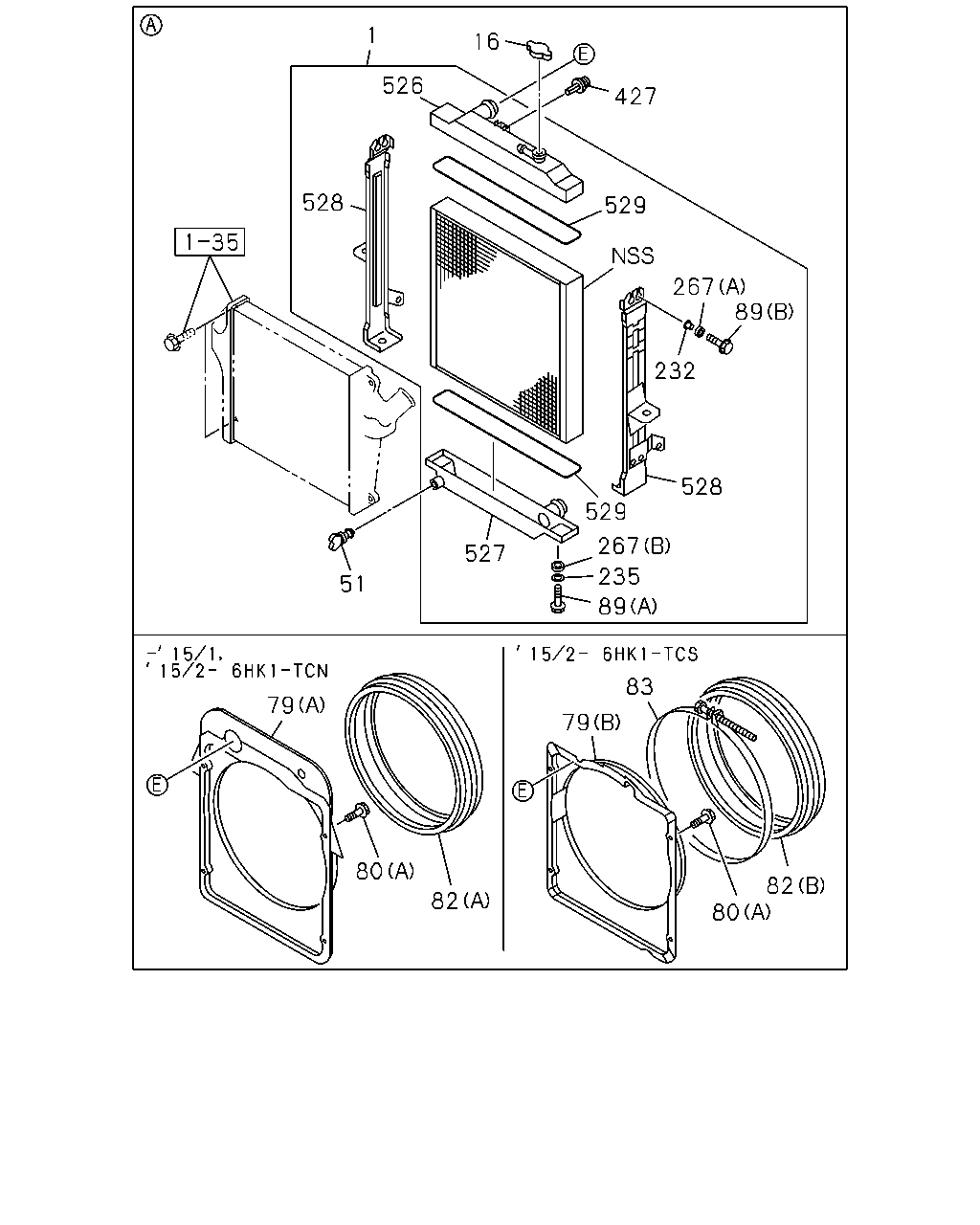

çizim 86350
1 16 526 528 427 529 267 89 232 528 529 267 235 89 527 51 83 79 80 82 82 80 79
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
MANUAL TRANSMISSION<X9C> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-98299-728-0 01 1 1506- ●
1 RADIATOR ASM
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-98299-734-0 01 1 1502- ●
1 RADIATOR ASM 8-98010-360-4 01 1 0809-1501 ●
1 RADIATOR ASM
CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-98299-735-0 01 1 1502- ●
1 RADIATOR ASM 8-98042-837-3 01 1 0809-1505 ●
1 RADIATOR ASM
CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> MANUAL TRANSMISSION<X9C> 		8-98299-729-0 01 1 1506- ●
16 CAP; RAD
CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-98096-226-0 01 1 0809- ● ●
16 CAP; RAD
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-97239-187-0 01 1 0809- ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0809- ● ●
79 GUIDE; FAN,RAD
(A) 		8-98010-384-0 01 1 0809-1501 ●
79 GUIDE; FAN,RAD
(B) 		8-98273-634-0 01 1 1502- ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 0809-1505 ●
79 GUIDE; FAN,RAD
(A) 		8-98286-937-0 01 1 1506- ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1502-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0809- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0809-1501 ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1502-1505 ●
82 COVER; FAN,RAD
(B) 		8-98293-253-0 01 1 1502-1505 ●
82 COVER; FAN,RAD
(B) 		8-98293-253-0 01 1 1506- ● ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 0809-1501 ● ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 1502-1505 ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 1502-1505 ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 1506- ● ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0809- ● ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 0809- ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 0809- ● ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 0809- ● ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 0809- ● ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 0809- ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 0809-1501 ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1502-1505 ●
526 TANK; UPR,RADIATOR CORE 8-98004-202-2 01 1 0809- ● ●
527 TANK; LWR,RADIATOR CORE 8-98004-203-0 01 1 0809- ● ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-371-3 01 1 0809- ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-372-4 01 1 0809- ●
528 PLATE; SIDE,RADIATOR CORE 8-98042-838-3 01 1 0809- ●
528 PLATE; SIDE,RADIATOR CORE 8-98042-839-2 01 1 0809- ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 0809- ● ●

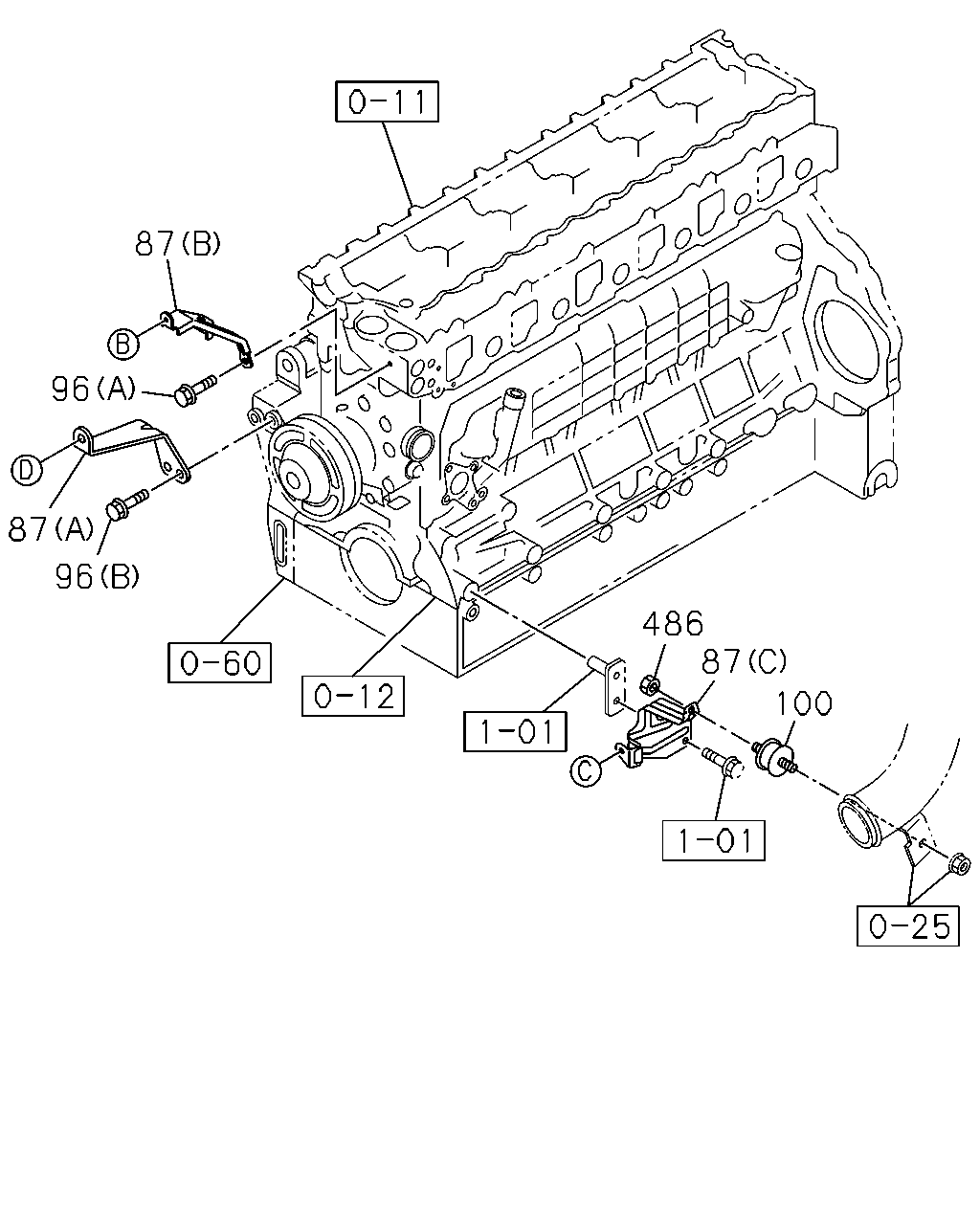

çizim 89233
87 96 87 96 486 87 100
BalonParca AdiParca NoAdetTipApplied Date A B
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 0809- ● ●
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 0809- ● ●
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 0809- ● ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0809- ● ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 0809- ● ●
100 RUBBER; MTG 8-94394-268-1 01 1 0809-0910 ● ●
100 RUBBER; MTG 8-98148-109-0 01 1 0911- ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0809- ● ●

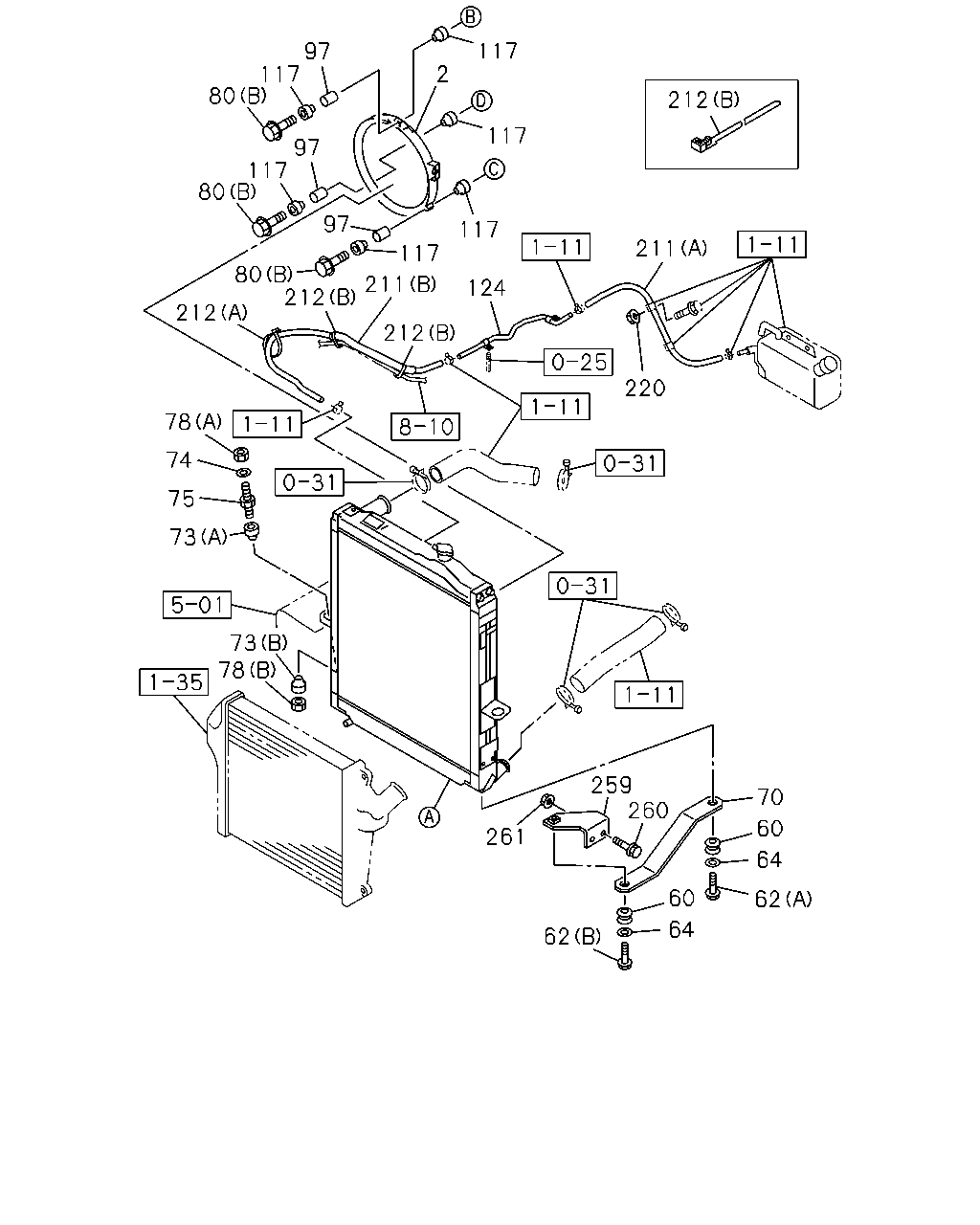

çizim 187929
117 97 117 80 2 212 117 97 117 80 97 117 211 117 80 211 212 124 212 212 220 78 74 75 73 73 78 259 260 70 60 261 64 60 62 64 62
BalonParca AdiParca NoAdetTipApplied Date A B
2 GUIDE; FAN 8-94393-779-1 01 1 0809- ● ●
60 GROMMET 1-09332-117-0 04 1 0809- ● ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 0809- ● ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 0809- ● ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 0809- ● ●
70 STAY; RAD 8-98004-132-2 02 1 0809- ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0809- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0809- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 0809- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0809- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0809- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0809- ● ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1502-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0809- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0809-1501 ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1502-1505 ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0809- ● ●
117 RUBBER; MTG,FAN GUIDE
OD=32 		8-94395-766-0 06 1 0809- ● ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 0809- ● ●
211 HOSE; RAD TO PIPE
(B) L=970 		8-98073-545-0 01 1 0809- ●
211 HOSE; RAD TO PIPE
(A) L=560 		8-98119-375-0 01 1 0809- ● ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 0809- ●
212 CLIP; HOSE
(A) L=250 		5-09707-030-1 02 1 0809- ● ●
212 CLIP; HOSE
(B) L=140 		5-09707-031-1 01 1 0809- ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0809- ● ●
259 BRACKET; RAD STAY 8-98071-821-0 01 1 0809- ● ●
259 BRACKET; RAD STAY 8-98071-822-0 01 1 0809- ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0809- ● ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0809- ● ●
