◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11152 - FVM(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#69378) — 81 parça
çizim 73398
8 11 10 2 1 112 13 107 79
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 0809-
2 CABLE; BATTERY
BATTERY 115E41L<8MA> L=440 		8-97615-309-1 01 1 0809-
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=280 		8-98035-647-1 01 1 0809-
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> VIN MODEL YEAR 2011<VZB> L=2770 		8-98174-091-0 01 1 1012-1102
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2770 		8-98174-091-0 01 1 1103-1502
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-570-0 01 1 1503-
8 CABLE; BATTERY,STARTER
VIN MODEL YEAR 2011<VZB> BATTERY 115E41L<8MA> L=2970 		8-98174-097-0 01 1 1012-1102
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> L=2970 		8-98174-097-0 01 1 1103-1502
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98295-571-0 01 1 1503-
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> L=3030 		8-98121-965-0 01 1 0809-1004
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> L=3030 		8-98159-431-0 01 1 1005-1011
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. VIN MODEL YEAR 2011<VZB> L=3030 		8-98159-431-0 01 1 1012-1102
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2830 		8-98121-964-0 01 1 0809-1004
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2830 		8-98159-430-0 01 1 1005-1011
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. VIN MODEL YEAR 2011<VZB> L=2830 		8-98159-430-0 01 1 1012-1102
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0809-
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0809-
13 GROMMET; BATTERY CABLE
ID=32 OD=40 T=23 		1-09332-112-0 01 1 0809-
79 CLIP; BATTERY CABLE
(A) ID=16 L=28 		1-09700-872-0 01 1 0809-1004
79 CLIP; BATTERY CABLE
(A) ID=15 L=28 		1-09701-216-0 01 1 1005-
79 CLIP; BATTERY CABLE
(B) ID=13-18 L=26 		1-09709-293-0 02 1 0809-
79 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-98019-191-0 03 1 0809-
79 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-98019-191-0 02 1 0809-
79 CLIP; BATTERY CABLE
(D) ID=20 L=50 		9-09917-430-0 01 1 0809-
107 CLIP; BAND
L=140 		5-09707-031-1 01 1 0809-
112 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 0809-1408
112 TERMINAL; BATTERY
<+> 		8-98290-356-0 01 1 1409-

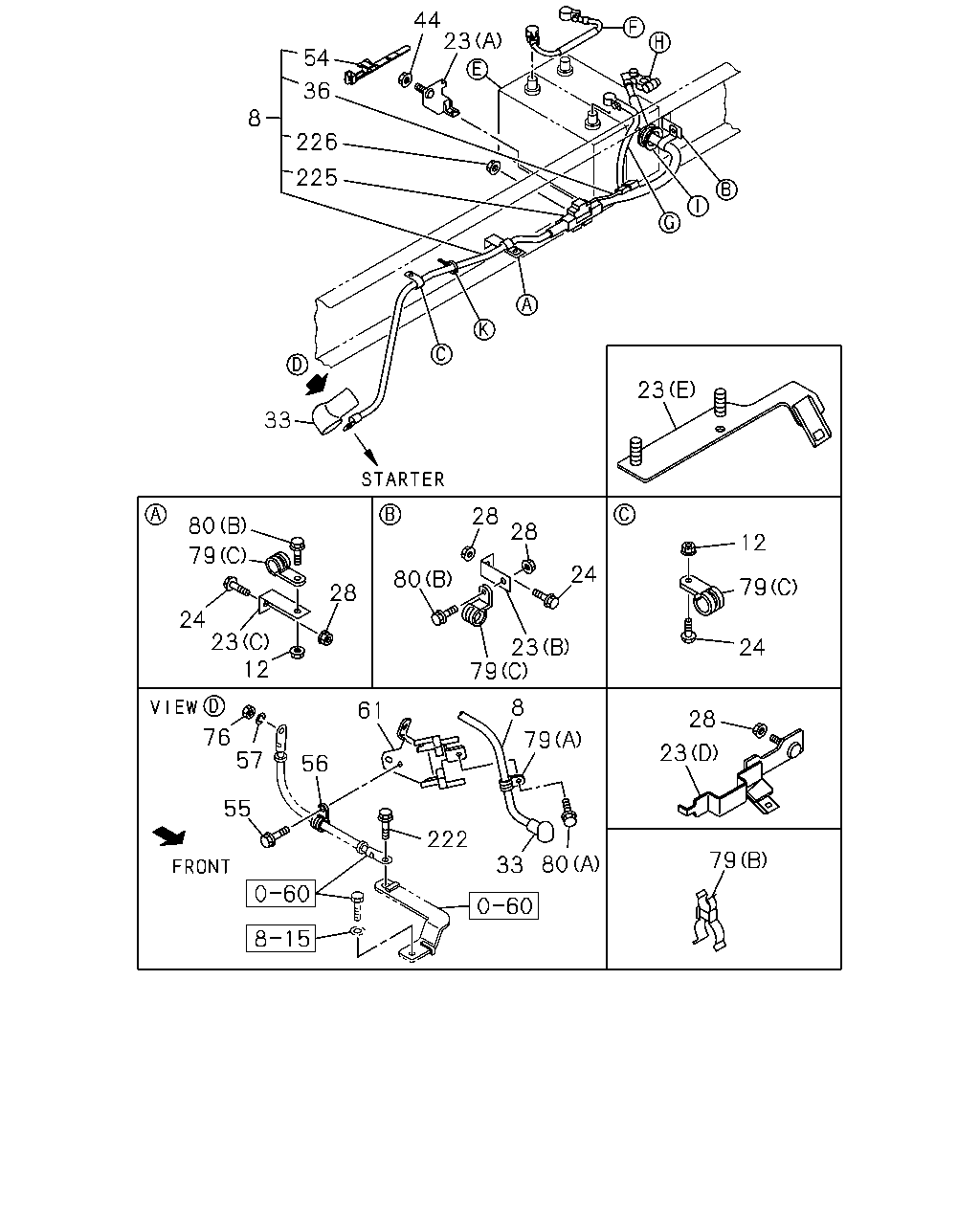

çizim 187927
44 23 54 36 8 226 225 23 33 28 80 28 12 79 24 80 79 28 24 23 12 23 79 24 8 61 28 76 57 79 23 56 55 222 79 80 33
BalonParca AdiParca NoAdetTipApplied Date
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> VIN MODEL YEAR 2011<VZB> L=2770 		8-98174-091-0 01 1 1012-1102
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2770 		8-98174-091-0 01 1 1103-1502
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-570-0 01 1 1503-
8 CABLE; BATTERY,STARTER
VIN MODEL YEAR 2011<VZB> BATTERY 115E41L<8MA> L=2970 		8-98174-097-0 01 1 1012-1102
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> L=2970 		8-98174-097-0 01 1 1103-1502
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98295-571-0 01 1 1503-
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> L=3030 		8-98121-965-0 01 1 0809-1004
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> L=3030 		8-98159-431-0 01 1 1005-1011
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. VIN MODEL YEAR 2011<VZB> L=3030 		8-98159-431-0 01 1 1012-1102
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2830 		8-98121-964-0 01 1 0809-1004
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2830 		8-98159-430-0 01 1 1005-1011
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. VIN MODEL YEAR 2011<VZB> L=2830 		8-98159-430-0 01 1 1012-1102
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 03 1 0809-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0809-
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 7100MM(71W) (C) L=95 		1-82699-085-0 02 1 1004-
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 6300MM(63W) (B) L=65 		1-47479-064-1 01 1 0809-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 03 1 0809-
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 6300MM(63W) (C) L=95 		1-82699-085-0 01 1 0809-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98044-882-0 01 1 0809-
23 BRACKET; CABLE CLIP TO FRAME
(D) 		8-98085-160-4 01 1 0809-1111
23 BRACKET; CABLE CLIP TO FRAME
(E) 		8-98201-025-0 01 1 1112-
24 BOLT; BRKT TO FRAME
WHEEL BASE 7100MM(71W) M8X30 FLANGE 		0-28650-830-0 02 1 1004-
24 BOLT; BRKT TO FRAME
WHEEL BASE 6300MM(63W) M8X30 FLANGE 		0-28650-830-0 01 1 1001-
24 BOLT; BRKT TO FRAME
WHEEL BASE 6300MM(63W) M8X25 FLANGE 		0-28650-825-0 01 1 0809-
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 03 1 0809-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 0809-1111
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 1112-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 1112-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0809-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 03 1 0809-
33 CAP; INSULATOR 1-82699-431-0 01 1 0809-
36 FUSIBLE LINK; BATTERY 8-97615-498-1 01 1 0809-1502
36 FUSIBLE LINK; BATTERY 8-98295-762-0 01 1 1503-
44 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0809-
54 CLIP; BAND,BATTERY CABLE
L=175 		1-09707-176-1 01 1 0809-1004
55 BOLT; CLIP,BATTERY CABLE
M8X16 FLANGE 		0-28050-816-0 01 1 0809-
56 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 0809-
57 WASHER; PL,BATTERY CABLE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 0809-
61 BRACKET; BATTERY CABLE 8-98051-379-1 01 1 0809-
76 NUT; BATTERY CABLE
M10 FLANGE 		0-91180-210-0 01 1 0809-
79 CLIP; BATTERY CABLE
(A) ID=16 L=28 		1-09700-872-0 01 1 0809-1004
79 CLIP; BATTERY CABLE
(A) ID=15 L=28 		1-09701-216-0 01 1 1005-
79 CLIP; BATTERY CABLE
(B) ID=13-18 L=26 		1-09709-293-0 02 1 0809-
79 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-98019-191-0 03 1 0809-
79 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-98019-191-0 02 1 0809-
79 CLIP; BATTERY CABLE
(D) ID=20 L=50 		9-09917-430-0 01 1 0809-
80 BOLT; BATTERY CABLE CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0809-
80 BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 03 1 0809-
80 BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0809-
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0809-
225 BLOCK; TERMINAL 8-98029-689-0 01 1 0809-1502
225 BLOCK; TERMINAL 8-98294-524-0 01 1 1503-
226 NUT; FUSIBLE LINK
M6 W/LK WASHER 		8-94424-179-0 01 1 0809-1502
226 NUT; FUSIBLE LINK
M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1503-
