0-60 — ENGINE ELECTRICAL CONTROL PARTS (#69377) — 89 parça

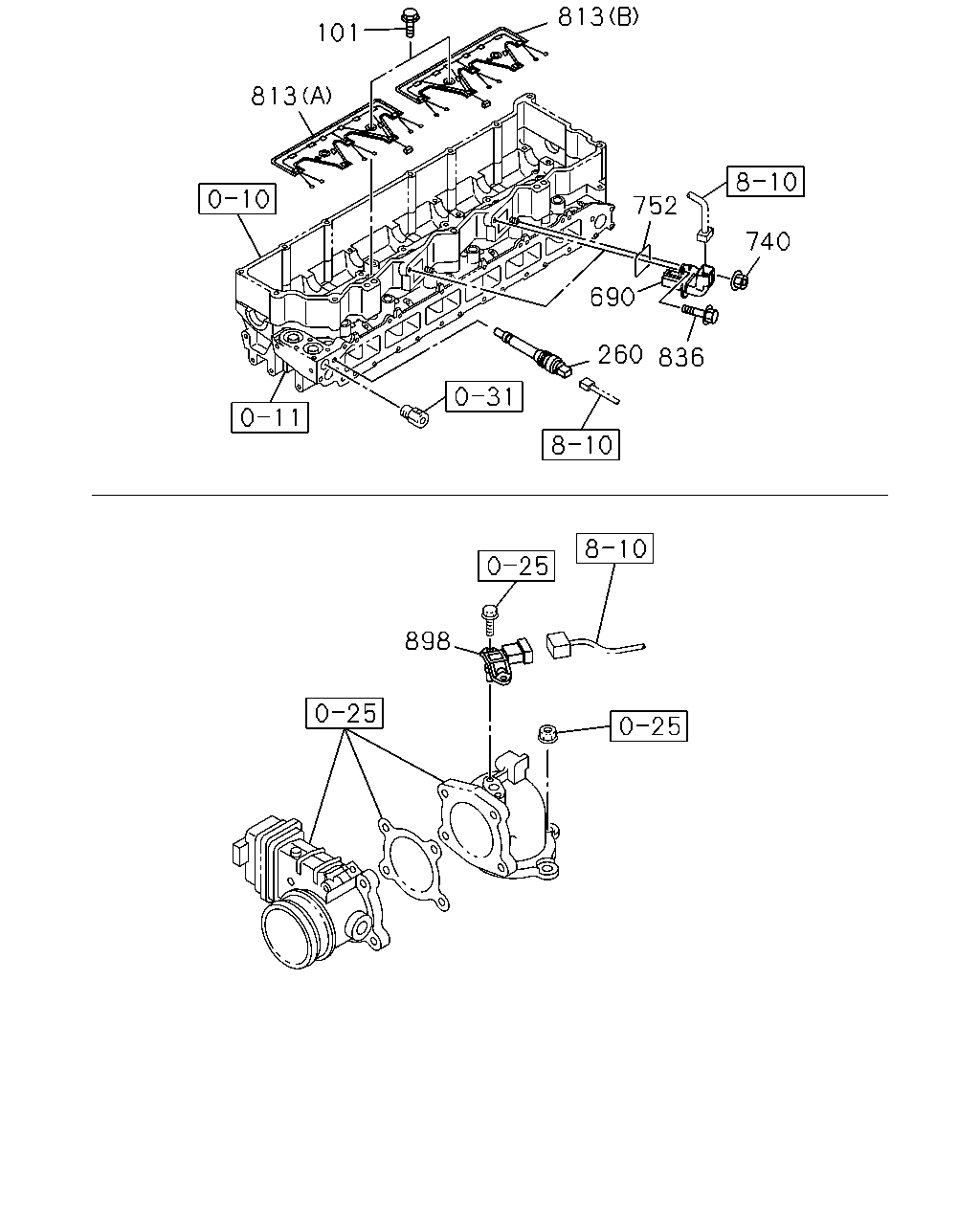

101 813 813 752 740 690 260 836 898

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
101	BOLT; HARNESS M8X40 FLANGE	0-28650-840-0	04	1	0809-
260	SENSOR; WATER TEMP MITSUBISHI	8-98023-883-0	01	1	0809-1503
260	SENSOR; WATER TEMP NISHIDA	8-98260-257-0	01	1	1504-
690	CONNECTOR	8-94390-858-1	02	1	0809-
740	NUT M8 FLANGE	0-91180-108-0	04	1	0809-1011
740	NUT M8 FLANGE	0-91180-108-0	02	1	1012-
752	GASKET ALSO INCLUDED IN GASKET SET(ENGINE).	8-94391-310-0	02	1	0809-
813	HARNESS; INJECTOR (A) FRONT	8-97602-748-2	01	1	0809-1008
813	HARNESS; INJECTOR (A) FRONT	8-98177-447-0	01	1	1009-1112
813	HARNESS; INJECTOR (A) FRONT	8-98204-717-0	01	1	1201-
813	HARNESS; INJECTOR (B) REAR	8-97602-749-2	01	1	0809-1008
813	HARNESS; INJECTOR (B) REAR	8-98177-448-0	01	1	1009-1112
813	HARNESS; INJECTOR (B) REAR	8-98204-718-0	01	1	1201-
836	BOLT; CONNECTOR M8X12 FLANGE	0-28050-812-0	02	1	1012-
898	SENSOR; BOOST	8-98009-418-0	01	1	0809-

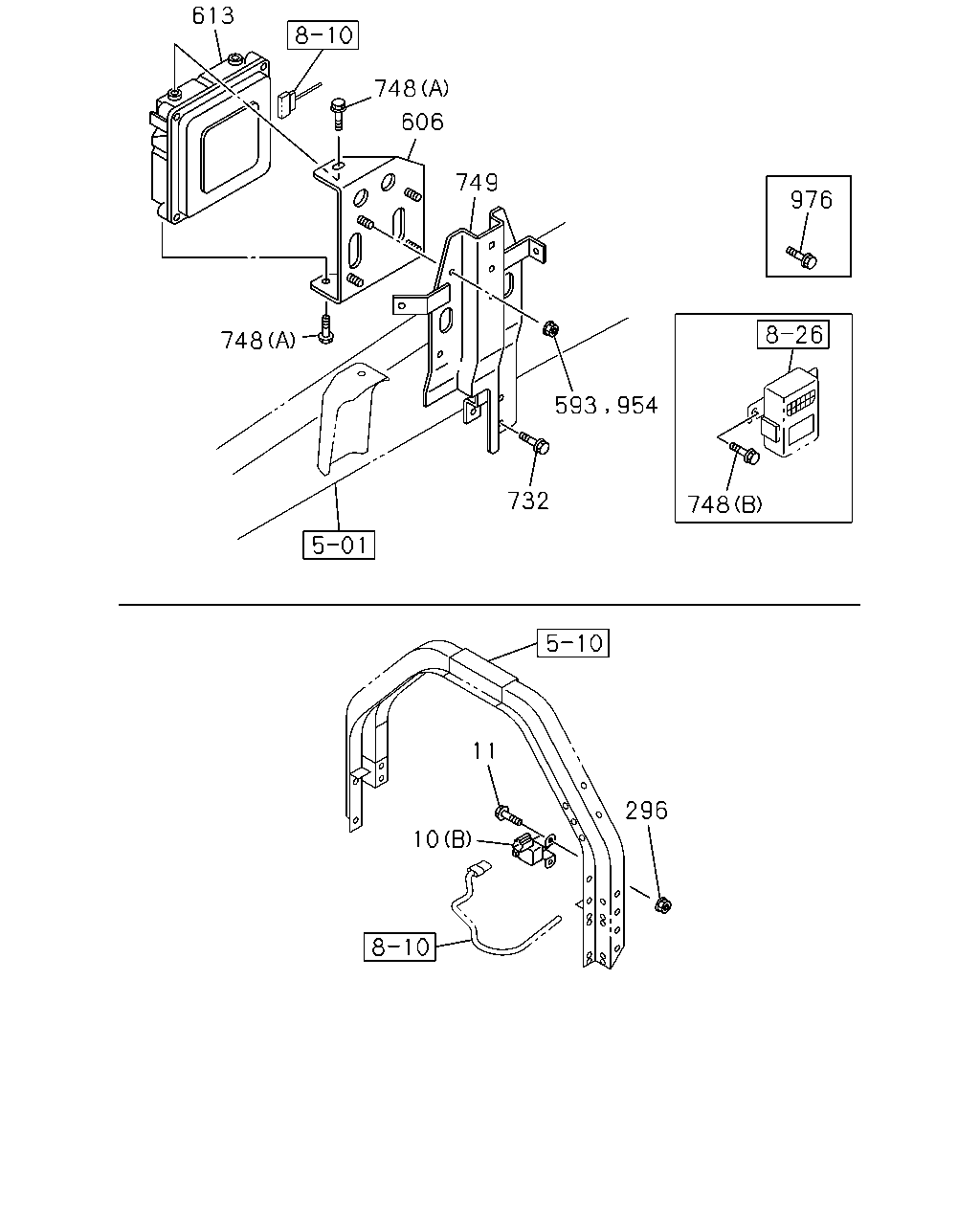

613 748 749 748 593 954 732 606 748 11 296 10 976

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0809-1005
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-98167-173-0	01	1	1006-
10	RELAY; STARTER (B) 24V NIKKO	8-98005-631-1	01	1	0809-
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28650-820-0	02	1	0809-
296	NUT; RELAY,STARTER M8 FLANGE	0-91180-108-0	02	1	0809-
593	NUT; BRKT M6 FLANGE	0-91180-106-0	04	1	0809-
606	BRACKET; CONT UNIT	1-53194-675-0	01	1	0809-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONEPACKAGE<W02>,GLOW SYSTEM DELETE<7RK>	8-98216-173-0	01	1	1312-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK> EXC. HIGHLAND ZONE PACKAGE<W02>	8-98257-206-0	01	1	1312-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. HIGHLAND ZONE PACKAGE<W02>,GLOW SYSTEM DELETE<7RK>	8-98216-179-0	01	1	1312-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) HIGHLAND ZONE PACKAGE<W02> GLOW SYSTEM DELETE<7RK> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98257-205-0	01	1	1312-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) GLOW SYSTEM DELETE<7RK> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONEPACKAGE<W02>	8-98257-207-0	01	1	1312-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONEPACKAGE<W02>,GLOW SYSTEM DELETE<7RK>	8-98216-177-0	01	1	1312-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) PERU EQUIPMENT(E07) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98154-244-0	01	1	0909-0910
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) HIGHLAND ZONE PACKAGE<W02> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98154-244-0	01	1	0911-1006
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) HIGHLAND ZONE PACKAGE<W02> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98170-975-1	01	1	1007-1311
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) HIGHLAND ZONE PACKAGE<W02> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98170-975-1	01	1	1312-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) PERU EQUIPMENT(E07) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98154-243-0	01	1	0909-0910
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) HIGHLAND ZONE PACKAGE<W02> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98154-243-0	01	1	0911-1006
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) HIGHLAND ZONE PACKAGE<W02> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98170-974-1	01	1	1007-1311
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) HIGHLAND ZONE PACKAGE<W02> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98170-974-1	01	1	1312-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98074-888-3	01	1	0809-0908
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. PERU EQUIPMENT(E07)	8-98074-888-3	01	1	0909-0910
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. HIGHLAND ZONE PACKAGE<W02>	8-98074-888-4	01	1	0911-1311
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) HIGHLAND ZONE PACKAGE<W02> GLOW SYSTEM DELETE<7RK> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98257-212-0	01	1	1312-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98092-680-3	01	1	0809-0908
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EXC. PERU EQUIPMENT(E07),INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98092-680-3	01	1	0909-0910
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONEPACKAGE<W02>	8-98092-680-4	01	1	0911-1311
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) GLOW SYSTEM DELETE<7RK> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONEPACKAGE<W02>	8-98257-213-0	01	1	1312-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98074-911-3	01	1	0809-0908
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. PERU EQUIPMENT(E07)	8-98074-911-3	01	1	0909-0910
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. HIGHLAND ZONE PACKAGE<W02>	8-98074-911-4	01	1	0911-1311
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK> EXC. HIGHLAND ZONE PACKAGE<W02>	8-98257-211-0	01	1	1312-
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98092-686-3	01	1	0809-0908
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EXC. PERU EQUIPMENT(E07),INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98092-686-3	01	1	0909-0910
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONEPACKAGE<W02>	8-98092-686-4	01	1	0911-1311
613	CONTROL UNIT; ENG 6HK1-TCS ENG(80L) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. HIGHLAND ZONE PACKAGE<W02>,GLOW SYSTEM DELETE<7RK>	8-98216-174-0	01	1	1312-
732	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	03	1	0809-
748	BOLT; CONT UNIT (A) M6X12 FLANGE	0-28050-612-0	03	1	0809-
748	BOLT; CONT UNIT (B) M6X16 FLANGE	0-28650-616-0	02	1	0809-
749	STAY; CONT UNIT	1-53194-595-3	01	1	0809-
954	NUT; RESISTOR M6 FLANGE	0-91180-106-0	02	1	0809-0906
976	BOLT; RESISTOR M6X20 FLANGE	0-28050-620-0	02	1	0809-0906

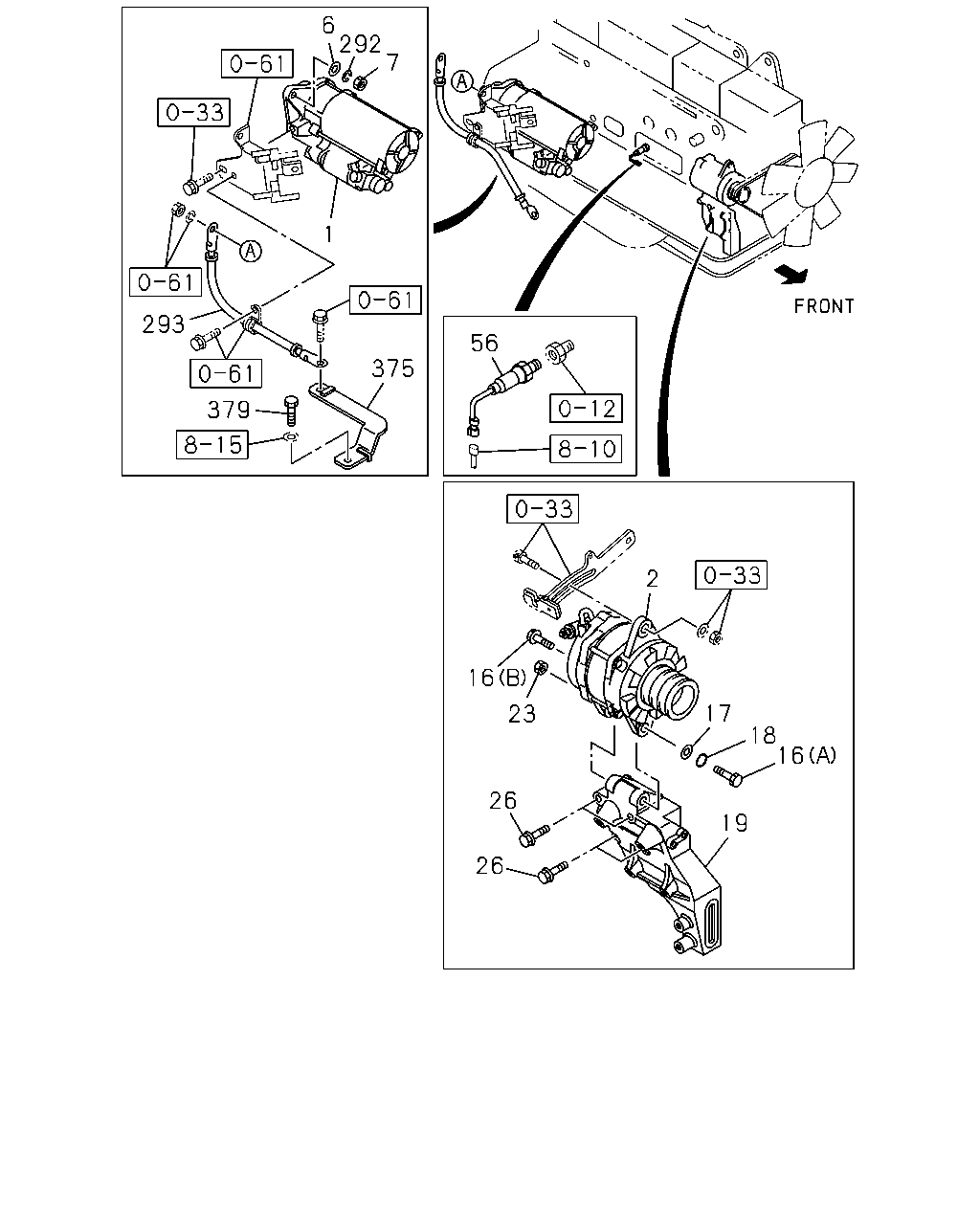

292 6 7 1 375 379 56 2 16 17 18 16 23 19 26 26 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI	8-98060-854-0	01	1	0809-0909
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI	8-98141-206-3	01	1	0910-1409
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI	8-98261-669-0	01	1	1410-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO	8-98013-461-5	01	1	0809-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO	8-98013-462-5	01	1	0809-
6	WASHER; PL,STARTER ID=15	0-91610-514-0	01	1	0809-
7	NUT; STARTER M14	0-91110-514-0	02	1	0809-
16	BOLT; GEN EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE	0-28050-610-0	01	1	0910-
16	BOLT; GEN (A) M14X135	1-09000-133-1	01	1	0809-
16	BOLT; GEN AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE	0-28050-610-0	01	1	0809-0909
16	BOLT; GEN AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE	0-28050-610-0	03	1	0910-
17	WASHER; PL,GEN ID=15	0-91610-514-0	01	1	0809-
18	WASHER; LK,GEN ID=14.2	0-91510-514-0	01	1	0809-
19	BRACKET; GEN	8-98082-615-1	01	1	0809-
23	NUT; GEN M14	0-91110-514-0	01	1	0809-
26	BOLT; GEN BRKT M10X40 FLANGE	0-28151-040-0	02	1	0809-
26	BOLT; GEN BRKT M10X80 FLANGE	0-28151-080-0	02	1	0809-
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-1	01	1	0809-
292	WASHER; LK,STARTER ID=14.2	0-91510-514-0	01	1	0809-
293	CABLE; STARTER EARTH PERU EQUIPMENT(E07) L=530	8-98097-226-0	01	1	0909-0910
293	CABLE; STARTER EARTH L=430	8-97621-357-0	01	1	0809-0809
293	CABLE; STARTER EARTH L=420	8-98131-856-0	01	1	0810-0908
293	CABLE; STARTER EARTH EXC. PERU EQUIPMENT(E07) L=420	8-98131-856-0	01	1	0909-0910
293	CABLE; STARTER EARTH L=420	8-98131-856-0	01	1	0911-
375	BRACKET	8-98131-726-0	01	1	0810-
379	BOLT; BRKT M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	0810-

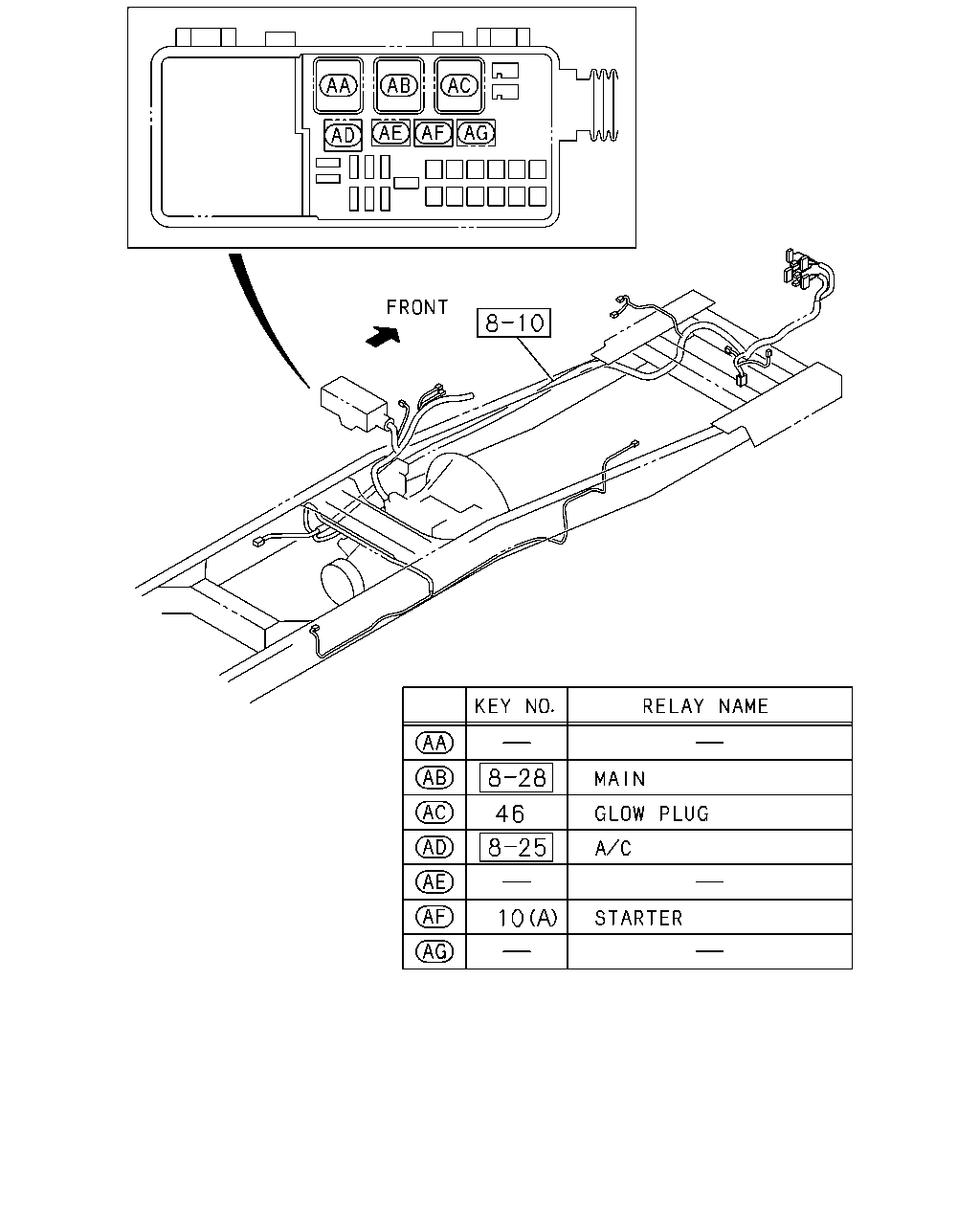

46 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0809-1005
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-98167-173-0	01	1	1006-
10	RELAY; STARTER (B) 24V NIKKO	8-98005-631-1	01	1	0809-
46	RELAY; GLOW PLUG 24V 50A	8-97173-947-0	01	1	0809-1311
46	RELAY; GLOW PLUG EXC. GLOW SYSTEM DELETE<7RK> 24V 50A	8-97173-947-0	01	1	1312-
