◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11152 - FVM(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#69371) — 114 parça

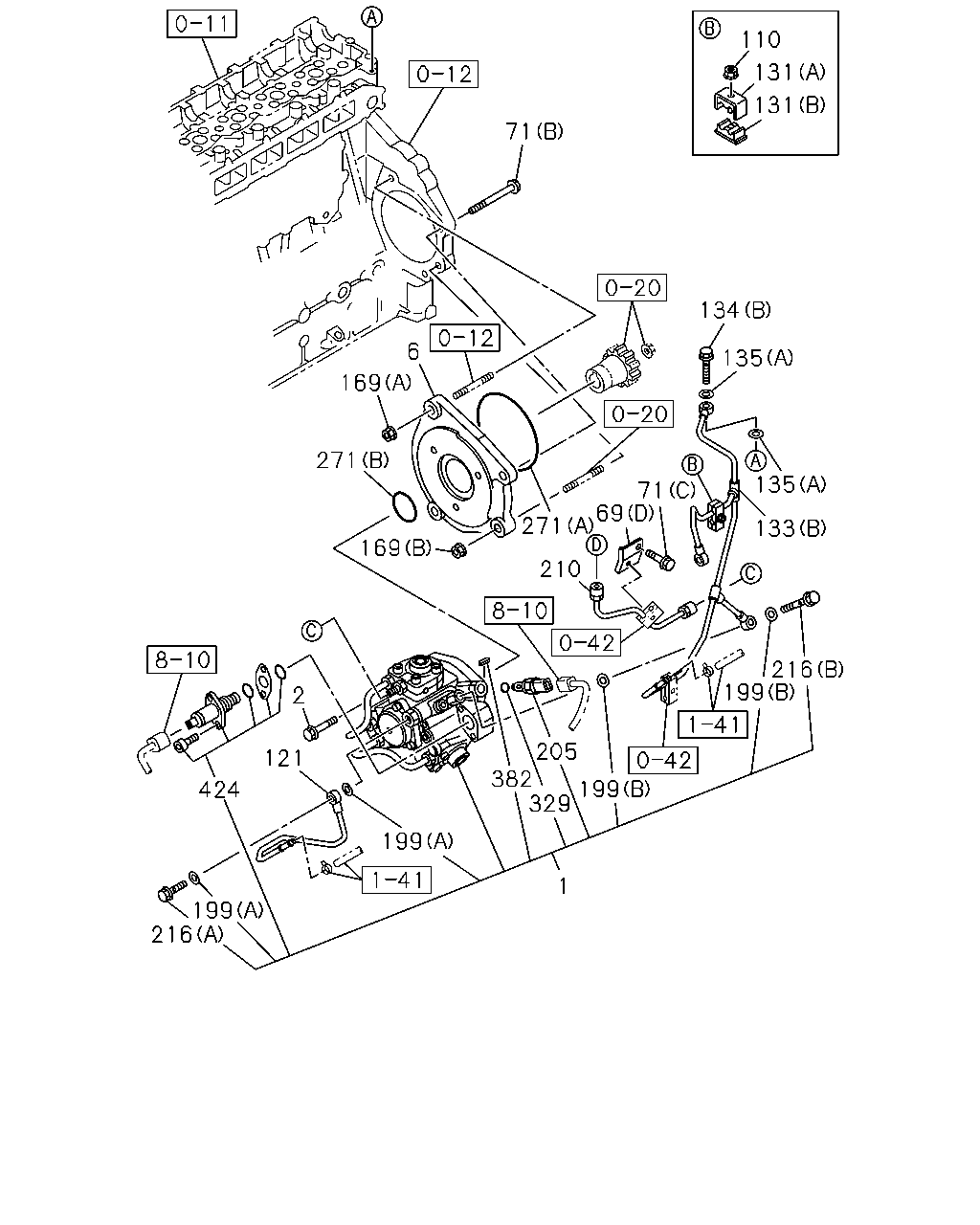

çizim 62801
110 131 131 71 134 135 135 133 216 199 199 205 382 329 1 199 216 199 424 121 2 210 69 71 271 169 271 169 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ 8-97605-946-7 01 1 0809- ● ●
2 BOLT; INJ PUMP
M8X28 		8-94399-256-0 03 1 0809- ● ●
6 BRACKET; INJ PUMP TO C/BL 8-97601-154-1 01 1 0809- ● ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 0809- ● ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 0809- ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 0809- ● ●
69 BRACKET; INJ PIPE CLIP
(D) 		8-98059-807-0 01 1 0809- ● ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0809- ● ●
71 BOLT; BRKT
(C) M10X16 FLANGE 		0-28151-016-0 01 1 0809- ● ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 0809- ● ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 05 1 0809- ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-98126-331-0 01 1 0809- ● ●
131 CLIP; OVERFLOW LEAK OFF
(A) ID=7 & 9 L=25 		8-98000-010-2 01 1 0809- ● ●
131 CLIP; OVERFLOW LEAK OFF
(B) ID=7 & 9 L=25 		8-98000-011-2 01 1 0809- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94391-311-0 01 1 0809-1206 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1207- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-98059-804-0 01 1 0809- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0809- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 0809- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0809-0908 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17 		8-98079-755-0 01 1 0909- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-97240-975-0 01 1 0809-1301 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-98231-393-0 01 1 1302- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-97600-925-0 06 1 0809-0908 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0 		8-98065-992-0 06 1 0909- ● ●
169 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 02 1 0809- ● ●
169 NUT; BRKT
(B) M12 FLANGE 		0-91180-112-0 01 1 0809- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0809- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 0809- ● ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0809- ● ●
210 PIPE; INJ,C/R 8-98059-805-0 01 1 0809- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0809- ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0809- ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0809- ● ●
271 GASKET; INJ PUMP
(A) ID=139.6 		1-09623-464-0 01 1 0809- ● ●
271 GASKET; INJ PUMP
(B) ID=52 		8-98031-844-0 01 1 0809- ● ●
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 		9-09566-110-0 01 1 0809-1201 ● ●
382 KEY; DRIVE SHAFT 8-97375-384-0 01 1 0809-0910 ● ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 0911- ● ●
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER 		8-98143-870-0 01 1 0809-0905 ● ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-449-1 01 1 0906- ● ●

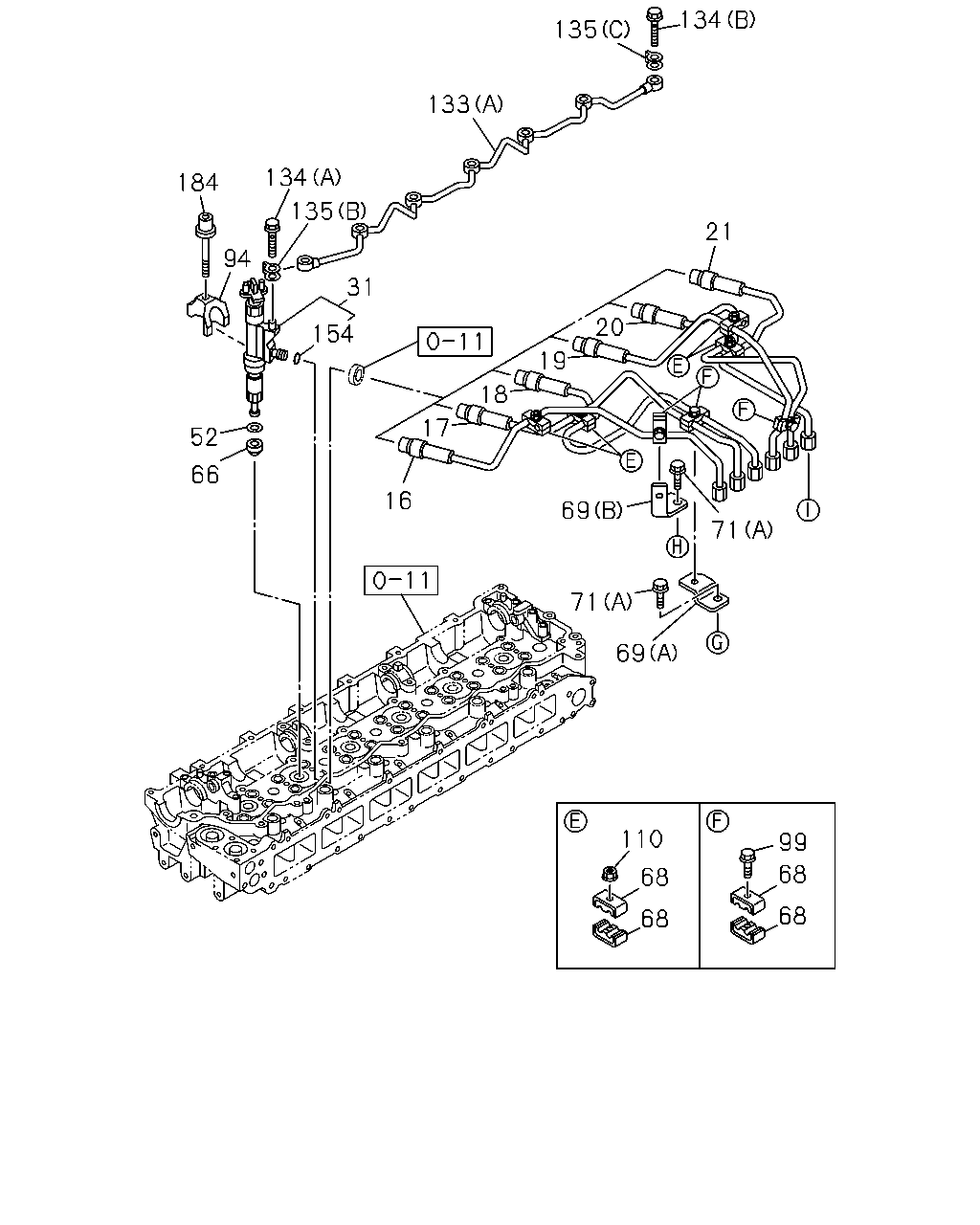

çizim 63366
110 99 68 68 68 68 69 71 71 69 21 20 19 18 17 16 66 52 154 31 134 135 133 134 184 135 94
BalonParca AdiParca NoAdetTipApplied Date A B
16 PIPE; INJ NO.1 8-98038-936-0 01 1 0809-1102 ● ●
16 PIPE; INJ NO.1 8-98185-362-0 01 1 1103-1403 ● ●
16 PIPE; INJ NO.1 8-98271-207-0 01 1 1404-1501 ● ●
16 PIPE; INJ NO.1 8-98298-611-0 01 1 1502- ● ●
17 PIPE; INJ NO.2 8-98039-770-0 01 1 0809-1102 ● ●
17 PIPE; INJ NO.2 8-98185-363-0 01 1 1103-1403 ● ●
17 PIPE; INJ NO.2 8-98271-208-0 01 1 1404-1501 ● ●
17 PIPE; INJ NO.2 8-98298-612-0 01 1 1502- ● ●
18 PIPE; INJ NO.3 8-98038-937-0 01 1 0809-1102 ● ●
18 PIPE; INJ NO.3 8-98185-364-0 01 1 1103-1403 ● ●
18 PIPE; INJ NO.3 8-98271-209-0 01 1 1404-1501 ● ●
18 PIPE; INJ NO.3 8-98298-613-0 01 1 1502- ● ●
19 PIPE; INJ NO.4 8-98057-085-0 01 1 0809-1102 ● ●
19 PIPE; INJ NO.4 8-98185-365-0 01 1 1103-1403 ● ●
19 PIPE; INJ NO.4 8-98271-210-0 01 1 1404-1501 ● ●
19 PIPE; INJ NO.4 8-98298-614-0 01 1 1502- ● ●
20 PIPE; INJ NO.5 8-98038-939-0 01 1 0809-1102 ● ●
20 PIPE; INJ NO.5 8-98185-366-0 01 1 1103-1403 ● ●
20 PIPE; INJ NO.5 8-98271-211-0 01 1 1404-1501 ● ●
20 PIPE; INJ NO.5 8-98298-615-0 01 1 1502- ● ●
21 PIPE; INJ NO.6 8-98039-771-0 01 1 0809-1102 ● ●
21 PIPE; INJ NO.6 8-98185-367-0 01 1 1103-1403 ● ●
21 PIPE; INJ NO.6 8-98271-212-0 01 1 1404-1501 ● ●
21 PIPE; INJ NO.6 8-98298-617-0 01 1 1502- ● ●
31 NOZZLE ASM; INJ 8-97609-789-6 06 1 0809- ● ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3 		8-94173-412-0 06 1 0809- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0809-0909 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-98079-248-0 06 1 0910- ● ●
68 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98039-293-0 14 1 0809-1405 ● ●
68 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98148-996-2 14 1 1406- ● ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 0809- ● ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 0809- ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 0809- ● ●
69 BRACKET; INJ PIPE CLIP
(D) 		8-98059-807-0 01 1 0809- ● ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0809- ● ●
71 BOLT; BRKT
(C) M10X16 FLANGE 		0-28151-016-0 01 1 0809- ● ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 0809- ● ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 06 1 0809- ● ●
99 BOLT; CLIP,INJ,PIPE
M6X35 FLANGE 		0-28050-635-0 03 1 0809- ● ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 05 1 0809- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94391-311-0 01 1 0809-1206 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1207- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-98059-804-0 01 1 0809- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0809- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 0809- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0809-0908 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17 		8-98079-755-0 01 1 0909- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-97240-975-0 01 1 0809-1301 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-98231-393-0 01 1 1302- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-97600-925-0 06 1 0809-0908 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0 		8-98065-992-0 06 1 0909- ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 06 1 0809-1106 ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1107- ● ●
184 BOLT; NOZZLE HOLDER
M8X54 		8-98008-895-0 06 1 0809- ● ●

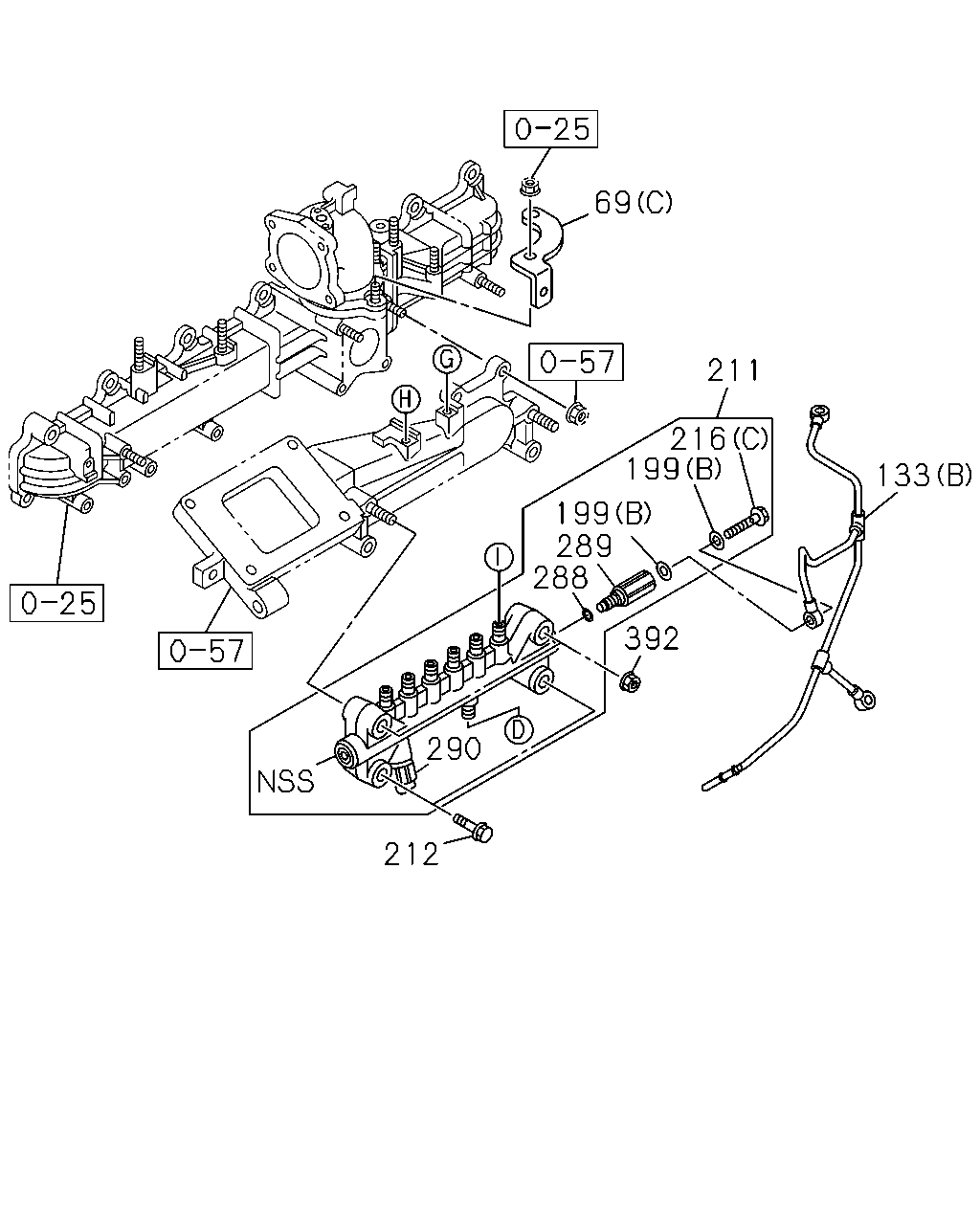

çizim 187924
133 211 216 199 199 289 288 392 290 212 69
BalonParca AdiParca NoAdetTipApplied Date A B
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 0809- ● ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 0809- ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 0809- ● ●
69 BRACKET; INJ PIPE CLIP
(D) 		8-98059-807-0 01 1 0809- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94391-311-0 01 1 0809-1206 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1207- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-98059-804-0 01 1 0809- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0809- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 0809- ● ●
211 RAIL ASM; COMMON 8-97609-980-2 01 1 0809- ● ●
212 BOLT; RAIL ASM
M10X50 FLANGE 		8-97372-243-0 02 1 0809- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0809- ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0809- ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0809- ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0809- ● ●
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 0809- ● ●
290 SENSOR; PRESS 8-98119-790-0 01 1 0809- ● ●
290 SENSOR; PRESS 8-98119-790-0 01 1 0809- ● ●
392 NUT; RAIL ASM
M10 FLANGE 		0-91180-110-0 02 1 0809- ● ●
