◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11152 - FVM(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-27 - EXHAUST MANIFOLD ▶
0-27 — EXHAUST MANIFOLD (#69360) — 16 parça

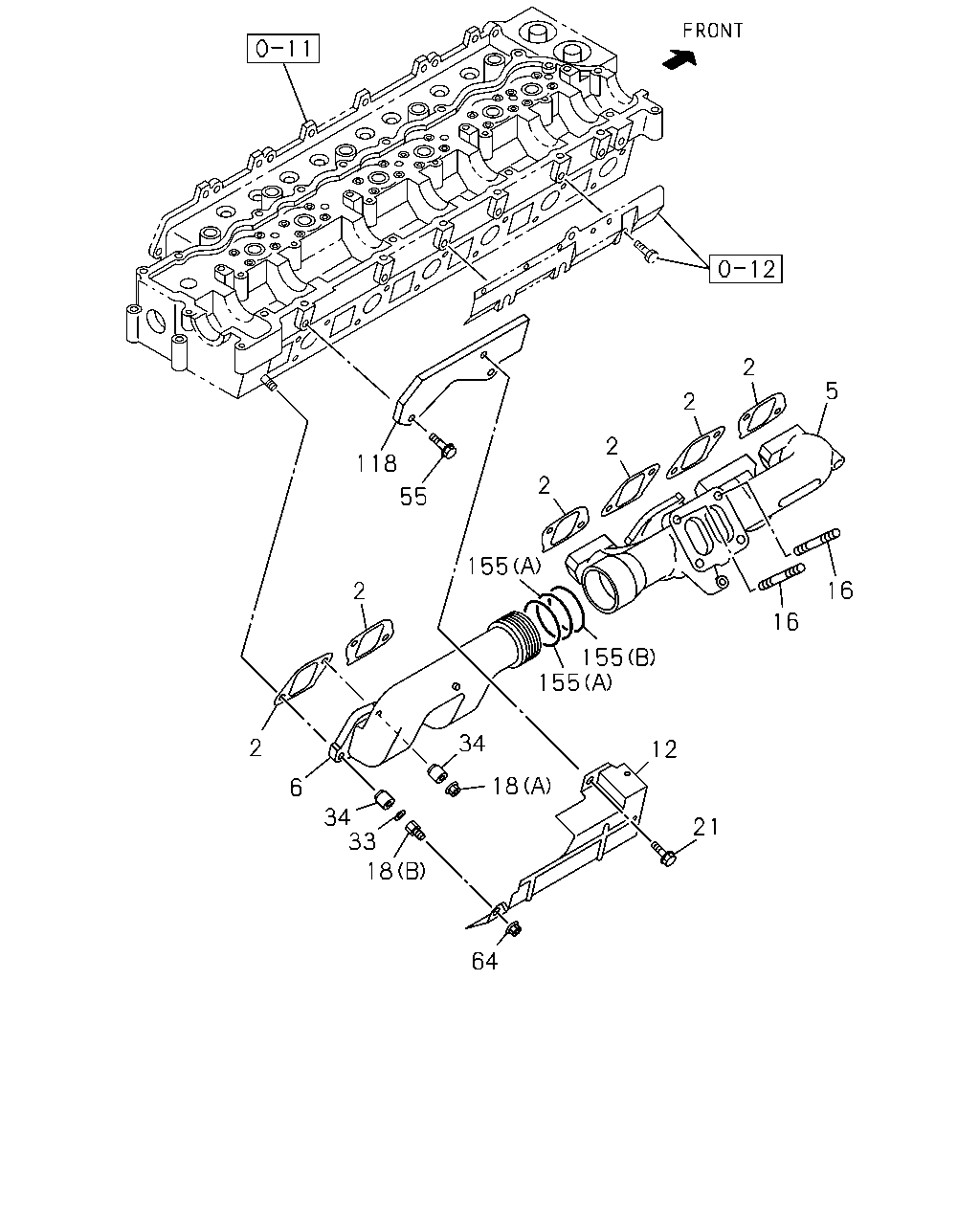

çizim 40625
118 55 155 2 2 2 2 5 16 16 155 155 12 21 18 34 18 33 34 6 2 2 64
BalonParca AdiParca NoAdetTipApplied Date A B
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-4 06 1 0809- ● ●
5 MANIFOLD; EXH,FRT 8-97602-056-0 01 1 0809- ● ●
6 MANIFOLD; EXH,RR 8-97600-970-0 01 1 0809- ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF 8-97601-632-0 01 1 0809- ● ●
16 STUD; EXH PIPE TO MANIF
M10X25 L=40 		9-04731-025-0 02 1 0809- ● ●
18 NUT; EXH MANIF
(A) M10 LOCK NUT 		0-91370-010-0 10 1 0809- ● ●
18 NUT; EXH MANIF
(B) M10 L=51 		8-94394-991-1 02 1 0809-1202 ● ●
18 NUT; EXH MANIF
(B) M10 		8-98205-394-0 02 1 1203- ● ●
21 BOLT; HEAT PROTECTOR
M8X16 FLANGE 		0-28050-816-0 01 1 0809- ● ●
33 WASHER; EXH MANIF
T=2.2 		1-09556-015-0 02 1 0809- ● ●
34 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 12 1 0809- ● ●
55 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 0809- ● ●
64 NUT; HEAT PROTECTOR
M10 FLANGE 		0-91180-210-0 02 1 0809- ● ●
118 BRACKET; HEAT PROTECTOR 8-97603-366-0 01 1 0809- ● ●
155 RING; SEAL,EXH MANIF
(B) STAMP RH 		1-14149-151-0 01 1 0809- ● ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-184-0 02 1 0809- ● ●
