Isuzu WW
▶
TRUCKS
▶
FVM
▶
11152 - FVM(LHD)
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

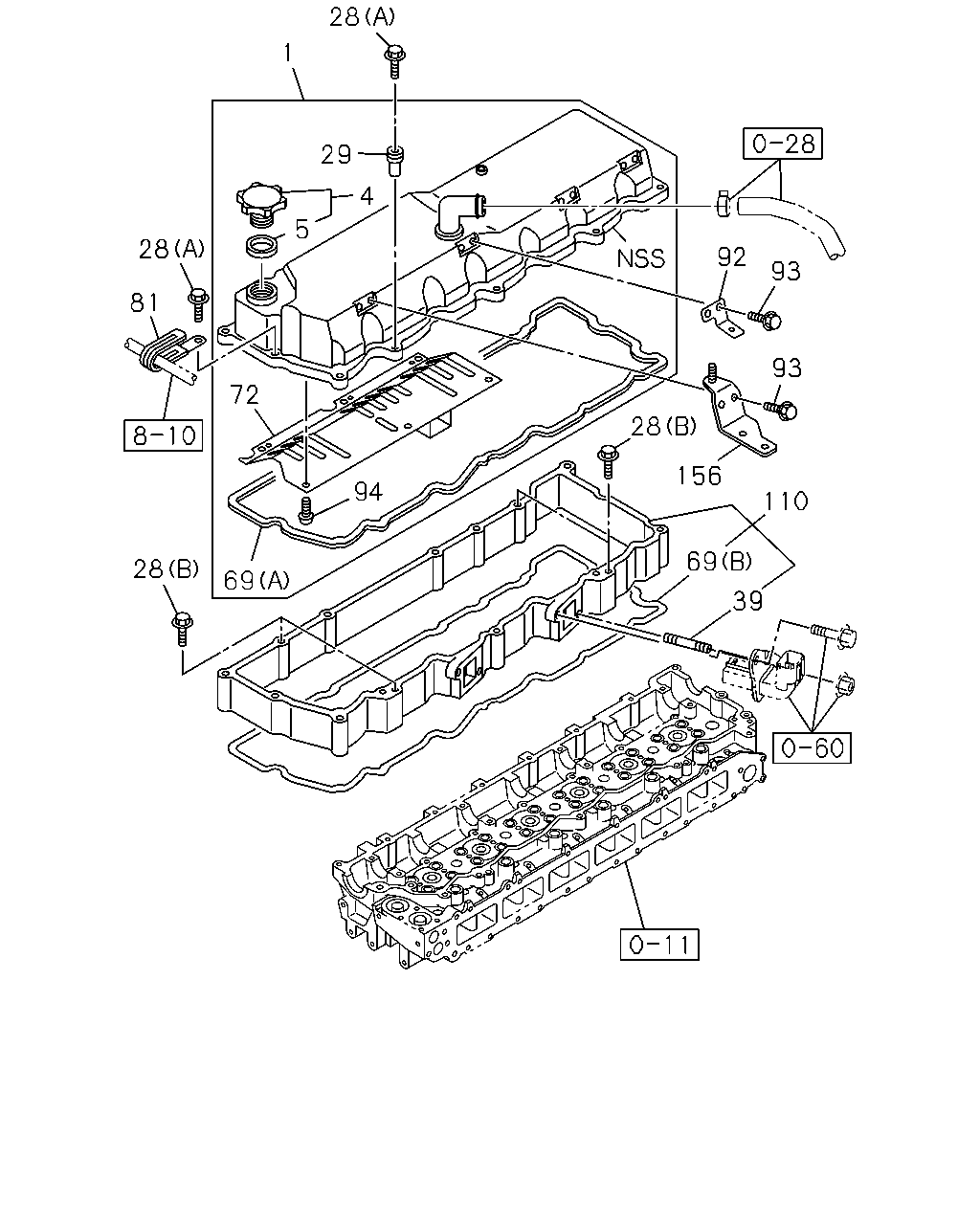

0-10 — CYLINDER HEAD COVER
(#69351) — 19 parça
Tümü
A - 6HK1-TCS ENG
B - 6HK1-TCN ENG
28
1
29
4
5
28
92
93
81
93
72
28
156
94
110
69
28
69
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COVER; CYL HD
8-97602-825-2
01
1
0809-1112
●
●
1
COVER; CYL HD
8-98208-874-0
01
1
1201-
●
●
4
CAP; OIL FILLER
8-94399-723-0
01
1
0809-
●
●
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58
8-94399-689-0
01
1
0809-
●
●
28
BOLT; HD COVER
(B) M8X45 FLANGE
0-28050-845-0
04
1
0809-
●
●
28
BOLT; HD COVER
(A) M8X70 FLANGE
0-28050-870-0
11
1
0809-
●
●
29
RUBBER; MTG,HD COVER
8-94392-097-0
11
1
0809-
●
●
39
STUD; COVER,HD
M8X28 L=38
8-94396-512-0
04
1
0809-1011
●
●
39
STUD; COVER,HD
M8X28 L=38
8-94396-512-0
02
1
1012-
●
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)
8-94391-379-0
01
1
0809-
●
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)
8-94391-380-0
01
1
0809-
●
●
72
PLATE; INNER HD COVER
8-94392-655-0
01
1
0809-
●
●
81
CLIP; HARNESS
ID=18 L=44
8-97367-985-1
02
1
0809-
●
●
92
BRACKET; CLIP
8-97602-621-0
01
1
0809-1405
●
●
92
BRACKET; CLIP
8-98271-674-0
01
1
1406-
●
●
93
BOLT; BRKT
M8X12 FLANGE
0-28050-812-0
04
1
0809-
●
●
94
SCREW; BAFFLE PLATE,CYL HD COVER
M4X8
0-35050-408-0
06
1
0809-
●
●
110
COVER; CYL HEAD LWR
8-94390-862-3
01
1
0809-
●
●
156
BRACKET; ENGINE COVER
8-97616-751-0
01
1
0809-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
