◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11152 - FVM(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#69350) — 22 parça

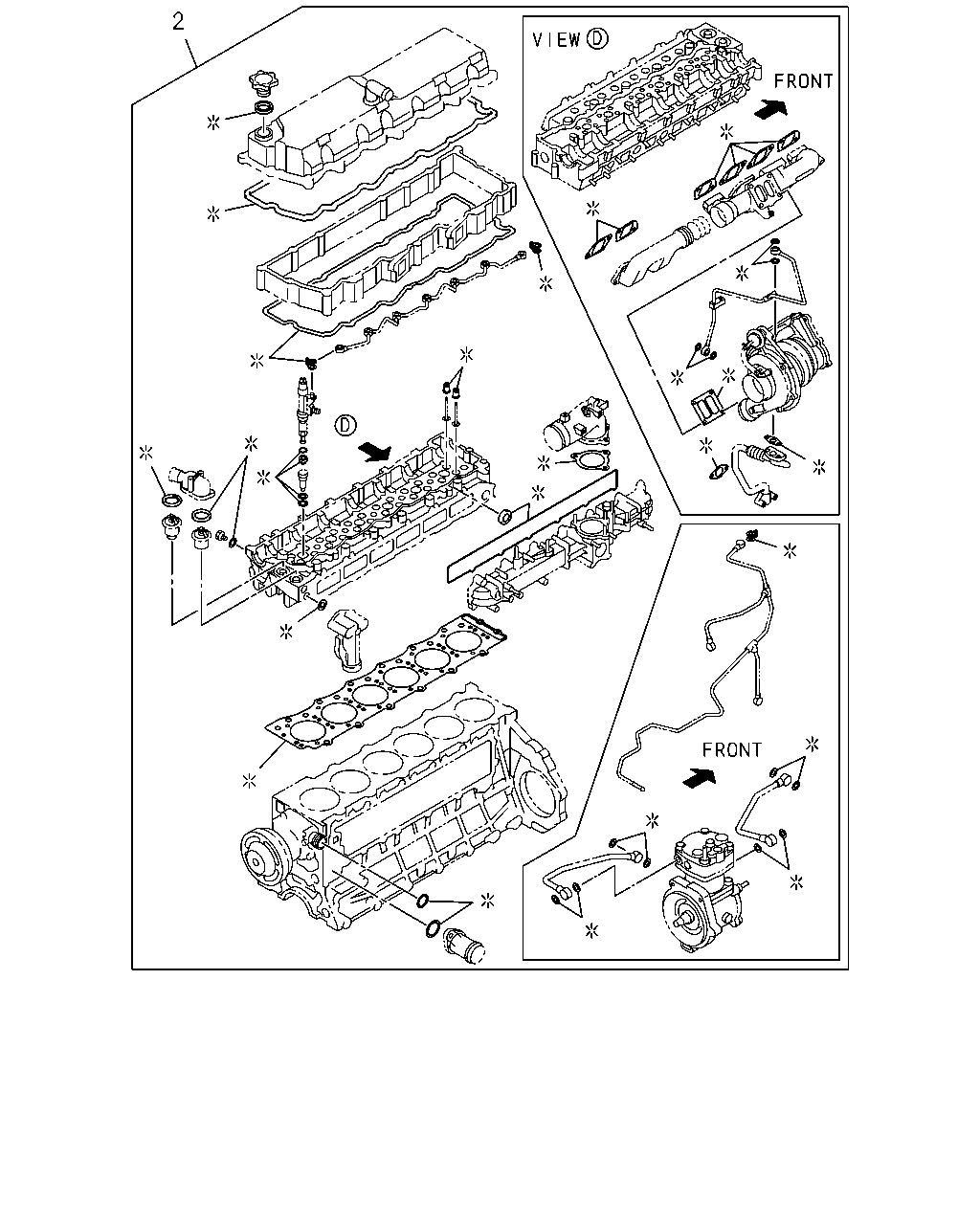

çizim 14717
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 GASKET SET; ENG HD OVERHAUL 1-87813-351-1 01 1 0809-0907 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-448-4 01 1 0908-1301 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-061-0 01 1 1302-1312 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-213-0 01 1 1401-1408 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-682-0 01 1 1409-1501 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87815-087-0 01 1 1502- ● ●

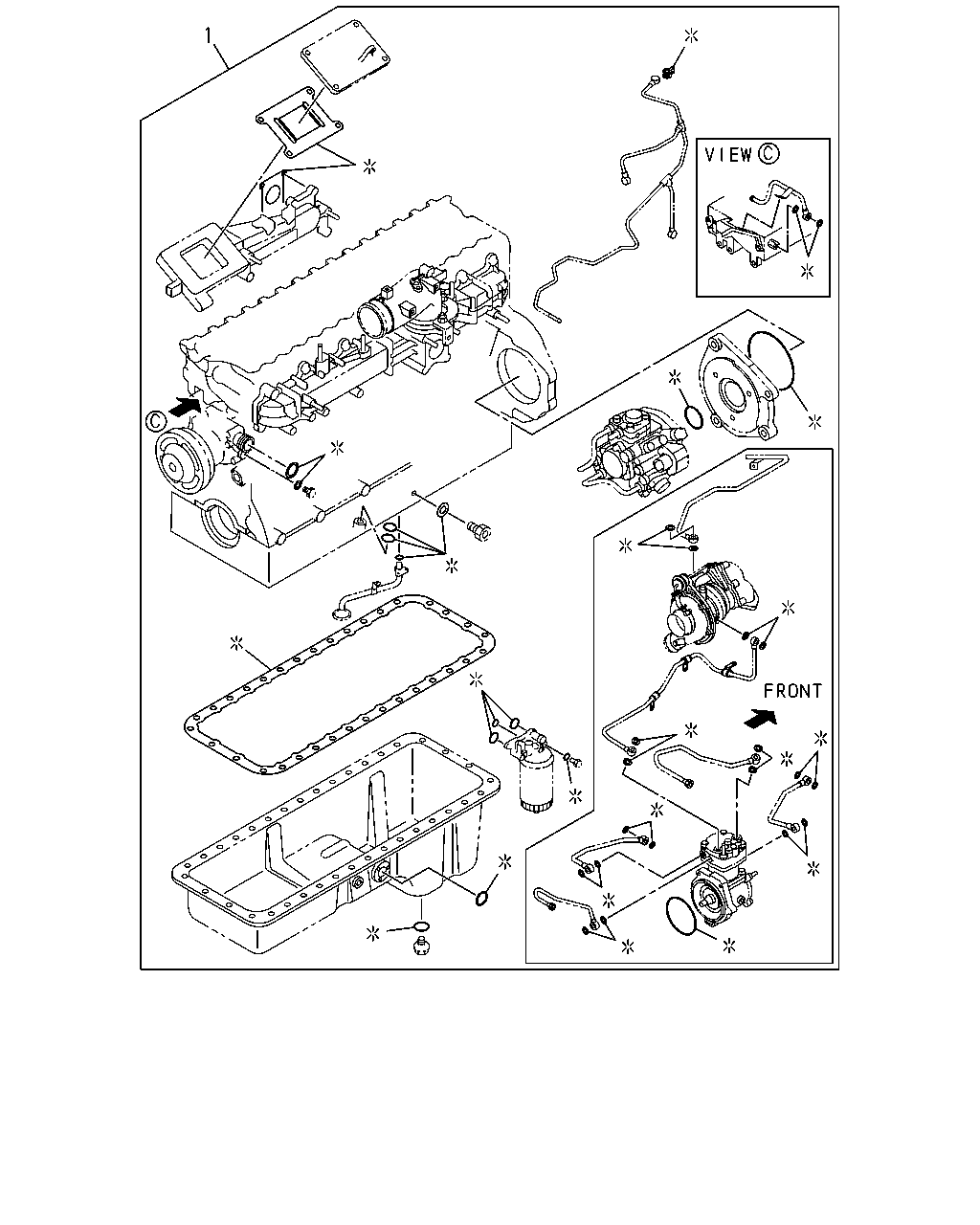

çizim 187912
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL 1-87813-350-1 01 1 0809-0907 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-447-0 01 1 0908-0911 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-545-4 01 1 0912-1301 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-060-0 01 1 1302-1308 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-157-0 01 1 1309-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-212-0 01 1 1401-1408 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-681-0 01 1 1409-1501 ● ●
1 GASKET SET; ENG OVERHAUL 1-87815-086-0 01 1 1502- ● ●

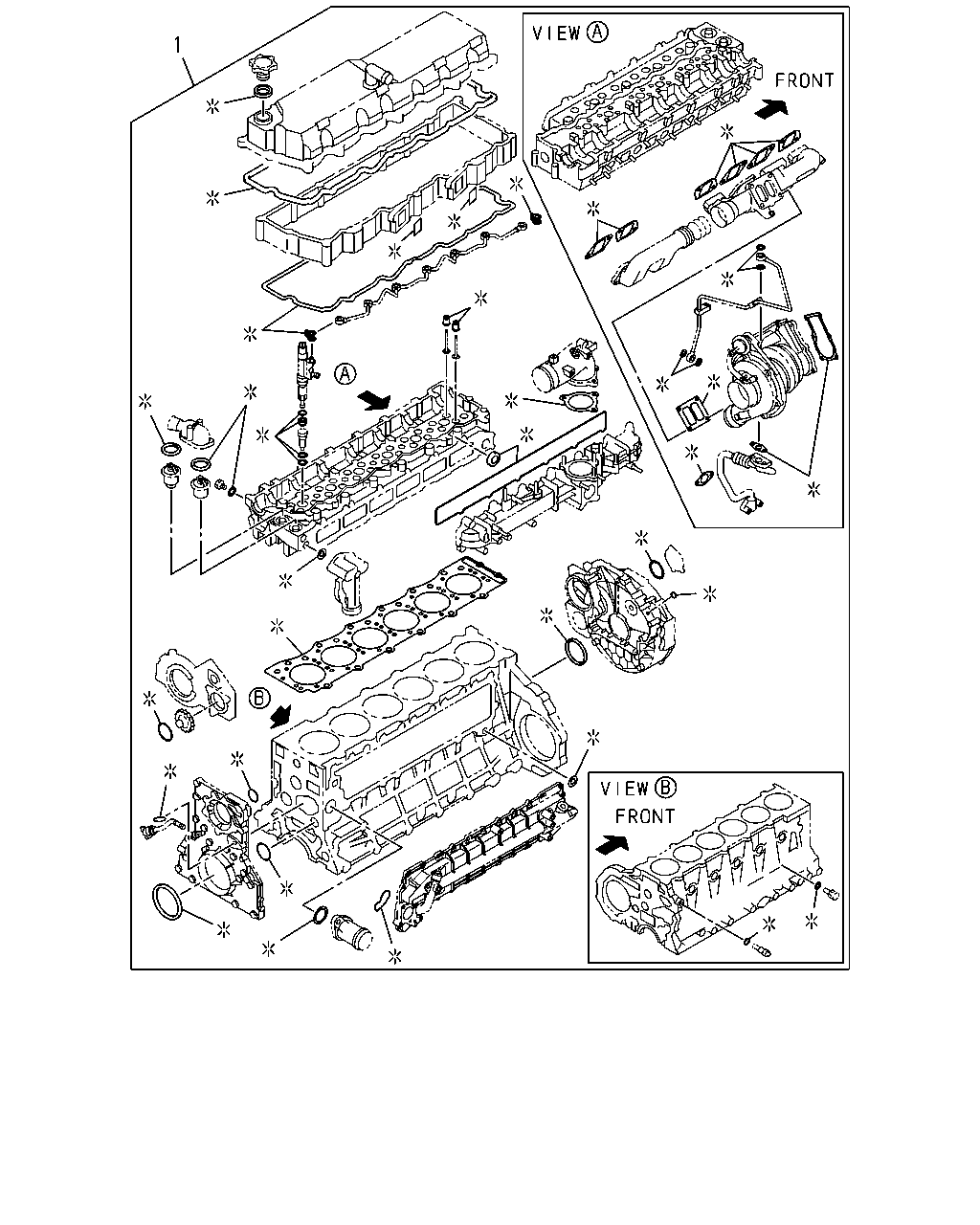

çizim 187913
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL 1-87813-350-1 01 1 0809-0907 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-447-0 01 1 0908-0911 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-545-4 01 1 0912-1301 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-060-0 01 1 1302-1308 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-157-0 01 1 1309-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-212-0 01 1 1401-1408 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-681-0 01 1 1409-1501 ● ●
1 GASKET SET; ENG OVERHAUL 1-87815-086-0 01 1 1502- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
