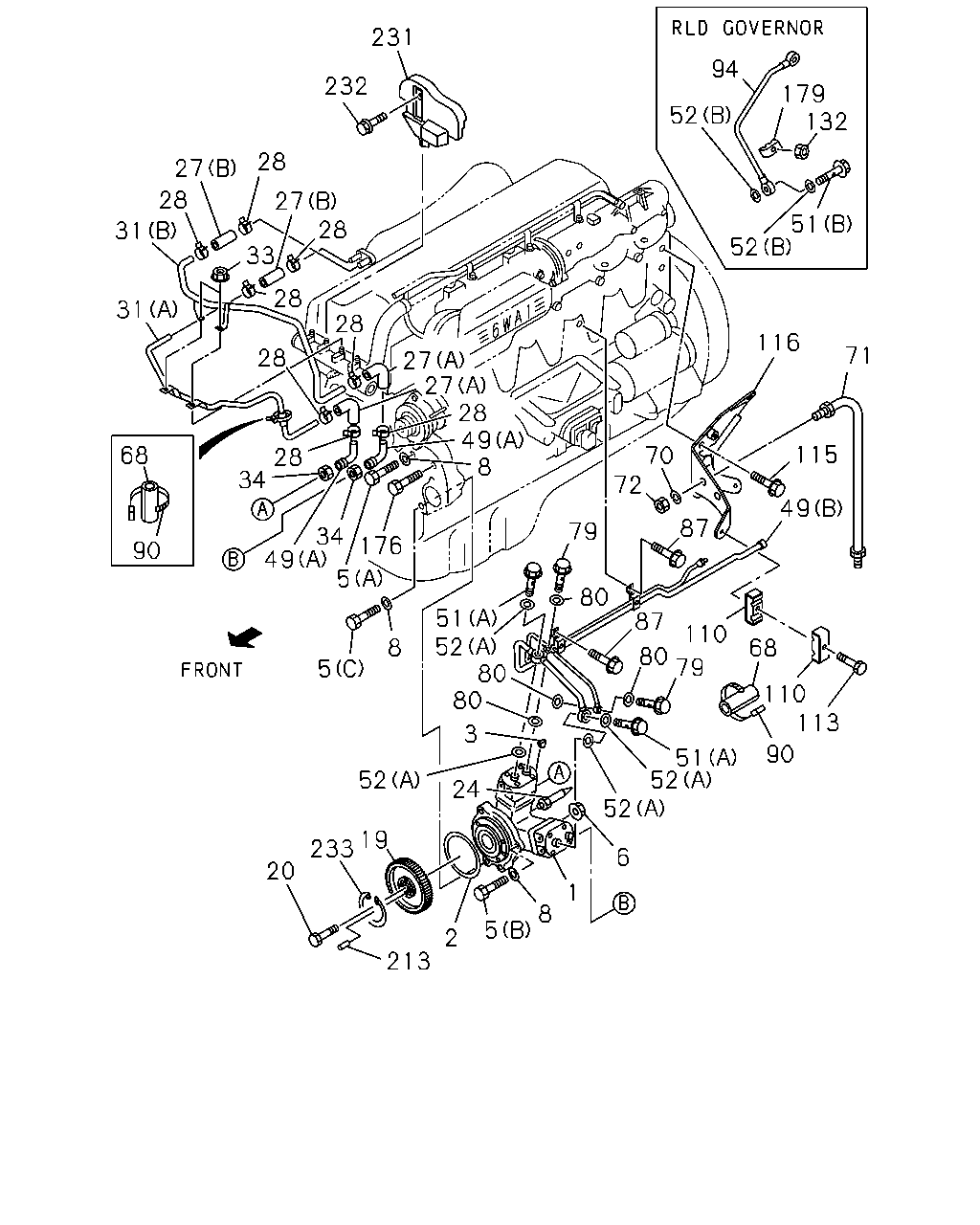

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#6934) — 175 parça
çizim 5920
231 94 232 179 132 52 28 27 28 27 28 51 52 31 33 28 27 27 28 49 8 31 28 116 71 28 70 72 115 68 28 34 49 87 79 34 176 90 49 5 80 87 51 52 80 80 110 8 68 80 79 5 110 113 3 90 51 52 52 52 24 19 233 6 20 1 8 5 2 213
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		1-19100-300-2 01 1 9812-9901 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		1-19100-300-2 01 1 9902-9904 ● ● ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		1-19100-300-2 01 1 9905-9906 ● ● ● ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		1-19100-300-3 01 1 9907- ● ● ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-476-0 01 1 9812-9901 ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-476-0 01 1 9902-9904 ● ● ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-476-0 01 1 9905-9906 ● ● ● ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-476-0 01 1 9907- ● ● ●
3 KEY; COUPLING,INJ PUMP 9-08055-622-0 01 1 9812-9901 ●
3 KEY; COUPLING,INJ PUMP 9-08055-622-0 01 1 9902-9904 ● ● ●
3 KEY; COUPLING,INJ PUMP 9-08055-622-0 01 1 9905-9906 ● ● ● ●
3 KEY; COUPLING,INJ PUMP 9-08055-622-0 01 1 9907- ● ● ●
5 BOLT; AIR CMPR FIX
(A) M14X128 		8-94399-253-1 01 1 9812-9901 ●
5 BOLT; AIR CMPR FIX
(A) M14X128 		8-94399-253-1 01 1 9902-9904 ● ● ●
5 BOLT; AIR CMPR FIX
(A) M14X128 		8-94399-253-1 01 1 9905-9906 ● ● ● ●
5 BOLT; AIR CMPR FIX
(A) M14X128 		8-94399-253-1 01 1 9907- ● ● ●
5 BOLT; AIR CMPR FIX
(B) M14X90 		9-91666-490-0 01 1 9812-9901 ●
5 BOLT; AIR CMPR FIX
(B) M14X90 		9-91666-490-0 01 1 9902-9904 ● ● ●
5 BOLT; AIR CMPR FIX
(B) M14X90 		9-91666-490-0 01 1 9905-9906 ● ● ● ●
5 BOLT; AIR CMPR FIX
(B) M14X90 		9-91666-490-0 01 1 9907- ● ● ●
5 BOLT; AIR CMPR FIX
AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140 		1-09020-112-0 01 1 9812-9901 ●
5 BOLT; AIR CMPR FIX
AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140 		1-09020-112-0 01 1 9902-9904 ● ● ●
5 BOLT; AIR CMPR FIX
AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140 		1-09020-112-0 01 1 9905-9906 ● ● ● ●
5 BOLT; AIR CMPR FIX
AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140 		1-09020-112-0 01 1 9907- ● ● ●
5 BOLT; AIR CMPR FIX
HEATER & DEFROSTER(C41) (C) M14X100 		9-91666-400-0 01 1 9812-9901 ●
5 BOLT; AIR CMPR FIX
HEATER & DEFROSTER(C41) (C) M14X100 		9-91666-400-0 01 1 9902-9904 ● ● ●
5 BOLT; AIR CMPR FIX
HEATER & DEFROSTER(C41) (C) M14X100 		9-91666-400-0 01 1 9905-9906 ● ● ● ●
5 BOLT; AIR CMPR FIX
HEATER & DEFROSTER(C41) (C) M14X100 		9-91666-400-0 01 1 9907- ● ● ●
6 NUT; AIR CMPR
M14 FLANGE 		0-91150-114-0 01 1 9812-9901 ●
6 NUT; AIR CMPR
M14 FLANGE 		0-91150-114-0 01 1 9902-9904 ● ● ●
6 NUT; AIR CMPR
M14 FLANGE 		0-91150-114-0 01 1 9905-9906 ● ● ● ●
6 NUT; AIR CMPR
M14 FLANGE 		0-91150-114-0 01 1 9907- ● ● ●
8 WASHER; PL,AIR CMPR
ID=15 OD=26 		9-09164-514-0 03 1 9812-9901 ●
8 WASHER; PL,AIR CMPR
ID=15 OD=26 		9-09164-514-0 03 1 9902-9904 ● ● ●
8 WASHER; PL,AIR CMPR
ID=15 OD=26 		9-09164-514-0 03 1 9905-9906 ● ● ● ●
8 WASHER; PL,AIR CMPR
ID=15 OD=26 		9-09164-514-0 03 1 9907- ● ● ●
19 GEAR; INJ PUMP
Z=54 		1-12524-111-1 01 1 9812-9901 ●
19 GEAR; INJ PUMP
Z=54 		1-12524-111-1 01 1 9902-9904 ● ● ●
19 GEAR; INJ PUMP
Z=54 		1-12524-111-1 01 1 9905-9906 ● ● ● ●
19 GEAR; INJ PUMP
Z=54 		1-12524-111-1 01 1 9907- ● ● ●
20 BOLT; GEAR TO SHAFT
M12X39 FLANGE 		1-09070-116-0 05 1 9812-9901 ●
20 BOLT; GEAR TO SHAFT
M12X39 FLANGE 		1-09070-116-0 05 1 9902-9904 ● ● ●
20 BOLT; GEAR TO SHAFT
M12X39 FLANGE 		1-09070-116-0 05 1 9905-9906 ● ● ● ●
20 BOLT; GEAR TO SHAFT
M12X39 FLANGE 		1-09070-116-0 05 1 9907- ● ● ●
24 POINTER; AIR CMPR 1-11327-017-0 01 1 9812-9901 ●
24 POINTER; AIR CMPR 1-11327-017-0 01 1 9902-9904 ● ● ●
24 POINTER; AIR CMPR 1-11327-017-0 01 1 9905-9906 ● ● ● ●
24 POINTER; AIR CMPR 1-11327-017-1 01 1 9907- ● ● ●
27 HOSE; AIR CMPR,SUCTION
(B) 		0-02117-080-0 02 1 9812-9901 ●
27 HOSE; AIR CMPR,SUCTION
(B) 		0-02117-080-0 02 1 9902-9904 ● ● ●
27 HOSE; AIR CMPR,SUCTION
(B) 		0-02117-080-0 02 1 9905-9906 ● ● ● ●
27 HOSE; AIR CMPR,SUCTION
(B) 		0-02117-080-0 02 1 9907- ● ● ●
27 HOSE; AIR CMPR,SUCTION
(A) 		1-09360-916-0 02 1 9812-9901 ●
27 HOSE; AIR CMPR,SUCTION
(A) 		1-09360-916-0 02 1 9902-9904 ● ● ●
27 HOSE; AIR CMPR,SUCTION
(A) 		1-09360-916-0 02 1 9905-9906 ● ● ● ●
27 HOSE; AIR CMPR,SUCTION
(A) 		1-09360-916-0 02 1 9907- ● ● ●
28 CLIP; HOSE,AIR CMPR
ID=22.7 		8-94466-382-0 08 1 9812-9901 ●
28 CLIP; HOSE,AIR CMPR
ID=22.7 		8-94466-382-0 08 1 9902-9904 ● ● ●
28 CLIP; HOSE,AIR CMPR
ID=22.7 		8-94466-382-0 08 1 9905-9906 ● ● ● ●
28 CLIP; HOSE,AIR CMPR
ID=22.7 		8-94466-382-0 08 1 9907- ● ● ●
31 PIPE; AIR,AIR CMPR SUCTION
(A) 		1-19192-991-0 01 1 9812-9901 ●
31 PIPE; AIR,AIR CMPR SUCTION
(A) 		1-19192-991-0 01 1 9902- ● ● ●
31 PIPE; AIR,AIR CMPR SUCTION
(B) 		1-19192-992-0 01 1 9812-9901 ●
31 PIPE; AIR,AIR CMPR SUCTION
(B) 		1-19192-992-0 01 1 9902- ● ● ●
31 PIPE; AIR,AIR CMPR SUCTION
(A) 		1-19192-659-0 01 1 9905-9906 ●
31 PIPE; AIR,AIR CMPR SUCTION
(B) 		1-19192-993-0 01 1 9905-9906 ●
33 NUT; PIPE FIX
M8 FLANGE 		0-91150-108-0 02 1 9812-9901 ●
33 NUT; PIPE FIX
M8 FLANGE 		0-91150-108-0 02 1 9902-9904 ● ● ●
33 NUT; PIPE FIX
M8 FLANGE 		0-91150-108-0 02 1 9905-9906 ● ● ● ●
33 NUT; PIPE FIX
M8 FLANGE 		0-91150-108-0 02 1 9907- ● ● ●
34 NUT; LK SUCTION PIPE 9-09840-254-0 02 1 9812-9901 ●
34 NUT; LK SUCTION PIPE 9-09840-254-0 02 1 9902-9904 ● ● ●
34 NUT; LK SUCTION PIPE 9-09840-254-0 02 1 9905-9906 ● ● ● ●
34 NUT; LK SUCTION PIPE 9-09840-254-0 02 1 9907- ● ● ●
49 PIPE; AIR,CHARGE
(B) 		1-19192-661-2 01 1 9812-9901 ●
49 PIPE; AIR,CHARGE
(B) 		1-19192-661-2 01 1 9902-9904 ● ● ●
49 PIPE; AIR,CHARGE
(B) 		1-19192-661-2 01 1 9905-9906 ● ● ● ●
49 PIPE; AIR,CHARGE
(B) 		1-19192-661-2 01 1 9907- ● ● ●
49 PIPE; AIR,CHARGE
(A) 		9-19119-032-0 02 1 9812-9901 ●
49 PIPE; AIR,CHARGE
(A) 		9-19119-032-0 02 1 9902-9904 ● ● ●
49 PIPE; AIR,CHARGE
(A) 		9-19119-032-0 02 1 9905-9906 ● ● ● ●
49 PIPE; AIR,CHARGE
(A) 		9-19119-032-0 02 1 9907- ● ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
(A) M24X39 		1-09675-175-1 02 1 9812-9901 ●
51 BOLT; EYE,AIR PIPE TO CMPR
(A) M24X39 		1-09675-175-1 02 1 9902-9904 ● ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
(A) M24X39 		1-09675-175-1 02 1 9905-9906 ● ● ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
(A) M24X39 		1-09675-175-1 02 1 9907- ● ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
RLD GOVERNOR(SD7) (B) M10X21 FLANGE 		1-09675-077-0 01 1 9902-9904 ●
51 BOLT; EYE,AIR PIPE TO CMPR
RLD GOVERNOR(SD7) (B) M10X21 FLANGE 		1-09675-077-0 01 1 9905-9906 ●
51 BOLT; EYE,AIR PIPE TO CMPR
(B) M10X21 FLANGE 		1-09675-077-0 01 1 9905-9906 ●
51 BOLT; EYE,AIR PIPE TO CMPR
RLD GOVERNOR(SD7) (B) M10X21 FLANGE 		1-09675-077-0 01 1 9907- ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=24.5 OD=32 		9-09571-424-0 04 1 9812-9901 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=24.5 OD=32 		9-09571-424-0 04 1 9902-9904 ● ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=24.5 OD=32 		9-09571-424-0 04 1 9905-9906 ● ● ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=24.5 OD=32 		9-09571-424-0 04 1 9907- ● ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). RLD GOVERNOR(SD7) (B) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9902-9904 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). RLD GOVERNOR(SD7). (B) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9905-9906 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9905-9906 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). RLD GOVERNOR(SD7) (B) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9907- ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 02 1 9812-9901 ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 02 1 9902-9902 ● ● ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 02 1 9902-9902 ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 01 1 9903-9904 ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 01 1 9905-9906 ● ● ● ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 01 1 9905-9906 ● ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 01 1 9907-9908 ● ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 01 1 9909- ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 03 1 9903-9904 ● ● ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 02 1 9905-9906 ● ● ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 03 1 9907- ● ● ●
70 WASHER; LK
ID=12.2 		9-09150-512-0 01 1 9812-9901 ●
70 WASHER; LK
ID=12.2 		9-09150-512-0 01 1 9902-9904 ● ● ●
70 WASHER; LK
ID=12.2 		9-09150-512-0 01 1 9905-9906 ● ● ● ●
70 WASHER; LK
ID=12.2 		9-09150-512-0 01 1 9907- ● ● ●
71 HOSE; FLEX,AIR GOV
L=520 		1-09363-657-0 01 1 9812-9901 ●
71 HOSE; FLEX,AIR GOV
L=520 		1-09363-657-0 01 1 9902-9904 ● ● ●
71 HOSE; FLEX,AIR GOV
L=520 		1-09363-657-0 01 1 9905-9906 ● ● ● ●
71 HOSE; FLEX,AIR GOV
L=520 		1-09363-657-0 01 1 9907- ● ● ●
72 NUT; GOV HOSE
M12 		9-09840-280-0 01 1 9812-9901 ●
72 NUT; GOV HOSE
M12 		9-09840-280-0 01 1 9902-9904 ● ● ●
72 NUT; GOV HOSE
M12 		9-09840-280-0 01 1 9905-9906 ● ● ● ●
72 NUT; GOV HOSE
M12 		9-09840-280-0 01 1 9907- ● ● ●
79 BOLT; EYE,AIR PIPE TO CMPR
M14X27 FLANGE 		1-09675-086-0 02 1 9812-9901 ●
79 BOLT; EYE,AIR PIPE TO CMPR
M14X27 FLANGE 		1-09675-086-0 02 1 9902-9904 ● ● ●
79 BOLT; EYE,AIR PIPE TO CMPR
M14X27 FLANGE 		1-09675-086-0 02 1 9905-9906 ● ● ● ●
79 BOLT; EYE,AIR PIPE TO CMPR
M14X27 FLANGE 		1-09675-086-0 02 1 9907- ● ● ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 04 1 9812-9901 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 04 1 9902-9904 ● ● ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 04 1 9905-9906 ● ● ● ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 04 1 9907- ● ● ●
87 BOLT; BRKT FIX
M10X20 FLANGE 		0-28181-020-0 02 1 9812-9901 ●
87 BOLT; BRKT FIX
M10X20 FLANGE 		0-28181-020-0 02 1 9902-9904 ● ● ●
87 BOLT; BRKT FIX
M10X20 FLANGE 		0-28181-020-0 02 1 9905-9906 ● ● ● ●
87 BOLT; BRKT FIX
M10X20 FLANGE 		0-28181-020-0 02 1 9907- ● ● ●
90 CLIP; HARNESS
L=140 		5-09707-031-0 02 1 9812-9901 ●
90 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 9902- ● ● ●
94 PIPE; AIR,BOOST
RLD GOVERNOR(SD7) 		1-19193-109-0 01 1 9902- ●
94 PIPE; AIR,BOOST 1-19192-975-0 01 1 9905-9906 ●
110 CLIP; AIR PIPE 1-09701-210-0 02 1 9812-9901 ●
110 CLIP; AIR PIPE 1-09701-210-0 02 1 9902-9904 ● ● ●
110 CLIP; AIR PIPE 1-09701-210-0 02 1 9905-9906 ● ● ● ●
110 CLIP; AIR PIPE 1-09701-210-0 02 1 9907- ● ● ●
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 9812-9901 ●
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 9902-9904 ● ● ●
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 9905-9906 ● ● ● ●
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 9907- ● ● ●
115 BOLT; AIR PIPE
M10X20 FLANGE 		0-28181-020-0 02 1 9812-9901 ●
115 BOLT; AIR PIPE
M10X20 FLANGE 		0-28181-020-0 02 1 9902-9904 ● ● ●
115 BOLT; AIR PIPE
M10X20 FLANGE 		0-28181-020-0 02 1 9905-9906 ● ● ● ●
115 BOLT; AIR PIPE
M10X20 FLANGE 		0-28181-020-0 02 1 9907- ● ● ●
116 BRACKET; AIR PIPE 1-19199-212-0 01 1 9812-9901 ●
116 BRACKET; AIR PIPE 1-19199-212-0 01 1 9902-9904 ● ● ●
116 BRACKET; AIR PIPE 1-19199-212-0 01 1 9905-9906 ● ● ● ●
116 BRACKET; AIR PIPE 1-19199-212-0 01 1 9907- ● ● ●
132 NUT; CLIP
RLD GOVERNOR(SD7) M6 FLANGE 		0-91150-106-0 01 1 9902-9904 ●
132 NUT; CLIP
RLD GOVERNOR(SD7) M6 FLANGE 		0-91150-106-0 01 1 9905-9906 ●
132 NUT; CLIP
M6 FLANGE 		0-91150-106-0 01 1 9905-9906 ●
132 NUT; CLIP
RLD GOVERNOR(SD7) M6 FLANGE 		0-91150-106-0 01 1 9907- ●
176 BOLT; BRKT FIX
M10X135 		8-94397-139-1 01 1 9812-9901 ●
176 BOLT; BRKT FIX
M10X135 		8-94397-139-1 01 1 9902-9904 ● ● ●
176 BOLT; BRKT FIX
M10X135 		8-94397-139-1 01 1 9905-9906 ● ● ● ●
176 BOLT; BRKT FIX
M10X135 		8-94397-139-1 01 1 9907- ● ● ●
179 CLIP; PIPE
RLD GOVERNOR(SD7) 		1-09701-132-0 02 1 9902-9904 ●
179 CLIP; PIPE
RLD GOVERNOR(SD7) 		1-09701-132-0 02 1 9905-9906 ●
179 CLIP; PIPE 1-09701-132-0 02 1 9905-9906 ●
179 CLIP; PIPE
RLD GOVERNOR(SD7) 		1-09701-132-1 02 1 9907- ●
213 PIN; AIR CMPR GEAR
OD=5 L=10 		9-08150-510-0 01 1 9812-9901 ●
213 PIN; AIR CMPR GEAR
OD=5 L=10 		9-08150-510-0 01 1 9902-9904 ● ● ●
213 PIN; AIR CMPR GEAR
OD=5 L=10 		9-08150-510-0 01 1 9905-9906 ● ● ● ●
213 PIN; AIR CMPR GEAR
OD=5 L=10 		9-08150-510-0 01 1 9907- ● ● ●
231 INSULATOR; HEAD COVER 1-19389-208-1 01 1 9812-9901 ●
231 INSULATOR; HEAD COVER 1-19389-208-1 01 1 9902- ● ●
232 BOLT; INSULATOR
M8X12 FLANGE 		0-28080-812-0 01 1 9812-9901 ●
232 BOLT; INSULATOR
M8X12 FLANGE 		0-28080-812-0 01 1 9902- ● ●
233 RING; FRICTION 1-12529-003-0 01 1 9812-9901 ●
233 RING; FRICTION 1-12529-003-0 01 1 9902- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
