Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#69336) — 182 parça

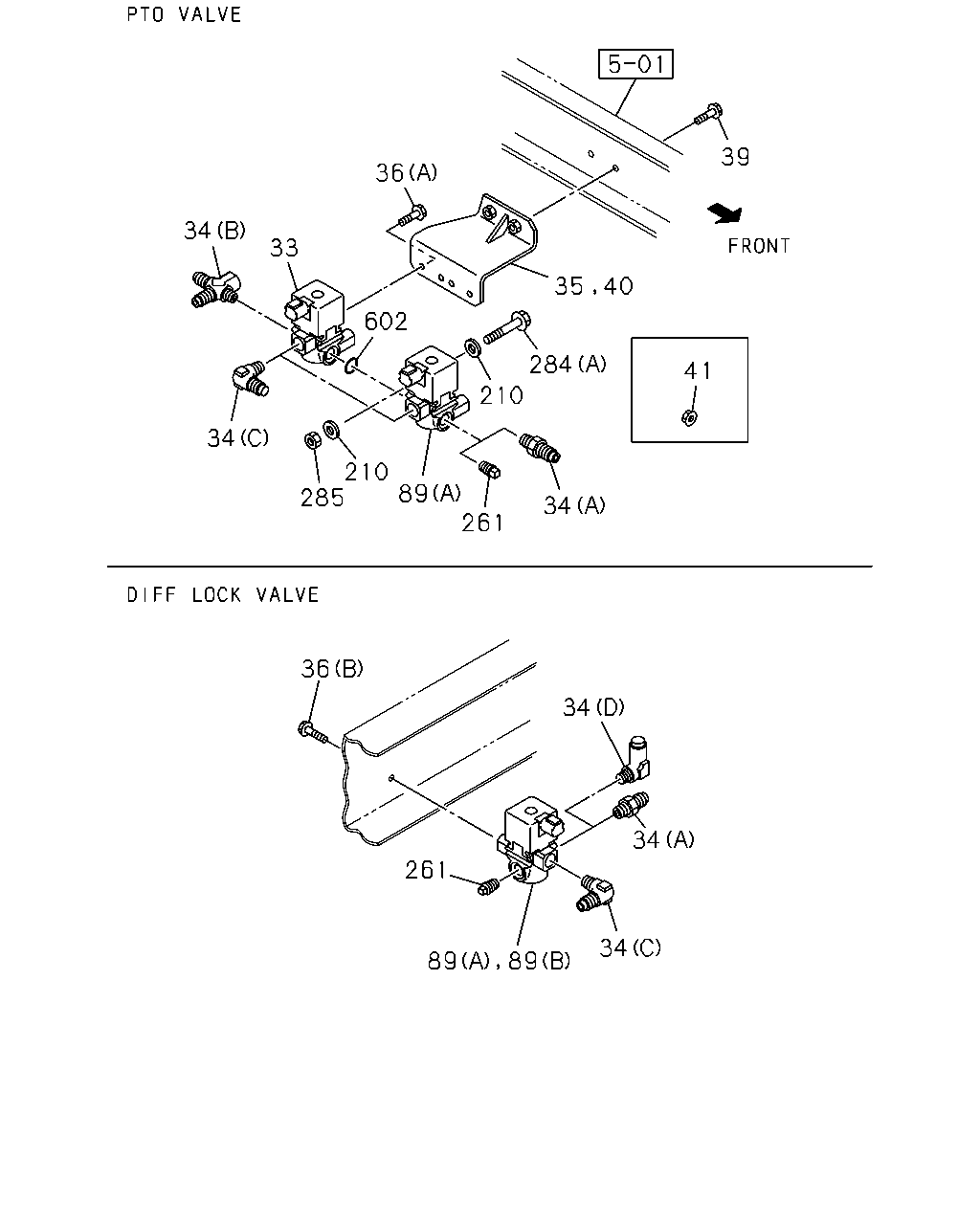

39 36 35 40 34 33 602 210 34 210 285 89 261 34 36 34 34 261 34 89 89 41 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6>	1-82563-871-2	01	1	0812-1002
33	VALVE; MAG,PTO CONT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N>	1-82563-871-2	01	1	1003-
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (D) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1003-1503
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (D) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1003-
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 4100MM(41W) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1003-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0812-1002
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1003-
34	CONNECTOR; MAG VLV,INL PORT REARWARD INNER SINGLE TIRE<YK3> EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1003-
34	CONNECTOR; MAG VLV,INL PORT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1003-
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0812-1002
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0812-1002
34	CONNECTOR; MAG VLV,INL PORT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1003-
34	CONNECTOR; MAG VLV,INL PORT REARWARD INNER SINGLE TIRE<YK3> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1003-
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0812-1002
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0812-1002
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1003-
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1003-
34	CONNECTOR; MAG VLV,INL PORT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N>,RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1003-
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0812-0901
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0902-1011
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1012-
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6>	8-98034-702-0	01	1	0812-1002
35	BRACKET; MAG VLV,PTO CONT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N>	8-98034-702-0	01	1	1003-
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> (A) M8X20 FLANGE	0-28650-820-0	02	1	0812-1002
36	BOLT; MAG VLV,PTO CONT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (A) M8X20 FLANGE	0-28650-820-0	02	1	1003-
36	BOLT; MAG VLV,PTO CONT REARWARD INNER SINGLE TIRE<YK3> (A) M8X20 FLANGE	0-28650-820-0	02	1	1003-
36	BOLT; MAG VLV,PTO CONT (B) M8X25 FLANGE	0-28650-825-0	02	1	0812-
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M10X30 FLANGE	0-28651-030-0	02	1	0812-1002
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> M10X30 FLANGE	0-28651-030-0	02	1	1003-
39	BOLT; BRKT,MAG VLV REARWARD INNER SINGLE TIRE<YK3> EXC. PTO CONTROL<SV6> M10X30 FLANGE	0-28651-030-0	02	1	1003-
40	BRACKET; MAG VLV REARWARD INNER SINGLE TIRE<YK3>	8-98034-702-0	01	1	1003-
41	NUT; BRKT,MAG VLV REARWARD INNER SINGLE TIRE<YK3> M8 FLANGE	0-91180-108-0	02	1	1003-1008
89	VALVE; MAG,DIFF LOCK PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> (A)	1-82563-871-2	02	1	1003-1205
89	VALVE; MAG,DIFF LOCK PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> (A)	1-82563-871-2	01	1	1206-
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0812-1002
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	1003-1205
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (A)	1-82563-871-2	01	1	1003-1205
89	VALVE; MAG,DIFF LOCK REARWARD INNER SINGLE TIRE<YK3> EXC. PTO CONTROL<SV6> (A)	1-82563-871-2	01	1	1003-1205
89	VALVE; MAG,DIFF LOCK (B) ANODIZING	8-97641-594-0	01	1	1206-
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (B) ANODIZING	8-97641-594-0	01	1	1206-
89	VALVE; MAG,DIFF LOCK REARWARD INNER SINGLE TIRE<YK3> (B) ANODIZING	8-97641-594-0	01	1	1206-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0812-0901
210	WASHER; PL,BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W)	1-82569-266-0	02	1	0902-1002
210	WASHER; PL,BRKT	1-82569-266-0	02	1	1003-1011
210	WASHER; PL,BRKT PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3>	1-82569-266-0	02	1	1003-1011
210	WASHER; PL,BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2>	1-82569-266-0	02	1	1012-
210	WASHER; PL,BRKT PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3>	1-82569-266-0	02	1	1012-
210	WASHER; PL,BRKT WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3>	1-82569-266-0	02	1	1012-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0812-1002
261	PLUG; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> PT1/4	9-99204-513-0	01	1	0812-1002
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1003-1205
261	PLUG; MAG VLV DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> PT1/4	9-99204-513-0	01	1	1003-1205
261	PLUG; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. DIFF LOCK<C3N> PT1/4	9-99204-513-0	01	1	1003-1205
261	PLUG; MAG VLV REARWARD INNER SINGLE TIRE<YK3> PT1/4	9-99204-513-0	01	1	1003-1205
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1207-
261	PLUG; MAG VLV DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> PT1/4	9-99204-513-0	01	1	1207-
261	PLUG; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. DIFF LOCK<C3N> PT1/4	9-99204-513-0	01	1	1207-
261	PLUG; MAG VLV REARWARD INNER SINGLE TIRE<YK3> PT1/4	9-99204-513-0	01	1	1207-
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	0812-0901
284	BOLT; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M6X50 FLANGE	0-28050-650-0	01	1	0902-1002
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	1003-1011
284	BOLT; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> (A) M6X50 FLANGE	0-28050-650-0	01	1	1003-1011
284	BOLT; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> (A) M6X50 FLANGE	0-28050-650-0	01	1	1012-
284	BOLT; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> (A) M6X50 FLANGE	0-28050-650-0	01	1	1012-
284	BOLT; MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (A) M6X50 FLANGE	0-28050-650-0	01	1	1012-
284	BOLT; MAG VLV (B) M8X25 FLANGE	0-28650-825-0	02	1	0812-
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	0812-0901
285	NUT; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) M6 FLANGE	0-91180-106-0	01	1	0902-1002
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	1003-1011
285	NUT; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> M6 FLANGE	0-91180-106-0	01	1	1003-1011
285	NUT; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> M6 FLANGE	0-91180-106-0	01	1	1012-
285	NUT; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> M6 FLANGE	0-91180-106-0	01	1	1012-
285	NUT; MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> M6 FLANGE	0-91180-106-0	01	1	1012-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0812-0901
602	GASKET; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) ID=16.8	9-09565-117-0	01	1	0902-1002
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	1003-1011
602	GASKET; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> ID=16.8	9-09565-117-0	01	1	1003-1011
602	GASKET; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> ID=16.8	9-09565-117-0	01	1	1012-
602	GASKET; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> ID=16.8	9-09565-117-0	01	1	1012-
602	GASKET; MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> ID=16.8	9-09565-117-0	01	1	1012-

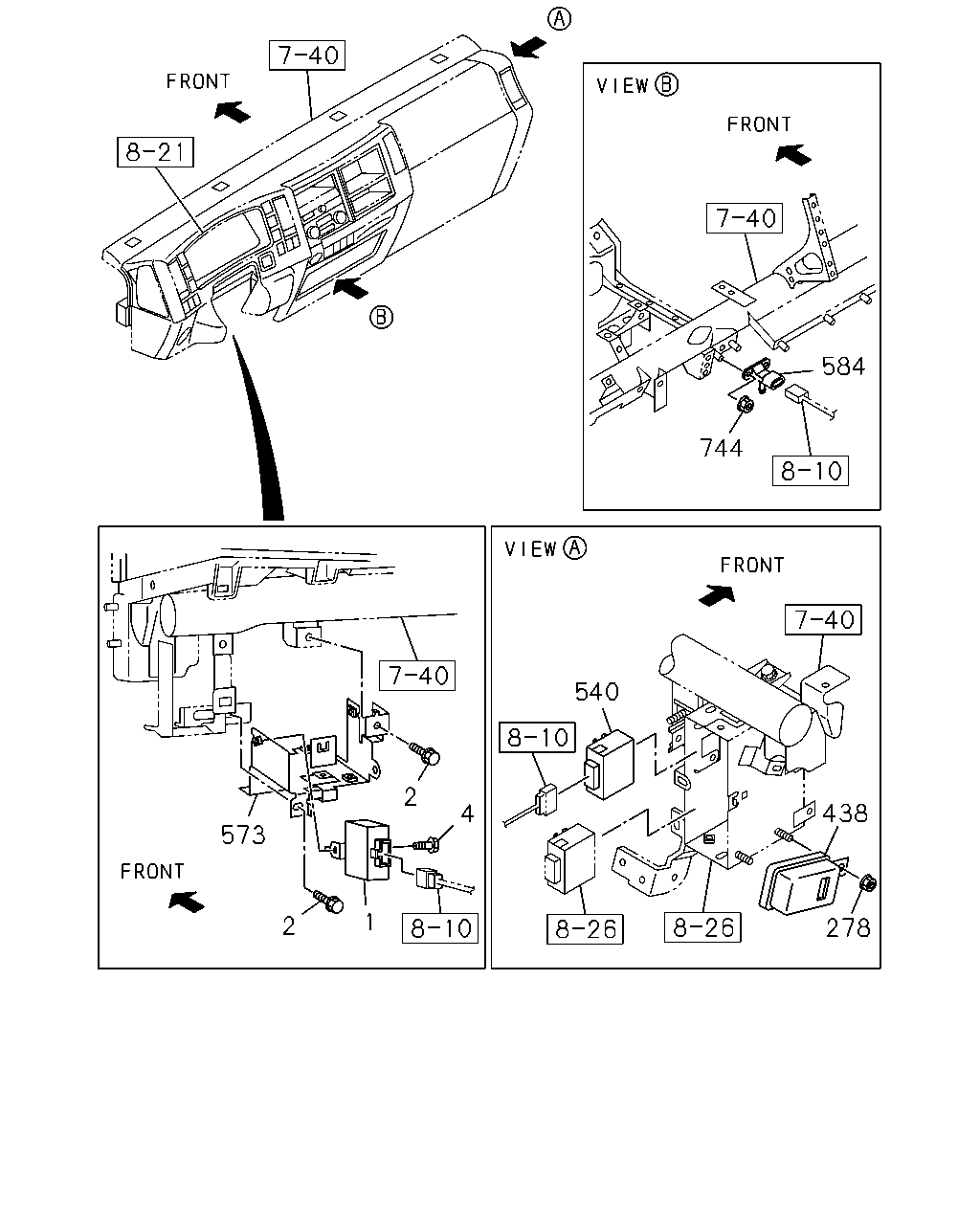

584 744 540 2 438 4 573 1 2 278

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	8-98025-533-1	01	1	0812-
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	0812-
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE	0-28650-616-0	01	1	0812-
278	NUT; CONT UNIT M6 FLANGE	0-91180-106-0	01	1	0812-
438	UNIT; SPD CONTROL	1-82550-271-0	01	1	0812-
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98060-388-0	01	1	0812-1308
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98233-976-0	01	1	1309-
573	BRACKET; FLASHER UNIT	8-97616-351-3	01	1	0812-
584	SENSOR; PRESSURE	8-98020-514-0	01	1	0812-
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	0812-

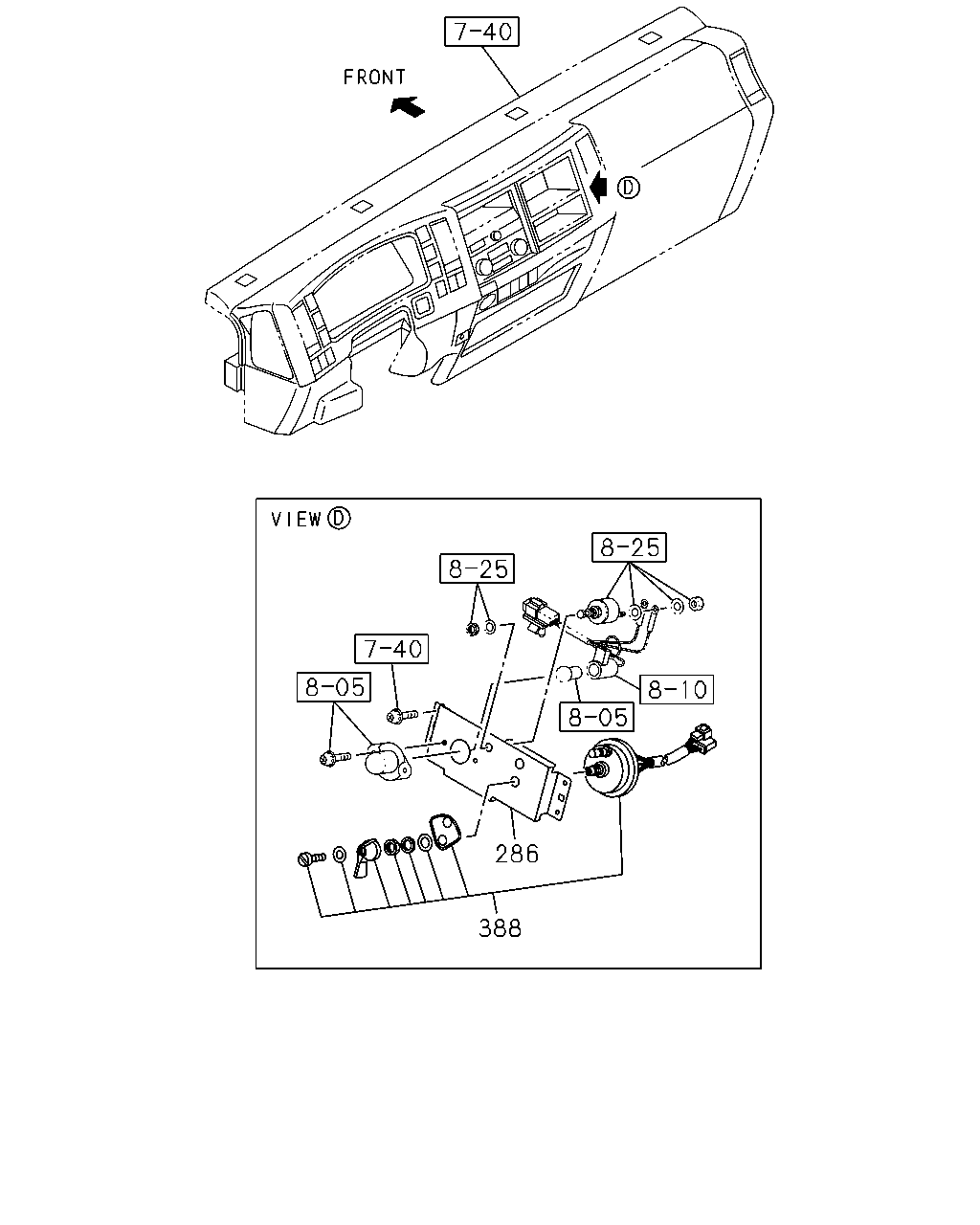

286 388

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	286	BRACKET LAMPS EXP PACKAGE<WL5>	8-97623-460-2	01	1	1003-
	388	SWITCH; ROTARY LAMPS EXP PACKAGE<WL5>	1-82430-003-0	01	1	1003-

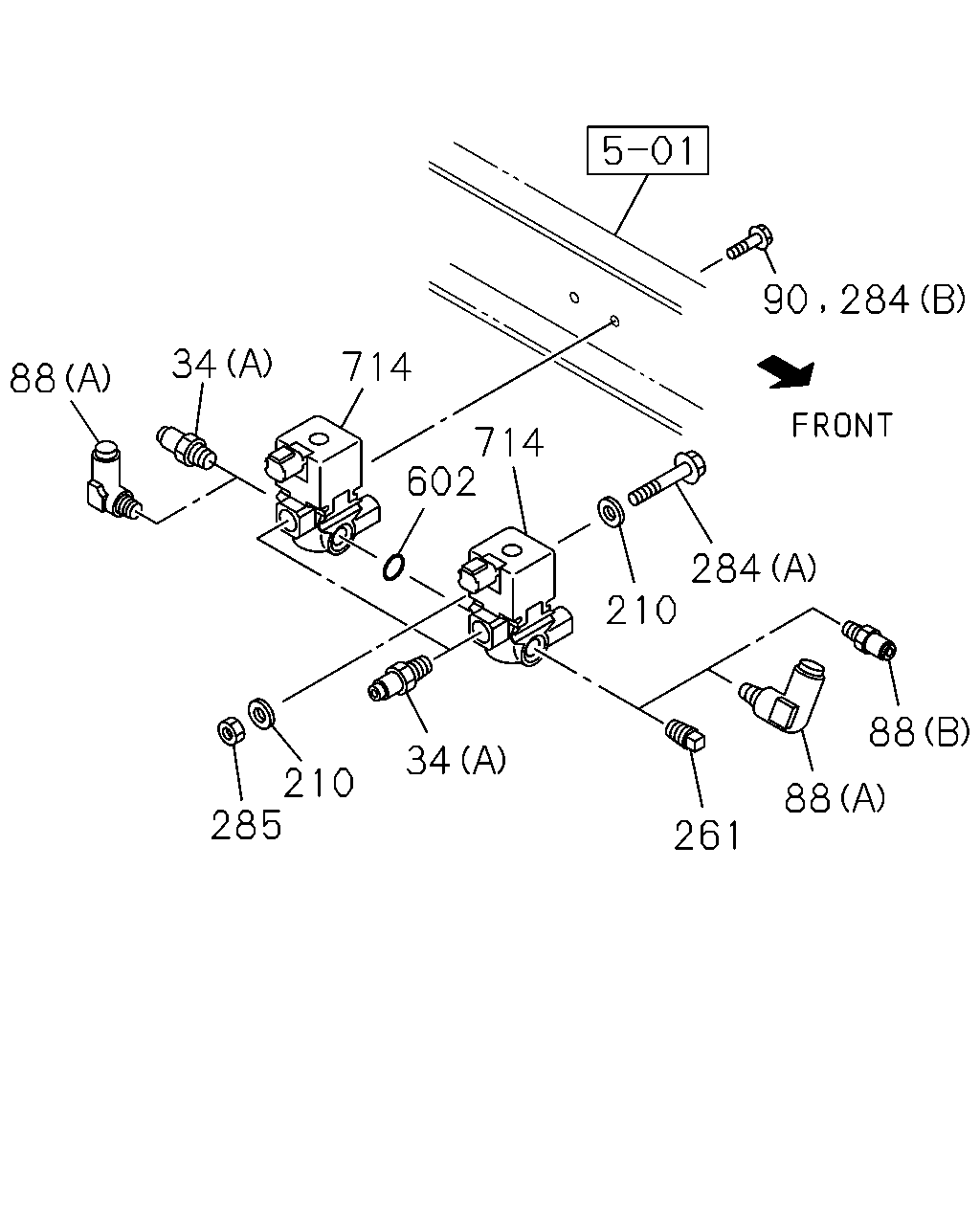

34 714 88 714 602 284 210 88 34 210 285 88 261 90 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (D) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1003-1503
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (D) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1003-
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 4100MM(41W) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1003-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0812-1002
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1003-
34	CONNECTOR; MAG VLV,INL PORT REARWARD INNER SINGLE TIRE<YK3> EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1003-
34	CONNECTOR; MAG VLV,INL PORT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1003-
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0812-1002
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0812-1002
34	CONNECTOR; MAG VLV,INL PORT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1003-
34	CONNECTOR; MAG VLV,INL PORT REARWARD INNER SINGLE TIRE<YK3> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1003-
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0812-1002
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0812-1002
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1003-
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1003-
34	CONNECTOR; MAG VLV,INL PORT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N>,RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1003-
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0812-0901
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0902-1011
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1012-
88	CONNECTOR; MAG VLV WHEEL BASE 4100MM(41W) (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1003-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-48629-258-0	02	1	0812-0901
88	CONNECTOR; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M12 & PT1/4 ELBOW	1-48629-258-0	02	1	0902-1011
88	CONNECTOR; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> (A) M12 & PT1/4 ELBOW	1-48629-258-0	02	1	1012-1503
88	CONNECTOR; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> (A) M12 & PT1/4 ELBOW	8-98299-777-0	02	1	1504-
90	BOLT; MAG VLV DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> M8X25 FLANGE	0-28650-825-0	02	1	1003-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0812-0901
210	WASHER; PL,BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W)	1-82569-266-0	02	1	0902-1002
210	WASHER; PL,BRKT	1-82569-266-0	02	1	1003-1011
210	WASHER; PL,BRKT PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3>	1-82569-266-0	02	1	1003-1011
210	WASHER; PL,BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2>	1-82569-266-0	02	1	1012-
210	WASHER; PL,BRKT PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3>	1-82569-266-0	02	1	1012-
210	WASHER; PL,BRKT WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3>	1-82569-266-0	02	1	1012-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0812-1002
261	PLUG; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> PT1/4	9-99204-513-0	01	1	0812-1002
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1003-1205
261	PLUG; MAG VLV DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> PT1/4	9-99204-513-0	01	1	1003-1205
261	PLUG; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. DIFF LOCK<C3N> PT1/4	9-99204-513-0	01	1	1003-1205
261	PLUG; MAG VLV REARWARD INNER SINGLE TIRE<YK3> PT1/4	9-99204-513-0	01	1	1003-1205
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1207-
261	PLUG; MAG VLV DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> PT1/4	9-99204-513-0	01	1	1207-
261	PLUG; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. DIFF LOCK<C3N> PT1/4	9-99204-513-0	01	1	1207-
261	PLUG; MAG VLV REARWARD INNER SINGLE TIRE<YK3> PT1/4	9-99204-513-0	01	1	1207-
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	0812-0901
284	BOLT; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M6X50 FLANGE	0-28050-650-0	01	1	0902-1002
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	1003-1011
284	BOLT; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> (A) M6X50 FLANGE	0-28050-650-0	01	1	1003-1011
284	BOLT; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> (A) M6X50 FLANGE	0-28050-650-0	01	1	1012-
284	BOLT; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> (A) M6X50 FLANGE	0-28050-650-0	01	1	1012-
284	BOLT; MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (A) M6X50 FLANGE	0-28050-650-0	01	1	1012-
284	BOLT; MAG VLV (B) M8X25 FLANGE	0-28650-825-0	02	1	0812-
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	0812-0901
285	NUT; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) M6 FLANGE	0-91180-106-0	01	1	0902-1002
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	1003-1011
285	NUT; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> M6 FLANGE	0-91180-106-0	01	1	1003-1011
285	NUT; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> M6 FLANGE	0-91180-106-0	01	1	1012-
285	NUT; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> M6 FLANGE	0-91180-106-0	01	1	1012-
285	NUT; MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> M6 FLANGE	0-91180-106-0	01	1	1012-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0812-0901
602	GASKET; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) ID=16.8	9-09565-117-0	01	1	0902-1002
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	1003-1011
602	GASKET; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> ID=16.8	9-09565-117-0	01	1	1003-1011
602	GASKET; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> ID=16.8	9-09565-117-0	01	1	1012-
602	GASKET; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> ID=16.8	9-09565-117-0	01	1	1012-
602	GASKET; MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> ID=16.8	9-09565-117-0	01	1	1012-
714	VALVE; MAG,TRANS,LOW TO HIGH	1-82563-871-2	02	1	0812-0901
714	VALVE; MAG,TRANS,LOW TO HIGH WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W)	1-82563-871-2	02	1	0902-1002
714	VALVE; MAG,TRANS,LOW TO HIGH	1-82563-871-2	02	1	1003-1011
714	VALVE; MAG,TRANS,LOW TO HIGH WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2>	1-82563-871-2	02	1	1012-
714	VALVE; MAG,TRANS,LOW TO HIGH WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3>	1-82563-871-2	02	1	1012-

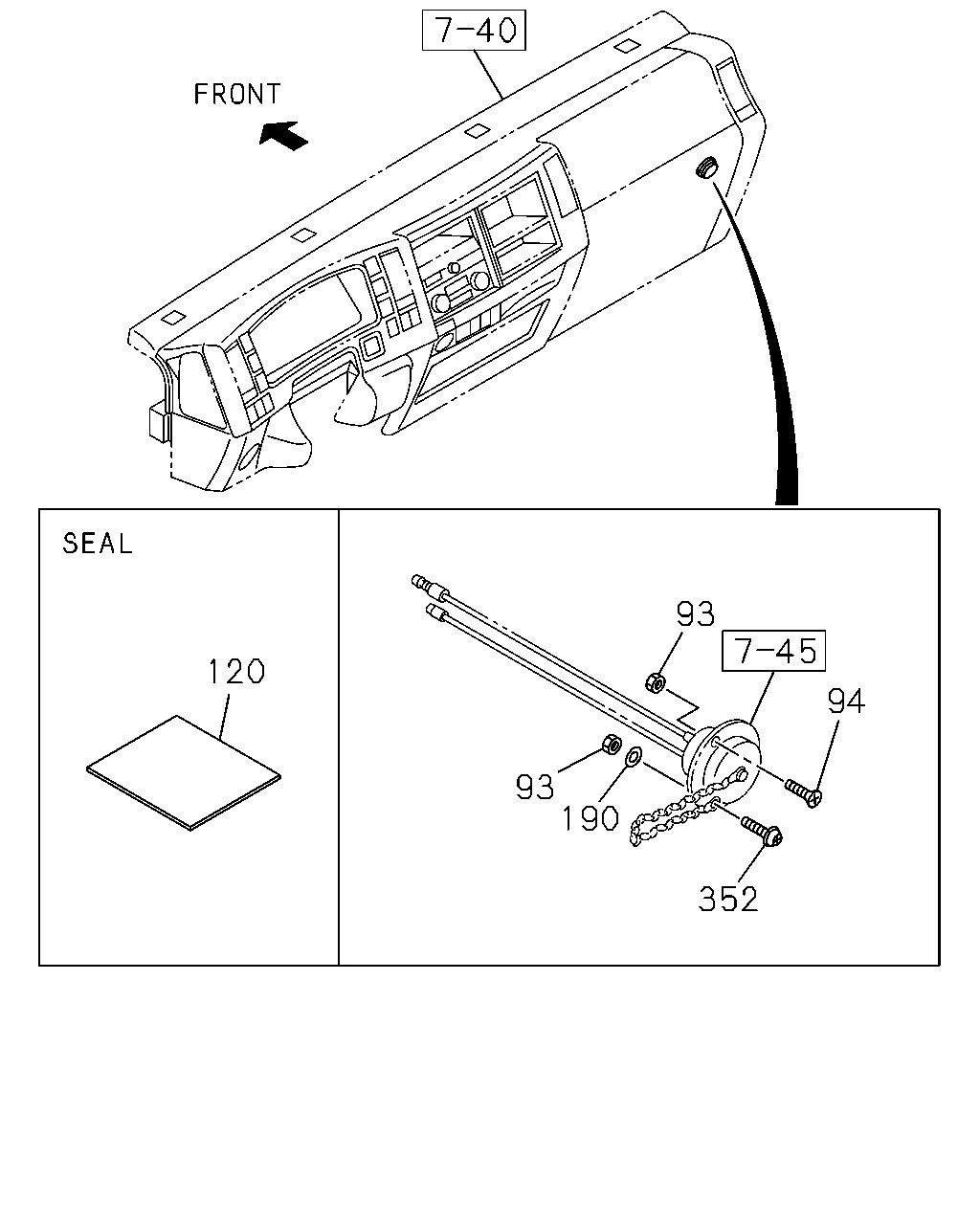

93 120 94 93 190 352

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
93	NUT; CONSENT TO BLIND PNL ACCESSORY SOCKET<KC5> M3	9-99110-403-0	03	1	1003-
94	SCREW; CONSENT TO BLIND PNL ACCESSORY SOCKET<KC5> M3X10 CK-HEAD	9-93090-310-0	02	1	1003-
120	SEAL ACCESSORY SOCKET<KC5> 100X40	1-72498-022-1	01	1	1003-
190	WASHER ACCESSORY SOCKET<KC5> ID=3.1	0-91510-503-0	01	1	1003-
352	SCREW; BRKT ACCESSORY SOCKET<KC5> M3X10	9-93490-310-0	01	1	1003-

531

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	0812-1402
	531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-

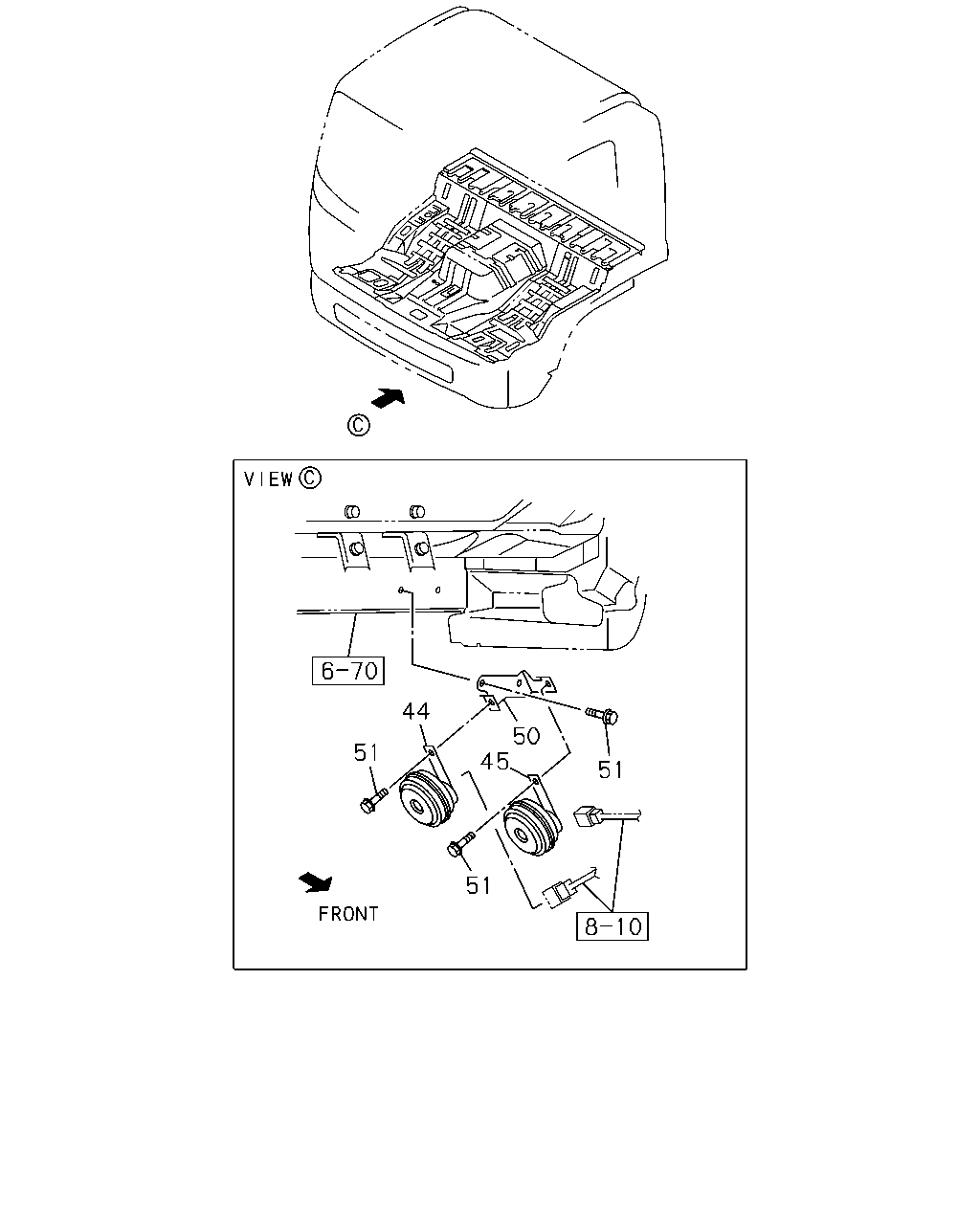

44 50 45 51 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	HORN; HIGH NOTE	8-98022-022-0	01	1	0812-1001
44	HORN; HIGH NOTE DUAL HEAVY DUTY HORN(6KK)	8-98022-022-0	01	1	1002-
45	HORN; LOW NOTE	8-98022-023-0	01	1	0812-
50	BRACKET; HORN	8-97616-529-2	01	1	0812-
51	BOLT; HORN TO BRKT EXC. DUAL HEAVY DUTY HORN(6KK) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	1002-
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	04	1	0812-1001
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1002-
51	BOLT; HORN TO BRKT DUAL HEAVY DUTY HORN(6KK) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1002-

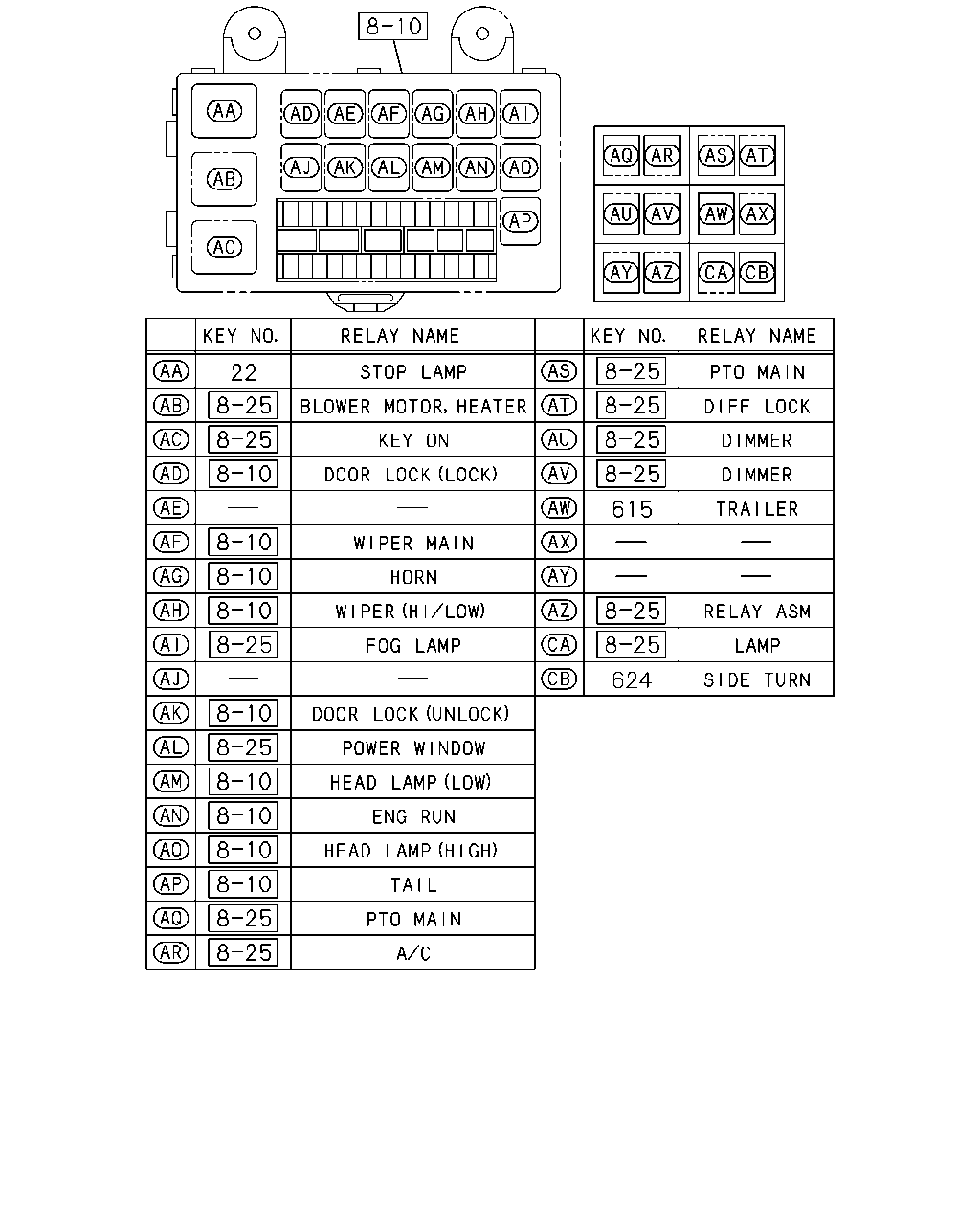

22 615 624

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP LAMPS EXP PACKAGE<WL5> 24V 10A PANASONIC	8-97173-035-1	01	1	1003-
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0812-
615	RELAY; TRAILER 24V 10A PANASONIC	8-97173-035-1	01	1	0812-
624	RELAY; SIDE TURN LAMPS EXP PACKAGE<WL5> 24V 10A PANASONIC	8-97173-035-1	01	1	1003-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
