◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11151 - FTS(LHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#69331) — 374 parça

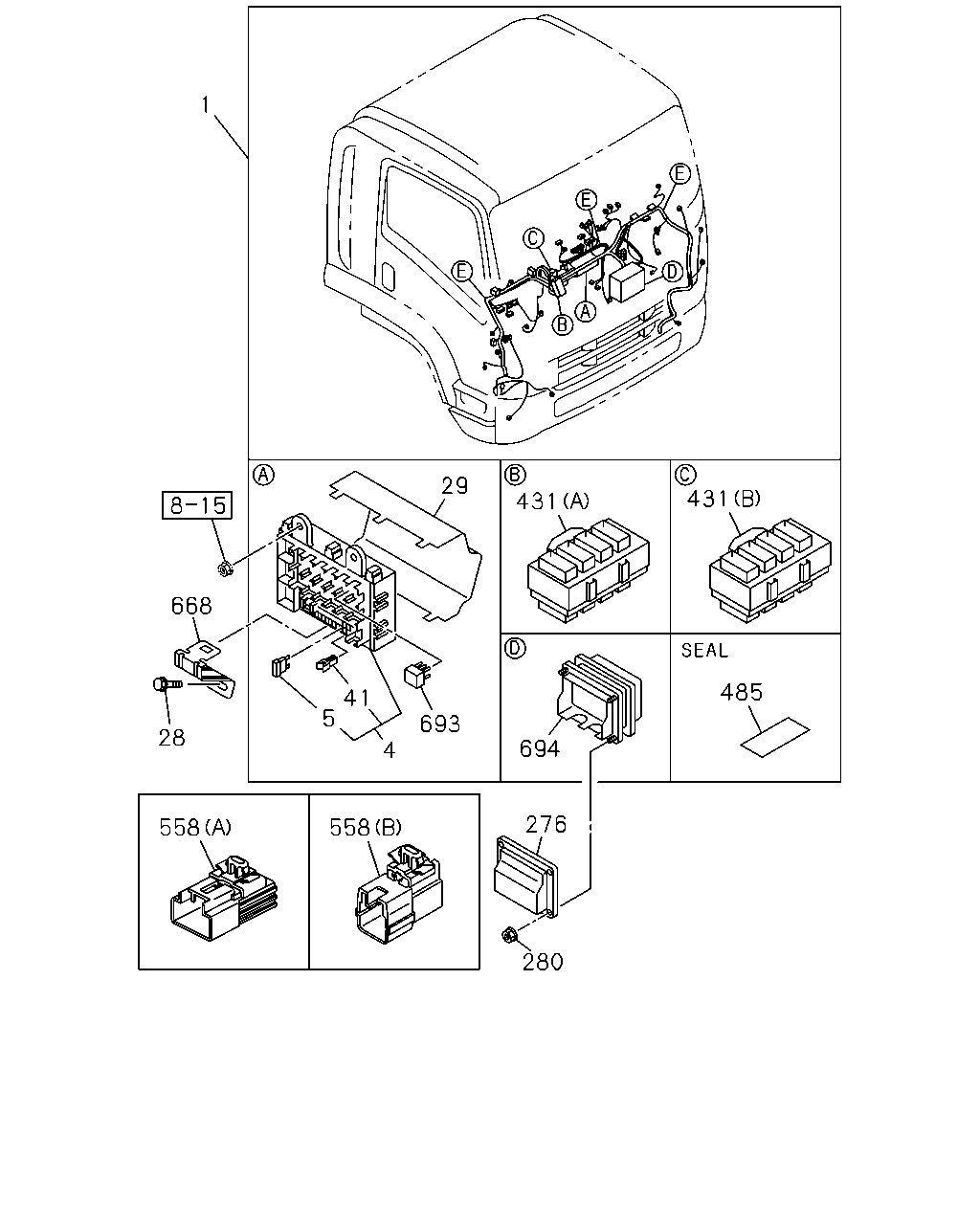

çizim 136197
1 431 431 29 668 485 41 5 693 28 694 4 276 558 558 280
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
DOUBLE TIRE REARWARD<SR6> IN HOUSE PRODUCTION<TKF> EXC. LAMPS EXP PACKAGE<WL5> 		8-98188-115-0 01 1 1201-1209
1 HARNESS; CAB
DOUBLE TIRE REARWARD<SR6> EXC. LAMPS EXP PACKAGE<WL5> 		8-98188-115-0 01 1 1210-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> LAMPS EXP PACKAGE<WL5> MANUAL TRANSMISSION<X9C> REARWARD INNER SINGLE TIRE<YK3> 		8-98188-116-0 01 1 1201-1209
1 HARNESS; CAB
LAMPS EXP PACKAGE<WL5> REARWARD INNER SINGLE TIRE<YK3> 		8-98188-116-0 01 1 1210-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> MANUAL TRANSMISSION<X9C> REARWARD INNER SINGLE TIRE<YK3> EXC. LAMPS EXP PACKAGE<WL5> 		8-98188-117-0 01 1 1201-1209
1 HARNESS; CAB
REARWARD INNER SINGLE TIRE<YK3> EXC. LAMPS EXP PACKAGE<WL5> 		8-98188-117-0 01 1 1210-
1 HARNESS; CAB
LAMPS EXP PACKAGE<WL5> REARWARD INNER SINGLE TIRE<YK3> 		8-98138-196-0 01 1 1003-1112
1 HARNESS; CAB
LAMPS EXP PACKAGE<WL5> MANUAL TRANSMISSION<X9C> REARWARD INNER SINGLE TIRE<YK3> EXC. IN HOUSE PRODUCTION<TKF> 		8-98138-196-0 01 1 1201-1209
1 HARNESS; CAB
REARWARD INNER SINGLE TIRE<YK3> EXC. LAMPS EXP PACKAGE<WL5> 		8-98138-197-0 01 1 1003-1112
1 HARNESS; CAB
MANUAL TRANSMISSION<X9C> REARWARD INNER SINGLE TIRE<YK3> EXC. IN HOUSE PRODUCTION<TKF>,LAMPS EXP PACKAGE<WL5> 		8-98138-197-0 01 1 1201-1209
1 HARNESS; CAB 8-98099-295-0 01 1 0812-1002
1 HARNESS; CAB
DOUBLE TIRE REARWARD<SR6> EXC. LAMPS EXP PACKAGE<WL5> 		8-98099-295-0 01 1 1003-1112
1 HARNESS; CAB
DOUBLE TIRE REARWARD<SR6> EXC. IN HOUSE PRODUCTION<TKF>,LAMPS EXP PACKAGE<WL5> 		8-98099-295-0 01 1 1201-1209
4 BOX ASM; FUSE,HARNESS
LAMPS EXP PACKAGE<WL5> REARWARD INNER SINGLE TIRE<YK3> 		8-98081-164-0 01 1 1003-
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 0812-1002
4 BOX ASM; FUSE,HARNESS
EXC. LAMPS EXP PACKAGE<WL5> 		8-98065-666-0 01 1 1003-
5 FUSE; FACIA HARNESS
REARWARD INNER SINGLE TIRE<YK3> 25A WHITE 		8-98062-982-0 01 1 1003-
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 0812-
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 0812-
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 0812-
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 02 1 0812-1002
5 FUSE; FACIA HARNESS
DOUBLE TIRE REARWARD<SR6> EXC. LAMPS EXP PACKAGE<WL5> 25A WHITE 		8-98062-982-0 02 1 1003-
28 SCREW; FUSE BOX
BOLT M6X16 FLANGE 		0-28650-616-0 01 1 0812-
29 COVER; FUSE BOX 8-98056-968-0 01 1 0812-1002
29 COVER; FUSE BOX 8-98056-968-0 01 1 1003-
41 PULLER; FUSE 8-98054-260-0 01 1 0812-1002
41 PULLER; FUSE 8-98054-260-0 01 1 1003-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 0812-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 0812-
431 CONNECTOR; JOINT
REARWARD INNER SINGLE TIRE<YK3> (C) 10P BLUE 		1-82699-598-0 02 1 1003-
431 CONNECTOR; JOINT
REARWARD INNER SINGLE TIRE<YK3> (C) 10P BLUE 		1-82699-598-0 05 1 1003-1011
431 CONNECTOR; JOINT
EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> (C) 10P BLUE 		1-82699-598-0 05 1 1012-
431 CONNECTOR; JOINT
REARWARD INNER SINGLE TIRE<YK3> (H) 6P BLACK 		8-97616-194-0 03 1 1003-1011
431 CONNECTOR; JOINT
EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> (H) 6P BLACK 		8-97616-194-0 03 1 1012-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 0812-1002
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1003-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0812-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0812-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0812-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 0812-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 0812-1002
431 CONNECTOR; JOINT
DOUBLE TIRE REARWARD<SR6> (C) 10P BLUE 		1-82699-598-0 04 1 1003-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 0812-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 0812-1002
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1003-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 0812-1002
431 CONNECTOR; JOINT
DOUBLE TIRE REARWARD<SR6> (H) 6P BLACK 		8-97616-194-0 02 1 1003-
485 SEAL; CONNECTOR
180X40 		1-72498-019-1 01 1 0909-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 0812-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 0812-
668 BRACKET; HARNESS 8-98095-653-2 01 1 0812-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 0812-
694 BOX ASM; CONNECTOR 8-98063-269-1 01 1 0812-

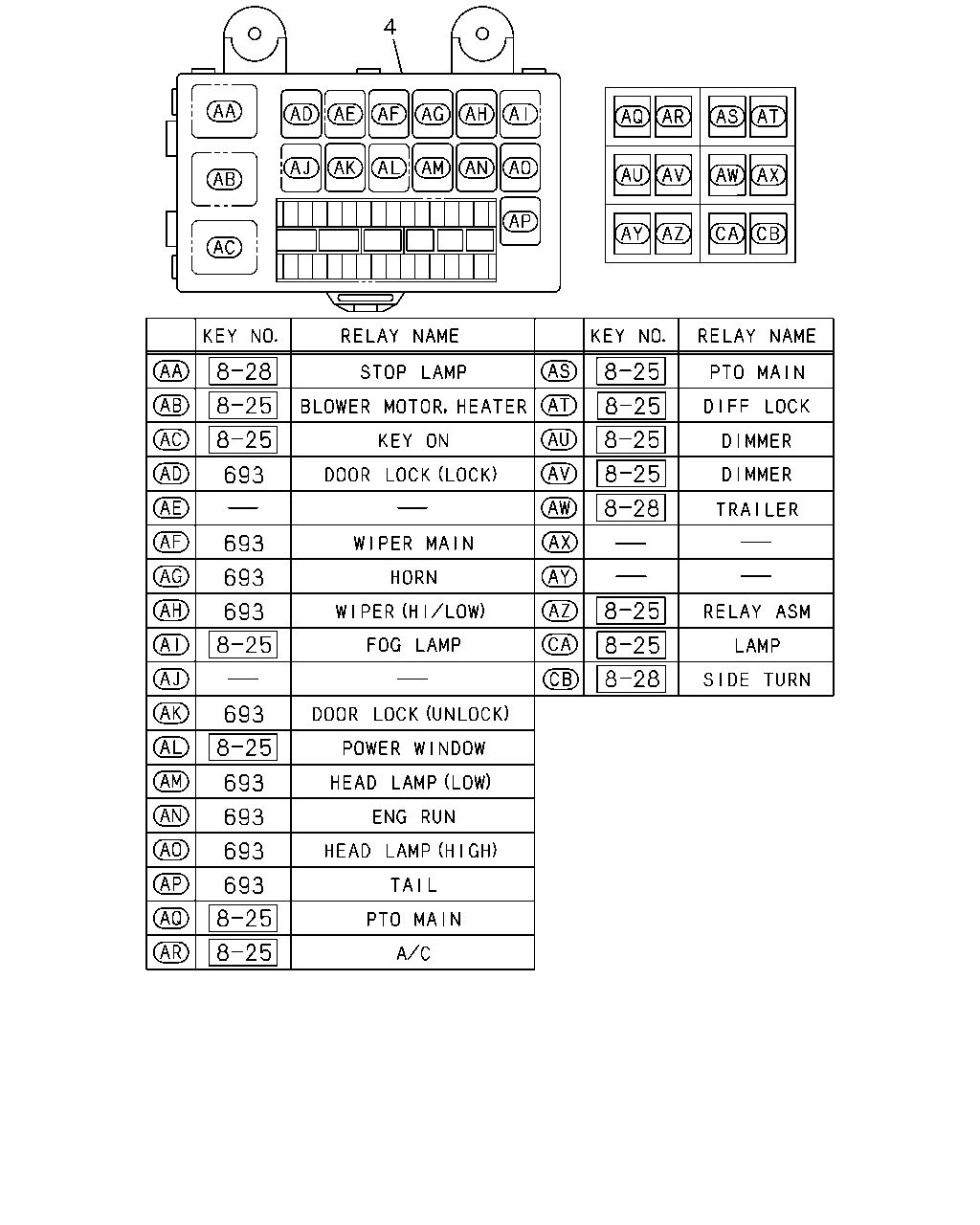

çizim 136503
4 693 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
LAMPS EXP PACKAGE<WL5> REARWARD INNER SINGLE TIRE<YK3> 		8-98081-164-0 01 1 1003-
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 0812-1002
4 BOX ASM; FUSE,HARNESS
EXC. LAMPS EXP PACKAGE<WL5> 		8-98065-666-0 01 1 1003-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 0812-

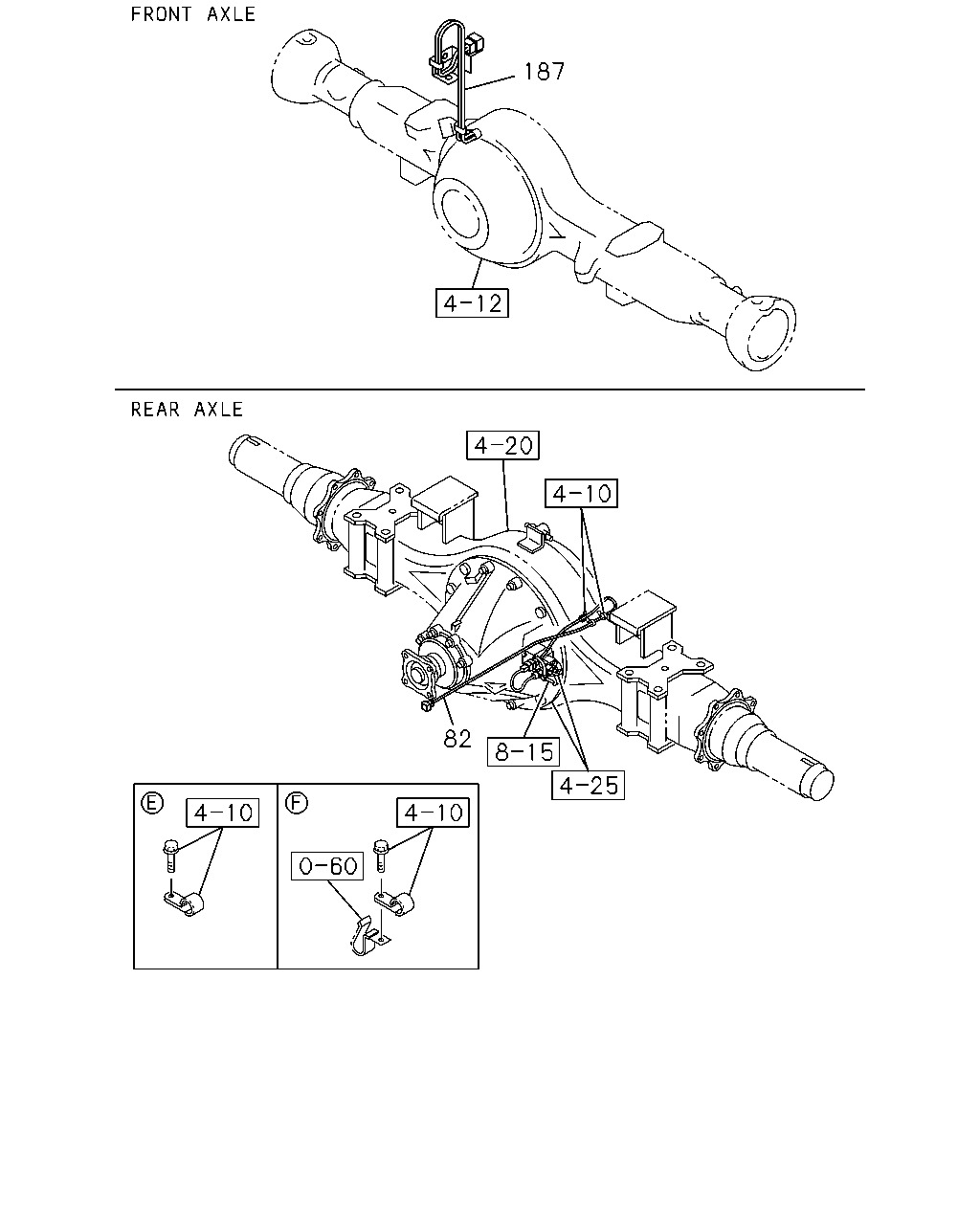

çizim 136605
187 82
BalonParca AdiParca NoAdetTipApplied Date
82 HARNESS; DIFF LOCK
FINAL GEAR 39/6 14.5"(W1J) DIFF LOCK<C3N> 		8-98145-727-1 01 1 1003-
187 HARNESS; AXLE
REARWARD INNER SINGLE TIRE<YK3> 		8-98138-762-1 01 1 1003-

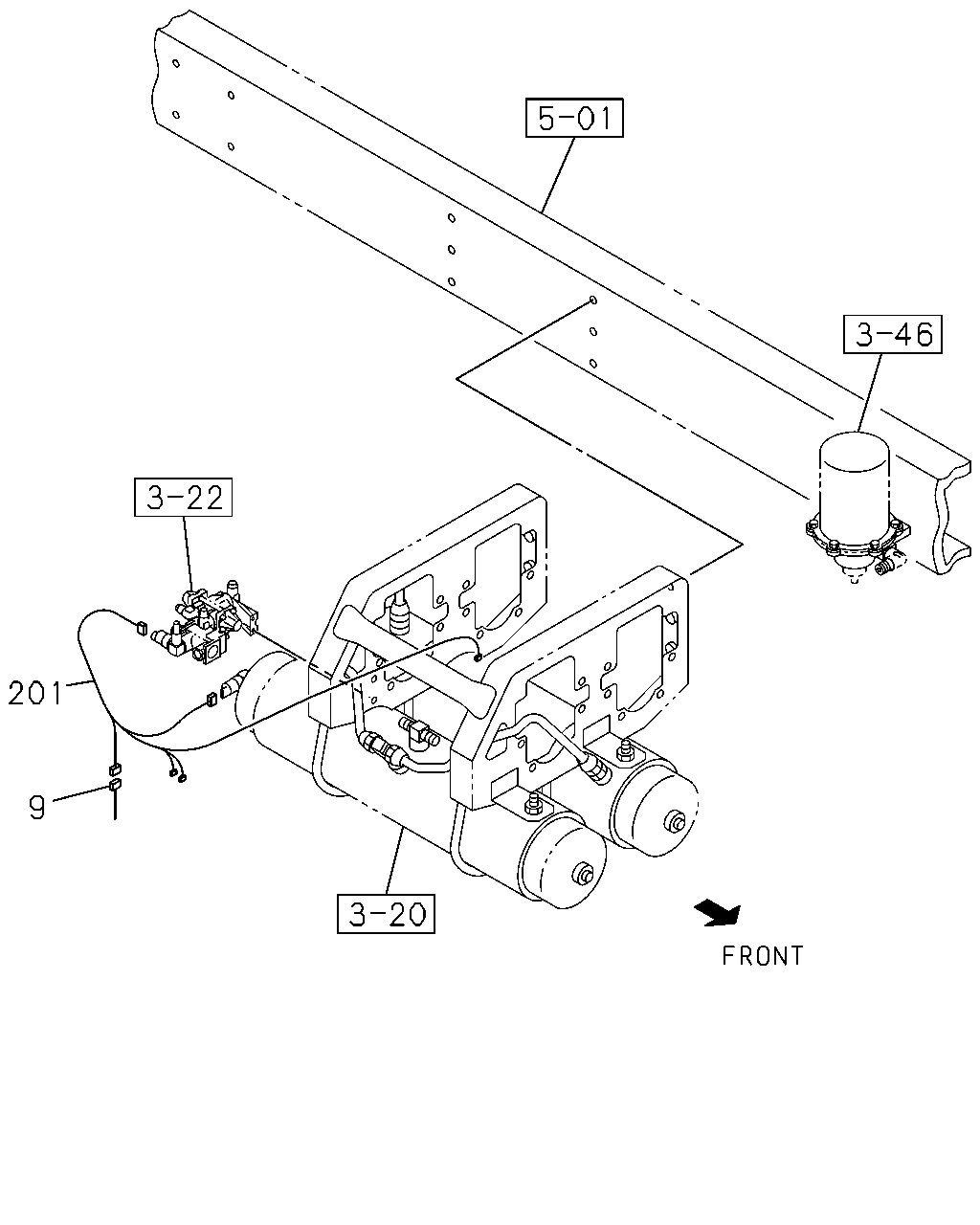

çizim 136694
201 9
BalonParca AdiParca NoAdetTipApplied Date
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) 		8-98126-571-0 01 1 0812-0906
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) 		8-98126-571-0 01 1 0907-1002
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> 		8-98126-571-0 01 1 1003-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> 		8-98168-687-0 01 1 1008-1011
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> DOUBLE TIRE REARWARD<SR6> 		8-98168-687-0 01 1 1012-
9 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> REARWARD INNER SINGLE TIRE<YK3> 		8-98137-360-2 01 1 1003-1009
9 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> 		8-98137-360-2 01 1 1010-1011
9 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) USER EXP GOVERNMENT<D6M> EURO2 SPECIFICATION<NT2> PINTLE HOOK<PP7> 		8-98137-360-2 01 1 1012-
9 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) USER EXP GOVERNMENT<D6M> EURO3 SPECIFICATION<NT3> REARWARD INNER SINGLE TIRE<YK3> EXC. PINTLE HOOK<PP7> 		8-98137-360-2 01 1 1012-
9 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) USER EXP GOVERNMENT<D6M> REARWARD INNER SINGLE TIRE<YK3> EXC. PINTLE HOOK<PP7> 		8-98140-351-2 01 1 1003-1011
9 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) USER EXP GOVERNMENT<D6M> EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> EXC. PINTLE HOOK<PP7> 		8-98140-351-2 01 1 1012-
9 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> EXC. USER EXP GOVERNMENT<D6M>,PINTLE HOOK<PP7> 		8-98137-474-2 01 1 1003-1011
9 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> EXC. USER EXP GOVERNMENT<D6M>,PINTLE HOOK<PP7> 		8-98137-474-2 01 1 1012-
9 HARNESS; FRAME,RR
WHEEL BASE 3600MM(36W) 		8-98125-697-0 01 1 0812-1002
9 HARNESS; FRAME,RR
WHEEL BASE 3600MM(36W) DOUBLE TIRE REARWARD<SR6> 		8-98125-697-0 01 1 1003-1007
9 HARNESS; FRAME,RR
WHEEL BASE 3600MM(36W) DOUBLE TIRE REARWARD<SR6> 		8-98168-686-0 01 1 1008-1011
9 HARNESS; FRAME,RR
WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> 		8-98168-686-0 01 1 1012-
201 HARNESS; AIR TANK 8-98132-111-3 01 1 0812-1011
201 HARNESS; AIR TANK 8-98132-111-3 01 1 1012-
çizim 136826
666 638 267 639 639 267 535 666 666 290 536 640
BalonParca AdiParca NoAdetTipApplied Date
267 BOLT; BRKT
REARWARD INNER SINGLE TIRE<YK3> (A) M8X30 FLANGE 		0-28650-830-0 01 1 1003-
267 BOLT; BRKT
REARWARD INNER SINGLE TIRE<YK3> (B) M8X16 FLANGE 		0-28050-816-0 03 1 1003-
267 BOLT; BRKT
REARWARD INNER SINGLE TIRE<YK3> (B) M8X16 FLANGE 		0-28050-816-0 03 1 1003-
290 NUT; BRKT
REARWARD INNER SINGLE TIRE<YK3> M8 FLANGE 		0-91180-108-0 01 1 1003-
535 BOLT; BRKT FIX
DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> M8X30 FLANGE 		0-28650-830-0 01 1 1003-
536 NUT; BRKT FIX
DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> M8 FLANGE 		0-91180-108-0 01 1 1003-
638 BRACKET; SPD SENSOR
DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> 		1-82698-167-0 01 1 1003-
639 BOLT; CLIP
REARWARD INNER SINGLE TIRE<YK3> (A) M8X12 FLANGE 		0-28050-812-0 02 1 1003-
639 BOLT; CLIP
REARWARD INNER SINGLE TIRE<YK3> (B) M8X25 FLANGE 		0-28650-825-0 02 1 1003-
640 NUT; CLIP
REARWARD INNER SINGLE TIRE<YK3> M8 FLANGE 		0-91180-108-0 01 1 1003-
666 BRACKET; CLIP
REARWARD INNER SINGLE TIRE<YK3> (B) L=145 		1-47475-655-0 01 1 1003-
666 BRACKET; CLIP
REARWARD INNER SINGLE TIRE<YK3> (C) 		8-98140-841-1 01 1 1003-
666 BRACKET; CLIP
REARWARD INNER SINGLE TIRE<YK3> (A) 		8-98140-891-1 01 1 1003-

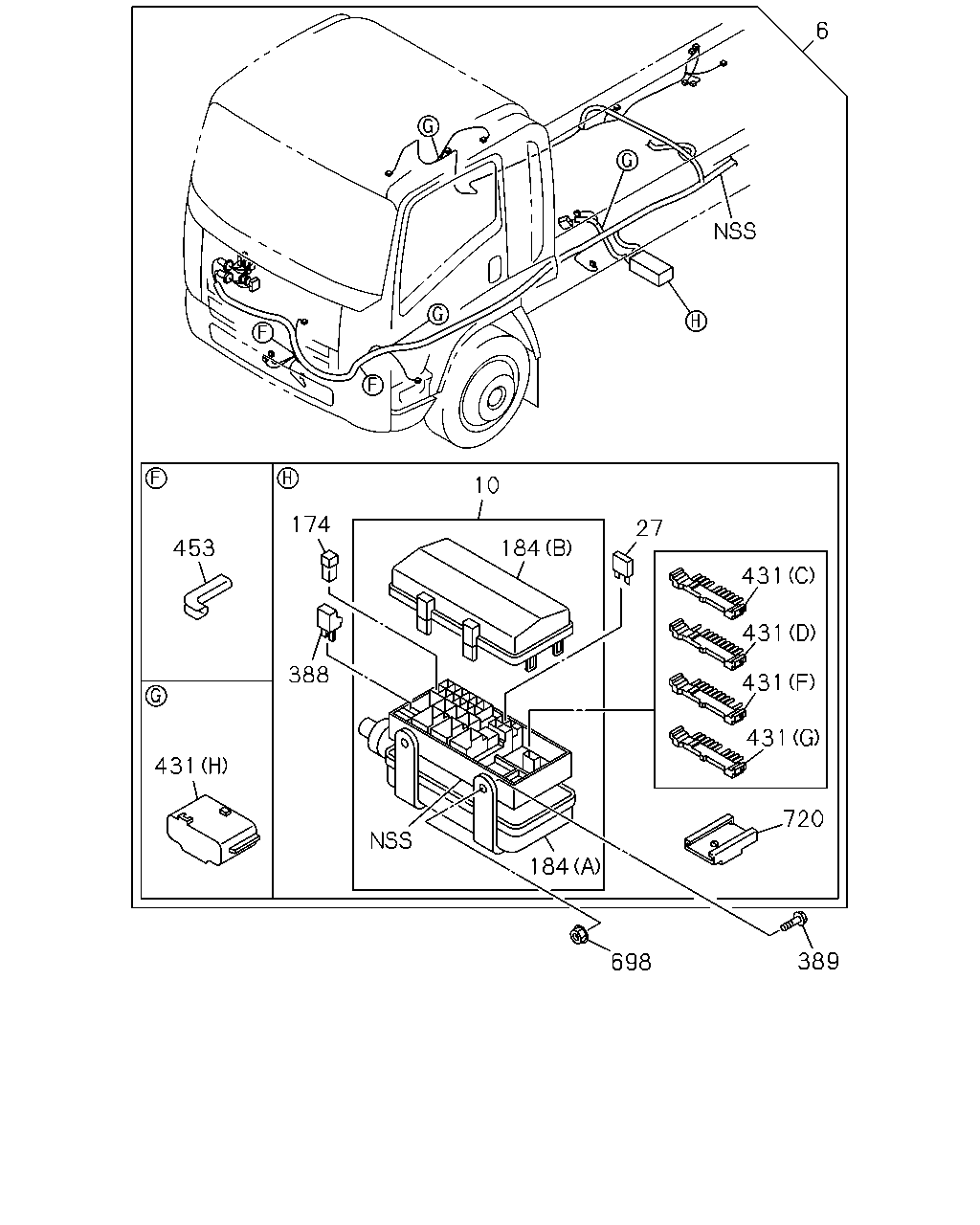

çizim 136982
6 10 174 27 453 184 431 431 388 431 431 431 720 184 389 698
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) EURO3 SPECIFICATION<NT3> DOUBLE TIRE REARWARD<SR6> 		8-98118-073-0 01 1 1012-
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W) EURO3 SPECIFICATION<NT3> DOUBLE TIRE REARWARD<SR6> 		8-98118-074-0 01 1 1012-
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) USER EXP GOVERNMENT<D6M> REARWARD INNER SINGLE TIRE<YK3> 		8-98137-484-3 01 1 1003-1011
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) USER EXP GOVERNMENT<D6M> EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> 		8-98137-484-3 01 1 1012-1103
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) USER EXP GOVERNMENT<D6M> EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> 		8-98186-311-0 01 1 1104-
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) REARWARD INNER SINGLE TIRE<YK3> EXC. USER EXP GOVERNMENT<D6M> 		8-98137-354-3 01 1 1003-1011
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> EXC. USER EXP GOVERNMENT<D6M> 		8-98137-354-3 01 1 1012-
6 HARNESS; FRAME
MLD6W M/T(Y2C) USER EXP GOVERNMENT<D6M> REARWARD INNER SINGLE TIRE<YK3> 		8-98137-486-3 01 1 1003-1011
6 HARNESS; FRAME
MLD6W M/T(Y2C) USER EXP GOVERNMENT<D6M> EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> 		8-98137-486-3 01 1 1012-1103
6 HARNESS; FRAME
MLD6W M/T(Y2C) USER EXP GOVERNMENT<D6M> EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> 		8-98186-313-0 01 1 1104-
6 HARNESS; FRAME
MLD6W M/T(Y2C) REARWARD INNER SINGLE TIRE<YK3> EXC. USER EXP GOVERNMENT<D6M> 		8-98137-355-3 01 1 1003-1011
6 HARNESS; FRAME
MLD6W M/T(Y2C) EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> EXC. USER EXP GOVERNMENT<D6M> 		8-98137-355-3 01 1 1012-
6 HARNESS; FRAME
MZX6P M/T(RSW) 		8-98125-695-0 01 1 0812-0812
6 HARNESS; FRAME
MZX6P M/T(RSW) WHEEL BASE 4200MM(42W) 		8-98125-695-1 01 1 0901-0906
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) 		8-98125-695-3 01 1 0907-1002
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> 		8-98125-695-3 01 1 1003-1010
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> 		8-98175-458-0 01 1 1011-1011
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> 		8-98175-458-0 01 1 1012-
6 HARNESS; FRAME
MLD6W M/T(Y2C) 		8-98125-696-0 01 1 0812-0812
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W) 		8-98125-696-3 01 1 0901-1002
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> 		8-98125-696-3 01 1 1003-1010
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> 		8-98175-459-0 01 1 1011-1011
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> 		8-98175-459-0 01 1 1012-
6 HARNESS; FRAME
MZX6P M/T(RSW) WHEEL BASE 3600MM(36W) 		8-98133-585-0 01 1 0901-0906
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 3600MM(36W) 		8-98133-585-2 01 1 0907-1002
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 3600MM(36W) DOUBLE TIRE REARWARD<SR6> 		8-98133-585-2 01 1 1003-1010
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 3600MM(36W) DOUBLE TIRE REARWARD<SR6> 		8-98175-460-0 01 1 1011-1011
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> 		8-98175-460-0 01 1 1012-
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 3600MM(36W) 		8-98133-587-2 01 1 0901-1002
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 3600MM(36W) DOUBLE TIRE REARWARD<SR6> 		8-98133-587-2 01 1 1003-1010
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 3600MM(36W) DOUBLE TIRE REARWARD<SR6> 		8-98175-461-0 01 1 1011-1011
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> 		8-98175-461-0 01 1 1012-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 0812-
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 0812-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 0812-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1107-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 01 1 0812-
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 0812-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 0812-
174 FUSE; SLOW BLOW
60A YELLOW 		8-98079-194-0 03 1 0812-0906
174 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW 		8-97219-407-0 03 1 0907-1106
174 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW 		8-97219-407-0 02 1 1107-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 0812-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-0 01 1 0812-
388 DIODE; RELAY BOX
REARWARD INNER SINGLE TIRE<YK3> BLACK 2P-1.5A 		8-94422-639-1 02 1 1003-1011
388 DIODE; RELAY BOX
EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> BLACK 2P-1.5A 		8-94422-639-1 02 1 1012-
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 0812-1002
388 DIODE; RELAY BOX
DOUBLE TIRE REARWARD<SR6> BLACK 2P-1.5A 		8-94422-639-1 01 1 1003-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 0812-
431 CONNECTOR; JOINT
REARWARD INNER SINGLE TIRE<YK3> (C) 10P BLUE 		1-82699-598-0 02 1 1003-
431 CONNECTOR; JOINT
REARWARD INNER SINGLE TIRE<YK3> (C) 10P BLUE 		1-82699-598-0 05 1 1003-1011
431 CONNECTOR; JOINT
EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> (C) 10P BLUE 		1-82699-598-0 05 1 1012-
431 CONNECTOR; JOINT
REARWARD INNER SINGLE TIRE<YK3> (H) 6P BLACK 		8-97616-194-0 03 1 1003-1011
431 CONNECTOR; JOINT
EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> (H) 6P BLACK 		8-97616-194-0 03 1 1012-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 0812-1002
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1003-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0812-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0812-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0812-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 0812-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 0812-1002
431 CONNECTOR; JOINT
DOUBLE TIRE REARWARD<SR6> (C) 10P BLUE 		1-82699-598-0 04 1 1003-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 0812-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 0812-1002
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1003-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 0812-1002
431 CONNECTOR; JOINT
DOUBLE TIRE REARWARD<SR6> (H) 6P BLACK 		8-97616-194-0 02 1 1003-
453 PROTECTOR; HARNESS 1-82699-709-0 01 1 0812-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 0812-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 0907-

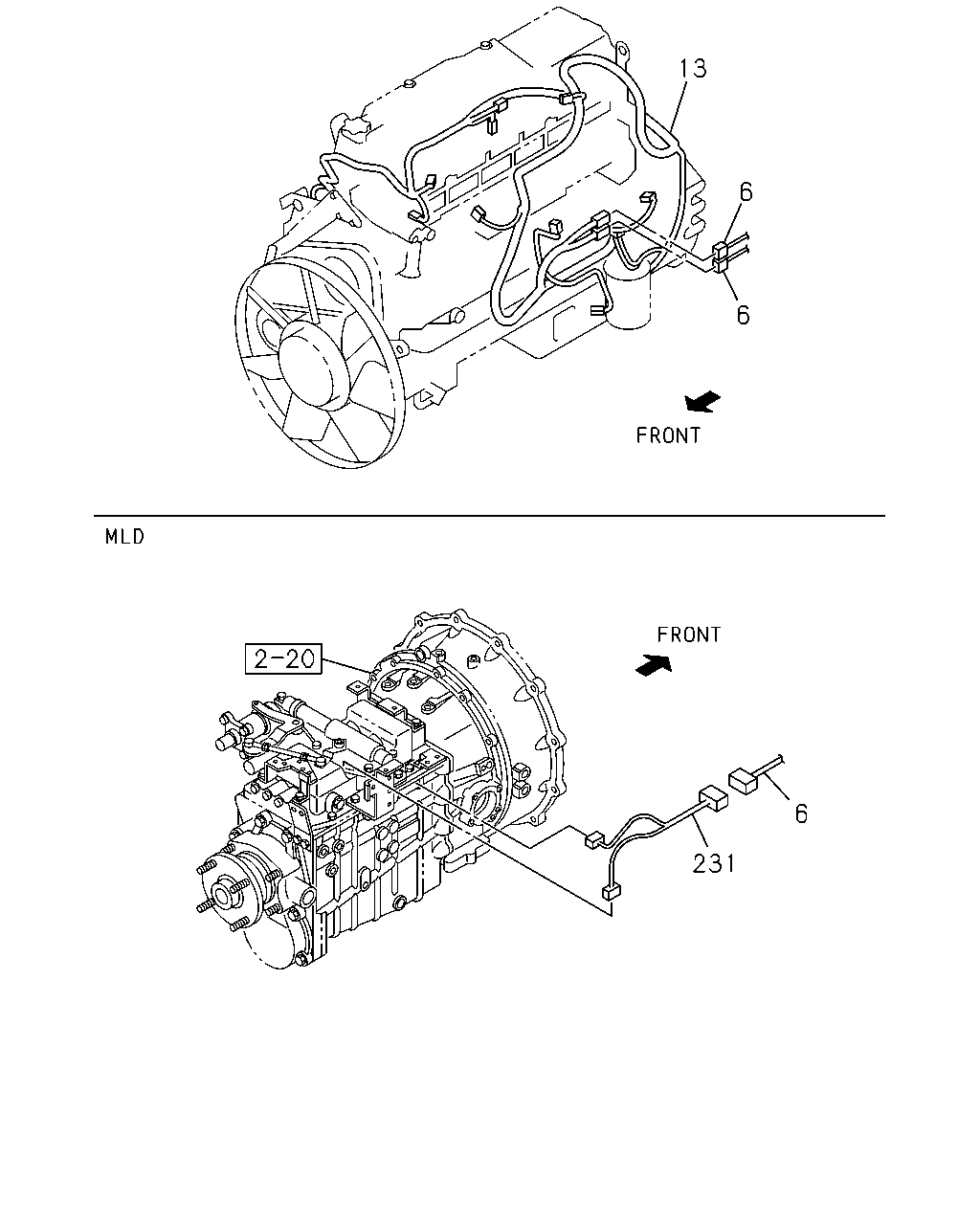

çizim 136996
13 6 6 6 231
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) EURO3 SPECIFICATION<NT3> DOUBLE TIRE REARWARD<SR6> 		8-98118-073-0 01 1 1012-
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W) EURO3 SPECIFICATION<NT3> DOUBLE TIRE REARWARD<SR6> 		8-98118-074-0 01 1 1012-
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) USER EXP GOVERNMENT<D6M> REARWARD INNER SINGLE TIRE<YK3> 		8-98137-484-3 01 1 1003-1011
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) USER EXP GOVERNMENT<D6M> EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> 		8-98137-484-3 01 1 1012-1103
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) USER EXP GOVERNMENT<D6M> EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> 		8-98186-311-0 01 1 1104-
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) REARWARD INNER SINGLE TIRE<YK3> EXC. USER EXP GOVERNMENT<D6M> 		8-98137-354-3 01 1 1003-1011
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> EXC. USER EXP GOVERNMENT<D6M> 		8-98137-354-3 01 1 1012-
6 HARNESS; FRAME
MLD6W M/T(Y2C) USER EXP GOVERNMENT<D6M> REARWARD INNER SINGLE TIRE<YK3> 		8-98137-486-3 01 1 1003-1011
6 HARNESS; FRAME
MLD6W M/T(Y2C) USER EXP GOVERNMENT<D6M> EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> 		8-98137-486-3 01 1 1012-1103
6 HARNESS; FRAME
MLD6W M/T(Y2C) USER EXP GOVERNMENT<D6M> EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> 		8-98186-313-0 01 1 1104-
6 HARNESS; FRAME
MLD6W M/T(Y2C) REARWARD INNER SINGLE TIRE<YK3> EXC. USER EXP GOVERNMENT<D6M> 		8-98137-355-3 01 1 1003-1011
6 HARNESS; FRAME
MLD6W M/T(Y2C) EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> EXC. USER EXP GOVERNMENT<D6M> 		8-98137-355-3 01 1 1012-
6 HARNESS; FRAME
MZX6P M/T(RSW) 		8-98125-695-0 01 1 0812-0812
6 HARNESS; FRAME
MZX6P M/T(RSW) WHEEL BASE 4200MM(42W) 		8-98125-695-1 01 1 0901-0906
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) 		8-98125-695-3 01 1 0907-1002
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> 		8-98125-695-3 01 1 1003-1010
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> 		8-98175-458-0 01 1 1011-1011
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> 		8-98175-458-0 01 1 1012-
6 HARNESS; FRAME
MLD6W M/T(Y2C) 		8-98125-696-0 01 1 0812-0812
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W) 		8-98125-696-3 01 1 0901-1002
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> 		8-98125-696-3 01 1 1003-1010
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> 		8-98175-459-0 01 1 1011-1011
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> 		8-98175-459-0 01 1 1012-
6 HARNESS; FRAME
MZX6P M/T(RSW) WHEEL BASE 3600MM(36W) 		8-98133-585-0 01 1 0901-0906
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 3600MM(36W) 		8-98133-585-2 01 1 0907-1002
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 3600MM(36W) DOUBLE TIRE REARWARD<SR6> 		8-98133-585-2 01 1 1003-1010
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 3600MM(36W) DOUBLE TIRE REARWARD<SR6> 		8-98175-460-0 01 1 1011-1011
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> 		8-98175-460-0 01 1 1012-
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 3600MM(36W) 		8-98133-587-2 01 1 0901-1002
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 3600MM(36W) DOUBLE TIRE REARWARD<SR6> 		8-98133-587-2 01 1 1003-1010
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 3600MM(36W) DOUBLE TIRE REARWARD<SR6> 		8-98175-461-0 01 1 1011-1011
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> 		8-98175-461-0 01 1 1012-
13 HARNESS; ENG
EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2) 		8-98177-186-0 01 1 1012-
13 HARNESS; ENG
EURO3 SPECIFICATION<NT3> GENERATOR 24V50A(K89) 		8-98177-185-0 01 1 1012-
13 HARNESS; ENG
GENERATOR 24V60A(KG2) 		8-98075-771-5 01 1 0812-1011
13 HARNESS; ENG
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2) 		8-98075-771-5 01 1 1012-
13 HARNESS; ENG
GENERATOR 24V50A(K89) 		8-98075-770-5 01 1 0812-1011
13 HARNESS; ENG
EURO2 SPECIFICATION<NT2> GENERATOR 24V50A(K89) 		8-98075-770-5 01 1 1012-
231 HARNESS; TRANS
MLD6W M/T(Y2C) 		8-98114-545-1 01 1 0812-

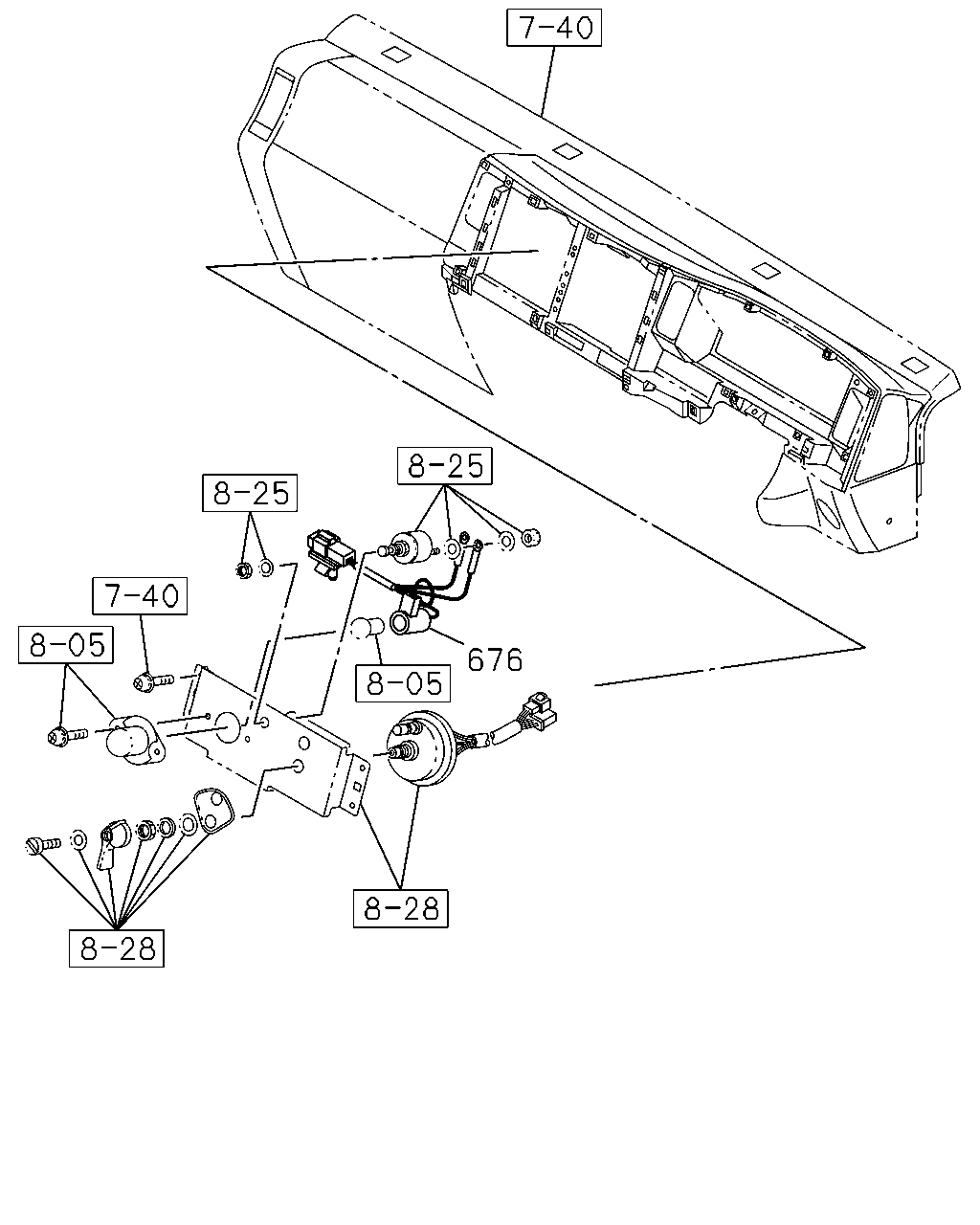

çizim 137046
676
BalonParca AdiParca NoAdetTipApplied Date
676 HARNESS; EXT,MAP LAMP
LAMP-MAP<UF3> 		8-98140-101-0 01 1 1003-1301
676 HARNESS; EXT,MAP LAMP
USER EXP GOVERNMENT<D6M> 		8-98140-101-0 01 1 1302-

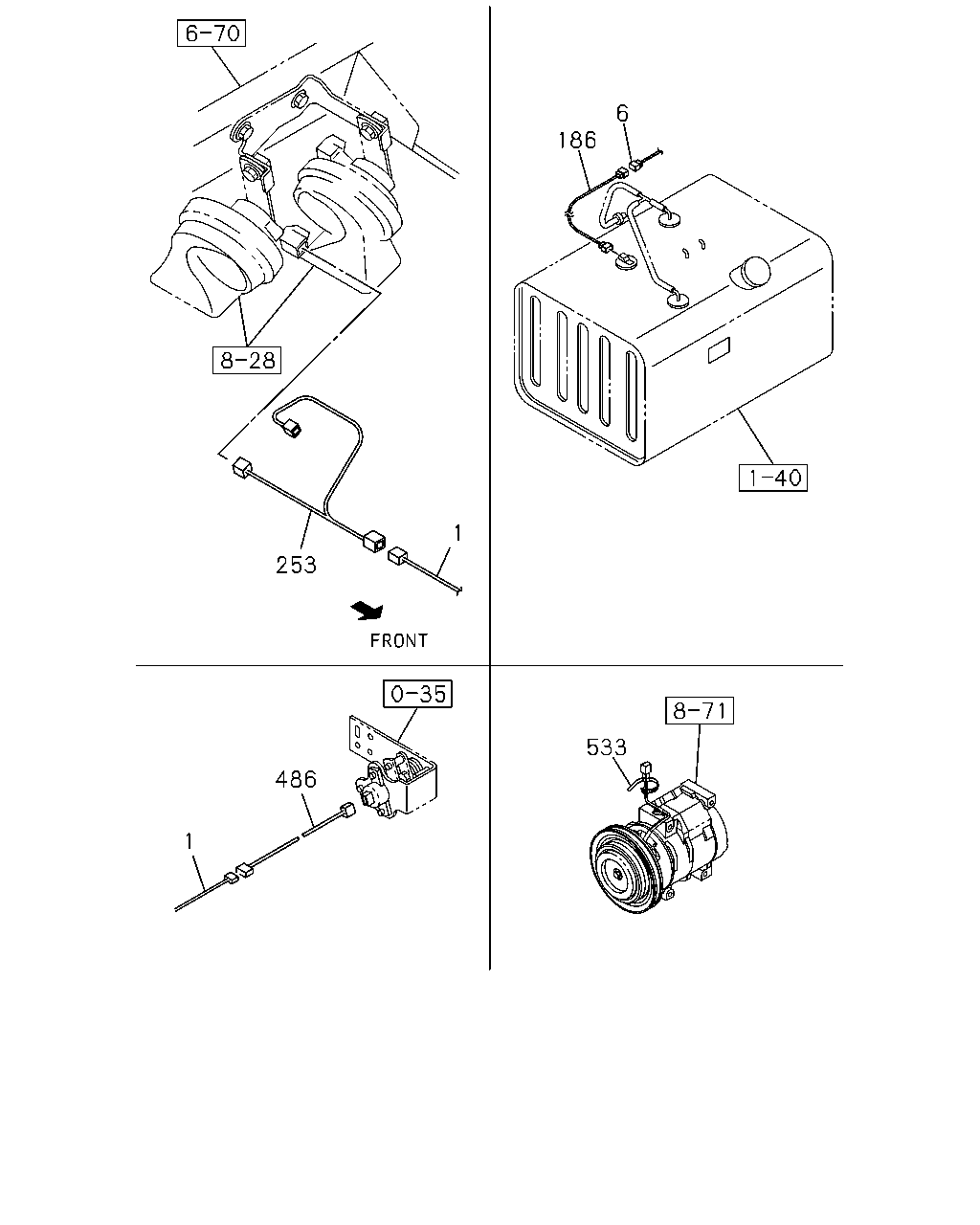

çizim 137172
6 186 1 253 533 486 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
DOUBLE TIRE REARWARD<SR6> IN HOUSE PRODUCTION<TKF> EXC. LAMPS EXP PACKAGE<WL5> 		8-98188-115-0 01 1 1201-1209
1 HARNESS; CAB
DOUBLE TIRE REARWARD<SR6> EXC. LAMPS EXP PACKAGE<WL5> 		8-98188-115-0 01 1 1210-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> LAMPS EXP PACKAGE<WL5> MANUAL TRANSMISSION<X9C> REARWARD INNER SINGLE TIRE<YK3> 		8-98188-116-0 01 1 1201-1209
1 HARNESS; CAB
LAMPS EXP PACKAGE<WL5> REARWARD INNER SINGLE TIRE<YK3> 		8-98188-116-0 01 1 1210-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> MANUAL TRANSMISSION<X9C> REARWARD INNER SINGLE TIRE<YK3> EXC. LAMPS EXP PACKAGE<WL5> 		8-98188-117-0 01 1 1201-1209
1 HARNESS; CAB
REARWARD INNER SINGLE TIRE<YK3> EXC. LAMPS EXP PACKAGE<WL5> 		8-98188-117-0 01 1 1210-
1 HARNESS; CAB
LAMPS EXP PACKAGE<WL5> REARWARD INNER SINGLE TIRE<YK3> 		8-98138-196-0 01 1 1003-1112
1 HARNESS; CAB
LAMPS EXP PACKAGE<WL5> MANUAL TRANSMISSION<X9C> REARWARD INNER SINGLE TIRE<YK3> EXC. IN HOUSE PRODUCTION<TKF> 		8-98138-196-0 01 1 1201-1209
1 HARNESS; CAB
REARWARD INNER SINGLE TIRE<YK3> EXC. LAMPS EXP PACKAGE<WL5> 		8-98138-197-0 01 1 1003-1112
1 HARNESS; CAB
MANUAL TRANSMISSION<X9C> REARWARD INNER SINGLE TIRE<YK3> EXC. IN HOUSE PRODUCTION<TKF>,LAMPS EXP PACKAGE<WL5> 		8-98138-197-0 01 1 1201-1209
1 HARNESS; CAB 8-98099-295-0 01 1 0812-1002
1 HARNESS; CAB
DOUBLE TIRE REARWARD<SR6> EXC. LAMPS EXP PACKAGE<WL5> 		8-98099-295-0 01 1 1003-1112
1 HARNESS; CAB
DOUBLE TIRE REARWARD<SR6> EXC. IN HOUSE PRODUCTION<TKF>,LAMPS EXP PACKAGE<WL5> 		8-98099-295-0 01 1 1201-1209
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) EURO3 SPECIFICATION<NT3> DOUBLE TIRE REARWARD<SR6> 		8-98118-073-0 01 1 1012-
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W) EURO3 SPECIFICATION<NT3> DOUBLE TIRE REARWARD<SR6> 		8-98118-074-0 01 1 1012-
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) USER EXP GOVERNMENT<D6M> REARWARD INNER SINGLE TIRE<YK3> 		8-98137-484-3 01 1 1003-1011
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) USER EXP GOVERNMENT<D6M> EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> 		8-98137-484-3 01 1 1012-1103
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) USER EXP GOVERNMENT<D6M> EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> 		8-98186-311-0 01 1 1104-
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) REARWARD INNER SINGLE TIRE<YK3> EXC. USER EXP GOVERNMENT<D6M> 		8-98137-354-3 01 1 1003-1011
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> EXC. USER EXP GOVERNMENT<D6M> 		8-98137-354-3 01 1 1012-
6 HARNESS; FRAME
MLD6W M/T(Y2C) USER EXP GOVERNMENT<D6M> REARWARD INNER SINGLE TIRE<YK3> 		8-98137-486-3 01 1 1003-1011
6 HARNESS; FRAME
MLD6W M/T(Y2C) USER EXP GOVERNMENT<D6M> EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> 		8-98137-486-3 01 1 1012-1103
6 HARNESS; FRAME
MLD6W M/T(Y2C) USER EXP GOVERNMENT<D6M> EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> 		8-98186-313-0 01 1 1104-
6 HARNESS; FRAME
MLD6W M/T(Y2C) REARWARD INNER SINGLE TIRE<YK3> EXC. USER EXP GOVERNMENT<D6M> 		8-98137-355-3 01 1 1003-1011
6 HARNESS; FRAME
MLD6W M/T(Y2C) EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> EXC. USER EXP GOVERNMENT<D6M> 		8-98137-355-3 01 1 1012-
6 HARNESS; FRAME
MZX6P M/T(RSW) 		8-98125-695-0 01 1 0812-0812
6 HARNESS; FRAME
MZX6P M/T(RSW) WHEEL BASE 4200MM(42W) 		8-98125-695-1 01 1 0901-0906
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) 		8-98125-695-3 01 1 0907-1002
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> 		8-98125-695-3 01 1 1003-1010
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> 		8-98175-458-0 01 1 1011-1011
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> 		8-98175-458-0 01 1 1012-
6 HARNESS; FRAME
MLD6W M/T(Y2C) 		8-98125-696-0 01 1 0812-0812
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W) 		8-98125-696-3 01 1 0901-1002
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> 		8-98125-696-3 01 1 1003-1010
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> 		8-98175-459-0 01 1 1011-1011
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> 		8-98175-459-0 01 1 1012-
6 HARNESS; FRAME
MZX6P M/T(RSW) WHEEL BASE 3600MM(36W) 		8-98133-585-0 01 1 0901-0906
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 3600MM(36W) 		8-98133-585-2 01 1 0907-1002
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 3600MM(36W) DOUBLE TIRE REARWARD<SR6> 		8-98133-585-2 01 1 1003-1010
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 3600MM(36W) DOUBLE TIRE REARWARD<SR6> 		8-98175-460-0 01 1 1011-1011
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> 		8-98175-460-0 01 1 1012-
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 3600MM(36W) 		8-98133-587-2 01 1 0901-1002
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 3600MM(36W) DOUBLE TIRE REARWARD<SR6> 		8-98133-587-2 01 1 1003-1010
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 3600MM(36W) DOUBLE TIRE REARWARD<SR6> 		8-98175-461-0 01 1 1011-1011
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> 		8-98175-461-0 01 1 1012-
186 HARNESS; FUEL TANK
WHEEL BASE 3600MM(36W) 		8-97619-079-0 01 1 0812-0812
253 HARNESS; EXT,HORN
EXC. DUAL HEAVY DUTY HORN(6KK) 		8-98159-227-2 01 1 1002-
253 HARNESS; EXT,HORN 8-98074-080-1 01 1 0812-1001
253 HARNESS; EXT,HORN
DUAL HEAVY DUTY HORN(6KK) 		8-98074-080-3 01 1 1002-
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82675-898-0 01 1 0812-
533 CLIP
REARWARD INNER SINGLE TIRE<YK3> ID=11 L=16 		0-95235-025-0 04 1 1003-
533 CLIP
REARWARD INNER SINGLE TIRE<YK3> OD=9 H=9.5 		1-09709-179-0 01 1 1003-
533 CLIP
REARWARD INNER SINGLE TIRE<YK3> ID=10 & 10 		1-09709-277-1 01 1 1003-1009
533 CLIP
USER EXP GOVERNMENT<D6M> DOUBLE TIRE REARWARD<SR6> ID=10 & 10 		1-09709-277-1 01 1 1010-1011
533 CLIP
REARWARD INNER SINGLE TIRE<YK3> ID=10 & 10 		1-09709-277-1 01 1 1010-1011
533 CLIP
USER EXP GOVERNMENT<D6M> EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> ID=10 & 10 		1-09709-277-1 01 1 1012-
533 CLIP
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> REARWARD INNER SINGLE TIRE<YK3> ID=10 & 10 		1-09709-277-1 01 1 1012-
533 CLIP
REARWARD INNER SINGLE TIRE<YK3> ID=5-12 L=18 		1-09709-287-0 01 1 1003-1009
533 CLIP
REARWARD INNER SINGLE TIRE<YK3> ID=5-12 L=18 		1-09709-287-0 01 1 1003-1009
533 CLIP
REARWARD INNER SINGLE TIRE<YK3> ID=5-12 L=18 		1-09709-287-0 01 1 1010-
533 CLIP
USER EXP GOVERNMENT<D6M> DOUBLE TIRE REARWARD<SR6> ID=5-12 L=18 		1-09709-287-0 01 1 1010-
533 CLIP
REARWARD INNER SINGLE TIRE<YK3> ID=5-12 L=18 		1-09709-287-0 01 1 1010-
533 CLIP
EXC. INTERMITTENT WIPER<C13> L=100 		5-09707-036-1 01 1 0910-
533 CLIP
L=180 		1-09707-162-1 01 1 0812-1206
533 CLIP
AIR CONDITIONER MANUAL CONTROL(C60) L=180 		1-09707-162-1 01 1 1207-
çizim 187837
1 2 2 2 314 431 431
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
DOUBLE TIRE REARWARD<SR6> IN HOUSE PRODUCTION<TKF> EXC. LAMPS EXP PACKAGE<WL5> 		8-98188-115-0 01 1 1201-1209
1 HARNESS; CAB
DOUBLE TIRE REARWARD<SR6> EXC. LAMPS EXP PACKAGE<WL5> 		8-98188-115-0 01 1 1210-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> LAMPS EXP PACKAGE<WL5> MANUAL TRANSMISSION<X9C> REARWARD INNER SINGLE TIRE<YK3> 		8-98188-116-0 01 1 1201-1209
1 HARNESS; CAB
LAMPS EXP PACKAGE<WL5> REARWARD INNER SINGLE TIRE<YK3> 		8-98188-116-0 01 1 1210-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> MANUAL TRANSMISSION<X9C> REARWARD INNER SINGLE TIRE<YK3> EXC. LAMPS EXP PACKAGE<WL5> 		8-98188-117-0 01 1 1201-1209
1 HARNESS; CAB
REARWARD INNER SINGLE TIRE<YK3> EXC. LAMPS EXP PACKAGE<WL5> 		8-98188-117-0 01 1 1210-
1 HARNESS; CAB
LAMPS EXP PACKAGE<WL5> REARWARD INNER SINGLE TIRE<YK3> 		8-98138-196-0 01 1 1003-1112
1 HARNESS; CAB
LAMPS EXP PACKAGE<WL5> MANUAL TRANSMISSION<X9C> REARWARD INNER SINGLE TIRE<YK3> EXC. IN HOUSE PRODUCTION<TKF> 		8-98138-196-0 01 1 1201-1209
1 HARNESS; CAB
REARWARD INNER SINGLE TIRE<YK3> EXC. LAMPS EXP PACKAGE<WL5> 		8-98138-197-0 01 1 1003-1112
1 HARNESS; CAB
MANUAL TRANSMISSION<X9C> REARWARD INNER SINGLE TIRE<YK3> EXC. IN HOUSE PRODUCTION<TKF>,LAMPS EXP PACKAGE<WL5> 		8-98138-197-0 01 1 1201-1209
1 HARNESS; CAB 8-98099-295-0 01 1 0812-1002
1 HARNESS; CAB
DOUBLE TIRE REARWARD<SR6> EXC. LAMPS EXP PACKAGE<WL5> 		8-98099-295-0 01 1 1003-1112
1 HARNESS; CAB
DOUBLE TIRE REARWARD<SR6> EXC. IN HOUSE PRODUCTION<TKF>,LAMPS EXP PACKAGE<WL5> 		8-98099-295-0 01 1 1201-1209
2 DIODE; CABLE HARNESS
REARWARD INNER SINGLE TIRE<YK3> (C) BLACK 3P-1.5A 		8-94416-438-1 01 1 1003-
2 DIODE; CABLE HARNESS
REARWARD INNER SINGLE TIRE<YK3> (B) BLACK 2P-1.5A 		8-94422-639-1 06 1 1003-
2 DIODE; CABLE HARNESS
REARWARD INNER SINGLE TIRE<YK3> (B) BLACK 3P-1.5A 		8-94422-640-1 02 1 1003-
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 0812-1002
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 1003-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 02 1 0812-1002
2 DIODE; CABLE HARNESS
DOUBLE TIRE REARWARD<SR6> EXC. LAMPS EXP PACKAGE<WL5> (B) BLACK 2P-1.5A 		8-94422-639-1 02 1 1003-
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 0812-
431 CONNECTOR; JOINT
REARWARD INNER SINGLE TIRE<YK3> (C) 10P BLUE 		1-82699-598-0 02 1 1003-
431 CONNECTOR; JOINT
REARWARD INNER SINGLE TIRE<YK3> (C) 10P BLUE 		1-82699-598-0 05 1 1003-1011
431 CONNECTOR; JOINT
EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> (C) 10P BLUE 		1-82699-598-0 05 1 1012-
431 CONNECTOR; JOINT
REARWARD INNER SINGLE TIRE<YK3> (H) 6P BLACK 		8-97616-194-0 03 1 1003-1011
431 CONNECTOR; JOINT
EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> (H) 6P BLACK 		8-97616-194-0 03 1 1012-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 0812-1002
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1003-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0812-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0812-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0812-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 0812-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 0812-1002
431 CONNECTOR; JOINT
DOUBLE TIRE REARWARD<SR6> (C) 10P BLUE 		1-82699-598-0 04 1 1003-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 0812-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 0812-1002
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1003-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 0812-1002
431 CONNECTOR; JOINT
DOUBLE TIRE REARWARD<SR6> (H) 6P BLACK 		8-97616-194-0 02 1 1003-

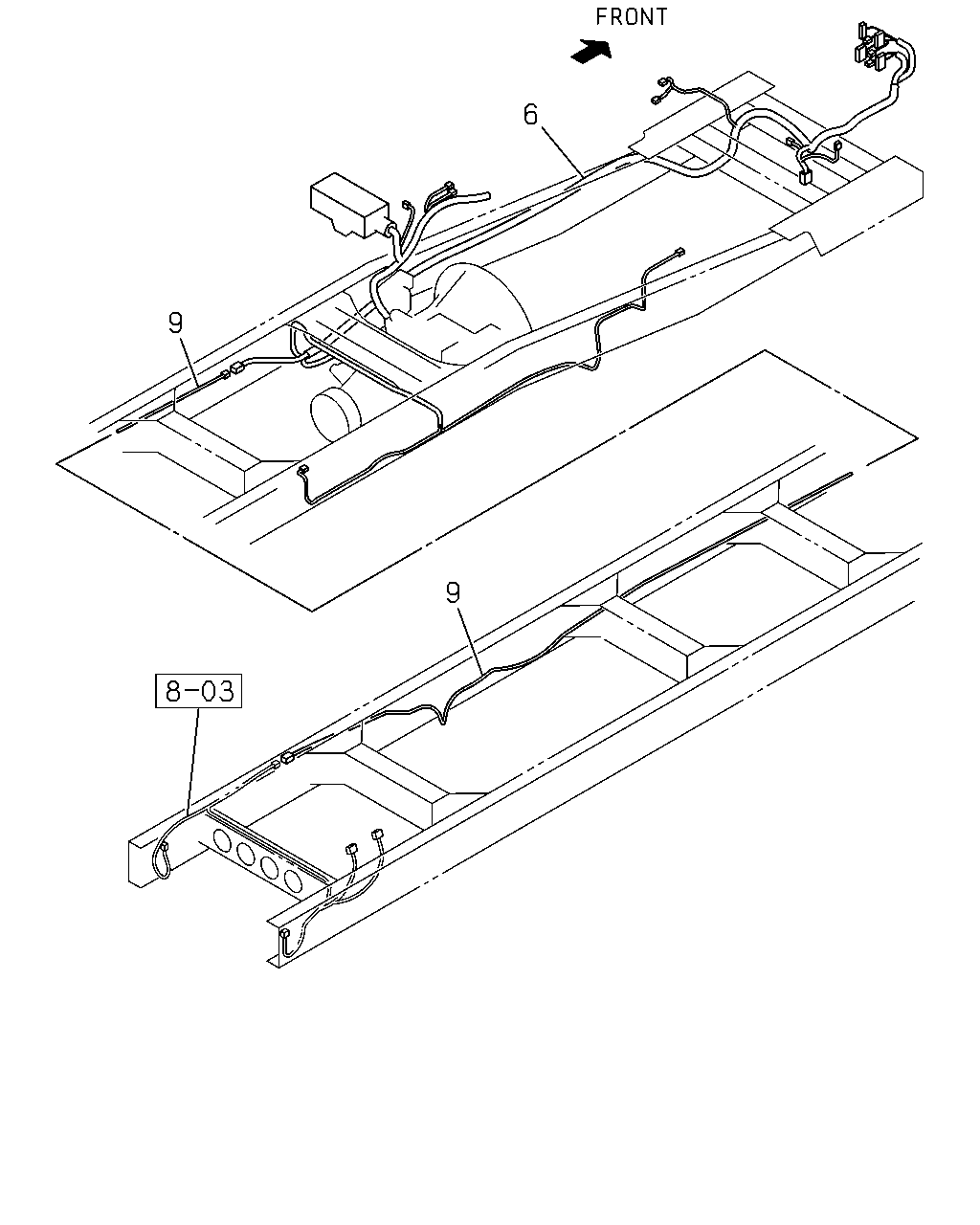

çizim 187841
6 9 9
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) EURO3 SPECIFICATION<NT3> DOUBLE TIRE REARWARD<SR6> 		8-98118-073-0 01 1 1012-
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W) EURO3 SPECIFICATION<NT3> DOUBLE TIRE REARWARD<SR6> 		8-98118-074-0 01 1 1012-
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) USER EXP GOVERNMENT<D6M> REARWARD INNER SINGLE TIRE<YK3> 		8-98137-484-3 01 1 1003-1011
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) USER EXP GOVERNMENT<D6M> EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> 		8-98137-484-3 01 1 1012-1103
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) USER EXP GOVERNMENT<D6M> EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> 		8-98186-311-0 01 1 1104-
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) REARWARD INNER SINGLE TIRE<YK3> EXC. USER EXP GOVERNMENT<D6M> 		8-98137-354-3 01 1 1003-1011
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> EXC. USER EXP GOVERNMENT<D6M> 		8-98137-354-3 01 1 1012-
6 HARNESS; FRAME
MLD6W M/T(Y2C) USER EXP GOVERNMENT<D6M> REARWARD INNER SINGLE TIRE<YK3> 		8-98137-486-3 01 1 1003-1011
6 HARNESS; FRAME
MLD6W M/T(Y2C) USER EXP GOVERNMENT<D6M> EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> 		8-98137-486-3 01 1 1012-1103
6 HARNESS; FRAME
MLD6W M/T(Y2C) USER EXP GOVERNMENT<D6M> EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> 		8-98186-313-0 01 1 1104-
6 HARNESS; FRAME
MLD6W M/T(Y2C) REARWARD INNER SINGLE TIRE<YK3> EXC. USER EXP GOVERNMENT<D6M> 		8-98137-355-3 01 1 1003-1011
6 HARNESS; FRAME
MLD6W M/T(Y2C) EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> EXC. USER EXP GOVERNMENT<D6M> 		8-98137-355-3 01 1 1012-
6 HARNESS; FRAME
MZX6P M/T(RSW) 		8-98125-695-0 01 1 0812-0812
6 HARNESS; FRAME
MZX6P M/T(RSW) WHEEL BASE 4200MM(42W) 		8-98125-695-1 01 1 0901-0906
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) 		8-98125-695-3 01 1 0907-1002
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> 		8-98125-695-3 01 1 1003-1010
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> 		8-98175-458-0 01 1 1011-1011
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> 		8-98175-458-0 01 1 1012-
6 HARNESS; FRAME
MLD6W M/T(Y2C) 		8-98125-696-0 01 1 0812-0812
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W) 		8-98125-696-3 01 1 0901-1002
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> 		8-98125-696-3 01 1 1003-1010
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> 		8-98175-459-0 01 1 1011-1011
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> 		8-98175-459-0 01 1 1012-
6 HARNESS; FRAME
MZX6P M/T(RSW) WHEEL BASE 3600MM(36W) 		8-98133-585-0 01 1 0901-0906
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 3600MM(36W) 		8-98133-585-2 01 1 0907-1002
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 3600MM(36W) DOUBLE TIRE REARWARD<SR6> 		8-98133-585-2 01 1 1003-1010
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 3600MM(36W) DOUBLE TIRE REARWARD<SR6> 		8-98175-460-0 01 1 1011-1011
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> 		8-98175-460-0 01 1 1012-
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 3600MM(36W) 		8-98133-587-2 01 1 0901-1002
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 3600MM(36W) DOUBLE TIRE REARWARD<SR6> 		8-98133-587-2 01 1 1003-1010
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 3600MM(36W) DOUBLE TIRE REARWARD<SR6> 		8-98175-461-0 01 1 1011-1011
6 HARNESS; FRAME
MLD6W M/T(Y2C) WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> 		8-98175-461-0 01 1 1012-
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) 		8-98126-571-0 01 1 0812-0906
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) 		8-98126-571-0 01 1 0907-1002
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> 		8-98126-571-0 01 1 1003-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> 		8-98168-687-0 01 1 1008-1011
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> DOUBLE TIRE REARWARD<SR6> 		8-98168-687-0 01 1 1012-
9 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> REARWARD INNER SINGLE TIRE<YK3> 		8-98137-360-2 01 1 1003-1009
9 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> 		8-98137-360-2 01 1 1010-1011
9 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) USER EXP GOVERNMENT<D6M> EURO2 SPECIFICATION<NT2> PINTLE HOOK<PP7> 		8-98137-360-2 01 1 1012-
9 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) USER EXP GOVERNMENT<D6M> EURO3 SPECIFICATION<NT3> REARWARD INNER SINGLE TIRE<YK3> EXC. PINTLE HOOK<PP7> 		8-98137-360-2 01 1 1012-
9 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) USER EXP GOVERNMENT<D6M> REARWARD INNER SINGLE TIRE<YK3> EXC. PINTLE HOOK<PP7> 		8-98140-351-2 01 1 1003-1011
9 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) USER EXP GOVERNMENT<D6M> EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> EXC. PINTLE HOOK<PP7> 		8-98140-351-2 01 1 1012-
9 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> EXC. USER EXP GOVERNMENT<D6M>,PINTLE HOOK<PP7> 		8-98137-474-2 01 1 1003-1011
9 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> EXC. USER EXP GOVERNMENT<D6M>,PINTLE HOOK<PP7> 		8-98137-474-2 01 1 1012-
9 HARNESS; FRAME,RR
WHEEL BASE 3600MM(36W) 		8-98125-697-0 01 1 0812-1002
9 HARNESS; FRAME,RR
WHEEL BASE 3600MM(36W) DOUBLE TIRE REARWARD<SR6> 		8-98125-697-0 01 1 1003-1007
9 HARNESS; FRAME,RR
WHEEL BASE 3600MM(36W) DOUBLE TIRE REARWARD<SR6> 		8-98168-686-0 01 1 1008-1011
9 HARNESS; FRAME,RR
WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> 		8-98168-686-0 01 1 1012-

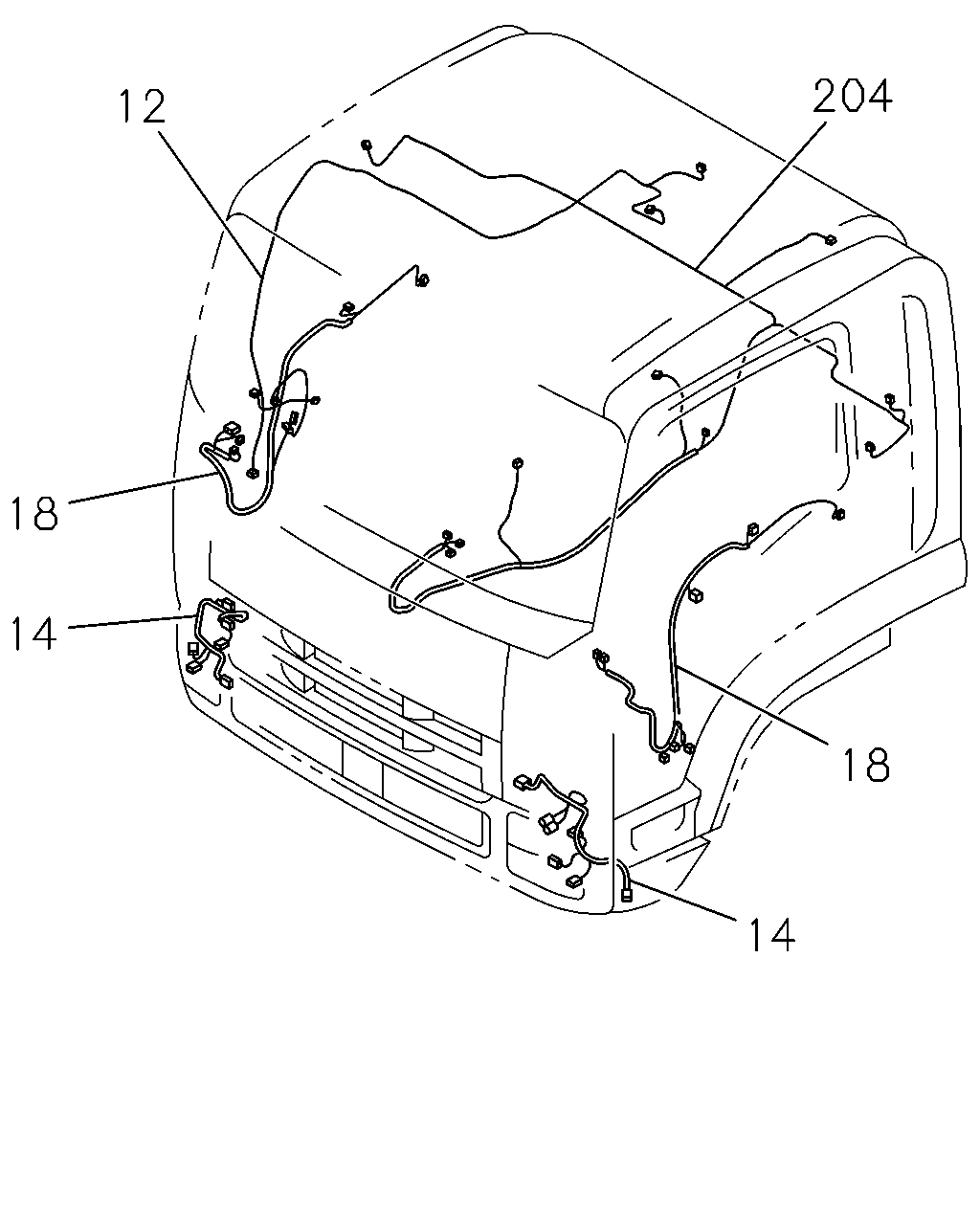

çizim 187845
204 12 18 14 18 14
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> 		8-98071-442-0 01 1 0812-
12 HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC> 		8-98085-335-1 01 1 0812-
14 HARNESS; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97622-119-0 02 1 0812-1002
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97622-119-0 02 1 1003-
14 HARNESS; HEADLAMP
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98100-021-0 02 1 0812-1002
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98100-021-0 02 1 1003-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98080-127-3 01 1 0812-1202
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> 		8-98178-803-0 01 1 1203-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98080-128-3 01 1 0812-1202
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> 		8-98178-804-0 01 1 1203-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98084-285-2 01 1 0812-1202
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> 		8-98178-801-0 01 1 1203-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98084-290-2 01 1 0812-1202
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> 		8-98178-802-0 01 1 1203-
204 HARNESS; CABLE,FLOOR
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		8-98085-307-1 01 1 0812-

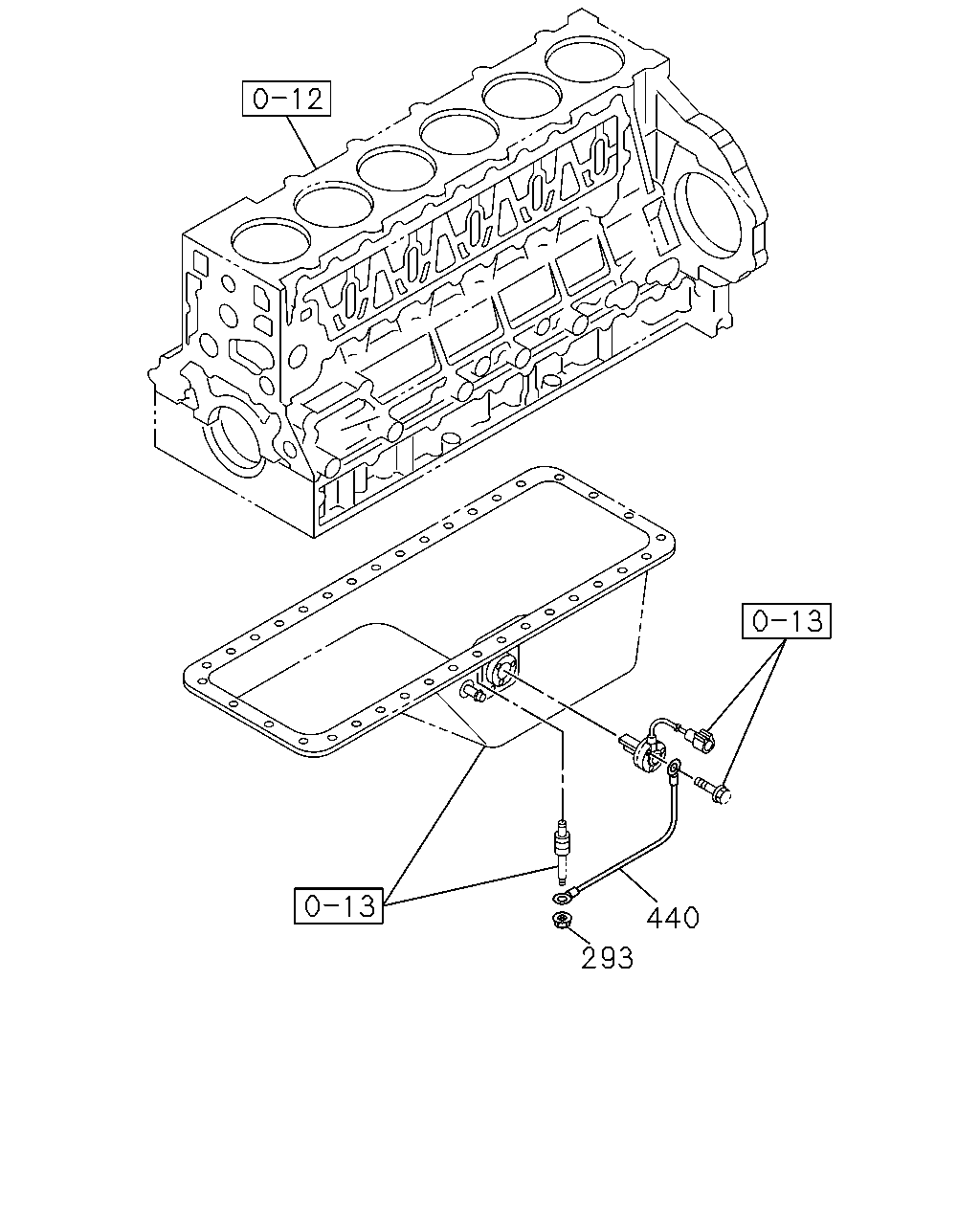

çizim 187876
440 293
BalonParca AdiParca NoAdetTipApplied Date
293 NUT
EURO3 SPECIFICATION<NT3> M8 FLANGE 		0-91180-108-0 01 1 1012-
440 CABLE; EARTH
EURO3 SPECIFICATION<NT3> 		8-97606-639-0 01 1 1012-
çizim 187885
440 293
BalonParca AdiParca NoAdetTipApplied Date
293 NUT
EURO3 SPECIFICATION<NT3> M8 FLANGE 		0-91180-108-0 01 1 1012-
440 CABLE; EARTH
EURO3 SPECIFICATION<NT3> 		8-97606-639-0 01 1 1012-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
