8-05 — INTERIOR LAMP (#69330) — 13 parça

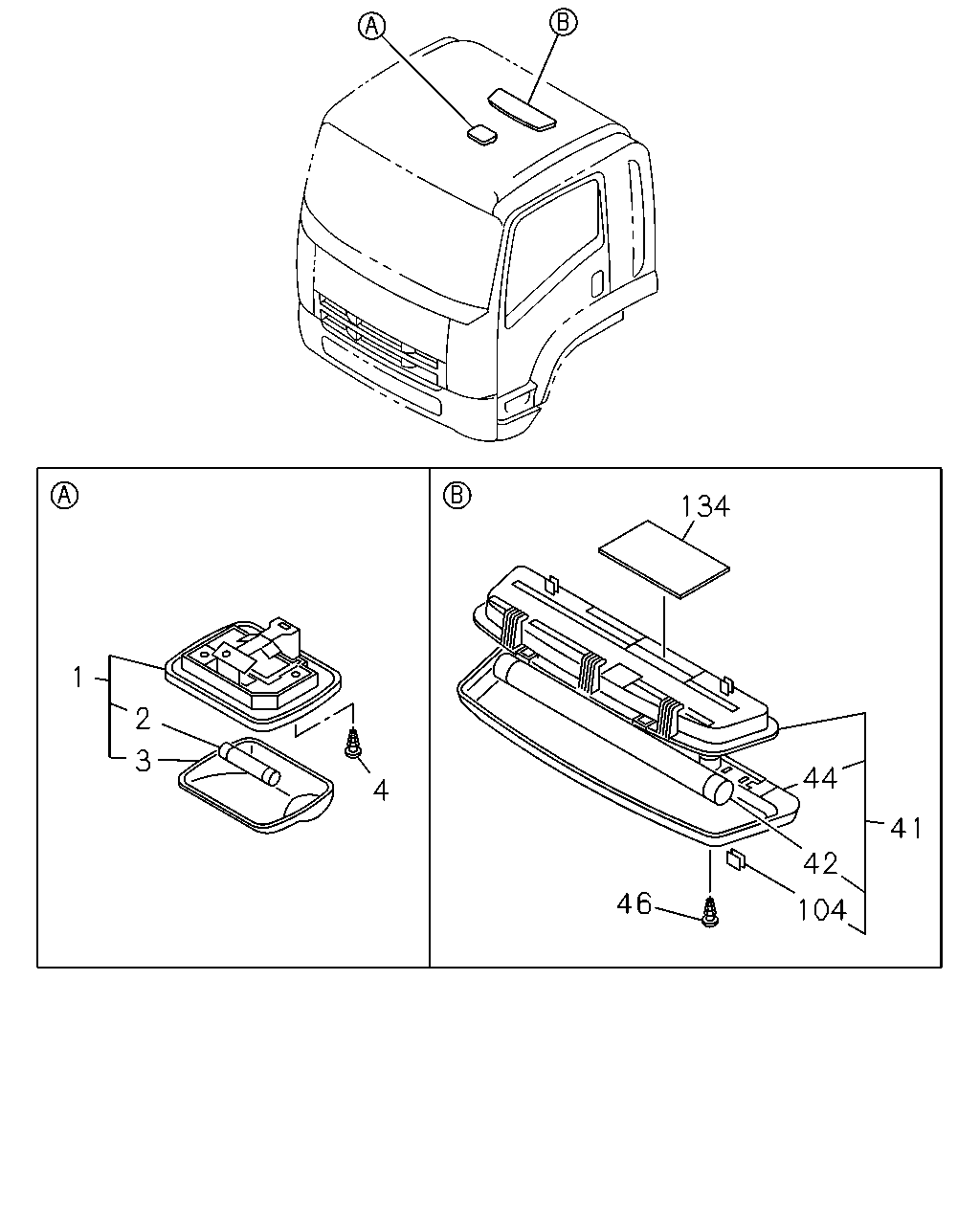

134 1 2 3 44 4 41 42 46 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; ROOM	8-98013-421-3	01	1	0812-
2	BULB; ROOM LAMP 24V 10W	5-82194-030-0	01	1	0812-
3	LENS; ROOM LAMP	8-98047-272-0	01	1	0812-
4	SCREW; ROOM LAMP M5X14 W/WASHER	8-98075-766-0	02	1	0812-
41	LAMP ASM; FLUORESCENT FLUORESCENT LAMP<6UC>	8-97387-587-1	01	1	0812-
42	LAMP; FLUORESCENT FLUORESCENT LAMP<6UC> FL20SD	8-98056-311-0	01	1	0812-
44	LENS; FLUORESCENT LAMP FLUORESCENT LAMP<6UC>	8-98056-315-0	01	1	0812-
46	SCREW; FLUORESCENT LAMP FLUORESCENT LAMP<6UC> BOLT M6X12 FLANGE	0-28060-612-0	02	1	0812-
104	CLIP; LAMP FLUORESCENT LAMP<6UC>	8-98056-322-0	02	1	0812-
134	SEAL; FLUORESCENT LAMP FLUORESCENT LAMP<6UC>	8-98076-275-0	01	1	0910-

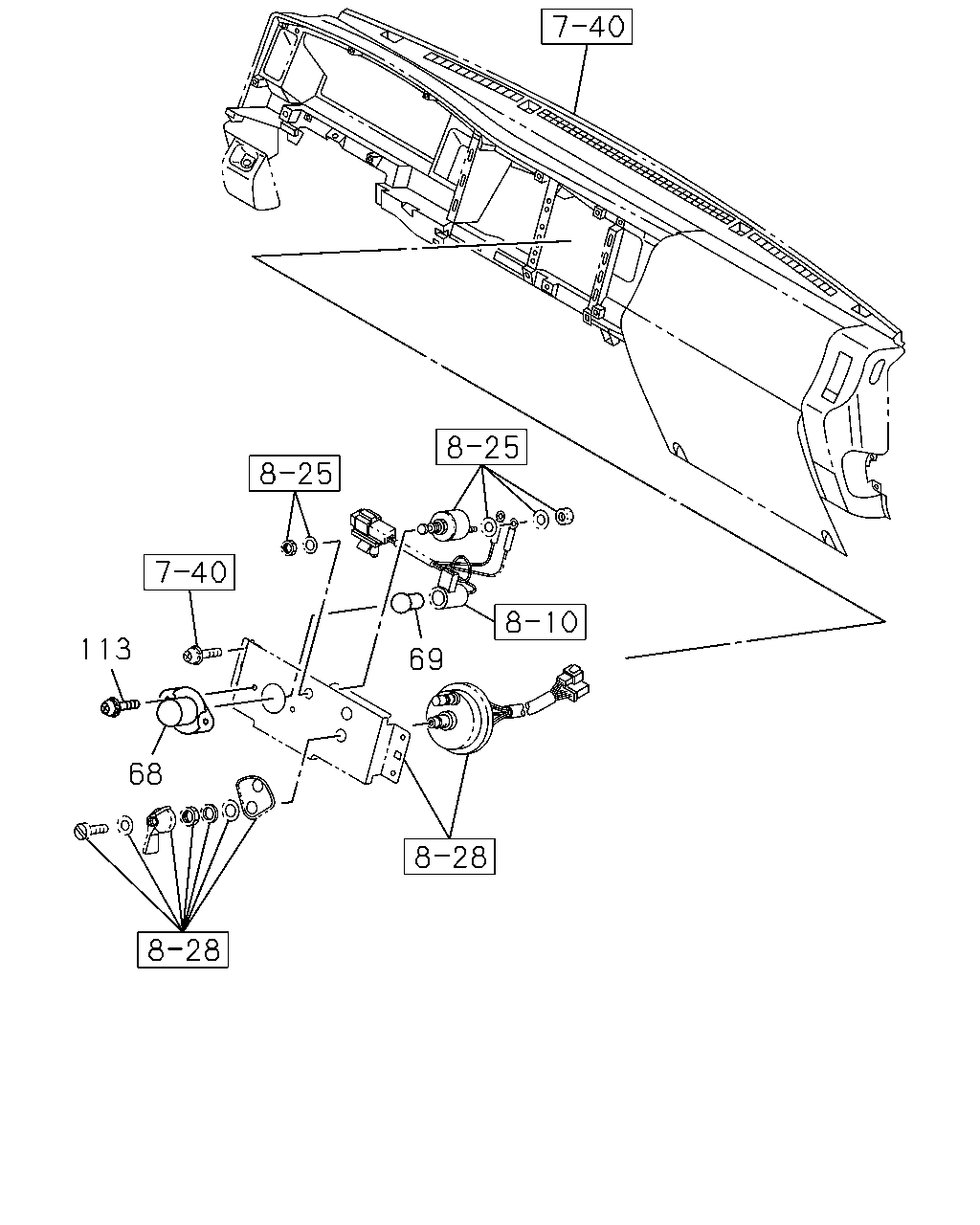

113 69 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
68	BRACKET; MAP LAMP USER EXP GOVERNMENT<D6M>	1-82147-002-0	01	1	1003-
69	BULB; MAP LAMP USER EXP GOVERNMENT<D6M> 24V 6W	9-82691-306-0	01	1	1003-
113	SCREW; LAMP USER EXP GOVERNMENT<D6M> M5X16 W/LK&PL WASHER	8-94279-400-0	02	1	1003-
