8-03 — LAMP; REAR AND REAR SIDE (#69329) — 66 parça

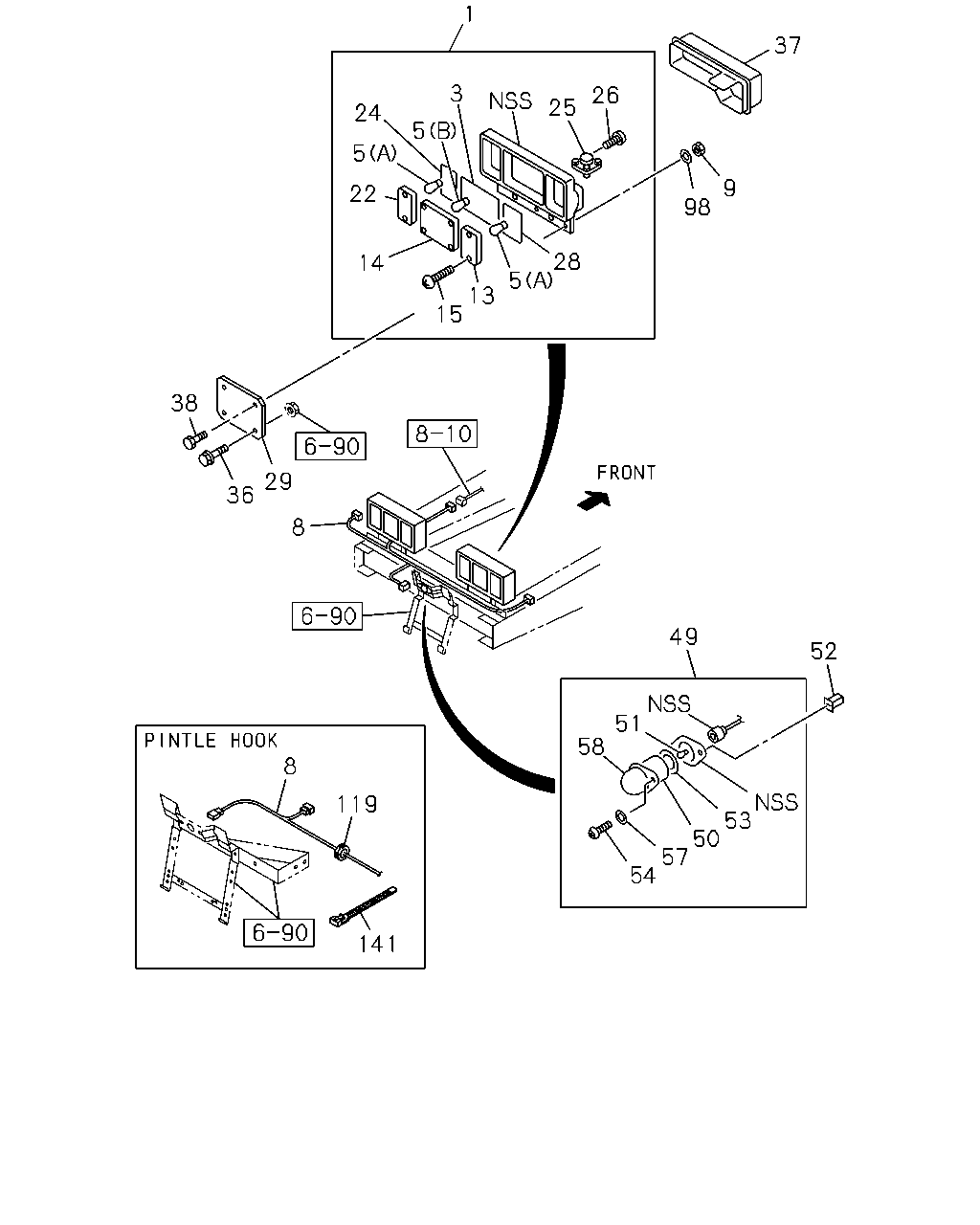

çizim 136080
1 37 3 26 25 24 5 5 9 22 98 28 14 5 13 15 38 29 36 8 49 52 51 8 58 53 50 57 54 119 141
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; RR COMB
REVERSING WARNING BUZZER<YM9> 		8-98034-328-0 01 1 0812-
1 LAMP ASM; RR COMB 8-98034-325-0 01 1 0812-
1 LAMP ASM; RR COMB
EXC. REVERSING WARNING BUZZER<YM9> 		8-98034-324-0 01 1 0812-
3 GASKET; RR COMB LAMP 8-94257-505-0 02 1 0812-
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-108-0 04 1 0812-
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-109-0 02 1 0812-
8 HARNESS; RR COMB LAMP
PINTLE HOOK<PP7> 		8-98141-070-0 01 1 0903-1002
8 HARNESS; RR COMB LAMP
PINTLE HOOK<PP7> DOUBLE TIRE REARWARD<SR6> 		8-98141-070-0 01 1 1003-1009
8 HARNESS; RR COMB LAMP
PINTLE HOOK<PP7> DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> 		8-98141-070-0 01 1 1010-1201
8 HARNESS; RR COMB LAMP
PINTLE HOOK<PP7> DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> 		8-98203-886-0 01 1 1202-
8 HARNESS; RR COMB LAMP 8-98064-342-3 01 1 0812-0902
8 HARNESS; RR COMB LAMP
EXC. PINTLE HOOK<PP7> 		8-98064-342-3 01 1 0903-1002
8 HARNESS; RR COMB LAMP
DOUBLE TIRE REARWARD<SR6> EXC. PINTLE HOOK<PP7> 		8-98064-342-3 01 1 1003-1201
8 HARNESS; RR COMB LAMP
DOUBLE TIRE REARWARD<SR6> EXC. PINTLE HOOK<PP7> 		8-98203-887-0 01 1 1202-
9 NUT; LAMP,RR COMB
M6 		0-91110-506-0 04 1 0812-
13 LENS; TURN SIGNAL 8-94174-638-0 01 1 0812-
13 LENS; TURN SIGNAL 8-94174-639-0 01 1 0812-
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 0812-
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 0812-
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 16 1 0812-
22 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 02 1 0812-
24 GASKET; BACK,LAMP 8-94257-506-0 02 1 0812-
25 HORN ASM; BACK
REVERSING WARNING BUZZER<YM9> 		8-94257-518-0 01 1 0812-
26 SCREW; BACK HORN
REVERSING WARNING BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 02 1 0812-
26 SCREW; BACK HORN
M4X14 TAPPING 		9-07076-414-0 01 1 0812-
26 SCREW; BACK HORN
EXC. REVERSING WARNING BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 01 1 0812-
28 GASKET; TURN,LAMP 8-94257-507-0 02 1 0812-
29 BRACKET; LAMP,RR COMB 1-82237-050-1 02 1 0812-
36 BOLT; BRKT,RR COMB
M8X25 FLANGE 		0-28650-825-0 02 1 0812-
37 COVER; RR COMB LAMP 8-94128-858-4 01 1 0812-
37 COVER; RR COMB LAMP 8-94129-274-4 01 1 0812-
38 BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER 		0-50640-630-0 04 1 0812-
49 LAMP; LICENSE PLATE
24V 10W 		1-82120-024-1 01 1 0812-
50 LENS; LICENSE PLATE LAMP 1-82235-006-0 01 1 0812-
51 BULB; LICENSE PLATE LAMP
24V 10W 		1-82194-037-0 01 1 0812-
52 GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 0812-
53 GASKET; LICENSE LAMP 1-82126-005-0 01 1 0812-
54 SCREW; LICENSE PLATE LAMP
M5X20 		1-82129-007-0 02 1 0812-
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-008-0 02 1 0812-
58 COVER; LICENSE PLATE LAMP 1-82129-005-0 01 1 0812-
98 WASHER
ID=6.4 OD=18 		0-91610-706-0 04 1 0812-
119 GROMMET; HARNESS
PINTLE HOOK<PP7> REARWARD INNER SINGLE TIRE<YK3> ID=28 OD=35 T=17 		9-09956-256-2 01 1 1003-1009
119 GROMMET; HARNESS
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> DOUBLE TIRE REARWARD<SR6> ID=28 OD=35 T=17 		9-09956-256-2 01 1 1010-1011
119 GROMMET; HARNESS
PINTLE HOOK<PP7> REARWARD INNER SINGLE TIRE<YK3> ID=28 OD=35 T=17 		9-09956-256-2 01 1 1010-1011
119 GROMMET; HARNESS
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> DOUBLE TIRE REARWARD<SR6> ID=28 OD=35 T=17 		9-09956-256-2 01 1 1012-
119 GROMMET; HARNESS
EURO3 SPECIFICATION<NT3> REARWARD INNER SINGLE TIRE<YK3> EXC. PINTLE HOOK<PP7> ID=28 OD=35 T=17 		9-09956-256-2 01 1 1012-
119 GROMMET; HARNESS
PINTLE HOOK<PP7> REARWARD INNER SINGLE TIRE<YK3> ID=28 OD=35 T=17 		9-09956-256-2 01 1 1012-
119 GROMMET; HARNESS
PINTLE HOOK<PP7> ID=24 OD=30 T=17 		9-09956-092-1 01 1 0903-1002
119 GROMMET; HARNESS
PINTLE HOOK<PP7> DOUBLE TIRE REARWARD<SR6> ID=24 OD=30 T=17 		9-09956-092-1 01 1 1003-
141 CLIP; LICENSE & BODY HARNESS
PINTLE HOOK<PP7> L=250 		5-09707-030-1 01 1 0901-0902
141 CLIP; LICENSE & BODY HARNESS
PINTLE HOOK<PP7> L=250 		5-09707-030-1 01 1 0903-1002
141 CLIP; LICENSE & BODY HARNESS
PINTLE HOOK<PP7> L=250 		5-09707-030-1 01 1 0903-1002
141 CLIP; LICENSE & BODY HARNESS
PINTLE HOOK<PP7> DOUBLE TIRE REARWARD<SR6> L=250 		5-09707-030-1 01 1 1003-1009
141 CLIP; LICENSE & BODY HARNESS
PINTLE HOOK<PP7> L=250 		5-09707-030-1 01 1 1003-1009
141 CLIP; LICENSE & BODY HARNESS
PINTLE HOOK<PP7> L=250 		5-09707-030-1 01 1 1010-1011
141 CLIP; LICENSE & BODY HARNESS
PINTLE HOOK<PP7> DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> L=250 		5-09707-030-1 01 1 1010-1011
141 CLIP; LICENSE & BODY HARNESS
EURO3 SPECIFICATION<NT3> EXC. PINTLE HOOK<PP7> L=250 		5-09707-030-1 01 1 1012-
141 CLIP; LICENSE & BODY HARNESS
PINTLE HOOK<PP7> L=250 		5-09707-030-1 01 1 1012-
141 CLIP; LICENSE & BODY HARNESS
PINTLE HOOK<PP7> DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> L=250 		5-09707-030-1 01 1 1012-
çizim 136449
202 177 177 181 176 177 180 180
BalonParca AdiParca NoAdetTipApplied Date
176 BULB; RR COMB,MARKER LAMP
LAMPS EXP PACKAGE<WL5> 24V 6W 		9-82691-306-0 06 1 1003-
177 GASKET; RR COMB,MARKER LAMP
LAMPS EXP PACKAGE<WL5> (A) 		1-82236-009-0 02 1 1003-
177 GASKET; RR COMB,MARKER LAMP
LAMPS EXP PACKAGE<WL5> (B) 		1-82236-012-0 14 1 1003-
180 SCREW; RR COMB,MARKER LAMP
LAMPS EXP PACKAGE<WL5> (A) 		1-82239-027-1 04 1 1003-
180 SCREW; RR COMB,MARKER LAMP
LAMPS EXP PACKAGE<WL5> (B) 		1-82239-028-1 04 1 1003-
181 WASHER; RR COMB,MARKER LAMP
LAMPS EXP PACKAGE<WL5> 		1-82239-029-1 08 1 1003-
202 LAMP ASM; MARKER,RR COMB
LAMPS EXP PACKAGE<WL5> 		1-82230-195-3 02 1 1003-
