◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11151 - FTS(LHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#69328) — 246 parça

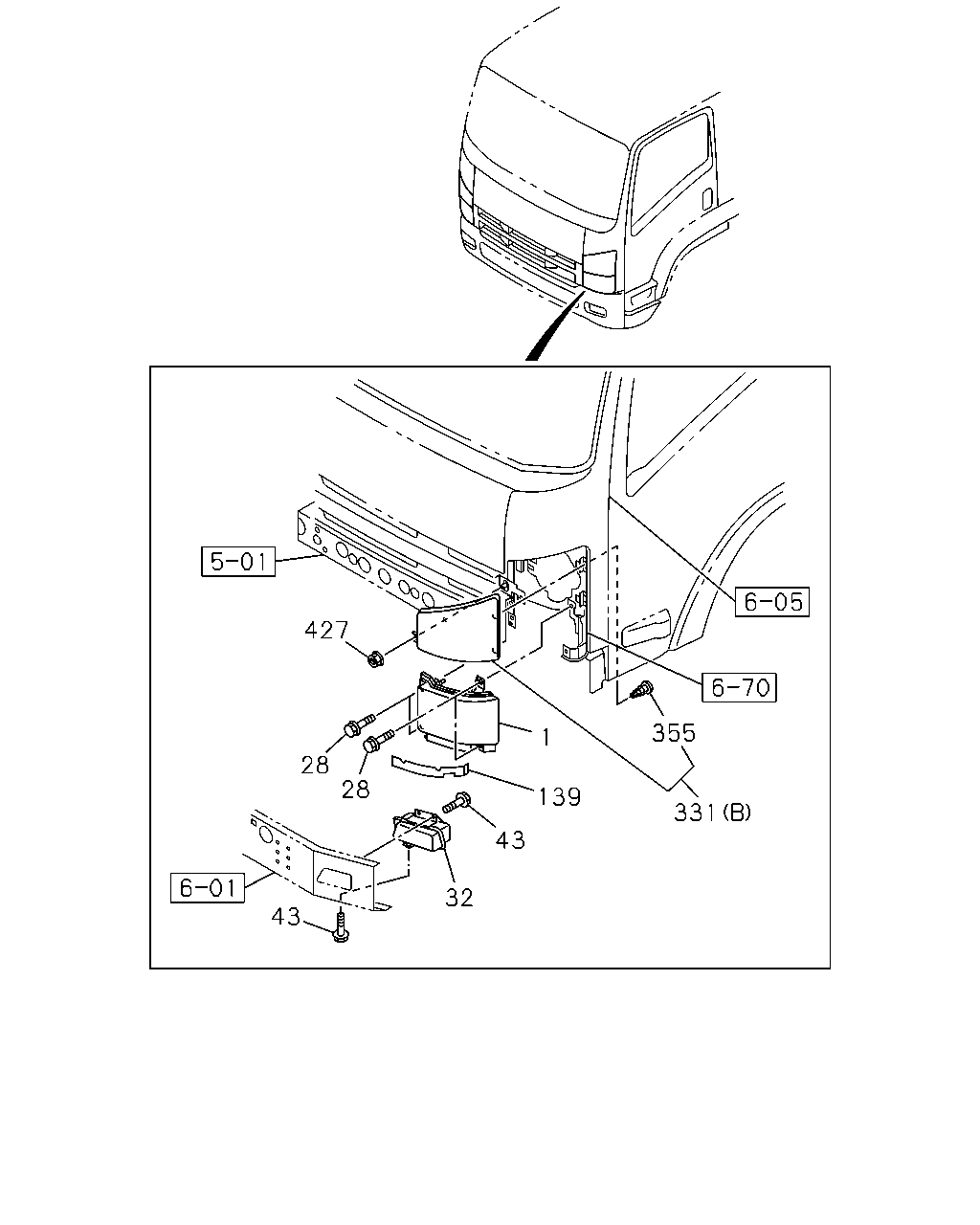

çizim 135663
427 355 1 28 28 139 331 43 32 43
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-583-0 01 1 1109-1208
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-622-0 01 1 1209-1305
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-314-0 01 1 1306-
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-584-0 01 1 1109-1208
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-623-0 01 1 1209-1305
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-315-0 01 1 1306-
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-585-0 01 1 1109-1208
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-624-0 01 1 1209-1305
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-316-0 01 1 1306-
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-586-0 01 1 1109-1208
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-625-0 01 1 1209-1305
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-317-0 01 1 1306-
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-481-2 01 1 0812-1108
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98098-481-2 01 1 1109-1208
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98225-597-0 01 1 1209-1301
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98225-638-0 01 1 1302-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98241-323-0 01 1 1306-
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-482-2 01 1 0812-1108
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98098-482-2 01 1 1109-1208
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98225-598-0 01 1 1209-1301
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98225-639-0 01 1 1302-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98241-324-0 01 1 1306-
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-483-2 01 1 0812-1108
1 LAMP ASM; HEAD
REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-483-2 01 1 1109-1208
1 LAMP ASM; HEAD
REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-601-0 01 1 1209-1301
1 LAMP ASM; HEAD
REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-642-0 01 1 1302-1305
1 LAMP ASM; HEAD
REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-327-0 01 1 1306-
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-484-2 01 1 0812-1108
1 LAMP ASM; HEAD
REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-484-2 01 1 1109-1208
1 LAMP ASM; HEAD
REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-602-0 01 1 1209-1301
1 LAMP ASM; HEAD
REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-643-0 01 1 1302-1305
1 LAMP ASM; HEAD
REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-328-0 01 1 1306-
28 BOLT; HEADLAMP
REINFORCEMENT BUMPER<VG7> M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 1003-1005
28 BOLT; HEADLAMP
REINFORCEMENT BUMPER<VG7> M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1006-
28 BOLT; HEADLAMP
M10X25 FLANGE 		0-28651-025-0 04 1 0812-1002
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> M10X25 FLANGE 		0-28651-025-0 04 1 1003-
32 LAMP ASM; FOG
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> 		8-98149-143-1 01 1 1003-1301
32 LAMP ASM; FOG
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> 		8-98232-058-1 01 1 1302-
32 LAMP ASM; FOG
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> 		8-98149-144-1 01 1 1003-1301
32 LAMP ASM; FOG
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> 		8-98232-059-1 01 1 1302-
43 BOLT; FOG LAMP
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> M6X19.5 W/LK&PL WASHER 		8-97360-226-0 06 1 1003-
139 COVER; HEADLAMP 8-98054-342-0 02 1 0812-
331 LAMP; TURN SIGNAL
REINFORCEMENT BUMPER<VG7> (B) 		8-98155-458-0 01 1 1003-
331 LAMP; TURN SIGNAL
REINFORCEMENT BUMPER<VG7> (B) 		8-98155-459-0 01 1 1003-
331 LAMP; TURN SIGNAL
(A) 		8-98079-895-0 01 1 0812-1002
331 LAMP; TURN SIGNAL
BUMPER W/HEADLAMPS<SLB> (A) 		8-98079-895-0 01 1 1003-
331 LAMP; TURN SIGNAL
(A) 		8-98079-896-0 01 1 0812-1002
331 LAMP; TURN SIGNAL
BUMPER W/HEADLAMPS<SLB> (A) 		8-98079-896-0 01 1 1003-
355 SCREW; TURN SIGNAL
REINFORCEMENT BUMPER<VG7> 		8-98051-428-0 04 1 1003-
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 0812-1002
427 NUT; TURN SIGNAL LAMP
REINFORCEMENT BUMPER<VG7> M6 FLANGE 		0-91180-106-0 02 1 1003-
427 NUT; TURN SIGNAL LAMP
EXC. CORNERING LAMP<T87> M6 FLANGE 		0-91180-106-0 02 1 1003-
çizim 136070
339 338 4 1 420 408 20 23 457 382 5 5
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-583-0 01 1 1109-1208
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-622-0 01 1 1209-1305
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-314-0 01 1 1306-
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-584-0 01 1 1109-1208
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-623-0 01 1 1209-1305
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-315-0 01 1 1306-
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-585-0 01 1 1109-1208
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-624-0 01 1 1209-1305
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-316-0 01 1 1306-
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-586-0 01 1 1109-1208
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-625-0 01 1 1209-1305
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-317-0 01 1 1306-
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-481-2 01 1 0812-1108
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98098-481-2 01 1 1109-1208
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98225-597-0 01 1 1209-1301
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98225-638-0 01 1 1302-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98241-323-0 01 1 1306-
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-482-2 01 1 0812-1108
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98098-482-2 01 1 1109-1208
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98225-598-0 01 1 1209-1301
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98225-639-0 01 1 1302-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98241-324-0 01 1 1306-
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-483-2 01 1 0812-1108
1 LAMP ASM; HEAD
REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-483-2 01 1 1109-1208
1 LAMP ASM; HEAD
REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-601-0 01 1 1209-1301
1 LAMP ASM; HEAD
REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-642-0 01 1 1302-1305
1 LAMP ASM; HEAD
REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-327-0 01 1 1306-
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-484-2 01 1 0812-1108
1 LAMP ASM; HEAD
REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-484-2 01 1 1109-1208
1 LAMP ASM; HEAD
REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-602-0 01 1 1209-1301
1 LAMP ASM; HEAD
REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-643-0 01 1 1302-1305
1 LAMP ASM; HEAD
REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-328-0 01 1 1306-
4 HEADLAMP UNIT
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-568-0 01 1 1109-
4 HEADLAMP UNIT
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-569-0 01 1 1109-
4 HEADLAMP UNIT
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-570-0 01 1 1109-
4 HEADLAMP UNIT
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-571-0 01 1 1109-
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-404-0 01 1 0812-1108
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98051-404-0 01 1 1109-1301
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98226-184-0 01 1 1302-
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-405-0 01 1 0812-1108
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98051-405-0 01 1 1109-1301
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98226-185-0 01 1 1302-
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-406-0 01 1 0812-1108
4 HEADLAMP UNIT
REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-406-0 01 1 1109-1301
4 HEADLAMP UNIT
REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-188-0 01 1 1302-
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-407-0 01 1 0812-1108
4 HEADLAMP UNIT
REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-407-0 01 1 1109-1301
4 HEADLAMP UNIT
REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-189-0 01 1 1302-
5 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 0812-
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 0812-
20 SCREW; HEADLAMP 8-97378-871-0 06 1 0812-
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 0812-
338 LEVELING; HEADLAMP
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98010-256-0 02 1 1109-1208
338 LEVELING; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98010-256-0 02 1 1209-
339 GASKET; LEVELING
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		1-86830-158-0 02 1 1109-1208
339 GASKET; LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		1-86830-158-0 02 1 1209-
382 PLUG; SOCKET,HEADLAMP 8-98069-364-0 02 1 0812-1208
382 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1209-
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 0812-
420 SPRING; BULB,HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		8-98218-601-0 02 1 1209-1301
420 SPRING; BULB,HEADLAMP 8-98218-601-0 02 1 1302-
420 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 0812-1208
420 SPRING; BULB,HEADLAMP
REINFORCEMENT BUMPER<VG7> 		8-97378-875-0 02 1 1209-1301
457 GRIP; HEADLAMP 8-98241-354-0 02 1 1306-

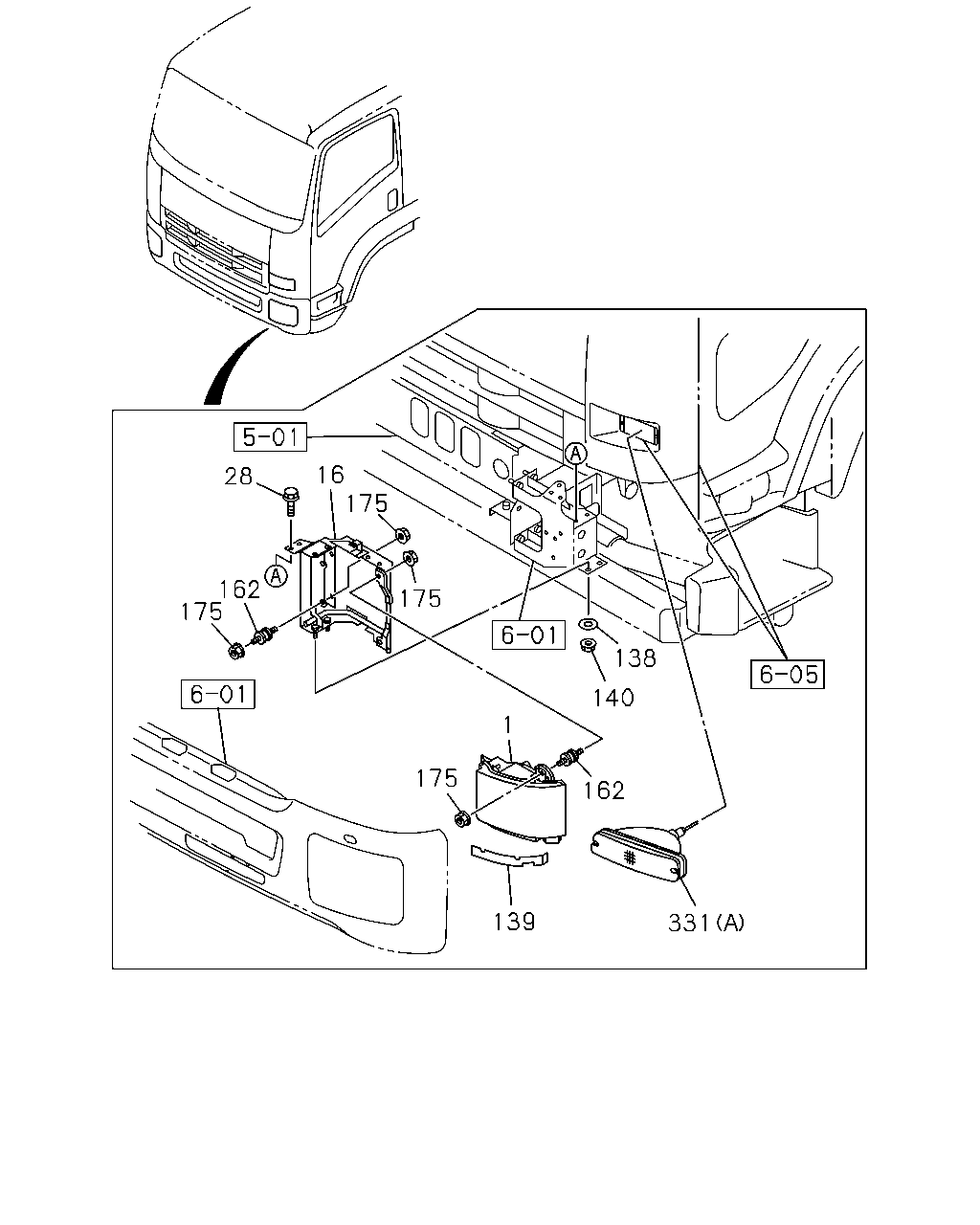

çizim 136138
16 175 28 162 175 175 138 140 1 175 162 139 331
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-583-0 01 1 1109-1208
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-622-0 01 1 1209-1305
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-314-0 01 1 1306-
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-584-0 01 1 1109-1208
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-623-0 01 1 1209-1305
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-315-0 01 1 1306-
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-585-0 01 1 1109-1208
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-624-0 01 1 1209-1305
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-316-0 01 1 1306-
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-586-0 01 1 1109-1208
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-625-0 01 1 1209-1305
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-317-0 01 1 1306-
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-481-2 01 1 0812-1108
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98098-481-2 01 1 1109-1208
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98225-597-0 01 1 1209-1301
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98225-638-0 01 1 1302-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98241-323-0 01 1 1306-
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-482-2 01 1 0812-1108
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98098-482-2 01 1 1109-1208
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98225-598-0 01 1 1209-1301
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98225-639-0 01 1 1302-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7> 		8-98241-324-0 01 1 1306-
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-483-2 01 1 0812-1108
1 LAMP ASM; HEAD
REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-483-2 01 1 1109-1208
1 LAMP ASM; HEAD
REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-601-0 01 1 1209-1301
1 LAMP ASM; HEAD
REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-642-0 01 1 1302-1305
1 LAMP ASM; HEAD
REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-327-0 01 1 1306-
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-484-2 01 1 0812-1108
1 LAMP ASM; HEAD
REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-484-2 01 1 1109-1208
1 LAMP ASM; HEAD
REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-602-0 01 1 1209-1301
1 LAMP ASM; HEAD
REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-643-0 01 1 1302-1305
1 LAMP ASM; HEAD
REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-328-0 01 1 1306-
16 BRACKET; HEADLAMP 8-98086-431-1 01 1 0812-1002
16 BRACKET; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		8-98086-431-1 01 1 1003-
16 BRACKET; HEADLAMP 8-98086-432-1 01 1 0812-1002
16 BRACKET; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		8-98086-432-1 01 1 1003-
28 BOLT; HEADLAMP
REINFORCEMENT BUMPER<VG7> M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 1003-1005
28 BOLT; HEADLAMP
REINFORCEMENT BUMPER<VG7> M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1006-
28 BOLT; HEADLAMP
M10X25 FLANGE 		0-28651-025-0 04 1 0812-1002
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> M10X25 FLANGE 		0-28651-025-0 04 1 1003-
138 WASHER; LK BRKT HD LAMP
ID=10.5 OD=26 		0-91614-710-0 04 1 0812-1002
138 WASHER; LK BRKT HD LAMP
BUMPER W/HEADLAMPS<SLB> ID=10.5 OD=26 		0-91614-710-0 04 1 1003-
139 COVER; HEADLAMP 8-98054-342-0 02 1 0812-
140 NUT
M10 FLANGE 		0-91180-210-0 08 1 0812-1002
140 NUT
BUMPER W/HEADLAMPS<SLB> M10 FLANGE 		0-91180-210-0 08 1 1003-
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 0812-1002
162 RUBBER; CUSHION UPR
BUMPER W/HEADLAMPS<SLB> 		1-82117-086-0 08 1 1003-
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 0812-1002
175 NUT; BRKT CUSHION RUBBER
BUMPER W/HEADLAMPS<SLB> M8 FLANGE 		0-91180-108-0 16 1 1003-
331 LAMP; TURN SIGNAL
REINFORCEMENT BUMPER<VG7> (B) 		8-98155-458-0 01 1 1003-
331 LAMP; TURN SIGNAL
REINFORCEMENT BUMPER<VG7> (B) 		8-98155-459-0 01 1 1003-
331 LAMP; TURN SIGNAL
(A) 		8-98079-895-0 01 1 0812-1002
331 LAMP; TURN SIGNAL
BUMPER W/HEADLAMPS<SLB> (A) 		8-98079-895-0 01 1 1003-
331 LAMP; TURN SIGNAL
(A) 		8-98079-896-0 01 1 0812-1002
331 LAMP; TURN SIGNAL
BUMPER W/HEADLAMPS<SLB> (A) 		8-98079-896-0 01 1 1003-
çizim 136292
327 437 91 427 92 94 92 94 429 97 7 234
BalonParca AdiParca NoAdetTipApplied Date
7 NUT; FRT COMB LAMP
CORNERING LAMP<T87> M6 FLANGE 		0-91180-106-0 02 1 1003-
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 0812-1002
91 BULB; SIDE TURN SIGNAL
EXC. CORNERING LAMP<T87> 24V 21W 		8-98051-495-0 02 1 1003-
92 SOCKET ASM; SIDE COMB LAMP
CORNERING LAMP<T87> (B) 		8-97172-959-0 02 1 1003-
92 SOCKET ASM; SIDE COMB LAMP
CORNERING LAMP<T87> (A) 		8-98051-390-0 02 1 1003-
94 BULB; SIDE COMB LAMP
CORNERING LAMP<T87> (A) 24V 21W 		8-98051-495-0 02 1 1003-
94 BULB; SIDE COMB LAMP
CORNERING LAMP<T87> (B) 24V 21W 		8-98051-496-0 02 1 1003-
97 LAMP UNIT; COMB
CORNERING LAMP<T87> 		8-98051-419-0 01 1 1003-
97 LAMP UNIT; COMB
CORNERING LAMP<T87> 		8-98051-420-0 01 1 1003-
234 GASKET; SIDE COMB LAMP
CORNERING LAMP<T87> 		8-98051-432-0 02 1 1003-
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 0812-1002
327 LAMP ASM; SIDE TURN SIGNAL
EXC. CORNERING LAMP<T87> 		8-97410-180-4 01 1 1003-
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 0812-1002
327 LAMP ASM; SIDE TURN SIGNAL
EXC. CORNERING LAMP<T87> 		8-97410-181-3 01 1 1003-
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 0812-1002
427 NUT; TURN SIGNAL LAMP
REINFORCEMENT BUMPER<VG7> M6 FLANGE 		0-91180-106-0 02 1 1003-
427 NUT; TURN SIGNAL LAMP
EXC. CORNERING LAMP<T87> M6 FLANGE 		0-91180-106-0 02 1 1003-
429 LAMP ASM; SIDE COMB
CORNERING LAMP<T87> 		8-98039-776-2 01 1 1003-
429 LAMP ASM; SIDE COMB
CORNERING LAMP<T87> 		8-98039-777-2 01 1 1003-
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 0812-1002
437 SOCKET; SIDE,TURN
EXC. CORNERING LAMP<T87> 		8-98051-390-0 02 1 1003-
çizim 136400
32 36 15 44 47 49 331 431 357 399 355 432 331 124 125 127 129 448
BalonParca AdiParca NoAdetTipApplied Date
15 BULB; FOG LAMP
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> 24V 70W 		1-82194-106-0 02 1 1003-
32 LAMP ASM; FOG
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> 		8-98149-143-1 01 1 1003-1301
32 LAMP ASM; FOG
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> 		8-98232-058-1 01 1 1302-
32 LAMP ASM; FOG
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> 		8-98149-144-1 01 1 1003-1301
32 LAMP ASM; FOG
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> 		8-98232-059-1 01 1 1302-
36 CORD; FOG LAMP
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> 		1-82118-015-0 01 1 1003-
36 CORD; FOG LAMP
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> 		1-82118-016-0 01 1 1003-
44 NUT; FOG LAMP
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> M6 		8-98217-430-0 02 1 1205-
47 WASHER; PL,FOG LAMP
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> 		8-98217-429-0 02 1 1205-
49 BRACKET; LAMP
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> (A) 		8-98051-435-0 01 1 1003-
49 BRACKET; LAMP
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> (A) 		8-98051-436-0 01 1 1003-
49 BRACKET; LAMP
REINFORCEMENT BUMPER<VG7> (B) 		8-98164-818-0 01 1 1003-
124 BULB; FRT TURN SIGNAL
24V 21W 		8-98051-496-0 02 1 0812-1002
124 BULB; FRT TURN SIGNAL
BUMPER W/HEADLAMPS<SLB> 24V 21W 		8-98051-496-0 02 1 1003-
125 GASKET; FRT TURN SIGNAL 8-94334-881-0 02 1 0812-1002
125 GASKET; FRT TURN SIGNAL
BUMPER W/HEADLAMPS<SLB> 		8-94334-881-0 02 1 1003-
127 LENS; FRT TURN SIGNAL 8-94112-723-0 01 1 0812-1002
127 LENS; FRT TURN SIGNAL
BUMPER W/HEADLAMPS<SLB> 		8-94112-723-0 01 1 1003-
127 LENS; FRT TURN SIGNAL 8-94117-030-0 01 1 0812-1002
127 LENS; FRT TURN SIGNAL
BUMPER W/HEADLAMPS<SLB> 		8-94117-030-0 01 1 1003-
129 SCREW; FRT TURN SIGNAL 0-91190-435-0 04 1 0812-1002
129 SCREW; FRT TURN SIGNAL
BUMPER W/HEADLAMPS<SLB> 		0-91190-435-0 04 1 1003-
331 LAMP; TURN SIGNAL
REINFORCEMENT BUMPER<VG7> (B) 		8-98155-458-0 01 1 1003-
331 LAMP; TURN SIGNAL
REINFORCEMENT BUMPER<VG7> (B) 		8-98155-459-0 01 1 1003-
331 LAMP; TURN SIGNAL
(A) 		8-98079-895-0 01 1 0812-1002
331 LAMP; TURN SIGNAL
BUMPER W/HEADLAMPS<SLB> (A) 		8-98079-895-0 01 1 1003-
331 LAMP; TURN SIGNAL
(A) 		8-98079-896-0 01 1 0812-1002
331 LAMP; TURN SIGNAL
BUMPER W/HEADLAMPS<SLB> (A) 		8-98079-896-0 01 1 1003-
355 SCREW; TURN SIGNAL
REINFORCEMENT BUMPER<VG7> 		8-98051-428-0 04 1 1003-
357 BULB; TURN SIGNAL
REINFORCEMENT BUMPER<VG7> 24V 21W AMBER 		8-97323-806-0 02 1 1003-
399 SOCKET; TURN SIGNAL
REINFORCEMENT BUMPER<VG7> 		8-98051-387-0 02 1 1003-
431 CAP; TURN SIGNAL,LAMP
REINFORCEMENT BUMPER<VG7> 		8-97378-874-0 02 1 1003-
432 FASTENER; TURN SIGNAL,LAMP
REINFORCEMENT BUMPER<VG7> 		8-98051-431-0 04 1 1003-
448 CAP ASM; LAMP
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> 		8-97378-874-0 02 1 1003-

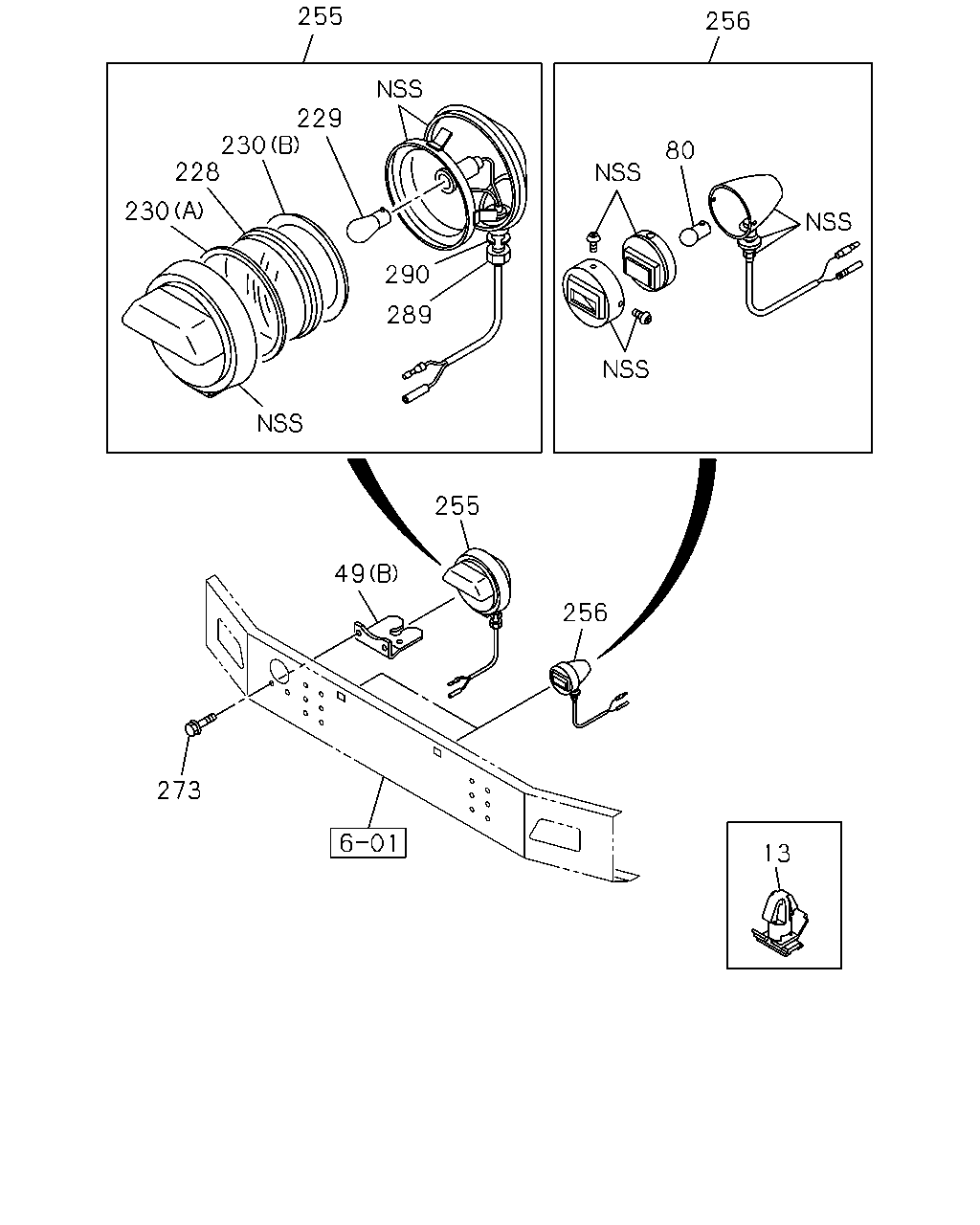

çizim 136441
255 256 229 230 228 80 230 290 289 255 49 256 273 13
BalonParca AdiParca NoAdetTipApplied Date
13 CLIP; HEADLAMP
LAMPS EXP PACKAGE<WL5> OD=9 H=6 		1-09709-178-0 03 1 1003-
49 BRACKET; LAMP
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> (A) 		8-98051-435-0 01 1 1003-
49 BRACKET; LAMP
FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> (A) 		8-98051-436-0 01 1 1003-
49 BRACKET; LAMP
REINFORCEMENT BUMPER<VG7> (B) 		8-98164-818-0 01 1 1003-
80 BULB; MARKER LAMP
LAMPS EXP PACKAGE<WL5> 24V 6W 		9-82691-306-0 02 1 1003-
228 LENS; DRIVING LAMP
LAMPS EXP PACKAGE<WL5> 		9-82611-231-0 01 1 1003-
229 BULB; DRIVING LAMP
LAMPS EXP PACKAGE<WL5> 24V 25W 		9-82691-347-0 01 1 1003-
230 GASKET; DRIVING LAMP
LAMPS EXP PACKAGE<WL5> (A) 		9-82611-752-0 01 1 1003-
230 GASKET; DRIVING LAMP
LAMPS EXP PACKAGE<WL5> (B) 		9-82611-753-0 01 1 1003-
255 LAMP; DRIVING
LAMPS EXP PACKAGE<WL5> 		1-82210-239-1 01 1 1003-
256 LAMP; MARKER
LAMPS EXP PACKAGE<WL5> 		1-82210-240-1 02 1 1003-
273 BOLT; BRKT
REINFORCEMENT BUMPER<VG7> M10X30 FLANGE 		0-28651-030-0 02 1 1003-
289 NUT; DRIVING LAMP
LAMPS EXP PACKAGE<WL5> M12 		9-99110-412-0 01 1 1003-
290 WASHER; DRIVING LAMP
LAMPS EXP PACKAGE<WL5> ID=12.2 		9-09150-612-0 01 1 1003-

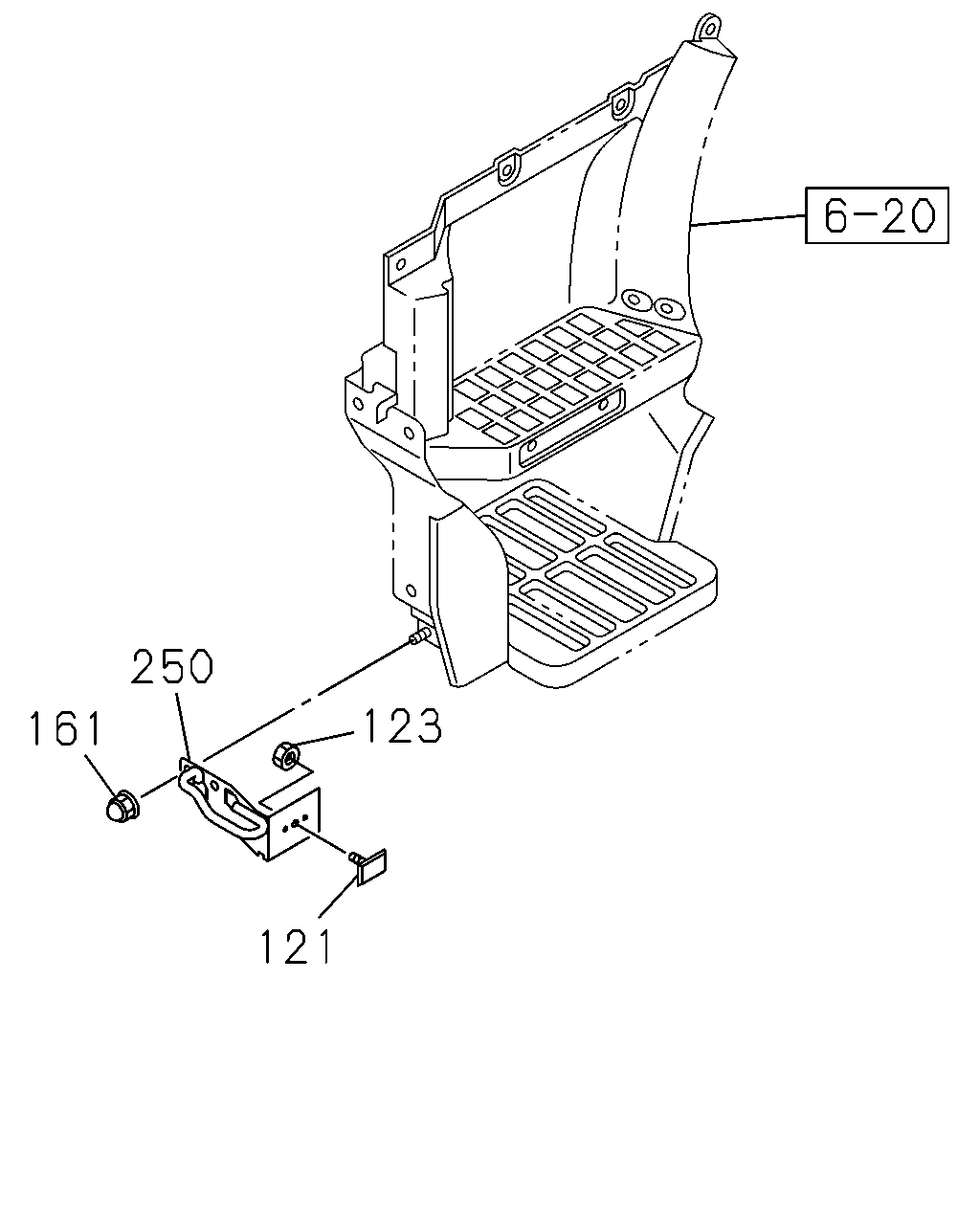

çizim 187871
250 123 161 121
BalonParca AdiParca NoAdetTipApplied Date
121 REFLECTOR; REFLEX 1-82290-066-0 02 1 0812-
123 NUT; REFLECTOR
M6 FLANGE 		0-91180-106-0 02 1 0812-
161 NUT; BRKT
M8 CAP NUT FLANGE 		8-97372-242-0 04 1 0812-1312
161 NUT; BRKT
M8 CAP NUT FLANGE 		8-98261-347-0 04 1 1401-
250 BRACKET ASM 8-98070-242-1 01 1 0812-
250 BRACKET ASM 8-98070-243-1 01 1 0812-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
