7-20 — MIRROR AND MIRROR STAY (#69319) — 113 parça

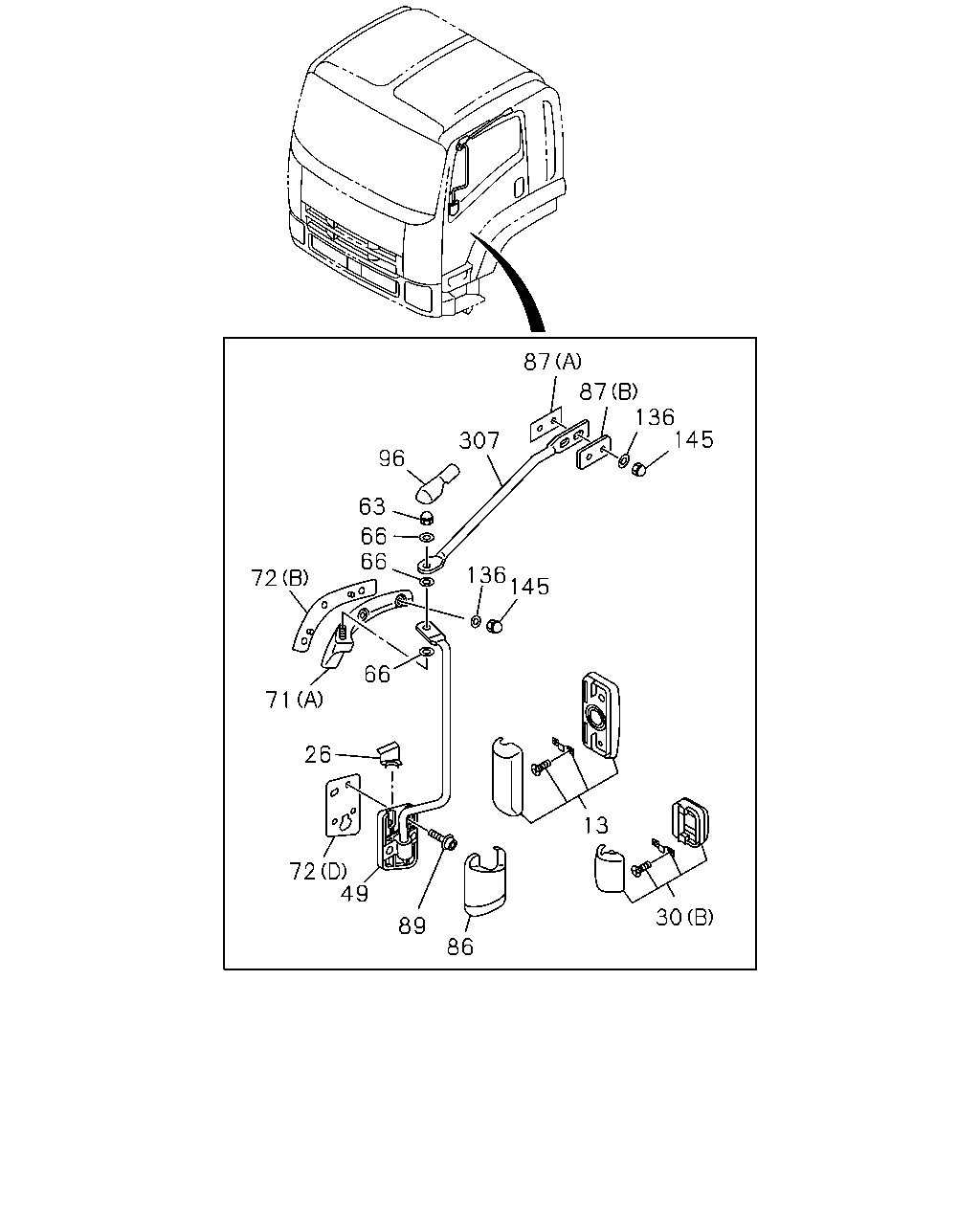

87 87 136 145 307 96 63 66 66 136 145 72 66 71 26 13 72 49 30 89 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW SAUDI ARABIA EQUIPMENT(GH3)	8-98043-056-2	01	1	0812-
13	MIRROR ASM; OUTSIDE RR VIEW SAUDI ARABIA EQUIPMENT(GH3)	8-98043-172-2	01	1	0812-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98055-991-1	01	1	0812-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98055-992-1	01	1	0812-
26	COVER; OUTSIDE MIRROR	8-98031-805-0	01	1	0812-
26	COVER; OUTSIDE MIRROR	8-98031-806-0	01	1	0812-
30	MIRROR; UNDER SAUDI ARABIA EQUIPMENT(GH3) (B)	8-98043-061-0	02	1	0812-
30	MIRROR; UNDER SAUDI ARABIA EQUIPMENT(GH3) (A)	8-98043-065-0	01	1	0812-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (C)	8-98055-994-0	01	1	0812-1504
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (C)	8-98309-725-0	01	1	1505-
49	STAY; MIRROR SIDE SAUDI ARABIA EQUIPMENT(GH3)	8-98096-941-0	01	1	0812-1202
49	STAY; MIRROR SIDE SAUDI ARABIA EQUIPMENT(GH3)	8-98166-202-0	01	1	1203-
49	STAY; MIRROR SIDE SAUDI ARABIA EQUIPMENT(GH3)	8-98096-942-0	01	1	0812-1202
49	STAY; MIRROR SIDE SAUDI ARABIA EQUIPMENT(GH3)	8-98166-203-0	01	1	1203-
49	STAY; MIRROR SIDE EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98060-215-1	01	1	0812-1202
49	STAY; MIRROR SIDE EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98166-194-0	01	1	1203-
49	STAY; MIRROR SIDE EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98060-216-1	01	1	0812-1202
49	STAY; MIRROR SIDE EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98166-195-0	01	1	1203-
63	NUT; STAY M10 CAP NUT	1-09984-134-0	02	1	0812-
66	WASHER; PL SAUDI ARABIA EQUIPMENT(GH3) ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	0812-
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	0812-
71	BRACKET; OUTSIDE MIRROR SAUDI ARABIA EQUIPMENT(GH3) (B)	1-71798-484-1	01	1	0812-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (D)	8-98064-775-0	01	1	0812-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (E)	8-98092-491-3	01	1	0812-
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-793-2	01	1	0812-
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-794-2	01	1	0812-
71	BRACKET; OUTSIDE MIRROR (C)	8-98039-277-2	02	1	0812-1202
72	SHEET MIRROR O/S UNDER VIEW<RR9> (E)	8-98060-225-1	01	1	0812-
72	SHEET MIRROR O/S UNDER VIEW<RR9> (A)	8-98064-773-0	01	1	0812-
72	SHEET (C)	8-98031-796-0	01	1	0812-
72	SHEET (B)	8-98031-797-0	01	1	0812-
72	SHEET (D)	8-98101-864-0	01	1	0812-1202
72	SHEET (D)	8-98116-604-0	01	1	1203-
72	SHEET (D)	8-98101-865-0	01	1	0812-1202
72	SHEET (D)	8-98116-605-0	01	1	1203-
86	COVER; STAY,OUTSIDE MIRROR	8-98031-802-2	01	1	0812-
86	COVER; STAY,OUTSIDE MIRROR	8-98031-803-2	01	1	0812-
87	SPACER SAUDI ARABIA EQUIPMENT(GH3) (A)	8-98063-789-0	01	1	0907-
87	SPACER (A)	8-98063-786-0	02	1	0812-
87	SPACER EXC. SAUDI ARABIA EQUIPMENT(GH3) (B)	8-98063-789-0	02	1	0812-
89	SCREW; BRKT,OUTSIDE MIRROR M8X23	8-97310-216-1	08	1	0812-
96	CAP; MIRROR STAY	8-98080-173-0	02	1	0812-
136	WASHER; LK,BRKT,MIRROR STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	0812-
145	NUT; CAP,SUB STAY M8 CAP NUT	8-98059-914-0	10	1	0812-
307	STAY; MIRROR SUPPORT	8-98063-784-2	01	1	0812-
307	STAY; MIRROR SUPPORT	8-98063-785-2	01	1	0812-

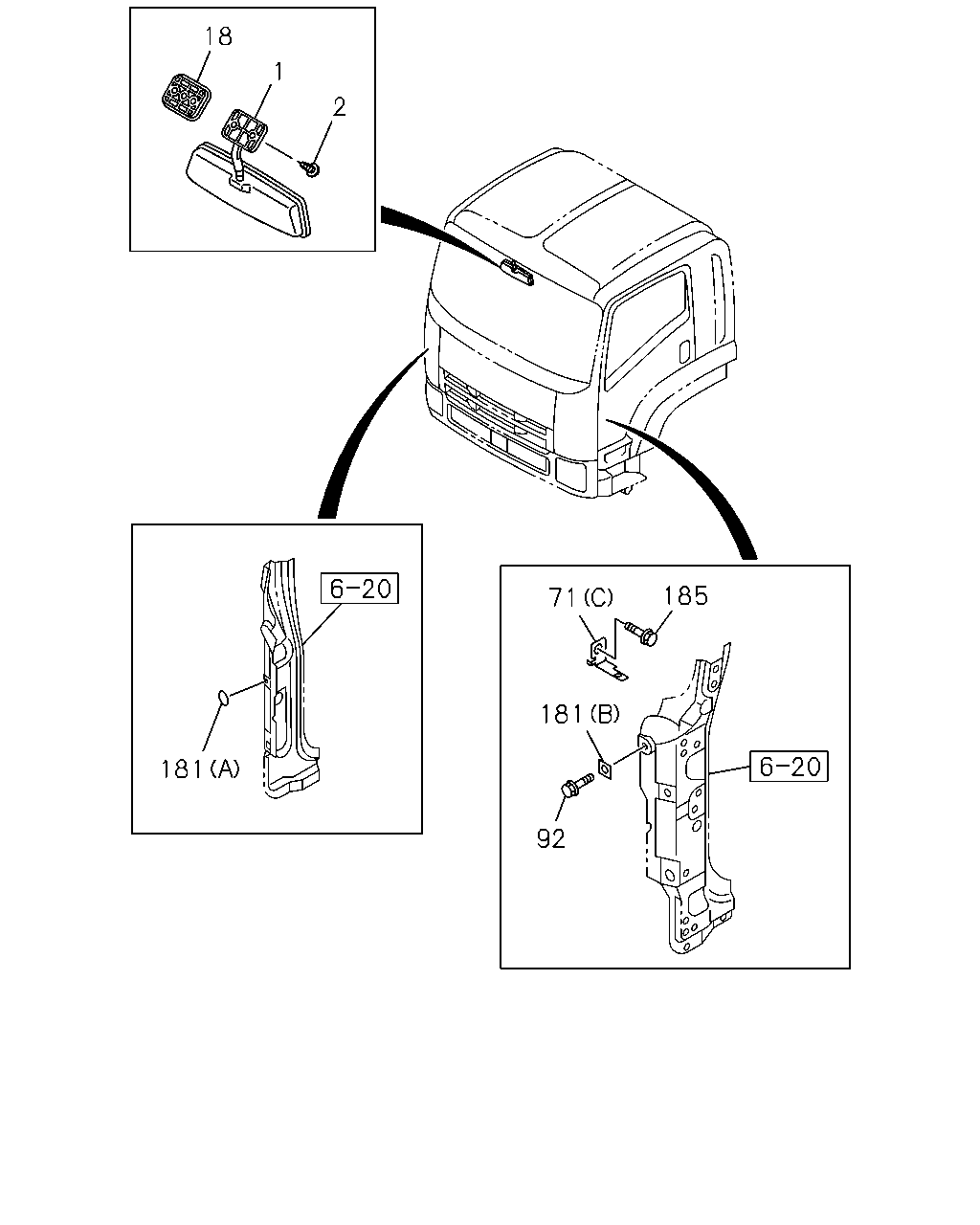

18 1 2 185 71 181 181 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM DARK GRAY	8-98097-534-1	01	1	0812-
2	SCREW; MIRROR TO BODY M6X26	8-98033-674-0	02	1	0812-
18	CLIP; MIRROR DARK GRAY	8-97408-241-0	01	1	0812-
71	BRACKET; OUTSIDE MIRROR SAUDI ARABIA EQUIPMENT(GH3) (B)	1-71798-484-1	01	1	0812-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (D)	8-98064-775-0	01	1	0812-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (E)	8-98092-491-3	01	1	0812-
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-793-2	01	1	0812-
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-794-2	01	1	0812-
71	BRACKET; OUTSIDE MIRROR (C)	8-98039-277-2	02	1	0812-1202
92	BOLT; STAY BRKT,MIRROR M8X16 FLANGE	8-98076-109-0	01	1	0812-
181	SEAL; BRKT (A) OD=25 BLACK	1-76798-019-0	02	1	0812-
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	0812-
185	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0812-1202

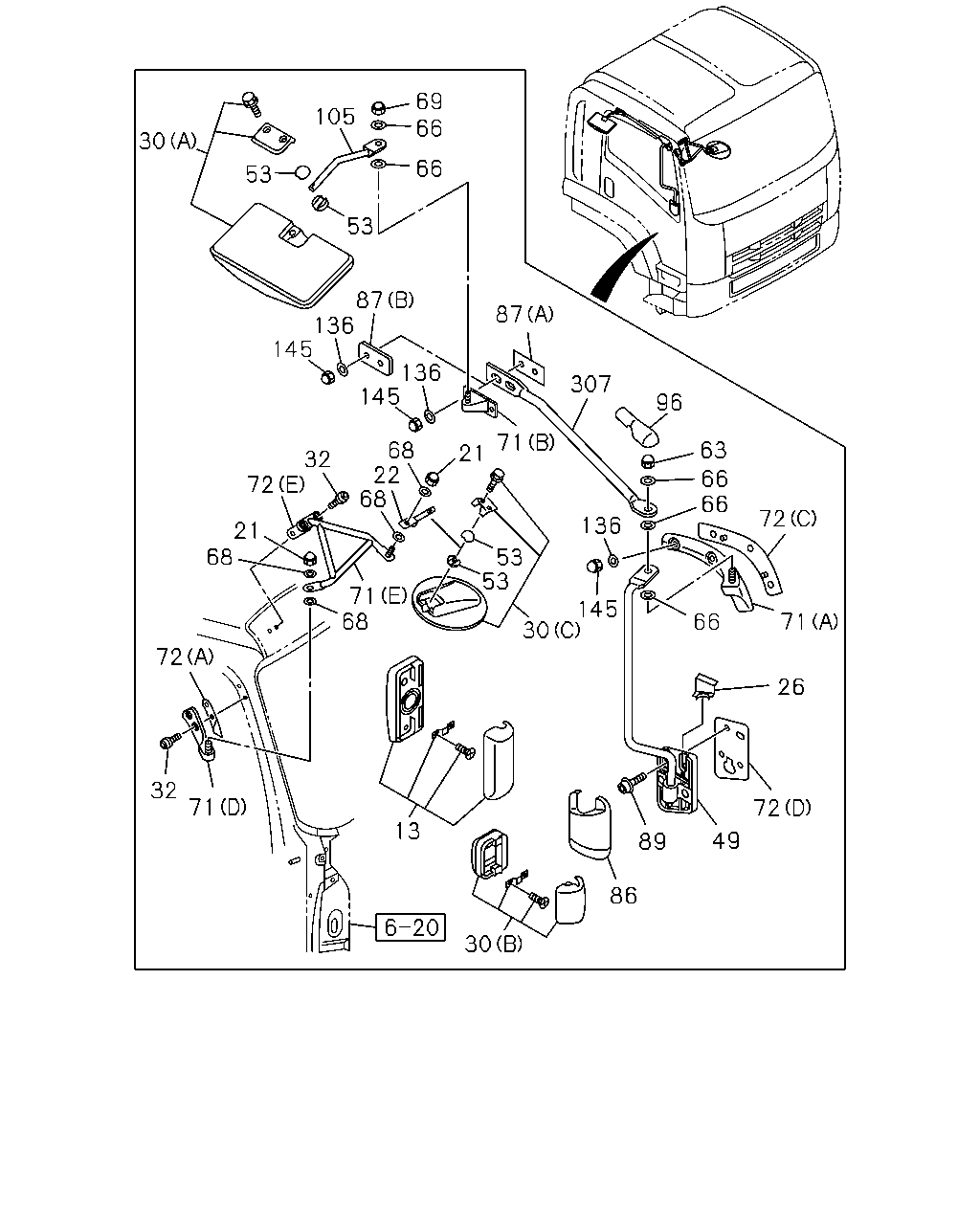

69 66 105 30 66 53 53 87 136 145 87 136 145 307 96 71 63 68 22 68 21 32 72 66 66 72 136 21 68 53 53 71 68 145 30 71 66 72 26 32 71 72 13 49 89 86 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW SAUDI ARABIA EQUIPMENT(GH3)	8-98043-056-2	01	1	0812-
13	MIRROR ASM; OUTSIDE RR VIEW SAUDI ARABIA EQUIPMENT(GH3)	8-98043-172-2	01	1	0812-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98055-991-1	01	1	0812-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98055-992-1	01	1	0812-
21	NUT; MIRROR MIRROR O/S UNDER VIEW<RR9> M10 CAP NUT	1-09984-134-0	02	1	0812-
22	STAY; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>	8-98092-493-0	01	1	0812-
26	COVER; OUTSIDE MIRROR	8-98031-805-0	01	1	0812-
26	COVER; OUTSIDE MIRROR	8-98031-806-0	01	1	0812-
30	MIRROR; UNDER SAUDI ARABIA EQUIPMENT(GH3) (B)	8-98043-061-0	02	1	0812-
30	MIRROR; UNDER SAUDI ARABIA EQUIPMENT(GH3) (A)	8-98043-065-0	01	1	0812-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (C)	8-98055-994-0	01	1	0812-1504
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (C)	8-98309-725-0	01	1	1505-
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> M8X26 W/PL WASHER	8-98067-249-2	04	1	0812-
49	STAY; MIRROR SIDE SAUDI ARABIA EQUIPMENT(GH3)	8-98096-941-0	01	1	0812-1202
49	STAY; MIRROR SIDE SAUDI ARABIA EQUIPMENT(GH3)	8-98166-202-0	01	1	1203-
49	STAY; MIRROR SIDE SAUDI ARABIA EQUIPMENT(GH3)	8-98096-942-0	01	1	0812-1202
49	STAY; MIRROR SIDE SAUDI ARABIA EQUIPMENT(GH3)	8-98166-203-0	01	1	1203-
49	STAY; MIRROR SIDE EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98060-215-1	01	1	0812-1202
49	STAY; MIRROR SIDE EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98166-194-0	01	1	1203-
49	STAY; MIRROR SIDE EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98060-216-1	01	1	0812-1202
49	STAY; MIRROR SIDE EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98166-195-0	01	1	1203-
53	PIVOT; SIDE MIRROR MIRROR O/S UNDER VIEW<RR9> ID=19.1	1-71737-633-2	02	1	0812-
53	PIVOT; SIDE MIRROR SAUDI ARABIA EQUIPMENT(GH3) ID=19.1	1-71737-633-2	02	1	0812-
63	NUT; STAY M10 CAP NUT	1-09984-134-0	02	1	0812-
66	WASHER; PL SAUDI ARABIA EQUIPMENT(GH3) ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	0812-
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	0812-
68	WASHER; STAY MIRROR O/S UNDER VIEW<RR9> ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0812-
69	NUT; CAP SAUDI ARABIA EQUIPMENT(GH3) M10 CAP NUT	1-09984-134-0	01	1	0812-
71	BRACKET; OUTSIDE MIRROR SAUDI ARABIA EQUIPMENT(GH3) (B)	1-71798-484-1	01	1	0812-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (D)	8-98064-775-0	01	1	0812-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (E)	8-98092-491-3	01	1	0812-
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-793-2	01	1	0812-
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-794-2	01	1	0812-
71	BRACKET; OUTSIDE MIRROR (C)	8-98039-277-2	02	1	0812-1202
72	SHEET MIRROR O/S UNDER VIEW<RR9> (E)	8-98060-225-1	01	1	0812-
72	SHEET MIRROR O/S UNDER VIEW<RR9> (A)	8-98064-773-0	01	1	0812-
72	SHEET (C)	8-98031-796-0	01	1	0812-
72	SHEET (B)	8-98031-797-0	01	1	0812-
72	SHEET (D)	8-98101-864-0	01	1	0812-1202
72	SHEET (D)	8-98116-604-0	01	1	1203-
72	SHEET (D)	8-98101-865-0	01	1	0812-1202
72	SHEET (D)	8-98116-605-0	01	1	1203-
86	COVER; STAY,OUTSIDE MIRROR	8-98031-802-2	01	1	0812-
86	COVER; STAY,OUTSIDE MIRROR	8-98031-803-2	01	1	0812-
87	SPACER SAUDI ARABIA EQUIPMENT(GH3) (A)	8-98063-789-0	01	1	0907-
87	SPACER (A)	8-98063-786-0	02	1	0812-
87	SPACER EXC. SAUDI ARABIA EQUIPMENT(GH3) (B)	8-98063-789-0	02	1	0812-
89	SCREW; BRKT,OUTSIDE MIRROR M8X23	8-97310-216-1	08	1	0812-
96	CAP; MIRROR STAY	8-98080-173-0	02	1	0812-
105	STAY; SUB UNDER MIRROR SAUDI ARABIA EQUIPMENT(GH3)	8-98080-109-2	01	1	0812-
136	WASHER; LK,BRKT,MIRROR STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	0812-
145	NUT; CAP,SUB STAY M8 CAP NUT	8-98059-914-0	10	1	0812-
307	STAY; MIRROR SUPPORT	8-98063-784-2	01	1	0812-
307	STAY; MIRROR SUPPORT	8-98063-785-2	01	1	0812-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
