6-90 — REAR BUMPER (#69316) — 111 parça

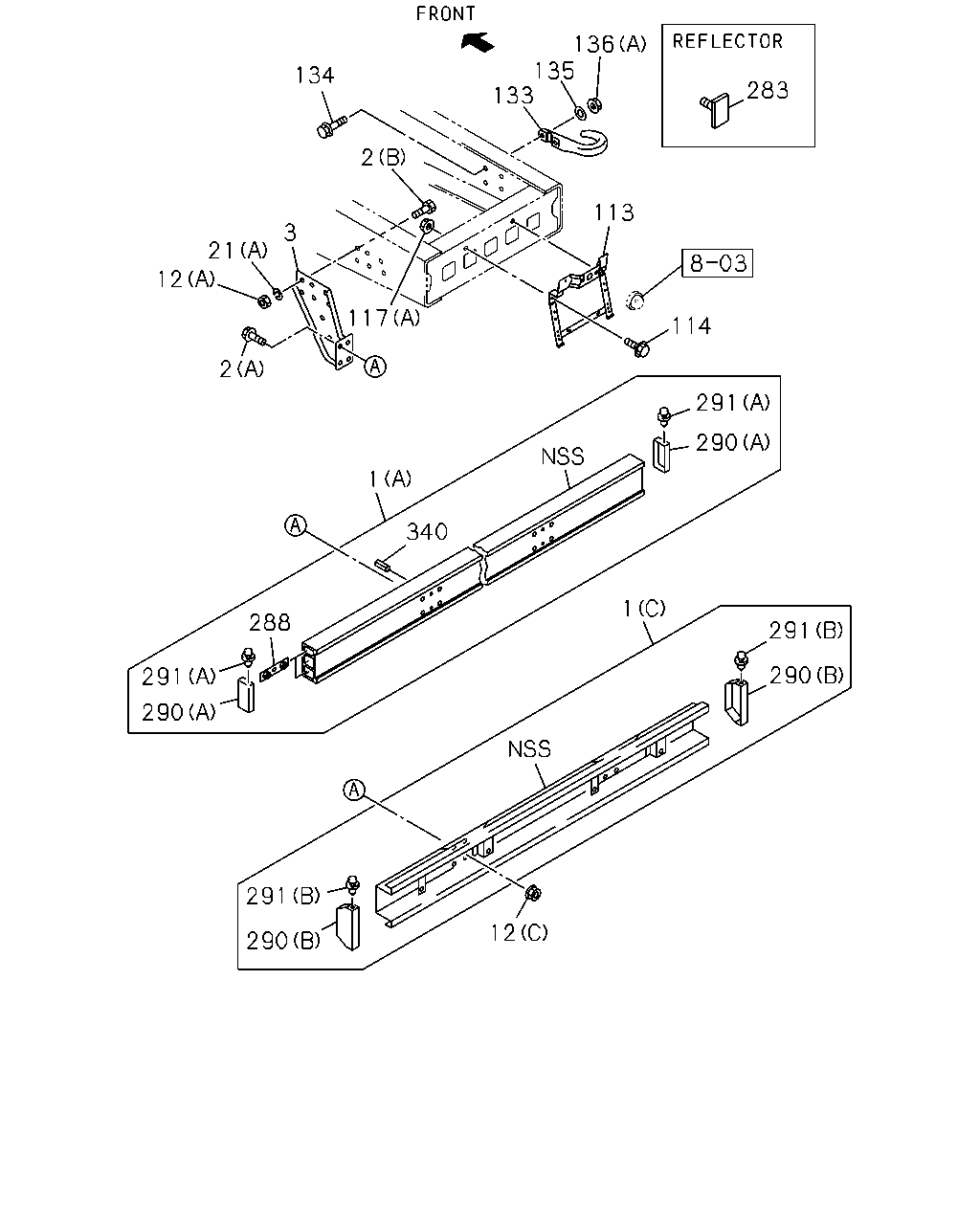

136 135 133 134 283 2 113 3 21 12 117 114 2 291 290 1 340 1 288 291 290 291 290 291 12 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER; RR SAUDI ARABIA EQUIPMENT(GH3) REAR BUMPER,REINFORCEMENT<SMS> (A) STAMP D7X	1-71220-246-0	01	1	0812-1002
1	BUMPER; RR SAUDI ARABIA EQUIPMENT(GH3) REAR BUMPER,REINFORCEMENT<SMS> (C) STAMP B2X	1-71220-225-0	01	1	1003-
1	BUMPER; RR PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> EXC. SAUDI ARABIA EQUIPMENT(GH3) (B)	1-71220-043-2	02	1	0812-
2	BOLT; BACK BAR PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> RR HOOK TWO EYE<VR7> EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) M16X40	0-20851-640-0	02	1	1003-
2	BOLT; BACK BAR SAUDI ARABIA EQUIPMENT(GH3) REAR BUMPER,REINFORCEMENT<SMS> (A) M12X30 FLANGE	0-28651-230-0	08	1	0812-1002
2	BOLT; BACK BAR SAUDI ARABIA EQUIPMENT(GH3) REAR BUMPER,REINFORCEMENT<SMS> (A) M12X35 FLANGE	0-28651-235-0	08	1	1003-
2	BOLT; BACK BAR PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) M16X40	0-20851-640-0	04	1	0812-1002
2	BOLT; BACK BAR SAUDI ARABIA EQUIPMENT(GH3) REAR BUMPER,REINFORCEMENT<SMS> (B) M16X40	0-20851-640-0	04	1	0812-1002
2	BOLT; BACK BAR PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> EXC. SAUDI ARABIA EQUIPMENT(GH3),RR HOOK TWO EYE<VR7> (B) M16X40	0-20851-640-0	04	1	1003-
2	BOLT; BACK BAR SAUDI ARABIA EQUIPMENT(GH3) REAR BUMPER,REINFORCEMENT<SMS> (B) M16X40	0-20851-640-0	04	1	1003-
2	BOLT; BACK BAR PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> EXC. SAUDI ARABIA EQUIPMENT(GH3) (C) M14X40	0-20851-440-0	08	1	0812-
3	BRACKET; BUMPER SAUDI ARABIA EQUIPMENT(GH3) REAR BUMPER,REINFORCEMENT<SMS> STAMP AU1	1-71230-584-0	01	1	0812-1002
3	BRACKET; BUMPER SAUDI ARABIA EQUIPMENT(GH3) REAR BUMPER,REINFORCEMENT<SMS> STAMP AU	1-71230-250-1	01	1	1003-
3	BRACKET; BUMPER SAUDI ARABIA EQUIPMENT(GH3) REAR BUMPER,REINFORCEMENT<SMS> STAMP AU1	1-71230-591-0	01	1	0812-1002
3	BRACKET; BUMPER SAUDI ARABIA EQUIPMENT(GH3) REAR BUMPER,REINFORCEMENT<SMS> STAMP AU	1-71230-251-1	01	1	1003-
12	NUT; BRKT SAUDI ARABIA EQUIPMENT(GH3) REAR BUMPER,REINFORCEMENT<SMS> (C) M12 FLANGE	0-91180-212-0	08	1	1003-
12	NUT; BRKT SAUDI ARABIA EQUIPMENT(GH3) REAR BUMPER,REINFORCEMENT<SMS> (A) M16	0-91110-516-0	04	1	0812-
12	NUT; BRKT PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) M14	0-91110-514-0	04	1	0812-
21	WASHER; LK,BUMPER PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> RR HOOK TWO EYE<VR7> EXC. SAUDI ARABIA EQUIPMENT(GH3) (A) ID=16.2	0-91510-816-0	02	1	1003-
21	WASHER; LK,BUMPER PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> EXC. SAUDI ARABIA EQUIPMENT(GH3) (A) ID=16.2	0-91510-816-0	04	1	0812-1002
21	WASHER; LK,BUMPER SAUDI ARABIA EQUIPMENT(GH3) REAR BUMPER,REINFORCEMENT<SMS> (A) ID=16.2	0-91510-816-0	04	1	0812-1002
21	WASHER; LK,BUMPER PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> EXC. SAUDI ARABIA EQUIPMENT(GH3),RR HOOK TWO EYE<VR7> (A) ID=16.2	0-91510-816-0	04	1	1003-
21	WASHER; LK,BUMPER SAUDI ARABIA EQUIPMENT(GH3) REAR BUMPER,REINFORCEMENT<SMS> (A) ID=16.2	0-91510-816-0	04	1	1003-
21	WASHER; LK,BUMPER PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) ID=14.2	0-91510-514-0	08	1	0812-0812
21	WASHER; LK,BUMPER PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) ID=14.2	0-91510-814-0	08	1	0901-
113	BRACKET; LICENSE PLATE	1-53485-074-0	01	1	0812-
114	BOLT; BRKT,LICENSE PLATE M8X25 FLANGE	0-28650-825-0	02	1	0812-
117	NUT; BRKT PINTLE HOOK<PP7> (B) M12 FLANGE	0-91180-212-0	02	1	0812-
117	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	0812-1205
117	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1206-
117	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1206-
133	HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7>	1-57181-027-1	02	1	0812-
133	HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7>	1-57181-027-1	01	1	0812-
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> M16X50	0-20851-650-0	02	1	0812-
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> M16X60	0-20851-660-0	02	1	0812-
134	BOLT; HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> M16X50	0-20851-650-0	01	1	0812-
134	BOLT; HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> M16X60	0-20851-660-0	01	1	0812-
135	WASHER; LK,HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> ID=16.2	0-91510-816-0	04	1	0812-
135	WASHER; LK,HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> ID=16.2	0-91510-816-0	02	1	0812-
136	NUT; HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> (A) M16	0-91110-516-0	04	1	0812-
136	NUT; HOOK PINTLE HOOK<PP7> (B)	1-09420-006-0	01	1	0812-
136	NUT; HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> (A) M16	0-91110-516-0	02	1	0812-
283	REFLECTOR; REFLEX,RR SAUDI ARABIA EQUIPMENT(GH3)	1-82290-061-0	02	1	0812-
288	PLATE; RR BUMPER,REFLECTOR SAUDI ARABIA EQUIPMENT(GH3) REAR BUMPER,REINFORCEMENT<SMS>	1-71290-066-0	04	1	0812-1002
290	COVER; RR SAUDI ARABIA EQUIPMENT(GH3) REAR BUMPER,REINFORCEMENT<SMS> (A)	1-71290-063-0	02	1	0812-1002
290	COVER; RR SAUDI ARABIA EQUIPMENT(GH3) REAR BUMPER,REINFORCEMENT<SMS> (B)	1-71290-040-0	02	1	1003-
291	RIVET; REFLECTOR SAUDI ARABIA EQUIPMENT(GH3) REAR BUMPER,REINFORCEMENT<SMS> (A)	1-71290-062-0	04	1	0812-1002
291	RIVET; REFLECTOR SAUDI ARABIA EQUIPMENT(GH3) REAR BUMPER,REINFORCEMENT<SMS> (B) PUSH RIVET BLACK	1-71290-041-0	06	1	1003-
340	RIVET SAUDI ARABIA EQUIPMENT(GH3) REAR BUMPER,REINFORCEMENT<SMS>	1-71290-065-0	04	1	0812-1002

137 151 276 150 152 146 276 277 278 275 149 148 274 147 147 117 310 2 120 1 12 21 2 220 143 142 2 21 142 145 121 311 114 136 113 122 117 21 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER; RR SAUDI ARABIA EQUIPMENT(GH3) REAR BUMPER,REINFORCEMENT<SMS> (A) STAMP D7X	1-71220-246-0	01	1	0812-1002
1	BUMPER; RR SAUDI ARABIA EQUIPMENT(GH3) REAR BUMPER,REINFORCEMENT<SMS> (C) STAMP B2X	1-71220-225-0	01	1	1003-
1	BUMPER; RR PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> EXC. SAUDI ARABIA EQUIPMENT(GH3) (B)	1-71220-043-2	02	1	0812-
2	BOLT; BACK BAR PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> RR HOOK TWO EYE<VR7> EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) M16X40	0-20851-640-0	02	1	1003-
2	BOLT; BACK BAR SAUDI ARABIA EQUIPMENT(GH3) REAR BUMPER,REINFORCEMENT<SMS> (A) M12X30 FLANGE	0-28651-230-0	08	1	0812-1002
2	BOLT; BACK BAR SAUDI ARABIA EQUIPMENT(GH3) REAR BUMPER,REINFORCEMENT<SMS> (A) M12X35 FLANGE	0-28651-235-0	08	1	1003-
2	BOLT; BACK BAR PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) M16X40	0-20851-640-0	04	1	0812-1002
2	BOLT; BACK BAR SAUDI ARABIA EQUIPMENT(GH3) REAR BUMPER,REINFORCEMENT<SMS> (B) M16X40	0-20851-640-0	04	1	0812-1002
2	BOLT; BACK BAR PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> EXC. SAUDI ARABIA EQUIPMENT(GH3),RR HOOK TWO EYE<VR7> (B) M16X40	0-20851-640-0	04	1	1003-
2	BOLT; BACK BAR SAUDI ARABIA EQUIPMENT(GH3) REAR BUMPER,REINFORCEMENT<SMS> (B) M16X40	0-20851-640-0	04	1	1003-
2	BOLT; BACK BAR PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> EXC. SAUDI ARABIA EQUIPMENT(GH3) (C) M14X40	0-20851-440-0	08	1	0812-
12	NUT; BRKT SAUDI ARABIA EQUIPMENT(GH3) REAR BUMPER,REINFORCEMENT<SMS> (C) M12 FLANGE	0-91180-212-0	08	1	1003-
12	NUT; BRKT SAUDI ARABIA EQUIPMENT(GH3) REAR BUMPER,REINFORCEMENT<SMS> (A) M16	0-91110-516-0	04	1	0812-
12	NUT; BRKT PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) M14	0-91110-514-0	04	1	0812-
21	WASHER; LK,BUMPER PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> RR HOOK TWO EYE<VR7> EXC. SAUDI ARABIA EQUIPMENT(GH3) (A) ID=16.2	0-91510-816-0	02	1	1003-
21	WASHER; LK,BUMPER PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> EXC. SAUDI ARABIA EQUIPMENT(GH3) (A) ID=16.2	0-91510-816-0	04	1	0812-1002
21	WASHER; LK,BUMPER SAUDI ARABIA EQUIPMENT(GH3) REAR BUMPER,REINFORCEMENT<SMS> (A) ID=16.2	0-91510-816-0	04	1	0812-1002
21	WASHER; LK,BUMPER PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> EXC. SAUDI ARABIA EQUIPMENT(GH3),RR HOOK TWO EYE<VR7> (A) ID=16.2	0-91510-816-0	04	1	1003-
21	WASHER; LK,BUMPER SAUDI ARABIA EQUIPMENT(GH3) REAR BUMPER,REINFORCEMENT<SMS> (A) ID=16.2	0-91510-816-0	04	1	1003-
21	WASHER; LK,BUMPER PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) ID=14.2	0-91510-514-0	08	1	0812-0812
21	WASHER; LK,BUMPER PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) ID=14.2	0-91510-814-0	08	1	0901-
113	BRACKET; LICENSE PLATE	1-53485-074-0	01	1	0812-
114	BOLT; BRKT,LICENSE PLATE M8X25 FLANGE	0-28650-825-0	02	1	0812-
117	NUT; BRKT PINTLE HOOK<PP7> (B) M12 FLANGE	0-91180-212-0	02	1	0812-
117	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	0812-1205
117	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1206-
117	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1206-
120	BOLT RR HOOK TWO EYE<VR7> M16X40	0-20851-640-0	02	1	1003-
121	STAY; RR LICENSE PLATE BRKT PINTLE HOOK<PP7>	1-53485-002-1	01	1	0812-1111
121	STAY; RR LICENSE PLATE BRKT PINTLE HOOK<PP7>	8-98179-582-0	01	1	1112-
122	BOLT; STAY TO FRAME PINTLE HOOK<PP7> M12X30 FLANGE	0-28651-230-0	02	1	0812-
136	NUT; HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> (A) M16	0-91110-516-0	04	1	0812-
136	NUT; HOOK PINTLE HOOK<PP7> (B)	1-09420-006-0	01	1	0812-
136	NUT; HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> (A) M16	0-91110-516-0	02	1	0812-
137	HOOK ASM; PINTLE PINTLE HOOK<PP7>	1-57180-053-2	01	1	0812-
142	GUIDE; HOOK SPR PINTLE HOOK<PP7>	9-53522-001-0	02	1	0812-1011
142	GUIDE; HOOK SPR WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> PINTLE HOOK<PP7> DOUBLE TIRE REARWARD<SR6>	9-53522-001-0	02	1	1012-
143	SPRING; COIL,PINTLE HOOK PINTLE HOOK<PP7>	9-09940-078-0	01	1	0812-1011
143	SPRING; COIL,PINTLE HOOK WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> PINTLE HOOK<PP7> REARWARD INNER SINGLE TIRE<YK3>	9-09940-078-0	01	1	1012-
143	SPRING; COIL,PINTLE HOOK WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> PINTLE HOOK<PP7> DOUBLE TIRE REARWARD<SR6>	9-09940-078-0	01	1	1012-
145	PIN; SPLIT,PINTLE HOOK PINTLE HOOK<PP7> OD=5.7 L=65	0-81126-065-0	01	1	0812-
146	LEVER; LK,PINTLE HOOK PINTLE HOOK<PP7>	9-53514-001-0	01	1	0812-
147	PIN; LK LEVER PINTLE HOOK<PP7> (A)	9-53516-002-0	01	1	0812-
147	PIN; LK LEVER PINTLE HOOK<PP7> (B)	9-53516-008-0	01	1	0812-
148	NUT; LK PIN PINTLE HOOK<PP7> M24	1-09442-032-0	01	1	0812-
149	PIN; SPLIT,PINTLE HOOK PINTLE HOOK<PP7> OD=2.8 L=45	0-81123-045-0	01	1	0812-
150	RATCHET; LK LEVER,PINTLE HOOK PINTLE HOOK<PP7>	9-53515-001-0	01	1	0812-
151	BOLT; PINTLE HOOK PINTLE HOOK<PP7> M8X32 W/LK WASHER	0-50040-832-0	01	1	0812-0906
151	BOLT; PINTLE HOOK PINTLE HOOK<PP7> M8X32 W/LK WASHER	0-50540-832-0	01	1	0907-
152	SPRING; RATCHET,PINTLE HOOK PINTLE HOOK<PP7>	9-53515-002-0	01	1	0812-
220	MEMBER; PINTLE HOOK PINTLE HOOK<PP7>	8-97618-610-0	01	1	0812-1011
220	MEMBER; PINTLE HOOK WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> PINTLE HOOK<PP7> REARWARD INNER SINGLE TIRE<YK3>	8-97618-610-0	01	1	1012-
220	MEMBER; PINTLE HOOK WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> PINTLE HOOK<PP7> DOUBLE TIRE REARWARD<SR6>	8-97618-610-0	01	1	1012-
250	WASHER; LK,BRKT TRAILER SAFETY CHAIN RR HOOK TWO EYE<VR7> ID=16.2	0-91510-816-0	02	1	1003-
274	CHAIN; PINTLE HOOK PINTLE HOOK<PP7>	9-09954-001-0	01	1	0812-
275	WASHER; PL,CHAIN PINTLE HOOK<PP7> ID=6.4	0-91610-606-0	01	1	0812-
276	PIN; SPLIT,CHAIN PINTLE HOOK<PP7> (B)	1-57186-011-0	01	1	0812-
276	PIN; SPLIT,CHAIN PINTLE HOOK<PP7> (A)	9-08113-015-0	01	1	0812-
277	SCREW; CHAIN PINTLE HOOK<PP7> M6X12	9-03490-612-0	01	1	0812-
278	WASHER; LK,CHAIN PINTLE HOOK<PP7> ID=6.1	0-91510-506-0	01	1	0812-
310	EYE; PLATE RR HOOK TWO EYE<VR7>	1-57184-001-0	02	1	1003-
311	PLATE; ADJUSTING PINTLE HOOK<PP7>	1-57184-008-0	01	1	0812-
