◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11151 - FTS(LHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#69311) — 13 parça

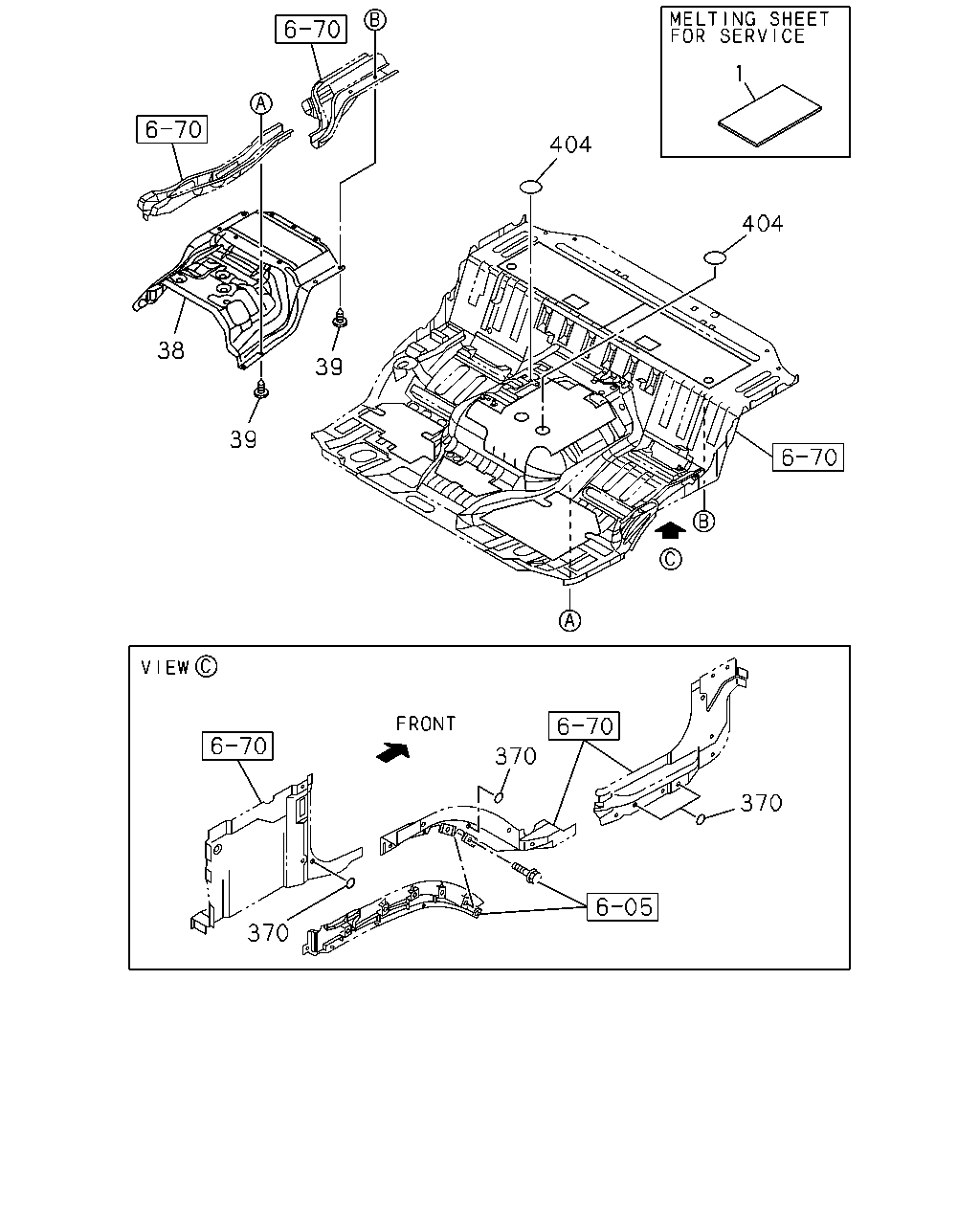

çizim 187903
1 404 404 38 39 39 370 370 370
BalonParca AdiParca NoAdetTipApplied Date
1 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 0812-
38 INSULATOR; ENG COVER
INSULATION ACOUSTICAL PKG DELETE<BS3> 		8-98180-258-0 01 1 1012-1310
38 INSULATOR; ENG COVER
INSULATION ACOUSTICAL PKG DELETE<BS3> 		8-98248-305-0 01 1 1311-
38 INSULATOR; ENG COVER 8-97586-180-6 01 1 0812-1011
38 INSULATOR; ENG COVER
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> 		8-97586-180-6 01 1 1012-1310
38 INSULATOR; ENG COVER
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> 		8-98240-137-1 01 1 1311-
39 CLIP; INSULATOR,COVER
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> ID=6.2 L=11.4 		8-97808-623-0 24 1 1012-
39 CLIP; INSULATOR,COVER
ID=6.2 L=11.4 		8-97808-623-0 24 1 0812-1011
39 CLIP; INSULATOR,COVER
INSULATION ACOUSTICAL PKG DELETE<BS3> ID=6.2 L=11.4 		8-97808-623-0 17 1 1012-
370 SEAL; LOCATION HOLE
OD=30 T=1.0 		8-98051-161-0 08 1 0812-1211
370 SEAL; LOCATION HOLE
OD=30 T=0.8 		8-98230-420-0 08 1 1212-
404 SEAL; FLOOR,HOLE
OD=25 BLACK 		1-76798-019-0 12 1 0812-
404 SEAL; FLOOR,HOLE
EXC. CENTER SEAT DELETE<SP9> OD=25 BLACK 		1-76798-019-0 02 1 0812-1005
