Sayfa 6-75 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11151 - FTS(LHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶

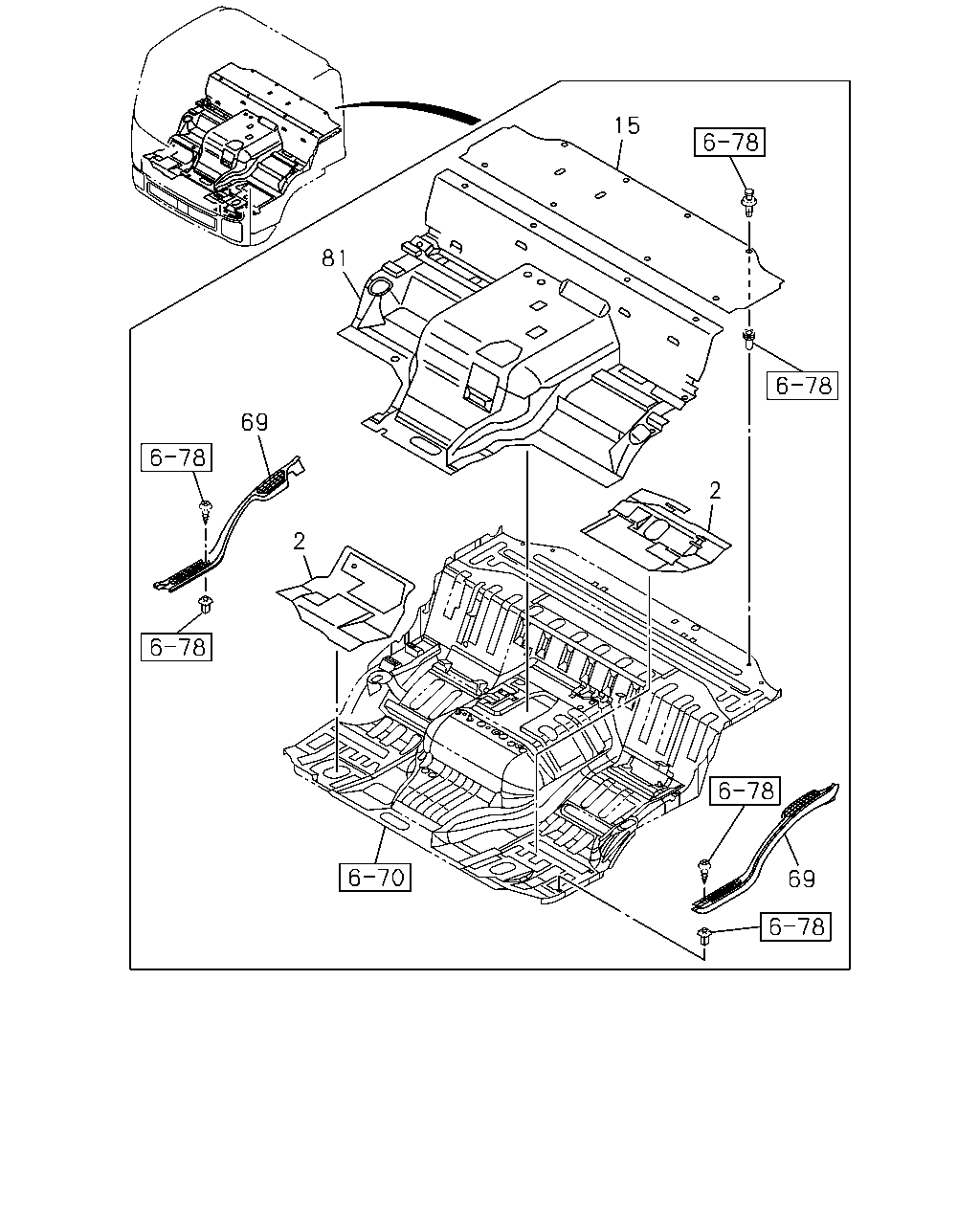

6-75 — MAT AND CARPET (#69310) — 11 parça

15 81 69 2 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	MAT; FLOOR GRAY	8-97414-161-1	01	1	0812-1003
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97414-161-1	01	1	1004-
2	MAT; FLOOR GRAY	8-97414-162-2	01	1	0812-1003
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97414-162-3	01	1	1004-
15	MAT; FLOOR REAR FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97418-951-0	01	1	1004-
15	MAT; FLOOR REAR EXC. FLOOR COVER VAR.2<EFK>,MATTRESS SLEEPER CAB<E40>,FLOOR COVER<6WX> GRAY	8-97407-397-0	01	1	1004-1005
15	MAT; FLOOR REAR EXC. MATTRESS SLEEPER CAB<E40> GRAY	8-97407-404-1	01	1	0812-1003
15	MAT; FLOOR REAR FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> GRAY	8-97407-404-1	01	1	1004-
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97407-412-1	01	1	0812-
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97407-413-1	01	1	0812-
81	MAT; FLOOR,CENTER GRAY	8-97411-644-2	01	1	0812-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
