0-33 — FAN AND FAN BELT (#6930) — 280 parça

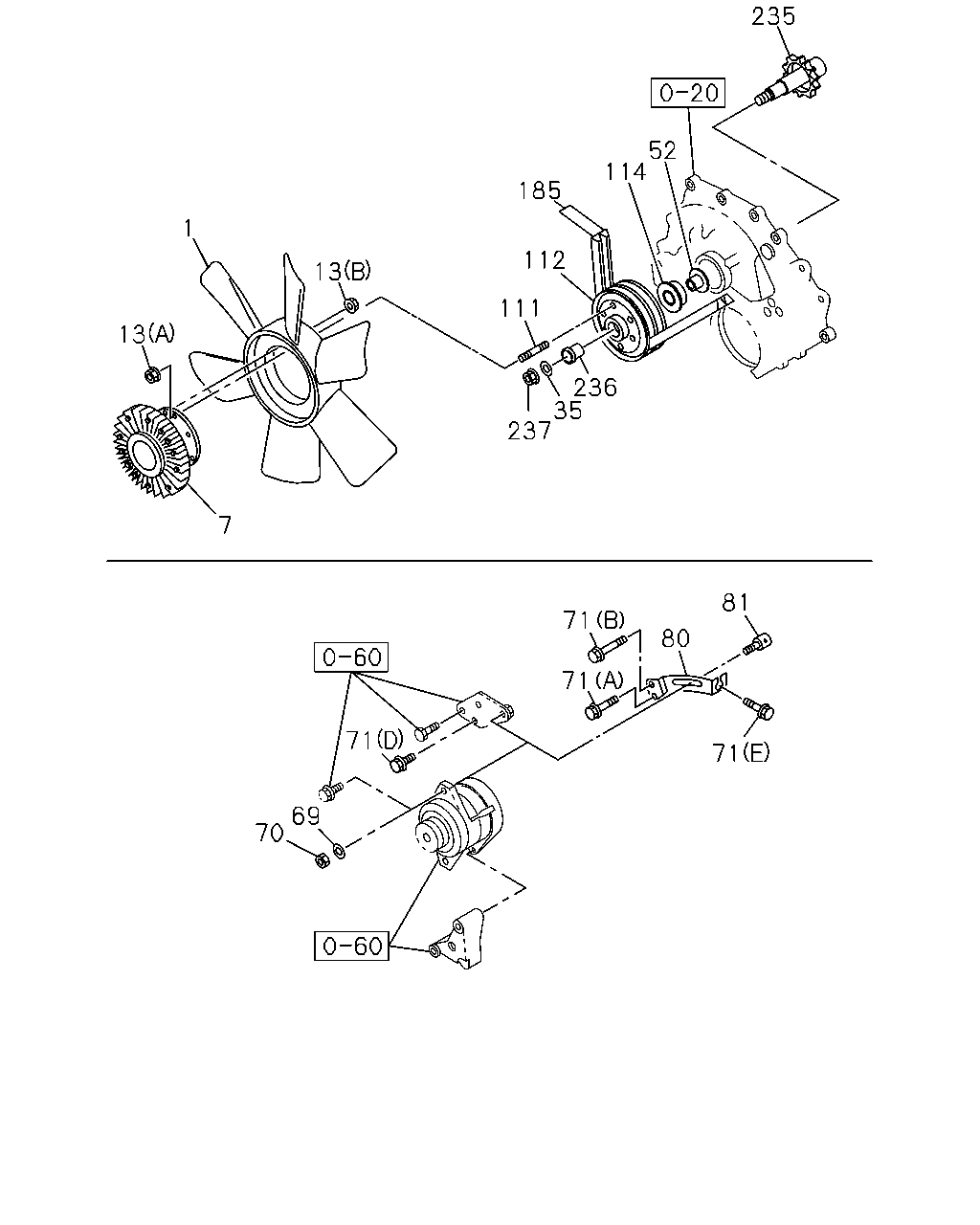

çizim 42315
235 52 114 185 1 112 13 111 13 236 35 237 7 81 71 80 71 71 71 69 70
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 FAN; COOLING 1-13660-286-1 01 1 9812-9901 ●
1 FAN; COOLING 1-13660-286-1 01 1 9902-9904 ● ●
1 FAN; COOLING 1-13660-286-1 01 1 9905- ● ●
1 FAN; COOLING
TROPICAL ZONE KIT<WB6> 		1-13660-286-1 01 1 9905- ●
1 FAN; COOLING 1-13660-224-0 01 1 9902-9904 ●
1 FAN; COOLING
EXC. TROPICAL ZONE KIT<WB6> 		1-13660-224-0 01 1 9905-9906 ●
1 FAN; COOLING 1-13660-224-0 01 1 9905-9906 ●
1 FAN; COOLING
EXC. TROPICAL ZONE KIT<WB6> 		1-13660-224-0 01 1 9907- ●
7 COUPLING; FAN 1-21650-188-0 01 1 9812-9901 ●
7 COUPLING; FAN 1-21650-188-0 01 1 9902-9904 ● ●
7 COUPLING; FAN 1-21650-188-0 01 1 9905-0004 ● ●
7 COUPLING; FAN
TROPICAL ZONE KIT<WB6> 		1-21650-188-0 01 1 9905-0004 ●
7 COUPLING; FAN 1-21650-188-0 01 1 0005- ●
7 COUPLING; FAN
TROPICAL ZONE KIT<WB6> 		1-21650-188-0 01 1 0005- ●
7 COUPLING; FAN
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-21650-188-0 01 1 0005- ●
7 COUPLING; FAN
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-21650-188-0 01 1 0005- ●
7 COUPLING; FAN 1-21650-178-1 01 1 9902-9904 ●
7 COUPLING; FAN
EXC. TROPICAL ZONE KIT<WB6> 		1-21650-178-1 01 1 9905-9906 ●
7 COUPLING; FAN 1-21650-178-1 01 1 9905-9906 ●
7 COUPLING; FAN
EXC. TROPICAL ZONE KIT<WB6> 		1-21650-178-1 01 1 9907- ●
7 COUPLING; FAN
CLUTCH-15.5" TWIN PLATE SPICER(TEY) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-21650-204-0 01 1 0005- ●
13 NUT; COOLING FAN
(A) M10 FLANGE 		0-91150-210-0 06 1 9812-9901 ●
13 NUT; COOLING FAN
(A) M10 FLANGE 		0-91150-210-0 06 1 9902-9904 ● ● ●
13 NUT; COOLING FAN
(A) M10 FLANGE 		0-91150-210-0 06 1 9905-9906 ● ● ● ●
13 NUT; COOLING FAN
(A) M10 FLANGE 		0-91150-210-0 06 1 9907- ● ● ●
13 NUT; COOLING FAN
(B) M8 FLANGE 		0-91150-208-0 06 1 9902-9904 ●
13 NUT; COOLING FAN
EXC. TROPICAL ZONE KIT<WB6> (B) M8 FLANGE 		0-91150-208-0 06 1 9905-9906 ●
13 NUT; COOLING FAN
(B) M8 FLANGE 		0-91150-208-0 06 1 9905-9906 ●
13 NUT; COOLING FAN
EXC. TROPICAL ZONE KIT<WB6> (B) M8 FLANGE 		0-91150-208-0 06 1 9907- ●
35 WASHER; PL
ID=28 T=4 		1-09503-016-0 01 1 9812-9901 ●
35 WASHER; PL
ID=28 T=4 		1-09503-016-0 01 1 9902-9904 ● ● ●
35 WASHER; PL
ID=28 T=4 		1-09503-016-0 01 1 9905-9906 ● ● ● ●
35 WASHER; PL
ID=28 T=4 		1-09503-016-0 01 1 9907- ● ● ●
52 SPACER; FAN DRIVE 1-13669-165-0 01 1 9812-9901 ●
52 SPACER; FAN DRIVE 1-13669-165-0 01 1 9902-9904 ● ● ●
52 SPACER; FAN DRIVE 1-13669-165-0 01 1 9905-9906 ● ● ● ●
52 SPACER; FAN DRIVE 1-13669-165-0 01 1 9907- ● ● ●
69 WASHER; PL,ADJ PLATE,GEN
ID=10.5 OD=18 		9-09160-510-0 01 1 9812-9901 ●
69 WASHER; PL,ADJ PLATE,GEN
ID=10.5 OD=18 		9-09160-510-0 01 1 9902-9904 ● ●
69 WASHER; PL,ADJ PLATE,GEN
ID=10.5 OD=18 		9-09160-510-0 01 1 9905- ● ●
69 WASHER; PL,ADJ PLATE,GEN
TROPICAL ZONE KIT<WB6> ID=10.5 OD=18 		9-09160-510-0 01 1 9905- ●
69 WASHER; PL,ADJ PLATE,GEN
ID=12.5 OD=32 		9-09160-712-0 01 1 9902-9904 ●
69 WASHER; PL,ADJ PLATE,GEN
EXC. TROPICAL ZONE KIT<WB6> ID=12.5 OD=32 		9-09160-712-0 01 1 9905-9906 ●
69 WASHER; PL,ADJ PLATE,GEN
ID=12.5 OD=32 		9-09160-712-0 01 1 9905-9906 ●
69 WASHER; PL,ADJ PLATE,GEN
EXC. TROPICAL ZONE KIT<WB6> ID=12.5 OD=32 		9-09160-712-0 01 1 9907- ●
70 NUT; ADJ PLATE,GEN
M12 FLANGE 		0-91150-112-0 01 1 9902-9904 ●
70 NUT; ADJ PLATE,GEN
EXC. TROPICAL ZONE KIT<WB6> M12 FLANGE 		0-91150-112-0 01 1 9905-9906 ●
70 NUT; ADJ PLATE,GEN
M12 FLANGE 		0-91150-112-0 01 1 9905-9906 ●
70 NUT; ADJ PLATE,GEN
EXC. TROPICAL ZONE KIT<WB6> M12 FLANGE 		0-91150-112-0 01 1 9907- ●
71 BOLT; ADJ PLATE,GEN
(A) M10X25 FLANGE 		0-28181-025-0 01 1 9812-9901 ●
71 BOLT; ADJ PLATE,GEN
(A) M10X25 FLANGE 		0-28181-025-0 01 1 9902-9904 ● ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X25 FLANGE 		0-28181-025-0 01 1 9905-9906 ● ● ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X25 FLANGE 		0-28181-025-0 01 1 9907- ● ● ●
71 BOLT; ADJ PLATE,GEN
(B) M10X110 FLANGE 		0-28186-011-0 01 1 9812-9901 ●
71 BOLT; ADJ PLATE,GEN
(B) M10X110 FLANGE 		0-28186-011-0 01 1 9902-9904 ● ● ●
71 BOLT; ADJ PLATE,GEN
(B) M10X110 FLANGE 		0-28186-011-0 01 1 9905-9906 ● ● ● ●
71 BOLT; ADJ PLATE,GEN
(B) M10X110 FLANGE 		0-28186-011-0 01 1 9907- ● ● ●
71 BOLT; ADJ PLATE,GEN
(C) M10X140 		1-09000-104-1 01 1 9812-9901 ●
71 BOLT; ADJ PLATE,GEN
(C) M10X140 		1-09000-104-1 01 1 9902-9904 ● ●
71 BOLT; ADJ PLATE,GEN
(C) M10X140 		1-09000-104-1 01 1 9905- ● ●
71 BOLT; ADJ PLATE,GEN
TROPICAL ZONE KIT<WB6> (C) M10X140 		1-09000-104-1 01 1 9905- ●
71 BOLT; ADJ PLATE,GEN
(D) M10X60 FLANGE 		0-28181-060-0 01 1 9902-9904 ●
71 BOLT; ADJ PLATE,GEN
EXC. TROPICAL ZONE KIT<WB6> (D) M10X60 FLANGE 		0-28181-060-0 01 1 9905-9906 ●
71 BOLT; ADJ PLATE,GEN
(D) M10X60 FLANGE 		0-28181-060-0 01 1 9905-9906 ●
71 BOLT; ADJ PLATE,GEN
EXC. TROPICAL ZONE KIT<WB6> (D) M10X60 FLANGE 		0-28181-060-0 01 1 9907- ●
71 BOLT; ADJ PLATE,GEN
(E) M10X135 		1-09009-113-1 01 1 9902-9904 ●
71 BOLT; ADJ PLATE,GEN
EXC. TROPICAL ZONE KIT<WB6> (E) M10X135 		1-09009-113-1 01 1 9905-9906 ●
71 BOLT; ADJ PLATE,GEN
(E) M10X135 		1-09009-113-1 01 1 9905-9906 ●
71 BOLT; ADJ PLATE,GEN
EXC. TROPICAL ZONE KIT<WB6> (E) M10X135 		1-09009-113-1 01 1 9907- ●
80 PLATE; ADJ 1-13674-241-0 01 1 9902-9904 ●
80 PLATE; ADJ
EXC. TROPICAL ZONE KIT<WB6> 		1-13674-241-0 01 1 9905-9906 ●
80 PLATE; ADJ 1-13674-241-0 01 1 9905-9906 ●
80 PLATE; ADJ
EXC. TROPICAL ZONE KIT<WB6> 		1-13674-241-0 01 1 9907- ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 9902-9904 ●
81 PIECE; SLIDING
EXC. TROPICAL ZONE KIT<WB6> M12X45 		1-13674-160-0 01 1 9905-9906 ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 9905-9906 ●
81 PIECE; SLIDING
EXC. TROPICAL ZONE KIT<WB6> M12X45 		1-13674-160-0 01 1 9907- ●
111 STUD; FAN DRIVE
M10X25 L=45 		9-04321-025-0 06 1 9812-9901 ●
111 STUD; FAN DRIVE
M10X25 L=45 		9-04321-025-0 06 1 9902-9904 ● ● ●
111 STUD; FAN DRIVE
M10X25 L=45 		9-04321-025-0 06 1 9905-9906 ● ● ● ●
111 STUD; FAN DRIVE
M10X25 L=45 		9-04321-025-0 06 1 9907- ● ● ●
112 PULLEY; FAN CENTER 1-13663-088-0 01 1 9812-9901 ●
112 PULLEY; FAN CENTER 1-13663-088-0 01 1 9902-9904 ● ●
112 PULLEY; FAN CENTER 1-13663-088-0 01 1 9905-0008 ● ●
112 PULLEY; FAN CENTER
TROPICAL ZONE KIT<WB6> 		1-13663-088-0 01 1 9905-0008 ●
112 PULLEY; FAN CENTER 1-13663-124-0 01 1 0009- ● ●
112 PULLEY; FAN CENTER
TROPICAL ZONE KIT<WB6> 		1-13663-124-0 01 1 0009- ●
112 PULLEY; FAN CENTER 1-13663-087-0 01 1 9902-9904 ●
112 PULLEY; FAN CENTER
EXC. TROPICAL ZONE KIT<WB6> 		1-13663-087-0 01 1 9905-9906 ●
112 PULLEY; FAN CENTER 1-13663-087-0 01 1 9905-9906 ●
112 PULLEY; FAN CENTER
EXC. TROPICAL ZONE KIT<WB6> 		1-13663-087-0 01 1 9907-0008 ●
112 PULLEY; FAN CENTER
EXC. TROPICAL ZONE KIT<WB6> 		1-13663-123-1 01 1 0009- ●
114 SEAL; OIL 1-09625-570-0 01 1 9812-9901 ●
114 SEAL; OIL 1-09625-570-0 01 1 9902-9904 ● ● ●
114 SEAL; OIL 1-09625-570-0 01 1 9905-9906 ● ● ● ●
114 SEAL; OIL 1-09625-570-0 01 1 9907- ● ● ●
185 BELT; GEN DRIVE
1 SET=2 PIECE(1136714290) MITSUBOSHI 		1-13671-428-0 01 1 9902-9904 ●
185 BELT; GEN DRIVE
EXC. TROPICAL ZONE KIT<WB6> 1 SET=2 PIECE(1136714290) MITSUBOSHI 		1-13671-428-0 01 1 9905-9906 ●
185 BELT; GEN DRIVE
1 SET=2 PIECE(1136714290) MITSUBOSHI 		1-13671-428-0 01 1 9905-9906 ●
185 BELT; GEN DRIVE
EXC. TROPICAL ZONE KIT<WB6> 1 SET=2 PIECE(1136714290) MITSUBOSHI 		1-13671-428-0 01 1 9907- ●
235 SHAFT; FAN CENTER 1-13660-278-3 01 1 9812-9909 ●
235 SHAFT; FAN CENTER
EXC. EURO2 SPECIFICATION<THN> 		1-13660-278-3 01 1 9910- ●
235 SHAFT; FAN CENTER
TROPICAL ZONE KIT<WB6> 		1-13660-314-0 01 1 9905- ●
235 SHAFT; FAN CENTER 1-13660-279-2 01 1 9902-9904 ● ●
235 SHAFT; FAN CENTER
EXC. TROPICAL ZONE KIT<WB6> 		1-13660-279-2 01 1 9905-9906 ●
235 SHAFT; FAN CENTER 1-13660-279-2 01 1 9905-9906 ● ●
235 SHAFT; FAN CENTER
EXC. TROPICAL ZONE KIT<WB6> 		1-13660-279-2 01 1 9907-9910 ●
235 SHAFT; FAN CENTER 1-13660-279-2 01 1 9907-9910 ●
235 SHAFT; FAN CENTER
EXC. TROPICAL ZONE KIT<WB6> 		1-13660-279-3 01 1 9911- ●
235 SHAFT; FAN CENTER
EURO2 SPECIFICATION<THN> 		1-13660-279-3 01 1 9911- ●
236 BUSHING; FAN CENTER 1-13669-160-2 01 1 9812-9901 ●
236 BUSHING; FAN CENTER 1-13669-160-2 01 1 9902-9904 ● ● ●
236 BUSHING; FAN CENTER 1-13669-160-2 01 1 9905-9906 ● ● ● ●
236 BUSHING; FAN CENTER 1-13669-160-2 01 1 9907- ● ● ●
237 NUT; SHAFT
M27 FLANGE 		1-09440-058-0 01 1 9812-9901 ●
237 NUT; SHAFT
M27 FLANGE 		1-09440-058-0 01 1 9902-9904 ● ● ●
237 NUT; SHAFT
M27 FLANGE 		1-09440-058-0 01 1 9905-9906 ● ● ● ●
237 NUT; SHAFT
M27 FLANGE 		1-09440-058-0 01 1 9907- ● ● ●

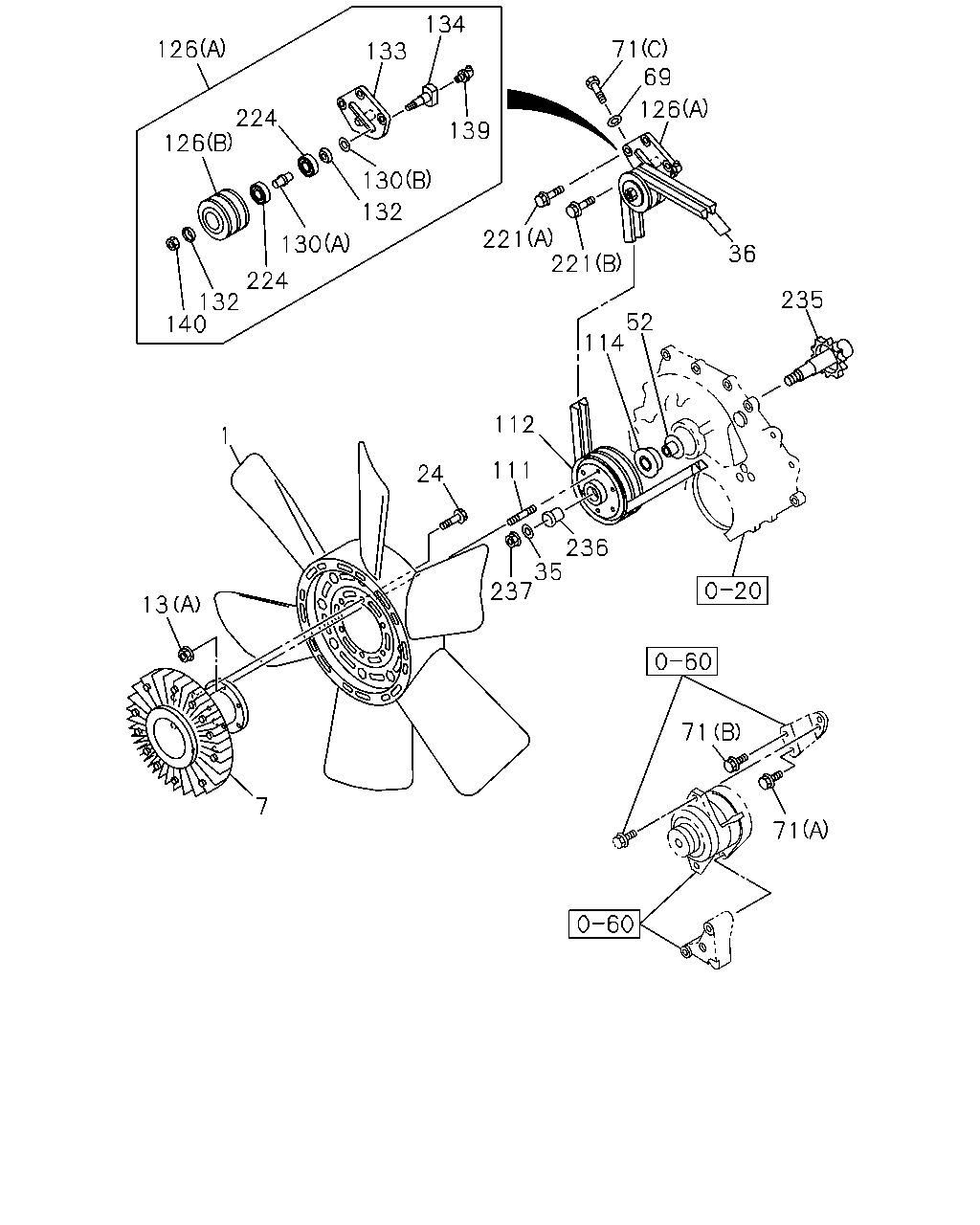

çizim 43105
134 71 69 126 133 126 224 126 139 130 132 221 130 36 221 224 132 140 235 52 114 112 1 111 24 236 35 237 13 71 7 71
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 FAN; COOLING 1-13660-286-1 01 1 9812-9901 ●
1 FAN; COOLING 1-13660-286-1 01 1 9902-9904 ● ●
1 FAN; COOLING 1-13660-286-1 01 1 9905- ● ●
1 FAN; COOLING
TROPICAL ZONE KIT<WB6> 		1-13660-286-1 01 1 9905- ●
1 FAN; COOLING 1-13660-224-0 01 1 9902-9904 ●
1 FAN; COOLING
EXC. TROPICAL ZONE KIT<WB6> 		1-13660-224-0 01 1 9905-9906 ●
1 FAN; COOLING 1-13660-224-0 01 1 9905-9906 ●
1 FAN; COOLING
EXC. TROPICAL ZONE KIT<WB6> 		1-13660-224-0 01 1 9907- ●
7 COUPLING; FAN 1-21650-188-0 01 1 9812-9901 ●
7 COUPLING; FAN 1-21650-188-0 01 1 9902-9904 ● ●
7 COUPLING; FAN 1-21650-188-0 01 1 9905-0004 ● ●
7 COUPLING; FAN
TROPICAL ZONE KIT<WB6> 		1-21650-188-0 01 1 9905-0004 ●
7 COUPLING; FAN 1-21650-188-0 01 1 0005- ●
7 COUPLING; FAN
TROPICAL ZONE KIT<WB6> 		1-21650-188-0 01 1 0005- ●
7 COUPLING; FAN
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-21650-188-0 01 1 0005- ●
7 COUPLING; FAN
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-21650-188-0 01 1 0005- ●
7 COUPLING; FAN 1-21650-178-1 01 1 9902-9904 ●
7 COUPLING; FAN
EXC. TROPICAL ZONE KIT<WB6> 		1-21650-178-1 01 1 9905-9906 ●
7 COUPLING; FAN 1-21650-178-1 01 1 9905-9906 ●
7 COUPLING; FAN
EXC. TROPICAL ZONE KIT<WB6> 		1-21650-178-1 01 1 9907- ●
7 COUPLING; FAN
CLUTCH-15.5" TWIN PLATE SPICER(TEY) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-21650-204-0 01 1 0005- ●
13 NUT; COOLING FAN
(A) M10 FLANGE 		0-91150-210-0 06 1 9812-9901 ●
13 NUT; COOLING FAN
(A) M10 FLANGE 		0-91150-210-0 06 1 9902-9904 ● ● ●
13 NUT; COOLING FAN
(A) M10 FLANGE 		0-91150-210-0 06 1 9905-9906 ● ● ● ●
13 NUT; COOLING FAN
(A) M10 FLANGE 		0-91150-210-0 06 1 9907- ● ● ●
13 NUT; COOLING FAN
(B) M8 FLANGE 		0-91150-208-0 06 1 9902-9904 ●
13 NUT; COOLING FAN
EXC. TROPICAL ZONE KIT<WB6> (B) M8 FLANGE 		0-91150-208-0 06 1 9905-9906 ●
13 NUT; COOLING FAN
(B) M8 FLANGE 		0-91150-208-0 06 1 9905-9906 ●
13 NUT; COOLING FAN
EXC. TROPICAL ZONE KIT<WB6> (B) M8 FLANGE 		0-91150-208-0 06 1 9907- ●
24 BOLT; FAN
M10X40 FLANGE 		0-28791-040-0 06 1 9812-9901 ●
24 BOLT; FAN
M10X40 FLANGE 		0-28791-040-0 06 1 9902-9904 ● ●
24 BOLT; FAN
M10X40 FLANGE 		0-28791-040-0 06 1 9905- ● ●
24 BOLT; FAN
TROPICAL ZONE KIT<WB6> M10X40 FLANGE 		0-28791-040-0 06 1 9905- ●
35 WASHER; PL
ID=28 T=4 		1-09503-016-0 01 1 9812-9901 ●
35 WASHER; PL
ID=28 T=4 		1-09503-016-0 01 1 9902-9904 ● ● ●
35 WASHER; PL
ID=28 T=4 		1-09503-016-0 01 1 9905-9906 ● ● ● ●
35 WASHER; PL
ID=28 T=4 		1-09503-016-0 01 1 9907- ● ● ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136714310) MITSUBOSHI 		1-13671-430-0 01 1 9812-9901 ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136714310) MITSUBOSHI 		1-13671-430-0 01 1 9902-9904 ● ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136714310) MITSUBOSHI 		1-13671-430-0 01 1 9905- ● ●
36 BELT; COOLING FAN
TROPICAL ZONE KIT<WB6> 1 SET=2 PIECE(1136714310) MITSUBOSHI 		1-13671-430-0 01 1 9905- ●
52 SPACER; FAN DRIVE 1-13669-165-0 01 1 9812-9901 ●
52 SPACER; FAN DRIVE 1-13669-165-0 01 1 9902-9904 ● ● ●
52 SPACER; FAN DRIVE 1-13669-165-0 01 1 9905-9906 ● ● ● ●
52 SPACER; FAN DRIVE 1-13669-165-0 01 1 9907- ● ● ●
69 WASHER; PL,ADJ PLATE,GEN
ID=10.5 OD=18 		9-09160-510-0 01 1 9812-9901 ●
69 WASHER; PL,ADJ PLATE,GEN
ID=10.5 OD=18 		9-09160-510-0 01 1 9902-9904 ● ●
69 WASHER; PL,ADJ PLATE,GEN
ID=10.5 OD=18 		9-09160-510-0 01 1 9905- ● ●
69 WASHER; PL,ADJ PLATE,GEN
TROPICAL ZONE KIT<WB6> ID=10.5 OD=18 		9-09160-510-0 01 1 9905- ●
69 WASHER; PL,ADJ PLATE,GEN
ID=12.5 OD=32 		9-09160-712-0 01 1 9902-9904 ●
69 WASHER; PL,ADJ PLATE,GEN
EXC. TROPICAL ZONE KIT<WB6> ID=12.5 OD=32 		9-09160-712-0 01 1 9905-9906 ●
69 WASHER; PL,ADJ PLATE,GEN
ID=12.5 OD=32 		9-09160-712-0 01 1 9905-9906 ●
69 WASHER; PL,ADJ PLATE,GEN
EXC. TROPICAL ZONE KIT<WB6> ID=12.5 OD=32 		9-09160-712-0 01 1 9907- ●
71 BOLT; ADJ PLATE,GEN
(A) M10X25 FLANGE 		0-28181-025-0 01 1 9812-9901 ●
71 BOLT; ADJ PLATE,GEN
(A) M10X25 FLANGE 		0-28181-025-0 01 1 9902-9904 ● ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X25 FLANGE 		0-28181-025-0 01 1 9905-9906 ● ● ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X25 FLANGE 		0-28181-025-0 01 1 9907- ● ● ●
71 BOLT; ADJ PLATE,GEN
(B) M10X110 FLANGE 		0-28186-011-0 01 1 9812-9901 ●
71 BOLT; ADJ PLATE,GEN
(B) M10X110 FLANGE 		0-28186-011-0 01 1 9902-9904 ● ● ●
71 BOLT; ADJ PLATE,GEN
(B) M10X110 FLANGE 		0-28186-011-0 01 1 9905-9906 ● ● ● ●
71 BOLT; ADJ PLATE,GEN
(B) M10X110 FLANGE 		0-28186-011-0 01 1 9907- ● ● ●
71 BOLT; ADJ PLATE,GEN
(C) M10X140 		1-09000-104-1 01 1 9812-9901 ●
71 BOLT; ADJ PLATE,GEN
(C) M10X140 		1-09000-104-1 01 1 9902-9904 ● ●
71 BOLT; ADJ PLATE,GEN
(C) M10X140 		1-09000-104-1 01 1 9905- ● ●
71 BOLT; ADJ PLATE,GEN
TROPICAL ZONE KIT<WB6> (C) M10X140 		1-09000-104-1 01 1 9905- ●
71 BOLT; ADJ PLATE,GEN
(D) M10X60 FLANGE 		0-28181-060-0 01 1 9902-9904 ●
71 BOLT; ADJ PLATE,GEN
EXC. TROPICAL ZONE KIT<WB6> (D) M10X60 FLANGE 		0-28181-060-0 01 1 9905-9906 ●
71 BOLT; ADJ PLATE,GEN
(D) M10X60 FLANGE 		0-28181-060-0 01 1 9905-9906 ●
71 BOLT; ADJ PLATE,GEN
EXC. TROPICAL ZONE KIT<WB6> (D) M10X60 FLANGE 		0-28181-060-0 01 1 9907- ●
71 BOLT; ADJ PLATE,GEN
(E) M10X135 		1-09009-113-1 01 1 9902-9904 ●
71 BOLT; ADJ PLATE,GEN
EXC. TROPICAL ZONE KIT<WB6> (E) M10X135 		1-09009-113-1 01 1 9905-9906 ●
71 BOLT; ADJ PLATE,GEN
(E) M10X135 		1-09009-113-1 01 1 9905-9906 ●
71 BOLT; ADJ PLATE,GEN
EXC. TROPICAL ZONE KIT<WB6> (E) M10X135 		1-09009-113-1 01 1 9907- ●
111 STUD; FAN DRIVE
M10X25 L=45 		9-04321-025-0 06 1 9812-9901 ●
111 STUD; FAN DRIVE
M10X25 L=45 		9-04321-025-0 06 1 9902-9904 ● ● ●
111 STUD; FAN DRIVE
M10X25 L=45 		9-04321-025-0 06 1 9905-9906 ● ● ● ●
111 STUD; FAN DRIVE
M10X25 L=45 		9-04321-025-0 06 1 9907- ● ● ●
112 PULLEY; FAN CENTER 1-13663-088-0 01 1 9812-9901 ●
112 PULLEY; FAN CENTER 1-13663-088-0 01 1 9902-9904 ● ●
112 PULLEY; FAN CENTER 1-13663-088-0 01 1 9905-0008 ● ●
112 PULLEY; FAN CENTER
TROPICAL ZONE KIT<WB6> 		1-13663-088-0 01 1 9905-0008 ●
112 PULLEY; FAN CENTER 1-13663-124-0 01 1 0009- ● ●
112 PULLEY; FAN CENTER
TROPICAL ZONE KIT<WB6> 		1-13663-124-0 01 1 0009- ●
112 PULLEY; FAN CENTER 1-13663-087-0 01 1 9902-9904 ●
112 PULLEY; FAN CENTER
EXC. TROPICAL ZONE KIT<WB6> 		1-13663-087-0 01 1 9905-9906 ●
112 PULLEY; FAN CENTER 1-13663-087-0 01 1 9905-9906 ●
112 PULLEY; FAN CENTER
EXC. TROPICAL ZONE KIT<WB6> 		1-13663-087-0 01 1 9907-0008 ●
112 PULLEY; FAN CENTER
EXC. TROPICAL ZONE KIT<WB6> 		1-13663-123-1 01 1 0009- ●
114 SEAL; OIL 1-09625-570-0 01 1 9812-9901 ●
114 SEAL; OIL 1-09625-570-0 01 1 9902-9904 ● ● ●
114 SEAL; OIL 1-09625-570-0 01 1 9905-9906 ● ● ● ●
114 SEAL; OIL 1-09625-570-0 01 1 9907- ● ● ●
126 PULLEY; IDLE
(A) 		1-13660-263-2 01 1 9812-9901 ●
126 PULLEY; IDLE
(A) 		1-13660-263-2 01 1 9902-9904 ● ●
126 PULLEY; IDLE
(A) 		1-13660-263-2 01 1 9905-0008 ● ●
126 PULLEY; IDLE
TROPICAL ZONE KIT<WB6> (A) 		1-13660-263-2 01 1 9905-0008 ●
126 PULLEY; IDLE
(A) 		1-13660-358-1 01 1 0009- ● ●
126 PULLEY; IDLE
TROPICAL ZONE KIT<WB6> (A) 		1-13660-358-1 01 1 0009- ●
126 PULLEY; IDLE
(B) 		1-13663-067-0 01 1 9812-9901 ●
126 PULLEY; IDLE
(B) 		1-13663-067-0 01 1 9902-9904 ● ●
126 PULLEY; IDLE
(B) 		1-13663-067-0 01 1 9905-0008 ● ●
126 PULLEY; IDLE
TROPICAL ZONE KIT<WB6> (B) 		1-13663-067-0 01 1 9905-0008 ●
126 PULLEY; IDLE
(B) 		1-13663-111-1 01 1 0009- ● ●
126 PULLEY; IDLE
TROPICAL ZONE KIT<WB6> (B) 		1-13663-111-1 01 1 0009- ●
130 SPACER; IDLE PULLEY BRG
(A) 		1-13666-007-0 01 1 9812-9901 ●
130 SPACER; IDLE PULLEY BRG
(A) 		1-13666-007-0 01 1 9902-9904 ● ●
130 SPACER; IDLE PULLEY BRG
(A) 		1-13666-007-0 01 1 9905- ● ●
130 SPACER; IDLE PULLEY BRG
TROPICAL ZONE KIT<WB6> (A) 		1-13666-007-0 01 1 9905- ●
130 SPACER; IDLE PULLEY BRG
(B) 		1-13666-032-0 01 1 9812-9901 ●
130 SPACER; IDLE PULLEY BRG
(B) 		1-13666-032-0 01 1 9902-9904 ● ●
130 SPACER; IDLE PULLEY BRG
(B) 		1-13666-032-0 01 1 9905- ● ●
130 SPACER; IDLE PULLEY BRG
TROPICAL ZONE KIT<WB6> (B) 		1-13666-032-0 01 1 9905- ●
132 COVER; DUST 1-13664-009-1 02 1 9812-9901 ●
132 COVER; DUST 1-13664-009-1 02 1 9902-9904 ● ●
132 COVER; DUST 1-13664-009-1 02 1 9905- ● ●
132 COVER; DUST
TROPICAL ZONE KIT<WB6> 		1-13664-009-1 02 1 9905- ●
133 BRACKET; IDLE PULLEY 1-13669-150-1 01 1 9812-9901 ●
133 BRACKET; IDLE PULLEY 1-13669-150-1 01 1 9902-9904 ● ●
133 BRACKET; IDLE PULLEY 1-13669-150-1 01 1 9905- ● ●
133 BRACKET; IDLE PULLEY
TROPICAL ZONE KIT<WB6> 		1-13669-150-1 01 1 9905- ●
134 SPINDLE; IDLE PULLEY 1-13665-035-0 01 1 9812-9901 ●
134 SPINDLE; IDLE PULLEY 1-13665-035-0 01 1 9902-9904 ● ●
134 SPINDLE; IDLE PULLEY 1-13665-035-0 01 1 9905- ● ●
134 SPINDLE; IDLE PULLEY
TROPICAL ZONE KIT<WB6> 		1-13665-035-0 01 1 9905- ●
139 NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW 		9-09031-210-0 01 1 9812-9901 ●
139 NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW 		9-09031-210-0 01 1 9902-9904 ● ●
139 NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW 		9-09031-210-0 01 1 9905- ● ●
139 NIPPLE; GREASE,IDLE PULLEY
TROPICAL ZONE KIT<WB6> PT1/8 ELBOW 		9-09031-210-0 01 1 9905- ●
140 NUT; IDLE PULLEY
M18 		9-99111-518-0 01 1 9812-9901 ●
140 NUT; IDLE PULLEY
M18 		9-99111-518-0 01 1 9902-9904 ● ●
140 NUT; IDLE PULLEY
M18 		9-99111-518-0 01 1 9905- ● ●
140 NUT; IDLE PULLEY
TROPICAL ZONE KIT<WB6> M18 		9-99111-518-0 01 1 9905- ●
221 BOLT; IDLE PULLEY
(B) M10X80 FLANGE 		0-28181-080-0 01 1 9812-9901 ●
221 BOLT; IDLE PULLEY
(B) M10X80 FLANGE 		0-28181-080-0 01 1 9902-9904 ● ●
221 BOLT; IDLE PULLEY
(B) M10X80 FLANGE 		0-28181-080-0 01 1 9905- ● ●
221 BOLT; IDLE PULLEY
TROPICAL ZONE KIT<WB6> (B) M10X80 FLANGE 		0-28181-080-0 01 1 9905- ●
221 BOLT; IDLE PULLEY
(A) M10X90 FLANGE 		0-28181-090-0 03 1 9812-9901 ●
221 BOLT; IDLE PULLEY
(A) M10X90 FLANGE 		0-28181-090-0 03 1 9902-9904 ● ●
221 BOLT; IDLE PULLEY
(A) M10X90 FLANGE 		0-28181-090-0 03 1 9905- ● ●
221 BOLT; IDLE PULLEY
TROPICAL ZONE KIT<WB6> (A) M10X90 FLANGE 		0-28181-090-0 03 1 9905- ●
224 BEARING; IDLE PULLEY 1-09800-176-0 02 1 9812-9901 ●
224 BEARING; IDLE PULLEY 1-09800-176-0 02 1 9902-9904 ● ●
224 BEARING; IDLE PULLEY 1-09800-176-0 02 1 9905- ● ●
224 BEARING; IDLE PULLEY
TROPICAL ZONE KIT<WB6> 		1-09800-176-0 02 1 9905- ●
235 SHAFT; FAN CENTER 1-13660-278-3 01 1 9812-9909 ●
235 SHAFT; FAN CENTER
EXC. EURO2 SPECIFICATION<THN> 		1-13660-278-3 01 1 9910- ●
235 SHAFT; FAN CENTER
TROPICAL ZONE KIT<WB6> 		1-13660-314-0 01 1 9905- ●
235 SHAFT; FAN CENTER 1-13660-279-2 01 1 9902-9904 ● ●
235 SHAFT; FAN CENTER
EXC. TROPICAL ZONE KIT<WB6> 		1-13660-279-2 01 1 9905-9906 ●
235 SHAFT; FAN CENTER 1-13660-279-2 01 1 9905-9906 ● ●
235 SHAFT; FAN CENTER
EXC. TROPICAL ZONE KIT<WB6> 		1-13660-279-2 01 1 9907-9910 ●
235 SHAFT; FAN CENTER 1-13660-279-2 01 1 9907-9910 ●
235 SHAFT; FAN CENTER
EXC. TROPICAL ZONE KIT<WB6> 		1-13660-279-3 01 1 9911- ●
235 SHAFT; FAN CENTER
EURO2 SPECIFICATION<THN> 		1-13660-279-3 01 1 9911- ●
236 BUSHING; FAN CENTER 1-13669-160-2 01 1 9812-9901 ●
236 BUSHING; FAN CENTER 1-13669-160-2 01 1 9902-9904 ● ● ●
236 BUSHING; FAN CENTER 1-13669-160-2 01 1 9905-9906 ● ● ● ●
236 BUSHING; FAN CENTER 1-13669-160-2 01 1 9907- ● ● ●
237 NUT; SHAFT
M27 FLANGE 		1-09440-058-0 01 1 9812-9901 ●
237 NUT; SHAFT
M27 FLANGE 		1-09440-058-0 01 1 9902-9904 ● ● ●
237 NUT; SHAFT
M27 FLANGE 		1-09440-058-0 01 1 9905-9906 ● ● ● ●
237 NUT; SHAFT
M27 FLANGE 		1-09440-058-0 01 1 9907- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
