Isuzu WW
▶
TRUCKS
▶
FVM
▶
10632 - FVM-RHD
▶
0 - Engine, Emission, Engine Electrical
▶

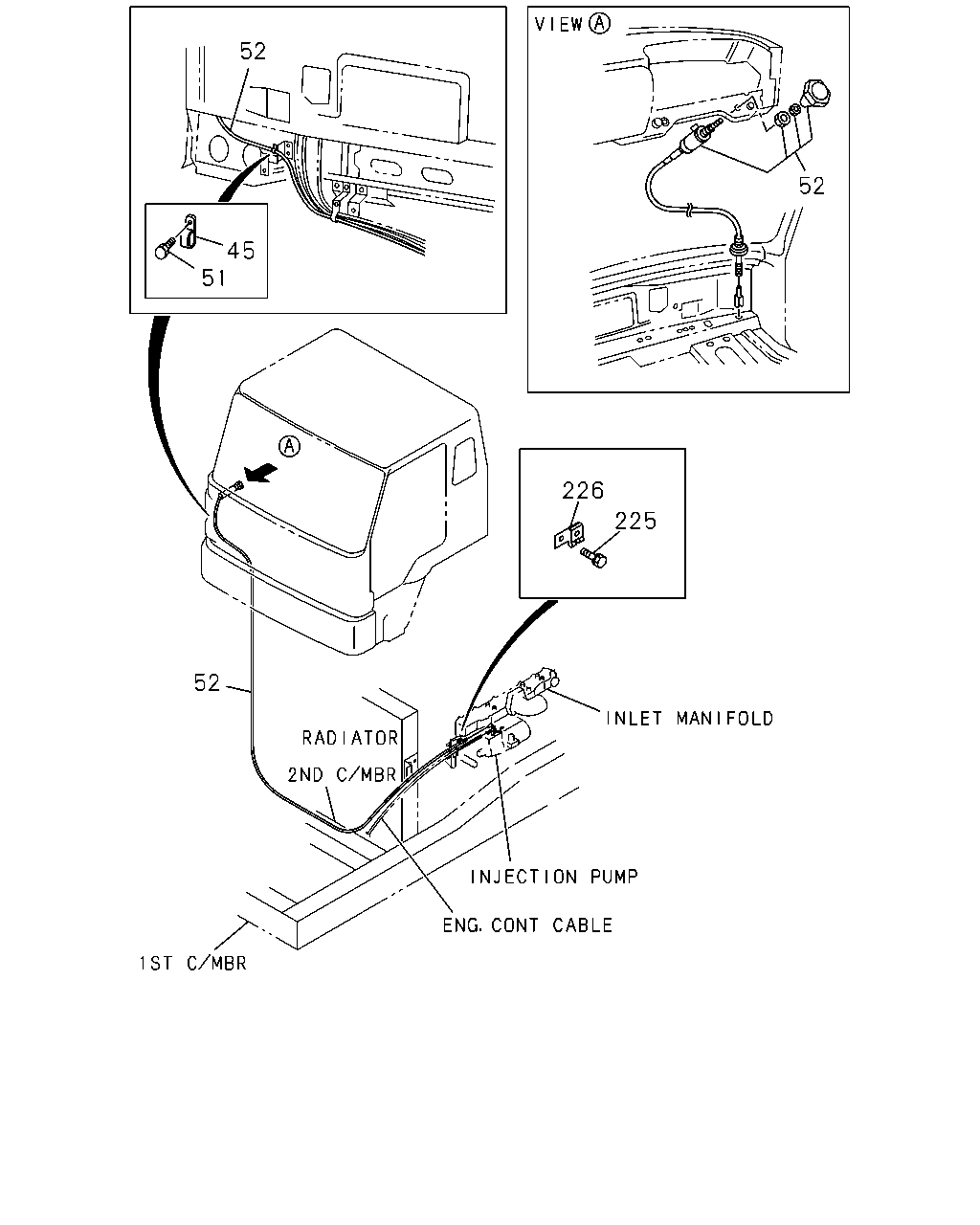

0-35 - ENGINE CONTROL VALVE AND LEVER
▶
0-35 — ENGINE CONTROL VALVE AND LEVER
(#693) — 15 parça
Tümü
A - 6SA1 STD ENG
B - 6SA1TC ENG
C - 6HE1 STD ENG
◀
[035A] 6SA1 ENG (6 parça)
[035A] 6HE1 ENG (9 parça)
▶
226
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
225
BOLT; CLIP FIX
M6X12 W/LK WASHER
0-50040-612-0
02
1
9204-9205
●
●
225
BOLT; CLIP FIX
M6X12 FLANGE
0-28080-612-0
02
1
9206-9207
●
●
225
BOLT; CLIP FIX
M6X20 FLANGE
0-28080-620-0
02
1
9208-
●
●
225
BOLT; CLIP FIX
M8X20 FLANGE
0-28080-820-0
02
1
9505-
●
226
CLIP; CABLE END
L=30
1-09700-326-0
01
1
9204-
●
●
226
CLIP; CABLE END
1-09700-787-1
01
1
9505-
●
52
52
45
51
226
225
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
45
CLIP; FUEL CUT CABLE
EXC. AUTO ENG SHUTOFF<KB6> ID=7 L=16
9-09524-622-0
01
1
9505-
●
51
BOLT; CLIP,FUEL CUT CABLE
EXC. AUTO ENG SHUTOFF<KB6> M6X20 W/LK&PL WASHER
1-09980-493-0
01
1
9505-
●
52
CABLE; FUEL CUT
EXC. AUTO ENG SHUTOFF<KB6> L=2315
1-23210-998-3
01
1
9505-
●
225
BOLT; CLIP FIX
M6X12 W/LK WASHER
0-50040-612-0
02
1
9204-9205
●
●
225
BOLT; CLIP FIX
M6X12 FLANGE
0-28080-612-0
02
1
9206-9207
●
●
225
BOLT; CLIP FIX
M6X20 FLANGE
0-28080-620-0
02
1
9208-
●
●
225
BOLT; CLIP FIX
M8X20 FLANGE
0-28080-820-0
02
1
9505-
●
226
CLIP; CABLE END
L=30
1-09700-326-0
01
1
9204-
●
●
226
CLIP; CABLE END
1-09700-787-1
01
1
9505-
●
