◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11151 - FTS(LHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#69298) — 745 parça

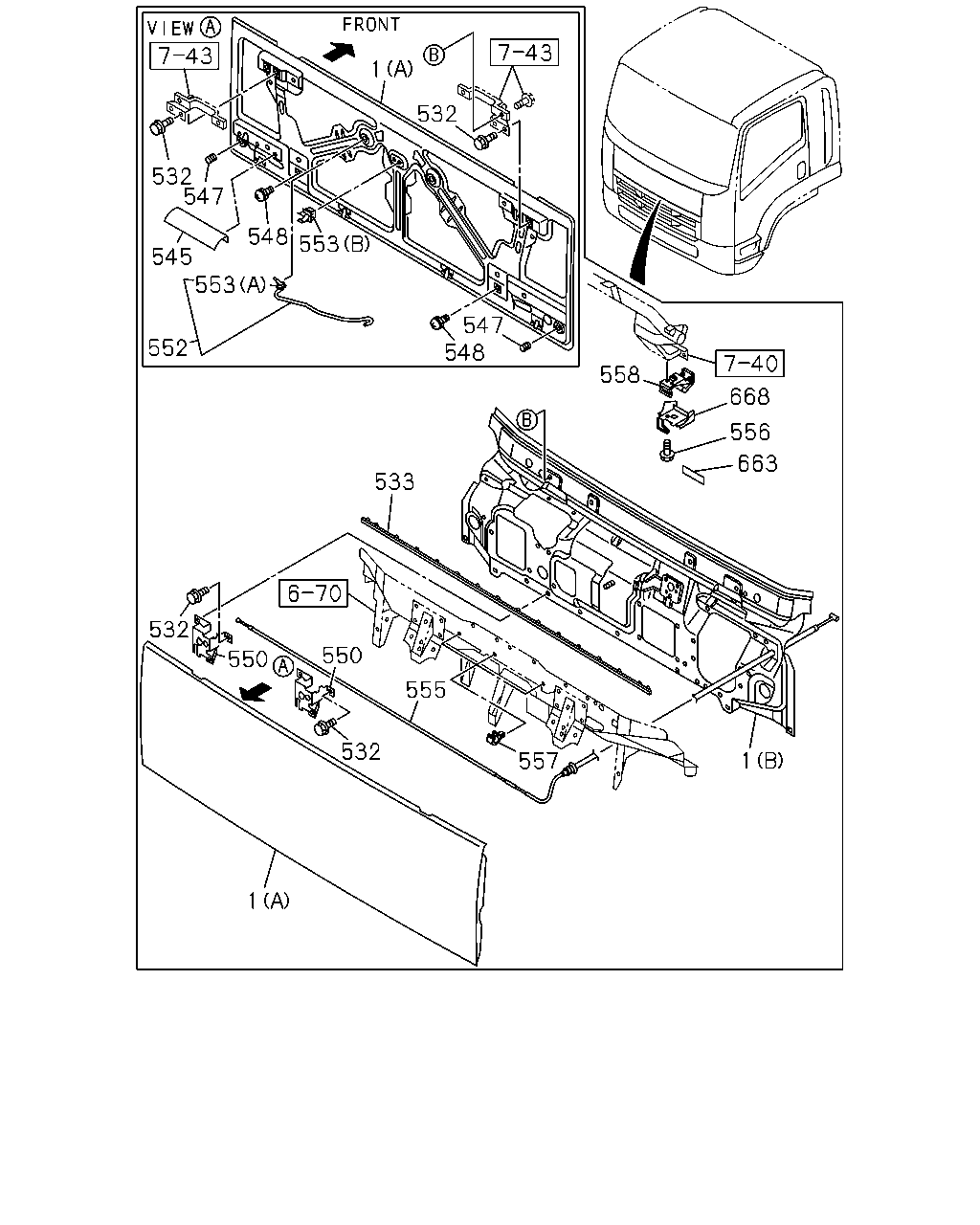

çizim 126470
1 532 532 547 548 553 545 553 547 548 552 558 668 556 663 533 532 550 550 555 532 1 557 1
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-961-6 01 1 0812-1002
1 PANEL ASM; FRT
(B) 		8-97585-961-6 01 1 1003-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 0812-1002
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1003-
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 08 1 0812-
533 SEAL; FRT PANEL 8-98096-289-0 01 1 0812-
545 SEAL; FRT LID 8-98036-584-0 01 1 0812-0910
545 SEAL; FRT LID 8-98123-265-0 01 1 0911-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 0812-
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 0812-
550 LOCK ASM; FRT LID 8-98036-568-2 02 1 0812-
552 STAY; FRT LID 8-98089-839-1 01 1 0812-
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 0812-
553 CLIP; STAY
(A) 		8-98094-542-0 01 1 0812-
555 CABLE; FRT LID 8-98036-574-1 01 1 0812-
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 0812-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 0812-
558 LEVER; FRT LID 8-97865-110-0 01 1 0812-
663 TAPE; PROTECT
175X11 		8-98070-054-1 01 1 0812-0910
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 0812-

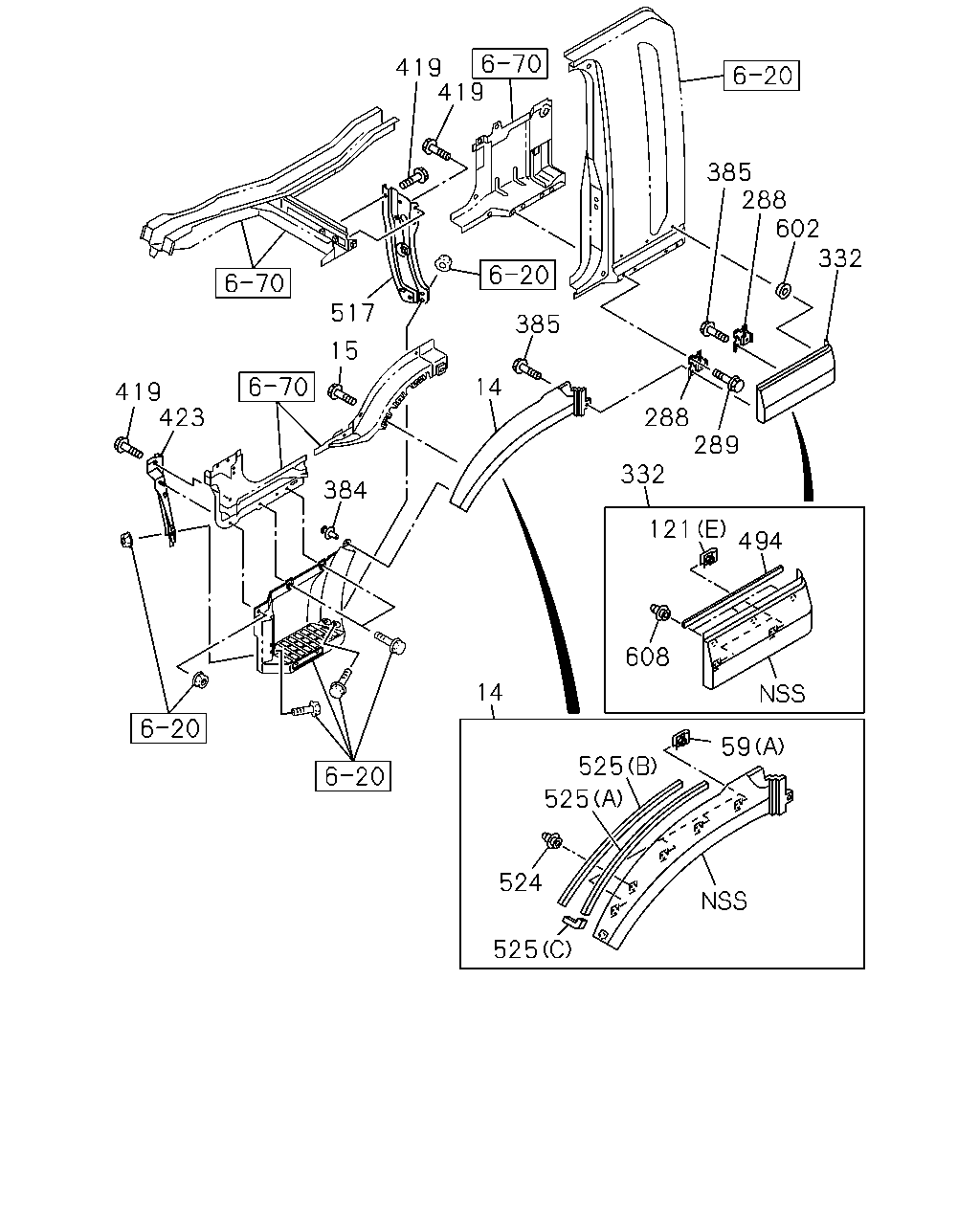

çizim 126484
419 419 385 288 602 332 517 385 15 14 419 423 288 289 332 384 121 494 608 14 59 525 525 524 525
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT
CAB ALL PAINTING<TFD> BLACK 		8-98041-398-3 01 1 0812-
14 FENDER; FRT
CAB ALL PAINTING<TFD> BLACK 		8-98041-399-3 01 1 0812-
14 FENDER; FRT
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98041-398-3 01 1 0812-
14 FENDER; FRT
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98041-399-3 01 1 0812-
15 BOLT; FENDER
SCREW M6X20 W/PL WASHER 		8-98059-504-0 06 1 0812-1002
15 BOLT; FENDER
SCREW M6X20 W/PL WASHER 		8-98059-504-0 06 1 1003-
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 0812-
59 GROMMET; SCREW
(A) 		8-94279-723-0 08 1 0812-
59 GROMMET; SCREW
(B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 0812-1002
59 GROMMET; SCREW
BUMPER W/HEADLAMPS<SLB> (B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 1003-
121 GROMMET; FENDER
(E) 		8-94279-723-0 04 1 0812-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0812-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 08 1 0812-0901
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 0902-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 0812-
121 GROMMET; FENDER
(A) 		8-98073-420-0 01 1 0812-
121 GROMMET; FENDER
(A) 		8-98073-421-0 01 1 0812-
288 BRACKET; FENDER SKIRT 8-98041-162-1 04 1 0812-
289 BOLT; FENDER SKIRT BRKT
M6X16 FLANGE 		0-28650-616-0 08 1 0812-
332 FENDER; RR
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> GREEN 		8-97417-085-2 01 1 1003-
332 FENDER; RR
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> GREEN 		8-97417-086-2 01 1 1003-
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-596-2 01 1 0906-
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-606-2 01 1 0906-
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-597-2 01 1 0906-
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-607-2 01 1 0906-
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-598-2 01 1 0906-
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-608-2 01 1 0906-
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-599-2 01 1 0906-
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-609-2 01 1 0906-
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-600-2 01 1 0906-
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-610-2 01 1 0906-
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-601-2 01 1 0906-
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-611-2 01 1 0906-
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-602-2 01 1 0906-
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-612-2 01 1 0906-
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-603-2 01 1 0906-
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-613-2 01 1 0906-
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-674-2 01 1 0906-
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-675-2 01 1 0906-
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-605-2 01 1 0906-
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-615-2 01 1 0906-
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-506-2 01 1 0812-
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-507-2 01 1 0812-
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-304-2 01 1 0812-
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-310-2 01 1 0812-
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-305-2 01 1 0812-
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-311-2 01 1 0812-
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-308-2 01 1 0812-
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-314-2 01 1 0812-
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-307-2 01 1 0812-
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-313-2 01 1 0812-
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-309-2 01 1 0812-
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-315-2 01 1 0812-
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-434-2 01 1 0812-
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-435-2 01 1 0812-
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 0812-
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 0812-
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 0812-
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 0812-
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 0812-
494 FINISHER; FENDER 8-98041-172-1 01 1 0812-
494 FINISHER; FENDER 8-98072-723-0 01 1 0812-
517 SUPPORT; STEP PANEL 8-98037-338-2 01 1 0812-
517 SUPPORT; STEP PANEL 8-98037-339-2 01 1 0812-
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 0812-
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 0812-
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 0812-
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 0812-
602 RETAINER; COVER
ID=5.4 OD=6.8 		1-09989-021-0 06 1 0812-1302
602 RETAINER; COVER
ID=5.4 OD=6.8 		8-98241-984-0 06 1 1303-
608 CLIP
D5.4X8 		1-09983-154-0 06 1 0812-

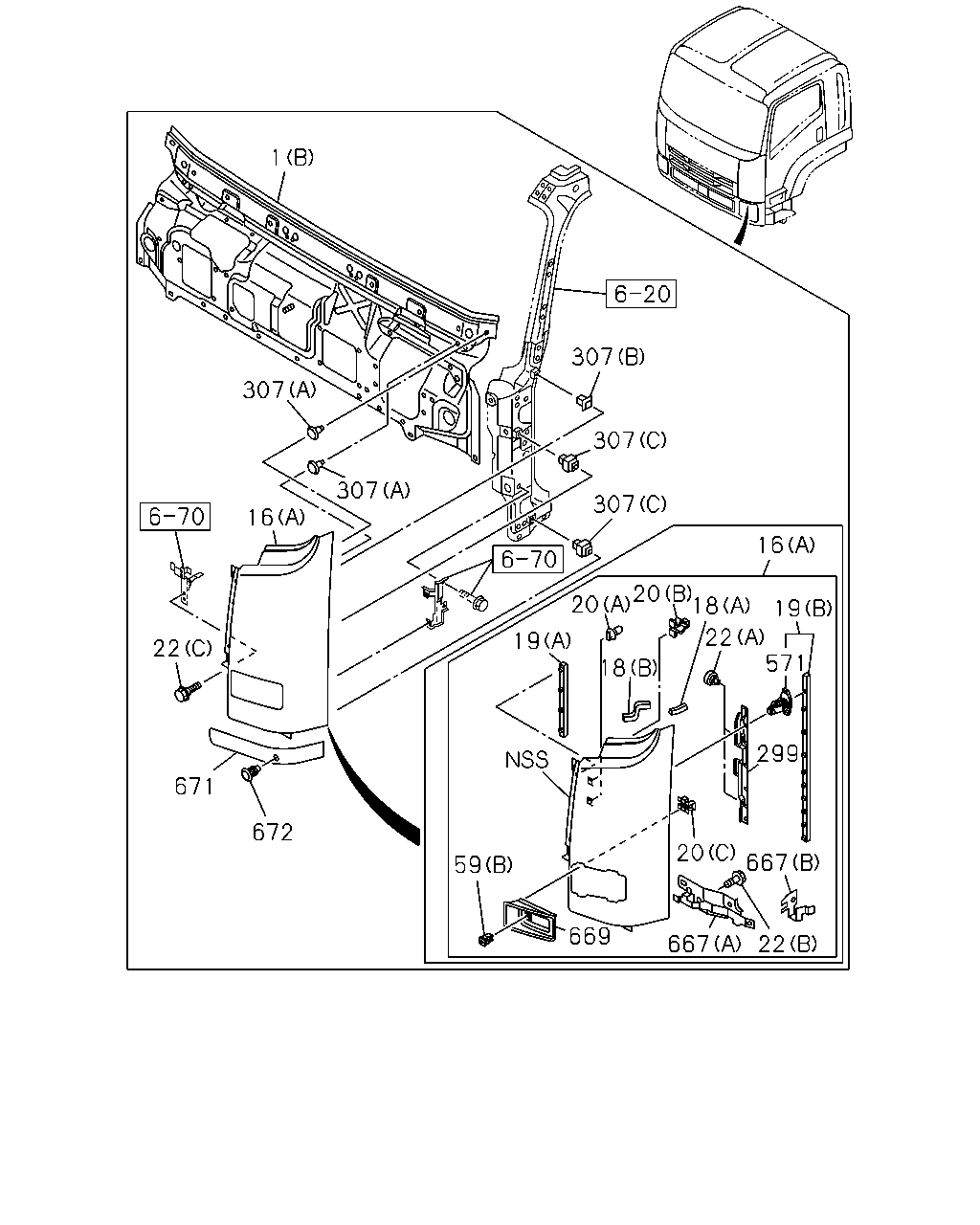

çizim 126577
1 307 307 307 307 307 16 16 20 18 20 19 22 571 19 22 18 299 671 672 20 667 59 22 669 667
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-961-6 01 1 0812-1002
1 PANEL ASM; FRT
(B) 		8-97585-961-6 01 1 1003-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 0812-1002
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) REINFORCEMENT BUMPER<VG7> (B) GRAY 		8-97413-576-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) REINFORCEMENT BUMPER<VG7> (B) GRAY 		8-97417-654-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) REINFORCEMENT BUMPER<VG7> (B) BLUE 		8-97413-577-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) REINFORCEMENT BUMPER<VG7> (B) BLUE 		8-97417-655-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) REINFORCEMENT BUMPER<VG7> (B) RED 		8-97413-578-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) REINFORCEMENT BUMPER<VG7> (B) RED 		8-97417-656-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) REINFORCEMENT BUMPER<VG7> (B) BLUE 		8-97413-579-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) REINFORCEMENT BUMPER<VG7> (B) BLUE 		8-97415-030-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) REINFORCEMENT BUMPER<VG7> (B) WHITE 		8-97407-509-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) REINFORCEMENT BUMPER<VG7> (B) WHITE 		8-97409-901-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) REINFORCEMENT BUMPER<VG7> (B) RED 		8-97411-292-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) REINFORCEMENT BUMPER<VG7> (B) RED 		8-97411-298-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) REINFORCEMENT BUMPER<VG7> (B) DARK GREEN 		8-97413-580-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) REINFORCEMENT BUMPER<VG7> (B) DARK GREEN 		8-97415-031-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) REINFORCEMENT BUMPER<VG7> (B) YELLOW 		8-97413-581-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) REINFORCEMENT BUMPER<VG7> (B) YELLOW 		8-97415-032-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) REINFORCEMENT BUMPER<VG7> (B) BEIGE 		8-97411-293-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) REINFORCEMENT BUMPER<VG7> (B) BEIGE 		8-97411-299-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) REINFORCEMENT BUMPER<VG7> (B) BLUE 		8-97413-582-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) REINFORCEMENT BUMPER<VG7> (B) BLUE 		8-97417-657-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) REINFORCEMENT BUMPER<VG7> (B) YELLOW 		8-97411-296-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) REINFORCEMENT BUMPER<VG7> (B) YELLOW 		8-97411-302-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR MIDDLE BRONZE GREEN(909) REINFORCEMENT BUMPER<VG7> (B) GREEN 		8-97417-083-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR MIDDLE BRONZE GREEN(909) REINFORCEMENT BUMPER<VG7> (B) GREEN 		8-97417-084-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) REINFORCEMENT BUMPER<VG7> (B) RED 		8-97411-295-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) REINFORCEMENT BUMPER<VG7> (B) RED 		8-97411-301-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) REINFORCEMENT BUMPER<VG7> (B) ORANGE 		8-97413-583-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) REINFORCEMENT BUMPER<VG7> (B) ORANGE 		8-97417-658-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) REINFORCEMENT BUMPER<VG7> (B) WHITE 		8-97417-653-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) REINFORCEMENT BUMPER<VG7> (B) WHITE 		8-97417-659-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) REINFORCEMENT BUMPER<VG7> (B) GREEN 		8-97413-585-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) REINFORCEMENT BUMPER<VG7> (B) GREEN 		8-97417-660-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) REINFORCEMENT BUMPER<VG7> (B) BLUE 		8-97411-297-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) REINFORCEMENT BUMPER<VG7> (B) BLUE 		8-97411-303-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) (A) GRAY 		8-97414-259-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) BUMPER W/HEADLAMPS<SLB> (A) GRAY 		8-97414-259-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) (A) GRAY 		8-97417-796-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) BUMPER W/HEADLAMPS<SLB> (A) GRAY 		8-97417-796-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) (A) BLUE 		8-97414-260-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BUMPER W/HEADLAMPS<SLB> (A) BLUE 		8-97414-260-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) (A) BLUE 		8-97417-798-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BUMPER W/HEADLAMPS<SLB> (A) BLUE 		8-97417-798-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) (A) RED 		8-97414-261-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) BUMPER W/HEADLAMPS<SLB> (A) RED 		8-97414-261-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) (A) RED 		8-97417-799-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) BUMPER W/HEADLAMPS<SLB> (A) RED 		8-97417-799-5 01 1 1003-

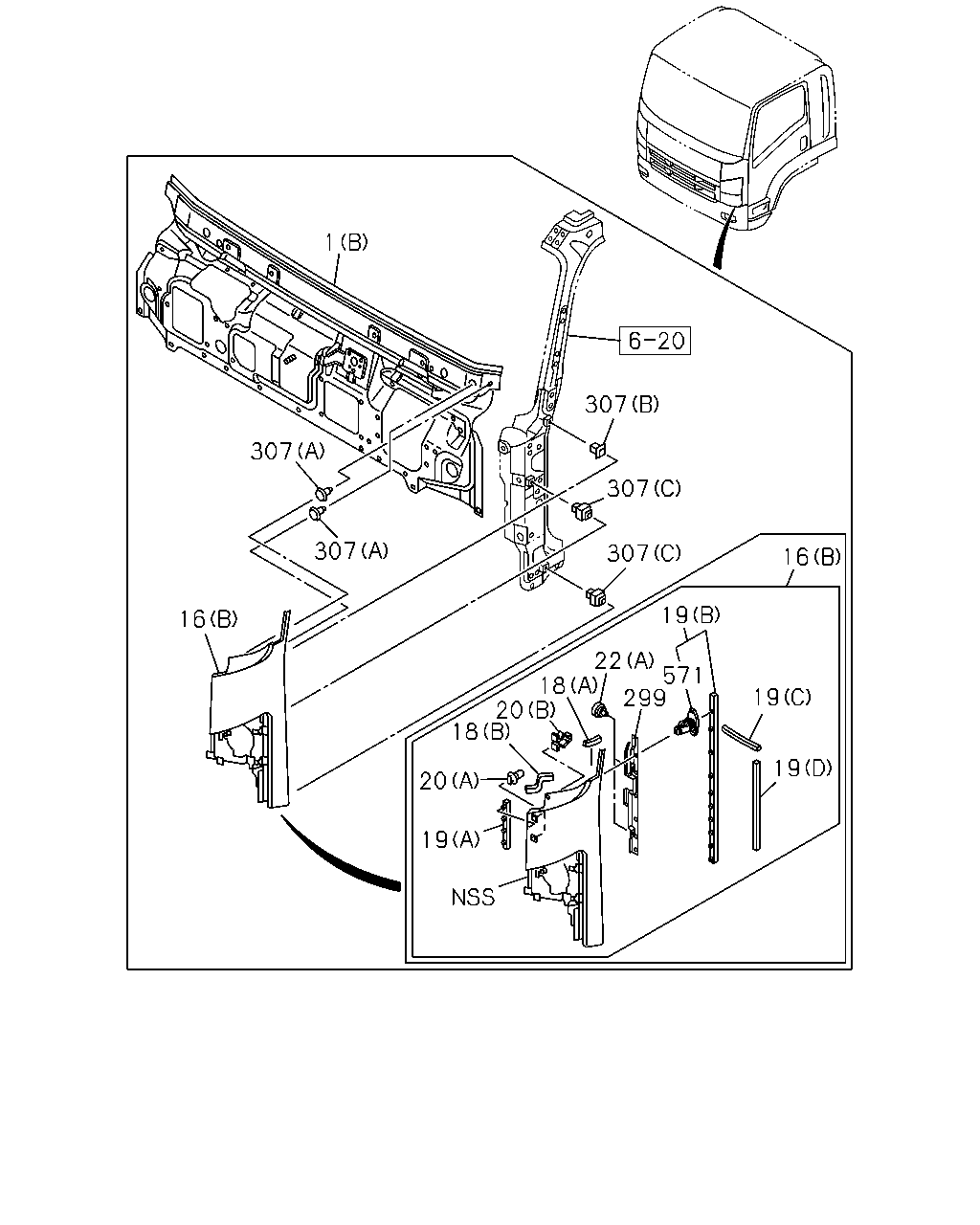

16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) (A) BLUE 		8-97414-262-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BUMPER W/HEADLAMPS<SLB> (A) BLUE 		8-97414-262-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) (A) BLUE 		8-97417-800-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BUMPER W/HEADLAMPS<SLB> (A) BLUE 		8-97417-800-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) (A) DARK GREEN 		8-97414-263-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) BUMPER W/HEADLAMPS<SLB> (A) DARK GREEN 		8-97414-263-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) (A) DARK GREEN 		8-97417-801-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) BUMPER W/HEADLAMPS<SLB> (A) DARK GREEN 		8-97417-801-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) (A) YELLOW 		8-97414-264-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) BUMPER W/HEADLAMPS<SLB> (A) YELLOW 		8-97414-264-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) (A) YELLOW 		8-97417-802-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) BUMPER W/HEADLAMPS<SLB> (A) YELLOW 		8-97417-802-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) (A) BLUE 		8-97414-265-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> (A) BLUE 		8-97414-265-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) (A) BLUE 		8-97417-803-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> (A) BLUE 		8-97417-803-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) (A) ORANGE 		8-97414-267-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) BUMPER W/HEADLAMPS<SLB> (A) ORANGE 		8-97414-267-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) (A) ORANGE 		8-97417-804-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) BUMPER W/HEADLAMPS<SLB> (A) ORANGE 		8-97417-804-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) (A) WHITE 		8-97417-795-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) BUMPER W/HEADLAMPS<SLB> (A) WHITE 		8-97417-795-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) (A) WHITE 		8-97417-805-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) BUMPER W/HEADLAMPS<SLB> (A) WHITE 		8-97417-805-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) (A) GREEN 		8-97414-270-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) BUMPER W/HEADLAMPS<SLB> (A) GREEN 		8-97414-270-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) (A) GREEN 		8-97417-806-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) BUMPER W/HEADLAMPS<SLB> (A) GREEN 		8-97417-806-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (A) WHITE 		8-97409-257-5 01 1 0812-1002
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> (A) WHITE 		8-97409-257-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (A) WHITE 		8-97412-464-5 01 1 0812-1002
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> (A) WHITE 		8-97412-464-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (A) RED 		8-97412-465-5 01 1 0812-1002
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) BUMPER W/HEADLAMPS<SLB> (A) RED 		8-97412-465-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (A) RED 		8-97412-490-5 01 1 0812-1002
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) BUMPER W/HEADLAMPS<SLB> (A) RED 		8-97412-490-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (A) BEIGE 		8-97412-466-5 01 1 0812-1002
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BUMPER W/HEADLAMPS<SLB> (A) BEIGE 		8-97412-466-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (A) BEIGE 		8-97412-491-5 01 1 0812-1002
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BUMPER W/HEADLAMPS<SLB> (A) BEIGE 		8-97412-491-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (A) YELLOW 		8-97412-467-5 01 1 0812-1002
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) BUMPER W/HEADLAMPS<SLB> (A) YELLOW 		8-97412-467-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (A) YELLOW 		8-97412-492-5 01 1 0812-1002
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) BUMPER W/HEADLAMPS<SLB> (A) YELLOW 		8-97412-492-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (A) RED 		8-97412-468-5 01 1 0812-1002
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> (A) RED 		8-97412-468-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (A) RED 		8-97412-493-5 01 1 0812-1002
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> (A) RED 		8-97412-493-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (A) BLUE 		8-97412-469-5 01 1 0812-1002
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BUMPER W/HEADLAMPS<SLB> (A) BLUE 		8-97412-469-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (A) BLUE 		8-97412-494-5 01 1 0812-1002
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BUMPER W/HEADLAMPS<SLB> (A) BLUE 		8-97412-494-5 01 1 1003-
18 SEAL; A-POST UPR,FRT SIDE PANEL
REINFORCEMENT BUMPER<VG7> (A) 		8-98038-608-0 01 1 1003-
18 SEAL; A-POST UPR,FRT SIDE PANEL
REINFORCEMENT BUMPER<VG7> (A) 		8-98038-608-0 01 1 1003-
18 SEAL; A-POST UPR,FRT SIDE PANEL
REINFORCEMENT BUMPER<VG7> (B) 		8-98043-511-1 01 1 1003-
18 SEAL; A-POST UPR,FRT SIDE PANEL
REINFORCEMENT BUMPER<VG7> (B) 		8-98043-511-1 01 1 1003-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98038-608-0 02 1 0812-1002
18 SEAL; A-POST UPR,FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		8-98038-608-0 02 1 1003-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98043-511-1 02 1 0812-1002
18 SEAL; A-POST UPR,FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (B) 		8-98043-511-1 02 1 1003-
19 SEAL; FRT SIDE PANEL
REINFORCEMENT BUMPER<VG7> (C) 		8-98035-268-0 01 1 1003-
19 SEAL; FRT SIDE PANEL
REINFORCEMENT BUMPER<VG7> (C) 		8-98035-268-0 01 1 1003-
19 SEAL; FRT SIDE PANEL
REINFORCEMENT BUMPER<VG7> (D) 		8-98062-215-0 01 1 1003-
19 SEAL; FRT SIDE PANEL
REINFORCEMENT BUMPER<VG7> (D) 		8-98062-215-0 01 1 1003-
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 0812-1002
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		8-98036-580-0 01 1 1003-
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 1003-
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 0812-1002
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		8-98036-581-0 01 1 1003-
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 1003-
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 0812-1002
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (B) 		8-98041-358-2 01 1 1003-
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 1003-
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 0812-1002
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (B) 		8-98041-359-2 01 1 1003-
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 1003-
20 CLIP; FRT PANEL SIDE
REINFORCEMENT BUMPER<VG7> (A) 		8-97410-739-1 02 1 1003-
20 CLIP; FRT PANEL SIDE
REINFORCEMENT BUMPER<VG7> (A) 		8-97410-739-1 02 1 1003-
20 CLIP; FRT PANEL SIDE
REINFORCEMENT BUMPER<VG7> (B) 		8-97410-740-3 01 1 1003-
20 CLIP; FRT PANEL SIDE
REINFORCEMENT BUMPER<VG7> (B) 		8-97410-740-3 01 1 1003-
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 04 1 0812-1002
20 CLIP; FRT PANEL SIDE
BUMPER W/HEADLAMPS<SLB> (A) 		8-97410-739-1 04 1 1003-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 02 1 0812-1002
20 CLIP; FRT PANEL SIDE
BUMPER W/HEADLAMPS<SLB> (B) 		8-97410-740-3 02 1 1003-
20 CLIP; FRT PANEL SIDE
(C) 		8-98046-457-0 08 1 0812-1002
20 CLIP; FRT PANEL SIDE
BUMPER W/HEADLAMPS<SLB> (C) 		8-98046-457-0 08 1 1003-
22 SCREW; FRT PANEL SIDE
REINFORCEMENT BUMPER<VG7> (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1003-
22 SCREW; FRT PANEL SIDE
REINFORCEMENT BUMPER<VG7> (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1003-
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 0812-1002
22 SCREW; FRT PANEL SIDE
BUMPER W/HEADLAMPS<SLB> (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 1003-
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0812-1002
22 SCREW; FRT PANEL SIDE
BUMPER W/HEADLAMPS<SLB> (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1003-
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98061-108-0 06 1 0812-1002
22 SCREW; FRT PANEL SIDE
BUMPER W/HEADLAMPS<SLB> (C) BOLT M6X16 FLANGE 		8-98061-108-0 06 1 1003-1505
22 SCREW; FRT PANEL SIDE
BUMPER W/HEADLAMPS<SLB> (C) BOLT M6X16 FLANGE 		8-98314-627-0 06 1 1506-
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 0812-
59 GROMMET; SCREW
(A) 		8-94279-723-0 08 1 0812-
59 GROMMET; SCREW
(B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 0812-1002
59 GROMMET; SCREW
BUMPER W/HEADLAMPS<SLB> (B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 1003-
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 0812-1002
299 COVER; FRT PANEL SIDE
BUMPER W/HEADLAMPS<SLB> 		8-98034-813-1 01 1 1003-
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1003-
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 0812-1002
299 COVER; FRT PANEL SIDE
BUMPER W/HEADLAMPS<SLB> 		8-98034-814-1 01 1 1003-
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1003-
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 0812-
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 0812-
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 0812-
571 CLIP; SEAL
REINFORCEMENT BUMPER<VG7> NATURAL 		8-98027-457-0 10 1 1003-
571 CLIP; SEAL
REINFORCEMENT BUMPER<VG7> NATURAL 		8-98027-457-0 10 1 1003-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 0812-1002
571 CLIP; SEAL
BUMPER W/HEADLAMPS<SLB> NATURAL 		8-98027-457-0 20 1 1003-
667 STAY; EXT,SIDE PANEL
(A) 		8-98088-641-0 01 1 0812-1002
667 STAY; EXT,SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		8-98088-641-0 01 1 1003-
667 STAY; EXT,SIDE PANEL
(A) 		8-98088-642-0 01 1 0812-1002
667 STAY; EXT,SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		8-98088-642-0 01 1 1003-
667 STAY; EXT,SIDE PANEL
(B) 		8-98088-643-1 01 1 0812-1002
667 STAY; EXT,SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (B) 		8-98088-643-1 01 1 1003-
667 STAY; EXT,SIDE PANEL
(B) 		8-98088-644-1 01 1 0812-1002
667 STAY; EXT,SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (B) 		8-98088-644-1 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR AL GRAY(517) GRAY 		8-97414-473-0 01 1 0906-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR AL GRAY(517) BUMPER W/HEADLAMPS<SLB> GRAY 		8-97414-473-0 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR AL GRAY(517) GRAY 		8-97414-489-0 01 1 0906-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR AL GRAY(517) BUMPER W/HEADLAMPS<SLB> GRAY 		8-97414-489-0 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97414-377-0 01 1 0906-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR PURPLISH BLUE(668) BUMPER W/HEADLAMPS<SLB> BLUE 		8-97414-377-0 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97414-475-0 01 1 0906-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR PURPLISH BLUE(668) BUMPER W/HEADLAMPS<SLB> BLUE 		8-97414-475-0 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR GERANIUM RED(681) RED 		8-97414-380-0 01 1 0906-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR GERANIUM RED(681) BUMPER W/HEADLAMPS<SLB> RED 		8-97414-380-0 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR GERANIUM RED(681) RED 		8-97414-477-0 01 1 0906-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR GERANIUM RED(681) BUMPER W/HEADLAMPS<SLB> RED 		8-97414-477-0 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR DARK BLUE(695) BLUE 		8-97414-383-0 01 1 0906-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR DARK BLUE(695) BUMPER W/HEADLAMPS<SLB> BLUE 		8-97414-383-0 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR DARK BLUE(695) BLUE 		8-97414-479-0 01 1 0906-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR DARK BLUE(695) BUMPER W/HEADLAMPS<SLB> BLUE 		8-97414-479-0 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97414-386-0 01 1 0906-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR WOODLAND GREEN(807) BUMPER W/HEADLAMPS<SLB> DARK GREEN 		8-97414-386-0 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97414-460-0 01 1 0906-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR WOODLAND GREEN(807) BUMPER W/HEADLAMPS<SLB> DARK GREEN 		8-97414-460-0 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97414-461-0 01 1 0906-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR WHEATLAND YELLOW(812) BUMPER W/HEADLAMPS<SLB> YELLOW 		8-97414-461-0 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97414-490-0 01 1 0906-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR WHEATLAND YELLOW(812) BUMPER W/HEADLAMPS<SLB> YELLOW 		8-97414-490-0 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97414-422-0 01 1 0906-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> BLUE 		8-97414-422-0 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97414-462-0 01 1 0906-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> BLUE 		8-97414-462-0 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97414-436-0 01 1 0906-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR HIGHWAY ORANGE(944) BUMPER W/HEADLAMPS<SLB> ORANGE 		8-97414-436-0 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97414-464-0 01 1 0906-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR HIGHWAY ORANGE(944) BUMPER W/HEADLAMPS<SLB> ORANGE 		8-97414-464-0 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-987-0 01 1 0906-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR POLAR WHITE(982) BUMPER W/HEADLAMPS<SLB> WHITE 		8-97417-987-0 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR POLAR WHITE(982) WHITE 		8-97418-047-0 01 1 0906-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR POLAR WHITE(982) BUMPER W/HEADLAMPS<SLB> WHITE 		8-97418-047-0 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR GREEN(989) GREEN 		8-97414-430-0 01 1 0906-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR GREEN(989) BUMPER W/HEADLAMPS<SLB> GREEN 		8-97414-430-0 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR GREEN(989) GREEN 		8-97414-471-0 01 1 0906-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR GREEN(989) BUMPER W/HEADLAMPS<SLB> GREEN 		8-97414-471-0 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97409-261-0 01 1 0812-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> WHITE 		8-97409-261-0 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97409-265-0 01 1 0812-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> WHITE 		8-97409-265-0 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR CARDINAL RED(736) RED 		8-97412-509-0 01 1 0812-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR CARDINAL RED(736) BUMPER W/HEADLAMPS<SLB> RED 		8-97412-509-0 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR CARDINAL RED(736) RED 		8-97412-519-0 01 1 0812-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR CARDINAL RED(736) BUMPER W/HEADLAMPS<SLB> RED 		8-97412-519-0 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-510-0 01 1 0812-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR SAHARA BEIGE(829) BUMPER W/HEADLAMPS<SLB> BEIGE 		8-97412-510-0 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-520-0 01 1 0812-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR SAHARA BEIGE(829) BUMPER W/HEADLAMPS<SLB> BEIGE 		8-97412-520-0 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97412-511-0 01 1 0812-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR GOLDEN YELLOW(904) BUMPER W/HEADLAMPS<SLB> YELLOW 		8-97412-511-0 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97412-521-0 01 1 0812-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR GOLDEN YELLOW(904) BUMPER W/HEADLAMPS<SLB> YELLOW 		8-97412-521-0 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR FIRE RED(915) RED 		8-97412-512-0 01 1 0812-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> RED 		8-97412-512-0 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR FIRE RED(915) RED 		8-97412-522-0 01 1 0812-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> RED 		8-97412-522-0 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR TRANS BLUE(999) BLUE 		8-97412-513-0 01 1 0812-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR TRANS BLUE(999) BUMPER W/HEADLAMPS<SLB> BLUE 		8-97412-513-0 01 1 1003-
669 BEZEL; LAMP,FT TURN
BODY COLOR TRANS BLUE(999) BLUE 		8-97412-523-0 01 1 0812-1002
669 BEZEL; LAMP,FT TURN
BODY COLOR TRANS BLUE(999) BUMPER W/HEADLAMPS<SLB> BLUE 		8-97412-523-0 01 1 1003-
671 RUBBER; SIDE PANEL 8-98088-646-1 02 1 0812-1002
671 RUBBER; SIDE PANEL
BUMPER W/HEADLAMPS<SLB> 		8-98088-646-1 02 1 1003-
672 PLUG; SIDE PANEL
OD=16 L=11 		1-76378-155-0 02 1 0812-1002
672 PLUG; SIDE PANEL
BUMPER W/HEADLAMPS<SLB> OD=16 L=11 		1-76378-155-0 02 1 1003-

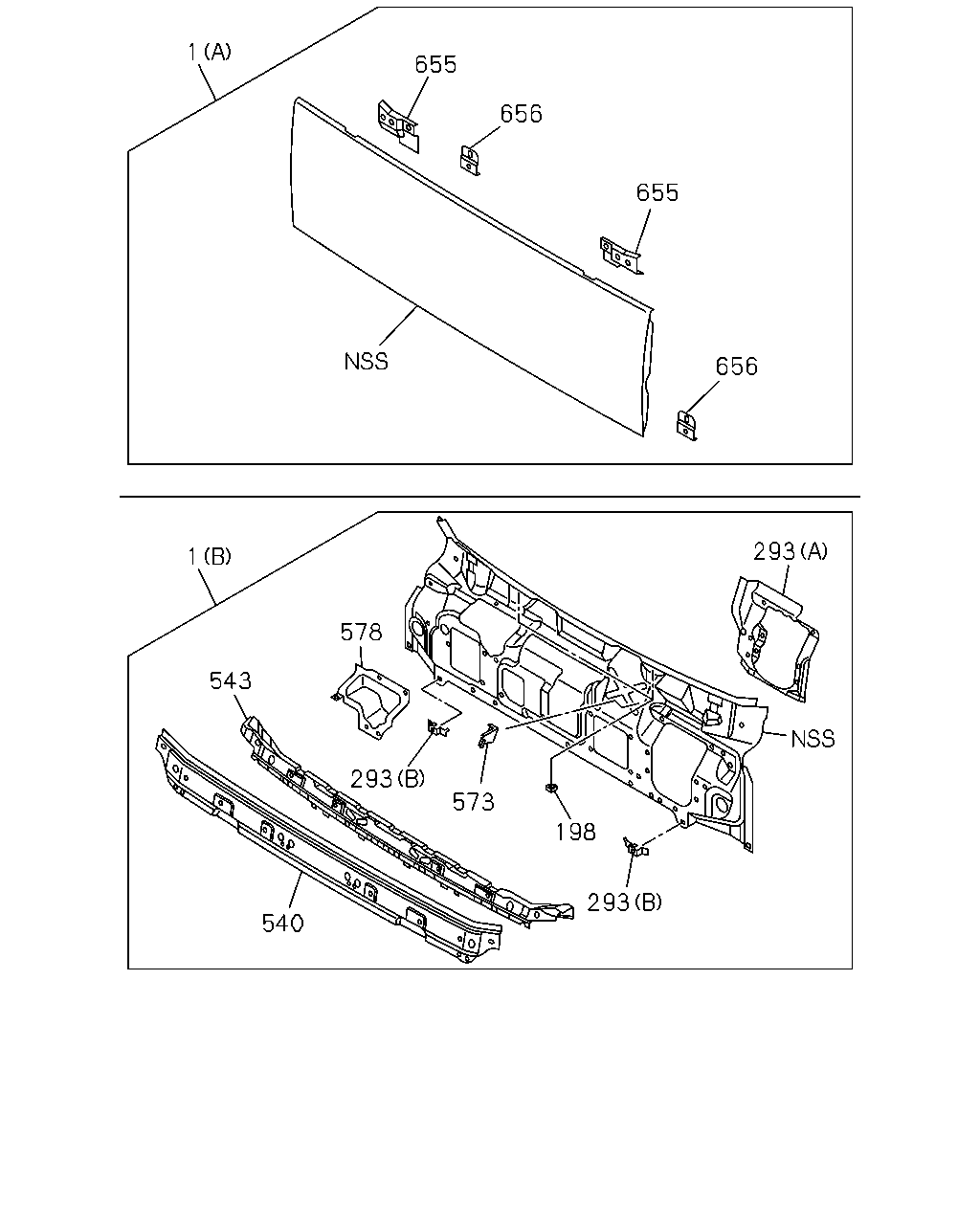

çizim 126751
1 655 656 655 656 293 1 578 543 293 573 198 293 540
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-961-6 01 1 0812-1002
1 PANEL ASM; FRT
(B) 		8-97585-961-6 01 1 1003-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 0812-1002
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1003-
198 NUT; PANEL
M6 		9-09114-086-0 02 1 0812-
293 BRACKET; PANEL
(A) 		8-97586-008-1 01 1 0812-
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 0812-
293 BRACKET; PANEL
(B) 		8-98008-126-1 01 1 0812-
540 PANEL; FRONT,OUTER 8-97585-967-1 01 1 0812-
543 CLOSING; FRT MTG RAIL 8-98021-034-3 01 1 0812-
573 BRACKET; SUPPORT 8-98008-127-2 01 1 0812-
578 COVER; WIPER MOTOR 8-98017-702-1 01 1 0812-
655 PATCH; HINGE 8-98031-263-0 01 1 0907-
655 PATCH; HINGE 8-98031-264-0 01 1 0907-
655 PATCH; HINGE 8-98031-263-0 01 1 0812-0906
655 PATCH; HINGE 8-98031-264-0 01 1 0812-0906
656 PATCH; STRIKER 8-98031-265-0 02 1 0907-
656 PATCH; STRIKER 8-98031-265-0 02 1 0812-0906
çizim 126834
1 307 307 307 307 307 16 19 16 22 571 299 18 20 18 19 19 20 19
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-961-6 01 1 0812-1002
1 PANEL ASM; FRT
(B) 		8-97585-961-6 01 1 1003-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 0812-1002
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) REINFORCEMENT BUMPER<VG7> (B) GRAY 		8-97413-576-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) REINFORCEMENT BUMPER<VG7> (B) GRAY 		8-97417-654-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) REINFORCEMENT BUMPER<VG7> (B) BLUE 		8-97413-577-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) REINFORCEMENT BUMPER<VG7> (B) BLUE 		8-97417-655-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) REINFORCEMENT BUMPER<VG7> (B) RED 		8-97413-578-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) REINFORCEMENT BUMPER<VG7> (B) RED 		8-97417-656-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) REINFORCEMENT BUMPER<VG7> (B) BLUE 		8-97413-579-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) REINFORCEMENT BUMPER<VG7> (B) BLUE 		8-97415-030-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) REINFORCEMENT BUMPER<VG7> (B) WHITE 		8-97407-509-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) REINFORCEMENT BUMPER<VG7> (B) WHITE 		8-97409-901-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) REINFORCEMENT BUMPER<VG7> (B) RED 		8-97411-292-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) REINFORCEMENT BUMPER<VG7> (B) RED 		8-97411-298-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) REINFORCEMENT BUMPER<VG7> (B) DARK GREEN 		8-97413-580-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) REINFORCEMENT BUMPER<VG7> (B) DARK GREEN 		8-97415-031-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) REINFORCEMENT BUMPER<VG7> (B) YELLOW 		8-97413-581-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) REINFORCEMENT BUMPER<VG7> (B) YELLOW 		8-97415-032-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) REINFORCEMENT BUMPER<VG7> (B) BEIGE 		8-97411-293-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) REINFORCEMENT BUMPER<VG7> (B) BEIGE 		8-97411-299-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) REINFORCEMENT BUMPER<VG7> (B) BLUE 		8-97413-582-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) REINFORCEMENT BUMPER<VG7> (B) BLUE 		8-97417-657-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) REINFORCEMENT BUMPER<VG7> (B) YELLOW 		8-97411-296-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) REINFORCEMENT BUMPER<VG7> (B) YELLOW 		8-97411-302-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR MIDDLE BRONZE GREEN(909) REINFORCEMENT BUMPER<VG7> (B) GREEN 		8-97417-083-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR MIDDLE BRONZE GREEN(909) REINFORCEMENT BUMPER<VG7> (B) GREEN 		8-97417-084-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) REINFORCEMENT BUMPER<VG7> (B) RED 		8-97411-295-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) REINFORCEMENT BUMPER<VG7> (B) RED 		8-97411-301-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) REINFORCEMENT BUMPER<VG7> (B) ORANGE 		8-97413-583-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) REINFORCEMENT BUMPER<VG7> (B) ORANGE 		8-97417-658-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) REINFORCEMENT BUMPER<VG7> (B) WHITE 		8-97417-653-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) REINFORCEMENT BUMPER<VG7> (B) WHITE 		8-97417-659-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) REINFORCEMENT BUMPER<VG7> (B) GREEN 		8-97413-585-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) REINFORCEMENT BUMPER<VG7> (B) GREEN 		8-97417-660-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) REINFORCEMENT BUMPER<VG7> (B) BLUE 		8-97411-297-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) REINFORCEMENT BUMPER<VG7> (B) BLUE 		8-97411-303-4 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) (A) GRAY 		8-97414-259-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) BUMPER W/HEADLAMPS<SLB> (A) GRAY 		8-97414-259-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) (A) GRAY 		8-97417-796-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) BUMPER W/HEADLAMPS<SLB> (A) GRAY 		8-97417-796-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) (A) BLUE 		8-97414-260-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BUMPER W/HEADLAMPS<SLB> (A) BLUE 		8-97414-260-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) (A) BLUE 		8-97417-798-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BUMPER W/HEADLAMPS<SLB> (A) BLUE 		8-97417-798-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) (A) RED 		8-97414-261-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) BUMPER W/HEADLAMPS<SLB> (A) RED 		8-97414-261-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) (A) RED 		8-97417-799-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) BUMPER W/HEADLAMPS<SLB> (A) RED 		8-97417-799-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) (A) BLUE 		8-97414-262-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BUMPER W/HEADLAMPS<SLB> (A) BLUE 		8-97414-262-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) (A) BLUE 		8-97417-800-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BUMPER W/HEADLAMPS<SLB> (A) BLUE 		8-97417-800-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) (A) DARK GREEN 		8-97414-263-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) BUMPER W/HEADLAMPS<SLB> (A) DARK GREEN 		8-97414-263-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) (A) DARK GREEN 		8-97417-801-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) BUMPER W/HEADLAMPS<SLB> (A) DARK GREEN 		8-97417-801-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) (A) YELLOW 		8-97414-264-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) BUMPER W/HEADLAMPS<SLB> (A) YELLOW 		8-97414-264-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) (A) YELLOW 		8-97417-802-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) BUMPER W/HEADLAMPS<SLB> (A) YELLOW 		8-97417-802-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) (A) BLUE 		8-97414-265-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> (A) BLUE 		8-97414-265-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) (A) BLUE 		8-97417-803-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> (A) BLUE 		8-97417-803-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) (A) ORANGE 		8-97414-267-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) BUMPER W/HEADLAMPS<SLB> (A) ORANGE 		8-97414-267-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) (A) ORANGE 		8-97417-804-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) BUMPER W/HEADLAMPS<SLB> (A) ORANGE 		8-97417-804-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) (A) WHITE 		8-97417-795-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) BUMPER W/HEADLAMPS<SLB> (A) WHITE 		8-97417-795-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) (A) WHITE 		8-97417-805-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) BUMPER W/HEADLAMPS<SLB> (A) WHITE 		8-97417-805-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) (A) GREEN 		8-97414-270-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) BUMPER W/HEADLAMPS<SLB> (A) GREEN 		8-97414-270-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) (A) GREEN 		8-97417-806-5 01 1 0906-1002
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) BUMPER W/HEADLAMPS<SLB> (A) GREEN 		8-97417-806-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (A) WHITE 		8-97409-257-5 01 1 0812-1002
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> (A) WHITE 		8-97409-257-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (A) WHITE 		8-97412-464-5 01 1 0812-1002
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> (A) WHITE 		8-97412-464-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (A) RED 		8-97412-465-5 01 1 0812-1002
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) BUMPER W/HEADLAMPS<SLB> (A) RED 		8-97412-465-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (A) RED 		8-97412-490-5 01 1 0812-1002
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) BUMPER W/HEADLAMPS<SLB> (A) RED 		8-97412-490-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (A) BEIGE 		8-97412-466-5 01 1 0812-1002
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BUMPER W/HEADLAMPS<SLB> (A) BEIGE 		8-97412-466-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (A) BEIGE 		8-97412-491-5 01 1 0812-1002
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BUMPER W/HEADLAMPS<SLB> (A) BEIGE 		8-97412-491-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (A) YELLOW 		8-97412-467-5 01 1 0812-1002
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) BUMPER W/HEADLAMPS<SLB> (A) YELLOW 		8-97412-467-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (A) YELLOW 		8-97412-492-5 01 1 0812-1002
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) BUMPER W/HEADLAMPS<SLB> (A) YELLOW 		8-97412-492-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (A) RED 		8-97412-468-5 01 1 0812-1002
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> (A) RED 		8-97412-468-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (A) RED 		8-97412-493-5 01 1 0812-1002
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> (A) RED 		8-97412-493-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (A) BLUE 		8-97412-469-5 01 1 0812-1002
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BUMPER W/HEADLAMPS<SLB> (A) BLUE 		8-97412-469-5 01 1 1003-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (A) BLUE 		8-97412-494-5 01 1 0812-1002
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BUMPER W/HEADLAMPS<SLB> (A) BLUE 		8-97412-494-5 01 1 1003-
18 SEAL; A-POST UPR,FRT SIDE PANEL
REINFORCEMENT BUMPER<VG7> (A) 		8-98038-608-0 01 1 1003-
18 SEAL; A-POST UPR,FRT SIDE PANEL
REINFORCEMENT BUMPER<VG7> (A) 		8-98038-608-0 01 1 1003-
18 SEAL; A-POST UPR,FRT SIDE PANEL
REINFORCEMENT BUMPER<VG7> (B) 		8-98043-511-1 01 1 1003-
18 SEAL; A-POST UPR,FRT SIDE PANEL
REINFORCEMENT BUMPER<VG7> (B) 		8-98043-511-1 01 1 1003-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98038-608-0 02 1 0812-1002
18 SEAL; A-POST UPR,FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		8-98038-608-0 02 1 1003-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98043-511-1 02 1 0812-1002
18 SEAL; A-POST UPR,FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (B) 		8-98043-511-1 02 1 1003-
19 SEAL; FRT SIDE PANEL
REINFORCEMENT BUMPER<VG7> (C) 		8-98035-268-0 01 1 1003-
19 SEAL; FRT SIDE PANEL
REINFORCEMENT BUMPER<VG7> (C) 		8-98035-268-0 01 1 1003-
19 SEAL; FRT SIDE PANEL
REINFORCEMENT BUMPER<VG7> (D) 		8-98062-215-0 01 1 1003-
19 SEAL; FRT SIDE PANEL
REINFORCEMENT BUMPER<VG7> (D) 		8-98062-215-0 01 1 1003-
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 0812-1002
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		8-98036-580-0 01 1 1003-
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 1003-
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 0812-1002
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		8-98036-581-0 01 1 1003-
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 1003-
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 0812-1002
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (B) 		8-98041-358-2 01 1 1003-
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 1003-
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 0812-1002
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (B) 		8-98041-359-2 01 1 1003-
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 1003-
20 CLIP; FRT PANEL SIDE
REINFORCEMENT BUMPER<VG7> (A) 		8-97410-739-1 02 1 1003-
20 CLIP; FRT PANEL SIDE
REINFORCEMENT BUMPER<VG7> (A) 		8-97410-739-1 02 1 1003-
20 CLIP; FRT PANEL SIDE
REINFORCEMENT BUMPER<VG7> (B) 		8-97410-740-3 01 1 1003-
20 CLIP; FRT PANEL SIDE
REINFORCEMENT BUMPER<VG7> (B) 		8-97410-740-3 01 1 1003-
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 04 1 0812-1002
20 CLIP; FRT PANEL SIDE
BUMPER W/HEADLAMPS<SLB> (A) 		8-97410-739-1 04 1 1003-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 02 1 0812-1002
20 CLIP; FRT PANEL SIDE
BUMPER W/HEADLAMPS<SLB> (B) 		8-97410-740-3 02 1 1003-
20 CLIP; FRT PANEL SIDE
(C) 		8-98046-457-0 08 1 0812-1002
20 CLIP; FRT PANEL SIDE
BUMPER W/HEADLAMPS<SLB> (C) 		8-98046-457-0 08 1 1003-
22 SCREW; FRT PANEL SIDE
REINFORCEMENT BUMPER<VG7> (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1003-
22 SCREW; FRT PANEL SIDE
REINFORCEMENT BUMPER<VG7> (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1003-
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 0812-1002
22 SCREW; FRT PANEL SIDE
BUMPER W/HEADLAMPS<SLB> (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 1003-
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0812-1002
22 SCREW; FRT PANEL SIDE
BUMPER W/HEADLAMPS<SLB> (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1003-
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98061-108-0 06 1 0812-1002
22 SCREW; FRT PANEL SIDE
BUMPER W/HEADLAMPS<SLB> (C) BOLT M6X16 FLANGE 		8-98061-108-0 06 1 1003-1505
22 SCREW; FRT PANEL SIDE
BUMPER W/HEADLAMPS<SLB> (C) BOLT M6X16 FLANGE 		8-98314-627-0 06 1 1506-
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 0812-1002
299 COVER; FRT PANEL SIDE
BUMPER W/HEADLAMPS<SLB> 		8-98034-813-1 01 1 1003-
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1003-
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 0812-1002
299 COVER; FRT PANEL SIDE
BUMPER W/HEADLAMPS<SLB> 		8-98034-814-1 01 1 1003-
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1003-
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 0812-
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 0812-
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 0812-
571 CLIP; SEAL
REINFORCEMENT BUMPER<VG7> NATURAL 		8-98027-457-0 10 1 1003-
571 CLIP; SEAL
REINFORCEMENT BUMPER<VG7> NATURAL 		8-98027-457-0 10 1 1003-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 0812-1002
571 CLIP; SEAL
BUMPER W/HEADLAMPS<SLB> NATURAL 		8-98027-457-0 20 1 1003-

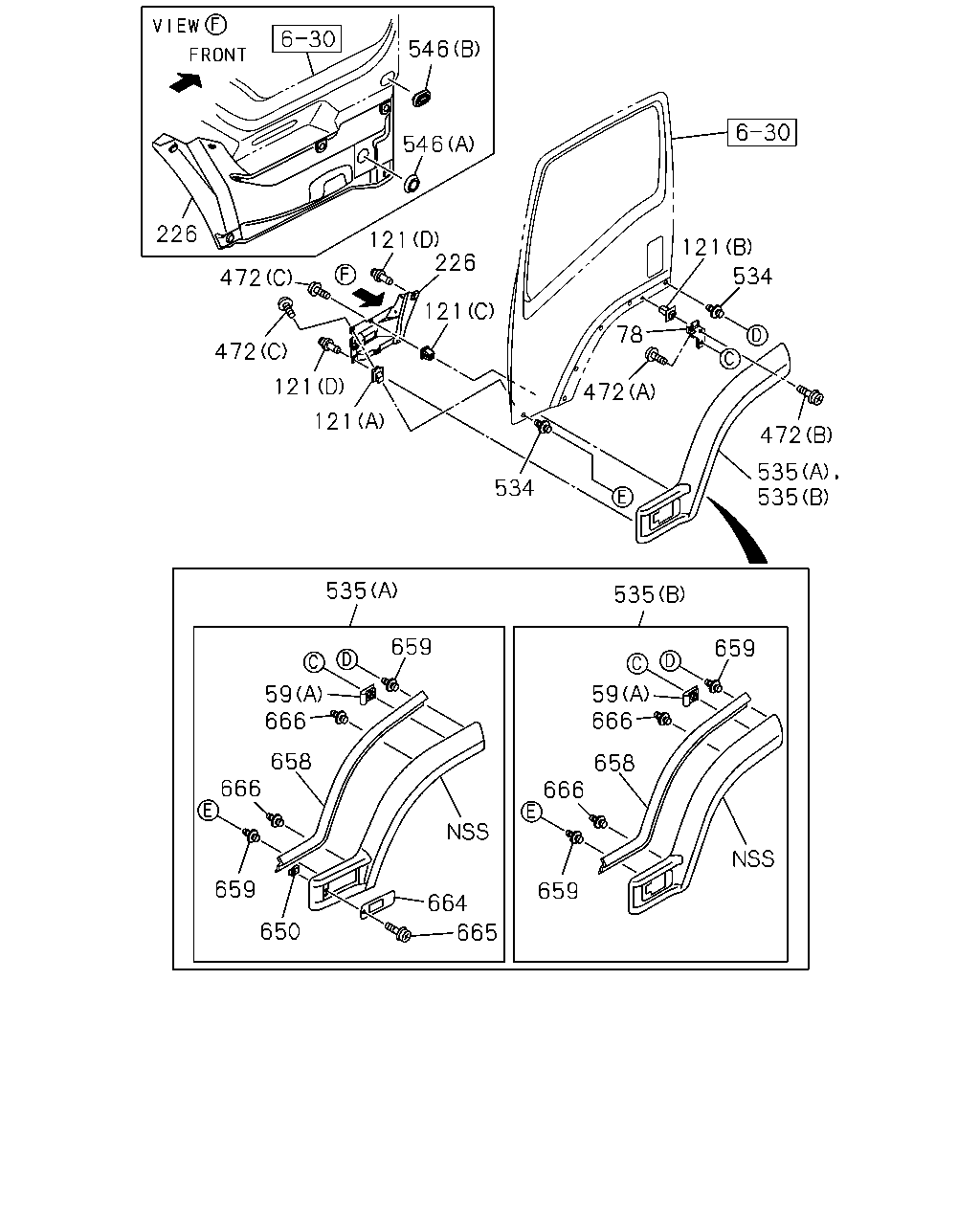

çizim 187873
546 546 226 121 226 121 534 472 121 78 472 472 121 121 472 535 535 534 535 535 659 659 59 666 59 666 658 658 666 666 659 659 664 650 665
BalonParca AdiParca NoAdetTipApplied Date
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 0812-
59 GROMMET; SCREW
(A) 		8-94279-723-0 08 1 0812-
59 GROMMET; SCREW
(B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 0812-1002
59 GROMMET; SCREW
BUMPER W/HEADLAMPS<SLB> (B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 1003-
78 BRACKET; FENDER 8-98041-165-1 01 1 0812-
78 BRACKET; FENDER 8-98041-166-1 01 1 0812-
121 GROMMET; FENDER
(E) 		8-94279-723-0 04 1 0812-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0812-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 08 1 0812-0901
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 0902-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 0812-
121 GROMMET; FENDER
(A) 		8-98073-420-0 01 1 0812-
121 GROMMET; FENDER
(A) 		8-98073-421-0 01 1 0812-
226 PROTECTOR; FRT 8-98037-712-2 01 1 0812-
226 PROTECTOR; FRT 8-98037-713-2 01 1 0812-
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 0812-
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 0812-
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 0812-
534 FASTENER
ID=5.4 OD=6.8 		1-09989-021-0 12 1 0812-1302
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1303-
535 FENDER; BLISTER
CORNERING LAMP<T87> EXC. CAB ALL PAINTING<TFD> (B) BLACK 		8-98106-494-0 01 1 1003-
535 FENDER; BLISTER
CORNERING LAMP<T87> EXC. CAB ALL PAINTING<TFD> (B) BLACK 		8-98106-495-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) GRAY 		8-97415-271-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) GRAY 		8-97415-296-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) BLUE 		8-97415-263-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) BLUE 		8-97415-288-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) RED 		8-97415-272-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) RED 		8-97415-297-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) BLUE 		8-97415-264-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) BLUE 		8-97415-289-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) WHITE 		8-97415-278-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) WHITE 		8-97415-303-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) RED 		8-97415-273-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) RED 		8-97415-298-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) DARK GREEN 		8-97415-270-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) DARK GREEN 		8-97415-295-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) YELLOW 		8-97415-285-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) YELLOW 		8-97415-310-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) BEIGE 		8-97415-286-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) BEIGE 		8-97415-311-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) BLUE 		8-97415-287-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) BLUE 		8-97415-312-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) YELLOW 		8-97415-282-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) YELLOW 		8-97415-307-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) GREEN 		8-97417-087-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) GREEN 		8-97417-088-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) GREEN 		8-97417-089-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) GREEN 		8-97417-090-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) RED 		8-97415-274-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) RED 		8-97415-299-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) ORANGE 		8-97415-284-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) ORANGE 		8-97415-309-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) WHITE 		8-97417-779-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) WHITE 		8-97417-781-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) GREEN 		8-97415-267-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) GREEN 		8-97415-292-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) BLUE 		8-97415-265-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) BLUE 		8-97415-290-0 01 1 1003-
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> (A) GRAY 		8-97415-320-1 01 1 0906-1002
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) GRAY 		8-97415-320-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> (A) GRAY 		8-97415-340-1 01 1 0906-1002
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) GRAY 		8-97415-340-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> (A) BLUE 		8-97415-313-1 01 1 0906-1002
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) BLUE 		8-97415-313-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> (A) BLUE 		8-97415-333-1 01 1 0906-1002
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) BLUE 		8-97415-333-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> (A) RED 		8-97415-321-1 01 1 0906-1002
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) RED 		8-97415-321-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> (A) RED 		8-97415-341-1 01 1 0906-1002
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) RED 		8-97415-341-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> (A) BLUE 		8-97415-314-1 01 1 0906-1002
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) BLUE 		8-97415-314-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> (A) BLUE 		8-97415-334-1 01 1 0906-1002
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) BLUE 		8-97415-334-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> (A) DARK GREEN 		8-97415-319-1 01 1 0906-1002
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) DARK GREEN 		8-97415-319-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> (A) DARK GREEN 		8-97415-339-1 01 1 0906-1002
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) DARK GREEN 		8-97415-339-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> (A) YELLOW 		8-97415-330-1 01 1 0906-1002
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) YELLOW 		8-97415-330-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> (A) YELLOW 		8-97415-350-1 01 1 0906-1002
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) YELLOW 		8-97415-350-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> (A) BLUE 		8-97415-332-1 01 1 0906-1002
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) BLUE 		8-97415-332-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> (A) BLUE 		8-97415-352-1 01 1 0906-1002
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) BLUE 		8-97415-352-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> (A) ORANGE 		8-97415-329-1 01 1 0906-1002
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) ORANGE 		8-97415-329-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> (A) ORANGE 		8-97415-349-1 01 1 0906-1002
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) ORANGE 		8-97415-349-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> (A) WHITE 		8-97417-742-1 01 1 0906-1002
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) WHITE 		8-97417-742-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> (A) WHITE 		8-97417-743-1 01 1 0906-1002
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) WHITE 		8-97417-743-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> (A) GREEN 		8-97415-317-1 01 1 0906-1002
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) GREEN 		8-97415-317-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> (A) GREEN 		8-97415-337-1 01 1 0906-1002
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) GREEN 		8-97415-337-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> (A) WHITE 		8-97415-325-1 01 1 0812-1002
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) WHITE 		8-97415-325-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> (A) WHITE 		8-97415-345-1 01 1 0812-1002
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) WHITE 		8-97415-345-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> (A) RED 		8-97415-322-1 01 1 0812-1002
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) RED 		8-97415-322-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> (A) RED 		8-97415-342-1 01 1 0812-1002
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) RED 		8-97415-342-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> (A) BEIGE 		8-97415-331-1 01 1 0812-1002
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) BEIGE 		8-97415-331-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> (A) BEIGE 		8-97415-351-1 01 1 0812-1002
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) BEIGE 		8-97415-351-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> (A) YELLOW 		8-97415-328-1 01 1 0812-1002
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) YELLOW 		8-97415-328-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> (A) YELLOW 		8-97415-348-1 01 1 0812-1002
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) YELLOW 		8-97415-348-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> (A) RED 		8-97415-323-1 01 1 0812-1002
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) RED 		8-97415-323-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> (A) RED 		8-97415-343-1 01 1 0812-1002
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) RED 		8-97415-343-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> (A) BLUE 		8-97415-315-1 01 1 0812-1002
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) BLUE 		8-97415-315-1 01 1 1003-
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> (A) BLUE 		8-97415-335-1 01 1 0812-1002
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) BLUE 		8-97415-335-1 01 1 1003-
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> (A) BLACK 		8-98106-498-0 01 1 0812-1002
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD>,CORNERING LAMP<T87> (A) BLACK 		8-98106-498-0 01 1 1003-
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> (A) BLACK 		8-98106-499-0 01 1 0812-1002
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD>,CORNERING LAMP<T87> (A) BLACK 		8-98106-499-0 01 1 1003-
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 0812-
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 0812-
650 NUT; SPIRE 8-94279-501-0 02 1 0812-1002
650 NUT; SPIRE
EXC. CORNERING LAMP<T87> 		8-94279-501-0 02 1 1003-
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 0812-
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 0812-
659 CLIP; FENDER
D5.4X8 		1-09983-154-0 08 1 0812-
664 BASE; DOOR,SIDE TURN
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97417-101-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97421-601-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97417-102-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97421-603-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-878-1 01 1 0906-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GRAY 		8-97413-878-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GRAY 		8-97421-521-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-898-1 01 1 0906-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GRAY 		8-97413-898-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GRAY 		8-97421-549-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-879-1 01 1 0906-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97413-879-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-509-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-899-1 01 1 0906-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97413-899-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-537-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-880-1 01 1 0906-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97413-880-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97421-523-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-900-1 01 1 0906-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97413-900-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97421-551-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-881-1 01 1 0906-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97413-881-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-511-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-901-1 01 1 0906-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97413-901-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-539-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-882-1 01 1 0906-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> DARK GREEN 		8-97413-882-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> DARK GREEN 		8-97421-519-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-902-1 01 1 0906-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> DARK GREEN 		8-97413-902-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> DARK GREEN 		8-97421-547-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-883-1 01 1 0906-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97413-883-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97421-533-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-903-1 01 1 0906-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97413-903-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97421-596-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-884-1 01 1 0906-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97413-884-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-535-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-904-1 01 1 0906-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97413-904-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-563-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-885-1 01 1 0906-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> ORANGE 		8-97413-885-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> ORANGE 		8-97421-531-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-905-1 01 1 0906-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> ORANGE 		8-97413-905-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> ORANGE 		8-97421-559-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-936-1 01 1 0906-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97417-936-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97421-607-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-943-1 01 1 0906-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97417-943-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97421-605-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-887-1 01 1 0906-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97413-887-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97421-515-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-907-1 01 1 0906-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97413-907-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97421-543-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97409-218-1 01 1 0812-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97409-218-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97421-485-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97409-219-1 01 1 0812-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97409-219-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97421-497-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-448-1 01 1 0812-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97411-448-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97421-487-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-454-1 01 1 0812-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97411-454-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97421-499-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-449-1 01 1 0812-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BEIGE 		8-97411-449-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BEIGE 		8-97421-489-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-455-1 01 1 0812-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BEIGE 		8-97411-455-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BEIGE 		8-97421-501-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-452-1 01 1 0812-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97411-452-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97421-493-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-458-1 01 1 0812-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97411-458-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97421-505-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-451-1 01 1 0812-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97411-451-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97421-491-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-457-1 01 1 0812-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97411-457-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97421-503-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-453-1 01 1 0812-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97411-453-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-495-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-459-1 01 1 0812-1002
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97411-459-1 01 1 1003-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-507-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98053-145-1 01 1 0812-1002
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD>,CORNERING LAMP<T87> 		8-98053-145-1 01 1 1003-
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98053-146-1 01 1 0812-1002
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD>,CORNERING LAMP<T87> 		8-98053-146-1 01 1 1003-
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 0812-1002
665 SCREW; FENDER
EXC. CORNERING LAMP<T87> M6X20 W/PL WASHER 		0-36210-620-0 02 1 1003-
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 0812-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
