6-01 — FRONT BUMPER (#69295) — 123 parça

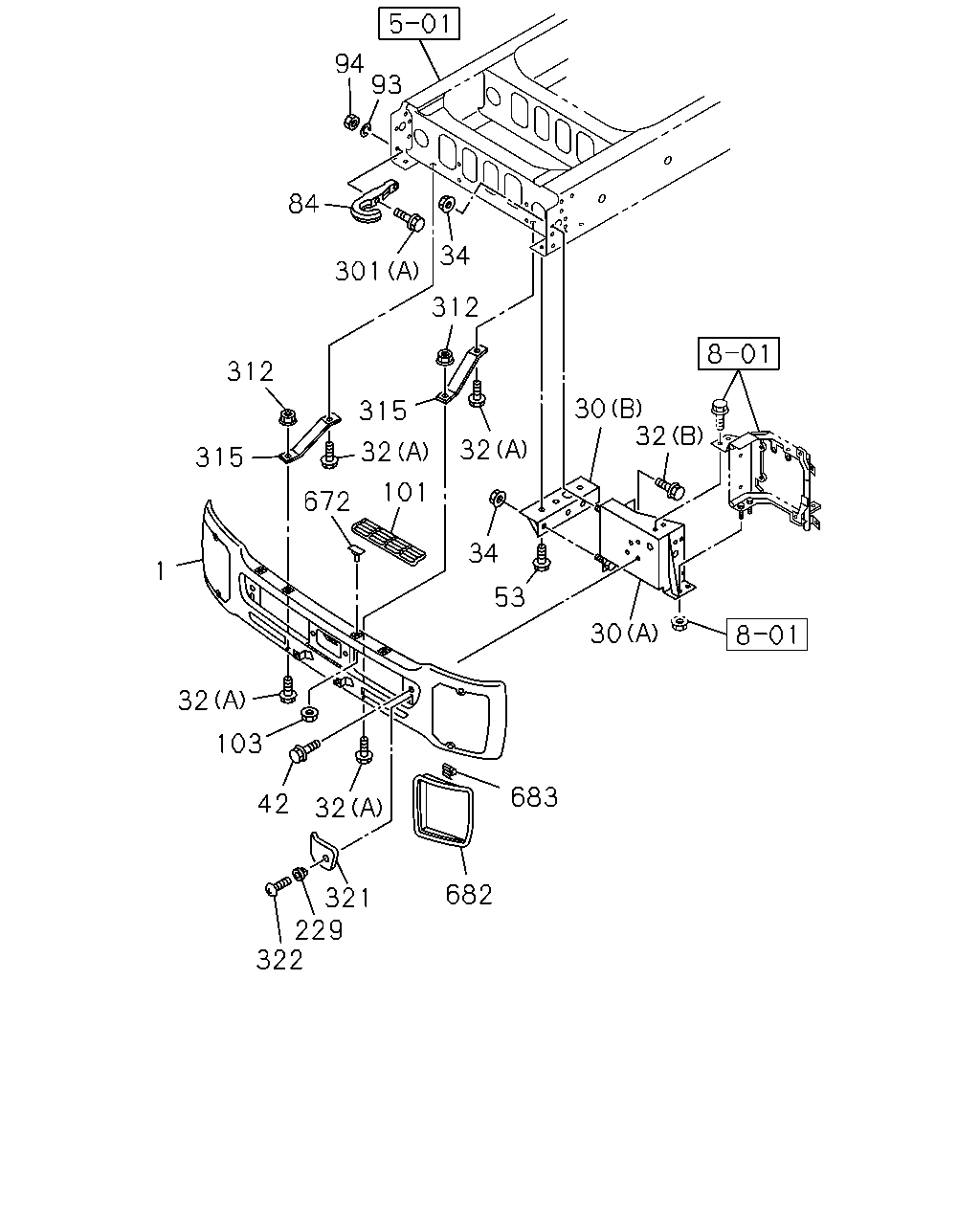

94 93 84 34 301 312 312 30 32 315 32 32 315 101 672 34 1 53 30 32 103 683 42 32 682 321 229 322

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7>	8-98136-824-1	01	1	1003-
1	BUMPER ASM; FRT WHITE	8-97409-273-2	01	1	0812-1002
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> WHITE	8-97409-273-2	01	1	1003-1212
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> WHITE	8-97425-798-0	01	1	1301-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	8-98117-301-1	01	1	1003-1004
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	8-98172-814-0	01	1	1005-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	8-98117-302-1	01	1	1003-1004
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	8-98172-815-0	01	1	1005-
30	BRACKET; FRT BUMPER (B)	8-97619-570-0	01	1	0812-1002
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	8-97619-570-0	01	1	1003-
30	BRACKET; FRT BUMPER (B)	8-97619-571-0	01	1	0812-1002
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	8-97619-571-0	01	1	1003-
30	BRACKET; FRT BUMPER (A)	8-97623-901-2	01	1	0812-1002
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	8-97623-901-2	01	1	1003-1208
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	8-97642-918-0	01	1	1209-1405
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	8-98283-921-0	01	1	1406-
30	BRACKET; FRT BUMPER (A)	8-97623-902-2	01	1	0812-1002
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	8-97623-902-2	01	1	1003-1208
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	8-97642-919-0	01	1	1209-1405
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	8-98283-922-0	01	1	1406-
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (B) M12X40 FLANGE	0-28651-240-0	10	1	1003-
32	BOLT; BRKT,BUMPER (A) M10X25 FLANGE	0-28651-025-0	04	1	0812-1002
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (A) M10X25 FLANGE	0-28651-025-0	04	1	1003-
32	BOLT; BRKT,BUMPER (B) M12X40 FLANGE	0-28651-240-0	02	1	0812-1002
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (B) M12X40 FLANGE	0-28651-240-0	02	1	1003-
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M12 FLANGE	0-91180-112-0	08	1	1003-
34	NUT; BRKT,BUMPER M12 FLANGE	0-91180-212-0	08	1	0812-1002
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M12 FLANGE	0-91180-212-0	08	1	1003-
34	NUT; BRKT,BUMPER M14 FLANGE	0-91180-214-0	06	1	0812-1002
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M14 FLANGE	0-91180-214-0	06	1	1003-
42	BOLT; BUMPER M10X30	8-94324-205-0	06	1	0812-1002
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> M10X30	8-94324-205-0	06	1	1003-
53	BOLT; BRKT TO FRAME M14X45 FLANGE	0-28851-445-0	06	1	0812-1002
53	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> M14X45 FLANGE	0-28851-445-0	06	1	1003-
84	HOOK REINFORCEMENT BUMPER<VG7>	1-57181-023-1	02	1	1003-
84	HOOK	1-57181-027-1	01	1	0812-1002
84	HOOK EXC. REINFORCEMENT BUMPER<VG7>	1-57181-027-1	01	1	1003-
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	0812-1002
93	WASHER; LK,HOOK EXC. REINFORCEMENT BUMPER<VG7> ID=16.2	0-91510-816-0	02	1	1003-
94	NUT; HOOK REINFORCEMENT BUMPER<VG7> M24	1-09442-032-0	02	1	1003-
94	NUT; HOOK M16	0-91110-516-0	02	1	0812-1002
94	NUT; HOOK EXC. REINFORCEMENT BUMPER<VG7> M16	0-91110-516-0	02	1	1003-
101	STEP; BUMPER	8-97611-540-0	01	1	0812-1002
101	STEP; BUMPER BUMPER W/HEADLAMPS<SLB>	8-97611-540-0	01	1	1003-
101	STEP; BUMPER	8-97611-541-0	01	1	0812-1002
101	STEP; BUMPER BUMPER W/HEADLAMPS<SLB>	8-97611-541-0	01	1	1003-
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	0812-1002
103	NUT; BUMPER STEP BUMPER W/HEADLAMPS<SLB> M6 FLANGE	0-91180-106-0	04	1	1003-
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	0812-1002
229	GROMMET BUMPER W/HEADLAMPS<SLB> D=7X7 L=7.5	5-09983-007-0	02	1	1003-
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> (B) M8X16 FLANGE	0-28050-816-0	02	1	1003-
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> (C) M24X124.5	1-09042-026-1	02	1	1003-
301	BOLT; HOOK TO FRAME (A) M16X70	0-10861-670-0	02	1	0812-1002
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> (A) M16X70	0-10861-670-0	02	1	1003-
312	NUT; BRKT REINFORCEMENT BUMPER<VG7> M14	0-91110-514-0	12	1	1003-
312	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0812-1002
312	NUT; BRKT BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91180-210-0	04	1	1003-
315	STAY; BUMPER	8-97623-661-0	02	1	0812-1002
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB>	8-97623-661-0	02	1	1003-
321	COVER; BUMPER FRT SIDE	8-97616-290-1	01	1	0812-1002
321	COVER; BUMPER FRT SIDE BUMPER W/HEADLAMPS<SLB>	8-97616-290-1	01	1	1003-
321	COVER; BUMPER FRT SIDE	8-97616-291-1	01	1	0812-1002
321	COVER; BUMPER FRT SIDE BUMPER W/HEADLAMPS<SLB>	8-97616-291-1	01	1	1003-
322	SCREW; COVER FIX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0812-1002
322	SCREW; COVER FIX BUMPER W/HEADLAMPS<SLB> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1003-
672	STUD; STEP M6X20	8-97611-666-0	04	1	0812-1002
672	STUD; STEP BUMPER W/HEADLAMPS<SLB> M6X20	8-97611-666-0	04	1	1003-
682	BEZEL; BUMPER	8-97611-532-1	01	1	0812-1002
682	BEZEL; BUMPER BUMPER W/HEADLAMPS<SLB>	8-97611-532-1	01	1	1003-
682	BEZEL; BUMPER	8-97611-533-1	01	1	0812-1002
682	BEZEL; BUMPER BUMPER W/HEADLAMPS<SLB>	8-97611-533-1	01	1	1003-
683	CLIP; BEZEL,BUMPER	8-98084-293-0	08	1	0812-1002
683	CLIP; BEZEL,BUMPER BUMPER W/HEADLAMPS<SLB>	8-98084-293-0	08	1	1003-

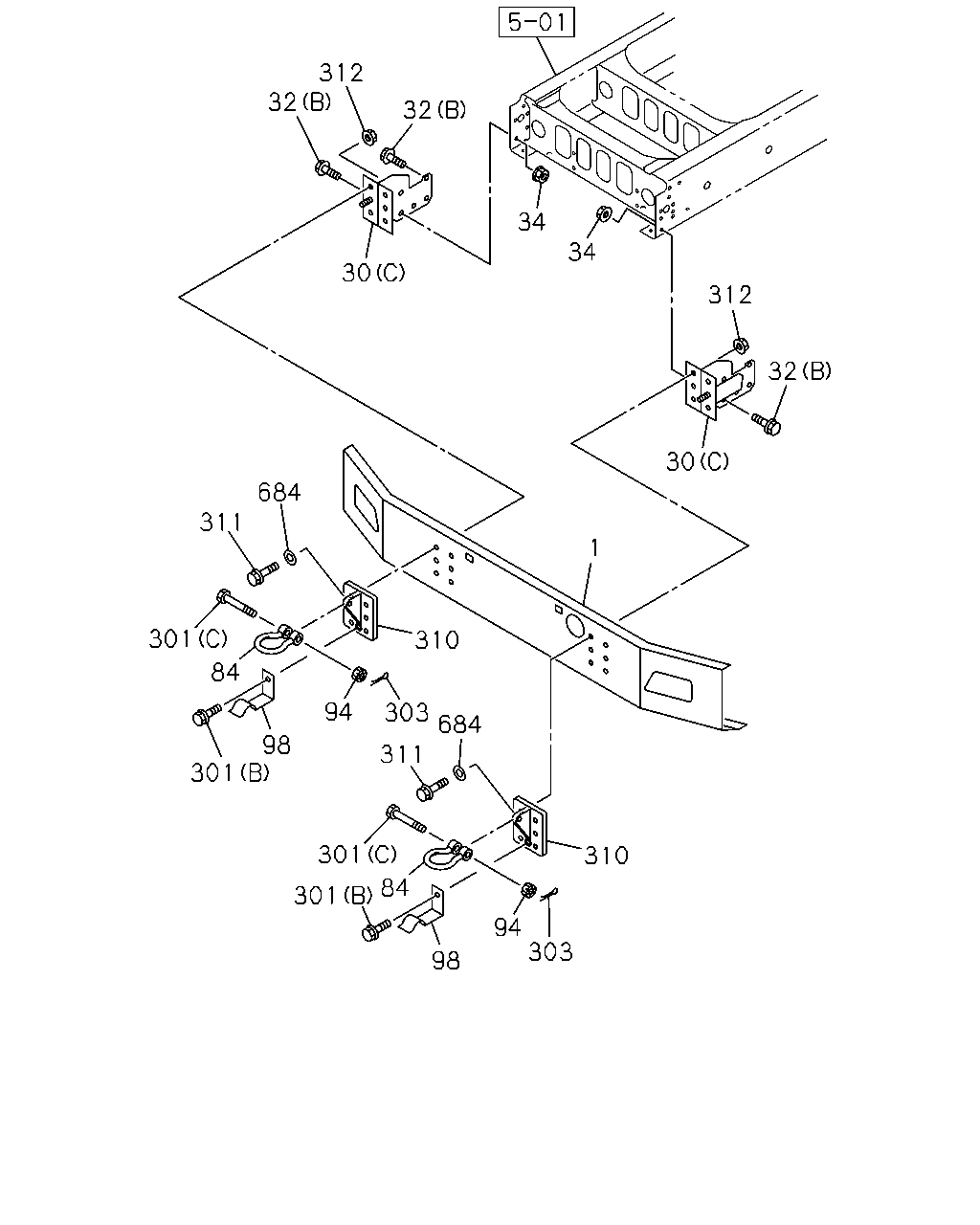

312 32 32 34 34 30 312 32 30 684 311 1 301 310 84 94 303 684 98 301 311 301 310 84 301 94 303 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7>	8-98136-824-1	01	1	1003-
1	BUMPER ASM; FRT WHITE	8-97409-273-2	01	1	0812-1002
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> WHITE	8-97409-273-2	01	1	1003-1212
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> WHITE	8-97425-798-0	01	1	1301-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	8-98117-301-1	01	1	1003-1004
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	8-98172-814-0	01	1	1005-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	8-98117-302-1	01	1	1003-1004
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	8-98172-815-0	01	1	1005-
30	BRACKET; FRT BUMPER (B)	8-97619-570-0	01	1	0812-1002
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	8-97619-570-0	01	1	1003-
30	BRACKET; FRT BUMPER (B)	8-97619-571-0	01	1	0812-1002
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	8-97619-571-0	01	1	1003-
30	BRACKET; FRT BUMPER (A)	8-97623-901-2	01	1	0812-1002
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	8-97623-901-2	01	1	1003-1208
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	8-97642-918-0	01	1	1209-1405
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	8-98283-921-0	01	1	1406-
30	BRACKET; FRT BUMPER (A)	8-97623-902-2	01	1	0812-1002
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	8-97623-902-2	01	1	1003-1208
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	8-97642-919-0	01	1	1209-1405
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	8-98283-922-0	01	1	1406-
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (B) M12X40 FLANGE	0-28651-240-0	10	1	1003-
32	BOLT; BRKT,BUMPER (A) M10X25 FLANGE	0-28651-025-0	04	1	0812-1002
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (A) M10X25 FLANGE	0-28651-025-0	04	1	1003-
32	BOLT; BRKT,BUMPER (B) M12X40 FLANGE	0-28651-240-0	02	1	0812-1002
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (B) M12X40 FLANGE	0-28651-240-0	02	1	1003-
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M12 FLANGE	0-91180-112-0	08	1	1003-
34	NUT; BRKT,BUMPER M12 FLANGE	0-91180-212-0	08	1	0812-1002
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M12 FLANGE	0-91180-212-0	08	1	1003-
34	NUT; BRKT,BUMPER M14 FLANGE	0-91180-214-0	06	1	0812-1002
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M14 FLANGE	0-91180-214-0	06	1	1003-
84	HOOK REINFORCEMENT BUMPER<VG7>	1-57181-023-1	02	1	1003-
84	HOOK	1-57181-027-1	01	1	0812-1002
84	HOOK EXC. REINFORCEMENT BUMPER<VG7>	1-57181-027-1	01	1	1003-
94	NUT; HOOK REINFORCEMENT BUMPER<VG7> M24	1-09442-032-0	02	1	1003-
94	NUT; HOOK M16	0-91110-516-0	02	1	0812-1002
94	NUT; HOOK EXC. REINFORCEMENT BUMPER<VG7> M16	0-91110-516-0	02	1	1003-
98	STOPPER; SPR,FRT HOOK REINFORCEMENT BUMPER<VG7>	1-09700-971-0	02	1	1003-
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> (B) M8X16 FLANGE	0-28050-816-0	02	1	1003-
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> (C) M24X124.5	1-09042-026-1	02	1	1003-
301	BOLT; HOOK TO FRAME (A) M16X70	0-10861-670-0	02	1	0812-1002
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> (A) M16X70	0-10861-670-0	02	1	1003-
303	PIN; FRT HOOK REINFORCEMENT BUMPER<VG7> OD=4.6 L=35	0-81125-035-0	02	1	1003-1004
303	PIN; FRT HOOK REINFORCEMENT BUMPER<VG7> OD=4.6 L=50	0-81125-050-0	02	1	1005-
310	BRACKET; LOOP REINFORCEMENT BUMPER<VG7>	1-57189-177-3	02	1	1003-
311	BOLT; BRKT REINFORCEMENT BUMPER<VG7> M14X50	0-10856-450-0	10	1	1003-
312	NUT; BRKT REINFORCEMENT BUMPER<VG7> M14	0-91110-514-0	12	1	1003-
312	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0812-1002
312	NUT; BRKT BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91180-210-0	04	1	1003-
684	WASHER REINFORCEMENT BUMPER<VG7> ID=14.2	0-91510-814-0	12	1	1003-
684	WASHER REINFORCEMENT BUMPER<VG7> ID=15	0-91610-514-0	12	1	1003-
