Sayfa 5-20 - Isuzu EPC

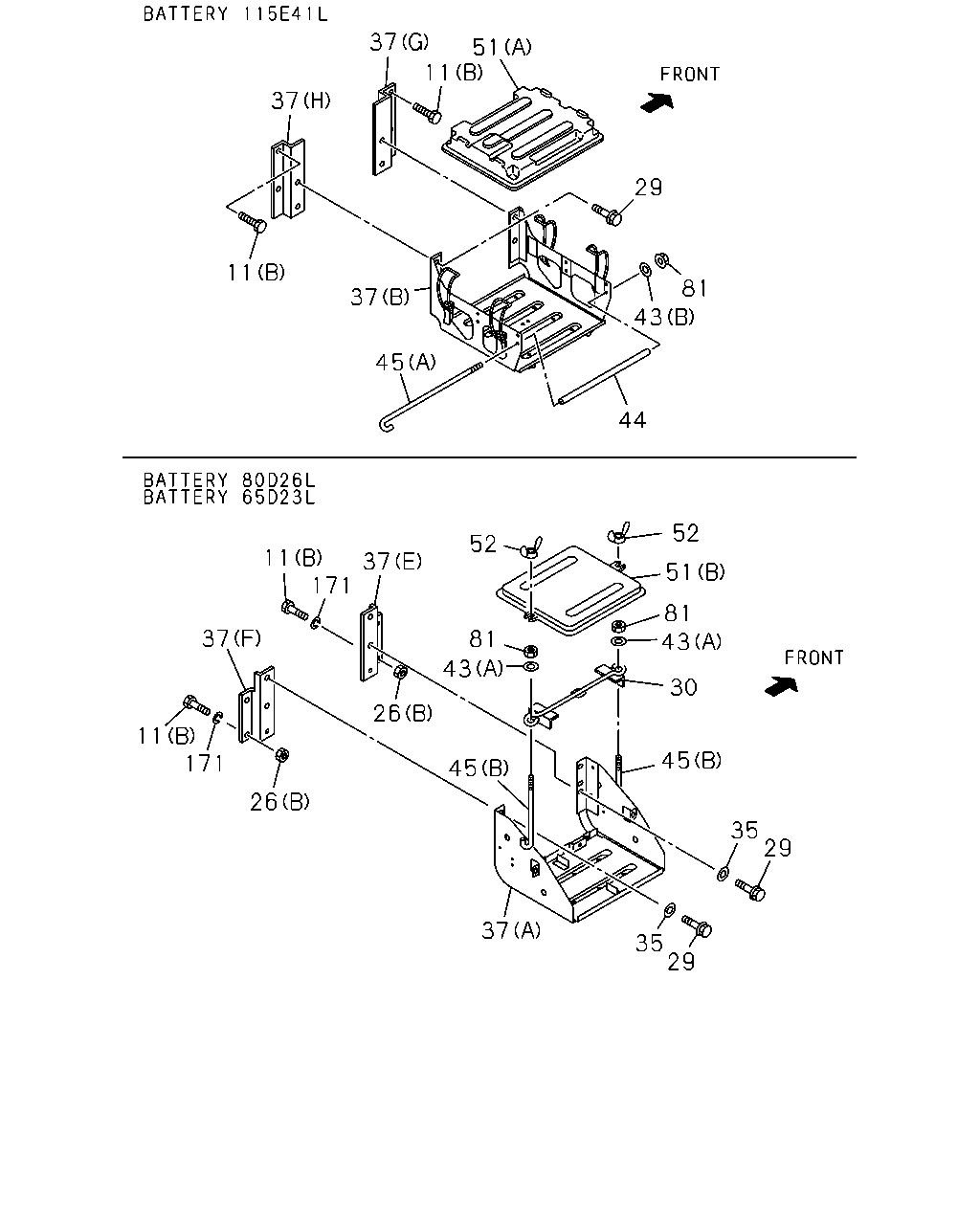

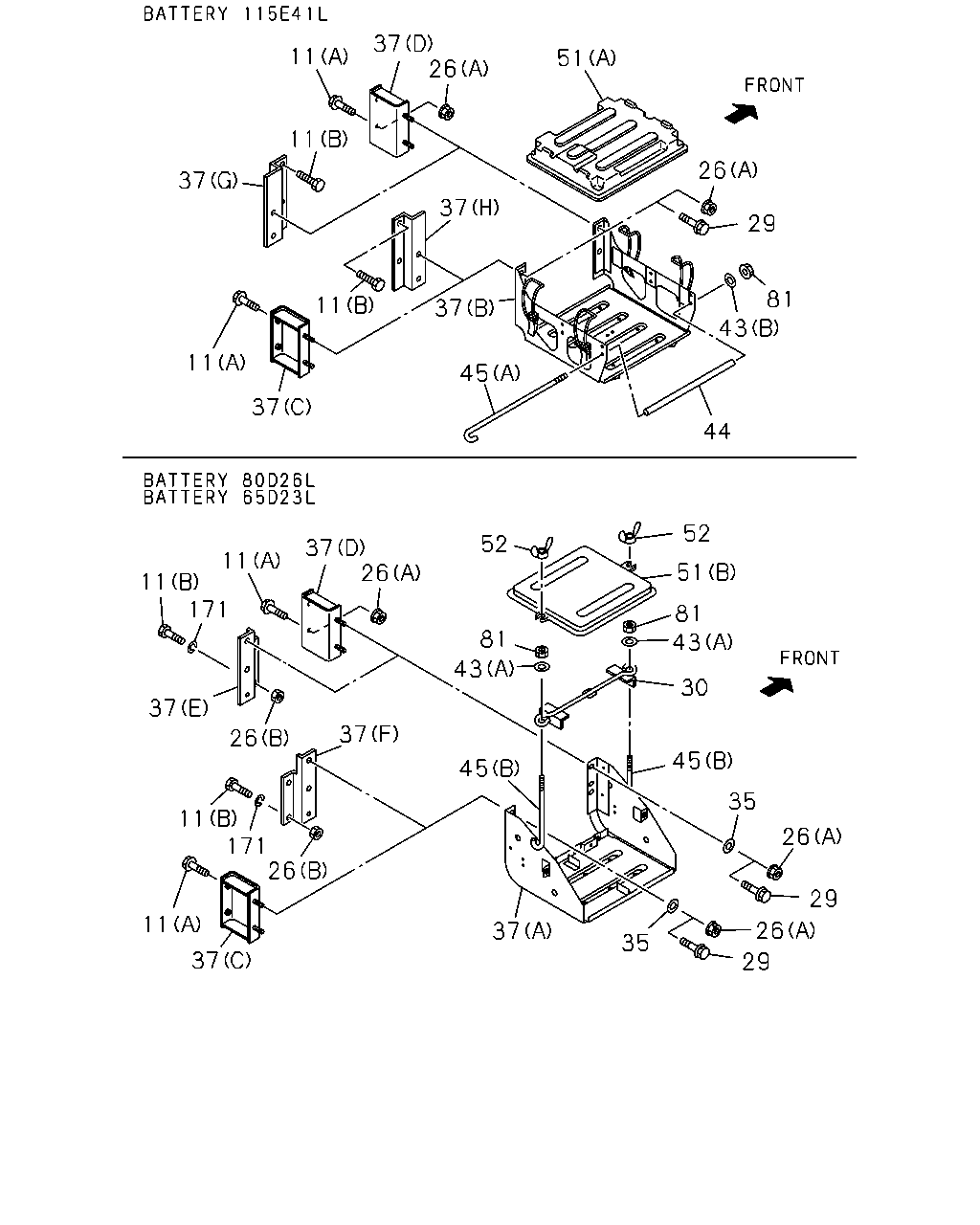

5-20 — BATTERY CARRIER (#69293) — 146 parça

37 37 11 51 29 81 43 44 37 45 11 11 37 11 171 26 26 45 43 37 171 52 81 52 81 43 51 30 45 35 29 29 35 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; BRKT FIX REARWARD INNER SINGLE TIRE<YK3> (B) M14X35	0-20851-435-0	04	1	1003-1009
11	BOLT; BRKT FIX WHEEL BASE 4100MM(41W) DOUBLE TIRE REARWARD<SR6> (B) M14X35	0-20851-435-0	04	1	1010-1011
11	BOLT; BRKT FIX REARWARD INNER SINGLE TIRE<YK3> (B) M14X35	0-20851-435-0	04	1	1010-1011
11	BOLT; BRKT FIX WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> (B) M14X35	0-20851-435-0	04	1	1012-
11	BOLT; BRKT FIX REARWARD INNER SINGLE TIRE<YK3> (B) M14X35	0-20851-435-0	04	1	1012-
11	BOLT; BRKT FIX (A) M10X35 FLANGE	0-28651-035-0	04	1	0812-1002
11	BOLT; BRKT FIX DOUBLE TIRE REARWARD<SR6> (A) M10X35 FLANGE	0-28651-035-0	04	1	1003-1009
11	BOLT; BRKT FIX WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> (A) M10X35 FLANGE	0-28651-035-0	04	1	1010-1011
11	BOLT; BRKT FIX WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> (A) M10X35 FLANGE	0-28651-035-0	04	1	1012-
26	NUT; BRKT REARWARD INNER SINGLE TIRE<YK3> (B) M14	0-91110-514-0	04	1	1003-1009
26	NUT; BRKT REARWARD INNER SINGLE TIRE<YK3> (B) M14	0-91110-514-0	04	1	1010-
26	NUT; BRKT WHEEL BASE 4100MM(41W) DOUBLE TIRE REARWARD<SR6> (B) M14	0-91110-514-0	04	1	1010-
26	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0812-1002
26	NUT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	02	1	1003-1011
26	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	04	1	1012-
26	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	04	1	1012-
26	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	0812-1002
26	NUT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	04	1	1003-1009
26	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	04	1	1010-1011
29	BOLT; BRKT TO FRAME REARWARD INNER SINGLE TIRE<YK3> M10X35 FLANGE	0-28651-035-0	04	1	1003-1009
29	BOLT; BRKT TO FRAME WHEEL BASE 4100MM(41W) DOUBLE TIRE REARWARD<SR6> M10X35 FLANGE	0-28651-035-0	04	1	1010-1011
29	BOLT; BRKT TO FRAME REARWARD INNER SINGLE TIRE<YK3> M10X35 FLANGE	0-28651-035-0	04	1	1010-1011
29	BOLT; BRKT TO FRAME WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> M10X35 FLANGE	0-28651-035-0	04	1	1012-
29	BOLT; BRKT TO FRAME REARWARD INNER SINGLE TIRE<YK3> M10X35 FLANGE	0-28651-035-0	04	1	1012-
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	0812-
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	0812-
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> REARWARD INNER SINGLE TIRE<YK3> (E)	1-53619-056-1	01	1	1003-1009
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) DOUBLE TIRE REARWARD<SR6> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (E)	1-53619-056-1	01	1	1010-1011
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> REARWARD INNER SINGLE TIRE<YK3> (E)	1-53619-056-1	01	1	1010-1011
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (E)	1-53619-056-1	01	1	1012-
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> REARWARD INNER SINGLE TIRE<YK3> (E)	1-53619-056-1	01	1	1012-
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> REARWARD INNER SINGLE TIRE<YK3> (F)	1-53619-057-2	01	1	1003-1009
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) DOUBLE TIRE REARWARD<SR6> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (F)	1-53619-057-2	01	1	1010-1011
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> REARWARD INNER SINGLE TIRE<YK3> (F)	1-53619-057-2	01	1	1010-1011
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (F)	1-53619-057-2	01	1	1012-
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> REARWARD INNER SINGLE TIRE<YK3> (F)	1-53619-057-2	01	1	1012-
37	BRACKET; BATTERY REARWARD INNER SINGLE TIRE<YK3> BATTERY 115E41L<8MA> (G)	8-98152-834-1	01	1	1003-1009
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) DOUBLE TIRE REARWARD<SR6> BATTERY 115E41L<8MA> (G)	8-98152-834-1	01	1	1010-1011
37	BRACKET; BATTERY REARWARD INNER SINGLE TIRE<YK3> BATTERY 115E41L<8MA> (G)	8-98152-834-1	01	1	1010-1011
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> BATTERY 115E41L<8MA> (G)	8-98152-834-1	01	1	1012-
37	BRACKET; BATTERY REARWARD INNER SINGLE TIRE<YK3> BATTERY 115E41L<8MA> (G)	8-98152-834-1	01	1	1012-
37	BRACKET; BATTERY REARWARD INNER SINGLE TIRE<YK3> BATTERY 115E41L<8MA> (H)	8-98152-835-1	01	1	1003-1009
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) DOUBLE TIRE REARWARD<SR6> BATTERY 115E41L<8MA> (H)	8-98152-835-1	01	1	1010-1011
37	BRACKET; BATTERY REARWARD INNER SINGLE TIRE<YK3> BATTERY 115E41L<8MA> (H)	8-98152-835-1	01	1	1010-1011
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> BATTERY 115E41L<8MA> (H)	8-98152-835-1	01	1	1012-
37	BRACKET; BATTERY REARWARD INNER SINGLE TIRE<YK3> BATTERY 115E41L<8MA> (H)	8-98152-835-1	01	1	1012-
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0812-1002
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	1003-
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	0812-1002
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	1003-
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	0812-1002
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	1003-1405
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98261-636-0	01	1	1406-
37	BRACKET; BATTERY (C)	8-98070-047-0	01	1	0812-0906
37	BRACKET; BATTERY (C)	8-98144-194-0	01	1	0907-1002
37	BRACKET; BATTERY DOUBLE TIRE REARWARD<SR6> (C)	8-98144-194-0	01	1	1003-1009
37	BRACKET; BATTERY WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> (C)	8-98144-194-0	01	1	1010-1011
37	BRACKET; BATTERY WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> (C)	8-98162-291-0	01	1	1012-
37	BRACKET; BATTERY (D)	8-98088-828-0	01	1	0812-1002
37	BRACKET; BATTERY DOUBLE TIRE REARWARD<SR6> (D)	8-98088-828-0	01	1	1003-1009
37	BRACKET; BATTERY WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> (D)	8-98088-828-0	01	1	1010-
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22	0-91614-708-0	02	1	0812-
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (B) ID=8.4 OD=16	0-91610-508-0	02	1	0812-
44	SPACER; BATTERY BATTERY 115E41L<8MA>	8-98261-682-0	02	1	1406-
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120	9-53616-615-0	02	1	0812-
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A) L=430	8-97134-740-0	02	1	0812-
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	0812-
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	0812-
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	0812-
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	0812-
171	WASHER; BRKT REARWARD INNER SINGLE TIRE<YK3> ID=14.2	0-91510-814-0	04	1	1003-1009
171	WASHER; BRKT REARWARD INNER SINGLE TIRE<YK3> ID=14.2	0-91510-814-0	04	1	1010-
171	WASHER; BRKT WHEEL BASE 4100MM(41W) DOUBLE TIRE REARWARD<SR6> ID=14.2	0-91510-814-0	04	1	1010-

11 37 26 11 37 11 11 37 37 37 45 51 26 29 81 43 44 52 52 51 81 81 43 43 30 45 45 35 26 29 26 29 35 37 37 11 11 171 26 37 26 37 11 171 11 37 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; BRKT FIX REARWARD INNER SINGLE TIRE<YK3> (B) M14X35	0-20851-435-0	04	1	1003-1009
11	BOLT; BRKT FIX WHEEL BASE 4100MM(41W) DOUBLE TIRE REARWARD<SR6> (B) M14X35	0-20851-435-0	04	1	1010-1011
11	BOLT; BRKT FIX REARWARD INNER SINGLE TIRE<YK3> (B) M14X35	0-20851-435-0	04	1	1010-1011
11	BOLT; BRKT FIX WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> (B) M14X35	0-20851-435-0	04	1	1012-
11	BOLT; BRKT FIX REARWARD INNER SINGLE TIRE<YK3> (B) M14X35	0-20851-435-0	04	1	1012-
11	BOLT; BRKT FIX (A) M10X35 FLANGE	0-28651-035-0	04	1	0812-1002
11	BOLT; BRKT FIX DOUBLE TIRE REARWARD<SR6> (A) M10X35 FLANGE	0-28651-035-0	04	1	1003-1009
11	BOLT; BRKT FIX WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> (A) M10X35 FLANGE	0-28651-035-0	04	1	1010-1011
11	BOLT; BRKT FIX WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> (A) M10X35 FLANGE	0-28651-035-0	04	1	1012-
26	NUT; BRKT REARWARD INNER SINGLE TIRE<YK3> (B) M14	0-91110-514-0	04	1	1003-1009
26	NUT; BRKT REARWARD INNER SINGLE TIRE<YK3> (B) M14	0-91110-514-0	04	1	1010-
26	NUT; BRKT WHEEL BASE 4100MM(41W) DOUBLE TIRE REARWARD<SR6> (B) M14	0-91110-514-0	04	1	1010-
26	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0812-1002
26	NUT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	02	1	1003-1011
26	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	04	1	1012-
26	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	04	1	1012-
26	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	0812-1002
26	NUT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	04	1	1003-1009
26	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	04	1	1010-1011
29	BOLT; BRKT TO FRAME REARWARD INNER SINGLE TIRE<YK3> M10X35 FLANGE	0-28651-035-0	04	1	1003-1009
29	BOLT; BRKT TO FRAME WHEEL BASE 4100MM(41W) DOUBLE TIRE REARWARD<SR6> M10X35 FLANGE	0-28651-035-0	04	1	1010-1011
29	BOLT; BRKT TO FRAME REARWARD INNER SINGLE TIRE<YK3> M10X35 FLANGE	0-28651-035-0	04	1	1010-1011
29	BOLT; BRKT TO FRAME WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> M10X35 FLANGE	0-28651-035-0	04	1	1012-
29	BOLT; BRKT TO FRAME REARWARD INNER SINGLE TIRE<YK3> M10X35 FLANGE	0-28651-035-0	04	1	1012-
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	0812-
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	0812-
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> REARWARD INNER SINGLE TIRE<YK3> (E)	1-53619-056-1	01	1	1003-1009
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) DOUBLE TIRE REARWARD<SR6> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (E)	1-53619-056-1	01	1	1010-1011
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> REARWARD INNER SINGLE TIRE<YK3> (E)	1-53619-056-1	01	1	1010-1011
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (E)	1-53619-056-1	01	1	1012-
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> REARWARD INNER SINGLE TIRE<YK3> (E)	1-53619-056-1	01	1	1012-
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> REARWARD INNER SINGLE TIRE<YK3> (F)	1-53619-057-2	01	1	1003-1009
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) DOUBLE TIRE REARWARD<SR6> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (F)	1-53619-057-2	01	1	1010-1011
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> REARWARD INNER SINGLE TIRE<YK3> (F)	1-53619-057-2	01	1	1010-1011
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (F)	1-53619-057-2	01	1	1012-
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> REARWARD INNER SINGLE TIRE<YK3> (F)	1-53619-057-2	01	1	1012-
37	BRACKET; BATTERY REARWARD INNER SINGLE TIRE<YK3> BATTERY 115E41L<8MA> (G)	8-98152-834-1	01	1	1003-1009
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) DOUBLE TIRE REARWARD<SR6> BATTERY 115E41L<8MA> (G)	8-98152-834-1	01	1	1010-1011
37	BRACKET; BATTERY REARWARD INNER SINGLE TIRE<YK3> BATTERY 115E41L<8MA> (G)	8-98152-834-1	01	1	1010-1011
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> BATTERY 115E41L<8MA> (G)	8-98152-834-1	01	1	1012-
37	BRACKET; BATTERY REARWARD INNER SINGLE TIRE<YK3> BATTERY 115E41L<8MA> (G)	8-98152-834-1	01	1	1012-
37	BRACKET; BATTERY REARWARD INNER SINGLE TIRE<YK3> BATTERY 115E41L<8MA> (H)	8-98152-835-1	01	1	1003-1009
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) DOUBLE TIRE REARWARD<SR6> BATTERY 115E41L<8MA> (H)	8-98152-835-1	01	1	1010-1011
37	BRACKET; BATTERY REARWARD INNER SINGLE TIRE<YK3> BATTERY 115E41L<8MA> (H)	8-98152-835-1	01	1	1010-1011
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> BATTERY 115E41L<8MA> (H)	8-98152-835-1	01	1	1012-
37	BRACKET; BATTERY REARWARD INNER SINGLE TIRE<YK3> BATTERY 115E41L<8MA> (H)	8-98152-835-1	01	1	1012-
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0812-1002
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	1003-
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	0812-1002
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	1003-
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	0812-1002
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	1003-1405
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98261-636-0	01	1	1406-
37	BRACKET; BATTERY (C)	8-98070-047-0	01	1	0812-0906
37	BRACKET; BATTERY (C)	8-98144-194-0	01	1	0907-1002
37	BRACKET; BATTERY DOUBLE TIRE REARWARD<SR6> (C)	8-98144-194-0	01	1	1003-1009
37	BRACKET; BATTERY WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> (C)	8-98144-194-0	01	1	1010-1011
37	BRACKET; BATTERY WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> (C)	8-98162-291-0	01	1	1012-
37	BRACKET; BATTERY (D)	8-98088-828-0	01	1	0812-1002
37	BRACKET; BATTERY DOUBLE TIRE REARWARD<SR6> (D)	8-98088-828-0	01	1	1003-1009
37	BRACKET; BATTERY WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> (D)	8-98088-828-0	01	1	1010-
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22	0-91614-708-0	02	1	0812-
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (B) ID=8.4 OD=16	0-91610-508-0	02	1	0812-
44	SPACER; BATTERY BATTERY 115E41L<8MA>	8-98261-682-0	02	1	1406-
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120	9-53616-615-0	02	1	0812-
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A) L=430	8-97134-740-0	02	1	0812-
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	0812-
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	0812-
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	0812-
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	0812-
171	WASHER; BRKT REARWARD INNER SINGLE TIRE<YK3> ID=14.2	0-91510-814-0	04	1	1003-1009
171	WASHER; BRKT REARWARD INNER SINGLE TIRE<YK3> ID=14.2	0-91510-814-0	04	1	1010-
171	WASHER; BRKT WHEEL BASE 4100MM(41W) DOUBLE TIRE REARWARD<SR6> ID=14.2	0-91510-814-0	04	1	1010-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
